◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11545 - FRR-LHD(EU)SPACE EU6 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-35 - POWER STEERING CONTROL; CHASSIS SIDE ▶
4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#128260) — 58 parça

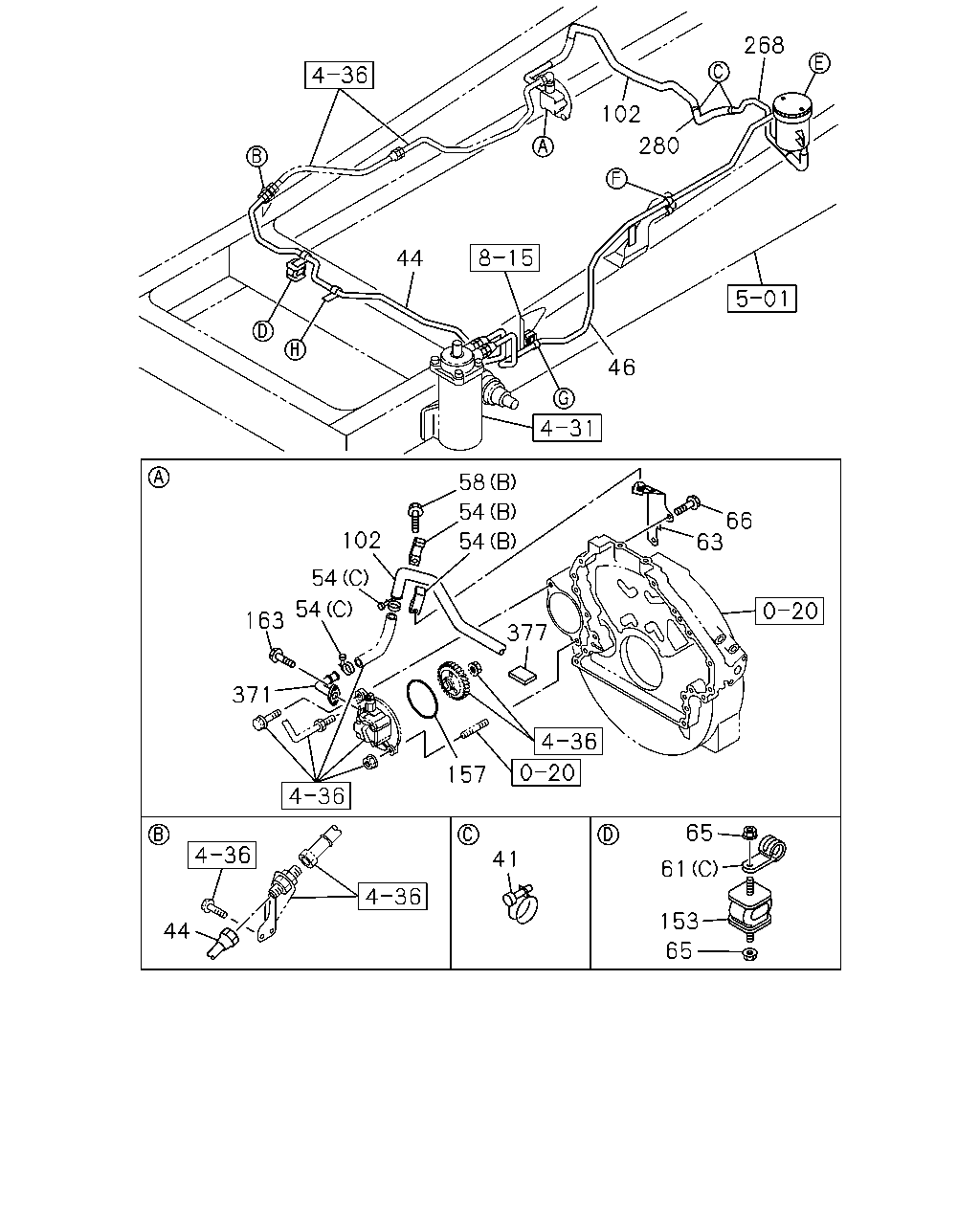

çizim 380346
44 102 268 280 46 58 54 66 63 377 157 102 54 54 163 371 41 44 65 61 153 65 54
BalonParca AdiParca NoAdetTipApplied Date A B
41 CLIP; HOSE,P/S
ID=32 		1-09704-085-0 02 1 1310- ● ●
44 PIPE; OIL,P/S UNIT TO NIPPLE
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) 		8-98204-055-0 01 1 1310- ● ●
44 PIPE; OIL,P/S UNIT TO NIPPLE
GENERATOR 24V90A(K44) 		8-98204-054-0 01 1 1310- ● ●
46 PIPE; OIL,P/S UNIT TO OIL TANK
L=1530 		8-98126-593-0 01 1 1310- ● ●
54 CLIP; OIL PIPE
(B) ID=17 L=17 		1-09701-284-0 02 1 1310- ● ●
54 CLIP; OIL PIPE
(C) ID=32 		1-09704-085-0 02 1 1310- ● ●
54 CLIP; OIL PIPE
(A) ID=19 L=20 		0-95235-836-0 02 1 1310- ● ●
58 BOLT; CLIP
(C) M8X25 FLANGE 		0-28650-825-0 01 1 1310- ● ●
58 BOLT; CLIP
(B) M8X45 FLANGE 		0-28050-845-0 01 1 1310- ● ●
58 BOLT; CLIP
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1310- ● ●
61 CLIP; OIL PIPE
(B) ID=13 H=18 L=20 		1-09700-813-0 01 1 1310- ● ●
61 CLIP; OIL PIPE
(C) ID=16 L=20 		0-95235-536-0 02 1 1310- ● ●
61 CLIP; OIL PIPE
(A) ID=16 & 13 L=21.5 & 21.5 		1-09700-668-0 01 1 1310- ● ●
63 BRACKET; CLIP,P/S 8-98075-954-0 01 1 1310- ● ●
65 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 1310- ● ●
66 BOLT; BRKT,OIL PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 1310- ● ●
102 PIPE; SUCTION,P/S 8-98057-017-4 01 1 1310- ● ●
153 RUBBER; CUSHION,POWER STRG PIPE 8-94158-156-1 02 1 1310- ● ●
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6 		8-97386-295-0 01 1 1310- ● ●
163 BOLT; OIL PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 1310- ● ●
268 PIPE; OIL,FLEX HOSE TO FLEX HOSE 8-98077-739-2 01 1 1310- ● ●
280 HOSE; P/S OIL PUMP,INL 8-98053-040-1 01 1 1310- ● ●
371 PIPE; OIL,INLET 8-98072-089-1 01 1 1310- ● ●
377 INSULATOR
FRIGID ZONE KIT<YL3> 		8-98141-066-0 01 1 1310-1310 ● ●
377 INSULATOR 8-98141-066-0 01 1 1311-1401 ●
377 INSULATOR
FRIGID ZONE KIT<YL3> 		8-98141-066-0 01 1 1311-1401 ●
377 INSULATOR 8-98270-804-0 01 1 1402- ●
377 INSULATOR
FRIGID ZONE KIT<YL3> 		8-98270-804-0 01 1 1402- ●

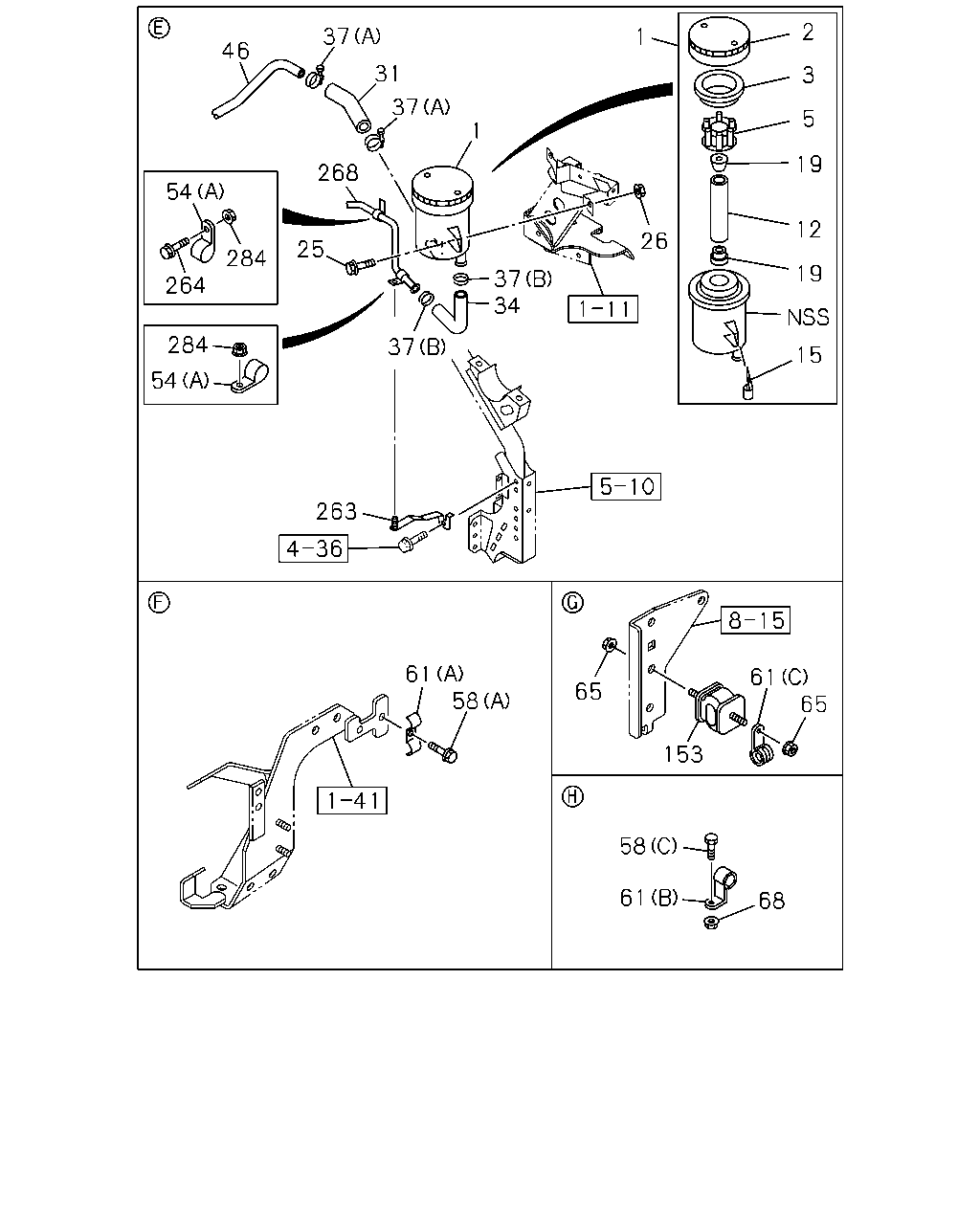

çizim 381736
1 2 3 5 19 12 15 19 37 46 31 268 37 37 1 34 37 25 54 284 264 284 54 263 61 65 153 58 61 68 61 58 26 65
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; OIL,P/S 8-98166-928-0 01 1 1310- ● ●
2 CAP; OIL TANK,P/S 8-98166-876-0 01 1 1310- ● ●
3 GASKET; OIL TANK,P/S 1-21249-003-1 01 1 1310- ● ●
5 STRAINER; OIL TANK,P/S 1-21235-007-1 01 1 1310- ● ●
12 FILTER; MICROBON,OIL TANK,P/S 1-21235-011-0 01 1 1310- ● ●
15 PLATE; FILTER,OIL TANK 1-21249-016-0 02 1 1310- ● ●
19 SEAT; OIL TANK 1-21249-004-0 02 1 1310- ● ●
25 BOLT; OIL TANK BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1310- ● ●
26 NUT; OIL TANK TO BRKT
M8 FLANGE 		0-91180-108-0 02 1 1310- ● ●
31 HOSE; P/S OIL TANK,INL 8-98131-108-0 01 1 1310- ● ●
34 HOSE; P/S OIL TANK,OUTLET 8-98021-827-0 01 1 1310- ● ●
37 CLIP; HOSE,P/S
(A) ID=26 		1-09704-082-0 02 1 1310- ● ●
37 CLIP; HOSE,P/S
(B) ID=32 		1-09704-085-0 02 1 1310- ● ●
46 PIPE; OIL,P/S UNIT TO OIL TANK
L=1530 		8-98126-593-0 01 1 1310- ● ●
54 CLIP; OIL PIPE
(B) ID=17 L=17 		1-09701-284-0 02 1 1310- ● ●
54 CLIP; OIL PIPE
(C) ID=32 		1-09704-085-0 02 1 1310- ● ●
54 CLIP; OIL PIPE
(A) ID=19 L=20 		0-95235-836-0 02 1 1310- ● ●
58 BOLT; CLIP
(C) M8X25 FLANGE 		0-28650-825-0 01 1 1310- ● ●
58 BOLT; CLIP
(B) M8X45 FLANGE 		0-28050-845-0 01 1 1310- ● ●
58 BOLT; CLIP
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1310- ● ●
61 CLIP; OIL PIPE
(B) ID=13 H=18 L=20 		1-09700-813-0 01 1 1310- ● ●
61 CLIP; OIL PIPE
(C) ID=16 L=20 		0-95235-536-0 02 1 1310- ● ●
61 CLIP; OIL PIPE
(A) ID=16 & 13 L=21.5 & 21.5 		1-09700-668-0 01 1 1310- ● ●
65 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 1310- ● ●
68 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 01 1 1310- ● ●
153 RUBBER; CUSHION,POWER STRG PIPE 8-94158-156-1 02 1 1310- ● ●
263 BRACKET; P/S PIPE 8-98130-274-0 01 1 1310- ● ●
264 BOLT; PIPE BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 1310- ● ●
268 PIPE; OIL,FLEX HOSE TO FLEX HOSE 8-98077-739-2 01 1 1310- ● ●
284 NUT; PIPE
M8 FLANGE 		0-91180-108-0 02 1 1310- ● ●
