◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11545 - FRR-LHD(EU)SPACE EU6 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-30 - STEERING WHEEL AND COWL ▶
4-30 — STEERING WHEEL AND COWL (#128257) — 16 parça

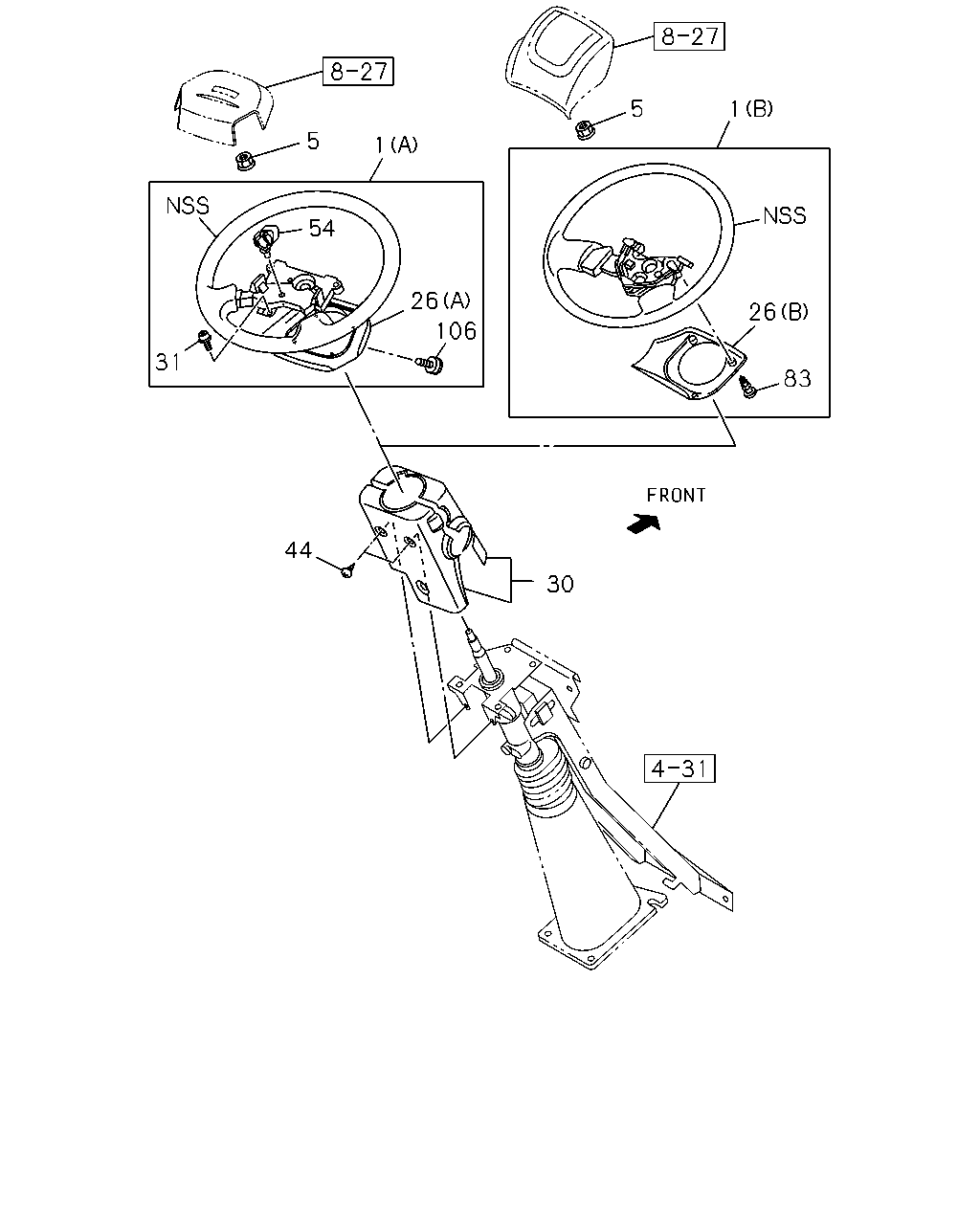

çizim 379781
5 54 1 26 31 106 44 30 83 26 1 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 WHEEL; STRG
FACE LIFT MODEL<TX7> (B) DARK GRAY 		8-97428-392-3 01 1 1412- ● ●
1 WHEEL; STRG
(A) DARK GRAY 		8-97423-998-0 01 1 1310-1411 ● ●
1 WHEEL; STRG
EXC. FACE LIFT MODEL<TX7> (A) DARK GRAY 		8-97423-998-0 01 1 1412- ● ●
5 NUT; STRG WHEEL TO SHAFT
M14 		0-91111-514-0 01 1 1310- ● ●
26 COVER; STRG WHEEL,LWR
(A) DARK GRAY 		8-97421-978-0 01 1 1310-1411 ● ●
26 COVER; STRG WHEEL,LWR
EXC. FACE LIFT MODEL<TX7> (A) DARK GRAY 		8-97421-978-0 01 1 1412- ● ●
26 COVER; STRG WHEEL,LWR
FACE LIFT MODEL<TX7> (B) DARK GRAY 		8-97465-726-2 01 1 1412- ● ●
30 COWL; STEERING
DARK GRAY 		8-97411-503-1 01 1 1310- ● ●
31 SCREW; BOSS TO COVER
M4X12 		8-97167-588-0 04 1 1310-1411 ● ●
31 SCREW; BOSS TO COVER
EXC. FACE LIFT MODEL<TX7> M4X12 		8-97167-588-0 04 1 1412- ● ●
44 SCREW; STRG COWL
M5X12 		0-38050-512-0 03 1 1310- ● ●
54 CLIP; HARNESS 8-98165-703-0 01 1 1310-1411 ● ●
54 CLIP; HARNESS
EXC. FACE LIFT MODEL<TX7> 		8-98165-703-0 01 1 1412- ● ●
83 SCREW; LWR COVER TO WHEEL
FACE LIFT MODEL<TX7> M4X10 TAPPING 		0-71240-410-0 03 1 1412- ● ●
106 BOLT; TORX 8-98231-397-0 02 1 1310-1411 ● ●
106 BOLT; TORX
EXC. FACE LIFT MODEL<TX7> 		8-98231-397-0 02 1 1412- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
