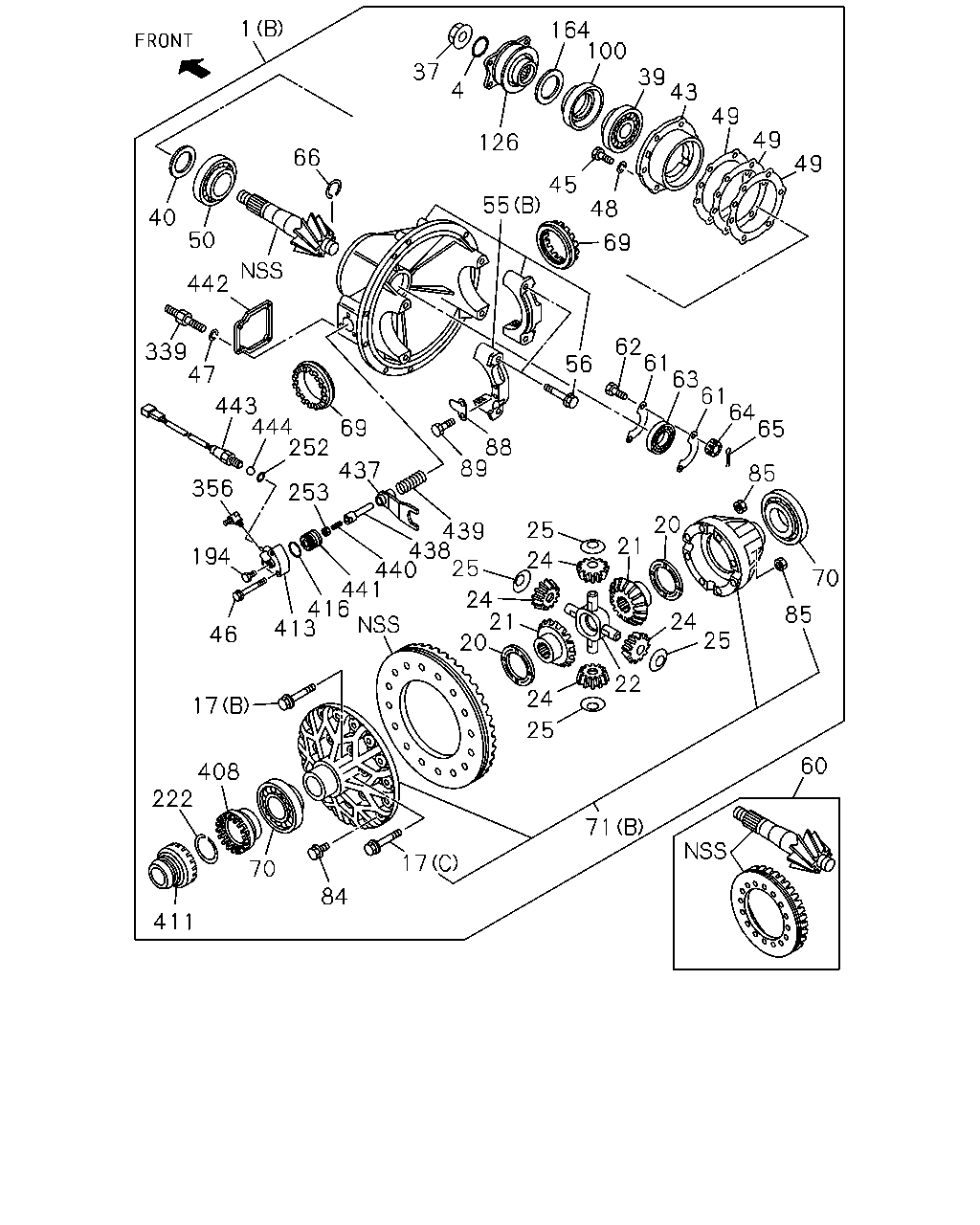

4-25 — REAR FINAL DRIVE (#128256) — 188 parça

62 56 61 63 61 85 65 64 70 85 20 21 25 25 24 24 25 60 71 17 84 24 25 22 21 20 440 441 416 413 46 194 253 437 69 88 89 439 438 24 70 411 222 17 356 444 443 47 339 442 50 40 66 1 37 126 4 55 45 48 39 100 49 49 69 164 43 252 408 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> (A) 39/9	1-41003-250-0	01	1	1310-	●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (B) 39/9	1-41003-550-0	01	1	1310-	●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> (A) 41/9	1-41003-343-0	01	1	1310-		●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (B) 41/9	1-41003-549-0	01	1	1310-		●
4	GASKET; FLANGE,FINAL PINION ID=37.5 T=4	1-09623-582-0	01	1	1310-	●	●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	04	1	1310-	●	●
17	BOLT; DIFF CAGE SETTING EXC. DIFF LOCK<C3N> (A) M14X121 FLANGE	1-09044-006-0	04	1	1310-	●	●
17	BOLT; DIFF CAGE SETTING DIFF LOCK<C3N> (C) M14X112 FLANGE	1-09070-057-1	04	1	1310-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-061-0	AR	1	1310-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-062-0	AR	1	1310-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-063-0	AR	1	1310-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-064-0	AR	1	1310-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-080-0	AR	1	1310-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-081-0	AR	1	1310-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-082-0	AR	1	1310-	●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-149-0	02	1	1310-	●	●
22	SPIDER; DIFF PINION	1-41521-050-2	01	1	1310-	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-049-0	04	1	1310-	●	●
25	WASHER; THRUST,PINION ID=29 OD=60	1-41562-119-0	04	1	1310-	●	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-083-0	01	1	1310-	●	●
39	BEARING; FINAL PINION JTEKT	5-09812-062-1	01	1	1310-	●	●
39	BEARING; FINAL PINION NSK	5-09812-063-0	01	1	1310-	●	●
40	SHIM; FINAL PINION T=1.60	1-41229-179-0	AR	1	1310-	●	●
40	SHIM; FINAL PINION T=1.61	1-41229-180-0	AR	1	1310-	●	●
40	SHIM; FINAL PINION T=1.62	1-41229-181-0	AR	1	1310-	●	●
40	SHIM; FINAL PINION T=1.63	1-41229-182-0	AR	1	1310-	●	●
40	SHIM; FINAL PINION T=1.64	1-41229-183-0	AR	1	1310-	●	●
40	SHIM; FINAL PINION T=1.65	1-41229-184-0	AR	1	1310-	●	●
40	SHIM; FINAL PINION T=1.66	1-41229-185-0	AR	1	1310-	●	●
40	SHIM; FINAL PINION T=1.67	1-41229-186-0	AR	1	1310-	●	●
40	SHIM; FINAL PINION T=1.68	1-41229-187-0	AR	1	1310-	●	●
40	SHIM; FINAL PINION T=1.69	1-41229-188-0	AR	1	1310-	●	●
40	SHIM; FINAL PINION T=1.70	1-41229-189-0	AR	1	1310-	●	●
43	CAGE; FINAL PINION	1-41151-027-0	01	1	1310-	●	●
45	BOLT; FINAL PINION CAGE M12X40	9-02361-240-0	06	1	1310-	●	●
46	BOLT DIFF LOCK<C3N> M8X60 FLANGE	0-28050-860-0	03	1	1310-	●	●
47	WASHER; LK DIFF LOCK<C3N> ID=8.2	1-09985-177-0	04	1	1310-	●	●
48	WASHER; LK,FINAL PINION ID=12.2	0-91510-812-0	06	1	1310-	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	1310-	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	1310-	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	1310-	●	●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	1310-	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1310-	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1310-	●	●
55	CARRIER; DIFF EXC. DIFF LOCK<C3N> (A)	1-41110-129-0	01	1	1310-	●	●
55	CARRIER; DIFF DIFF LOCK<C3N> (B)	1-41110-122-0	01	1	1310-	●	●
56	BOLT; BRG CAP M16X100 FLANGE	1-09070-047-0	04	1	1310-	●	●
60	GEAR SET; FINAL DRIVE,RR 39/9	1-41210-455-0	01	1	1310-	●
60	GEAR SET; FINAL DRIVE,RR 41/9	1-41210-729-0	01	1	1310-		●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	1310-	●	●
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-046-0	02	1	1310-	●	●
63	BEARING; PINION PILOT NSK	1-09810-073-2	01	1	1310-	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-074-1	01	1	1310-	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1310-	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1310-	●	●
66	RING; SNAP,PILOT BRG OD=34.2	1-09588-214-0	01	1	1310-	●	●
69	NUT; ADJ,DIFF CAGE EXC. DIFF LOCK<C3N> M128 H=22	1-41121-013-0	01	1	1310-	●	●
69	NUT; ADJ,DIFF CAGE DIFF LOCK<C3N> M138 H=30	1-41121-054-0	01	1	1310-	●	●
69	NUT; ADJ,DIFF CAGE DIFF LOCK<C3N> M128 H=30	1-41121-015-0	01	1	1310-	●	●
69	NUT; ADJ,DIFF CAGE EXC. DIFF LOCK<C3N> M128 H=30	1-41121-015-0	01	1	1310-	●	●
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	1310-	●	●
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	1310-	●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1310-	●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1310-	●	●
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1310-	●	●
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1310-	●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> NSK ID=85 OD=130 T=29	1-09812-088-0	01	1	1310-	●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> JTEKT ID=85 OD=130 T=29	1-09812-089-0	01	1	1310-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE EXC. DIFF LOCK<C3N> (A)	1-41510-343-0	01	1	1310-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE DIFF LOCK<C3N> (B)	1-41510-334-0	01	1	1310-	●	●
84	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	1310-	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	1310-	●	●
88	PLATE; LK,ADJ NUT T=2.3	9-41124-015-0	02	1	1310-	●	●
89	BOLT; LK PLATE M8X12 FLANGE	8-94479-696-1	04	1	1310-	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	1310-	●	●
100	SEAL; OIL,FINAL PINION TKK	1-09625-637-0	01	1	1310-	●	●
126	COUPLING; DRIVING PINION	1-37245-414-0	01	1	1310-	●	●
164	COLLAR; DIST,PINION T=10.70	1-36355-031-0	01	1	1310-	●	●
164	COLLAR; DIST,PINION T=10.90	1-36355-033-0	01	1	1310-	●	●
164	COLLAR; DIST,PINION T=11.10	1-36355-035-0	01	1	1310-	●	●
164	COLLAR; DIST,PINION T=11.30	1-36355-037-0	01	1	1310-	●	●
164	COLLAR; DIST,PINION T=11.50	1-36355-039-0	01	1	1310-	●	●
164	COLLAR; DIST,PINION T=11.70	1-36355-041-0	01	1	1310-	●	●
164	COLLAR; DIST,PINION T=11.90	1-36355-043-0	01	1	1310-	●	●
164	COLLAR; DIST,PINION T=12.10	1-36355-045-0	01	1	1310-	●	●
164	COLLAR; DIST,PINION T=12.30	1-36355-047-0	01	1	1310-	●	●
194	PLUG DIFF LOCK<C3N> M12X9	0-92002-412-0	01	1	1310-	●	●
222	RING; SNAP DIFF LOCK<C3N>	1-09588-186-0	01	1	1310-	●	●
252	GASKET; CARRIER DIFF LOCK<C3N> ID=14.2	8-94462-114-0	01	1	1310-	●	●
253	NUT DIFF LOCK<C3N> M12	0-91111-512-0	01	1	1310-	●	●
339	BOLT; COVER DIFF LOCK<C3N> M6X14,M8X17 L=42	5-09309-006-1	04	1	1310-	●	●
356	NIPPLE; SHIFT UNIT DIFF LOCK<C3N> M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1310-	●	●
408	CLAW; CLU,DIFF LK DIFF LOCK<C3N>	1-41266-025-0	01	1	1310-	●	●
411	SLEEVE; CLU DIFF LOCK<C3N>	1-41266-027-0	01	1	1310-	●	●
413	CYLINDER; DIFF LK DIFF LOCK<C3N>	1-41279-021-0	01	1	1310-	●	●
416	GASKET DIFF LOCK<C3N> ID=43.7	9-09561-344-0	01	1	1310-	●	●
437	FORK ASM; SHIFT,DIFF LK DIFF LOCK<C3N>	1-41271-015-0	01	1	1310-	●	●
438	ROD; SHIFTER,DIFF LK DIFF LOCK<C3N>	1-41271-014-0	01	1	1310-	●	●
439	SPRING; RETUN,DIFF LK DIFF LOCK<C3N>	1-09580-507-0	01	1	1310-	●	●
440	SCREW SET; DIFF LK DIFF LOCK<C3N> M12X31	1-09120-021-0	01	1	1310-	●	●
441	PISTON; CHAMBER,DIFF LK DIFF LOCK<C3N>	1-41279-020-0	01	1	1310-	●	●
442	COVER; CARRIER,DIFF LK DIFF LOCK<C3N>	1-41117-005-0	01	1	1310-	●	●
443	SWITCH; STROKE DIFF LOCK<C3N>	1-82340-534-0	01	1	1310-	●	●
444	BALL DIFF LOCK<C3N>	9-00097-010-0	01	1	1310-	●	●

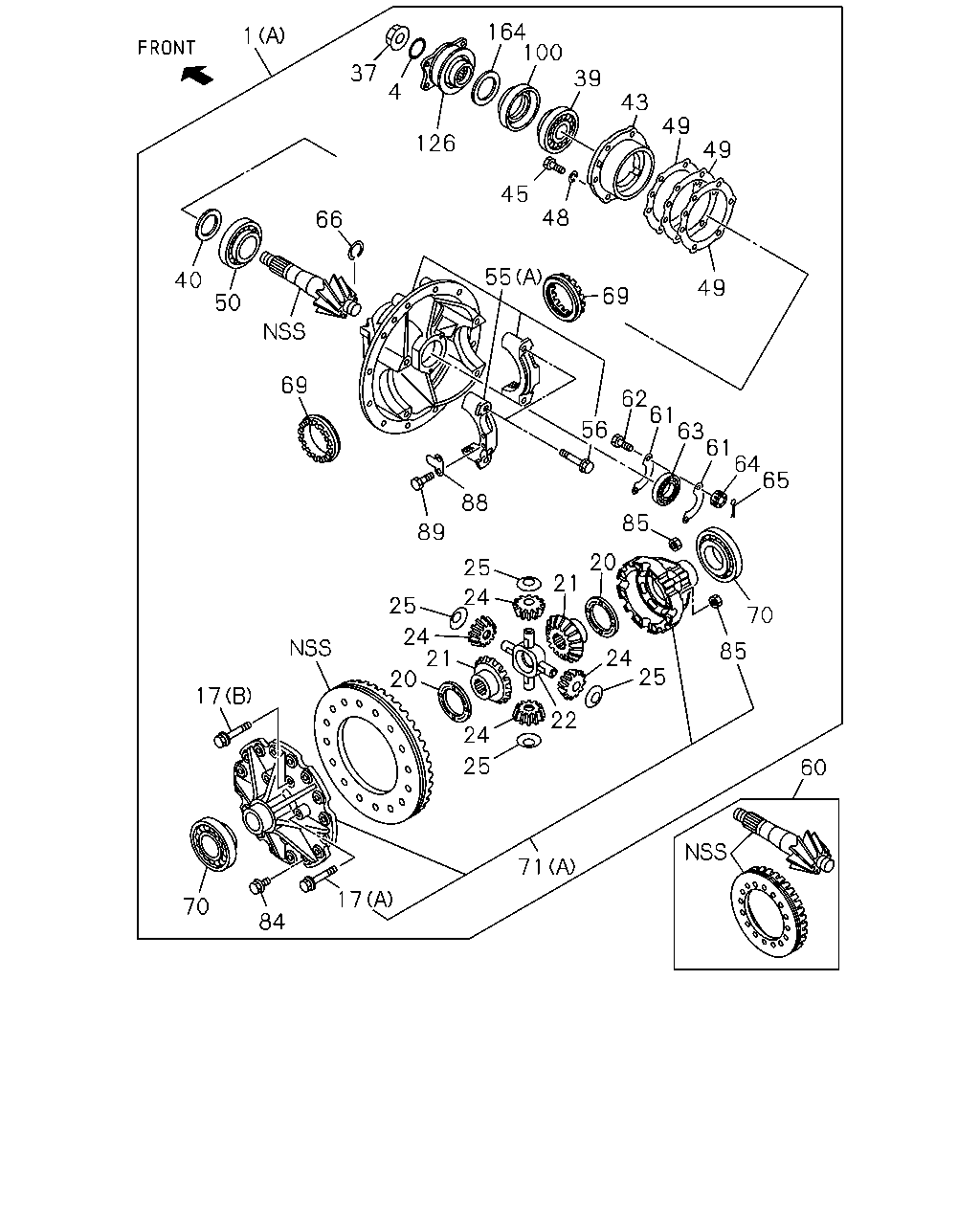

61 63 61 62 56 69 49 49 49 43 39 100 164 126 45 48 55 88 89 25 21 25 24 24 21 20 17 70 84 71 25 17 24 20 24 25 85 70 65 64 4 37 1 66 40 69 50 85 22 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> (A) 39/9	1-41003-250-0	01	1	1310-	●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (B) 39/9	1-41003-550-0	01	1	1310-	●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> (A) 41/9	1-41003-343-0	01	1	1310-		●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (B) 41/9	1-41003-549-0	01	1	1310-		●
4	GASKET; FLANGE,FINAL PINION ID=37.5 T=4	1-09623-582-0	01	1	1310-	●	●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	04	1	1310-	●	●
17	BOLT; DIFF CAGE SETTING EXC. DIFF LOCK<C3N> (A) M14X121 FLANGE	1-09044-006-0	04	1	1310-	●	●
17	BOLT; DIFF CAGE SETTING DIFF LOCK<C3N> (C) M14X112 FLANGE	1-09070-057-1	04	1	1310-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-061-0	AR	1	1310-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-062-0	AR	1	1310-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-063-0	AR	1	1310-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-064-0	AR	1	1310-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-080-0	AR	1	1310-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-081-0	AR	1	1310-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-082-0	AR	1	1310-	●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-149-0	02	1	1310-	●	●
22	SPIDER; DIFF PINION	1-41521-050-2	01	1	1310-	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-049-0	04	1	1310-	●	●
25	WASHER; THRUST,PINION ID=29 OD=60	1-41562-119-0	04	1	1310-	●	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-083-0	01	1	1310-	●	●
39	BEARING; FINAL PINION JTEKT	5-09812-062-1	01	1	1310-	●	●
39	BEARING; FINAL PINION NSK	5-09812-063-0	01	1	1310-	●	●
40	SHIM; FINAL PINION T=1.60	1-41229-179-0	AR	1	1310-	●	●
40	SHIM; FINAL PINION T=1.61	1-41229-180-0	AR	1	1310-	●	●
40	SHIM; FINAL PINION T=1.62	1-41229-181-0	AR	1	1310-	●	●
40	SHIM; FINAL PINION T=1.63	1-41229-182-0	AR	1	1310-	●	●
40	SHIM; FINAL PINION T=1.64	1-41229-183-0	AR	1	1310-	●	●
40	SHIM; FINAL PINION T=1.65	1-41229-184-0	AR	1	1310-	●	●
40	SHIM; FINAL PINION T=1.66	1-41229-185-0	AR	1	1310-	●	●
40	SHIM; FINAL PINION T=1.67	1-41229-186-0	AR	1	1310-	●	●
40	SHIM; FINAL PINION T=1.68	1-41229-187-0	AR	1	1310-	●	●
40	SHIM; FINAL PINION T=1.69	1-41229-188-0	AR	1	1310-	●	●
40	SHIM; FINAL PINION T=1.70	1-41229-189-0	AR	1	1310-	●	●
43	CAGE; FINAL PINION	1-41151-027-0	01	1	1310-	●	●
45	BOLT; FINAL PINION CAGE M12X40	9-02361-240-0	06	1	1310-	●	●
48	WASHER; LK,FINAL PINION ID=12.2	0-91510-812-0	06	1	1310-	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	1310-	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	1310-	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	1310-	●	●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	1310-	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1310-	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1310-	●	●
55	CARRIER; DIFF EXC. DIFF LOCK<C3N> (A)	1-41110-129-0	01	1	1310-	●	●
55	CARRIER; DIFF DIFF LOCK<C3N> (B)	1-41110-122-0	01	1	1310-	●	●
56	BOLT; BRG CAP M16X100 FLANGE	1-09070-047-0	04	1	1310-	●	●
60	GEAR SET; FINAL DRIVE,RR 39/9	1-41210-455-0	01	1	1310-	●
60	GEAR SET; FINAL DRIVE,RR 41/9	1-41210-729-0	01	1	1310-		●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	1310-	●	●
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-046-0	02	1	1310-	●	●
63	BEARING; PINION PILOT NSK	1-09810-073-2	01	1	1310-	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-074-1	01	1	1310-	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1310-	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1310-	●	●
66	RING; SNAP,PILOT BRG OD=34.2	1-09588-214-0	01	1	1310-	●	●
69	NUT; ADJ,DIFF CAGE EXC. DIFF LOCK<C3N> M128 H=22	1-41121-013-0	01	1	1310-	●	●
69	NUT; ADJ,DIFF CAGE DIFF LOCK<C3N> M138 H=30	1-41121-054-0	01	1	1310-	●	●
69	NUT; ADJ,DIFF CAGE DIFF LOCK<C3N> M128 H=30	1-41121-015-0	01	1	1310-	●	●
69	NUT; ADJ,DIFF CAGE EXC. DIFF LOCK<C3N> M128 H=30	1-41121-015-0	01	1	1310-	●	●
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	1310-	●	●
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	1310-	●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1310-	●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1310-	●	●
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1310-	●	●
70	BEARING; DIFF CAGE EXC. DIFF LOCK<C3N> JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1310-	●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> NSK ID=85 OD=130 T=29	1-09812-088-0	01	1	1310-	●	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> JTEKT ID=85 OD=130 T=29	1-09812-089-0	01	1	1310-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE EXC. DIFF LOCK<C3N> (A)	1-41510-343-0	01	1	1310-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE DIFF LOCK<C3N> (B)	1-41510-334-0	01	1	1310-	●	●
84	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	1310-	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	1310-	●	●
88	PLATE; LK,ADJ NUT T=2.3	9-41124-015-0	02	1	1310-	●	●
89	BOLT; LK PLATE M8X12 FLANGE	8-94479-696-1	04	1	1310-	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	1310-	●	●
100	SEAL; OIL,FINAL PINION TKK	1-09625-637-0	01	1	1310-	●	●
126	COUPLING; DRIVING PINION	1-37245-414-0	01	1	1310-	●	●
164	COLLAR; DIST,PINION T=10.70	1-36355-031-0	01	1	1310-	●	●
164	COLLAR; DIST,PINION T=10.90	1-36355-033-0	01	1	1310-	●	●
164	COLLAR; DIST,PINION T=11.10	1-36355-035-0	01	1	1310-	●	●
164	COLLAR; DIST,PINION T=11.30	1-36355-037-0	01	1	1310-	●	●
164	COLLAR; DIST,PINION T=11.50	1-36355-039-0	01	1	1310-	●	●
164	COLLAR; DIST,PINION T=11.70	1-36355-041-0	01	1	1310-	●	●
164	COLLAR; DIST,PINION T=11.90	1-36355-043-0	01	1	1310-	●	●
164	COLLAR; DIST,PINION T=12.10	1-36355-045-0	01	1	1310-	●	●
164	COLLAR; DIST,PINION T=12.30	1-36355-047-0	01	1	1310-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
