◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11545 - FRR-LHD(EU)SPACE EU6 ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#128251) — 47 parça

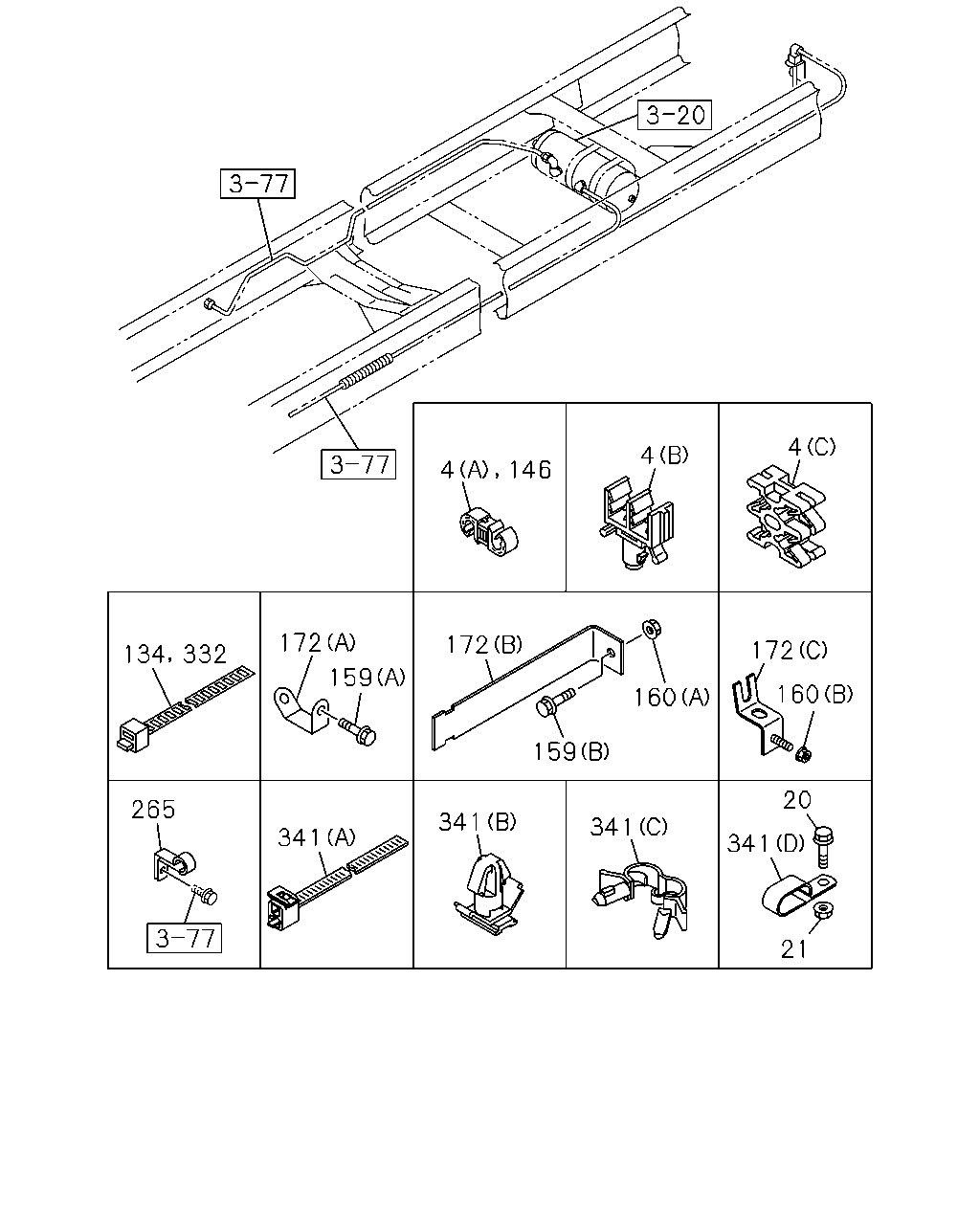

çizim 380279
134 332 265 341 172 159 172 4 146 4 4 160 172 160 159 341 341 341 20 21
BalonParca AdiParca NoAdetTipApplied Date A B
4 CLIP; AIR PIPE
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (C) ID=4.7X4 		1-09701-304-0 03 1 1310- ● ●
4 CLIP; AIR PIPE
EXC. THROTTLE CONTROL SYSTEM(6XH) (C) ID=4.7X4 		1-09701-304-0 03 1 1310- ● ●
4 CLIP; AIR PIPE
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) ID=4.76 & 6.35 		1-09709-304-0 02 1 1310- ● ●
4 CLIP; AIR PIPE
EXC. THROTTLE CONTROL SYSTEM(6XH) (A) ID=4.76 & 6.35 		1-09709-304-0 02 1 1310- ● ●
4 CLIP; AIR PIPE
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (B) ID=4.8X2 		8-94316-410-0 01 1 1310- ● ●
4 CLIP; AIR PIPE
EXC. THROTTLE CONTROL SYSTEM(6XH) (B) ID=4.8X2 		8-94316-410-0 01 1 1310- ● ●
4 CLIP; AIR PIPE
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) ID=6.35 & 10.0 		1-09709-274-1 06 1 1310- ● ●
4 CLIP; AIR PIPE
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) ID=10 & 10 		1-09709-277-1 08 1 1310- ● ●
4 CLIP; AIR PIPE
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) ID=4.76 & 10.0 		1-09709-305-0 03 1 1310- ● ●
4 CLIP; AIR PIPE
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (A) ID=6.35 & 10.0 		1-09709-274-1 04 1 1310- ● ●
4 CLIP; AIR PIPE
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (A) ID=10 & 10 		1-09709-277-1 05 1 1310- ● ●
4 CLIP; AIR PIPE
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) ID=6.35 & 10.0 		1-09709-274-1 03 1 1310- ● ●
4 CLIP; AIR PIPE
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) ID=10 & 10 		1-09709-277-1 04 1 1310- ● ●
4 CLIP; AIR PIPE
EXC. THROTTLE CONTROL SYSTEM(6XH) (A) ID=4.76 & 10.0 		1-09709-305-0 02 1 1310- ● ●
20 BOLT; CLIP
M10X30 FLANGE 		0-28651-030-0 01 1 1310- ● ●
21 NUT; CLIP
M10 FLANGE 		0-91180-210-0 01 1 1310- ● ●
134 CLIP; AIR PIPE
L=350 		1-09707-183-0 01 1 1310- ● ●
146 CLIP; AIR PIPE
ID=10 & 10 		1-09709-277-1 05 1 1310- ● ●
159 BOLT; CLIP BRKT
WHEEL BASE 3700MM(37W) (A) M10X30 FLANGE 		0-28651-030-0 02 1 1310- ●
159 BOLT; CLIP BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) (A) M10X30 FLANGE 		0-28651-030-0 01 1 1310- ●
159 BOLT; CLIP BRKT
WHEEL BASE 3400MM(34W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M10X30 FLANGE 		0-28651-030-0 01 1 1310- ●
159 BOLT; CLIP BRKT
WHEEL BASE 3400MM(34W) (B) M8X30 FLANGE 		0-28650-830-0 01 1 1310- ●
160 NUT; CLIP BRKT
WHEEL BASE 3700MM(37W) (B) M10 FLANGE 		0-91180-210-0 01 1 1310- ●
160 NUT; CLIP BRKT
WHEEL BASE 3400MM(34W) (A) M8 FLANGE 		0-91180-108-0 01 1 1310- ●
172 BRACKET; TUBE CLIP
WHEEL BASE 3700MM(37W) (C) 		8-98096-272-0 01 1 1310- ●
172 BRACKET; TUBE CLIP
WHEEL BASE 3700MM(37W) (A) 		8-98117-686-0 02 1 1310- ●
172 BRACKET; TUBE CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) (A) 		8-98117-686-0 01 1 1310- ●
172 BRACKET; TUBE CLIP
WHEEL BASE 3400MM(34W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) 		8-98117-686-0 01 1 1310- ●
172 BRACKET; TUBE CLIP
WHEEL BASE 3400MM(34W) (B) 		8-98206-908-0 01 1 1310- ●
265 CLIP; NYLON TUBE
ID=21 H=25.5 L=26 		8-94176-806-0 01 1 1310- ● ●
332 CLIP; BAND
L=250 		1-09707-126-0 05 1 1310- ● ●
341 CLIP; HARNESS
(A) L=180 		1-09707-162-1 01 1 1310- ● ●
341 CLIP; HARNESS
(B) OD=9 H=6 		1-09709-178-0 03 1 1310- ● ●
341 CLIP; HARNESS
(C) ID=5-12 L=14.5 		1-09987-221-0 04 1 1310- ● ●
341 CLIP; HARNESS
(D) ID=17.5X2 L=25 		5-09700-358-0 01 1 1310- ● ●

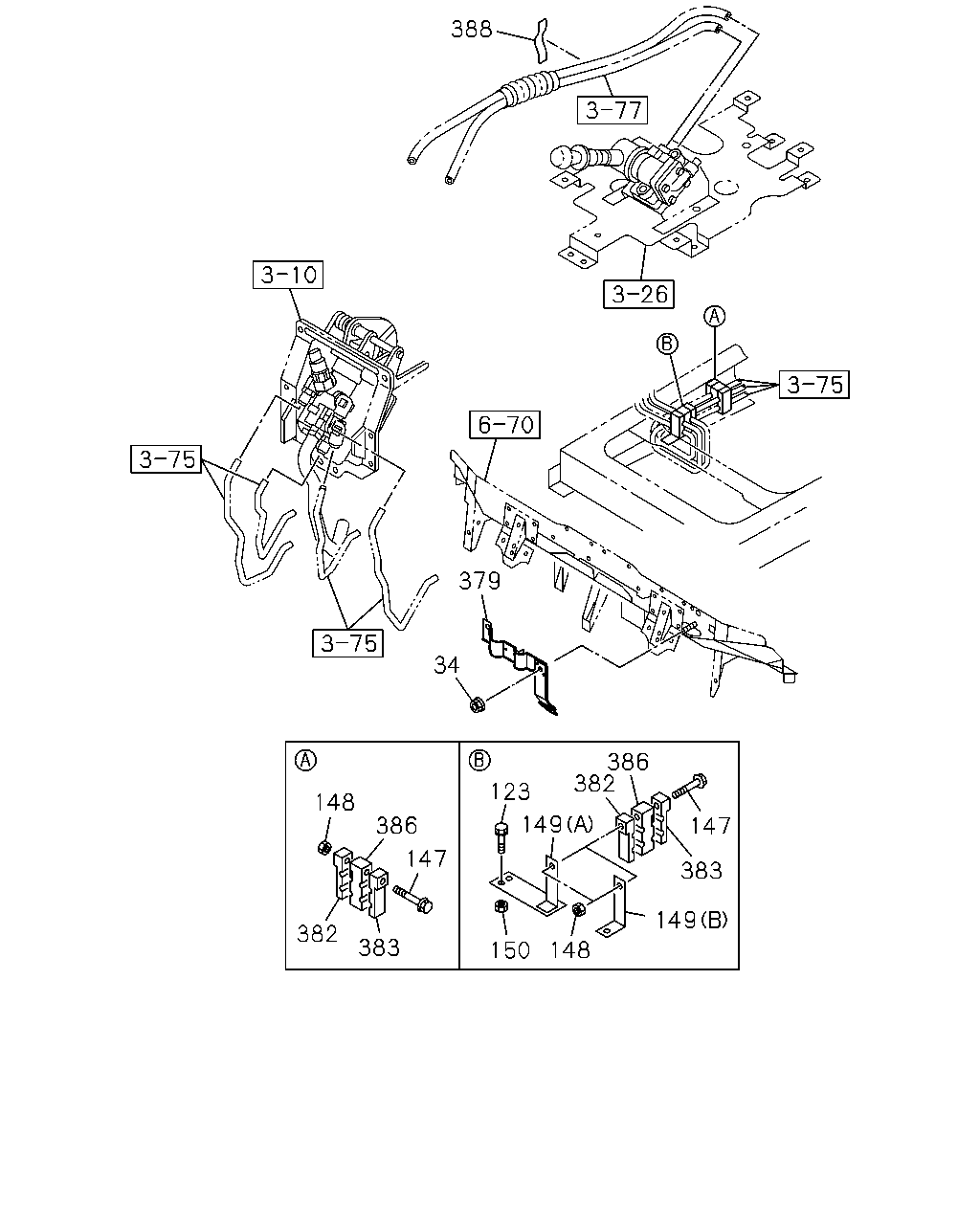

çizim 380408
379 34 388 148 386 147 383 382 150 148 149 383 147 149 123 382 386
BalonParca AdiParca NoAdetTipApplied Date A B
34 NUT; BRKT
M6 FLANGE 		0-91180-106-0 02 1 1310- ● ●
123 BOLT; PIPE CLIP
M8X25 FLANGE 		0-28650-825-0 03 1 1310- ● ●
147 BOLT; PIPE CLIP
M8X70 FLANGE 		0-28050-870-0 04 1 1310- ● ●
148 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 04 1 1310- ● ●
149 BRACKET; PIPE CLIP
(A) 		8-98090-114-0 01 1 1310- ● ●
149 BRACKET; PIPE CLIP
(B) 		8-98116-193-0 01 1 1310- ● ●
150 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 03 1 1310- ● ●
379 BRACKET; NYLON TUBE 8-98112-515-1 01 1 1310- ● ●
382 CLIP; UPR
ID=10 & 10 		1-09709-241-0 04 1 1310- ● ●
383 CLIP; LWR
ID=10 & 10 		1-09709-241-0 04 1 1310- ● ●
386 CLIP; CENTER
ID=10 		1-09709-242-0 04 1 1310- ● ●
388 SEAL
100X40 		1-72498-022-1 03 1 1310- ● ●
