3-70 — BRAKE PIPING; AIR,AIR MASTER (#128248) — 65 parça

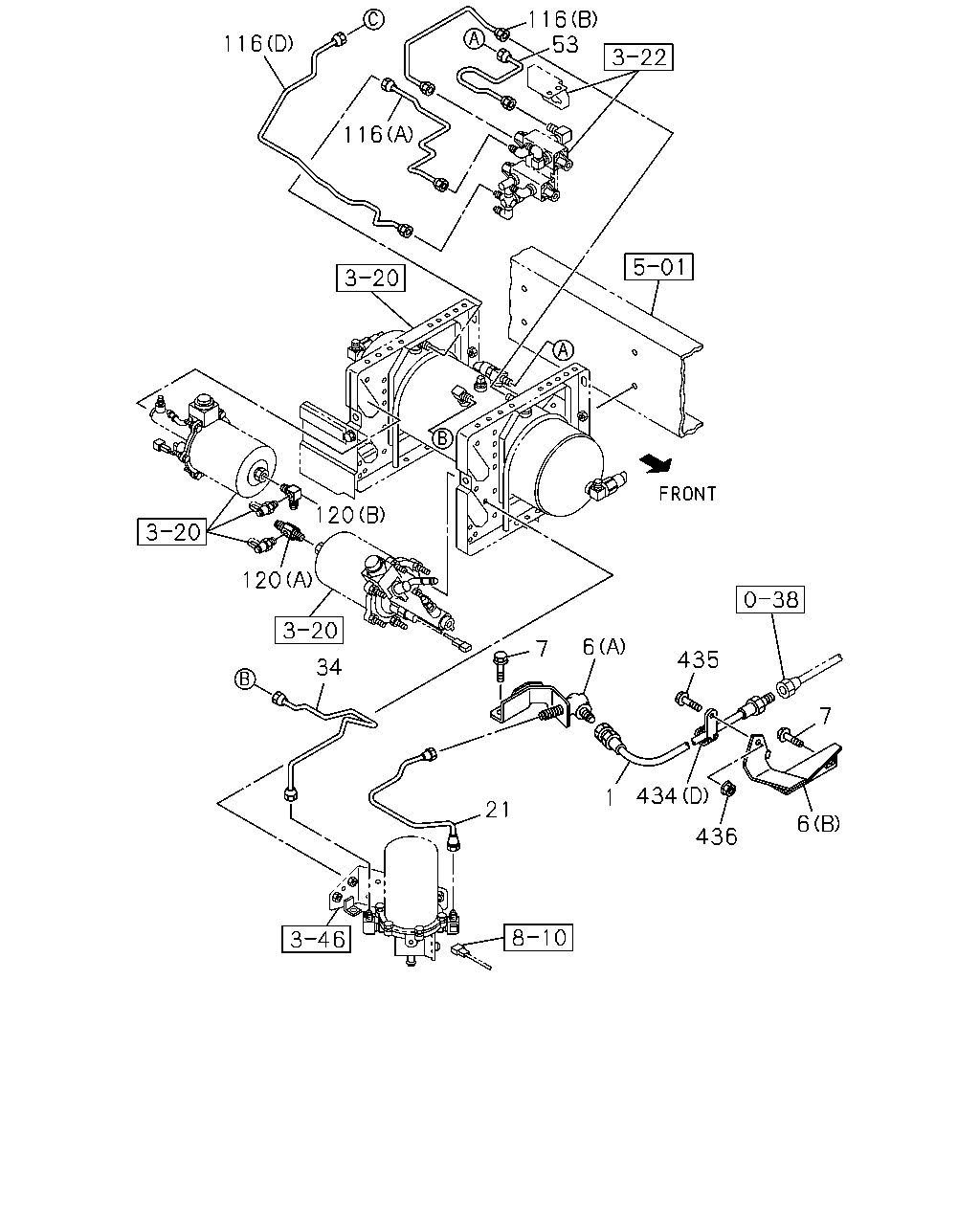

çizim 380247
21 1 434 436 7 435 6 6 7 120 120 34 116 116 53 116
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK 8-98134-768-0 01 1 1310- ● ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		8-98134-700-0 01 1 1310- ● ●
6 BRACKET; FLEX HOSE,AIR TANK
(B) 		8-98226-978-0 01 1 1310- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28650-825-0 02 1 1310- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28650-825-0 02 1 1310- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
L=733 		8-98207-282-0 01 1 1310- ● ●
34 PIPE; AIR
L=673 SERVICED BY L=700 		1-49115-481-0 01 1 1310- ● ●
53 PIPE; AIR,AIR TANK TO VALVE 8-98213-331-0 01 1 1310- ● ●
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (D) SERVICED BY L=1200 		1-47428-816-0 01 1 1310- ● ●
116 PIPE; AIR,PROTECTION VLV
EXC. THROTTLE CONTROL SYSTEM(6XH) (D) SERVICED BY L=1200 		1-47428-816-0 01 1 1310- ● ●
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=585 SERVICED BY L=600 		1-47428-809-0 01 1 1310- ● ●
116 PIPE; AIR,PROTECTION VLV
(B) L=382 		8-98077-880-0 01 1 1310- ● ●
116 PIPE; AIR,PROTECTION VLV
(A) L=480 		8-98213-332-0 01 1 1310- ● ●
120 CONNECTOR; AIR PIPE
(A) M16 & PT3/8 STRAIGHT 		1-09656-643-1 01 1 1310- ● ●
120 CONNECTOR; AIR PIPE
(B) M16 & PT1/4 & PT3/8 3WAY 		1-09656-671-0 01 1 1310- ● ●
434 CLIP
WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C) ID=13 L=20 		0-95235-235-0 01 1 1310- ● ●
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 1310- ● ●
434 CLIP
(D) ID=35 L=33 		1-09700-945-0 01 1 1310- ● ●
434 CLIP
(A) L=350 		1-09707-183-0 09 1 1310- ● ●
434 CLIP
(B) ID=18-24 L=14.5 		1-09709-298-0 02 1 1310- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1310- ● ●
435 BOLT; CLIP
WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8X20 FLANGE 		0-28650-820-0 01 1 1310- ● ●
435 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1310- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1310- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1310- ● ●
436 NUT; CLIP
WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8 FLANGE 		0-91180-108-0 01 1 1310- ● ●

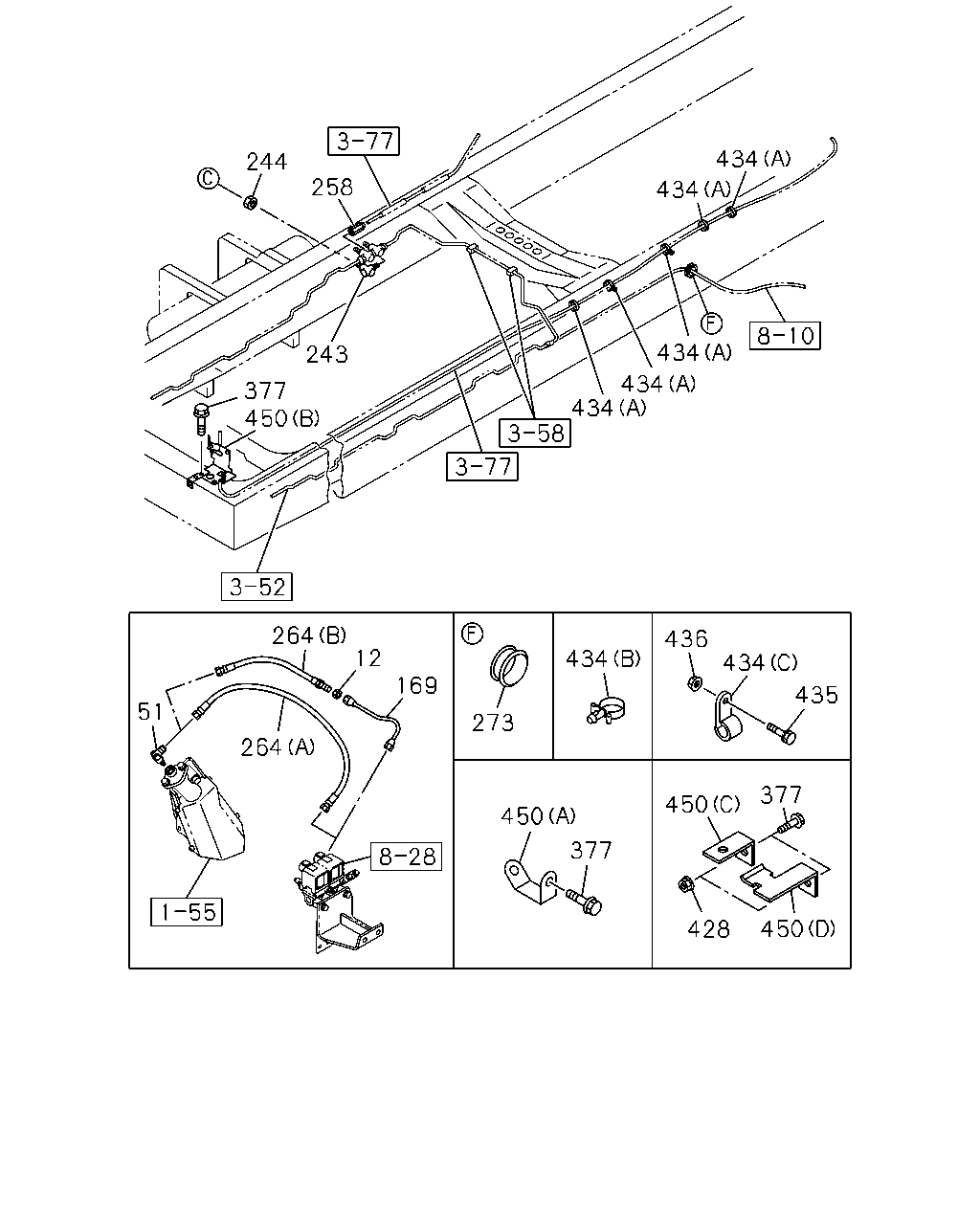

çizim 380353
434 434 434 434 434 243 377 450 264 12 169 51 264 273 450 377 450 377 428 450 244 258 434 436 434 435
BalonParca AdiParca NoAdetTipApplied Date A B
12 NUT; UNION
WHEEL BASE 3400MM(34W) M12 		9-09840-280-0 01 1 1310- ●
51 UNION
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1310- ● ●
169 PIPE; AIR,UNION TO FLEX HOSE
WHEEL BASE 3400MM(34W) L=184 		8-98203-576-0 01 1 1310- ●
243 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 1310- ● ●
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1310- ● ●
258 CONNECTOR; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1310- ● ●
264 HOSE; FLEX
WHEEL BASE 3700MM(37W) (A) L=620 		8-98236-995-0 01 1 1310- ●
264 HOSE; FLEX
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) L=530 		8-98236-996-0 01 1 1310- ● ●
264 HOSE; FLEX
WHEEL BASE 3400MM(34W) (B) L=300 		1-09363-608-0 01 1 1310- ●
273 GROMMET
ID=28 OD=35 T=17 		9-09956-256-2 02 1 1310- ● ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 01 1 1310- ● ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 03 1 1310- ● ●
377 BOLT; BRKT FIX
M10X30 FLANGE 		0-28651-030-0 02 1 1310- ● ●
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1310- ● ●
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1310- ● ●
434 CLIP
WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C) ID=13 L=20 		0-95235-235-0 01 1 1310- ● ●
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 1310- ● ●
434 CLIP
(D) ID=35 L=33 		1-09700-945-0 01 1 1310- ● ●
434 CLIP
(A) L=350 		1-09707-183-0 09 1 1310- ● ●
434 CLIP
(B) ID=18-24 L=14.5 		1-09709-298-0 02 1 1310- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1310- ● ●
435 BOLT; CLIP
WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8X20 FLANGE 		0-28650-820-0 01 1 1310- ● ●
435 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1310- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1310- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1310- ● ●
436 NUT; CLIP
WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8 FLANGE 		0-91180-108-0 01 1 1310- ● ●
450 BRACKET; CLIP
(C) 		1-47477-694-0 01 1 1310- ● ●
450 BRACKET; CLIP
(A) 		8-98117-686-0 02 1 1310- ● ●
450 BRACKET; CLIP
(D) 		8-98157-748-0 01 1 1310- ● ●
450 BRACKET; CLIP
(B) 		8-98180-947-0 01 1 1310- ● ●

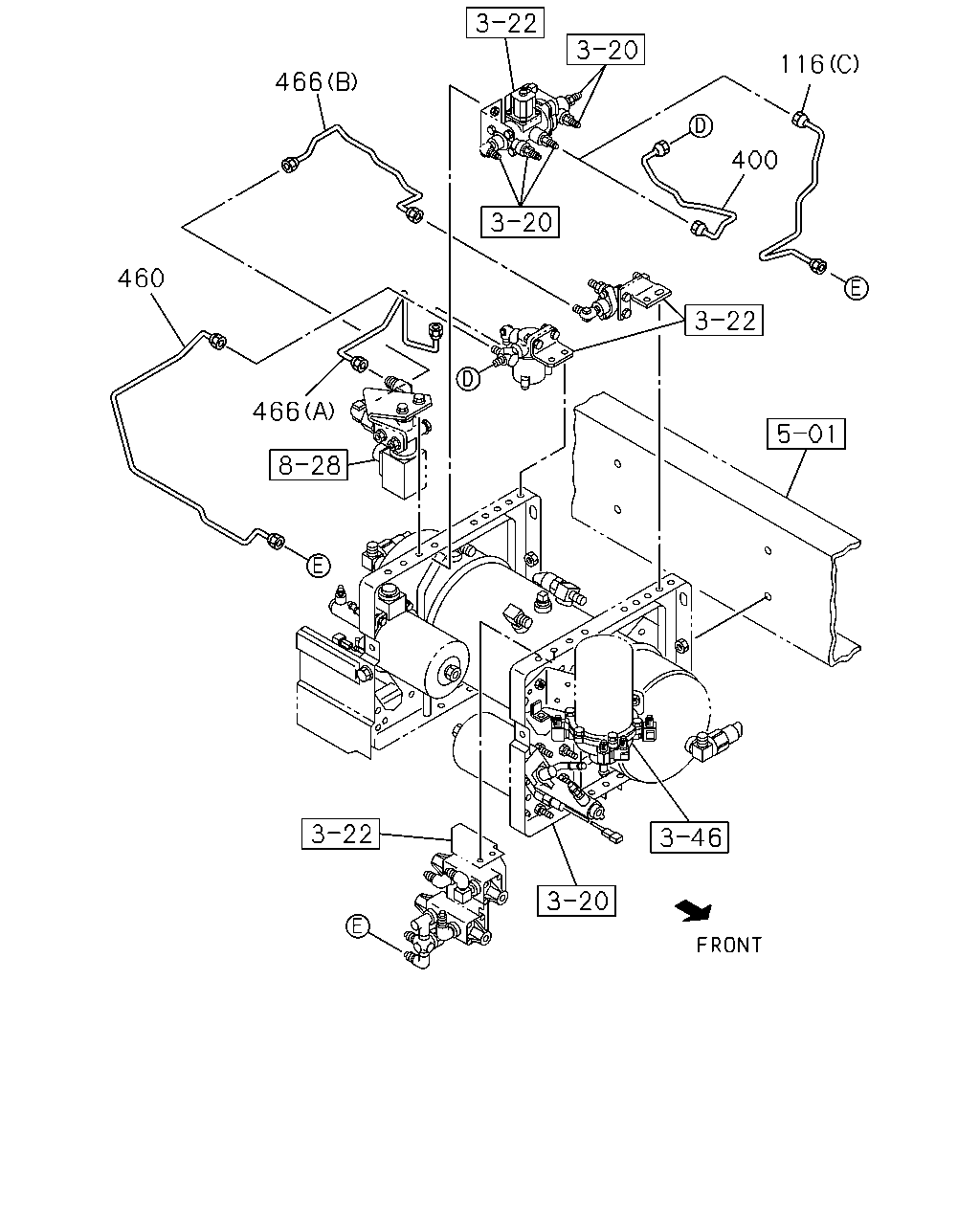

çizim 381041
466 460 466 116 400
BalonParca AdiParca NoAdetTipApplied Date A B
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (D) SERVICED BY L=1200 		1-47428-816-0 01 1 1310- ● ●
116 PIPE; AIR,PROTECTION VLV
EXC. THROTTLE CONTROL SYSTEM(6XH) (D) SERVICED BY L=1200 		1-47428-816-0 01 1 1310- ● ●
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=585 SERVICED BY L=600 		1-47428-809-0 01 1 1310- ● ●
116 PIPE; AIR,PROTECTION VLV
(B) L=382 		8-98077-880-0 01 1 1310- ● ●
116 PIPE; AIR,PROTECTION VLV
(A) L=480 		8-98213-332-0 01 1 1310- ● ●
400 PIPE; AIR,HSA VLV
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=467 		8-98066-848-0 01 1 1310- ● ●
460 PIPE; AIR,PROTECTION VALVE
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=1036 		8-98225-793-0 01 1 1310- ● ●
466 PIPE; AIR,ASR
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) L=492 		8-98077-879-0 01 1 1310- ● ●
466 PIPE; AIR,ASR
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (B) L=682 SERVICED BY L=700 		1-47428-870-0 01 1 1310- ● ●
