◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11545 - FRR-LHD(EU)SPACE EU6 ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#128246) — 57 parça
çizim 380050
138 138 138 75 33 75 33 46 46
BalonParca AdiParca NoAdetTipApplied Date A B
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) (A) L=1600 		8-98222-500-0 01 1 1310- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) (B) L=1572 		8-98222-501-0 01 1 1310- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W) (A) L=1612 		8-98222-502-0 01 1 1310- ● ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W) (B) L=1584 		8-98222-503-0 01 1 1310- ● ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) (A) L=2218 		8-98222-506-0 01 1 1310- ● ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) (B) L=2189 		8-98222-507-0 01 1 1310- ● ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4900MM(49W) (A) L=2547 		8-98222-508-0 01 1 1310- ● ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4900MM(49W) (B) L=2520 		8-98222-509-0 01 1 1310- ● ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3400MM(34W) (A) L=789 		8-98204-069-0 01 1 1310- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3400MM(34W) (B) L=741 		8-98204-070-0 01 1 1310- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5300MM(53W) (A) L=2877 		8-98222-510-0 01 1 1310- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5300MM(53W) (B) L=2850 		8-98222-511-0 01 1 1310- ●
46 NUT; UNION,OIL PIPE
M10 H=8 		1-09400-029-0 02 1 1310- ● ●
75 UNION; OIL PIPE
M10X2 ELBOW 		8-98018-438-0 02 1 1310- ● ●
138 PIPE; HYDRAULIC UNIT
(A) LH LINE L=657 		8-98012-129-0 01 1 1310- ● ●
138 PIPE; HYDRAULIC UNIT
(B) RH LINE L=703 		8-98012-146-0 01 1 1310- ● ●
138 PIPE; HYDRAULIC UNIT
(C) L=296 		8-98066-107-0 01 1 1310- ● ●

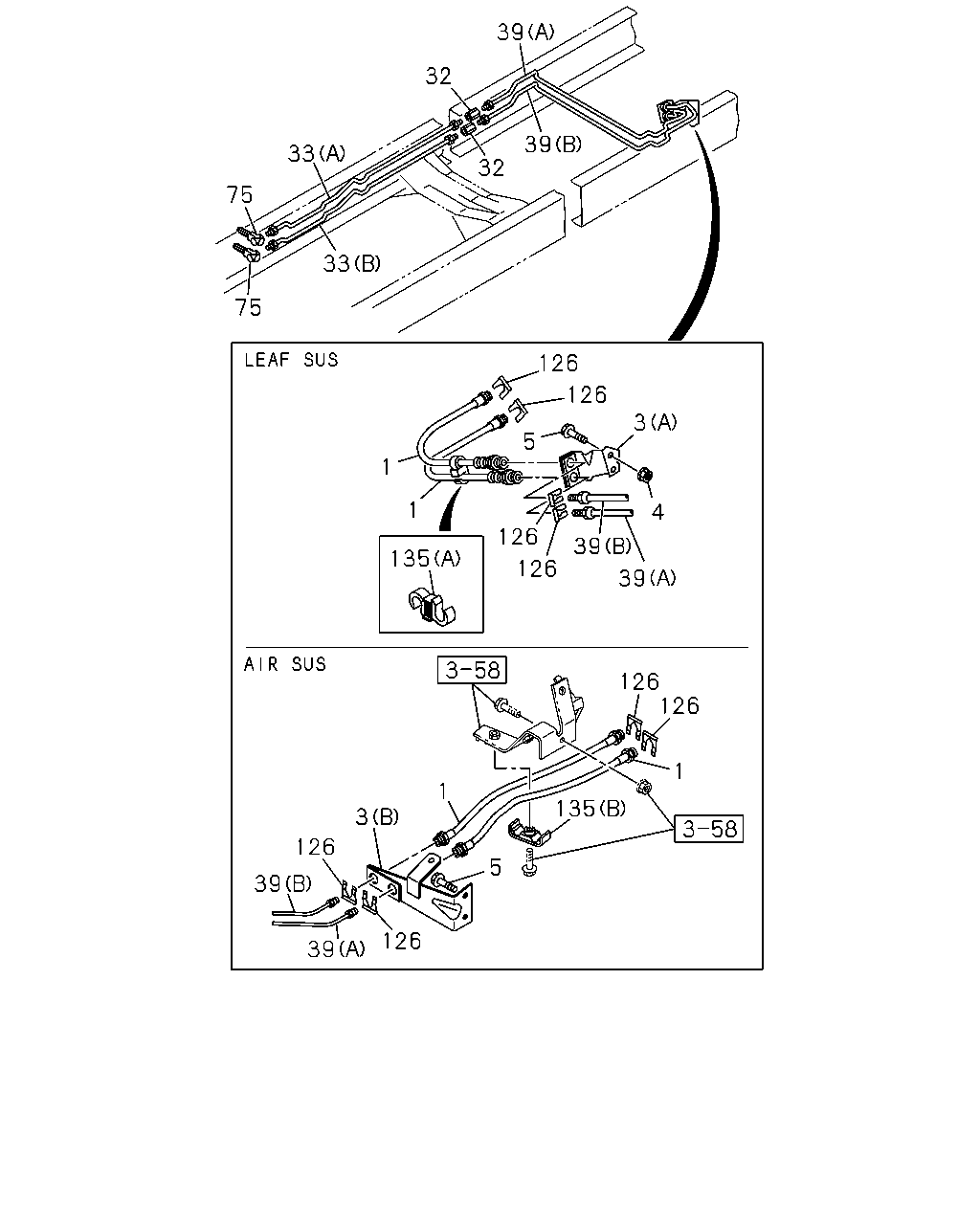

çizim 380108
126 39 39 3 126 1 5 135 1 126 126 126 126 4 3 135 1 1 126 126 5 39 33 75 75 33 32 32 39 39 39
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,RR BRK
L=480 		8-98067-398-0 02 1 1310- ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 3400MM(34W) L=320 		8-98067-397-0 02 1 1310- ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=350 		8-97138-885-0 02 1 1310- ●
3 BRACKET; FLEX HOSE,RR BRK
(B) 		8-98012-144-1 01 1 1310- ●
3 BRACKET; FLEX HOSE,RR BRK
(A) 		8-98065-999-2 01 1 1310- ●
4 NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE 		0-91180-108-0 02 1 1310- ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X20 FLANGE 		0-28650-820-0 02 1 1310- ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X30 FLANGE 		0-28650-830-0 02 1 1310- ●
32 UNION; OIL PIPE
M10 STRAIGHT 		0-92107-005-0 02 1 1310- ● ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) (A) L=1600 		8-98222-500-0 01 1 1310- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) (B) L=1572 		8-98222-501-0 01 1 1310- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W) (A) L=1612 		8-98222-502-0 01 1 1310- ● ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W) (B) L=1584 		8-98222-503-0 01 1 1310- ● ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) (A) L=2218 		8-98222-506-0 01 1 1310- ● ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) (B) L=2189 		8-98222-507-0 01 1 1310- ● ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4900MM(49W) (A) L=2547 		8-98222-508-0 01 1 1310- ● ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4900MM(49W) (B) L=2520 		8-98222-509-0 01 1 1310- ● ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3400MM(34W) (A) L=789 		8-98204-069-0 01 1 1310- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3400MM(34W) (B) L=741 		8-98204-070-0 01 1 1310- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5300MM(53W) (A) L=2877 		8-98222-510-0 01 1 1310- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5300MM(53W) (B) L=2850 		8-98222-511-0 01 1 1310- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 3400MM(34W) (B) L=1937 		8-98204-144-0 01 1 1310- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 3400MM(34W) (A) L=1862 		8-98204-145-0 01 1 1310- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(A) L=1223 		8-98222-514-0 01 1 1310- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(B) L=1194 		8-98222-515-0 01 1 1310- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) L=1678 		8-98222-512-0 01 1 1310- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) L=1696 		8-98222-513-0 01 1 1310- ●
75 UNION; OIL PIPE
M10X2 ELBOW 		8-98018-438-0 02 1 1310- ● ●
126 CLIP; FLEX HOSE 8-97360-054-0 04 1 1310- ● ●
135 CLIP; FLEX HOSE
(B) 		1-09701-278-2 01 1 1310- ●
135 CLIP; FLEX HOSE
(A) ID=10 & 10 		1-09709-277-1 01 1 1310- ● ●

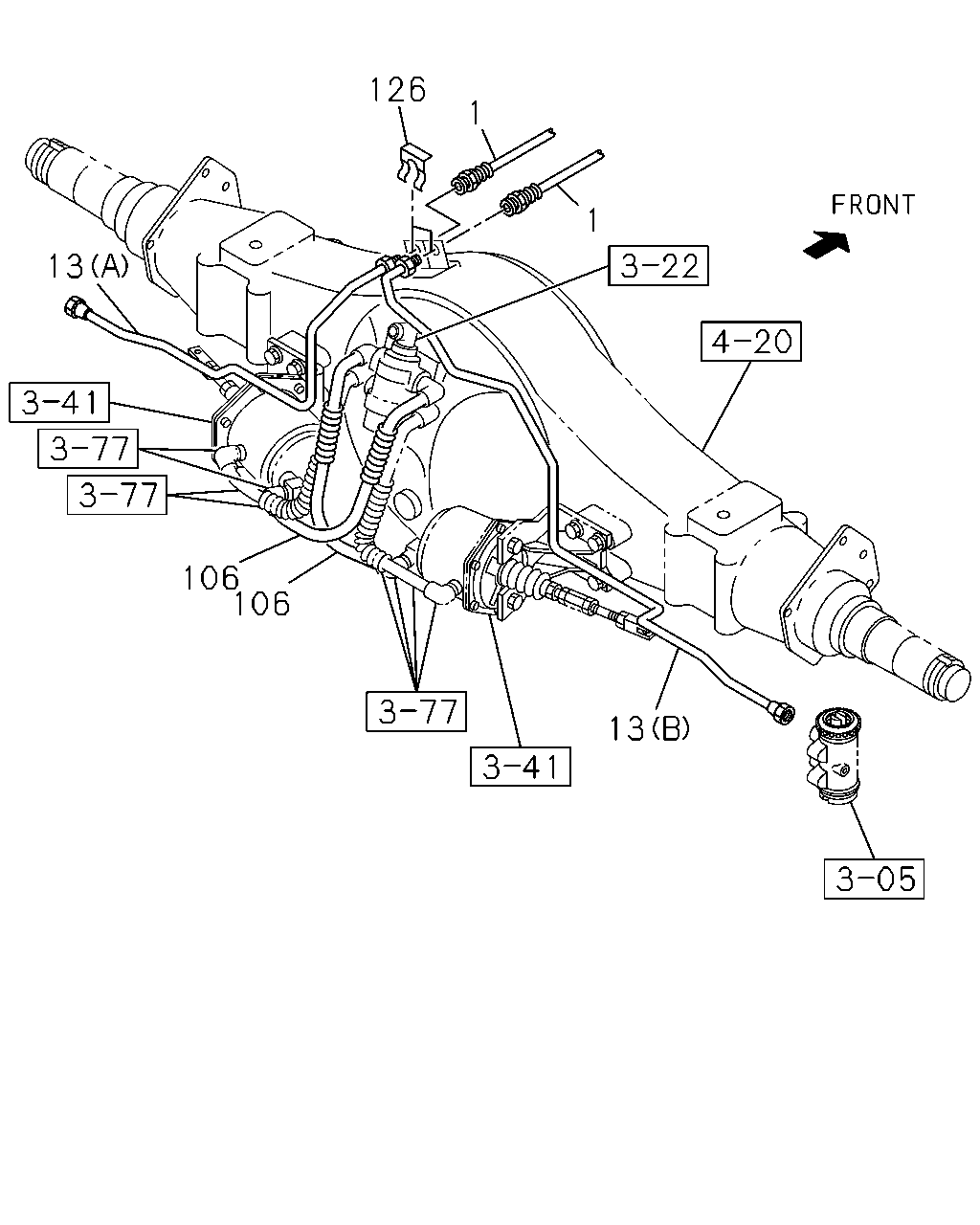

çizim 380337
126 13 106 106 13 1 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,RR BRK
L=480 		8-98067-398-0 02 1 1310- ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 3400MM(34W) L=320 		8-98067-397-0 02 1 1310- ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=350 		8-97138-885-0 02 1 1310- ●
13 PIPE; BRK,RR AXLE
(B) RH LINE 		8-98107-928-0 01 1 1310-1409 ● ●
13 PIPE; BRK,RR AXLE
(B) RH LINE 		8-98281-557-0 01 1 1410- ● ●
13 PIPE; BRK,RR AXLE
(A) LH LINE 		8-98107-929-0 01 1 1310-1409 ● ●
13 PIPE; BRK,RR AXLE
(A) LH LINE 		8-98281-558-0 01 1 1410- ● ●
106 TUBE; NYLON 8-98061-971-0 02 1 1310- ● ●
126 CLIP; FLEX HOSE 8-97360-054-0 04 1 1310- ● ●
