3-52 — BRAKE PIPING; OIL,FRONT (#128245) — 21 parça

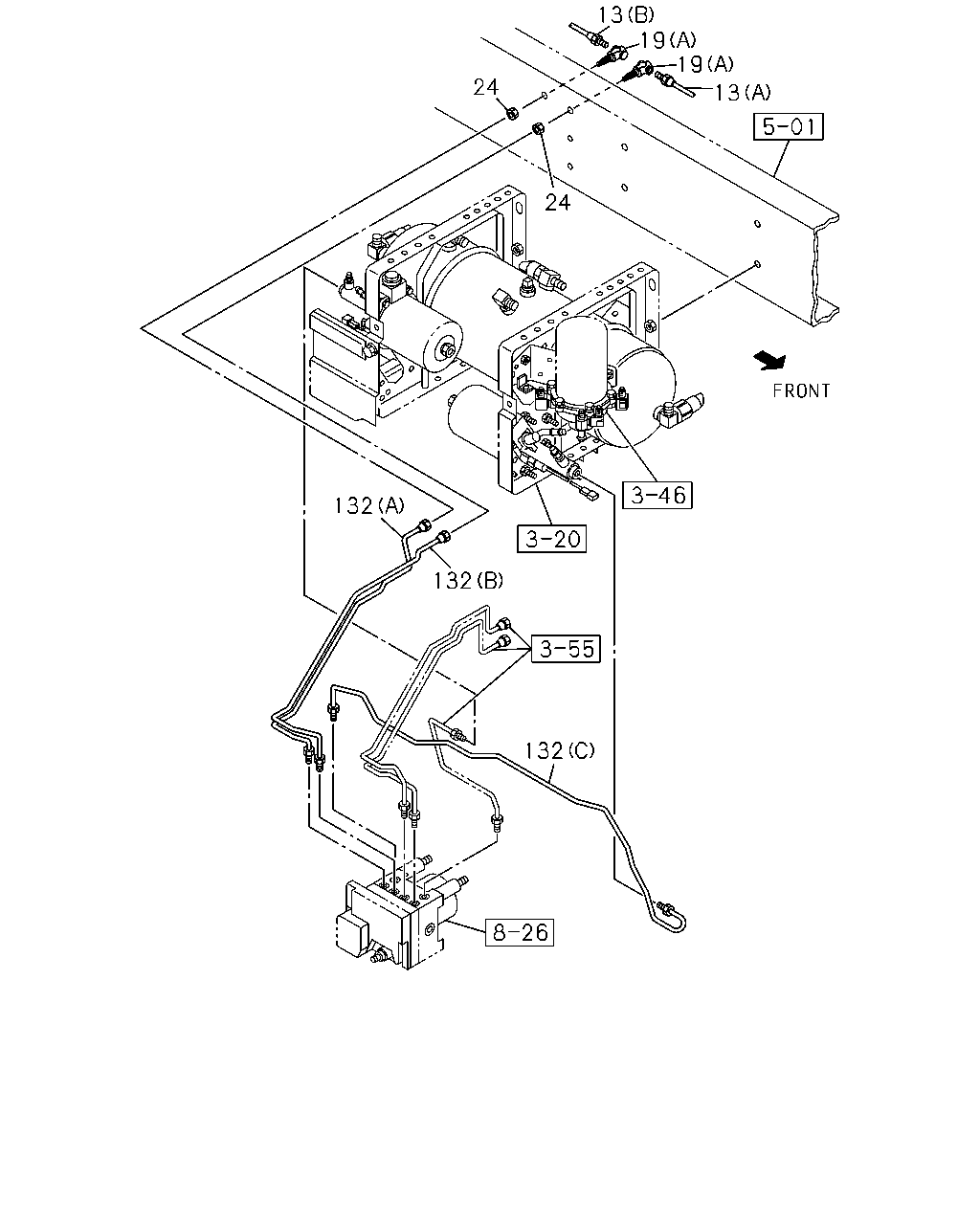

çizim 379932
13 19 19 13 24 24 132 132 132
BalonParca AdiParca NoAdetTipApplied Date A B
13 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) L=2192 		8-98222-476-0 01 1 1310- ● ●
13 PIPE; OIL,UNION TO UNION
(A) L=975 		8-98204-971-0 01 1 1310- ● ●
13 PIPE; OIL,UNION TO UNION
WHEEL BASE 3400MM(34W) (B) L=2036 		8-98222-477-0 01 1 1310- ●
19 UNION; OIL PIPE
(B) M10 STRAIGHT 		0-92107-005-0 02 1 1310- ● ●
19 UNION; OIL PIPE
(A) M10X2 ELBOW 		8-98018-438-0 02 1 1310- ● ●
24 NUT; UNION,OIL PIPE
M10 H=8 		1-09400-029-0 02 1 1310- ● ●
132 PIPE; OIL,BRK,HYD UNIT
(A) LH LINE L=625 		8-98116-095-0 01 1 1310- ● ●
132 PIPE; OIL,BRK,HYD UNIT
(B) RH LINE L=661 		8-98213-363-0 01 1 1310- ● ●
132 PIPE; OIL,BRK,HYD UNIT
(C) L=948 		8-98213-849-0 01 1 1310- ● ●

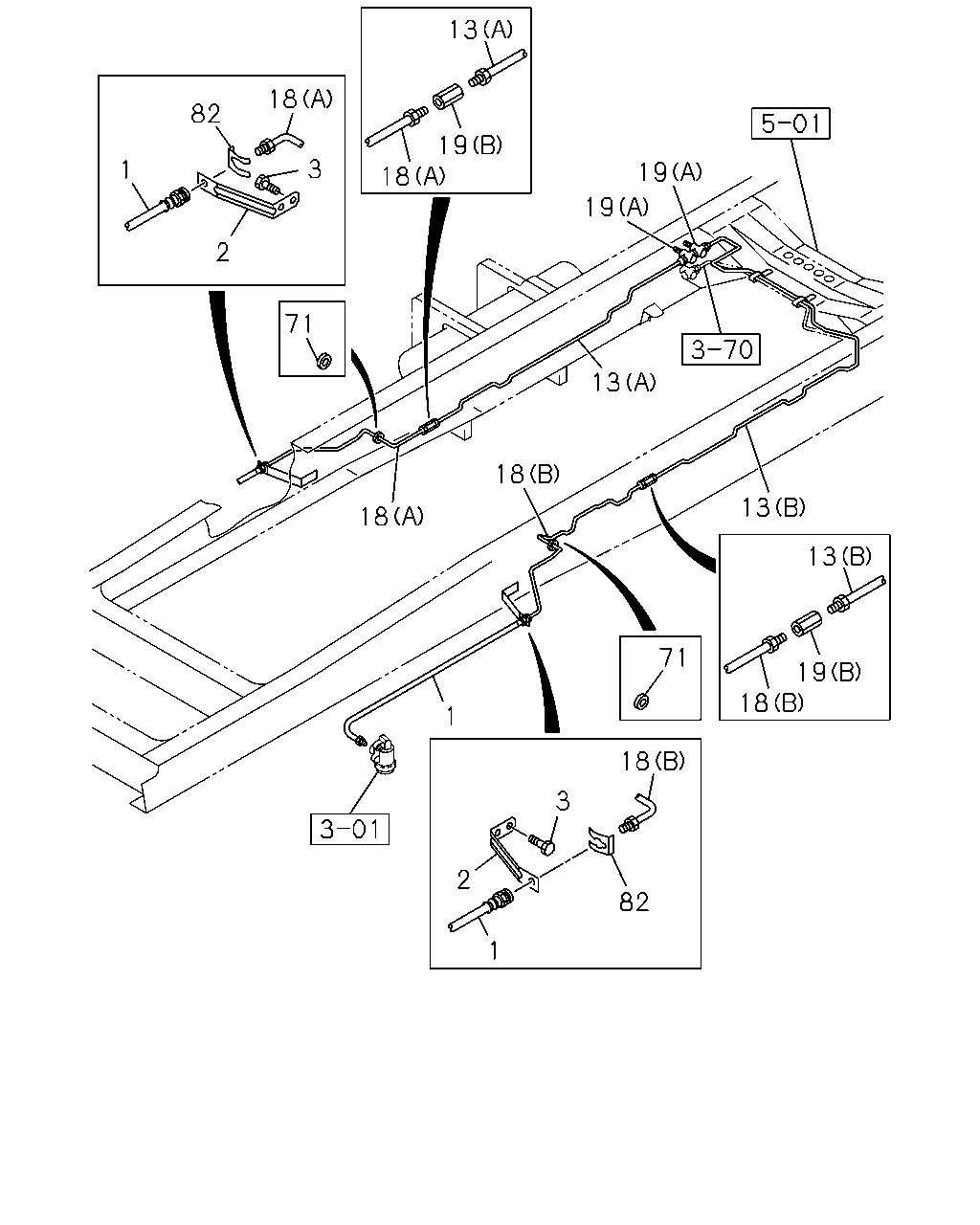

çizim 380393
13 18 13 19 71 18 82 3 2 1 1 18 18 13 19 19 19 18 13 18 3 2 82 1 71
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,FRT BRK
L=660 		8-98232-626-0 02 1 1310- ● ●
2 BRACKET; FLEX HOSE,FRT BRK 8-98011-946-1 02 1 1310- ● ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28650-825-0 04 1 1310- ● ●
13 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) L=2192 		8-98222-476-0 01 1 1310- ● ●
13 PIPE; OIL,UNION TO UNION
(A) L=975 		8-98204-971-0 01 1 1310- ● ●
13 PIPE; OIL,UNION TO UNION
WHEEL BASE 3400MM(34W) (B) L=2036 		8-98222-477-0 01 1 1310- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) RH LINE L=567 		8-98067-426-0 01 1 1310- ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) LH LINE L=559 		8-98208-697-0 01 1 1310- ● ●
19 UNION; OIL PIPE
(B) M10 STRAIGHT 		0-92107-005-0 02 1 1310- ● ●
19 UNION; OIL PIPE
(A) M10X2 ELBOW 		8-98018-438-0 02 1 1310- ● ●
71 GROMMET; OIL PIPE
ID=24 OD=30 T=17 		9-09956-092-1 02 1 1310- ● ●
82 PLATE; FLEX HOSE 8-97360-054-0 02 1 1310- ● ●
