◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11545 - FRR-LHD(EU)SPACE EU6 ▶ 3 - Brakes, Brake System ▶ 3-22 - AIR CONTROL PARTS ▶
3-22 — AIR CONTROL PARTS (#128239) — 87 parça

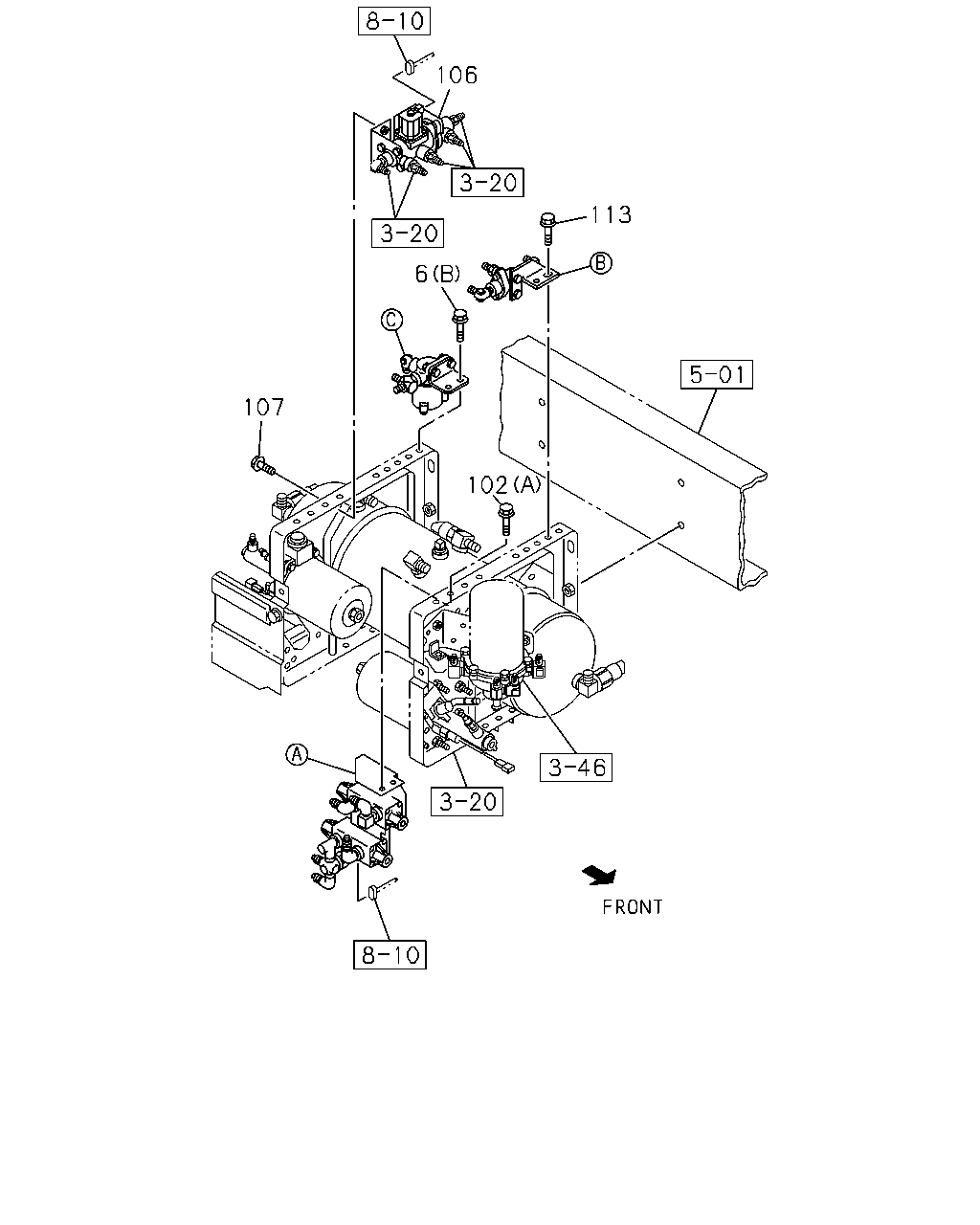

çizim 380105
102 107 6 113 106
BalonParca AdiParca NoAdetTipApplied Date A B
6 BOLT; VLV
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) M8X16 FLANGE 		0-28050-816-0 02 1 1310- ● ●
6 BOLT; VLV
THROTTLE CONTROL SYSTEM(6XH) (B) M8X25 FLANGE 		0-28650-825-0 02 1 1310- ● ●
102 BOLT; PROTECTION VALVE
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (B) M8X16 FLANGE 		0-28050-816-0 02 1 1310- ● ●
102 BOLT; PROTECTION VALVE
H.S.A SYSTEM<6EP> (B) M8X16 FLANGE 		0-28050-816-0 02 1 1310- ● ●
102 BOLT; PROTECTION VALVE
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) M8X20 FLANGE 		0-28650-820-0 02 1 1310- ● ●
102 BOLT; PROTECTION VALVE
EXC. THROTTLE CONTROL SYSTEM(6XH) (A) M8X20 FLANGE 		0-28650-820-0 02 1 1310- ● ●
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-147-1 01 1 1310- ● ●
107 BOLT; VLV
H.S.A SYSTEM<6EP> M8X20 FLANGE 		0-28650-820-0 03 1 1310- ● ●
113 BOLT; VLV
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) M8X25 FLANGE 		0-28650-825-0 02 1 1310- ● ●

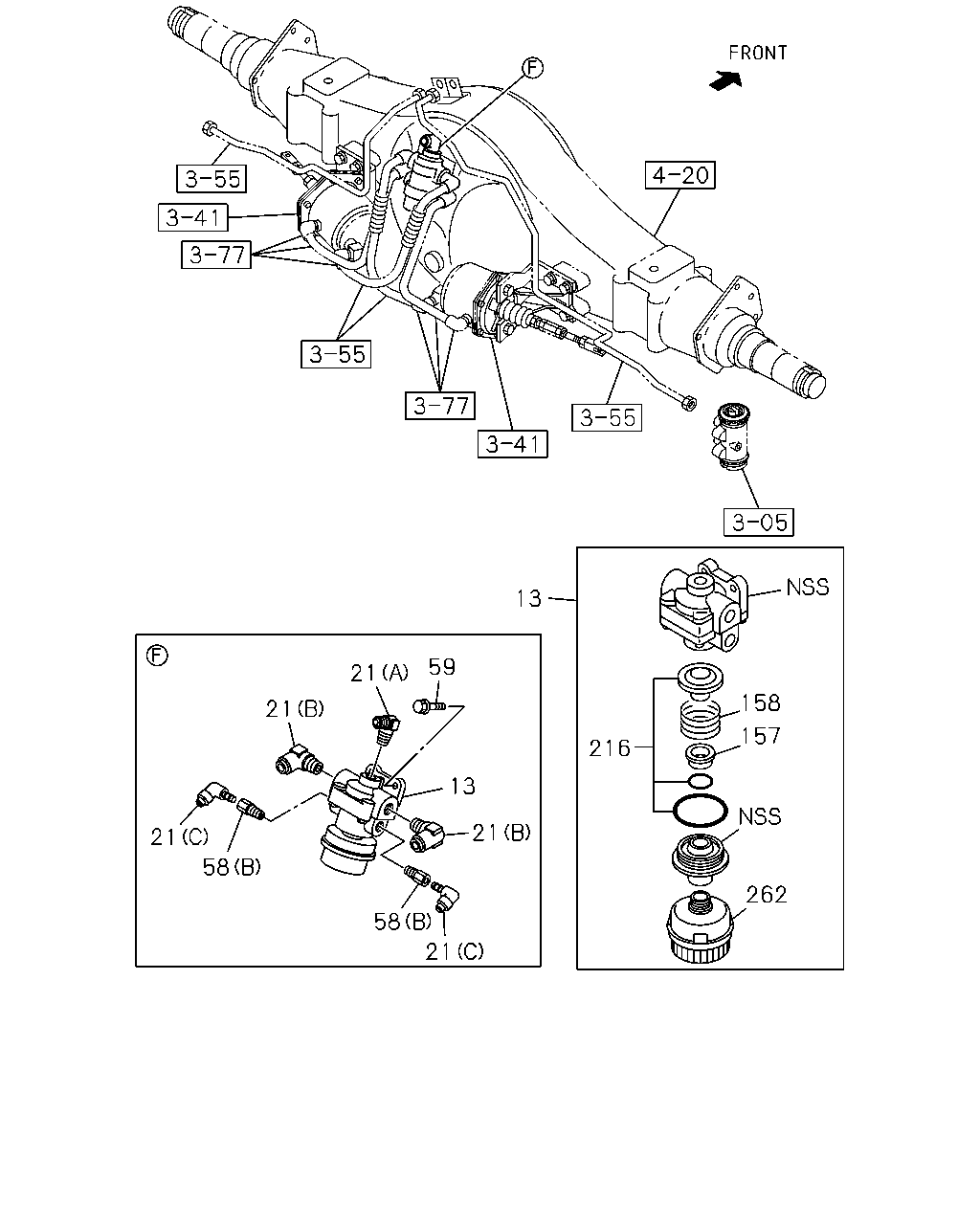

çizim 380139
13 216 158 157 262 21 13 21 58 58 21 21 21 59
BalonParca AdiParca NoAdetTipApplied Date A B
13 VALVE ASM; QUICK RELEASE 1-48410-781-2 01 1 1310- ● ●
21 CONNECTOR; QUICK RELEASE VLV
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 1310- ● ●
21 CONNECTOR; QUICK RELEASE VLV
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1310- ● ●
21 CONNECTOR; QUICK RELEASE VLV
(C) DIN4 & DIN6 SWIVEL CONNECTOR 		1-09661-816-0 02 1 1310- ● ●
58 ADAPTER
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1310- ● ●
58 ADAPTER
H.S.A SYSTEM<6EP> (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1310- ● ●
58 ADAPTER
(B) DIN7 & DIN9 ADAPTOR 		1-09661-815-0 02 1 1310- ● ●
59 BOLT; RELEASE VALVE FIX
M8X20 FLANGE 		0-28050-820-0 02 1 1310- ● ●
157 RETAINER; VALVE 1-48419-036-0 01 1 1310- ● ●
158 SPRING; VALVE 9-48419-003-0 01 1 1310- ● ●
216 REPAIR KIT; QUICK RELEASE VLV 1-85579-062-0 01 1 1310- ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 1310- ● ●
çizim 380579
237 102 103 108 220 167 99 58 108 108 25 232 108 108 220 108 275 108 10 120 6 10 10 232 108 62 120 63 242 220
BalonParca AdiParca NoAdetTipApplied Date A B
6 BOLT; VLV
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) M8X16 FLANGE 		0-28050-816-0 02 1 1310- ● ●
6 BOLT; VLV
THROTTLE CONTROL SYSTEM(6XH) (B) M8X25 FLANGE 		0-28650-825-0 02 1 1310- ● ●
10 CONNECTOR
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 1310- ● ●
10 CONNECTOR
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 1310- ● ●
25 SWITCH; PRESSURE
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) STAMP 5.5 		8-97609-249-0 01 1 1310- ● ●
25 SWITCH; PRESSURE
H.S.A SYSTEM<6EP> STAMP 5.5 		8-97609-249-0 01 1 1310- ● ●
58 ADAPTER
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1310- ● ●
58 ADAPTER
H.S.A SYSTEM<6EP> (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1310- ● ●
58 ADAPTER
(B) DIN7 & DIN9 ADAPTOR 		1-09661-815-0 02 1 1310- ● ●
62 BOLT; BRKT FIX
THROTTLE CONTROL SYSTEM(6XH) M8X30 FLANGE 		0-28650-830-0 02 1 1310- ● ●
63 NUT; BRKT FIX
THROTTLE CONTROL SYSTEM(6XH) M8 FLANGE 		0-91180-108-0 02 1 1310- ● ●
99 VALVE; PROTECTION
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) 		1-48110-290-3 01 1 1310- ● ●
99 VALVE; PROTECTION
H.S.A SYSTEM<6EP> 		1-48110-290-3 01 1 1310- ● ●
102 BOLT; PROTECTION VALVE
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (B) M8X16 FLANGE 		0-28050-816-0 02 1 1310- ● ●
102 BOLT; PROTECTION VALVE
H.S.A SYSTEM<6EP> (B) M8X16 FLANGE 		0-28050-816-0 02 1 1310- ● ●
102 BOLT; PROTECTION VALVE
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) M8X20 FLANGE 		0-28650-820-0 02 1 1310- ● ●
102 BOLT; PROTECTION VALVE
EXC. THROTTLE CONTROL SYSTEM(6XH) (A) M8X20 FLANGE 		0-28650-820-0 02 1 1310- ● ●
103 BRACKET; PROTECTION VALVE
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) 		8-98162-113-1 01 1 1310-1311 ● ●
103 BRACKET; PROTECTION VALVE
H.S.A SYSTEM<6EP> 		8-98162-113-1 01 1 1310-1311 ● ●
103 BRACKET; PROTECTION VALVE
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) 		8-98221-293-0 01 1 1312- ● ●
103 BRACKET; PROTECTION VALVE
H.S.A SYSTEM<6EP> 		8-98221-293-0 01 1 1312- ● ●
108 CONNECTOR; ELBOW
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 1310- ● ●
108 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> (A) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 1310- ● ●
108 CONNECTOR; ELBOW
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (E) DIN9 & RC3/8 & M20 3WAY 		8-98031-239-0 01 1 1310-1311 ● ●
108 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> (E) DIN9 & RC3/8 & M20 3WAY 		8-98031-239-0 01 1 1310-1311 ● ●
108 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> (D) 		8-98035-011-0 01 1 1310-1311 ● ●
108 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW 		0-92134-310-0 02 1 1310- ● ●
108 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1310- ● ●
108 CONNECTOR; ELBOW
(B) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 1310- ● ●
108 CONNECTOR; ELBOW
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (F) DIN6 & PT1/4 & M12 3WAY 		1-09656-698-0 01 1 1310-1311 ● ●
120 BRACKET; VLV
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (B) 		8-98050-131-0 01 1 1310- ● ●
120 BRACKET; VLV
THROTTLE CONTROL SYSTEM(6XH) (A) 		1-48316-012-0 01 1 1310- ● ●
167 COVER; VALVE
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) 		1-48119-625-0 04 1 1310- ● ●
167 COVER; VALVE
H.S.A SYSTEM<6EP> 		1-48119-625-0 04 1 1310- ● ●
220 CONNECTOR; 3WAY
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (C) DIN9 & RC3/8 & M20 3WAY 		8-98031-239-0 01 1 1312- ● ●
220 CONNECTOR; 3WAY
H.S.A SYSTEM<6EP> (C) DIN9 & RC3/8 & M20 3WAY 		8-98031-239-0 01 1 1312- ● ●
220 CONNECTOR; 3WAY
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (B) DIN6 & PT1/4 & M12 3WAY 		1-09656-698-0 01 1 1312- ● ●
220 CONNECTOR; 3WAY
THROTTLE CONTROL SYSTEM(6XH) (A) PT1/4 & M12 & M16 3WAY 		1-09656-331-1 01 1 1310- ● ●
232 VALVE; CHECK
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 1310- ● ●
232 VALVE; CHECK
H.S.A SYSTEM<6EP> (A) DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 1310- ● ●
232 VALVE; CHECK
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (B) 		1-48410-531-1 01 1 1310- ● ●
237 VALVE; SAFETY 1-48320-012-2 01 1 1310- ● ●
242 VALVE; REGULATION
THROTTLE CONTROL SYSTEM(6XH) 		1-48410-723-0 01 1 1310- ● ●
275 CONNECTOR; 4WAY
H.S.A SYSTEM<6EP> 		8-98035-011-0 01 1 1312- ● ●
çizim 380644
106 205 203 201 196 199 198 196 199 200 197 198 204 200 197 201 205 203 202 190 192 189 195 201
BalonParca AdiParca NoAdetTipApplied Date A B
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-147-1 01 1 1310- ● ●
189 VALVE ASM; SOLENOID,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-253-0 01 1 1310- ● ●
190 BODY; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-192-0 01 1 1310- ● ●
192 SPRING; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-181-0 01 1 1310- ● ●
195 SCREW; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-191-0 04 1 1310- ● ●
196 PISTON; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-251-0 02 1 1310- ● ●
197 SPRING; INNER,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-161-0 02 1 1310- ● ●
198 PIN; STRAIGHT,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-122-0 02 1 1310- ● ●
199 RETAINER; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-121-0 02 1 1310- ● ●
200 SPRING; OUTER,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-120-0 02 1 1310- ● ●
201 COVER; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-118-1 02 1 1310- ● ●
201 COVER; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-241-0 01 1 1310- ● ●
202 FILTER; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-117-1 02 1 1310- ● ●
203 SCREW; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-116-1 06 1 1310- ● ●
204 PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-194-0 01 1 1310- ● ●
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-149-0 01 1 1310- ● ●
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-150-0 01 1 1310- ● ●
çizim 381217
188 204
BalonParca AdiParca NoAdetTipApplied Date A B
188 REPAIR KIT; HSA VLV
H.S.A SYSTEM<6EP> 		1-85576-469-1 01 1 1310- ● ●
204 PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-194-0 01 1 1310- ● ●
çizim 381263
259
BalonParca AdiParca NoAdetTipApplied Date A B
259 REPAIR KIT; VALVE
THROTTLE CONTROL SYSTEM(6XH) W/GREASE 		1-85576-381-0 01 1 1310- ● ●
çizim 493231
241
BalonParca AdiParca NoAdetTipApplied Date A B
241 REPAIR KIT; PROTECTION VALVE
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) 		1-85576-451-2 01 1 1310- ● ●
241 REPAIR KIT; PROTECTION VALVE
H.S.A SYSTEM<6EP> 		1-85576-451-2 01 1 1310- ● ●
