◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11545 - FRR-LHD(EU)SPACE EU6 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶
2-05 — CLUTCH PIPING (#128218) — 47 parça
çizim 379457
48 101 50 104 50 173 39 173 239
BalonParca AdiParca NoAdetTipApplied Date A B
39 GASKET; CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		9-09920-268-0 01 1 1310- ● ●
48 GASKET; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.2 OD=16.0 		9-09571-410-0 02 1 1310- ● ●
50 NUT; UNION
14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (A) M12 		9-09840-280-0 01 1 1310- ● ●
50 NUT; UNION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12 		0-91111-512-0 01 1 1310- ● ●
50 NUT; UNION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12 		0-91111-512-0 02 1 1310- ● ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=510 		8-98059-811-0 01 1 1310- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
FACE LIFT MODEL<TX7> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1450 		8-98281-680-0 01 1 1412- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1519 		8-98217-131-0 01 1 1310-1411 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FACE LIFT MODEL<TX7> (B) L=1519 		8-98217-131-0 01 1 1412- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=2464 SERVICED BY L=2500 		1-47428-742-0 01 1 1310- ● ●
173 CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M12 2WAY 		1-09654-059-2 01 1 1310- ● ●
173 CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98203-740-0 01 1 1310- ● ●
173 CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98205-344-0 01 1 1310- ● ●
239 UNION; CLU HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12 2WAY 		1-09654-059-2 01 1 1310- ● ●

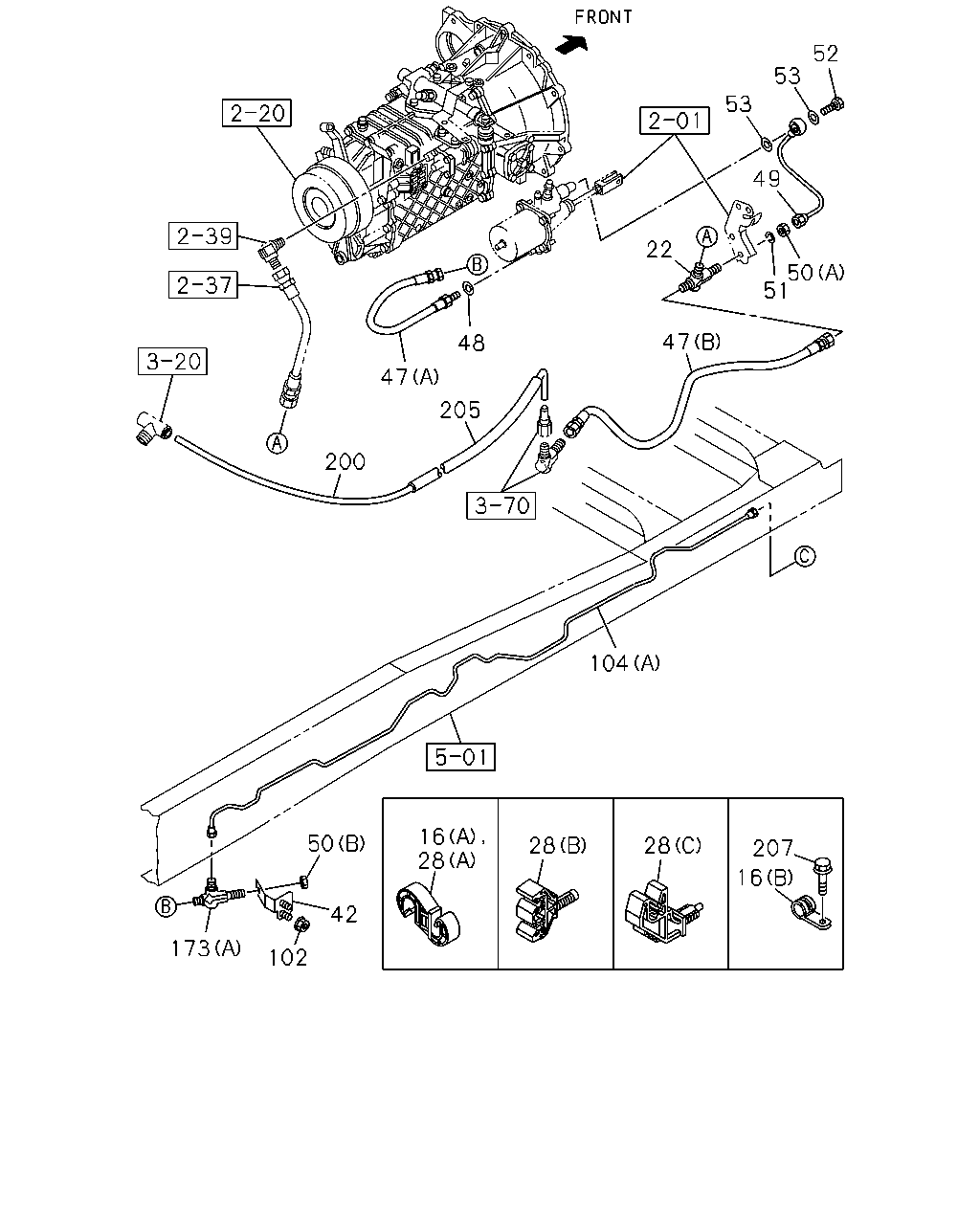

çizim 379952
47 200 205 22 53 53 52 50 49 47 51 104 173 102 42 50 16 28 28 28 207 16 48
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; FLEX HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=18 L=28 		1-09701-067-0 01 1 1310- ● ●
16 CLIP; FLEX HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=10 & 12 		1-09709-278-1 01 1 1310- ● ●
22 UNION; CLU PIPE
14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> M12 3WAY 		0-92138-706-0 01 1 1310- ● ●
28 CLIP; OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FACE LIFT MODEL<TX7> (B) 		8-98012-254-1 04 1 1412- ● ●
28 CLIP; OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=6.35 		1-09701-247-1 01 1 1310- ● ●
28 CLIP; OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=6.35 & 10.0 		1-09709-274-1 04 1 1310- ● ●
28 CLIP; OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98012-254-1 04 1 1310-1411 ● ●
28 CLIP; OIL PIPE
FACE LIFT MODEL<TX7> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98012-254-1 03 1 1412- ● ●
42 BRACKET; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98203-636-0 01 1 1310- ● ●
47 HOSE; FLEX,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=500 		1-09363-733-0 01 1 1310- ● ●
47 HOSE; FLEX,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=440 		8-98072-346-0 01 1 1310- ● ●
48 GASKET; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.2 OD=16.0 		9-09571-410-0 02 1 1310- ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
14" CLUTCH(WF6) CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-98222-994-0 01 1 1310- ● ●
50 NUT; UNION
14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (A) M12 		9-09840-280-0 01 1 1310- ● ●
50 NUT; UNION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12 		0-91111-512-0 01 1 1310- ● ●
50 NUT; UNION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12 		0-91111-512-0 02 1 1310- ● ●
51 WASHER; LK
14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> ID=12.2 		0-91510-812-0 01 1 1310- ● ●
52 BOLT; EYE,AIR PIPE
14" CLUTCH(WF6) M14X27 FLANGE 		1-09675-086-0 01 1 1310- ● ●
53 GASKET; JOINT BOLT
14" CLUTCH(WF6) ID=14.2 OD=19.2 		1-09630-085-0 02 1 1310-1312 ● ●
53 GASKET; JOINT BOLT
14" CLUTCH(WF6) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ●
102 NUT; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE 		0-91180-210-0 02 1 1310- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
FACE LIFT MODEL<TX7> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1450 		8-98281-680-0 01 1 1412- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1519 		8-98217-131-0 01 1 1310-1411 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FACE LIFT MODEL<TX7> (B) L=1519 		8-98217-131-0 01 1 1412- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=2464 SERVICED BY L=2500 		1-47428-742-0 01 1 1310- ● ●
173 CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M12 2WAY 		1-09654-059-2 01 1 1310- ● ●
173 CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98203-740-0 01 1 1310- ● ●
173 CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98205-344-0 01 1 1310- ● ●
200 TUBE; NYLON
WHEEL BASE 3400MM(34W),WHEEL BASE 3700MM(37W), WHEEL BASE 4000MM(40W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1310- ● ●
200 TUBE; NYLON
WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SERVICED BY L=4000 OD=8 		1-87411-007-0 01 1 1310- ● ●
205 TUBE; CORRUGATE
WHEEL BASE 3400MM(34W),WHEEL BASE 3700MM(37W), WHEEL BASE 4000MM(40W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1310- ● ●
205 TUBE; CORRUGATE
WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 1310- ● ●
207 BOLT; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X20 FLANGE 		0-28650-820-0 01 1 1310- ● ●
