1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#128214) — 21 parça

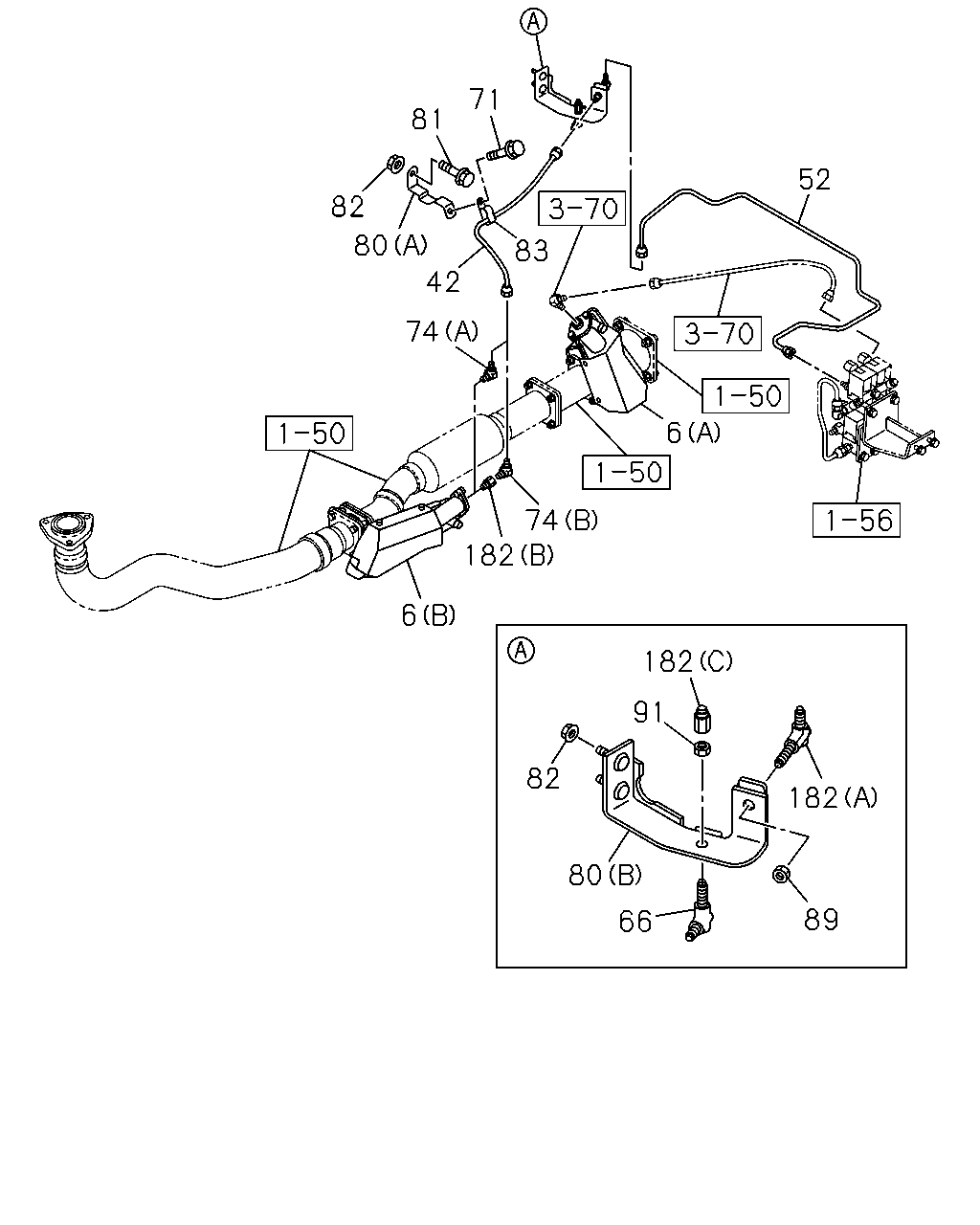

çizim 380167
52 71 81 82 42 80 74 6 182 74 6 83 182 91 182 89 66 80 82
BalonParca AdiParca NoAdetTipApplied Date
6 VALVE; EXH BRAKE
(A) 		8-98160-836-2 01 1 1310-
6 VALVE; EXH BRAKE
(B) 		8-98193-416-1 01 1 1310-
42 HOSE; FLEX,EXH BRK
TRANSMISSION CONTROL-SMOOTHER(8GF) L=440 		8-98238-300-0 01 1 1310-
42 HOSE; FLEX,EXH BRK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=310 		1-09363-713-0 01 1 1310-
52 PIPE ASM; AIR FLEX HOSE
WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEELBASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) 		8-98232-881-0 01 1 1310-
52 PIPE ASM; AIR FLEX HOSE
WHEEL BASE 3400MM(34W) 		8-98203-575-0 01 1 1310-
66 UNION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12 ELBOW 		0-92125-206-0 01 1 1310-
71 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1310-
74 CONNECTOR; EXH BRK VLV
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1310-
74 CONNECTOR; EXH BRK VLV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12 & PT1/4 ELBOW 		1-48629-258-0 01 1 1310-1503
74 CONNECTOR; EXH BRK VLV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12 & PT1/4 ELBOW 		8-98299-777-0 01 1 1504-
80 BRACKET; FLEX HOSE
(A) 		8-98078-153-0 01 1 1310-
80 BRACKET; FLEX HOSE
(B) 		8-98232-877-0 01 1 1310-
81 BOLT; HOSE BRKT
M10X25 FLANGE 		0-28051-025-0 01 1 1310-
82 NUT; HOSE BRKT
M10 FLANGE 		0-91180-210-0 03 1 1310-
83 CLIP; FLEX HOSE
ID=11X2 L=16 		1-09700-820-0 01 1 1310-
89 NUT; BRKT
M12 		9-09840-280-0 01 1 1310-
91 NUT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12 		9-09840-280-0 01 1 1310-
182 CONNECTOR
(A) M12 ELBOW 		0-92125-206-0 01 1 1310-
182 CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) PS1/4 & PT1/4 STRAIGHT 		1-09660-090-0 01 1 1310-
182 CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1310-
