◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11545 - FRR-LHD(EU)SPACE EU6 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#128213) — 119 parça

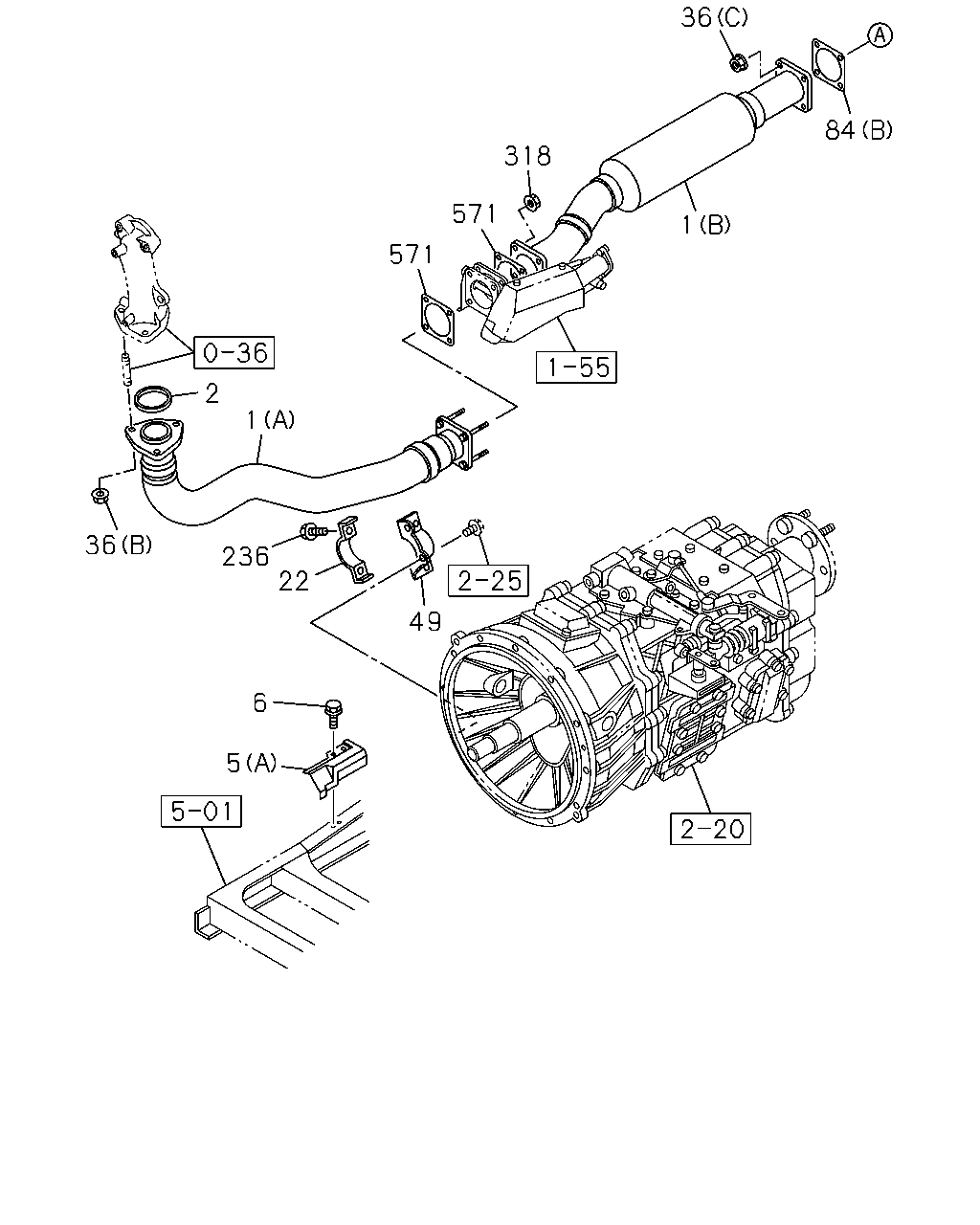

çizim 379532
36 84 318 1 571 571 1 2 36 236 22 49 6 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) (C) 		8-98229-233-0 01 1 1310- ●
1 PIPE; EXH
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C) 		8-98229-233-0 01 1 1310- ●
1 PIPE; EXH
(B) 		8-98229-236-0 01 1 1310- ● ●
1 PIPE; EXH
(A) 		8-98243-550-0 01 1 1310- ● ●
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97381-455-0 01 1 1310- ● ●
5 PROTECTOR; HEAT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98044-122-0 01 1 1310- ● ●
5 PROTECTOR; HEAT
(B) 		8-98236-295-0 01 1 1310- ● ●
6 BOLT; HEAT PROTECTOR
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 FLANGE 		0-28650-825-0 02 1 1310- ● ●
22 CLAMP; EXH PIPE 1-22133-295-0 01 1 1310-1310 ● ●
22 CLAMP; EXH PIPE 8-97646-674-0 01 1 1310- ● ●
36 NUT; EXH PIPE
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) (A) M8 FLANGE 		0-91180-108-0 04 1 1310- ●
36 NUT; EXH PIPE
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M8 FLANGE 		0-91180-108-0 04 1 1310- ●
36 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-1 03 1 1310- ● ●
36 NUT; EXH PIPE
(C) M8 W/LK WASHER 		8-97581-234-0 04 1 1310- ● ●
49 BRACKET; EXH PIPE TO TRANS 8-98208-167-0 01 1 1310- ● ●
84 GASKET; EXH PIPE
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) (B) ID=64 		8-97373-108-0 01 1 1310- ●
84 GASKET; EXH PIPE
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) ID=64 		8-97373-108-0 01 1 1310- ●
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 1310- ● ●
84 GASKET; EXH PIPE
(B) ID=64 		8-97373-108-0 02 1 1310- ● ●
236 BOLT; PIPE CLAMP TO BRKT
M10X30 FLANGE 		0-28051-030-0 02 1 1310- ● ●
318 NUT; EXH PIPE,FRT
M8 W/LK WASHER 		8-97581-234-0 04 1 1310- ● ●
571 GASKET
ID=64 		8-97373-108-0 02 1 1310- ● ●

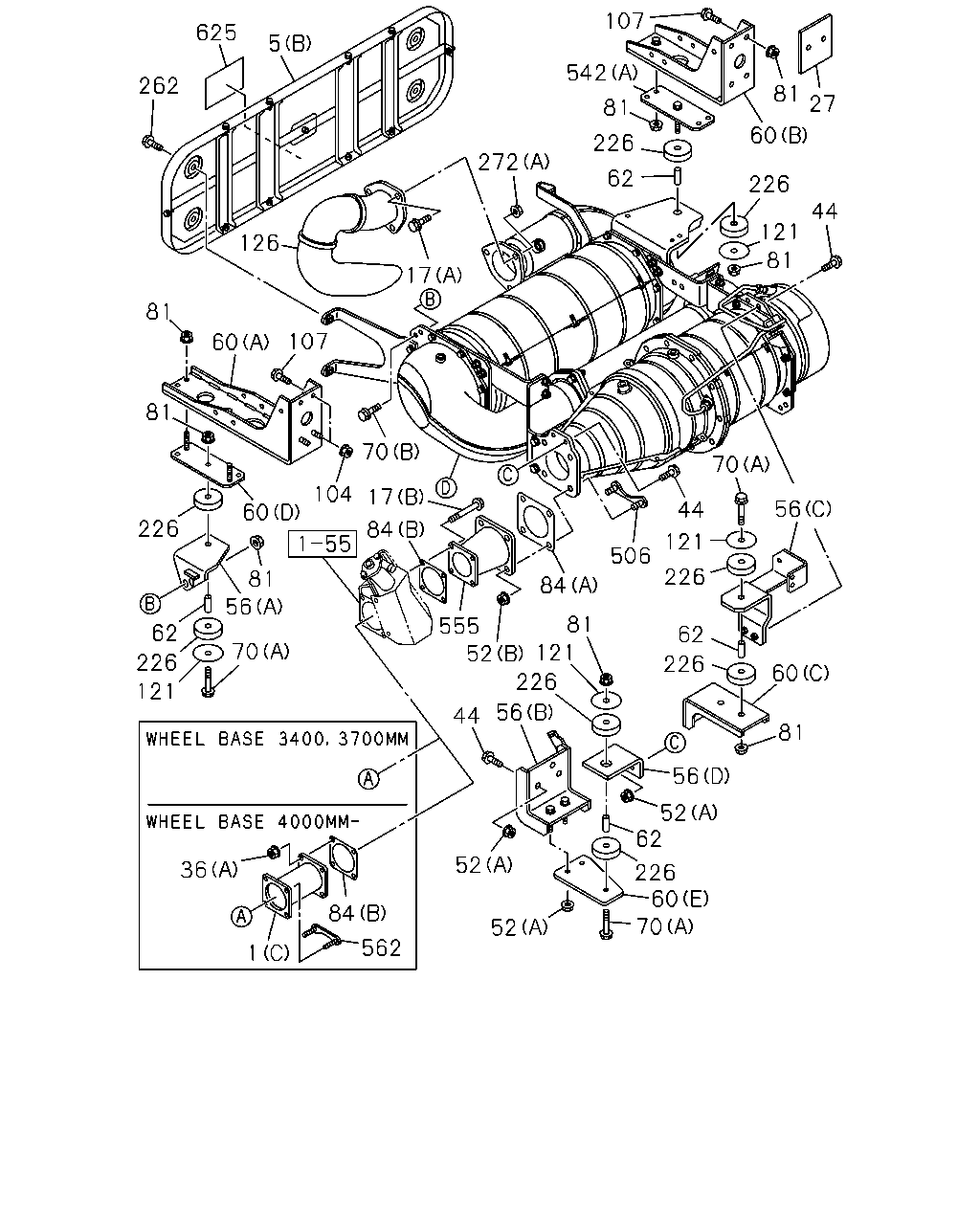

çizim 380984
625 5 262 126 81 60 107 81 17 272 107 542 81 226 62 81 27 60 226 44 121 81 70 56 44 121 506 84 226 62 226 60 81 555 52 121 226 44 56 81 56 52 62 226 52 52 60 70 562 84 36 1 121 226 70 56 62 81 226 60 84 104 17 70
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) (C) 		8-98229-233-0 01 1 1310- ●
1 PIPE; EXH
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C) 		8-98229-233-0 01 1 1310- ●
1 PIPE; EXH
(B) 		8-98229-236-0 01 1 1310- ● ●
1 PIPE; EXH
(A) 		8-98243-550-0 01 1 1310- ● ●
5 PROTECTOR; HEAT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98044-122-0 01 1 1310- ● ●
5 PROTECTOR; HEAT
(B) 		8-98236-295-0 01 1 1310- ● ●
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		0-28051-235-0 03 1 1310- ● ●
17 BOLT; EXH PIPE
(B) M8X65 FLANGE 		1-09044-072-1 04 1 1310- ● ●
27 STUD; EXH PIPE
WHEEL BASE 3400MM(34W) 		8-98203-963-0 01 1 1310- ●
36 NUT; EXH PIPE
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) (A) M8 FLANGE 		0-91180-108-0 04 1 1310- ●
36 NUT; EXH PIPE
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M8 FLANGE 		0-91180-108-0 04 1 1310- ●
36 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-1 03 1 1310- ● ●
36 NUT; EXH PIPE
(C) M8 W/LK WASHER 		8-97581-234-0 04 1 1310- ● ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 09 1 1310- ● ●
52 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 07 1 1310- ● ●
52 NUT; BRKT
(B) M12 FLANGE 		0-91180-212-0 04 1 1310- ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-98203-966-0 01 1 1310- ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98228-981-0 01 1 1310- ● ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98229-042-0 01 1 1310- ● ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-98229-237-0 01 1 1310- ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98159-854-0 01 1 1310- ● ●
60 BRACKET; FRAME TO BRKT
(D) 		8-98159-985-0 01 1 1310- ● ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98223-954-0 01 1 1310- ● ●
60 BRACKET; FRAME TO BRKT
(E) 		8-98228-982-0 01 1 1310- ● ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98229-041-0 01 1 1310- ● ●
62 TUBE; DIST,BRKT 8-98131-254-0 04 1 1310- ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 03 1 1310- ● ●
70 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 02 1 1310- ● ●
81 NUT; BRKT
WHEEL BASE 3700MM(37W) M10 FLANGE 		0-91180-210-0 06 1 1310- ●
81 NUT; BRKT
WHEEL BASE 3400MM(34W) M10 FLANGE 		0-91180-210-0 06 1 1310- ●
81 NUT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) M10 FLANGE 		0-91180-210-0 04 1 1310- ●
81 NUT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M10 FLANGE 		0-91180-210-0 04 1 1310- ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 1310- ● ●
84 GASKET; EXH PIPE
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) (B) ID=64 		8-97373-108-0 01 1 1310- ●
84 GASKET; EXH PIPE
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) ID=64 		8-97373-108-0 01 1 1310- ●
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 1310- ● ●
84 GASKET; EXH PIPE
(B) ID=64 		8-97373-108-0 02 1 1310- ● ●
104 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1310- ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 06 1 1310- ● ●
121 WASHER; PL,BRKT
ID=10.5 OD=70 		8-97625-671-0 04 1 1310- ● ●
126 PIPE; EXH,RR 8-98224-713-0 01 1 1310- ● ●
226 RUBBER; CUSHION 8-97625-670-0 08 1 1310- ● ●
262 BOLT; HANGER TO BODY
M8X25 W/LK&PL WASHER 		1-09980-548-0 04 1 1310- ● ●
272 NUT; FLANGE
(B) M8 FLANGE 		0-91180-108-0 18 1 1310- ● ●
272 NUT; FLANGE
(A) M12 FLANGE 		0-91180-212-0 03 1 1310- ● ●
506 BRACKET; STUD
M12X35 		1-22131-963-0 02 1 1310- ● ●
542 BRACKET
(B) 		8-98232-788-0 01 1 1310- ● ●
542 BRACKET
(A) 		8-98236-728-0 01 1 1310- ● ●
555 PIPE; EXH,DPD 8-98224-353-0 01 1 1310- ● ●
562 PLATE; STUD,BOLT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) 		8-97373-966-0 02 1 1310- ●
562 PLATE; STUD,BOLT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) 		8-97373-966-0 02 1 1310- ●

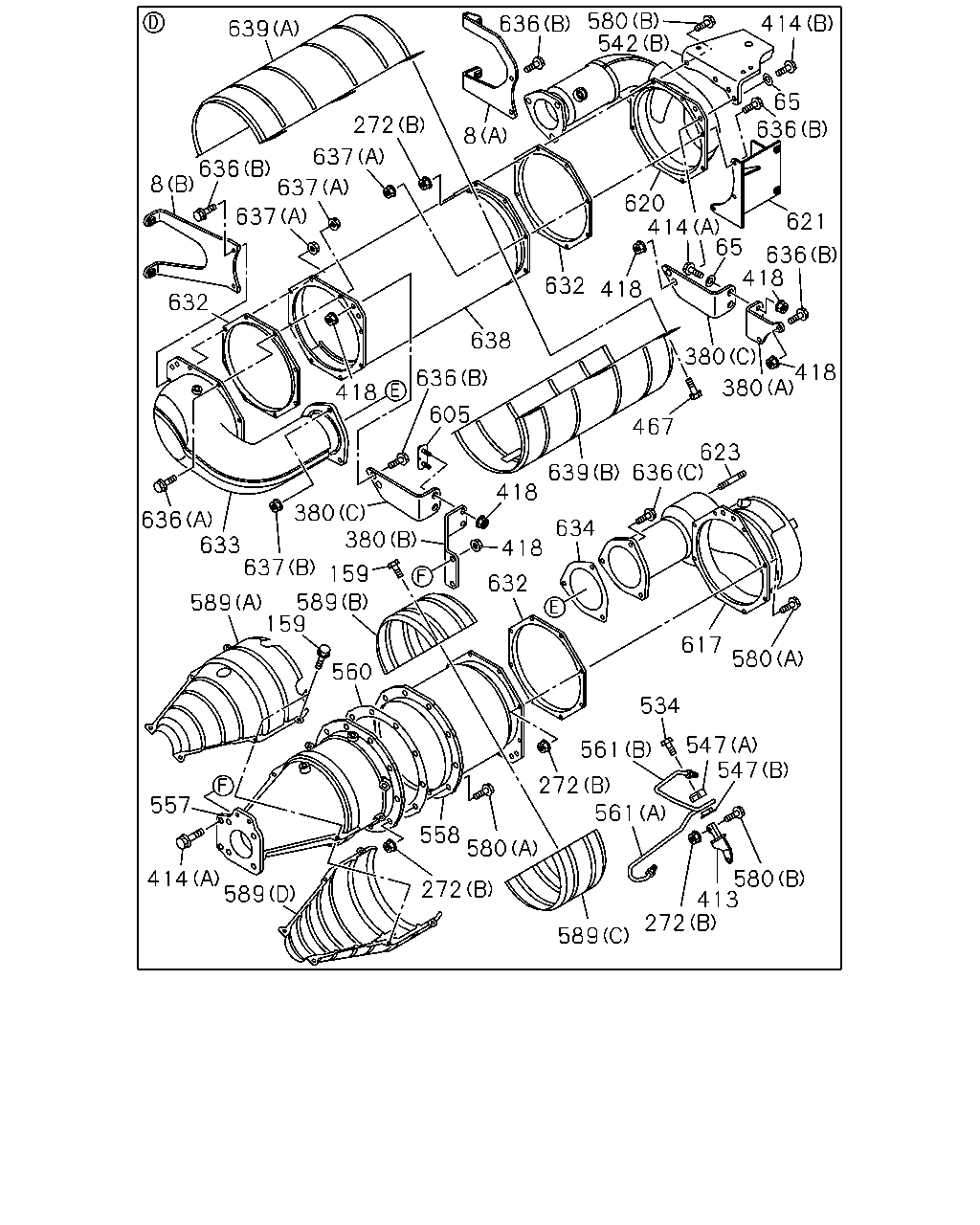

çizim 381077
413 580 272 589 561 547 547 580 617 534 561 272 580 272 558 589 414 557 560 159 589 589 637 159 380 632 418 634 418 639 636 623 467 380 418 380 418 636 621 636 65 414 580 542 620 414 65 418 632 636 8 638 636 605 418 380 633 636 632 8 637 636 637 637 639 272
BalonParca AdiParca NoAdetTipApplied Date A B
8 BRACKET; EXH PIPE
(A) 		8-98144-459-0 01 1 1310- ● ●
8 BRACKET; EXH PIPE
(B) 		8-98203-726-0 01 1 1310- ● ●
65 WASHER; PL
ID=10.5 OD=22 		0-91614-610-0 06 1 1310- ● ●
159 BOLT; HEAT PROTECTOR
M6X16 		8-98019-179-0 10 1 1310- ● ●
272 NUT; FLANGE
(B) M8 FLANGE 		0-91180-108-0 18 1 1310- ● ●
272 NUT; FLANGE
(A) M12 FLANGE 		0-91180-212-0 03 1 1310- ● ●
380 BRACKET; STAY
(A) 		8-98118-879-0 01 1 1310- ● ●
380 BRACKET; STAY
(C) 		8-98138-457-1 02 1 1310- ● ●
380 BRACKET; STAY
(B) 		8-98205-012-0 01 1 1310- ● ●
413 BRACKET; EXH PIPE,CONN 8-98138-485-0 01 1 1310- ● ●
414 BOLT; BRKT
(A) M10X35 FLANGE 		0-28051-035-0 06 1 1310- ● ●
414 BOLT; BRKT
(B) M10X45 FLANGE 		0-28051-045-0 02 1 1310- ● ●
418 NUT; BRKT
M10 FLANGE 		0-91180-110-0 10 1 1310- ● ●
467 BOLT; PROTECTOR
M6X16 		8-98019-179-0 06 1 1310- ● ●
534 BOLT; CLIP
M6X30 FLANGE 		0-28050-630-0 01 1 1310- ● ●
542 BRACKET
(B) 		8-98232-788-0 01 1 1310- ● ●
542 BRACKET
(A) 		8-98236-728-0 01 1 1310- ● ●
547 CLIP; PIPE
(A) ID=7 & 7 L=22 		8-97381-635-0 01 1 1310- ● ●
547 CLIP; PIPE
(B) ID=7 & 7 L=22 		8-97381-636-0 01 1 1310- ● ●
557 CATALYST ASM 8-98204-940-1 01 1 1310- ● ●
558 FILTER ASM 8-98204-942-0 01 1 1310- ● ●
560 GASKET; DPD 8-97611-080-0 01 1 1310- ● ●
561 PIPE; DPD
(A) 		8-98138-575-0 01 1 1310- ● ●
561 PIPE; DPD
(B) 		8-98138-576-0 01 1 1310- ● ●
580 BOLT; FLANGE
(A) M8X30 FLANGE 		0-28050-830-0 14 1 1310- ● ●
580 BOLT; FLANGE
(B) M8X40 FLANGE 		0-28050-840-0 04 1 1310- ● ●
589 PROTECTOR; HEAT,DPD
(A) 		8-97611-086-0 01 1 1310- ● ●
589 PROTECTOR; HEAT,DPD
(B) 		8-97628-261-0 01 1 1310- ● ●
589 PROTECTOR; HEAT,DPD
(C) 		8-97628-262-0 01 1 1310- ● ●
589 PROTECTOR; HEAT,DPD
(D) 		8-98140-713-0 01 1 1310- ● ●
605 PLATE; NUT 8-98148-511-0 01 1 1310- ● ●
617 CHAMBER SUB ASM; MIXER 8-98204-944-1 01 1 1310- ● ●
620 CHAMBER ASM; RR 8-98205-011-0 01 1 1310- ● ●
621 BRACKET; PROTECTOR 8-98159-190-1 01 1 1310- ● ●
623 STUD; FLANGE
M6 		8-98141-351-0 03 1 1310- ● ●
632 GASKET; FILTER,DEF 8-97628-257-0 03 1 1310- ● ●
633 CHAMBER SUB ASM; DEF,FRONT 8-98138-451-0 01 1 1310- ● ●
634 GASKET; MIXER 8-98118-422-1 01 1 1310- ● ●
636 BOLT; FLANGE,DEF FRONT
(A) M8X30 FLANGE 		0-28050-830-0 07 1 1310- ● ●
636 BOLT; FLANGE,DEF FRONT
(B) M8X40 FLANGE 		0-28050-840-0 09 1 1310- ● ●
636 BOLT; FLANGE,DEF FRONT
(C) M10X40 FLANGE 		0-28051-040-0 03 1 1310- ● ●
637 NUT; FLANGE,DEF FRONT
(A) M8 FLANGE 		0-91180-108-0 15 1 1310- ● ●
637 NUT; FLANGE,DEF FRONT
(B) M10 FLANGE 		0-91180-110-0 03 1 1310- ● ●
638 CATALYST ASM; DEF 8-98205-010-0 01 1 1310- ● ●
639 PROTECTOR; HEAT,CATALYST ASM DEF
(A) 		8-98136-188-0 01 1 1310- ● ●
639 PROTECTOR; HEAT,CATALYST ASM DEF
(B) 		8-98136-189-1 01 1 1310- ● ●
