Sayfa 1-46 - Isuzu EPC

1-46 — DEF TANK AND PIPING (#128212) — 282 parça

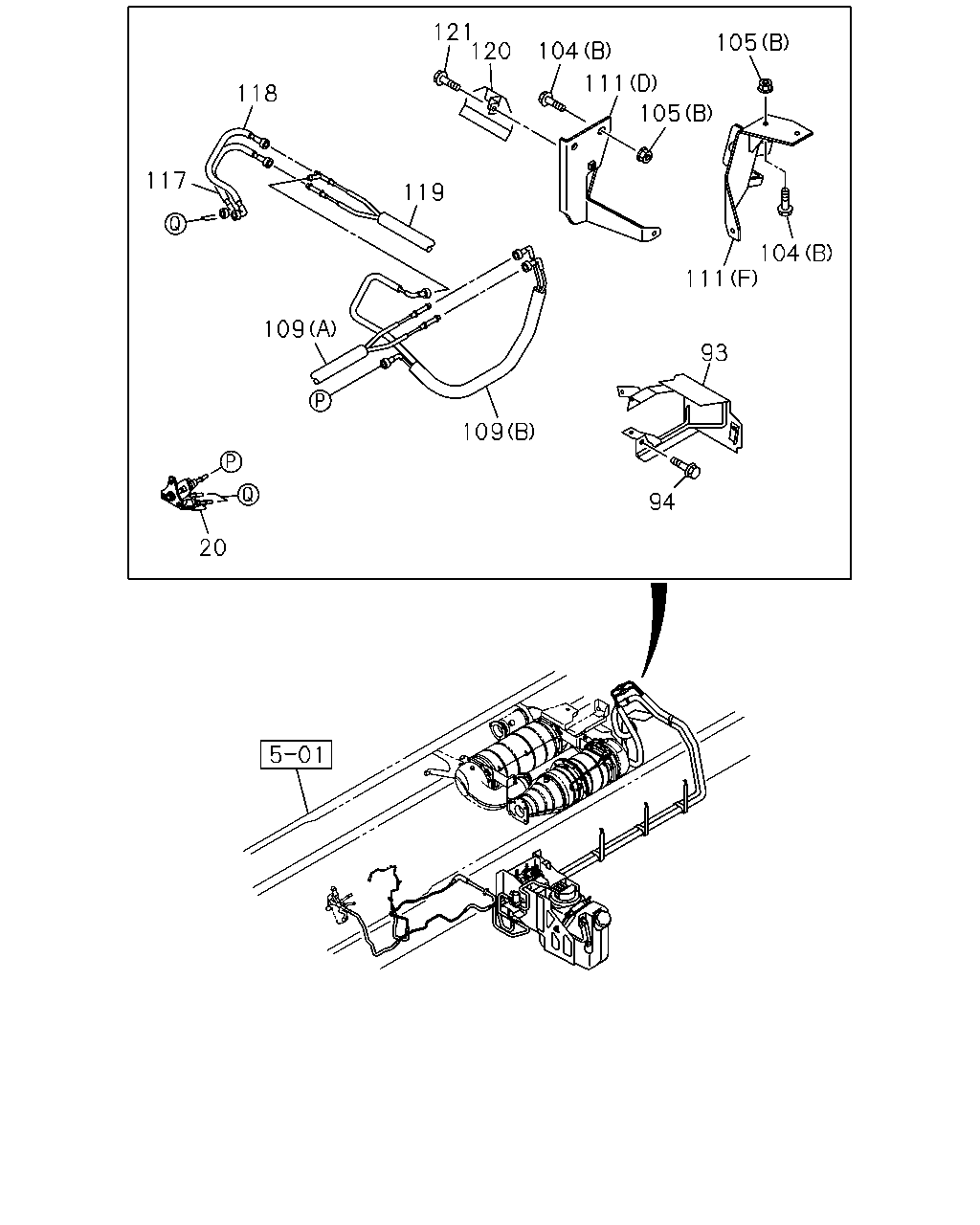

94 93 109 109 117 118 119 121 111 104 120 105 104 105 111 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	INJECTOR ASM; DEF DCM	8-98231-898-2	01	1	1310-	●	●
93	PROTECTOR; DEF DCM	8-98166-811-0	01	1	1310-	●	●
94	BOLT; PROTECTOR,DEF DCM M8X25 FLANGE	0-28650-825-0	02	1	1310-	●	●
104	BOLT; BRKT WHEEL BASE 3700MM(37W) (B) M10X30 FLANGE	0-28651-030-0	05	1	1310-	●
104	BOLT; BRKT WHEEL BASE 3400MM(34W) (B) M10X30 FLANGE	0-28651-030-0	05	1	1310-		●
104	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	02	1	1310-	●	●
104	BOLT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) M10X30 FLANGE	0-28651-030-0	02	1	1310-	●	●
104	BOLT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M8X25 FLANGE	0-28650-825-0	02	1	1310-	●	●
104	BOLT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (B) M10X30 FLANGE	0-28651-030-0	06	1	1310-	●	●
104	BOLT; BRKT WHEEL BASE 4600MM(46W) (B) M10X30 FLANGE	0-28651-030-0	07	1	1310-	●	●
104	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1310-	●	●
104	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1310-	●	●
104	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	02	1	1310-	●	●
104	BOLT; BRKT WHEEL BASE 3400MM(34W) (B) M10X25 FLANGE	0-28651-025-0	02	1	1310-		●
105	NUT; BRKT WHEEL BASE 3700MM(37W) (B) M10 FLANGE	0-91180-210-0	05	1	1310-	●
105	NUT; BRKT WHEEL BASE 3400MM(34W) (B) M10 FLANGE	0-91180-210-0	05	1	1310-		●
105	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1310-	●	●
105	NUT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) M10 FLANGE	0-91180-210-0	02	1	1310-	●	●
105	NUT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M8 FLANGE	0-91180-108-0	02	1	1310-	●	●
105	NUT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) (B) M10 FLANGE	0-91180-210-0	04	1	1310-	●	●
105	NUT; BRKT WHEEL BASE 4900MM(49W) (B) M10 FLANGE	0-91180-210-0	06	1	1310-	●
105	NUT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) M10 FLANGE	0-91180-210-0	06	1	1310-		●
109	TUBE ASM; DEF & WATER WHEEL BASE 3700MM(37W) (A)	8-98206-715-1	01	1	1310-1509	●
109	TUBE ASM; DEF & WATER WHEEL BASE 3700MM(37W) (A)	8-98329-852-0	01	1	1510-	●
109	TUBE ASM; DEF & WATER WHEEL BASE 3700MM(37W) (B)	8-98206-719-0	01	1	1310-1508	●
109	TUBE ASM; DEF & WATER WHEEL BASE 3700MM(37W) (B)	8-98329-859-0	01	1	1509-	●
109	TUBE ASM; DEF & WATER WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) (B)	8-98206-720-0	01	1	1310-1508	●
109	TUBE ASM; DEF & WATER WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B)	8-98206-720-0	01	1	1310-1508		●
109	TUBE ASM; DEF & WATER WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) (B)	8-98329-849-0	01	1	1509-	●
109	TUBE ASM; DEF & WATER WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B)	8-98329-849-0	01	1	1509-		●
109	TUBE ASM; DEF & WATER WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (A)	8-98210-290-1	01	1	1310-1509	●	●
109	TUBE ASM; DEF & WATER WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (A)	8-98329-854-0	01	1	1510-	●	●
109	TUBE ASM; DEF & WATER WHEEL BASE 4600MM(46W) (A)	8-98206-717-1	01	1	1310-1509	●	●
109	TUBE ASM; DEF & WATER WHEEL BASE 4600MM(46W) (A)	8-98329-853-0	01	1	1510-	●	●
109	TUBE ASM; DEF & WATER (C)	8-98233-439-0	01	1	1310-	●	●
109	TUBE ASM; DEF & WATER WHEEL BASE 3400MM(34W) (A)	8-98206-714-1	01	1	1310-1509		●
109	TUBE ASM; DEF & WATER WHEEL BASE 3400MM(34W) (A)	8-98329-851-0	01	1	1510-		●
109	TUBE ASM; DEF & WATER WHEEL BASE 3400MM(34W) (B)	8-98206-718-0	01	1	1310-1508		●
109	TUBE ASM; DEF & WATER WHEEL BASE 3400MM(34W) (B)	8-98329-858-0	01	1	1509-		●
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 3700MM(37W) (G)	8-98233-438-0	01	1	1310-	●
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 3700MM(37W) (A)	8-98162-761-0	05	1	1310-	●
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 3400MM(34W) (A)	8-98162-761-0	05	1	1310-		●
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (D)	8-98206-700-0	01	1	1310-	●	●
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) (B) L=225	1-47477-646-3	02	1	1310-	●
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) L=225	1-47477-646-3	02	1	1310-		●
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) (C)	8-98206-696-0	01	1	1310-	●
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C)	8-98206-696-0	01	1	1310-		●
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (A)	8-98162-761-0	06	1	1310-	●	●
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 4600MM(46W) (A)	8-98162-761-0	07	1	1310-	●	●
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 3400MM(34W) (E)	8-98206-697-0	01	1	1310-		●
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 3400MM(34W) (F)	8-98236-826-0	01	1	1310-		●
117	TUBE ASM; DEF DCM COOL DLVY	8-98169-122-0	01	1	1310-	●	●
118	TUBE ASM; DEF DCM COOL RTN	8-98169-121-0	01	1	1310-	●	●
119	TUBE ASM; DEF COOL & HTR WAT WHEEL BASE 3700MM(37W)	8-98206-722-2	01	1	1310-1509	●
119	TUBE ASM; DEF COOL & HTR WAT WHEEL BASE 3700MM(37W)	8-98329-861-0	01	1	1510-	●
119	TUBE ASM; DEF COOL & HTR WAT WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W)	8-98210-287-2	01	1	1310-1509	●	●
119	TUBE ASM; DEF COOL & HTR WAT WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W)	8-98329-862-0	01	1	1510-	●	●
119	TUBE ASM; DEF COOL & HTR WAT WHEEL BASE 4600MM(46W)	8-98210-366-2	01	1	1310-1509	●	●
119	TUBE ASM; DEF COOL & HTR WAT WHEEL BASE 4600MM(46W)	8-98329-863-0	01	1	1510-	●	●
119	TUBE ASM; DEF COOL & HTR WAT WHEEL BASE 3400MM(34W)	8-98206-721-2	01	1	1310-1509		●
119	TUBE ASM; DEF COOL & HTR WAT WHEEL BASE 3400MM(34W)	8-98329-860-0	01	1	1510-		●
120	PROTECTOR; DEF COOL & HTR WAT TUBE WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W)	8-98169-727-0	01	1	1310-	●	●
120	PROTECTOR; DEF COOL & HTR WAT TUBE WHEEL BASE 3400MM(34W)	8-98236-477-0	01	1	1310-		●
121	BOLT; PROTECTOR M8X20 FLANGE	0-28650-820-0	01	1	1310-	●	●

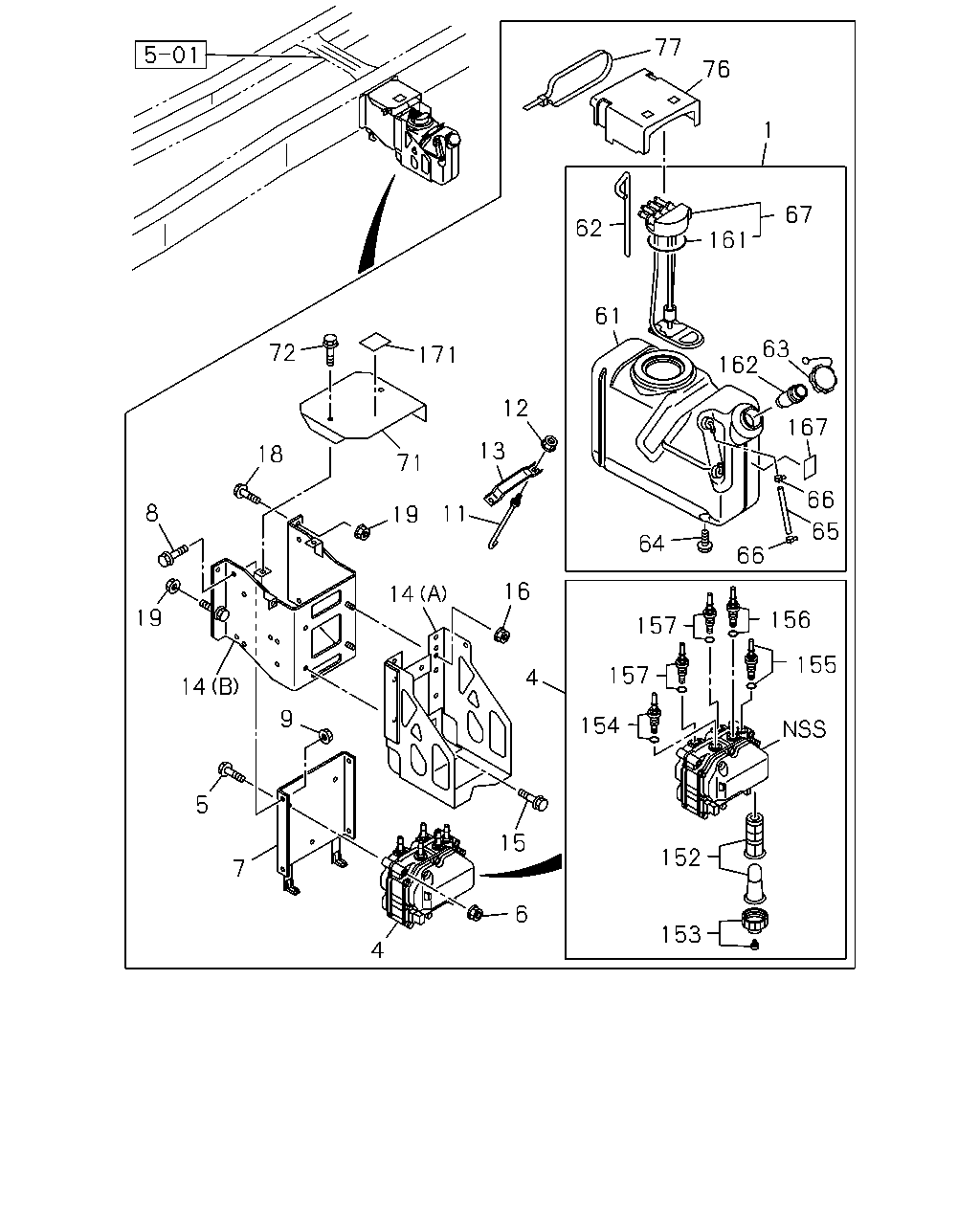

153 152 154 157 157 156 155 66 6 64 167 63 162 61 62 161 67 1 76 77 12 171 13 71 11 16 4 15 6 4 7 5 14 19 8 9 14 19 18 72 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; DEF	8-98239-382-3	01	1	1310-	●	●
4	PUMP ASM; DEF,DCM SPLY	8-98268-812-0	01	1	1310-	●	●
5	BOLT; PUMP ASM,DEF DCM SPLY M8X90 FLANGE	0-28050-890-0	03	1	1310-	●	●
6	NUT; DEF DCM SPLY M8 FLANGE	0-91180-108-0	03	1	1310-	●	●
7	BRACKET; DEF DCM SPLY	8-98239-367-0	01	1	1310-	●	●
8	BOLT; BRKT,DEF DCM SPLY M8X20 FLANGE	0-28050-820-0	04	1	1310-	●	●
9	NUT; BRKT,DEF DCM SPLY M8 FLANGE	0-91180-208-0	04	1	1310-	●	●
11	BOLT; DEF TANK	8-98157-936-0	02	1	1310-	●	●
12	NUT; DEF TANK M10 FLANGE	0-91180-110-0	02	1	1310-	●	●
13	RETAINER; DEF TANK	8-98156-747-0	01	1	1310-	●	●
14	BRACKET ASM; DEF TANK (A)	8-98214-590-0	01	1	1310-	●	●
14	BRACKET ASM; DEF TANK (B)	8-98239-989-1	01	1	1310-	●	●
15	BOLT; BRKT,DEF TANK M10X40 FLANGE	0-28651-040-0	02	1	1310-	●	●
16	NUT; BRKT,DEF TANK M10 FLANGE	0-91180-210-0	04	1	1310-	●	●
18	BOLT; BRKT,DEF TANK M10X40 FLANGE	0-28651-040-0	02	1	1310-	●	●
19	NUT; BRKT,DEF TANK M10 FLANGE	0-91180-210-0	04	1	1310-	●	●
61	BODY ASM; DEF TANK	8-98220-878-1	01	1	1310-	●	●
62	HOSE; VENT,DEF TANK	8-98239-981-1	01	1	1310-	●	●
63	CAP ASM; FILLER,DEF TANK	8-98147-581-1	01	1	1310-	●	●
64	PLUG; DRAIN,DEF TANK	8-98120-263-0	01	1	1310-	●	●
65	HOSE; WATER LEVEL	8-98120-264-1	01	1	1310-	●	●
66	CLAMP; WATER LEVEL HOSE	8-98120-265-1	02	1	1310-	●	●
67	SENSOR ASM; DEF TANK	8-98213-926-1	01	1	1310-	●	●
71	COVER; DEF DCM SPLY	8-98233-434-0	01	1	1310-	●	●
72	BOLT; COVER,DEF DCM SPLY M8X20 FLANGE	0-28650-820-0	02	1	1310-	●	●
76	COVER; DEF TANK CAP	8-98156-298-1	01	1	1310-	●	●
77	CLIP; DEF TANK CAP CVR L=350	1-09707-183-0	01	1	1310-	●	●
152	FILTER KIT; PUMP ASM,DEF DCM SPLY	8-98169-403-0	01	1	1310-	●	●
153	COVER KIT; PUMP ASM,DEF DCM SPLY	8-98169-408-0	01	1	1310-	●	●
154	CONNECTOR KIT; INLET PUMP,DEF	8-98169-409-0	01	1	1310-	●	●
155	CONNECTOR KIT; OUTLET PUMP,DEF	8-98169-411-0	01	1	1310-	●	●
156	CONNECTOR KIT; RETURN PUMP,DEF	8-98268-813-0	01	1	1310-	●	●
157	CONNECTOR KIT; COOLANT PUMP,DEF	8-98169-414-1	02	1	1310-	●	●
161	GASKET; SENSOR ASM,DEF TANK	8-98170-383-0	01	1	1310-	●	●
162	ADAPTER; DEF TANK	8-98131-158-0	01	1	1310-	●	●
167	PLATE; CAUTION,DEF	8-98231-935-0	01	1	1310-	●	●
171	LABEL; NO STEP	8-98158-131-0	01	1	1310-	●	●

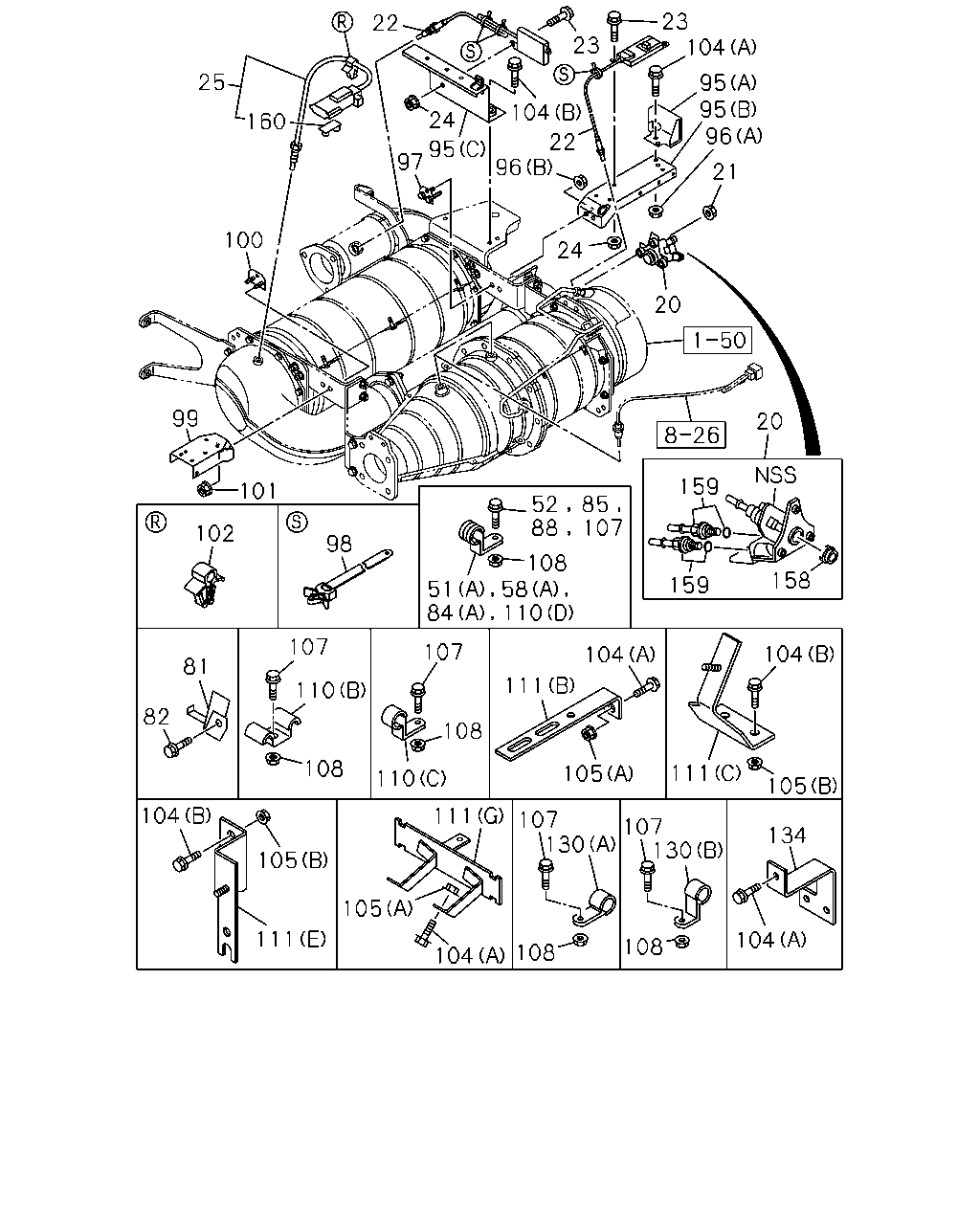

104 134 108 107 130 130 108 107 111 104 105 111 105 104 108 108 110 111 105 111 104 105 104 107 110 107 81 82 102 98 51 84 110 58 108 88 52 85 107 159 159 158 20 20 21 96 95 95 104 23 24 96 22 104 97 95 24 101 99 100 160 25 22 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	INJECTOR ASM; DEF DCM	8-98231-898-2	01	1	1310-	●	●
21	NUT; INJECTOR ASM,DEF DCM M6 FLANGE	0-91180-106-0	03	1	1310-	●	●
22	SENSOR; DEF DCM EXH NOX	8-98236-920-0	02	1	1310-1502	●	●
22	SENSOR; DEF DCM EXH NOX	8-98302-394-0	02	1	1503-	●	●
23	BOLT; SENSOR,DEF DCM EXH NOX	8-98155-181-0	04	1	1310-	●	●
24	NUT; SENSOR,DEF DCM EXH NOX M6 FLANGE	0-91180-106-0	04	1	1310-	●	●
25	SENSOR; DEF DCM EXH TEMP	8-98086-329-0	01	1	1310-	●	●
51	CLIP; DEF DCM MDL COOL DLVY HOSE (A) ID=18 H=23 L=28	1-09700-860-0	01	1	1310-	●	●
51	CLIP; DEF DCM MDL COOL DLVY HOSE (B) ID=16	8-97329-628-0	03	1	1310-	●	●
51	CLIP; DEF DCM MDL COOL DLVY HOSE (C) ID=16	8-98008-098-0	01	1	1310-	●	●
52	BOLT; DEF DCM MDL COOL DLVY HOSE CLIP M8X12 FLANGE	0-28050-812-0	01	1	1310-	●	●
58	CLIP; DEF RSVR HTR DLVY HOSE (A) ID=18 H=23 L=28	1-09700-860-0	01	1	1310-	●	●
58	CLIP; DEF RSVR HTR DLVY HOSE (B) ID=16	8-97329-628-0	02	1	1310-	●	●
81	BRACKET; DEF DCM MDL COOL RTN HOSE	8-98239-525-0	01	1	1310-	●	●
82	BOLT/SCREW;DEF DCM MDL COOL RTN HOSE B M8X30 FLANGE	0-28650-830-0	01	1	1310-	●	●
84	CLIP; DEF DCM MDL COOL RTN HOSE (A) ID=18 H=23 L=28	1-09700-860-0	01	1	1310-	●	●
84	CLIP; DEF DCM MDL COOL RTN HOSE (B) ID=16	8-97329-628-0	01	1	1310-	●	●
84	CLIP; DEF DCM MDL COOL RTN HOSE (B) ID=16	8-97329-628-0	02	1	1310-	●	●
84	CLIP; DEF DCM MDL COOL RTN HOSE (C) ID=16	8-98008-098-0	01	1	1310-	●	●
85	BOLT/SCREW;DEF DCM MDL COOL RTN HOSE C M8X20 FLANGE	0-28650-820-0	01	1	1310-	●	●
88	BOLT; CLIP,DEF RSVR HTR DLVY HOSE M8X20 FLANGE	0-28650-820-0	01	1	1310-	●	●
95	BRACKET; HARN,DEF DCM EXH NOX SEN (B)	8-98142-266-3	01	1	1310-	●	●
95	BRACKET; HARN,DEF DCM EXH NOX SEN (A)	8-98170-211-0	01	1	1310-	●	●
95	BRACKET; HARN,DEF DCM EXH NOX SEN (C)	8-98241-870-0	01	1	1310-	●	●
96	NUT; BRACKET,DEF DCM EXH NOX SEN HARN (A) M8 FLANGE	0-91180-108-0	02	1	1310-	●	●
96	NUT; BRACKET,DEF DCM EXH NOX SEN HARN (B) M10 FLANGE	0-91180-210-0	02	1	1310-	●	●
97	STUD; BRACKET,DEF DCM EXH NOX SEN HARN	8-98005-985-0	01	1	1310-	●	●
98	CLIP; DEF DCM EXH NOX SEN HARN L=112	8-94232-618-0	08	1	1310-	●	●
99	BRACKET; DEF DCM EXH TEMP SEN HARN	8-98248-149-0	01	1	1310-	●	●
100	BOLT; BRKT,DEF DCM EXH TEMP SEN HARN	8-98005-985-0	01	1	1310-	●	●
101	NUT; CLIP,DEF DCM EXH TEMP SEN HARN M10 FLANGE	0-91180-210-0	02	1	1310-	●	●
102	CLIP; DEF DCM EXH TEMP SEN HARN ID=4.8	1-09701-218-0	03	1	1310-	●	●
104	BOLT; BRKT WHEEL BASE 3700MM(37W) (B) M10X30 FLANGE	0-28651-030-0	05	1	1310-	●
104	BOLT; BRKT WHEEL BASE 3400MM(34W) (B) M10X30 FLANGE	0-28651-030-0	05	1	1310-		●
104	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	02	1	1310-	●	●
104	BOLT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) M10X30 FLANGE	0-28651-030-0	02	1	1310-	●	●
104	BOLT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M8X25 FLANGE	0-28650-825-0	02	1	1310-	●	●
104	BOLT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (B) M10X30 FLANGE	0-28651-030-0	06	1	1310-	●	●
104	BOLT; BRKT WHEEL BASE 4600MM(46W) (B) M10X30 FLANGE	0-28651-030-0	07	1	1310-	●	●
104	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1310-	●	●
104	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1310-	●	●
104	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	02	1	1310-	●	●
104	BOLT; BRKT WHEEL BASE 3400MM(34W) (B) M10X25 FLANGE	0-28651-025-0	02	1	1310-		●
105	NUT; BRKT WHEEL BASE 3700MM(37W) (B) M10 FLANGE	0-91180-210-0	05	1	1310-	●
105	NUT; BRKT WHEEL BASE 3400MM(34W) (B) M10 FLANGE	0-91180-210-0	05	1	1310-		●
105	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1310-	●	●
105	NUT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) M10 FLANGE	0-91180-210-0	02	1	1310-	●	●
105	NUT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M8 FLANGE	0-91180-108-0	02	1	1310-	●	●
105	NUT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) (B) M10 FLANGE	0-91180-210-0	04	1	1310-	●	●
105	NUT; BRKT WHEEL BASE 4900MM(49W) (B) M10 FLANGE	0-91180-210-0	06	1	1310-	●
105	NUT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) M10 FLANGE	0-91180-210-0	06	1	1310-		●
107	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1310-	●	●
107	BOLT; CLIP WHEEL BASE 3700MM(37W) M8X20 FLANGE	0-28650-820-0	01	1	1310-	●
107	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	1310-	●	●
107	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	03	1	1310-	●	●
107	BOLT; CLIP M8X30 FLANGE	0-28650-830-0	02	1	1310-	●	●
108	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1310-	●	●
108	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1310-	●	●
108	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	1310-	●	●
110	CLIP; TUBE ASM WHEEL BASE 3700MM(37W) (A) L=350	1-09707-183-0	06	1	1310-	●
110	CLIP; TUBE ASM WHEEL BASE 3400MM(34W) (A) L=350	1-09707-183-0	06	1	1310-		●
110	CLIP; TUBE ASM (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1310-	●	●
110	CLIP; TUBE ASM (B) ID=11 & 13 L=17 & 18	1-09700-748-0	01	1	1310-	●	●
110	CLIP; TUBE ASM (C) ID=13 H=18 L=20	1-09700-813-0	01	1	1310-	●	●
110	CLIP; TUBE ASM (D) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1310-1508	●	●
110	CLIP; TUBE ASM (D) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1509-	●	●
110	CLIP; TUBE ASM (A) L=350	1-09707-183-0	01	1	1310-	●	●
110	CLIP; TUBE ASM (A) L=350	1-09707-183-0	02	1	1310-	●	●
110	CLIP; TUBE ASM WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (A) L=350	1-09707-183-0	07	1	1310-	●	●
110	CLIP; TUBE ASM WHEEL BASE 4600MM(46W) (A) L=350	1-09707-183-0	08	1	1310-	●	●
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 3700MM(37W) (G)	8-98233-438-0	01	1	1310-	●
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 3700MM(37W) (A)	8-98162-761-0	05	1	1310-	●
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 3400MM(34W) (A)	8-98162-761-0	05	1	1310-		●
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (D)	8-98206-700-0	01	1	1310-	●	●
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) (B) L=225	1-47477-646-3	02	1	1310-	●
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) L=225	1-47477-646-3	02	1	1310-		●
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) (C)	8-98206-696-0	01	1	1310-	●
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C)	8-98206-696-0	01	1	1310-		●
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (A)	8-98162-761-0	06	1	1310-	●	●
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 4600MM(46W) (A)	8-98162-761-0	07	1	1310-	●	●
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 3400MM(34W) (E)	8-98206-697-0	01	1	1310-		●
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 3400MM(34W) (F)	8-98236-826-0	01	1	1310-		●
130	CLIP; PIPE ASM (A) ID=13 L=20	0-95235-235-0	01	1	1310-	●	●
130	CLIP; PIPE ASM (A) ID=13 L=40	0-95235-276-0	01	1	1310-	●	●
130	CLIP; PIPE ASM (B) ID=13 H=18 L=20	1-09700-813-0	03	1	1310-	●	●
134	BRACKET; PIPE ASM	8-98206-701-0	01	1	1310-	●	●
158	GASKET; INJECTOR ASM,DEF DCM	8-98086-333-0	01	1	1310-	●	●
159	CONNECTOR KIT; COOLANT,INJECTOR ASM DE	8-98169-416-1	02	1	1310-	●	●
160	CLIP; HARNESS,SENSOR DEF DCM EXH TEMP	8-98170-331-0	01	1	1310-	●	●

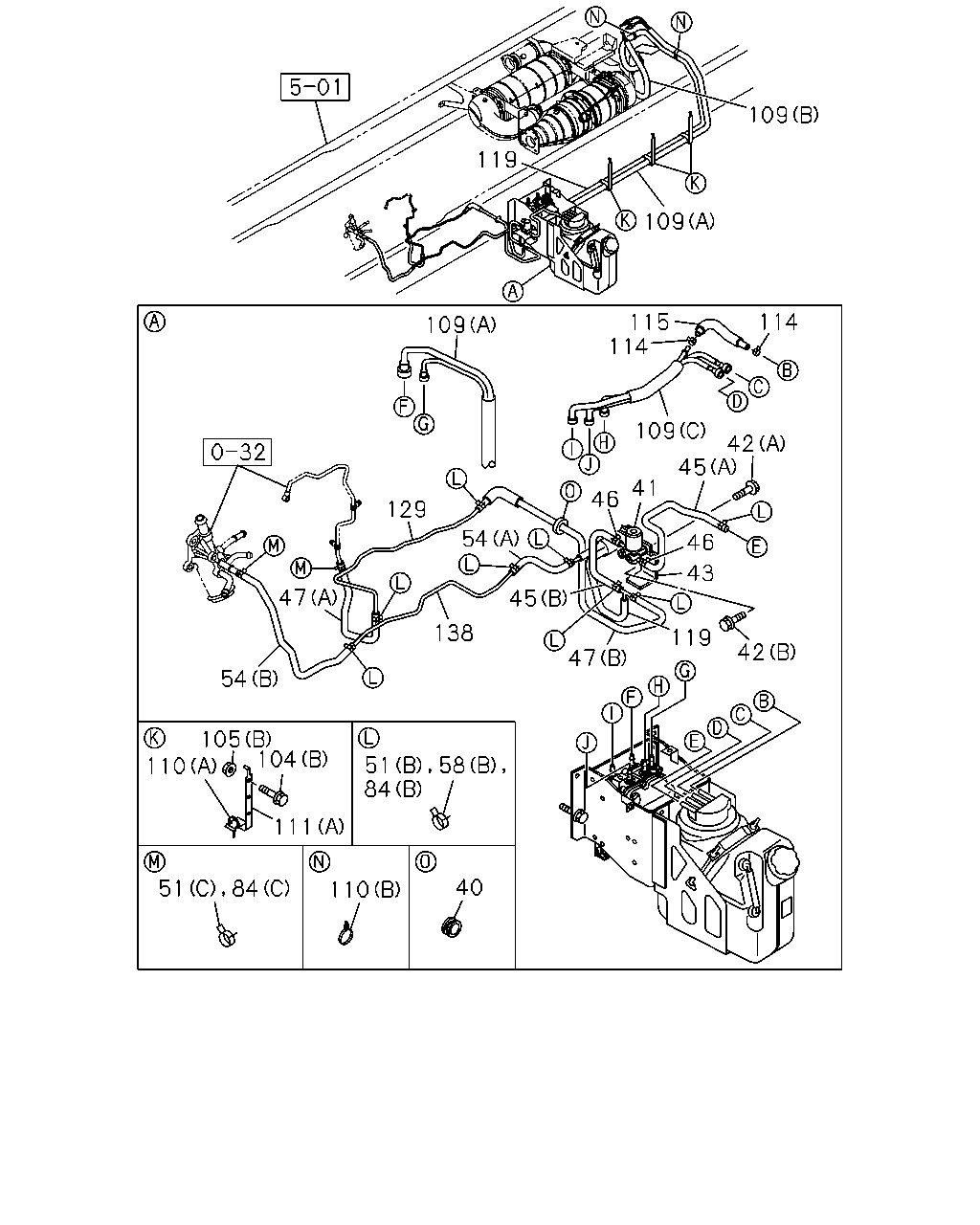

42 119 47 45 54 138 47 129 46 45 41 109 114 115 114 109 54 105 51 58 84 110 111 110 104 84 51 40 43 46 42 109 109 119

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	GROMMET ID=28 OD=35 T=17	9-09956-256-2	01	1	1310-	●	●
41	VALVE ASM; DEF TANK HTR DLVY	8-97628-956-1	01	1	1310-	●	●
42	BOLT; DEF RSVR HTR DLVY VLV (A) M8X16 FLANGE	0-28050-816-0	02	1	1310-	●	●
42	BOLT; DEF RSVR HTR DLVY VLV (B) M8X25 FLANGE	0-28650-825-0	02	1	1310-	●	●
43	BRACKET; DEF RSVR HTR DLVY VLV	8-98206-706-0	01	1	1310-	●	●
45	HOSE ASM; DEF TANK HTR DLVY (B)	8-98206-772-0	01	1	1310-	●	●
45	HOSE ASM; DEF TANK HTR DLVY (A)	8-98206-773-1	01	1	1310-	●	●
46	CLAMP; DEF TANK HTR DLVY ID=16	8-97329-628-0	02	1	1310-	●	●
47	HOSE; DEF DCM COOL DLVY (A)	8-98206-774-0	01	1	1310-	●	●
47	HOSE; DEF DCM COOL DLVY (B)	8-98245-739-1	01	1	1310-	●	●
51	CLIP; DEF DCM MDL COOL DLVY HOSE (A) ID=18 H=23 L=28	1-09700-860-0	01	1	1310-	●	●
51	CLIP; DEF DCM MDL COOL DLVY HOSE (B) ID=16	8-97329-628-0	03	1	1310-	●	●
51	CLIP; DEF DCM MDL COOL DLVY HOSE (C) ID=16	8-98008-098-0	01	1	1310-	●	●
54	HOSE; DEF DCM COOL RTN (A)	8-98233-333-0	01	1	1310-	●	●
54	HOSE; DEF DCM COOL RTN (B)	8-98239-522-0	01	1	1310-	●	●
58	CLIP; DEF RSVR HTR DLVY HOSE (A) ID=18 H=23 L=28	1-09700-860-0	01	1	1310-	●	●
58	CLIP; DEF RSVR HTR DLVY HOSE (B) ID=16	8-97329-628-0	02	1	1310-	●	●
84	CLIP; DEF DCM MDL COOL RTN HOSE (A) ID=18 H=23 L=28	1-09700-860-0	01	1	1310-	●	●
84	CLIP; DEF DCM MDL COOL RTN HOSE (B) ID=16	8-97329-628-0	01	1	1310-	●	●
84	CLIP; DEF DCM MDL COOL RTN HOSE (B) ID=16	8-97329-628-0	02	1	1310-	●	●
84	CLIP; DEF DCM MDL COOL RTN HOSE (C) ID=16	8-98008-098-0	01	1	1310-	●	●
104	BOLT; BRKT WHEEL BASE 3700MM(37W) (B) M10X30 FLANGE	0-28651-030-0	05	1	1310-	●
104	BOLT; BRKT WHEEL BASE 3400MM(34W) (B) M10X30 FLANGE	0-28651-030-0	05	1	1310-		●
104	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	02	1	1310-	●	●
104	BOLT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) M10X30 FLANGE	0-28651-030-0	02	1	1310-	●	●
104	BOLT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M8X25 FLANGE	0-28650-825-0	02	1	1310-	●	●
104	BOLT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (B) M10X30 FLANGE	0-28651-030-0	06	1	1310-	●	●
104	BOLT; BRKT WHEEL BASE 4600MM(46W) (B) M10X30 FLANGE	0-28651-030-0	07	1	1310-	●	●
104	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1310-	●	●
104	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1310-	●	●
104	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	02	1	1310-	●	●
104	BOLT; BRKT WHEEL BASE 3400MM(34W) (B) M10X25 FLANGE	0-28651-025-0	02	1	1310-		●
105	NUT; BRKT WHEEL BASE 3700MM(37W) (B) M10 FLANGE	0-91180-210-0	05	1	1310-	●
105	NUT; BRKT WHEEL BASE 3400MM(34W) (B) M10 FLANGE	0-91180-210-0	05	1	1310-		●
105	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1310-	●	●
105	NUT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) M10 FLANGE	0-91180-210-0	02	1	1310-	●	●
105	NUT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M8 FLANGE	0-91180-108-0	02	1	1310-	●	●
105	NUT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) (B) M10 FLANGE	0-91180-210-0	04	1	1310-	●	●
105	NUT; BRKT WHEEL BASE 4900MM(49W) (B) M10 FLANGE	0-91180-210-0	06	1	1310-	●
105	NUT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) M10 FLANGE	0-91180-210-0	06	1	1310-		●
109	TUBE ASM; DEF & WATER WHEEL BASE 3700MM(37W) (A)	8-98206-715-1	01	1	1310-1509	●
109	TUBE ASM; DEF & WATER WHEEL BASE 3700MM(37W) (A)	8-98329-852-0	01	1	1510-	●
109	TUBE ASM; DEF & WATER WHEEL BASE 3700MM(37W) (B)	8-98206-719-0	01	1	1310-1508	●
109	TUBE ASM; DEF & WATER WHEEL BASE 3700MM(37W) (B)	8-98329-859-0	01	1	1509-	●
109	TUBE ASM; DEF & WATER WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) (B)	8-98206-720-0	01	1	1310-1508	●
109	TUBE ASM; DEF & WATER WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B)	8-98206-720-0	01	1	1310-1508		●
109	TUBE ASM; DEF & WATER WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) (B)	8-98329-849-0	01	1	1509-	●
109	TUBE ASM; DEF & WATER WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B)	8-98329-849-0	01	1	1509-		●
109	TUBE ASM; DEF & WATER WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (A)	8-98210-290-1	01	1	1310-1509	●	●
109	TUBE ASM; DEF & WATER WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (A)	8-98329-854-0	01	1	1510-	●	●
109	TUBE ASM; DEF & WATER WHEEL BASE 4600MM(46W) (A)	8-98206-717-1	01	1	1310-1509	●	●
109	TUBE ASM; DEF & WATER WHEEL BASE 4600MM(46W) (A)	8-98329-853-0	01	1	1510-	●	●
109	TUBE ASM; DEF & WATER (C)	8-98233-439-0	01	1	1310-	●	●
109	TUBE ASM; DEF & WATER WHEEL BASE 3400MM(34W) (A)	8-98206-714-1	01	1	1310-1509		●
109	TUBE ASM; DEF & WATER WHEEL BASE 3400MM(34W) (A)	8-98329-851-0	01	1	1510-		●
109	TUBE ASM; DEF & WATER WHEEL BASE 3400MM(34W) (B)	8-98206-718-0	01	1	1310-1508		●
109	TUBE ASM; DEF & WATER WHEEL BASE 3400MM(34W) (B)	8-98329-858-0	01	1	1509-		●
110	CLIP; TUBE ASM WHEEL BASE 3700MM(37W) (A) L=350	1-09707-183-0	06	1	1310-	●
110	CLIP; TUBE ASM WHEEL BASE 3400MM(34W) (A) L=350	1-09707-183-0	06	1	1310-		●
110	CLIP; TUBE ASM (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1310-	●	●
110	CLIP; TUBE ASM (B) ID=11 & 13 L=17 & 18	1-09700-748-0	01	1	1310-	●	●
110	CLIP; TUBE ASM (C) ID=13 H=18 L=20	1-09700-813-0	01	1	1310-	●	●
110	CLIP; TUBE ASM (D) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1310-1508	●	●
110	CLIP; TUBE ASM (D) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1509-	●	●
110	CLIP; TUBE ASM (A) L=350	1-09707-183-0	01	1	1310-	●	●
110	CLIP; TUBE ASM (A) L=350	1-09707-183-0	02	1	1310-	●	●
110	CLIP; TUBE ASM WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (A) L=350	1-09707-183-0	07	1	1310-	●	●
110	CLIP; TUBE ASM WHEEL BASE 4600MM(46W) (A) L=350	1-09707-183-0	08	1	1310-	●	●
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 3700MM(37W) (G)	8-98233-438-0	01	1	1310-	●
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 3700MM(37W) (A)	8-98162-761-0	05	1	1310-	●
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 3400MM(34W) (A)	8-98162-761-0	05	1	1310-		●
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (D)	8-98206-700-0	01	1	1310-	●	●
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) (B) L=225	1-47477-646-3	02	1	1310-	●
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) L=225	1-47477-646-3	02	1	1310-		●
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) (C)	8-98206-696-0	01	1	1310-	●
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C)	8-98206-696-0	01	1	1310-		●
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (A)	8-98162-761-0	06	1	1310-	●	●
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 4600MM(46W) (A)	8-98162-761-0	07	1	1310-	●	●
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 3400MM(34W) (E)	8-98206-697-0	01	1	1310-		●
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 3400MM(34W) (F)	8-98236-826-0	01	1	1310-		●
114	CLIP; HOSE ID=16	8-97329-628-0	02	1	1310-	●	●
115	HOSE; DEF TANK HTR RTN	8-98237-190-0	01	1	1310-	●	●
119	TUBE ASM; DEF COOL & HTR WAT WHEEL BASE 3700MM(37W)	8-98206-722-2	01	1	1310-1509	●
119	TUBE ASM; DEF COOL & HTR WAT WHEEL BASE 3700MM(37W)	8-98329-861-0	01	1	1510-	●
119	TUBE ASM; DEF COOL & HTR WAT WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W)	8-98210-287-2	01	1	1310-1509	●	●
119	TUBE ASM; DEF COOL & HTR WAT WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W)	8-98329-862-0	01	1	1510-	●	●
119	TUBE ASM; DEF COOL & HTR WAT WHEEL BASE 4600MM(46W)	8-98210-366-2	01	1	1310-1509	●	●
119	TUBE ASM; DEF COOL & HTR WAT WHEEL BASE 4600MM(46W)	8-98329-863-0	01	1	1510-	●	●
119	TUBE ASM; DEF COOL & HTR WAT WHEEL BASE 3400MM(34W)	8-98206-721-2	01	1	1310-1509		●
119	TUBE ASM; DEF COOL & HTR WAT WHEEL BASE 3400MM(34W)	8-98329-860-0	01	1	1510-		●
129	PIPE ASM; DEF DCM COOL DLVY	8-98245-736-0	01	1	1310-	●	●
138	PIPE ASM; DEF DCM COOL RTN	8-98233-324-0	01	1	1310-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
