Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#128210) — 180 parça

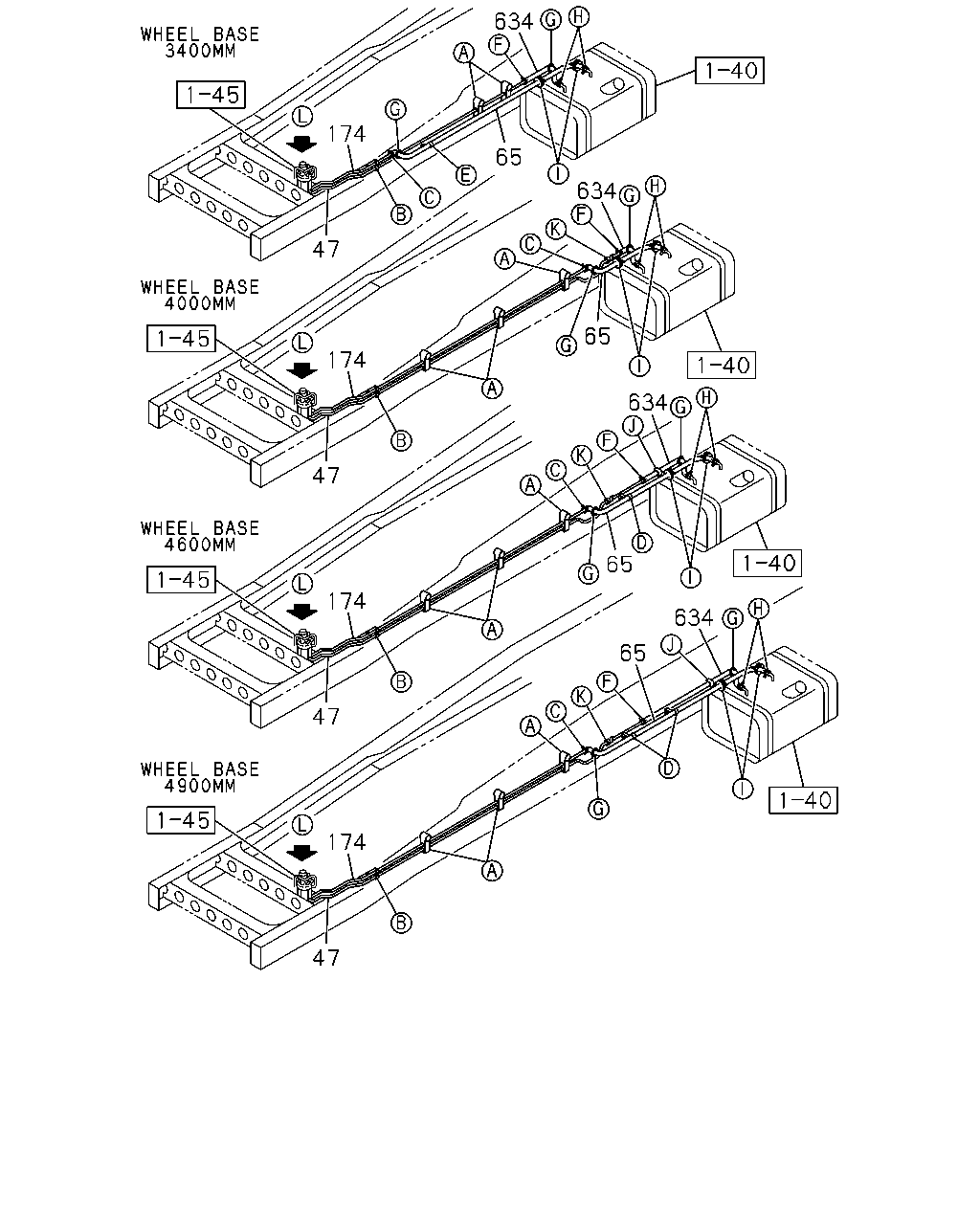

634 174 65 47 174 65 47 634 634 174 65 47 174 47 634 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	PIPE; FUEL,RETURN WHEEL BASE 3700MM(37W) L=2106	8-98245-729-0	01	1	1310-	●
47	PIPE; FUEL,RETURN WHEEL BASE 3400MM(34W) L=2106	8-98245-729-0	01	1	1310-		●
47	PIPE; FUEL,RETURN WHEEL BASE 4000MM(40W) L=2512	8-98245-730-0	01	1	1310-	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 4600MM(46W) L=3106	8-98239-745-0	01	1	1310-	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 4900MM(49W) L=3008	8-98245-731-0	01	1	1310-	●
47	PIPE; FUEL,RETURN WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=3008	8-98245-731-0	01	1	1310-		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) L=600	8-98234-314-0	01	1	1310-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3400MM(34W) L=600	8-98234-314-0	01	1	1310-		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4000MM(40W) L=850	8-98183-311-0	01	1	1310-	●	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4600MM(46W) L=1200	8-98183-312-0	01	1	1310-	●	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4900MM(49W) L=1550	8-98183-313-0	01	1	1310-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=1550	8-98183-313-0	01	1	1310-		●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3700MM(37W)	8-98245-725-0	01	1	1310-	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3400MM(34W)	8-98245-725-0	01	1	1310-		●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W)	8-98245-726-0	01	1	1310-	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W)	8-98245-726-0	01	1	1310-		●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W)	8-98245-301-0	01	1	1310-	●
634	HOSE; RUBBER RETURN WHEEL BASE 4000MM(40W)	8-98245-302-0	01	1	1310-	●	●
634	HOSE; RUBBER RETURN WHEEL BASE 4600MM(46W)	8-98245-303-0	01	1	1310-	●	●
634	HOSE; RUBBER RETURN WHEEL BASE 4900MM(49W)	8-98245-304-0	01	1	1310-	●
634	HOSE; RUBBER RETURN WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W)	8-98245-304-0	01	1	1310-		●
634	HOSE; RUBBER RETURN WHEEL BASE 3400MM(34W)	8-98245-300-0	01	1	1310-		●

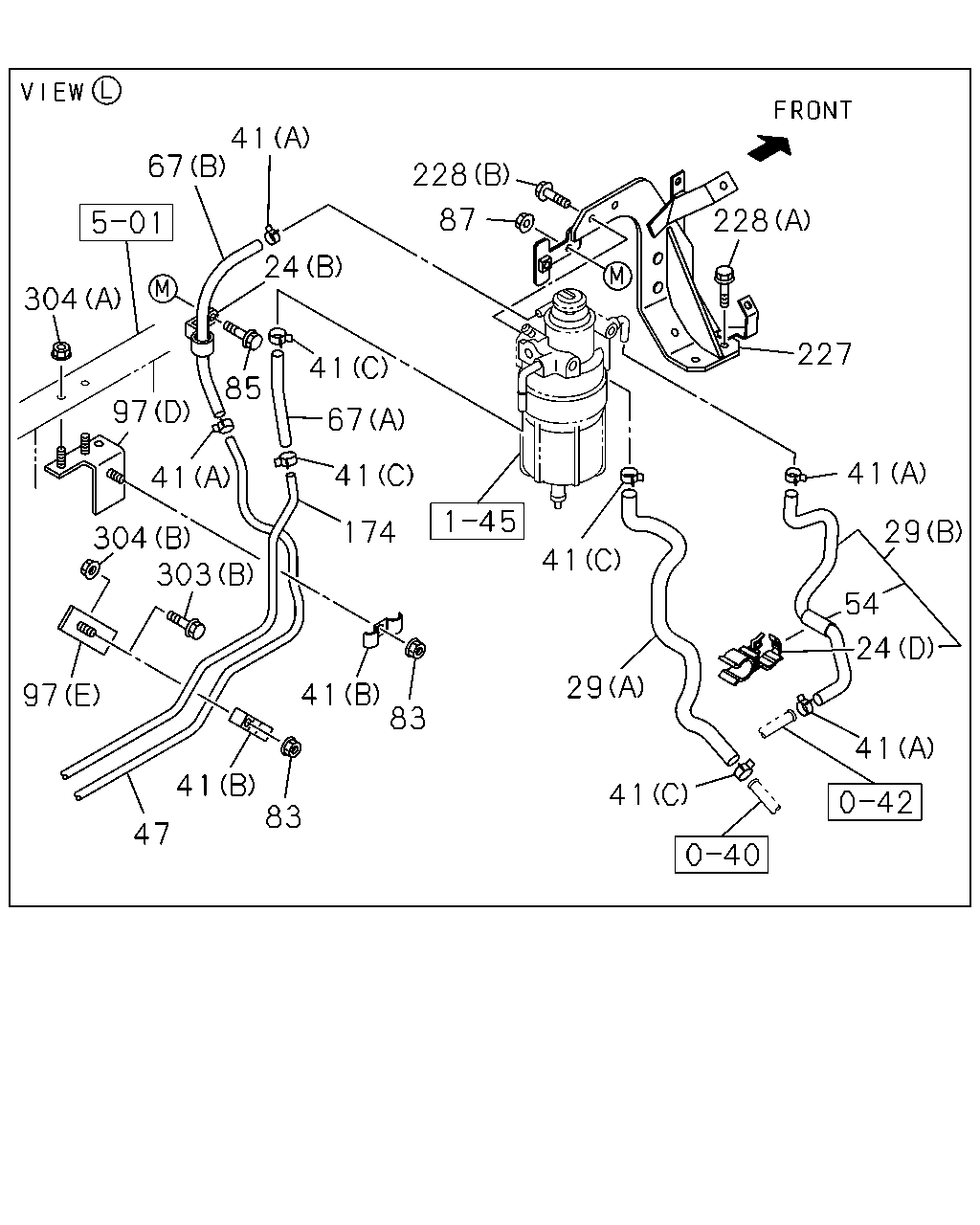

67 41 24 41 67 174 41 41 83 83 41 47 97 303 304 41 97 85 304 87 228 41 29 41 41 24 54 29 41 227 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) (C) ID=21 L=24	8-98019-191-0	01	1	1310-	●	●
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W) (A) ID=14.5 & 14.5	1-09701-246-1	01	1	1310-	●
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) ID=14.5 & 14.5	1-09701-246-1	01	1	1310-		●
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W) (C) ID=21 L=24	8-98019-191-0	02	1	1310-	●
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C) ID=21 L=24	8-98019-191-0	02	1	1310-		●
24	CLIP; FUEL HOSE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	1310-	●	●
24	CLIP; FUEL HOSE (D) ID=16.5 & 10.5-14	8-98147-093-0	01	1	1310-	●	●
24	CLIP; FUEL HOSE WHEEL BASE 3400MM(34W) (E) ID=15 H=30 L=30	1-09700-832-0	01	1	1310-		●
29	HOSE; FUEL (B)	8-98147-183-0	01	1	1310-	●	●
29	HOSE; FUEL (A)	8-98156-676-0	01	1	1310-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1310-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3400MM(34W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1310-		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	1310-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	1310-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	1310-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	1310-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	1310-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4000MM(40W) (D) ID=8 H=20 L=20	1-09700-604-0	01	1	1310-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (D) ID=8 H=20 L=20	1-09700-604-0	02	1	1310-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1310-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	1310-	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 3700MM(37W) L=2106	8-98245-729-0	01	1	1310-	●
47	PIPE; FUEL,RETURN WHEEL BASE 3400MM(34W) L=2106	8-98245-729-0	01	1	1310-		●
47	PIPE; FUEL,RETURN WHEEL BASE 4000MM(40W) L=2512	8-98245-730-0	01	1	1310-	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 4600MM(46W) L=3106	8-98239-745-0	01	1	1310-	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 4900MM(49W) L=3008	8-98245-731-0	01	1	1310-	●
47	PIPE; FUEL,RETURN WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=3008	8-98245-731-0	01	1	1310-		●
54	SPACER; CLIP,FUEL PIPE	8-98148-172-0	01	1	1310-	●	●
67	HOSE; FUEL,DELIVERY (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	1310-	●	●
67	HOSE; FUEL,DELIVERY (A) L=140 SERVICED BY L=3000	0-01859-300-0	01	1	1310-	●	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	03	1	1310-	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 3400MM(34W) M8 FLANGE	0-91180-108-0	03	1	1310-		●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4000MM(40W) M8 FLANGE	0-91180-108-0	04	1	1310-	●	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	05	1	1310-	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	02	1	1310-	●	●
85	BOLT; CLIP,FUEL HOSE M8X20 FLANGE	0-28650-820-0	01	1	1310-	●	●
87	NUT; CLIP,FUEL HOSE M8 FLANGE	0-91180-108-0	01	1	1310-	●	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (E)	1-47477-669-1	01	1	1310-	●
97	BRACKET; CLIP WHEEL BASE 3400MM(34W) (E)	1-47477-669-1	01	1	1310-		●
97	BRACKET; CLIP WHEEL BASE 4600MM(46W) (A) L=55	1-47476-177-0	01	1	1310-	●	●
97	BRACKET; CLIP WHEEL BASE 4900MM(49W) (A) L=55	1-47476-177-0	02	1	1310-	●
97	BRACKET; CLIP WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) L=55	1-47476-177-0	02	1	1310-		●
97	BRACKET; CLIP WHEEL BASE 4900MM(49W) (B)	8-98109-768-0	01	1	1310-	●
97	BRACKET; CLIP WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B)	8-98109-768-0	01	1	1310-		●
97	BRACKET; CLIP (D)	8-98209-221-0	01	1	1310-	●	●
97	BRACKET; CLIP (C)	8-98245-737-0	01	1	1310-	●	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3700MM(37W)	8-98245-725-0	01	1	1310-	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3400MM(34W)	8-98245-725-0	01	1	1310-		●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W)	8-98245-726-0	01	1	1310-	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W)	8-98245-726-0	01	1	1310-		●
227	BRACKET; FUEL SEDIMENTER	8-98133-172-0	01	1	1310-	●	●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1310-	●	●
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	1310-	●	●
303	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1310-	●	●
303	BOLT; BRKT WHEEL BASE 3700MM(37W) (B) M8X30 FLANGE	0-28650-830-0	01	1	1310-	●
303	BOLT; BRKT WHEEL BASE 3400MM(34W) (B) M8X30 FLANGE	0-28650-830-0	01	1	1310-		●
303	BOLT; BRKT WHEEL BASE 4600MM(46W) (A) M10X30 FLANGE	0-28651-030-0	01	1	1310-	●	●
303	BOLT; BRKT WHEEL BASE 4900MM(49W) (A) M10X30 FLANGE	0-28651-030-0	03	1	1310-	●
303	BOLT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M10X30 FLANGE	0-28651-030-0	03	1	1310-		●
304	NUT; BRKT WHEEL BASE 3700MM(37W) (B) M8 FLANGE	0-91180-108-0	01	1	1310-	●
304	NUT; BRKT WHEEL BASE 3400MM(34W) (B) M8 FLANGE	0-91180-108-0	01	1	1310-		●
304	NUT; BRKT WHEEL BASE 4600MM(46W) (A) M10 FLANGE	0-91180-210-0	01	1	1310-	●	●
304	NUT; BRKT WHEEL BASE 4900MM(49W) (A) M10 FLANGE	0-91180-210-0	03	1	1310-	●
304	NUT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M10 FLANGE	0-91180-210-0	03	1	1310-		●

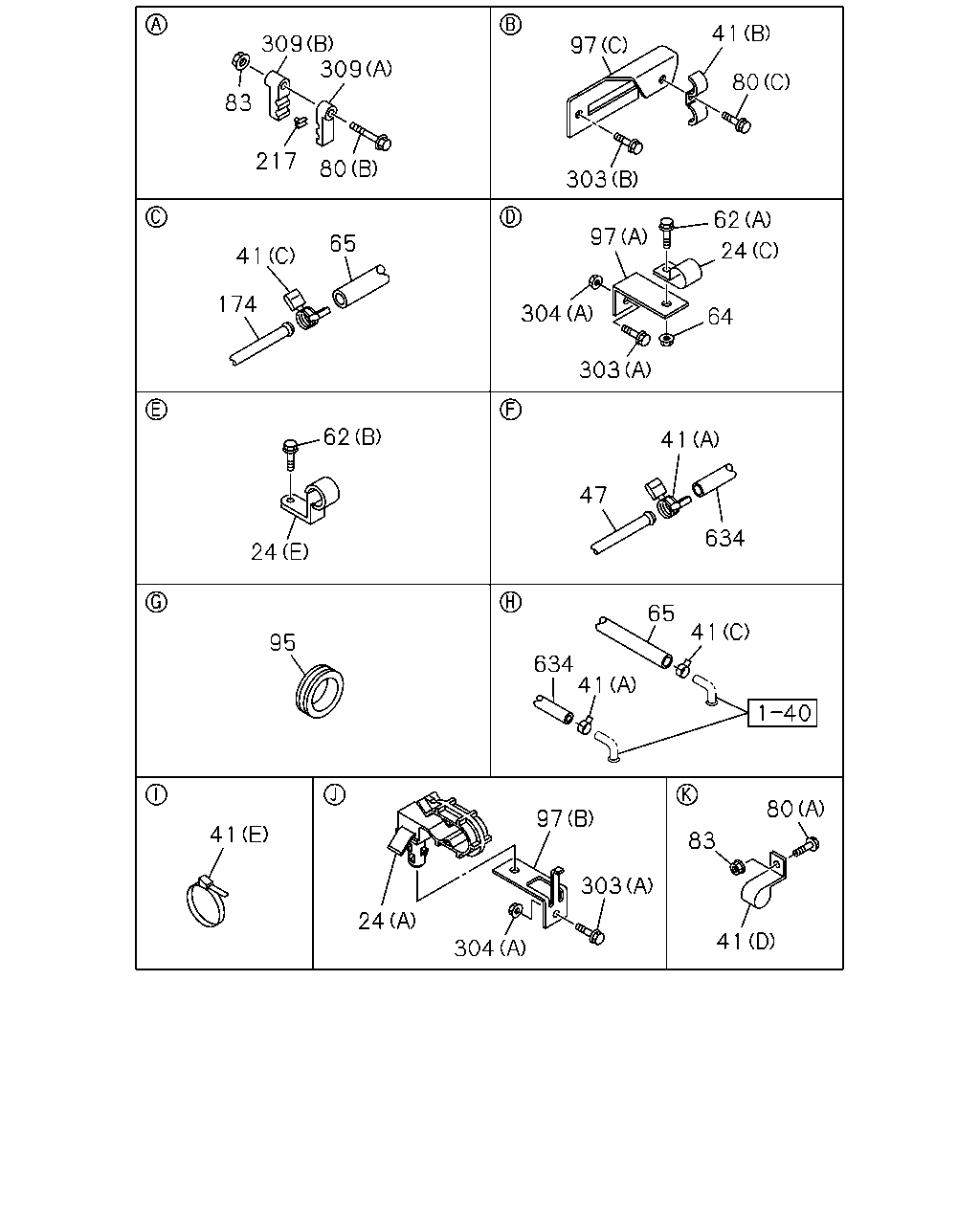

97 304 303 64 24 62 303 97 41 80 41 47 634 65 41 634 41 83 41 80 303 97 304 24 309 309 83 217 80 41 65 174 62 24 95 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) (C) ID=21 L=24	8-98019-191-0	01	1	1310-	●	●
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W) (A) ID=14.5 & 14.5	1-09701-246-1	01	1	1310-	●
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) ID=14.5 & 14.5	1-09701-246-1	01	1	1310-		●
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W) (C) ID=21 L=24	8-98019-191-0	02	1	1310-	●
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C) ID=21 L=24	8-98019-191-0	02	1	1310-		●
24	CLIP; FUEL HOSE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	1310-	●	●
24	CLIP; FUEL HOSE (D) ID=16.5 & 10.5-14	8-98147-093-0	01	1	1310-	●	●
24	CLIP; FUEL HOSE WHEEL BASE 3400MM(34W) (E) ID=15 H=30 L=30	1-09700-832-0	01	1	1310-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1310-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3400MM(34W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1310-		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	1310-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	1310-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	1310-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	1310-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	1310-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4000MM(40W) (D) ID=8 H=20 L=20	1-09700-604-0	01	1	1310-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (D) ID=8 H=20 L=20	1-09700-604-0	02	1	1310-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1310-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	1310-	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 3700MM(37W) L=2106	8-98245-729-0	01	1	1310-	●
47	PIPE; FUEL,RETURN WHEEL BASE 3400MM(34W) L=2106	8-98245-729-0	01	1	1310-		●
47	PIPE; FUEL,RETURN WHEEL BASE 4000MM(40W) L=2512	8-98245-730-0	01	1	1310-	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 4600MM(46W) L=3106	8-98239-745-0	01	1	1310-	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 4900MM(49W) L=3008	8-98245-731-0	01	1	1310-	●
47	PIPE; FUEL,RETURN WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=3008	8-98245-731-0	01	1	1310-		●
62	BOLT; CLIP FIX WHEEL BASE 4600MM(46W) (A) M8X20 FLANGE	0-28650-820-0	01	1	1310-	●	●
62	BOLT; CLIP FIX WHEEL BASE 4900MM(49W) (A) M8X20 FLANGE	0-28650-820-0	02	1	1310-	●
62	BOLT; CLIP FIX WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M8X20 FLANGE	0-28650-820-0	02	1	1310-		●
62	BOLT; CLIP FIX WHEEL BASE 3400MM(34W) (B) M8X30 FLANGE	0-28650-830-0	01	1	1310-		●
64	NUT; CLIP WHEEL BASE 4600MM(46W) M8 FLANGE	0-91180-108-0	01	1	1310-	●
64	NUT; CLIP WHEEL BASE 3400MM(34W),WHEEL BASE 4600MM(46W) M8 FLANGE	0-91180-108-0	01	1	1310-		●
64	NUT; CLIP WHEEL BASE 4900MM(49W) M8 FLANGE	0-91180-108-0	02	1	1310-	●
64	NUT; CLIP WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	02	1	1310-		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) L=600	8-98234-314-0	01	1	1310-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3400MM(34W) L=600	8-98234-314-0	01	1	1310-		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4000MM(40W) L=850	8-98183-311-0	01	1	1310-	●	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4600MM(46W) L=1200	8-98183-312-0	01	1	1310-	●	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4900MM(49W) L=1550	8-98183-313-0	01	1	1310-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=1550	8-98183-313-0	01	1	1310-		●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) (B) M8X50 FLANGE	0-28050-850-0	02	1	1310-	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3400MM(34W) (B) M8X50 FLANGE	0-28050-850-0	02	1	1310-		●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4000MM(40W) (A) M8X25 FLANGE	0-28650-825-0	01	1	1310-	●	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) (B) M8X50 FLANGE	0-28050-850-0	03	1	1310-	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) M8X50 FLANGE	0-28050-850-0	03	1	1310-		●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) (A) M8X25 FLANGE	0-28650-825-0	02	1	1310-	●	●
80	BOLT; CLIP,FUEL TANK (C) M8X20 FLANGE	0-28650-820-0	01	1	1310-	●	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	03	1	1310-	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 3400MM(34W) M8 FLANGE	0-91180-108-0	03	1	1310-		●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4000MM(40W) M8 FLANGE	0-91180-108-0	04	1	1310-	●	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	05	1	1310-	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	02	1	1310-	●	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	02	1	1310-	●	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (E)	1-47477-669-1	01	1	1310-	●
97	BRACKET; CLIP WHEEL BASE 3400MM(34W) (E)	1-47477-669-1	01	1	1310-		●
97	BRACKET; CLIP WHEEL BASE 4600MM(46W) (A) L=55	1-47476-177-0	01	1	1310-	●	●
97	BRACKET; CLIP WHEEL BASE 4900MM(49W) (A) L=55	1-47476-177-0	02	1	1310-	●
97	BRACKET; CLIP WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) L=55	1-47476-177-0	02	1	1310-		●
97	BRACKET; CLIP WHEEL BASE 4900MM(49W) (B)	8-98109-768-0	01	1	1310-	●
97	BRACKET; CLIP WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B)	8-98109-768-0	01	1	1310-		●
97	BRACKET; CLIP (D)	8-98209-221-0	01	1	1310-	●	●
97	BRACKET; CLIP (C)	8-98245-737-0	01	1	1310-	●	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3700MM(37W)	8-98245-725-0	01	1	1310-	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3400MM(34W)	8-98245-725-0	01	1	1310-		●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W)	8-98245-726-0	01	1	1310-	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W)	8-98245-726-0	01	1	1310-		●
217	COLLAR; FUEL PIPE FIX WHEEL BASE 3700MM(37W) ID=8	1-47459-011-0	02	1	1310-	●
217	COLLAR; FUEL PIPE FIX WHEEL BASE 3400MM(34W) ID=8	1-47459-011-0	02	1	1310-		●
217	COLLAR; FUEL PIPE FIX WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) ID=8	1-47459-011-0	03	1	1310-	●
217	COLLAR; FUEL PIPE FIX WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) ID=8	1-47459-011-0	03	1	1310-		●
303	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1310-	●	●
303	BOLT; BRKT WHEEL BASE 3700MM(37W) (B) M8X30 FLANGE	0-28650-830-0	01	1	1310-	●
303	BOLT; BRKT WHEEL BASE 3400MM(34W) (B) M8X30 FLANGE	0-28650-830-0	01	1	1310-		●
303	BOLT; BRKT WHEEL BASE 4600MM(46W) (A) M10X30 FLANGE	0-28651-030-0	01	1	1310-	●	●
303	BOLT; BRKT WHEEL BASE 4900MM(49W) (A) M10X30 FLANGE	0-28651-030-0	03	1	1310-	●
303	BOLT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M10X30 FLANGE	0-28651-030-0	03	1	1310-		●
304	NUT; BRKT WHEEL BASE 3700MM(37W) (B) M8 FLANGE	0-91180-108-0	01	1	1310-	●
304	NUT; BRKT WHEEL BASE 3400MM(34W) (B) M8 FLANGE	0-91180-108-0	01	1	1310-		●
304	NUT; BRKT WHEEL BASE 4600MM(46W) (A) M10 FLANGE	0-91180-210-0	01	1	1310-	●	●
304	NUT; BRKT WHEEL BASE 4900MM(49W) (A) M10 FLANGE	0-91180-210-0	03	1	1310-	●
304	NUT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M10 FLANGE	0-91180-210-0	03	1	1310-		●
309	CLIP; PIPE WHEEL BASE 3700MM(37W) (A) ID=10 & 10	1-09709-241-0	02	1	1310-	●
309	CLIP; PIPE WHEEL BASE 3400MM(34W) (A) ID=10 & 10	1-09709-241-0	02	1	1310-		●
309	CLIP; PIPE WHEEL BASE 3700MM(37W) (B) ID=10 & 10	1-09709-243-0	02	1	1310-	●
309	CLIP; PIPE WHEEL BASE 3400MM(34W) (B) ID=10 & 10	1-09709-243-0	02	1	1310-		●
309	CLIP; PIPE WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) (A) ID=10 & 10	1-09709-241-0	03	1	1310-	●
309	CLIP; PIPE WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) ID=10 & 10	1-09709-241-0	03	1	1310-		●
309	CLIP; PIPE WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W) (B) ID=10 & 10	1-09709-243-0	03	1	1310-	●
309	CLIP; PIPE WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) ID=10 & 10	1-09709-243-0	03	1	1310-		●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W)	8-98245-301-0	01	1	1310-	●
634	HOSE; RUBBER RETURN WHEEL BASE 4000MM(40W)	8-98245-302-0	01	1	1310-	●	●
634	HOSE; RUBBER RETURN WHEEL BASE 4600MM(46W)	8-98245-303-0	01	1	1310-	●	●
634	HOSE; RUBBER RETURN WHEEL BASE 4900MM(49W)	8-98245-304-0	01	1	1310-	●
634	HOSE; RUBBER RETURN WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W)	8-98245-304-0	01	1	1310-		●
634	HOSE; RUBBER RETURN WHEEL BASE 3400MM(34W)	8-98245-300-0	01	1	1310-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
