Isuzu WW
▶
TRUCKS
▶
FRR
▶
11545 - FRR-LHD(EU)SPACE EU6
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-40 - FUEL TANK
▶

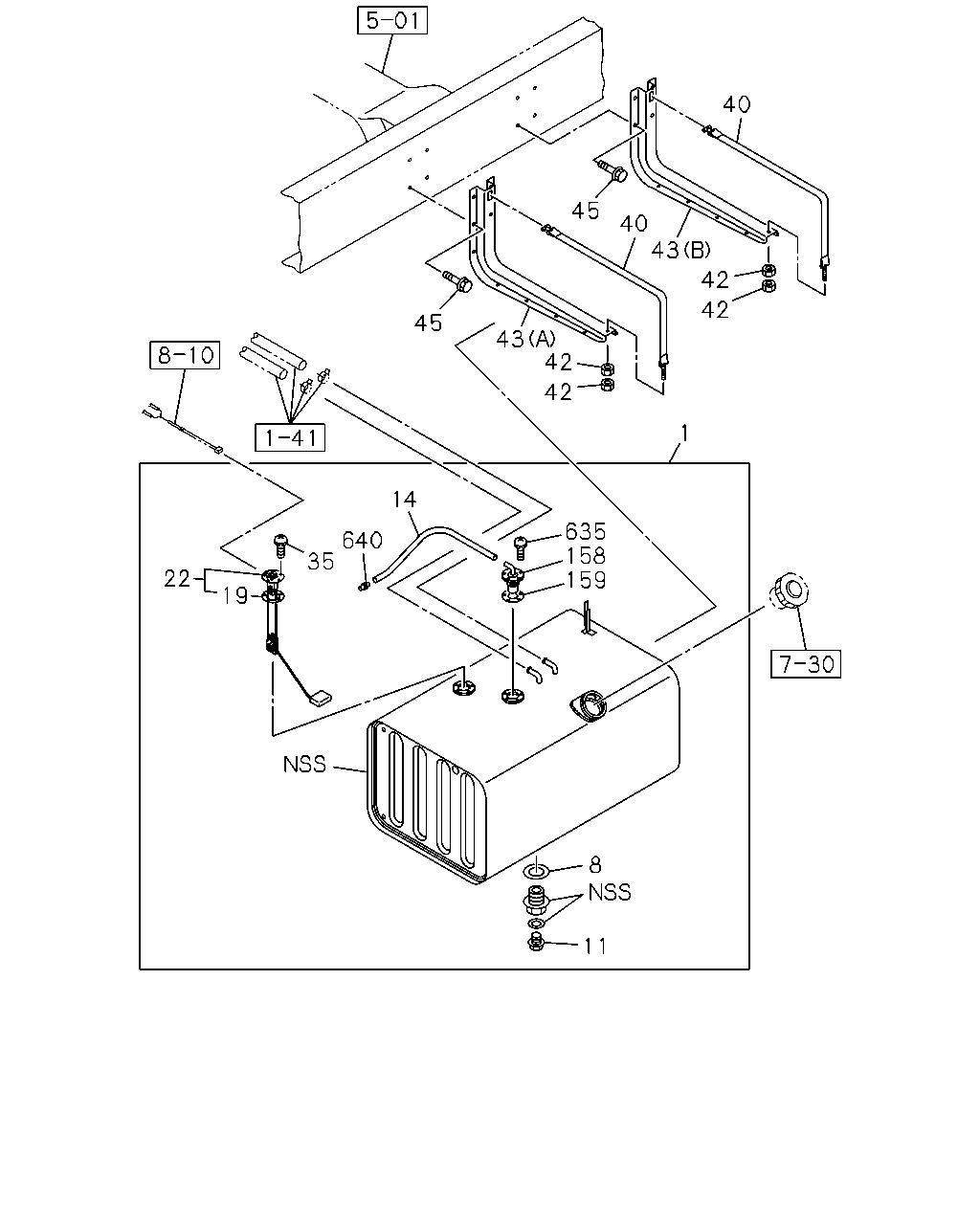

1-40 — FUEL TANK
(#128209) — 16 parça
Tümü
A - FCD6CS
B - FCR6CS
11
8
159
158
635
14
640
35
19
22
42
42
1
43
45
42
42
43
40
45
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TANK; FUEL
820X500X400 140L
8-98224-123-0
01
1
1310-
●
●
8
GASKET; DRAIN PLUG,FUEL TANK
ID=30
8-98067-041-0
01
1
1310-
●
●
11
PLUG; DRAIN,FUEL TANK
M18
8-98068-006-0
01
1
1310-
●
●
14
HOSE; BREATHER,OUTLET
L=430
8-98131-037-0
01
1
1310-
●
●
19
GASKET; FUEL TANK UNIT
ID=42 OD=71
5-83148-001-0
01
1
1310-
●
●
22
UNIT; FUEL TANK
8-98099-319-0
01
1
1310-
●
●
35
SCREW; FUEL TANK UNIT
M5X12 W/LK WASHER
0-36220-512-0
05
1
1310-
●
●
40
BELT; SUPPORT,FUEL TANK
L=925
8-98049-769-1
02
1
1310-
●
●
42
NUT; SUPPORT BELT
M10
0-91110-510-0
04
1
1310-
●
●
43
BRACKET; FUEL TANK
(A)
8-98127-229-0
01
1
1310-
●
●
43
BRACKET; FUEL TANK
(B)
8-98127-230-0
01
1
1310-
●
●
45
BOLT; BRKT,FUEL TANK
M10X35 FLANGE
0-28651-035-0
08
1
1310-
●
●
158
VALVE; ROLL OVER & FLOAT
8-98095-223-0
01
1
1310-
●
●
159
SEAL; ROLL OVER & FLOAT VALVE
ID=45 OD=67
1-83149-003-0
01
1
1310-
●
●
635
SCREW; ROLL OVER & FLOAT VALVE
M5X10 W/LK WASHER
0-36220-510-0
05
1
1310-
●
●
640
VENTILATOR; HOSE,BREATHER
8-98092-398-0
01
1
1310-
●
●
