1-31 — AIR DUCT
(#128207) — 75 parça
◀

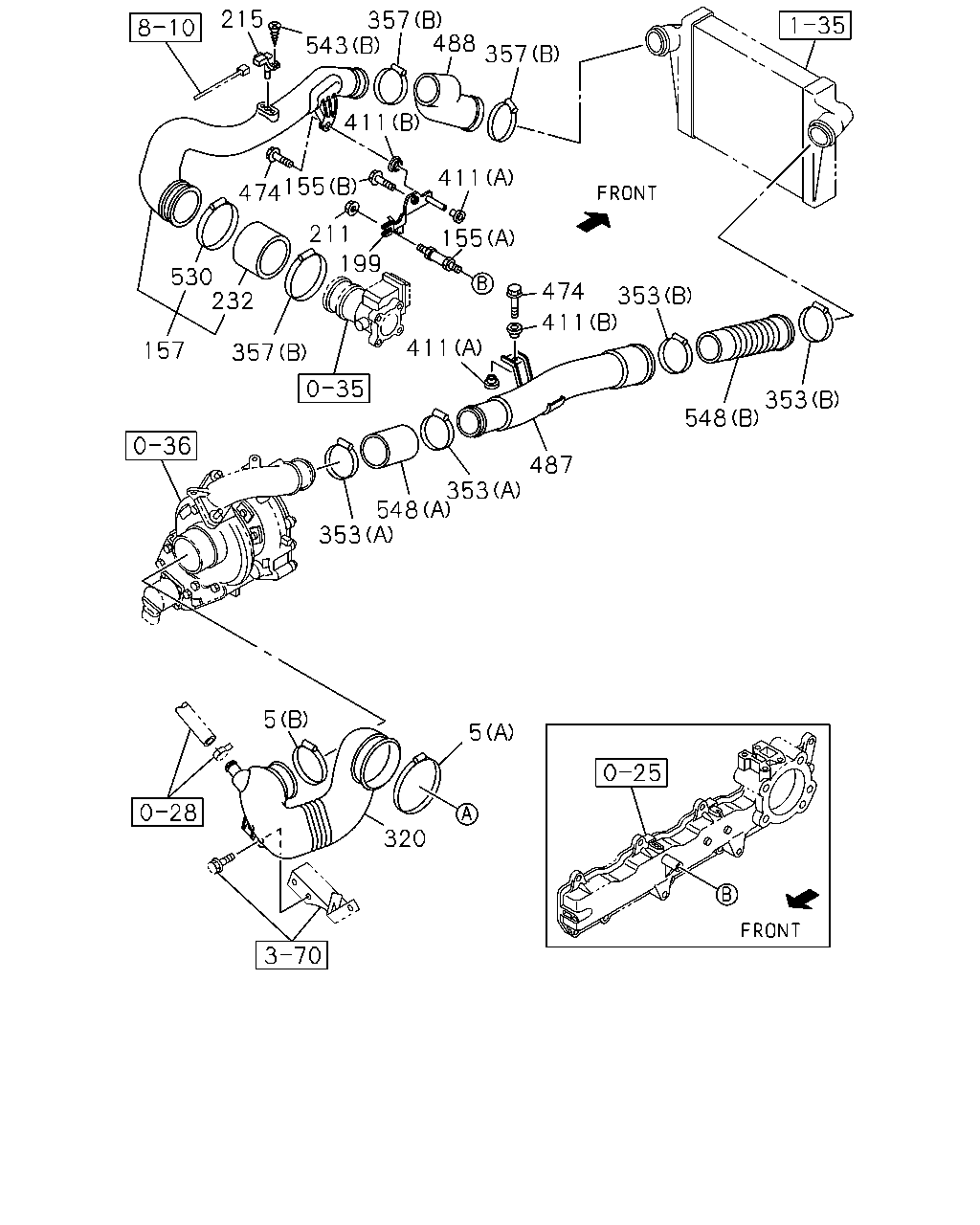

[131A] PIPING (34 parça)
[131A] DUCT FIXING (41 parça)
▶
5
353
548
353
487
548
353
353
411
474
411
357
157
232
530
474
155
411
543
215
357
488
357
411
155
211
199
320
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (B) ID=75-95
8-98133-357-0
01
1
1310-
5
CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (A) ID=110-130
8-98133-359-0
01
1
1310-
5
CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142
1-09707-139-0
01
1
1310-
5
CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (B) ID=77-99
1-09707-141-0
01
1
1310-
155
BOLT; BRKT
(B) M10X110 FLANGE
0-28156-011-0
01
1
1310-
155
BOLT; BRKT
(A) M10X17,M10X30 L=105
8-97233-428-0
01
1
1310-
157
PIPE; AIR
8-98166-967-0
01
1
1310-
199
BRACKET; PIPE
8-98109-137-1
01
1
1310-1403
199
BRACKET; PIPE
8-98252-223-0
01
1
1404-
211
NUT; BRKT
M10 FLANGE
0-91180-210-0
01
1
1310-
215
SENSOR; MAP
8-98009-418-0
01
1
1310-
232
HOSE; CONN
8-98128-293-0
01
1
1310-
320
HOSE; CONN,ACL
8-98010-643-3
01
1
1310-
353
CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (A) ID=45-65
8-98133-348-0
02
1
1310-
353
CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (B) ID=65-85
8-98133-350-0
02
1
1310-
353
CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (A) ID=60-65
8-98096-418-0
02
1
1310-
353
CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (B) ID=68-85
8-98096-592-0
02
1
1310-
357
CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (B) ID=65-85
8-98133-350-0
01
1
1310-
357
CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (B) ID=65-85
8-98133-350-0
02
1
1310-
357
CLIP; RUBBER HOSE
(A) ID=24
8-98025-921-0
02
1
1310-
357
CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (B) ID=68-85
8-98096-592-0
01
1
1310-
357
CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (B) ID=68-85
8-98096-592-0
02
1
1310-
411
RUBBER; CUSHION
(A) OD=32
8-94395-766-0
02
1
1310-
411
RUBBER; CUSHION
(B) OD=23
8-97105-689-6
02
1
1310-
474
BOLT; PIPE
M8X40 FLANGE
0-28650-840-0
02
1
1310-
487
PIPE; TURBO TO CHARGE AIR COOLER
8-98250-695-0
01
1
1310-
488
HOSE; RUBBER,PIPE
8-98204-041-0
01
1
1310-
530
CLAMP; AIR DUCT
ID=65-85
8-98133-350-0
01
1
1310-
543
SCREW; SENSOR
(A) M4X10 W/LK&PL WASHER
0-36230-410-0
02
1
1310-
543
SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER
0-36230-412-0
02
1
1310-
548
HOSE; RUBBER,TURBO TO INL PIPE
(A)
8-98204-039-0
01
1
1310-1511
548
HOSE; RUBBER,TURBO TO INL PIPE
(A)
8-98317-803-0
01
1
1512-
548
HOSE; RUBBER,TURBO TO INL PIPE
(B)
8-98204-040-0
01
1
1310-1511
548
HOSE; RUBBER,TURBO TO INL PIPE
(B)
8-98317-804-0
01
1
1512-
49
242
56
58
49
56
56
49
56
58
245
242
58
58
61
48
560
26
49
242
450
252
113
316
71
225
543
174
357
424
180
179
357
379
15
180
159
210
209
296
515
159
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
15
INSULATOR
FRIGID ZONE KIT<YL3>
8-98141-065-0
01
1
1310-1401
15
INSULATOR
FRIGID ZONE KIT<YL3> 265X79
8-98270-803-0
01
1
1402-
26
DUCT; AIR INT
8-98010-361-2
01
1
1310-
48
BOLT; AIR DUCT
M10X60
1-09030-044-1
02
1
1310-
49
NUT; AIR DUCT
(B) M8 FLANGE
1-09984-122-0
01
1
1310-
49
NUT; AIR DUCT
(A) M8 FLANGE
1-09984-126-0
01
1
1310-
49
NUT; AIR DUCT
(C) M8 FLANGE
8-94279-517-0
02
1
1310-
56
WASHER; LK,AIR INT DUCT
(A) ID=8.2
1-09985-177-0
02
1
1310-
56
WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22
1-09985-188-0
02
1
1310-
58
SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5
1-14119-267-0
04
1
1310-
58
SUPPORT; AIR INL DUCT
(B)
8-98125-944-1
01
1
1310-
61
BOLT; BRKT,AIR DUCT
M8X25 FLANGE
8-98074-570-0
02
1
1310-
71
CLIP; AIR DUCT
ID=120-140
8-98133-367-0
01
1
1310-
113
BOLT; RESONATOR
M6X16 W/PL WASHER
8-98094-071-0
03
1
1310-
159
BOLT; AIR PIPE
(A) M6X16 FLANGE
0-28050-616-0
02
1
1310-
159
BOLT; AIR PIPE
(B) M8X25 FLANGE
0-28650-825-0
01
1
1310-
174
SENSOR; AIR FLOW CONT
8-98113-202-1
01
1
1310-
179
HOSE; AIR INT
8-98063-233-0
01
1
1310-
180
CLIP; AIR INT HOSE
ID=24
8-98025-921-0
02
1
1310-
209
BRACKET; ACL
8-98010-343-4
01
1
1310-
210
BOLT; ACL BRKT
M10X25 FLANGE
0-28651-025-0
04
1
1310-
225
GASKET; AIR PIPE
ID=24.4
1-09623-057-0
01
1
1310-
242
BRACKET; AIR DUCT
(B)
8-98019-301-3
01
1
1310-
242
BRACKET; AIR DUCT
(C)
8-98019-302-1
01
1
1310-
242
BRACKET; AIR DUCT
(A)
8-98238-917-0
01
1
1310-
245
PIECE; DIST,AIR DUCT
1-79998-228-0
02
1
1310-
252
DUCT; AIR INT
8-98095-778-0
01
1
1310-
296
NUT; ACL
M8 FLANGE
0-91180-108-0
04
1
1310-
316
RUBBER; CUSHION,DUCT
8-98152-269-0
01
1
1310-
357
CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (B) ID=65-85
8-98133-350-0
01
1
1310-
357
CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (B) ID=65-85
8-98133-350-0
02
1
1310-
357
CLIP; RUBBER HOSE
(A) ID=24
8-98025-921-0
02
1
1310-
357
CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (B) ID=68-85
8-98096-592-0
01
1
1310-
357
CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (B) ID=68-85
8-98096-592-0
02
1
1310-
379
HOSE; RUBBER
8-98062-621-1
01
1
1310-
424
PIPE; AIR,INL
8-98081-835-0
01
1
1310-
450
CLAMP; HOSE
9-09915-504-1
01
1
1310-
515
PIPE; AIR,SUCTION
8-98061-569-1
01
1
1310-
543
SCREW; SENSOR
(A) M4X10 W/LK&PL WASHER
0-36230-410-0
02
1
1310-
543
SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER
0-36230-412-0
02
1
1310-
560
FILTER; VERTICAL DUCT
8-98061-675-0
01
1
1310-
