5-10 — CAB MOUNTING; FRAME SIDE (#1282) — 131 parça

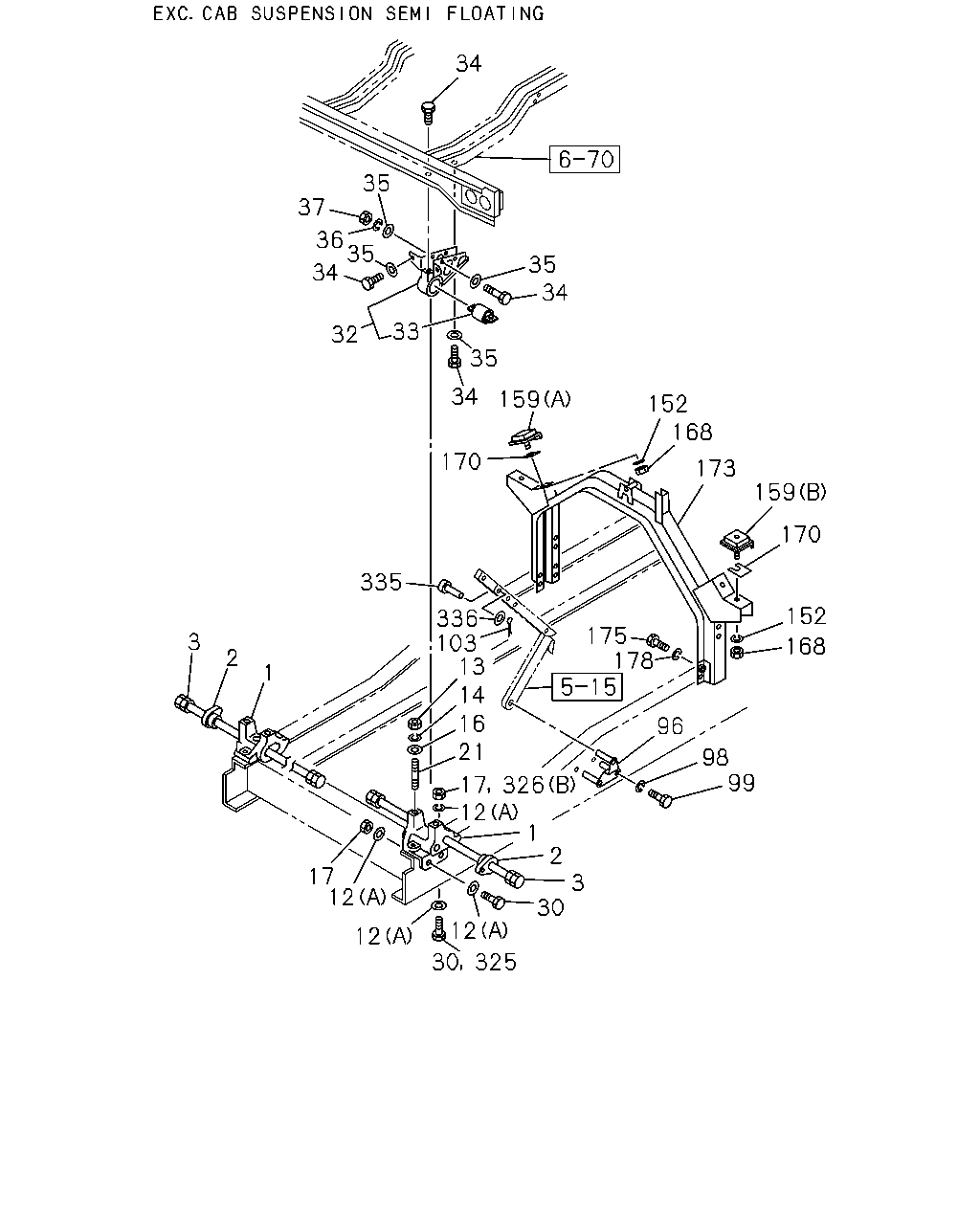

34 35 37 36 35 34 35 34 33 32 3 34 159 152 168 170 173 159 170 335 152 336 103 13 175 178 3 168 2 1 14 16 21 96 98 99 12 1 2 3 30 17 12 12 12 30 325 17 326

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; CAB MTG	1-53453-121-3	01	1	9202-	●
1	BRACKET; CAB MTG EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-53453-121-3	01	1	9202-		●
1	BRACKET; CAB MTG	1-53453-120-3	01	1	9202-	●
1	BRACKET; CAB MTG EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-53453-120-3	01	1	9202-		●
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK>	1-53453-166-2	01	1	9202-		●
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK>	1-53453-165-2	01	1	9202-		●
2	BUSHING; TORSION BAR	1-53459-783-0	02	1	9202-	●	●
3	TORSION BAR	1-09585-119-0	01	1	9202-	●	●
3	TORSION BAR	1-09585-118-0	01	1	9202-	●	●
12	WASHER; LK,BRKT (A) ID=15	9-09651-069-0	12	1	9202-	●	●
12	WASHER; LK,BRKT CAB SUSPENSION SEMI FLOATING<SDK> (B)	1-53459-929-0	04	1	9202-9506		●
12	WASHER; LK,BRKT CAB SUSPENSION SEMI FLOATING<SDK> (B) ID=23	1-53458-693-0	04	1	9507-		●
13	NUT; BUSHING TO STUD M12	9-99110-512-0	04	1	9202-	●
13	NUT; BUSHING TO STUD EXC. CAB SUSPENSION SEMI FLOATING<SDK> M12	9-99110-512-0	04	1	9202-		●
14	WASHER; LK,STUD ID=12.2	9-09150-612-0	04	1	9202-	●
14	WASHER; LK,STUD EXC. CAB SUSPENSION SEMI FLOATING<SDK> ID=12.2	9-09150-612-0	04	1	9202-		●
16	WASHER; PL,STUD ID=12.5	1-09503-171-0	04	1	9202-	●
16	WASHER; PL,STUD EXC. CAB SUSPENSION SEMI FLOATING<SDK> ID=12.5	1-09503-171-0	04	1	9202-		●
17	NUT; BRKT,CAB TILT M14	9-99110-514-0	02	1	9202-	●	●
21	STUD; BRKT,CAB TILT	1-09302-101-0	04	1	9202-	●
21	STUD; BRKT,CAB TILT EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-09302-101-0	04	1	9202-		●
30	BOLT; CAB FRT FOOT M14X45	9-92061-445-0	06	1	9202-	●
30	BOLT; CAB FRT FOOT EXC. CAB SUSPENSION SEMI FLOATING<SDK> M14X45	9-92061-445-0	06	1	9202-		●
30	BOLT; CAB FRT FOOT M14X65	9-92061-465-0	02	1	9202-	●
30	BOLT; CAB FRT FOOT EXC. CAB SUSPENSION SEMI FLOATING<SDK> M14X65	9-92061-465-0	02	1	9202-		●
30	BOLT; CAB FRT FOOT CAB SUSPENSION SEMI FLOATING<SDK> M14X45	1-09000-573-0	08	1	9202-		●
30	BOLT; CAB FRT FOOT CAB SUSPENSION SEMI FLOATING<SDK> M16X115	5-51361-002-1	02	1	9202-		●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-185-5	01	1	9202-	●
32	BRACKET; CAB FRT MTG,CAB SIDE EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-62580-185-5	01	1	9202-		●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-184-5	01	1	9202-	●
32	BRACKET; CAB FRT MTG,CAB SIDE EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-62580-184-5	01	1	9202-		●
32	BRACKET; CAB FRT MTG,CAB SIDE CAB SUSPENSION SEMI FLOATING<SDK>	1-62580-208-4	01	1	9202-		●
32	BRACKET; CAB FRT MTG,CAB SIDE CAB SUSPENSION SEMI FLOATING<SDK>	1-62580-207-4	01	1	9202-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT	1-53459-635-3	02	1	9202-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-53459-635-3	02	1	9202-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK>	1-53459-836-0	02	1	9202-		●
34	BOLT; CAB MTG BRKT,CAB SIDE M10X30	1-09980-546-0	08	1	9202-	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE M10X100	1-09980-547-0	04	1	9202-	●	●
35	WASHER; PL,CAB MTG BRKT ID=10.5 T=2.0	1-09985-183-0	02	1	9202-	●	●
35	WASHER; PL,CAB MTG BRKT ID=10.5 T=2.6	1-09985-184-0	14	1	9202-	●	●
36	WASHER; LK,CAB MTG BRKT ID=10	1-09985-185-0	04	1	9202-	●	●
37	NUT; CAB MTG BRKT,CAB SIDE M10	1-09984-142-0	04	1	9202-	●	●
96	BRACKET; CAB STAY	1-62500-586-0	01	1	9202-	●	●
98	WASHER; LK,BRKT ID=10.2	9-09150-610-0	02	1	9202-9307	●	●
99	BOLT; BRKT M10X35	9-02061-035-0	02	1	9202-9307	●	●
99	BOLT; BRKT M10X30 FLANGE	0-28091-030-0	02	1	9308-	●	●
103	PIN; SPLIT,CAB STAY	1-09746-021-0	01	1	9202-	●	●
152	WASHER; LK,CUSHION RUBBER ID=12.2	9-09150-512-0	04	1	9202-9503	●	●
159	RUBBER; CUSHION,CAB MTG (A)	1-53459-619-3	02	1	9202-	●	●
159	RUBBER; CUSHION,CAB MTG (B)	1-53459-620-3	02	1	9202-	●	●
168	NUT; CUSHION RUBBER,BODY MTG M12	9-99110-512-0	04	1	9202-9503	●	●
168	NUT; CUSHION RUBBER,BODY MTG M12 FLANGE	0-91150-112-0	04	1	9504-	●	●
170	SHIM; CUSHION RUBBER T=1.6	1-53459-621-0	AR	1	9202-	●	●
173	MEMBER; CAB MTG RR	1-53454-490-5	01	1	9202-	●
173	MEMBER; CAB MTG RR 6SA1 STD ENG(06L),6HE1 STD ENG(46L) EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-53454-490-5	01	1	9202-		●
173	MEMBER; CAB MTG RR 6SA1 STD ENG(06L),6HE1 STD ENG(46L) CAB SUSPENSION SEMI FLOATING<SDK>	1-53454-491-9	01	1	9202-		●
173	MEMBER; CAB MTG RR 6SA1TC ENG(28L) CAB SUSPENSION SEMI FLOATING<SDK>	1-53454-506-6	01	1	9305-		●
173	MEMBER; CAB MTG RR 6SA1TC ENG(28L) EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-53454-514-5	01	1	9305-		●
175	BOLT; MEMBER TO FRAME M12X40	9-92061-240-0	08	1	9202-	●
175	BOLT; MEMBER TO FRAME HEAVY DUTY PACKAGE TRUCK<RD2> M12X40	9-92061-240-0	08	1	9202-		●
175	BOLT; MEMBER TO FRAME WHEEL BASE 6000MM(60W) M12X40	9-92061-240-0	08	1	9202-		●
175	BOLT; MEMBER TO FRAME WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M12X35	9-92061-235-0	08	1	9202-		●
178	WASHER; LK,MEMBER ID=12.2	9-09150-612-0	08	1	9202-	●	●
325	BOLT; GUIDE NUT M12X40 W/LK&PL WASHER	0-50141-240-0	02	1	9202-	●	●
326	NUT; GUIDE NUT (B) M12	9-99110-512-0	02	1	9202-	●	●
326	NUT; GUIDE NUT CAB SUSPENSION SEMI FLOATING<SDK> (A) M12	1-53459-803-0	02	1	9202-		●
335	PIN; ADJ,STAY LOCK OD=10 L=48	1-09744-107-0	01	1	9202-	●	●
336	WASHER; PL,STAY LOCK ID=10.5 T=2.0	1-09985-183-0	01	1	9202-	●	●

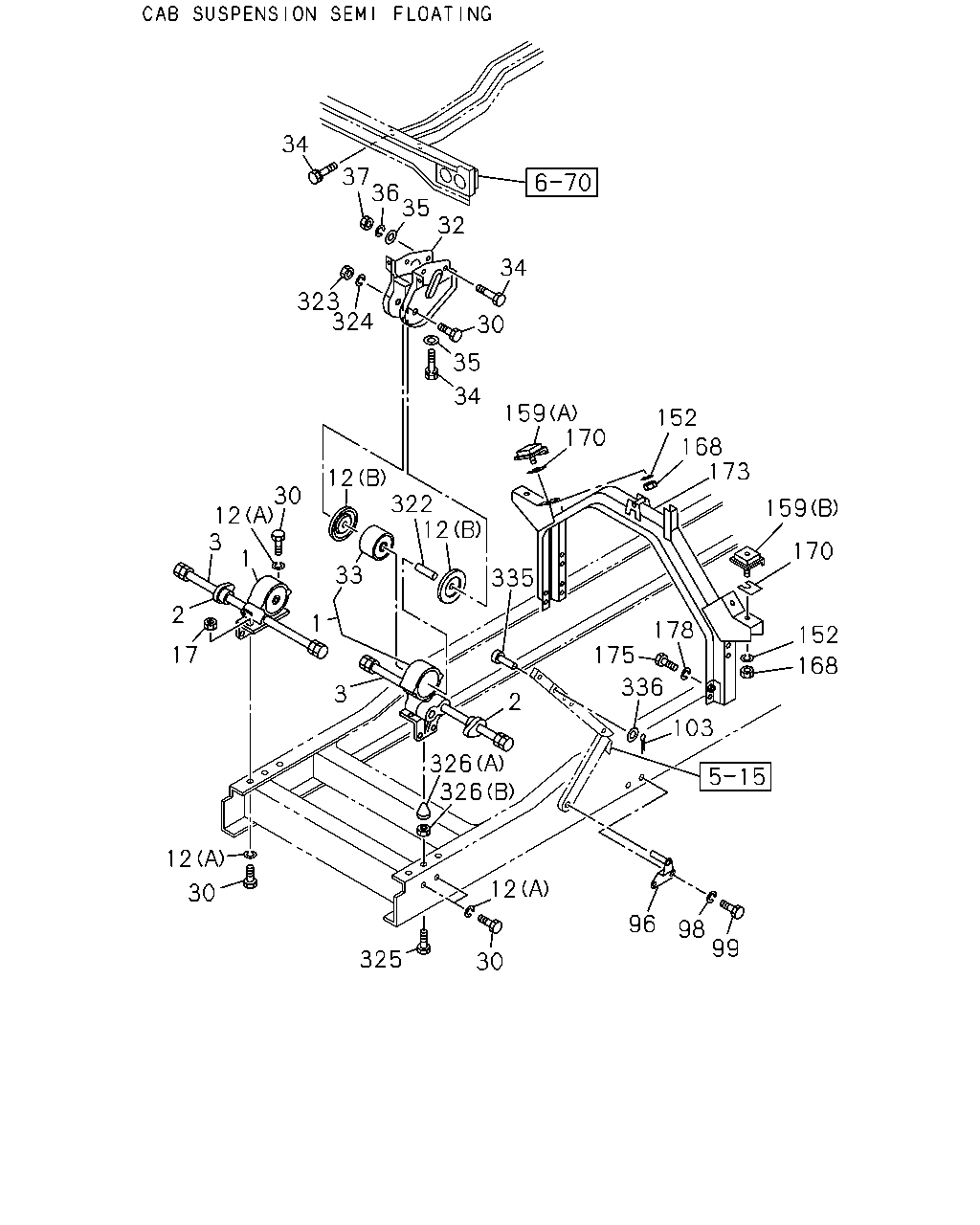

34 37 36 35 32 34 323 324 30 35 34 159 170 152 168 173 12 322 12 30 159 12 3 170 1 33 335 2 1 178 152 175 17 168 336 3 2 103 326 326 12 12 30 96 98 99 325 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; CAB MTG	1-53453-121-3	01	1	9202-	●
1	BRACKET; CAB MTG EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-53453-121-3	01	1	9202-		●
1	BRACKET; CAB MTG	1-53453-120-3	01	1	9202-	●
1	BRACKET; CAB MTG EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-53453-120-3	01	1	9202-		●
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK>	1-53453-166-2	01	1	9202-		●
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK>	1-53453-165-2	01	1	9202-		●
2	BUSHING; TORSION BAR	1-53459-783-0	02	1	9202-	●	●
3	TORSION BAR	1-09585-119-0	01	1	9202-	●	●
3	TORSION BAR	1-09585-118-0	01	1	9202-	●	●
12	WASHER; LK,BRKT (A) ID=15	9-09651-069-0	12	1	9202-	●	●
12	WASHER; LK,BRKT CAB SUSPENSION SEMI FLOATING<SDK> (B)	1-53459-929-0	04	1	9202-9506		●
12	WASHER; LK,BRKT CAB SUSPENSION SEMI FLOATING<SDK> (B) ID=23	1-53458-693-0	04	1	9507-		●
17	NUT; BRKT,CAB TILT M14	9-99110-514-0	02	1	9202-	●	●
30	BOLT; CAB FRT FOOT M14X45	9-92061-445-0	06	1	9202-	●
30	BOLT; CAB FRT FOOT EXC. CAB SUSPENSION SEMI FLOATING<SDK> M14X45	9-92061-445-0	06	1	9202-		●
30	BOLT; CAB FRT FOOT M14X65	9-92061-465-0	02	1	9202-	●
30	BOLT; CAB FRT FOOT EXC. CAB SUSPENSION SEMI FLOATING<SDK> M14X65	9-92061-465-0	02	1	9202-		●
30	BOLT; CAB FRT FOOT CAB SUSPENSION SEMI FLOATING<SDK> M14X45	1-09000-573-0	08	1	9202-		●
30	BOLT; CAB FRT FOOT CAB SUSPENSION SEMI FLOATING<SDK> M16X115	5-51361-002-1	02	1	9202-		●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-185-5	01	1	9202-	●
32	BRACKET; CAB FRT MTG,CAB SIDE EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-62580-185-5	01	1	9202-		●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-184-5	01	1	9202-	●
32	BRACKET; CAB FRT MTG,CAB SIDE EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-62580-184-5	01	1	9202-		●
32	BRACKET; CAB FRT MTG,CAB SIDE CAB SUSPENSION SEMI FLOATING<SDK>	1-62580-208-4	01	1	9202-		●
32	BRACKET; CAB FRT MTG,CAB SIDE CAB SUSPENSION SEMI FLOATING<SDK>	1-62580-207-4	01	1	9202-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT	1-53459-635-3	02	1	9202-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-53459-635-3	02	1	9202-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK>	1-53459-836-0	02	1	9202-		●
34	BOLT; CAB MTG BRKT,CAB SIDE M10X30	1-09980-546-0	08	1	9202-	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE M10X100	1-09980-547-0	04	1	9202-	●	●
35	WASHER; PL,CAB MTG BRKT ID=10.5 T=2.0	1-09985-183-0	02	1	9202-	●	●
35	WASHER; PL,CAB MTG BRKT ID=10.5 T=2.6	1-09985-184-0	14	1	9202-	●	●
36	WASHER; LK,CAB MTG BRKT ID=10	1-09985-185-0	04	1	9202-	●	●
37	NUT; CAB MTG BRKT,CAB SIDE M10	1-09984-142-0	04	1	9202-	●	●
96	BRACKET; CAB STAY	1-62500-586-0	01	1	9202-	●	●
98	WASHER; LK,BRKT ID=10.2	9-09150-610-0	02	1	9202-9307	●	●
99	BOLT; BRKT M10X35	9-02061-035-0	02	1	9202-9307	●	●
99	BOLT; BRKT M10X30 FLANGE	0-28091-030-0	02	1	9308-	●	●
103	PIN; SPLIT,CAB STAY	1-09746-021-0	01	1	9202-	●	●
152	WASHER; LK,CUSHION RUBBER ID=12.2	9-09150-512-0	04	1	9202-9503	●	●
159	RUBBER; CUSHION,CAB MTG (A)	1-53459-619-3	02	1	9202-	●	●
159	RUBBER; CUSHION,CAB MTG (B)	1-53459-620-3	02	1	9202-	●	●
168	NUT; CUSHION RUBBER,BODY MTG M12	9-99110-512-0	04	1	9202-9503	●	●
168	NUT; CUSHION RUBBER,BODY MTG M12 FLANGE	0-91150-112-0	04	1	9504-	●	●
170	SHIM; CUSHION RUBBER T=1.6	1-53459-621-0	AR	1	9202-	●	●
173	MEMBER; CAB MTG RR	1-53454-490-5	01	1	9202-	●
173	MEMBER; CAB MTG RR 6SA1 STD ENG(06L),6HE1 STD ENG(46L) EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-53454-490-5	01	1	9202-		●
173	MEMBER; CAB MTG RR 6SA1 STD ENG(06L),6HE1 STD ENG(46L) CAB SUSPENSION SEMI FLOATING<SDK>	1-53454-491-9	01	1	9202-		●
173	MEMBER; CAB MTG RR 6SA1TC ENG(28L) CAB SUSPENSION SEMI FLOATING<SDK>	1-53454-506-6	01	1	9305-		●
173	MEMBER; CAB MTG RR 6SA1TC ENG(28L) EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-53454-514-5	01	1	9305-		●
175	BOLT; MEMBER TO FRAME M12X40	9-92061-240-0	08	1	9202-	●
175	BOLT; MEMBER TO FRAME HEAVY DUTY PACKAGE TRUCK<RD2> M12X40	9-92061-240-0	08	1	9202-		●
175	BOLT; MEMBER TO FRAME WHEEL BASE 6000MM(60W) M12X40	9-92061-240-0	08	1	9202-		●
175	BOLT; MEMBER TO FRAME WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M12X35	9-92061-235-0	08	1	9202-		●
178	WASHER; LK,MEMBER ID=12.2	9-09150-612-0	08	1	9202-	●	●
322	COLLAR; CAB FRT FOOT CAB SUSPENSION SEMI FLOATING<SDK>	1-53459-941-0	02	1	9202-		●
323	NUT; CAB FRT FOOT CAB SUSPENSION SEMI FLOATING<SDK> M16	9-99110-516-0	02	1	9202-		●
324	WASHER; LK CAB SUSPENSION SEMI FLOATING<SDK> ID=16.2	9-09150-816-0	02	1	9202-		●
325	BOLT; GUIDE NUT M12X40 W/LK&PL WASHER	0-50141-240-0	02	1	9202-	●	●
326	NUT; GUIDE NUT (B) M12	9-99110-512-0	02	1	9202-	●	●
326	NUT; GUIDE NUT CAB SUSPENSION SEMI FLOATING<SDK> (A) M12	1-53459-803-0	02	1	9202-		●
335	PIN; ADJ,STAY LOCK OD=10 L=48	1-09744-107-0	01	1	9202-	●	●
336	WASHER; PL,STAY LOCK ID=10.5 T=2.0	1-09985-183-0	01	1	9202-	●	●
