◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11545 - FRR-LHD(EU)SPACE EU6 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#128198) — 66 parça

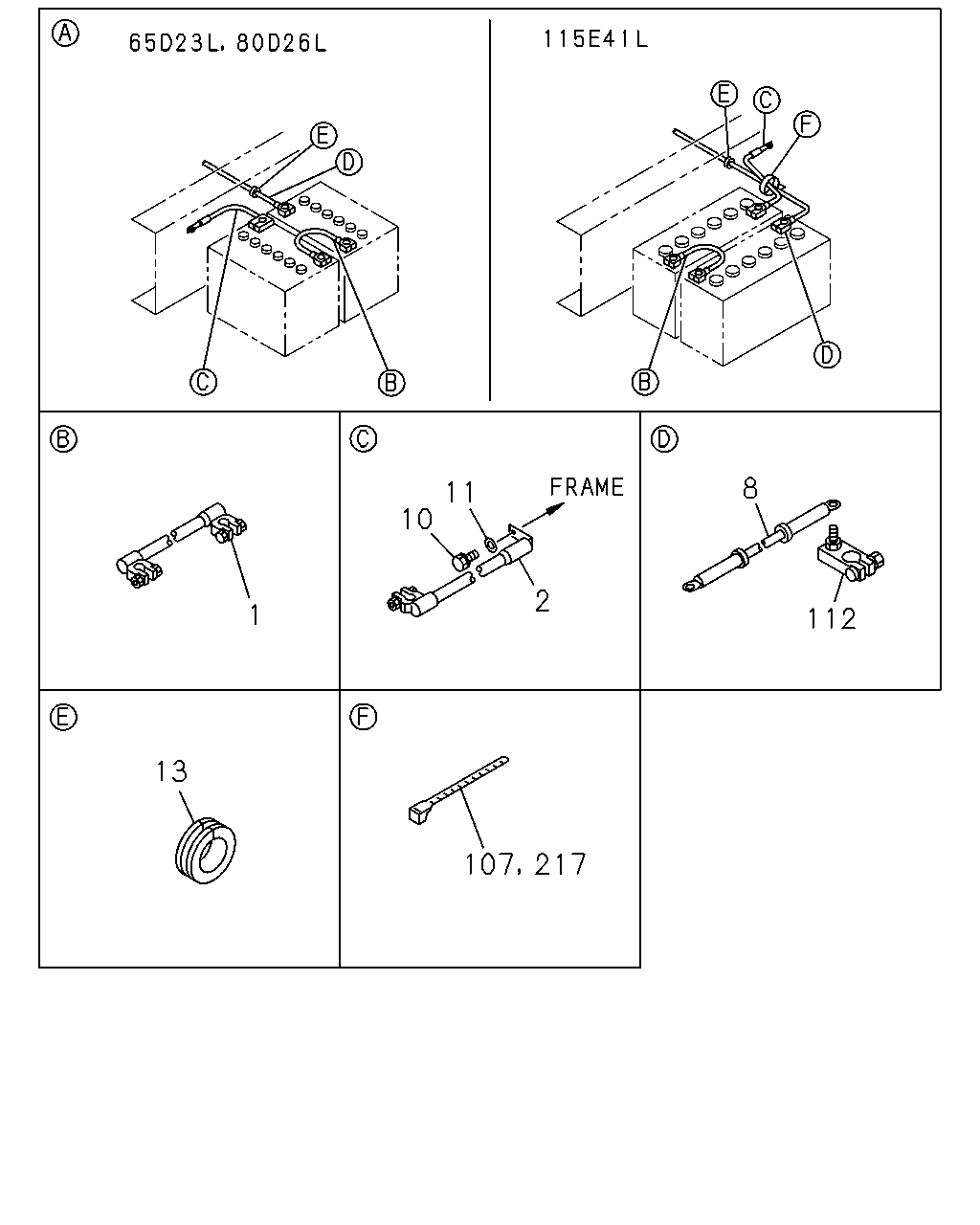

çizim 379336
13 107 217 2 10 11 8 112 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1310- ● ●
2 CABLE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=240 		8-98232-608-0 01 1 1310- ● ●
2 CABLE; BATTERY
BATTERY 115E41L<8MA> L=400 		8-97619-733-1 01 1 1310- ● ●
8 CABLE; BATTERY,STARTER
WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98222-851-1 01 1 1310-1502 ● ●
8 CABLE; BATTERY,STARTER
WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98295-660-0 01 1 1503- ● ●
8 CABLE; BATTERY,STARTER
WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98222-849-1 01 1 1310-1502 ● ●
8 CABLE; BATTERY,STARTER
WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98295-658-0 01 1 1503- ● ●
8 CABLE; BATTERY,STARTER
WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> 		8-98222-852-0 01 1 1310-1502 ● ●
8 CABLE; BATTERY,STARTER
WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> 		8-98295-661-0 01 1 1503- ● ●
8 CABLE; BATTERY,STARTER
WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> 		8-98222-850-0 01 1 1310-1502 ● ●
8 CABLE; BATTERY,STARTER
WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> 		8-98295-659-0 01 1 1503- ● ●
8 CABLE; BATTERY,STARTER
WHEEL BASE 3400MM(34W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98222-847-1 01 1 1310-1502 ●
8 CABLE; BATTERY,STARTER
WHEEL BASE 3400MM(34W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98295-656-0 01 1 1503- ●
8 CABLE; BATTERY,STARTER
WHEEL BASE 3400MM(34W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98222-845-1 01 1 1310-1502 ●
8 CABLE; BATTERY,STARTER
WHEEL BASE 3400MM(34W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98295-654-0 01 1 1503- ●
8 CABLE; BATTERY,STARTER
WHEEL BASE 3400MM(34W) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> 		8-98222-848-0 01 1 1310-1502 ●
8 CABLE; BATTERY,STARTER
WHEEL BASE 3400MM(34W) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> 		8-98295-657-0 01 1 1503- ●
8 CABLE; BATTERY,STARTER
WHEEL BASE 3400MM(34W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> 		8-98222-846-0 01 1 1310-1502 ●
8 CABLE; BATTERY,STARTER
WHEEL BASE 3400MM(34W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> 		8-98295-655-0 01 1 1503- ●
10 BOLT; BATTERY CABLE CLIP
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1310- ● ●
11 WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1310- ● ●
13 GROMMET; BATTERY CABLE
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1310- ● ●
107 CLIP; BAND
BATTERY 115E41L<8MA> L=140 		5-09707-031-1 01 1 1310- ● ●
112 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 1310-1408 ● ●
112 TERMINAL; BATTERY
<+> 		8-98290-356-0 01 1 1409- ● ●
217 CLIP; BAND,CABLE
L=250 		1-09707-126-0 01 1 1310- ● ●

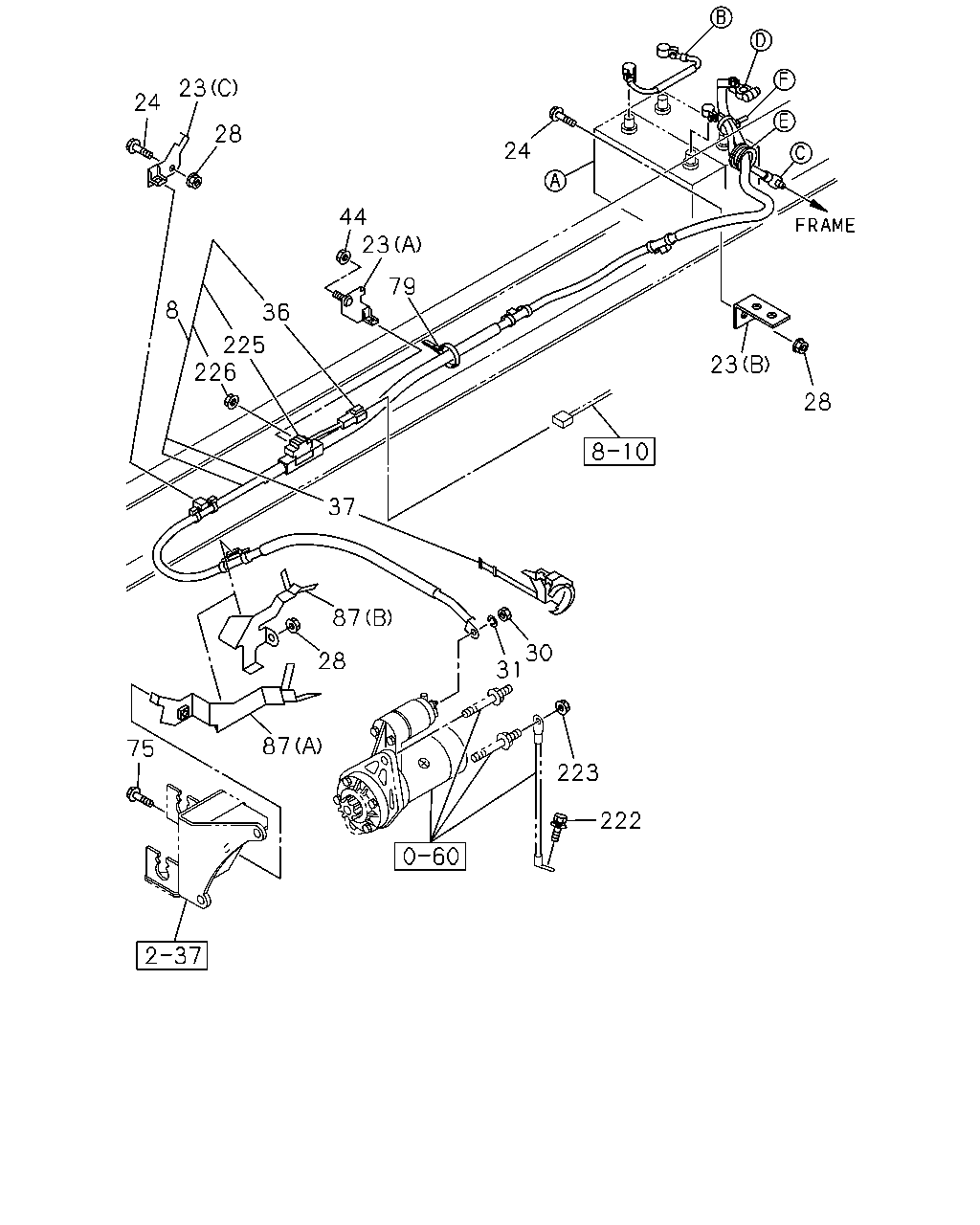

çizim 379338
24 44 23 79 36 225 28 23 24 8 226 37 87 28 87 75 222 223 31 30 28 23
BalonParca AdiParca NoAdetTipApplied Date A B
8 CABLE; BATTERY,STARTER
WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98222-851-1 01 1 1310-1502 ● ●
8 CABLE; BATTERY,STARTER
WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98295-660-0 01 1 1503- ● ●
8 CABLE; BATTERY,STARTER
WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98222-849-1 01 1 1310-1502 ● ●
8 CABLE; BATTERY,STARTER
WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98295-658-0 01 1 1503- ● ●
8 CABLE; BATTERY,STARTER
WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> 		8-98222-852-0 01 1 1310-1502 ● ●
8 CABLE; BATTERY,STARTER
WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> 		8-98295-661-0 01 1 1503- ● ●
8 CABLE; BATTERY,STARTER
WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> 		8-98222-850-0 01 1 1310-1502 ● ●
8 CABLE; BATTERY,STARTER
WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> 		8-98295-659-0 01 1 1503- ● ●
8 CABLE; BATTERY,STARTER
WHEEL BASE 3400MM(34W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98222-847-1 01 1 1310-1502 ●
8 CABLE; BATTERY,STARTER
WHEEL BASE 3400MM(34W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98295-656-0 01 1 1503- ●
8 CABLE; BATTERY,STARTER
WHEEL BASE 3400MM(34W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98222-845-1 01 1 1310-1502 ●
8 CABLE; BATTERY,STARTER
WHEEL BASE 3400MM(34W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98295-654-0 01 1 1503- ●
8 CABLE; BATTERY,STARTER
WHEEL BASE 3400MM(34W) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> 		8-98222-848-0 01 1 1310-1502 ●
8 CABLE; BATTERY,STARTER
WHEEL BASE 3400MM(34W) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> 		8-98295-657-0 01 1 1503- ●
8 CABLE; BATTERY,STARTER
WHEEL BASE 3400MM(34W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> 		8-98222-846-0 01 1 1310-1502 ●
8 CABLE; BATTERY,STARTER
WHEEL BASE 3400MM(34W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> 		8-98295-655-0 01 1 1503- ●
23 BRACKET; CABLE CLIP TO FRAME
(B) L=62 		1-21464-170-2 01 1 1310- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98044-882-0 01 1 1310- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(C) 		8-98047-277-1 01 1 1310- ● ●
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28650-830-0 01 1 1310- ● ●
24 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28651-030-0 01 1 1310- ● ●
28 NUT; BRKT TO FRAME
M10 FLANGE 		0-91180-210-0 01 1 1310- ● ●
28 NUT; BRKT TO FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE 		0-91180-210-0 01 1 1310- ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 1310- ● ●
30 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1310- ● ●
31 WASHER; LK,CABLE,STARTER TO BATTERY
ID=8.2 		0-91510-508-0 01 1 1310- ● ●
36 FUSIBLE LINK; BATTERY 8-97615-498-1 01 1 1310-1502 ● ●
36 FUSIBLE LINK; BATTERY 8-98295-762-0 01 1 1503- ● ●
37 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 1310- ● ●
44 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1310- ● ●
75 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X20 FLANGE 		0-28650-820-0 01 1 1310- ● ●
79 CLIP; BATTERY CABLE
ID=20 L=50 		9-09917-430-0 01 1 1310- ● ●
87 BRACKET; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98045-617-1 01 1 1310- ● ●
87 BRACKET; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98053-927-1 01 1 1310- ● ●
222 BOLT; EARTH CABLE
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1310- ● ●
223 NUT; EARTH CABLE
M10 FLANGE 		0-91180-210-0 01 1 1310- ● ●
225 BLOCK; TERMINAL 8-98029-689-0 01 1 1310-1502 ● ●
225 BLOCK; TERMINAL 8-98294-524-0 01 1 1503- ● ●
226 NUT; FUSIBLE LINK
M6 W/LK WASHER 		8-94424-179-0 01 1 1310-1502 ● ●
226 NUT; FUSIBLE LINK
M6 FLANGE STAINLESS 		8-98297-112-0 01 1 1503- ● ●
