◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11545 - FRR-LHD(EU)SPACE EU6 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#128197) — 48 parça

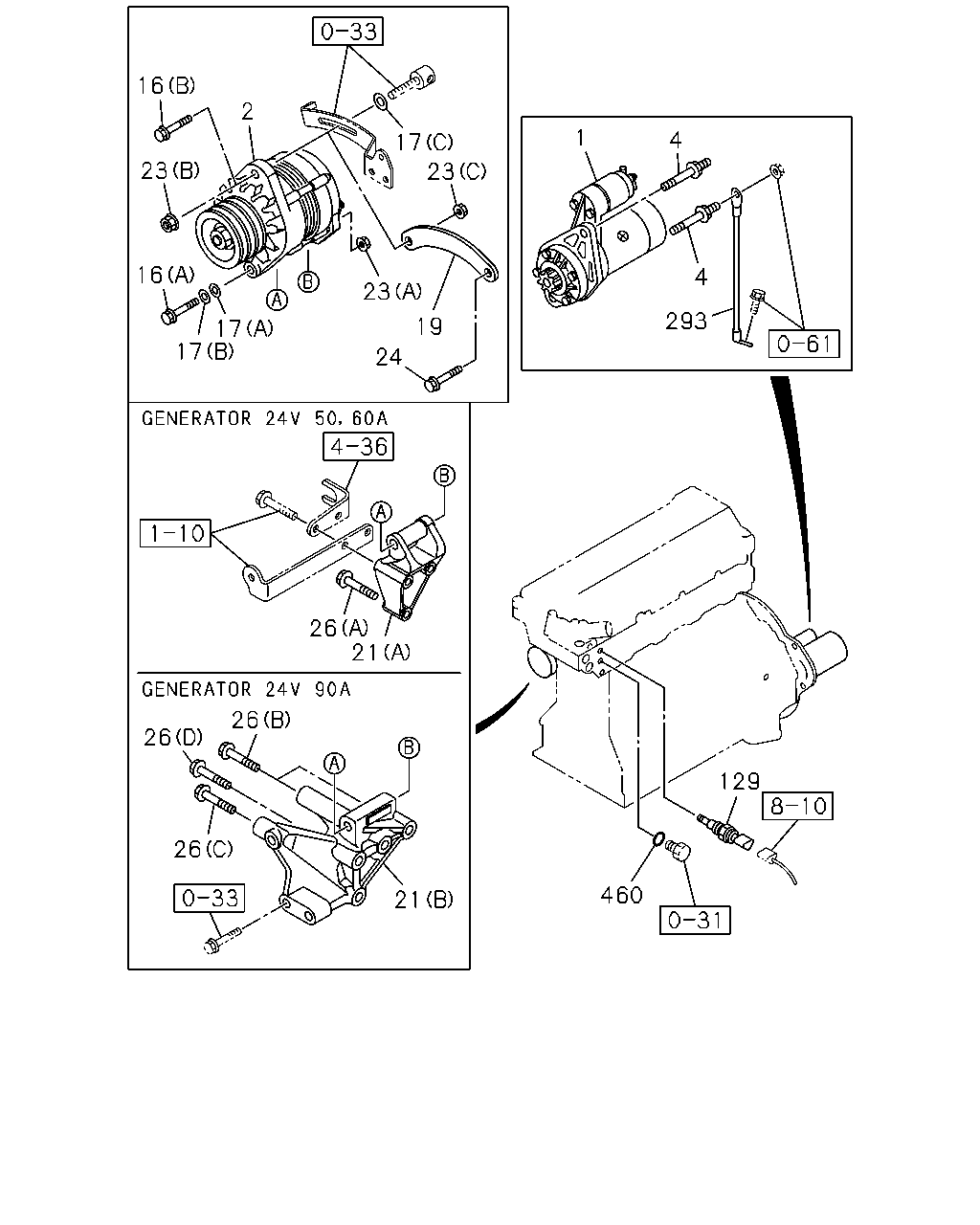

çizim 379320
460 129 26 21 26 26 26 21 293 4 4 1 17 23 2 16 23 16 17 17 23 24 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 4.5KW HITACHI 		8-98222-023-0 01 1 1310-1311 ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 4.5KW HITACHI 		8-98245-260-1 01 1 1312- ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98222-021-0 01 1 1310-1310 ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98245-258-0 01 1 1311- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A NIKKO 		8-98013-456-4 01 1 1310- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V90A(K44) 24V 90A NIKKO 		8-98013-459-3 01 1 1310-1508 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V90A(K44) 24V 90A NIKKO 		8-98330-085-0 01 1 1509- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(K89) 24V 50A NIKKO 		8-98013-455-4 01 1 1310- ● ●
4 BOLT; STARTER
M10X15,M14X82 L=110 		8-98029-095-0 02 1 1310- ● ●
16 BOLT; GEN
(A) M14X135 		1-09000-133-1 01 1 1310- ● ●
16 BOLT; GEN
GENERATOR 24V90A(K44) (B) M10X45 FLANGE 		0-28051-045-0 01 1 1310- ● ●
17 WASHER; PL,GEN
(A) ID=14.2 		0-91510-514-0 01 1 1310- ● ●
17 WASHER; PL,GEN
(B) ID=15 		0-91610-514-0 01 1 1310- ● ●
17 WASHER; PL,GEN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (C) ID=12.5 		0-91610-712-0 01 1 1310- ● ●
19 BRACKET; GEN
GENERATOR 24V90A(K44) 		8-98032-273-0 01 1 1310- ● ●
21 BRACKET; GEN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) 		8-97381-404-0 01 1 1310- ● ●
21 BRACKET; GEN
GENERATOR 24V90A(K44) (B) 		8-98075-340-0 01 1 1310- ● ●
23 NUT; GEN
(A) M14 		0-91110-514-0 01 1 1310- ● ●
23 NUT; GEN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) M12 FLANGE 		0-91180-112-0 01 1 1310- ● ●
23 NUT; GEN
GENERATOR 24V90A(K44) (C) M10 FLANGE 		8-97065-439-0 01 1 1310- ● ●
24 BOLT; GEN BRKT
GENERATOR 24V90A(K44) M10X20 FLANGE 		0-28151-020-0 01 1 1310- ● ●
26 BOLT; GEN BRKT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) M10X50 FLANGE 		0-28151-050-0 01 1 1310- ● ●
26 BOLT; GEN BRKT
GENERATOR 24V90A(K44) (C) M8X70 FLANGE 		0-28050-870-0 01 1 1310- ● ●
26 BOLT; GEN BRKT
GENERATOR 24V90A(K44) (D) M10X60 FLANGE 		0-28151-060-0 02 1 1310- ● ●
26 BOLT; GEN BRKT
GENERATOR 24V90A(K44) (B) M10X70 FLANGE 		0-28151-070-0 01 1 1310- ● ●
129 SENSOR; GLOW PLUG,THERMO
MITSUBISHI 		8-98023-883-0 01 1 1310-1503 ● ●
129 SENSOR; GLOW PLUG,THERMO
NISHIDA 		8-98260-257-0 01 1 1504- ● ●
293 CABLE; STARTER EARTH
L=410 		8-97620-375-0 01 1 1310- ● ●
460 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2 		1-09630-086-0 01 1 1310- ● ●

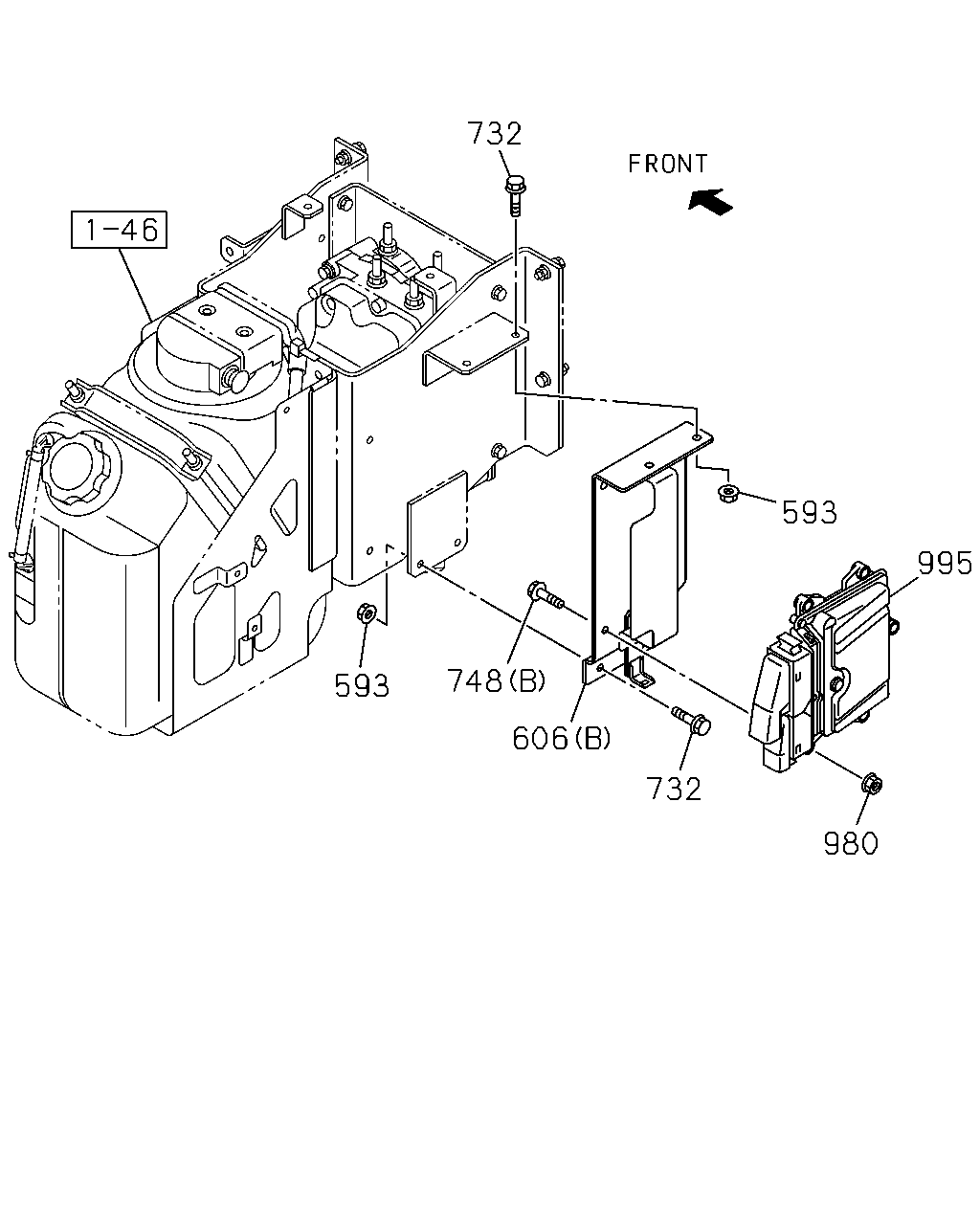

çizim 381074
732 593 995 980 732 606 748 593
BalonParca AdiParca NoAdetTipApplied Date A B
593 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 1310- ● ●
606 BRACKET; CONT UNIT
(A) 		8-98108-141-0 01 1 1310- ● ●
606 BRACKET; CONT UNIT
(B) 		8-98203-737-0 01 1 1310- ● ●
732 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 1310- ● ●
748 BOLT; CONT UNIT
(A) M8X16 FLANGE 		0-28050-816-0 04 1 1310- ● ●
748 BOLT; CONT UNIT
(B) M8X30 FLANGE 		0-28050-830-0 04 1 1310- ● ●
980 NUT; CONT UNIT
M8 FLANGE 		0-91180-108-0 04 1 1310- ● ●
995 CONTROL UNIT; DEF DCM 8-98235-021-1 01 1 1310- ● ●

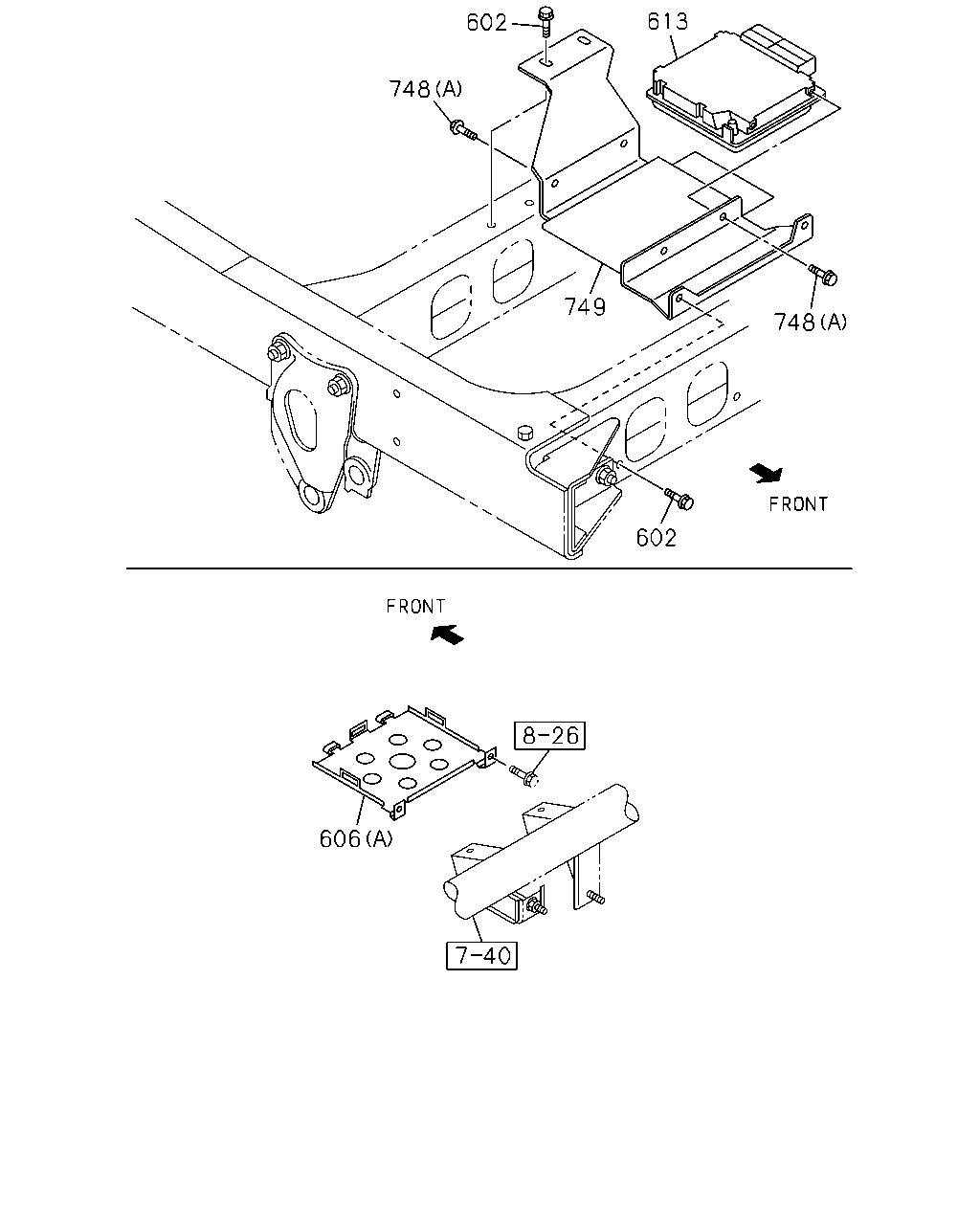

çizim 381284
613 602 748 749 602 748 606
BalonParca AdiParca NoAdetTipApplied Date A B
602 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 1310- ● ●
606 BRACKET; CONT UNIT
(A) 		8-98108-141-0 01 1 1310- ● ●
606 BRACKET; CONT UNIT
(B) 		8-98203-737-0 01 1 1310- ● ●
613 CONTROL UNIT; ENG
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98223-981-4 01 1 1310- ● ●
613 CONTROL UNIT; ENG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-980-4 01 1 1310- ● ●
748 BOLT; CONT UNIT
(A) M8X16 FLANGE 		0-28050-816-0 04 1 1310- ● ●
748 BOLT; CONT UNIT
(B) M8X30 FLANGE 		0-28050-830-0 04 1 1310- ● ●
749 STAY; CONT UNIT 8-98203-734-0 01 1 1310- ● ●

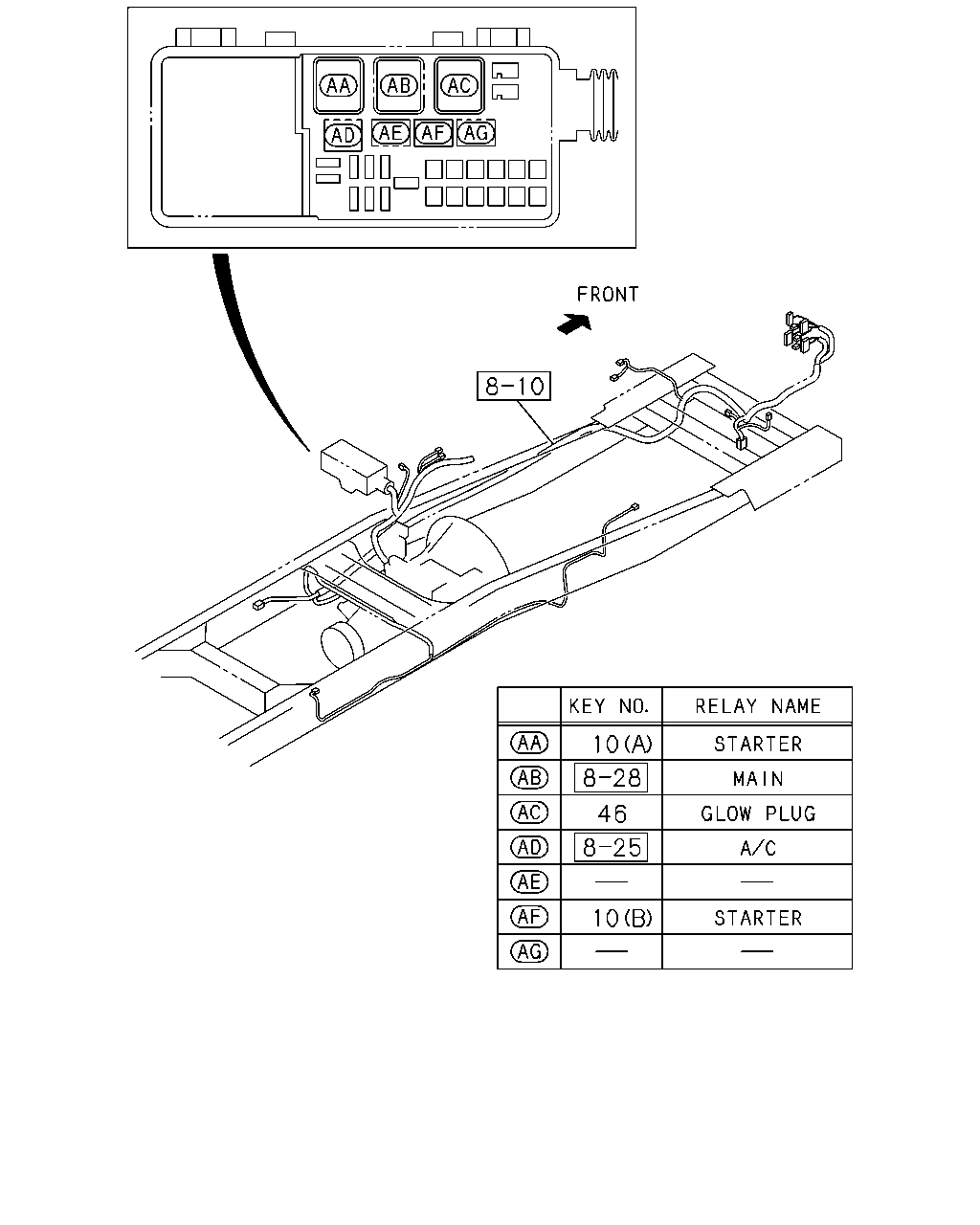

çizim 381448
10 46 10
BalonParca AdiParca NoAdetTipApplied Date A B
10 RELAY; STARTER
(A) 24V 50A 		8-97264-947-0 01 1 1310- ● ●
10 RELAY; STARTER
(B) 24V 10A PANASONIC 		8-98167-173-0 01 1 1310- ● ●
46 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 1310- ● ●
