4-25 — REAR FINAL DRIVE (#12819) — 151 parça

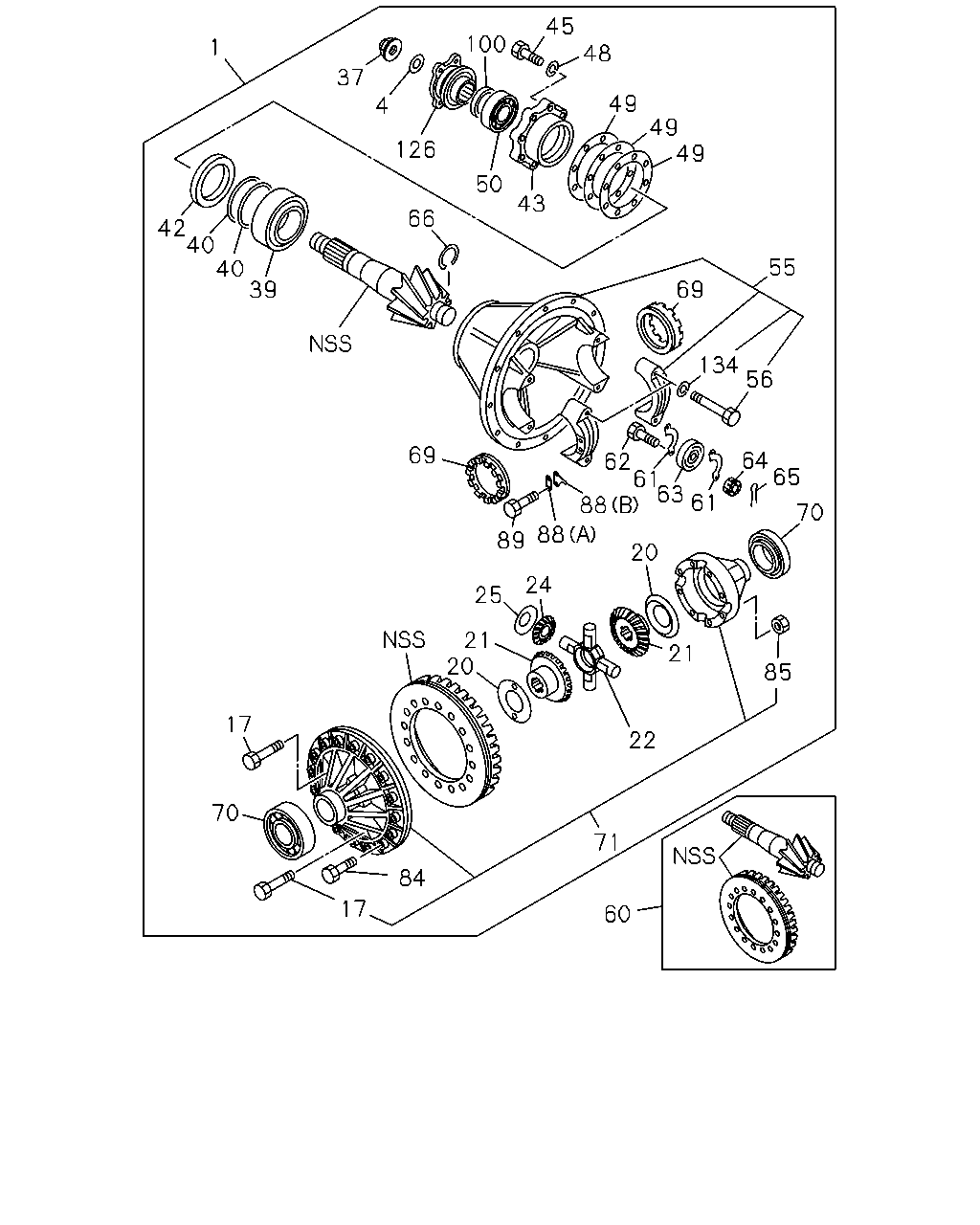

çizim 143172
45 48 100 1 37 49 4 49 49 126 50 43 66 42 40 40 39 55 69 134 56 69 64 65 62 61 63 88 61 70 88 89 20 24 25 21 20 21 85 17 22 70 71 84 17 60
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRIVE ASM; FINAL,RR
39/7 		1-41001-257-0 01 1 1103- ●
1 DRIVE ASM; FINAL,RR
41/8 		1-41001-352-0 01 1 1103- ●
1 DRIVE ASM; FINAL,RR
39/7 		1-41001-257-0 01 1 0808-1102 ●
1 DRIVE ASM; FINAL,RR
41/8 		1-41001-352-0 01 1 0808-1102 ●
4 GASKET; FLANGE,FINAL PINION
ID=42 		9-09921-116-0 01 1 1103- ● ●
4 GASKET; FLANGE,FINAL PINION
ID=42 		9-09921-116-0 01 1 0808-1102 ● ●
17 BOLT; DIFF CAGE SETTING
M14X95 FLANGE 		1-09044-007-0 12 1 1103- ● ●
17 BOLT; DIFF CAGE SETTING
M14X95 FLANGE 		1-09044-007-0 12 1 0808-1102 ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.75 		1-41562-139-0 AR 1 1103- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.80 		1-41562-140-0 AR 1 1103- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.85 		1-41562-141-0 AR 1 1103- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.90 		1-41562-142-0 AR 1 1103- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.95 		1-41562-143-0 AR 1 1103- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.00 		1-41562-144-0 AR 1 1103- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.05 		1-41562-145-0 AR 1 1103- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.10 		1-41562-146-0 AR 1 1103- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.15 		1-41562-147-0 AR 1 1103- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.20 		1-41562-148-0 AR 1 1103- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.25 		1-41562-149-0 AR 1 1103- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.30 		1-41562-150-0 AR 1 1103- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.35 		1-41562-151-0 AR 1 1103- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.40 		1-41562-152-0 AR 1 1103- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.45 		1-41562-153-0 AR 1 1103- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.75 		1-41562-139-0 AR 1 0808-1102 ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.80 		1-41562-140-0 AR 1 0808-1102 ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.85 		1-41562-141-0 AR 1 0808-1102 ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.90 		1-41562-142-0 AR 1 0808-1102 ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.95 		1-41562-143-0 AR 1 0808-1102 ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.00 		1-41562-144-0 AR 1 0808-1102 ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.05 		1-41562-145-0 AR 1 0808-1102 ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.10 		1-41562-146-0 AR 1 0808-1102 ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.15 		1-41562-147-0 AR 1 0808-1102 ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.20 		1-41562-148-0 AR 1 0808-1102 ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.25 		1-41562-149-0 AR 1 0808-1102 ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.30 		1-41562-150-0 AR 1 0808-1102 ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.35 		1-41562-151-0 AR 1 0808-1102 ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.40 		1-41562-152-0 AR 1 0808-1102 ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.45 		1-41562-153-0 AR 1 0808-1102 ● ●
21 GEAR; SIDE,DIFF
Z=16 		1-41561-159-1 02 1 1103- ● ●
21 GEAR; SIDE,DIFF
Z=16 		1-41561-126-0 02 1 0808-0903 ● ●
21 GEAR; SIDE,DIFF
Z=16 		1-41561-159-0 02 1 0904-1102 ● ●
22 SPIDER; DIFF PINION 1-41521-061-0 01 1 1103- ● ●
22 SPIDER; DIFF PINION 1-41521-061-0 01 1 0808-1102 ● ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-051-0 04 1 1103- ● ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-041-0 04 1 0808-0903 ● ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-051-0 04 1 0904-1102 ● ●
25 WASHER; THRUST,PINION 1-41552-012-0 04 1 1103- ● ●
25 WASHER; THRUST,PINION 1-41552-012-0 04 1 0808-1102 ● ●
37 NUT; DRIVING PINION
M36 FLANGE 		1-09449-067-0 01 1 1103- ● ●
37 NUT; DRIVING PINION
M36 FLANGE 		1-09449-067-0 01 1 0808-1102 ● ●
39 BEARING; FINAL PINION
JTEKT 		1-09812-218-0 01 1 1103- ● ●
39 BEARING; FINAL PINION
JTEKT 		1-09812-218-0 01 1 0808-1102 ● ●
40 SHIM; FINAL PINION
T=3.50 		1-41229-256-0 AR 1 1103- ● ●
40 SHIM; FINAL PINION
T=3.51 		1-41229-257-0 AR 1 1103- ● ●
40 SHIM; FINAL PINION
T=3.52 		1-41229-258-0 AR 1 1103- ● ●
40 SHIM; FINAL PINION
T=3.53 		1-41229-259-0 AR 1 1103- ● ●
40 SHIM; FINAL PINION
T=3.54 		1-41229-260-0 AR 1 1103- ● ●
40 SHIM; FINAL PINION
T=3.55 		1-41229-261-0 AR 1 1103- ● ●
40 SHIM; FINAL PINION
T=3.56 		1-41229-262-0 AR 1 1103- ● ●
40 SHIM; FINAL PINION
T=3.57 		1-41229-263-0 AR 1 1103- ● ●
40 SHIM; FINAL PINION
T=3.58 		1-41229-264-0 AR 1 1103- ● ●
40 SHIM; FINAL PINION
T=3.59 		1-41229-265-0 AR 1 1103- ● ●
40 SHIM; FINAL PINION
T=3.60 		1-41229-266-0 AR 1 1103- ● ●
40 SHIM; FINAL PINION
T=3.50 		1-41229-256-0 AR 1 0808-1102 ● ●
40 SHIM; FINAL PINION
T=3.51 		1-41229-257-0 AR 1 0808-1102 ● ●
40 SHIM; FINAL PINION
T=3.52 		1-41229-258-0 AR 1 0808-1102 ● ●
40 SHIM; FINAL PINION
T=3.53 		1-41229-259-0 AR 1 0808-1102 ● ●
40 SHIM; FINAL PINION
T=3.54 		1-41229-260-0 AR 1 0808-1102 ● ●
40 SHIM; FINAL PINION
T=3.55 		1-41229-261-0 AR 1 0808-1102 ● ●
40 SHIM; FINAL PINION
T=3.56 		1-41229-262-0 AR 1 0808-1102 ● ●
40 SHIM; FINAL PINION
T=3.57 		1-41229-263-0 AR 1 0808-1102 ● ●
40 SHIM; FINAL PINION
T=3.58 		1-41229-264-0 AR 1 0808-1102 ● ●
40 SHIM; FINAL PINION
T=3.59 		1-41229-265-0 AR 1 0808-1102 ● ●
40 SHIM; FINAL PINION
T=3.60 		1-41229-266-0 AR 1 0808-1102 ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.40 		1-41229-267-0 AR 1 1103- ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.60 		1-41229-268-0 AR 1 1103- ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.80 		1-41229-269-0 AR 1 1103- ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.00 		1-41229-270-0 AR 1 1103- ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.20 		1-41229-271-0 AR 1 1103- ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.40 		1-41229-267-0 AR 1 0808-1102 ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.60 		1-41229-268-0 AR 1 0808-1102 ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.80 		1-41229-269-0 AR 1 0808-1102 ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.00 		1-41229-270-0 AR 1 0808-1102 ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.20 		1-41229-271-0 AR 1 0808-1102 ● ●
43 CAGE; FINAL PINION 1-41151-028-1 01 1 1103- ● ●
43 CAGE; FINAL PINION 1-41151-028-1 01 1 0808-1102 ● ●
45 BOLT; FINAL PINION CAGE
M14X50 		0-16806-450-0 08 1 1103- ● ●
45 BOLT; FINAL PINION CAGE
M14X50 		0-16806-450-0 08 1 0808-1102 ● ●
48 WASHER; LK,FINAL PINION
ID=14.2 		0-91510-514-0 08 1 1103- ● ●
48 WASHER; LK,FINAL PINION
ID=14.2 		0-91510-514-0 08 1 0808-1102 ● ●
49 SHIM; FINAL PINION CAGE
T=0.30 		1-41154-063-0 AR 1 1103- ● ●
49 SHIM; FINAL PINION CAGE
T=0.40 		1-41154-064-0 AR 1 1103- ● ●
49 SHIM; FINAL PINION CAGE
T=1.00 		9-41154-013-0 AR 1 1103- ● ●
49 SHIM; FINAL PINION CAGE
T=0.50 		9-41154-014-0 AR 1 1103- ● ●
49 SHIM; FINAL PINION CAGE
T=0.30 		1-41154-063-0 AR 1 0808-1102 ● ●
49 SHIM; FINAL PINION CAGE
T=0.40 		1-41154-064-0 AR 1 0808-1102 ● ●
49 SHIM; FINAL PINION CAGE
T=1.00 		9-41154-013-0 AR 1 0808-1102 ● ●
49 SHIM; FINAL PINION CAGE
T=0.50 		9-41154-014-0 AR 1 0808-1102 ● ●
50 BEARING; FINAL PINION
NSK 		1-09812-041-2 01 1 1103- ● ●
50 BEARING; FINAL PINION
JTEKT 		1-09812-042-1 01 1 1103- ● ●
50 BEARING; FINAL PINION
NSK 		1-09812-041-2 01 1 0808-1102 ● ●
50 BEARING; FINAL PINION
JTEKT 		1-09812-042-1 01 1 0808-1102 ● ●
55 CARRIER; DIFF 1-41110-052-0 01 1 1103- ● ●
55 CARRIER; DIFF 1-41110-052-0 01 1 0808-1102 ● ●
56 BOLT; BRG CAP
M18X107 		1-09050-002-1 04 1 1103- ● ●
56 BOLT; BRG CAP
M18X107 		1-09050-002-1 04 1 0808-1102 ● ●
60 GEAR SET; FINAL DRIVE,RR
39/7 		1-41210-280-3 01 1 1103- ●
60 GEAR SET; FINAL DRIVE,RR
41/8 		1-41210-279-3 01 1 1103- ●
60 GEAR SET; FINAL DRIVE,RR
39/7 		1-41210-280-3 01 1 0808-1102 ●
60 GEAR SET; FINAL DRIVE,RR
41/8 		1-41210-279-3 01 1 0808-1102 ●
61 RETAINER; PILOT BRG,PINION
T=2.3 		1-41227-006-0 02 1 1103- ● ●
61 RETAINER; PILOT BRG,PINION
T=2.3 		1-41227-006-0 02 1 0808-1102 ● ●
62 BOLT; RET
M8X36 W/PIN HOLE 		1-09042-035-0 02 1 1103- ● ●
62 BOLT; RET
M8X36 W/PIN HOLE 		1-09042-035-0 02 1 0808-1102 ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-229-2 01 1 1103- ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-230-1 01 1 1103- ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-229-2 01 1 0808-1102 ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-230-1 01 1 0808-1102 ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1103- ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 0808-1102 ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 1103- ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 0808-1102 ● ●
66 RING; SNAP,PILOT BRG
OD=42 		9-09950-179-0 01 1 1103- ● ●
66 RING; SNAP,PILOT BRG
OD=42 		9-09950-179-0 01 1 0808-1102 ● ●
69 NUT; ADJ,DIFF CAGE
M143 H=24 		1-41121-005-0 01 1 1103- ● ●
69 NUT; ADJ,DIFF CAGE
M143 H=29 		1-41121-006-0 01 1 1103- ● ●
69 NUT; ADJ,DIFF CAGE
M143 H=24 		1-41121-005-0 01 1 0808-1102 ● ●
69 NUT; ADJ,DIFF CAGE
M143 H=29 		1-41121-006-0 01 1 0808-1102 ● ●
70 BEARING; DIFF CAGE
NSK 		1-09812-150-0 02 1 1103- ● ●
70 BEARING; DIFF CAGE
NACHI 		1-09812-151-0 02 1 1103- ● ●
70 BEARING; DIFF CAGE
NACHI ID=80 OD=140 T=35.3 		1-09812-144-0 02 1 0808-0911 ● ●
70 BEARING; DIFF CAGE
JTEKT ID=80 OD=140 T=35.3 		1-09812-145-0 02 1 0808-0911 ● ●
70 BEARING; DIFF CAGE
NACHI 		1-09812-151-0 02 1 0912-1102 ● ●
70 BEARING; DIFF CAGE
NSK ID=80 OD=140 T=35.3 		1-09812-146-0 02 1 0808-1002 ● ●
70 BEARING; DIFF CAGE
NSK 		1-09812-150-0 02 1 1003-1102 ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-127-0 01 1 1103- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-127-0 01 1 0808-1102 ● ●
84 BOLT; FINAL DRIVE GEAR
M16X37.5 FLANGE 		1-09020-167-0 16 1 1103- ● ●
84 BOLT; FINAL DRIVE GEAR
M16X37.5 FLANGE 		1-09020-167-0 16 1 0808-1102 ● ●
85 NUT; DIFF CAGE SETTING
M14 		1-09400-077-1 12 1 1103- ● ●
85 NUT; DIFF CAGE SETTING
M14 		1-09400-077-1 12 1 0808-1102 ● ●
88 PLATE; LK,ADJ NUT
(B) T=2.3 		1-41124-002-0 02 1 0808- ● ●
88 PLATE; LK,ADJ NUT
(A) T=1.0 		9-41124-005-0 02 1 0808- ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 1103- ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 0808-1102 ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-017-0 01 1 1103- ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-017-0 01 1 0808-1102 ● ●
126 COUPLING; DRIVING PINION 1-37245-388-0 01 1 1103- ● ●
126 COUPLING; DRIVING PINION 1-37245-388-0 01 1 0808-1102 ● ●
134 WASHER; LK,BRG CAP
ID=18.2 		0-91510-518-0 04 1 1103- ● ●
134 WASHER; LK,BRG CAP
ID=18.2 		0-91510-518-0 04 1 0808-1102 ● ●
