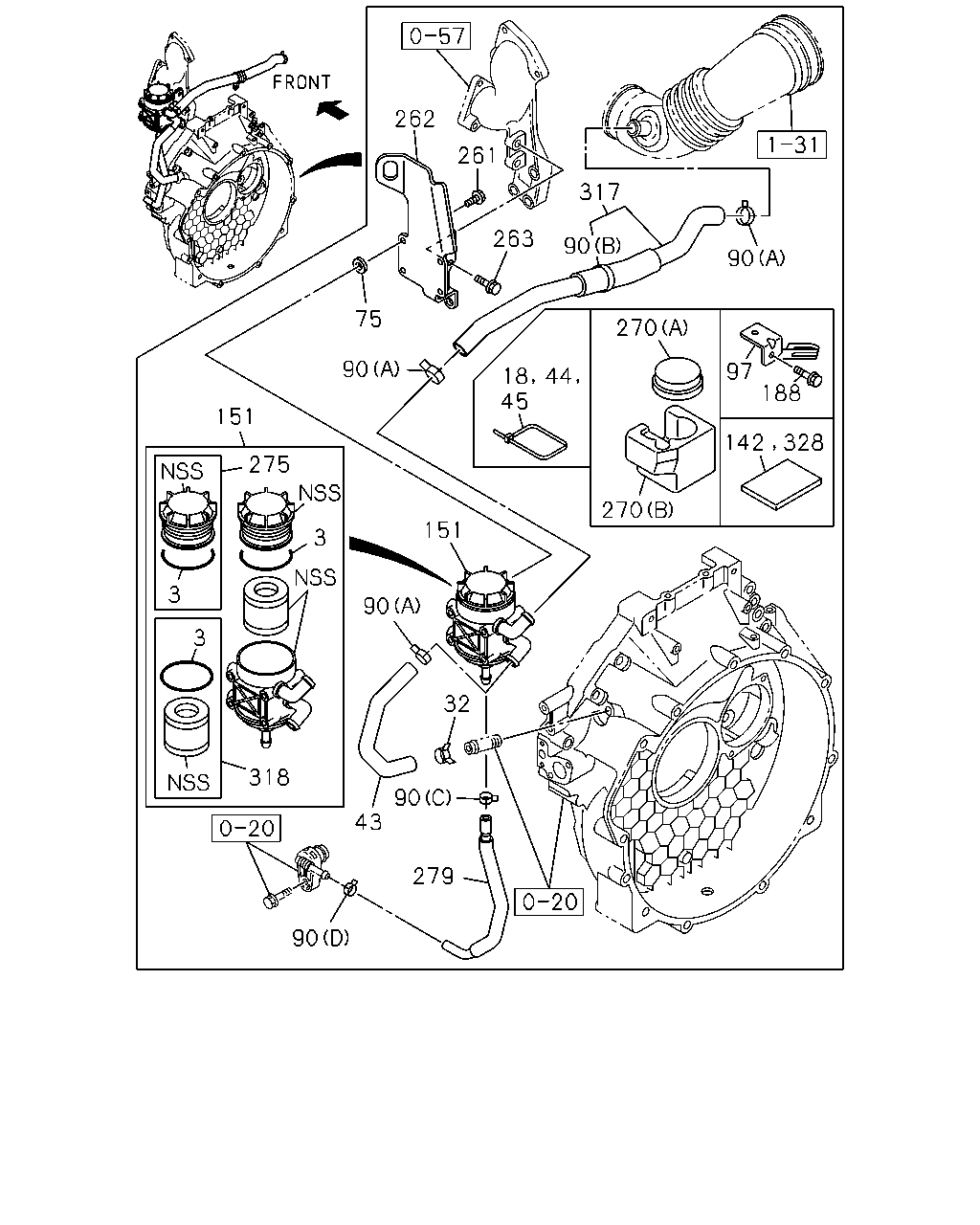

0-28 — VENTILATION SYSTEM (#128182) — 46 parça

262 263 317 90 270 44 18 45 90 75 261 97 142 328 188 270 151 151 275 3 3 3 318 43 279 90 90 32 90 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	GASKET; BODY TO CAP	8-97385-921-0	01	1	1310-
18	CLIP; RUBBER HOSE,AIR BREATHER FRIGID ZONE KIT<YL3> L=250	8-98216-430-0	13	1	1310-
32	CLIP; VENT HOSE ID=21	8-94242-034-0	01	1	1310-
43	HOSE; PCV FRIGID ZONE KIT<YL3>	8-98195-078-0	01	1	1310-
43	HOSE; PCV	8-98057-033-0	01	1	1310-
44	CLIP; HOSE,PCV FRIGID ZONE KIT<YL3> L=700	1-09707-190-0	01	1	1310-
45	CLIP; PCV HOSE EXC. KD PREPARATORY PACK<6HF> L=250	8-98216-430-0	01	1	1503-
75	WASHER ID=9 OD=18 T=5	9-14149-173-0	04	1	1310-
90	CLIP; RUBBER HOSE (A) ID=28	1-09707-124-0	03	1	1310-
90	CLIP; RUBBER HOSE (B) L=212	8-94107-652-0	01	1	1310-
90	CLIP; RUBBER HOSE (C) ID=13	8-94238-571-0	01	1	1310-
90	CLIP; RUBBER HOSE (D) ID=11.5	8-97138-011-0	01	1	1310-
97	BRACKET; HOSE	8-98093-946-3	01	1	1310-
142	COVER; PCV EXC. KD PREPARATORY PACK<6HF>	8-98270-799-0	01	1	1503-
151	SEPARATOR; OIL,PCV	8-97324-682-1	01	1	1310-
188	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	01	1	1310-
261	BOLT; SEPARETOR M8X30 FLANGE	0-28650-830-0	04	1	1310-
262	BRACKET; OIL SEPARETOR	8-98036-498-0	01	1	1310-1501
262	BRACKET; OIL SEPARETOR	8-98296-130-0	01	1	1502-
263	BOLT; BRKT,OIL SEPARETOR M12X30 FLANGE	0-28151-230-0	03	1	1310-
270	COVER; VENTILATOR FRIGID ZONE KIT<YL3> (B)	8-98139-613-0	01	1	1310-
270	COVER; VENTILATOR FRIGID ZONE KIT<YL3> (A)	8-98172-779-0	01	1	1310-
275	CAP; PCV	8-97389-360-0	01	1	1310-
279	HOSE; RUBBER,OIL DRAIN	8-97386-653-1	01	1	1310-
317	HOSE; RUBBER,OIL SEPARATOR	8-98095-931-1	01	1	1310-
318	ELEMENT KIT; PCV	8-98002-346-0	01	1	1310-
328	INSULATOR; PCV FRIGID ZONE KIT<YL3>	8-98141-054-0	01	1	1310-1401
328	INSULATOR; PCV FRIGID ZONE KIT<YL3>	8-98270-793-0	01	1	1402-
328	INSULATOR; PCV FRIGID ZONE KIT<YL3>	8-98141-055-0	01	1	1310-1401
328	INSULATOR; PCV FRIGID ZONE KIT<YL3>	8-98270-794-0	01	1	1402-
328	INSULATOR; PCV FRIGID ZONE KIT<YL3>	8-98141-056-0	01	1	1310-1401
328	INSULATOR; PCV FRIGID ZONE KIT<YL3>	8-98270-795-0	01	1	1402-
328	INSULATOR; PCV FRIGID ZONE KIT<YL3>	8-98141-057-0	01	1	1310-1401
328	INSULATOR; PCV FRIGID ZONE KIT<YL3>	8-98270-796-0	01	1	1402-
328	INSULATOR; PCV FRIGID ZONE KIT<YL3>	8-98141-058-0	01	1	1310-1401
328	INSULATOR; PCV FRIGID ZONE KIT<YL3>	8-98270-797-0	01	1	1402-
328	INSULATOR; PCV FRIGID ZONE KIT<YL3>	8-98141-059-0	01	1	1310-1401
328	INSULATOR; PCV FRIGID ZONE KIT<YL3>	8-98270-798-0	01	1	1402-
328	INSULATOR; PCV FRIGID ZONE KIT<YL3>	8-98141-060-0	01	1	1310-1401
328	INSULATOR; PCV FRIGID ZONE KIT<YL3>	8-98270-799-0	01	1	1402-
328	INSULATOR; PCV FRIGID ZONE KIT<YL3>	8-98141-062-0	01	1	1310-1401
328	INSULATOR; PCV FRIGID ZONE KIT<YL3>	8-98270-800-0	01	1	1402-
328	INSULATOR; PCV FRIGID ZONE KIT<YL3>	8-98141-063-0	01	1	1310-1401
328	INSULATOR; PCV FRIGID ZONE KIT<YL3>	8-98270-801-0	01	1	1402-
328	INSULATOR; PCV FRIGID ZONE KIT<YL3>	8-98141-064-0	01	1	1310-1401
328	INSULATOR; PCV FRIGID ZONE KIT<YL3>	8-98270-802-0	01	1	1402-
