4-10 — FRONT AXLE (#12816) — 137 parça

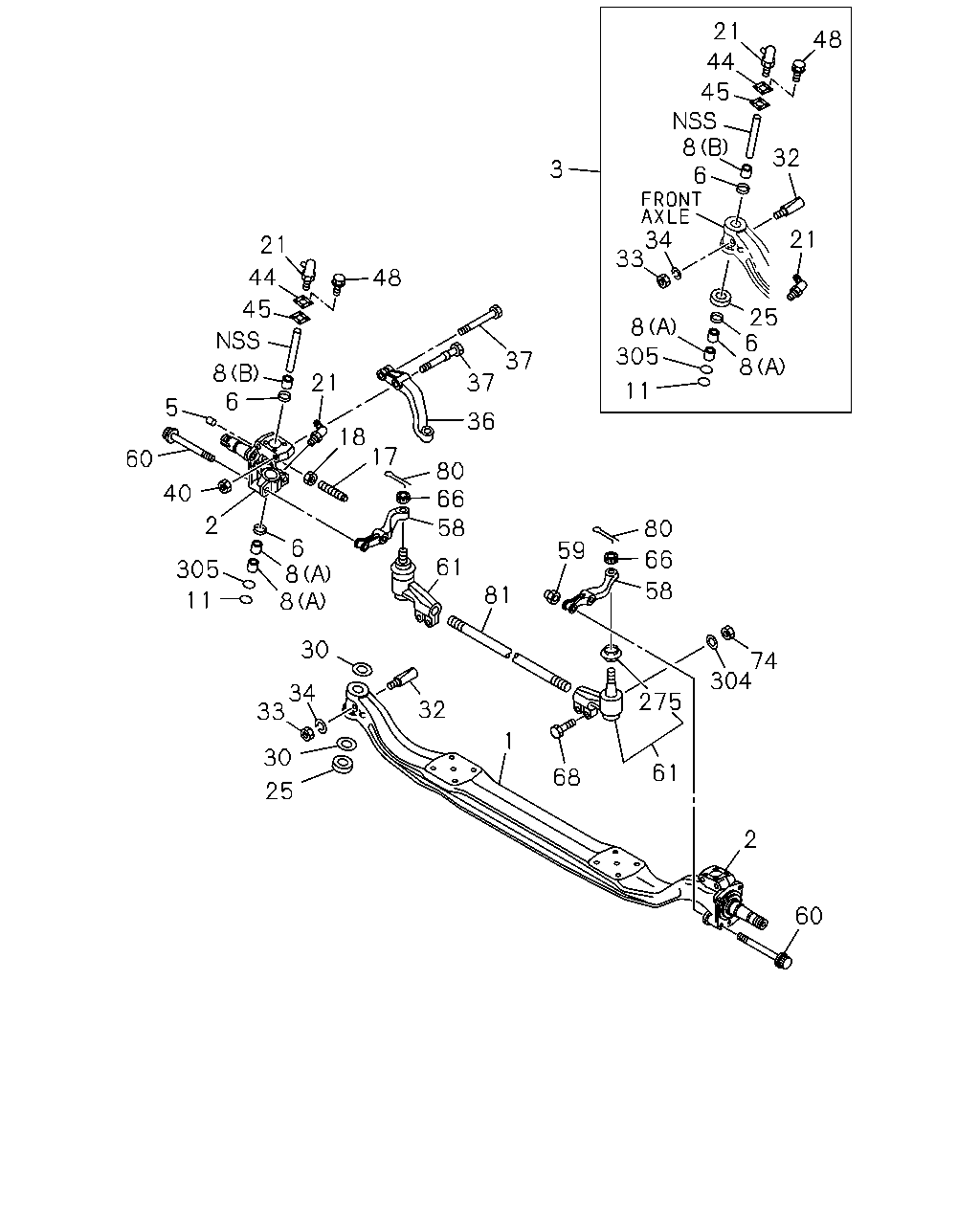

21 48 44 45 8 6 34 33 32 3 21 21 44 48 45 25 6 8 8 305 37 8 6 21 37 11 5 36 18 17 60 80 66 58 40 2 80 6 8 8 59 66 61 305 58 81 11 30 74 304 34 33 275 32 1 30 61 68 25 2 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT	1-43111-113-6	01	1	0808-
2	KNUCKLE; FRT AXLE	1-43131-079-1	01	1	0808-1412
2	KNUCKLE; FRT AXLE	8-98296-705-0	01	1	1501-
2	KNUCKLE; FRT AXLE	1-43132-079-1	01	1	0808-1412
2	KNUCKLE; FRT AXLE	8-98296-706-0	01	1	1501-
3	KING PIN SET	1-87831-352-0	02	1	0808-1102
3	KING PIN SET	1-87831-412-1	02	1	1103-
5	PIN; KNUCKLE TO DRUM COVER	1-09740-072-0	02	1	0808-
6	SEAL; KING PIN	9-09926-024-0	04	1	0808-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0808-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0808-
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	0808-
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-190-0	02	1	0808-
18	NUT; STOPPER BOLT,KNUCKLE M18 THA	0-91110-518-0	02	1	0808-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES THA	0-90301-510-0	04	1	0808-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0808-
30	WASHER; THRUST,KING PIN T=4.875 -4.900 THA	1-43171-185-0	AR	1	0808-
30	WASHER; THRUST,KING PIN T=4.900 -4.925 THA	1-43171-186-0	AR	1	0808-
30	WASHER; THRUST,KING PIN T=4.925 -4.950 THA	1-43171-187-0	AR	1	0808-
30	WASHER; THRUST,KING PIN T=4.950 -4.975 THA	1-43171-188-0	AR	1	0808-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0808-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0808-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0808-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0808-
30	WASHER; THRUST,KING PIN T=5.075 -5.100 THA	1-43171-193-0	AR	1	0808-
30	WASHER; THRUST,KING PIN T=5.100 -5.125 THA	1-43171-194-0	AR	1	0808-
30	WASHER; THRUST,KING PIN T=5.125 -5.150 THA	1-43171-195-0	AR	1	0808-
30	WASHER; THRUST,KING PIN T=5.150 -5.175 THA	1-43171-196-0	AR	1	0808-
30	WASHER; THRUST,KING PIN T=5.175 -5.200 THA	1-43171-197-0	AR	1	0808-
30	WASHER; THRUST,KING PIN T=5.200 -5.225 THA	1-43171-198-0	AR	1	0808-
30	WASHER; THRUST,KING PIN T=5.225 -5.250 THA	1-43171-199-0	AR	1	0808-
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	0808-
33	NUT; KEY BOLT M10 THA	0-91110-510-0	02	1	0808-1102
33	NUT; KEY BOLT M10 THA	0-91110-510-0	02	1	1103-
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0808-1102
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-810-0	02	1	1103-
36	ARM; KNUCKLE	1-43133-063-3	01	1	0808-1412
36	ARM; KNUCKLE	8-98296-707-0	01	1	1501-
37	BOLT; KNUCKLE ARM M22X179	8-98052-380-1	01	1	0808-
37	BOLT; KNUCKLE ARM M22X167	8-98052-381-1	01	1	0808-
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0808-
44	COVER; KING PIN	1-43175-014-1	02	1	0808-
45	GASKET; KING PIN COVER	1-42319-044-0	02	1	0808-
48	BOLT; COVER M12X16 FLANGE	0-28051-216-0	08	1	0808-
58	ARM; TIE ROD	1-43134-042-3	01	1	0808-1412
58	ARM; TIE ROD	8-98296-711-0	01	1	1501-
58	ARM; TIE ROD	1-43135-042-3	01	1	0808-1412
58	ARM; TIE ROD	8-98296-712-0	01	1	1501-
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0808-
60	BOLT; TIE ROD ARM M22X193	8-98052-379-1	04	1	0808-
61	ROD END; TIE ROD	1-43150-801-0	01	1	0808-1009
61	ROD END; TIE ROD	8-98171-444-0	01	1	1010-1306
61	ROD END; TIE ROD	8-98236-800-0	01	1	1307-
61	ROD END; TIE ROD	1-43150-802-0	01	1	0808-1009
61	ROD END; TIE ROD	8-98171-445-0	01	1	1010-1306
61	ROD END; TIE ROD	8-98236-801-0	01	1	1307-
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0808-
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	0808-
74	NUT; TIE ROD END M12 THA	0-91110-512-0	04	1	0808-
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0808-
81	ROD; TIE THA	1-43151-119-0	01	1	0808-1009
81	ROD; TIE	8-98172-133-0	01	1	1010-1109
81	ROD; TIE	8-98193-965-0	01	1	1110-
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	0808-1009
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1010-1306
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-
304	WASHER; PL ID=12.5	0-91614-512-0	04	1	0808-
305	COVER; KNUCKLE	8-98052-291-0	02	1	0808-

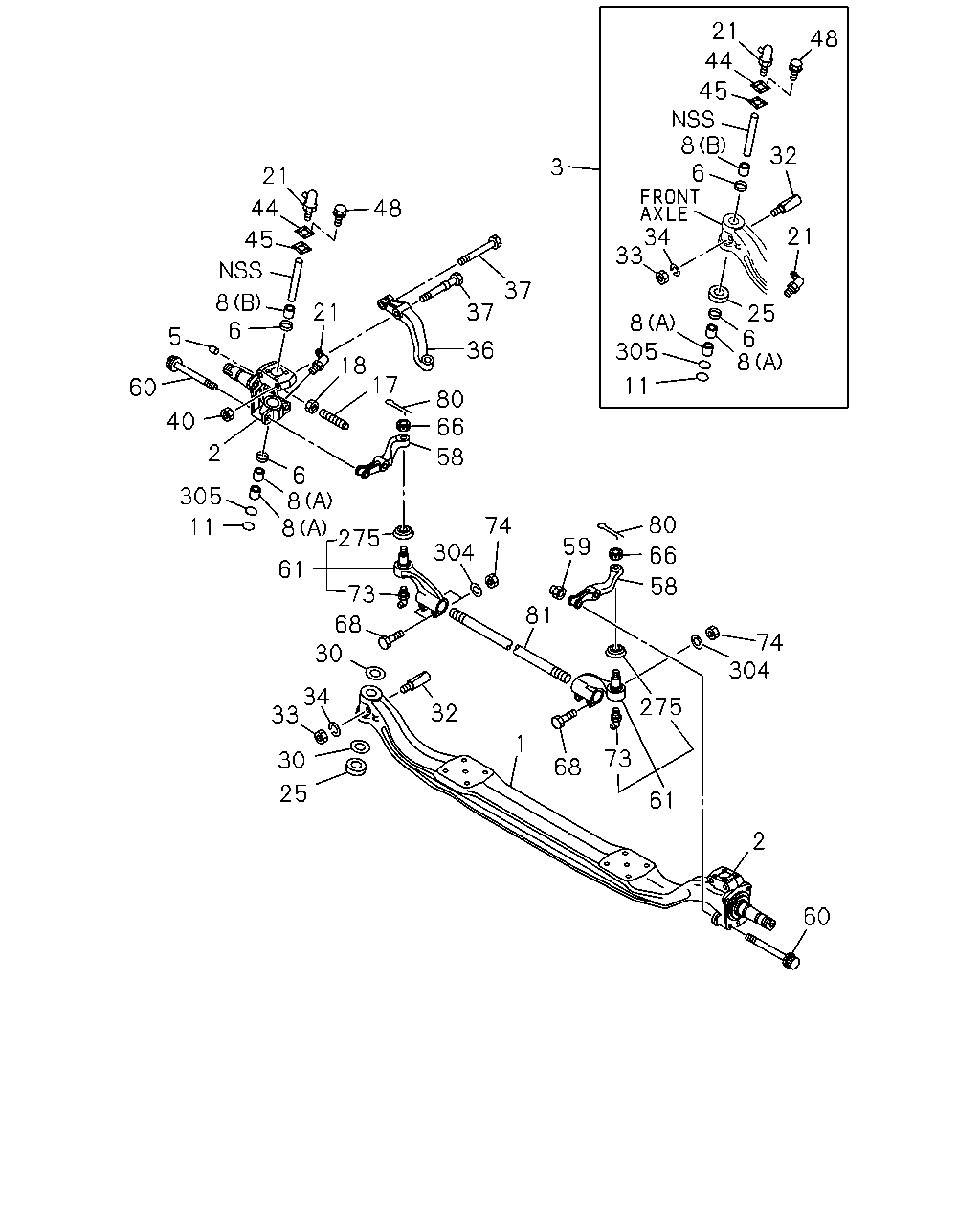

21 48 44 45 8 6 34 33 32 3 21 44 48 21 45 37 8 6 21 37 25 6 8 8 305 5 36 18 17 11 60 80 66 40 2 58 6 8 8 305 80 74 304 11 275 59 66 61 58 73 81 68 74 304 30 34 33 275 32 30 1 73 68 25 61 2 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT	1-43111-113-6	01	1	0808-
2	KNUCKLE; FRT AXLE	1-43131-079-1	01	1	0808-1412
2	KNUCKLE; FRT AXLE	8-98296-705-0	01	1	1501-
2	KNUCKLE; FRT AXLE	1-43132-079-1	01	1	0808-1412
2	KNUCKLE; FRT AXLE	8-98296-706-0	01	1	1501-
3	KING PIN SET	1-87831-352-0	02	1	0808-1102
3	KING PIN SET	1-87831-412-1	02	1	1103-
5	PIN; KNUCKLE TO DRUM COVER	1-09740-072-0	02	1	0808-
6	SEAL; KING PIN	9-09926-024-0	04	1	0808-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0808-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0808-
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	0808-
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-190-0	02	1	0808-
18	NUT; STOPPER BOLT,KNUCKLE M18 THA	0-91110-518-0	02	1	0808-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES THA	0-90301-510-0	04	1	0808-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0808-
30	WASHER; THRUST,KING PIN T=4.875 -4.900 THA	1-43171-185-0	AR	1	0808-
30	WASHER; THRUST,KING PIN T=4.900 -4.925 THA	1-43171-186-0	AR	1	0808-
30	WASHER; THRUST,KING PIN T=4.925 -4.950 THA	1-43171-187-0	AR	1	0808-
30	WASHER; THRUST,KING PIN T=4.950 -4.975 THA	1-43171-188-0	AR	1	0808-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0808-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0808-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0808-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0808-
30	WASHER; THRUST,KING PIN T=5.075 -5.100 THA	1-43171-193-0	AR	1	0808-
30	WASHER; THRUST,KING PIN T=5.100 -5.125 THA	1-43171-194-0	AR	1	0808-
30	WASHER; THRUST,KING PIN T=5.125 -5.150 THA	1-43171-195-0	AR	1	0808-
30	WASHER; THRUST,KING PIN T=5.150 -5.175 THA	1-43171-196-0	AR	1	0808-
30	WASHER; THRUST,KING PIN T=5.175 -5.200 THA	1-43171-197-0	AR	1	0808-
30	WASHER; THRUST,KING PIN T=5.200 -5.225 THA	1-43171-198-0	AR	1	0808-
30	WASHER; THRUST,KING PIN T=5.225 -5.250 THA	1-43171-199-0	AR	1	0808-
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	0808-
33	NUT; KEY BOLT M10 THA	0-91110-510-0	02	1	0808-1102
33	NUT; KEY BOLT M10 THA	0-91110-510-0	02	1	1103-
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0808-1102
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-810-0	02	1	1103-
36	ARM; KNUCKLE	1-43133-063-3	01	1	0808-1412
36	ARM; KNUCKLE	8-98296-707-0	01	1	1501-
37	BOLT; KNUCKLE ARM M22X179	8-98052-380-1	01	1	0808-
37	BOLT; KNUCKLE ARM M22X167	8-98052-381-1	01	1	0808-
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0808-
44	COVER; KING PIN	1-43175-014-1	02	1	0808-
45	GASKET; KING PIN COVER	1-42319-044-0	02	1	0808-
48	BOLT; COVER M12X16 FLANGE	0-28051-216-0	08	1	0808-
58	ARM; TIE ROD	1-43134-042-3	01	1	0808-1412
58	ARM; TIE ROD	8-98296-711-0	01	1	1501-
58	ARM; TIE ROD	1-43135-042-3	01	1	0808-1412
58	ARM; TIE ROD	8-98296-712-0	01	1	1501-
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0808-
60	BOLT; TIE ROD ARM M22X193	8-98052-379-1	04	1	0808-
61	ROD END; TIE ROD	1-43150-801-0	01	1	0808-1009
61	ROD END; TIE ROD	8-98171-444-0	01	1	1010-1306
61	ROD END; TIE ROD	8-98236-800-0	01	1	1307-
61	ROD END; TIE ROD	1-43150-802-0	01	1	0808-1009
61	ROD END; TIE ROD	8-98171-445-0	01	1	1010-1306
61	ROD END; TIE ROD	8-98236-801-0	01	1	1307-
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0808-
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	0808-
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1010-
74	NUT; TIE ROD END M12 THA	0-91110-512-0	04	1	0808-
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0808-
81	ROD; TIE THA	1-43151-119-0	01	1	0808-1009
81	ROD; TIE	8-98172-133-0	01	1	1010-1109
81	ROD; TIE	8-98193-965-0	01	1	1110-
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	0808-1009
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1010-1306
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-
304	WASHER; PL ID=12.5	0-91614-512-0	04	1	0808-
305	COVER; KNUCKLE	8-98052-291-0	02	1	0808-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
