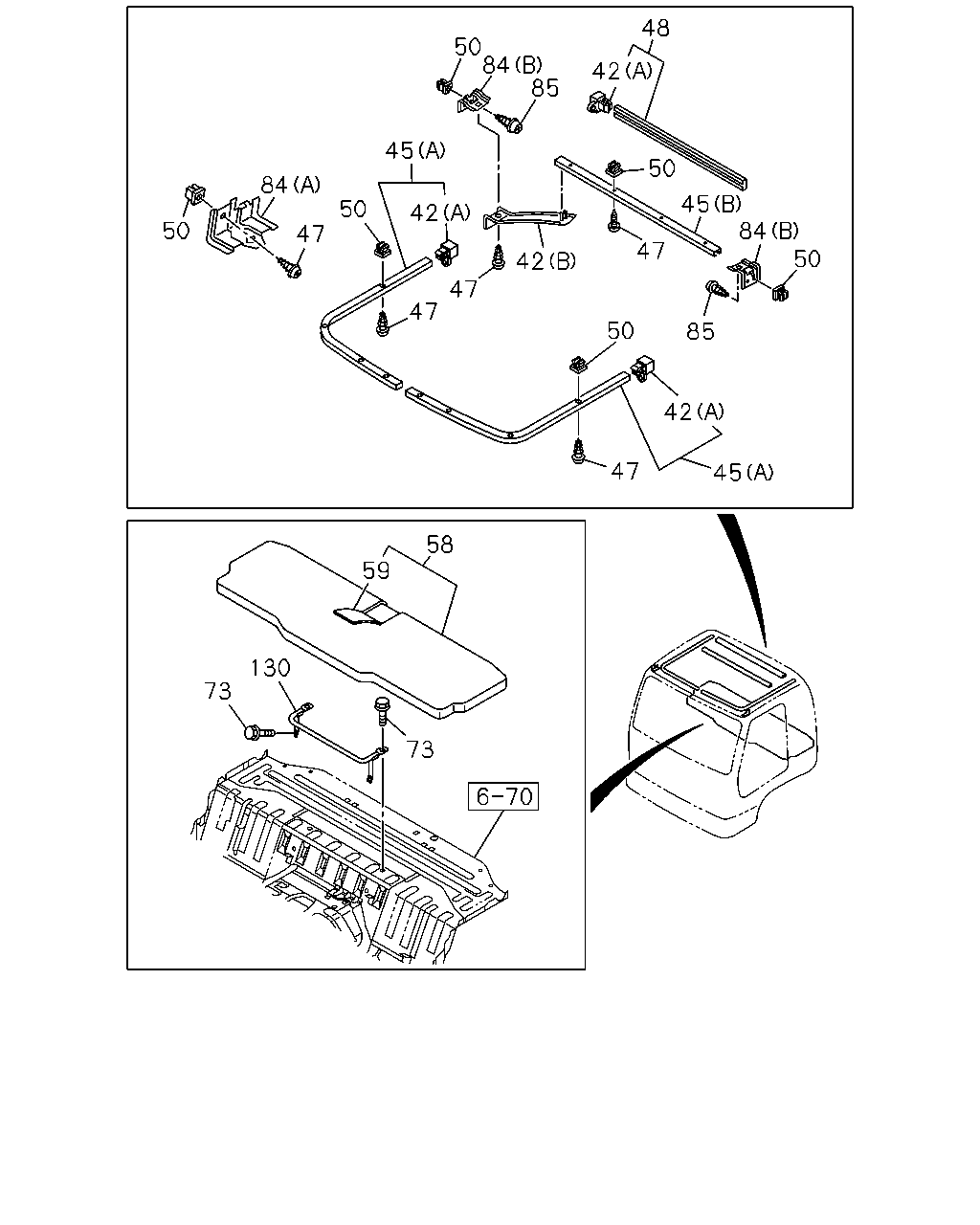

7-70 — SEPARATER AND BED (#128153) — 27 parça

73 73 59 58 130 47 47 42 45 50 47 84 50 42 85 84 48 42 50 47 45 85 50 42 47 50 84 50 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
42	STOPPER; CURTAIN RAIL (B) DARK GRAY	8-97407-972-2	01	1	1310-
42	STOPPER; CURTAIN RAIL (B) DARK GRAY	8-97407-499-2	01	1	1310-
42	STOPPER; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97408-038-0	03	1	1310-
45	RAIL; CURTAIN,FRT (B) DARK GRAY	8-97407-485-0	01	1	1310-
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97415-672-0	01	1	1310-
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97415-671-0	01	1	1310-
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	06	1	1310-
47	SCREW; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	14	1	1310-
48	RAIL; CURTAIN,BACK ROUND CURTAIN RAIL<EDH> DARK GRAY	8-97407-866-2	01	1	1310-
50	GROMMET; SCREW,CURTAIN RAIL EXC. ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	04	1	1406-
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1310-1405
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1310-1405
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1406-
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	14	1	1310-1405
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	20	1	1406-
58	BED; MAT MATTRESS SLEEPER CAB<E40> SEAT CLOTH<7FL> DARK GRAY	8-97407-382-2	01	1	1310-
58	BED; MAT VINYL SEAT<A83> MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97409-772-1	01	1	1310-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> SEAT CLOTH<7FL> DARK GRAY	8-97412-045-1	01	1	1310-
59	COVER ASM; TRIM,BED MAT VINYL SEAT<A83> MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97414-106-0	01	1	1310-
73	BOLT; GUARD PIPE MATTRESS SLEEPER CAB<E40> M8X20 FLANGE	0-28450-820-0	04	1	1310-
84	BRACKET; CURTAIN RAIL (A)	8-98028-326-1	02	1	1310-1405
84	BRACKET; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (A)	8-98028-326-1	02	1	1406-
84	BRACKET; CURTAIN RAIL (B)	8-98042-152-0	04	1	1310-
85	SCREW; BRKT EXC. ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	04	1	1406-
85	SCREW; BRKT M5X20	5-09981-059-0	06	1	1310-1405
85	SCREW; BRKT ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	06	1	1406-
130	PIPE; GUARD,BED MATTRESS SLEEPER CAB<E40>	8-98014-968-0	01	1	1310-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
