◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11551 - FRR-L EURO5 EXC.SPAC ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#128152) — 19 parça

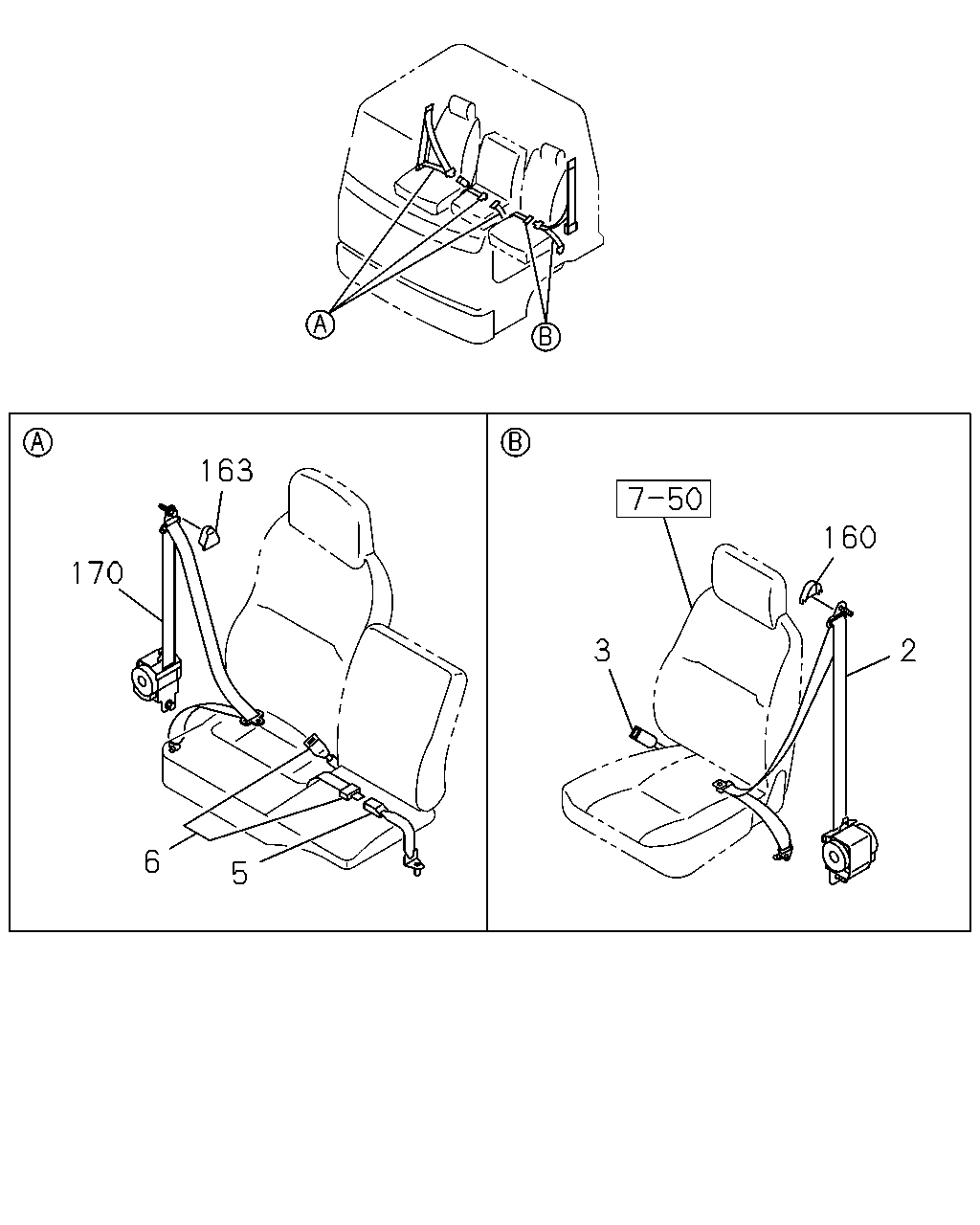

çizim 381870
2 160 3 163 170 6 5
BalonParca AdiParca NoAdetTipApplied Date
2 BELT; SEAT,TONGUE SIDE
GRAY 		8-97423-516-1 01 1 1310-1310
2 BELT; SEAT,TONGUE SIDE
GRAY 		8-97428-089-0 01 1 1311-
3 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97407-374-2 01 1 1310-
5 BELT; CENTER SEAT,BUCKLE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97407-377-1 01 1 1310-
6 BELT; CENTER SEAT,TONGUE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97423-660-1 01 1 1310-1310
6 BELT; CENTER SEAT,TONGUE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97428-090-0 01 1 1311-
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 1310-
163 COVER; ADJUSTER
GRAY 		8-97405-991-0 01 1 1310-
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97423-516-1 01 1 1310-1310
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97428-089-0 01 1 1311-

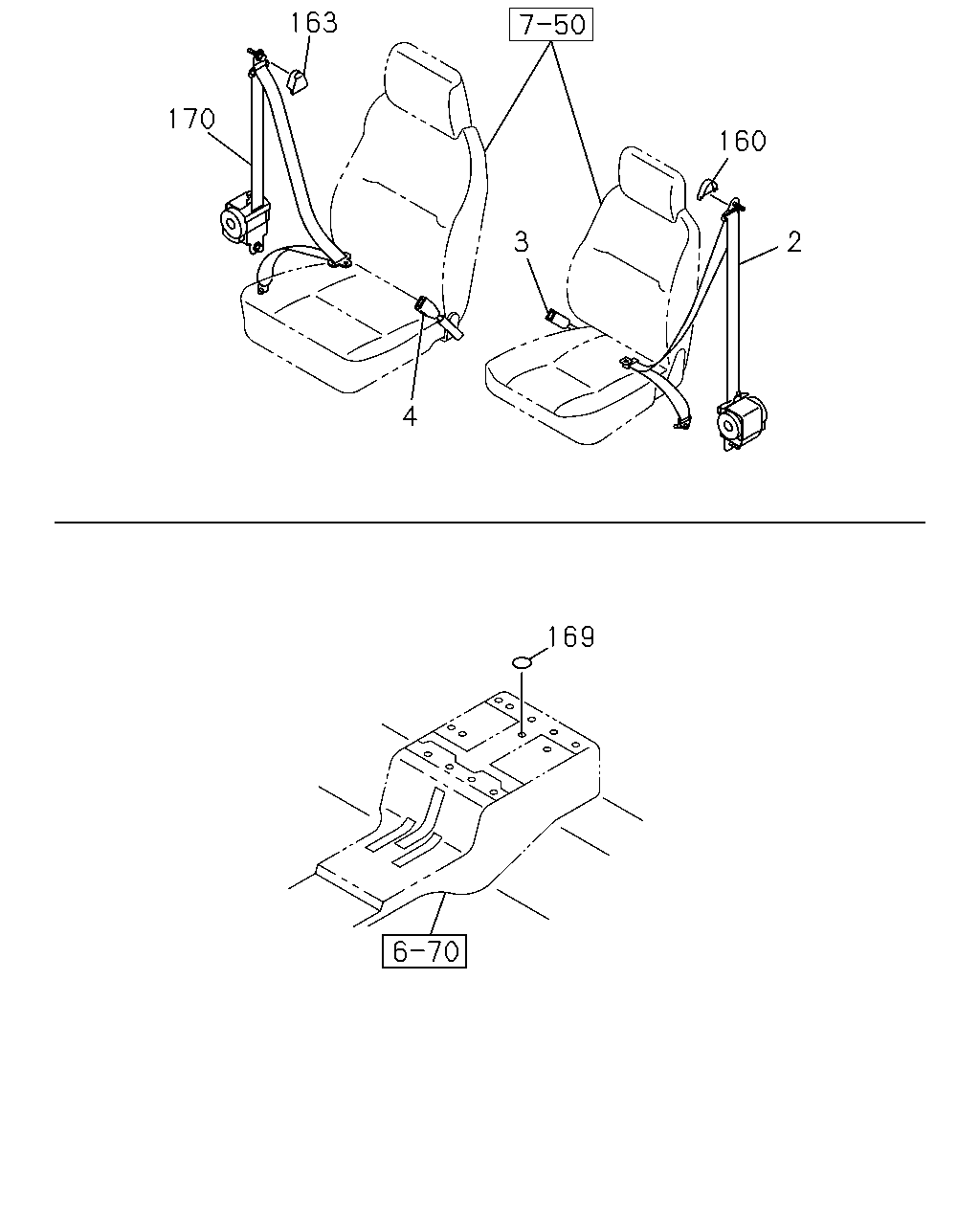

çizim 382272
170 163 4 3 160 2 169
BalonParca AdiParca NoAdetTipApplied Date
2 BELT; SEAT,TONGUE SIDE
GRAY 		8-97423-516-1 01 1 1310-1310
2 BELT; SEAT,TONGUE SIDE
GRAY 		8-97428-089-0 01 1 1311-
3 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97407-374-2 01 1 1310-
4 BELT; PASSENGER SEAT,BUCKLE SIDE
EXC. SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-769-1 01 1 1310-
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 1310-
163 COVER; ADJUSTER
GRAY 		8-97405-991-0 01 1 1310-
169 SEAL
EXC. SEAT ASM - WITH CENTER SEAT<7BC> OD=25 BLACK 		1-76798-019-0 01 1 1310-
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97423-516-1 01 1 1310-1310
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97428-089-0 01 1 1311-
