Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#128151) — 326 parça

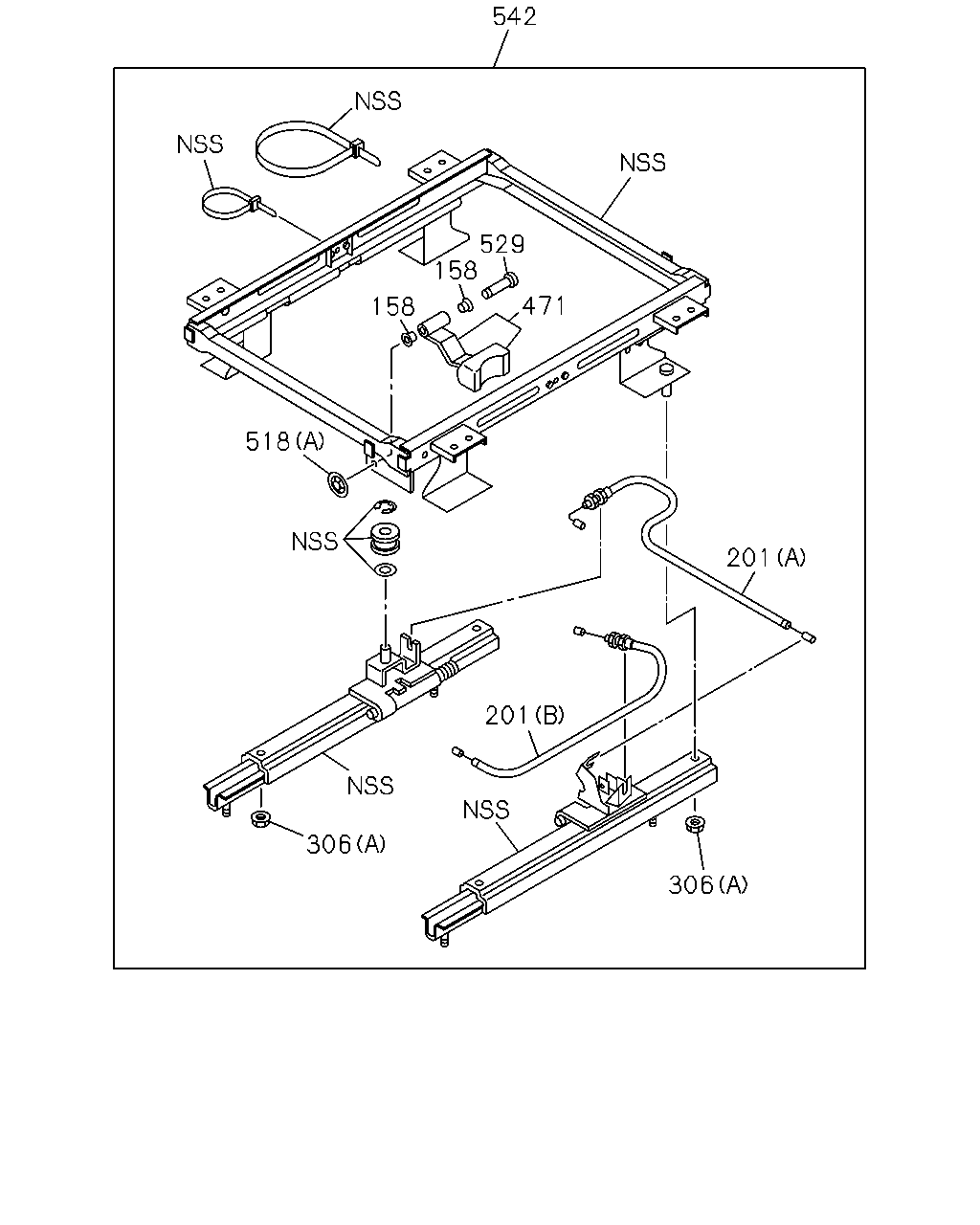

542 529 201 201 306 306 518 158 158 471

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
158	BUSHING; LINK ARM	1-75518-209-0	02	1	1310-1506
158	BUSHING; LINK ARM RIGID SEAT WO/ARM REST<TAZ>	1-75518-209-0	02	1	1507-1509
158	BUSHING; LINK ARM	1-75518-209-0	02	1	1510-
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	1310-1506
201	CABLE; ADJ RIGID SEAT WO/ARM REST<TAZ> (A) L=667	1-75518-288-0	01	1	1507-1509
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	1510-
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	1310-1506
201	CABLE; ADJ RIGID SEAT WO/ARM REST<TAZ> (B) L=605	1-75518-289-1	01	1	1507-1509
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	1510-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE	1-75538-207-0	06	1	1510-
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	1310-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE	1-75538-207-0	06	1	1310-1506
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	1-75538-207-0	08	1	1310-
471	LEVER; SEAT ADJ	8-98107-870-0	01	1	1310-1506
471	LEVER; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ>	8-98107-870-0	01	1	1507-1509
471	LEVER; SEAT ADJ	8-98107-870-0	01	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) M8	1-75518-264-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (E) M8 FLANGE	1-75538-207-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M6 LOCK NUT	5-09984-020-0	02	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8 FLANGE	8-94152-886-0	04	1	1510-
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	1310-1506
518	NUT; TILT ADJ RIGID SEAT WO/ARM REST<TAZ> (A)	1-75518-263-0	01	1	1507-1509
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) M8	1-75518-264-0	04	1	1310-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (E) M8 FLANGE	1-75538-207-0	04	1	1310-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M6 LOCK NUT	5-09984-020-0	02	1	1310-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8 FLANGE	8-94152-886-0	04	1	1310-1506
529	PIN; LINK	1-75518-262-0	01	1	1310-1506
529	PIN; LINK RIGID SEAT WO/ARM REST<TAZ>	1-75518-262-0	01	1	1507-1509
529	PIN; LINK	1-75518-262-0	01	1	1510-
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	8-98092-333-0	01	1	1310-1502
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	8-98291-654-0	01	1	1503-

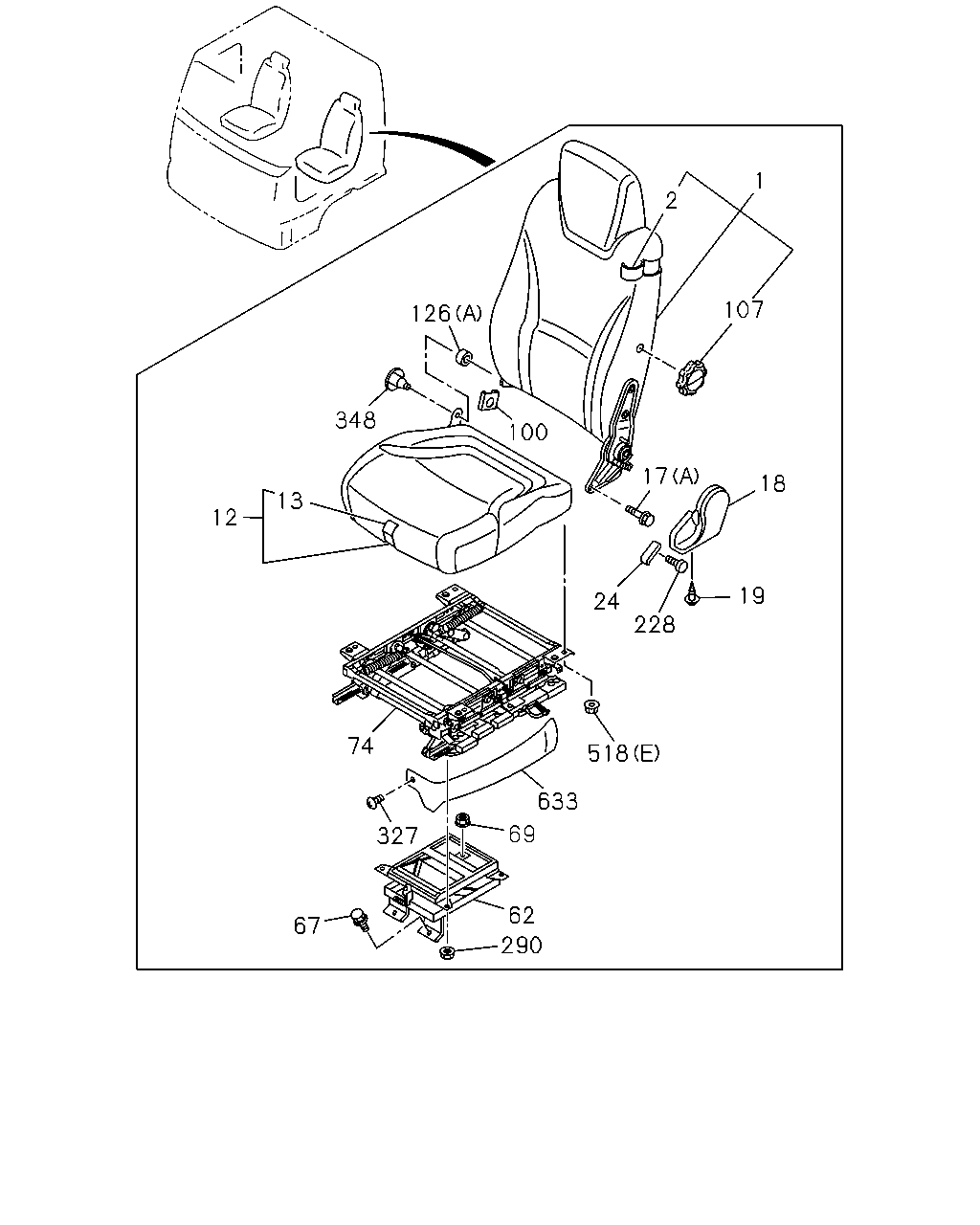

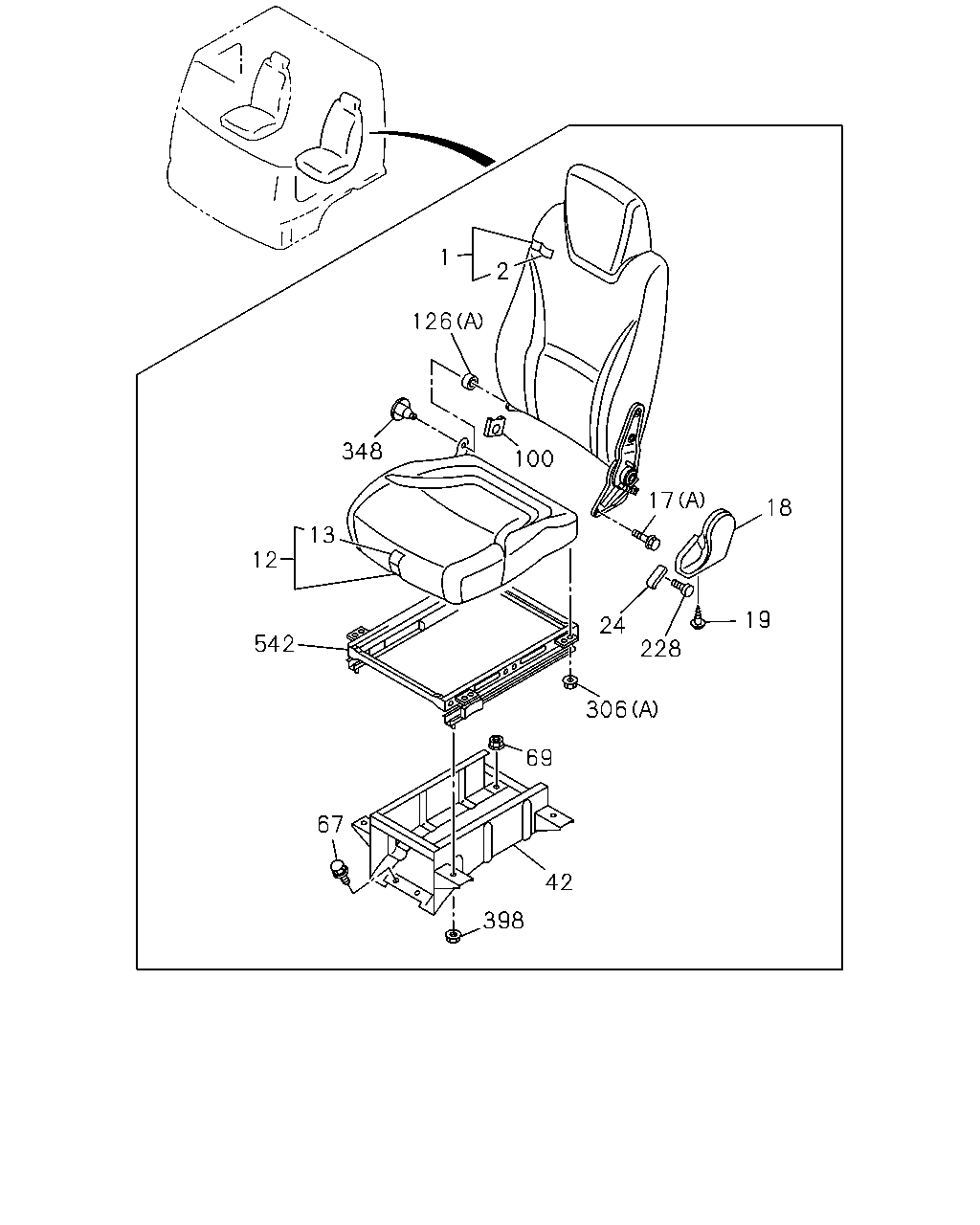

1 100 17 18 19 24 228 306 69 67 12 348 126 2 42 398 13 542

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY	8-97421-408-1	01	1	1310-1512
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY	8-97466-623-0	01	1	1601-
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97421-409-1	01	1	1310-1512
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97466-621-0	01	1	1601-
1	BACK ASM; SEAT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97414-037-5	01	1	1310-1512
1	BACK ASM; SEAT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97466-619-0	01	1	1601-
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY	8-97421-413-0	01	1	1310-
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97421-414-0	01	1	1310-
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97414-038-2	01	1	1310-
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> DARK GRAY	8-97421-399-2	01	1	1310-1512
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> DARK GRAY	8-97466-612-0	01	1	1601-
12	CUSHION; SEAT,FRT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97414-035-2	01	1	1310-1512
12	CUSHION; SEAT,FRT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97466-609-0	01	1	1601-
13	COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> DARK GRAY	8-97421-403-2	01	1	1310-
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97414-036-1	01	1	1310-
17	BOLT; RECLINING (A) M10X20	8-98062-661-0	02	1	1310-1506
17	BOLT; RECLINING RIGID SEAT WO/ARM REST<TAZ> (A) M10X20	8-98062-661-0	02	1	1507-1509
17	BOLT; RECLINING (A) M10X20	8-98062-661-0	02	1	1510-
17	BOLT; RECLINING (B) M8X20	8-98092-334-0	02	1	1310-
18	COVER; RECLINING GRAY	8-97409-361-0	01	1	1310-
19	SCREW; COVER M5	8-98062-663-0	01	1	1310-1506
19	SCREW; COVER RIGID SEAT WO/ARM REST<TAZ> M5	8-98062-663-0	01	1	1507-1509
19	SCREW; COVER M5	8-98062-663-0	01	1	1510-
24	KNOB; RECLINING,FRT,SEAT GRAY	8-97409-362-0	01	1	1310-
42	STAND; DRIVER SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75558-604-2	01	1	1310-
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE	0-28451-020-0	02	1	1310-
69	NUT; FRT SEAT M10 FLANGE	0-91180-110-0	02	1	1310-
100	COVER; HINGE	8-98203-070-0	01	1	1310-1506
100	COVER; HINGE RIGID SEAT WO/ARM REST<TAZ>	8-98203-070-0	01	1	1507-1509
100	COVER; HINGE	8-98203-070-0	01	1	1510-1512
100	COVER; HINGE	8-98286-009-0	01	1	1601-
126	BUSHING; HINGE,RECLINING (A)	8-98063-218-0	01	1	1310-1506
126	BUSHING; HINGE,RECLINING RIGID SEAT WO/ARM REST<TAZ> (A)	8-98063-218-0	01	1	1507-1509
126	BUSHING; HINGE,RECLINING (A)	8-98063-218-0	01	1	1510-1512
126	BUSHING; HINGE,RECLINING (A)	8-98286-007-0	01	1	1601-
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	1310-
228	SCREW; KNOB M4	8-98062-662-0	01	1	1310-1506
228	SCREW; KNOB RIGID SEAT WO/ARM REST<TAZ> M4	8-98062-662-0	01	1	1507-1509
228	SCREW; KNOB M4	8-98062-662-0	01	1	1510-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE	1-75538-207-0	06	1	1510-
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	1310-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE	1-75538-207-0	06	1	1310-1506
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	1-75538-207-0	08	1	1310-
348	BOLT; HINGE,SEAT	8-98286-008-0	01	1	1601-
398	NUT; STAND RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	1-75538-207-0	04	1	1310-
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	8-98092-333-0	01	1	1310-1502
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	8-98291-654-0	01	1	1503-

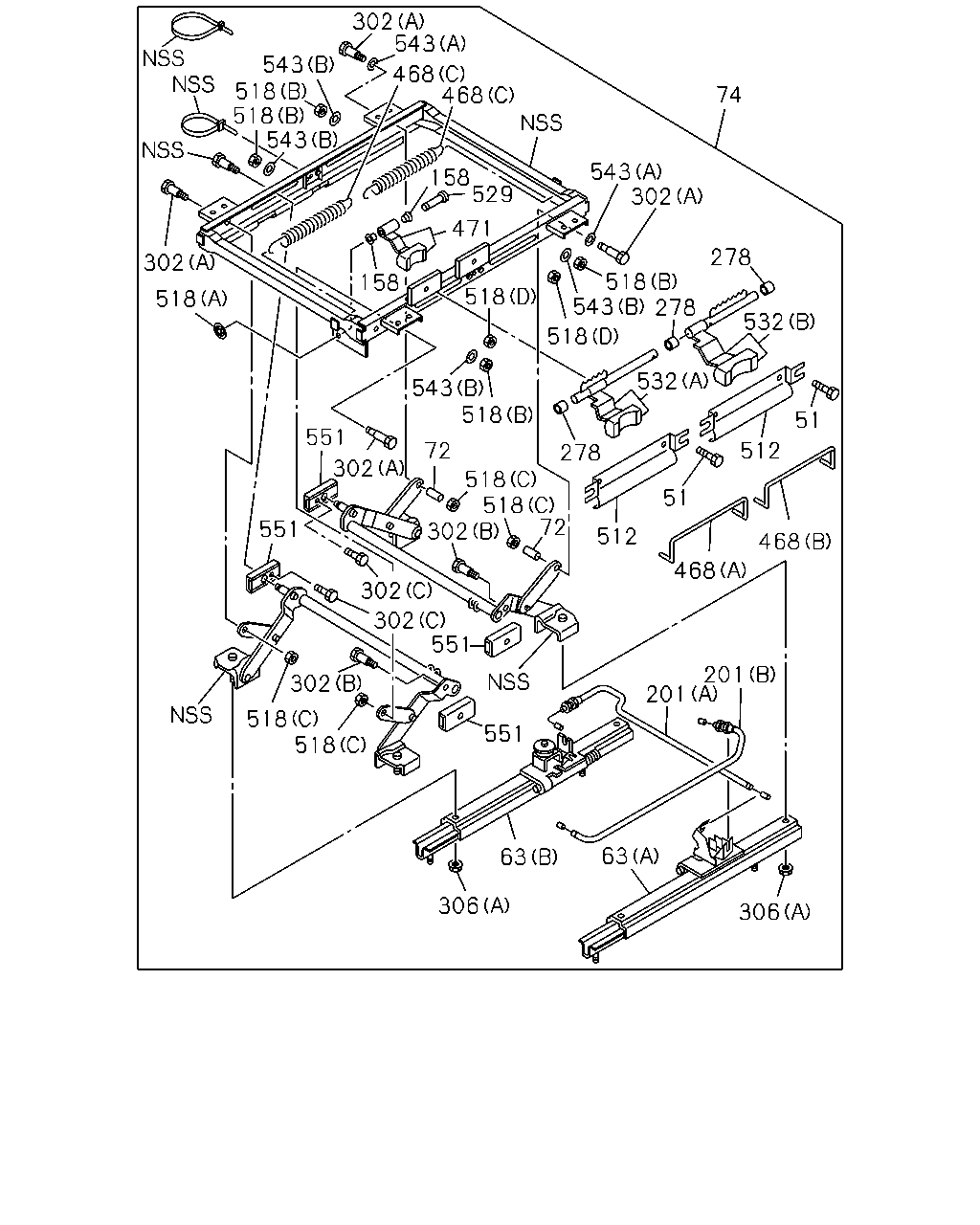

302 543 468 468 543 543 518 518 543 302 518 158 518 518 543 518 278 532 51 512 51 532 278 278 302 518 543 72 302 551 518 72 518 512 468 468 201 201 63 306 63 306 551 518 518 302 302 551 302 302 74 158 529 471 551

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
51	SCREW; COVER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75518-325-1	04	1	1510-
51	SCREW; COVER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75518-325-1	04	1	1310-1506
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B)	1-75518-227-1	01	1	1510-
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75518-324-0	01	1	1510-
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B)	1-75518-227-1	01	1	1310-1506
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75518-324-0	01	1	1310-1506
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98291-668-0	02	1	1510-
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75518-334-1	02	1	1310-1502
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98291-668-0	02	1	1503-1506
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98291-641-0	01	1	1510-
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98093-429-0	01	1	1310-1502
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98291-641-0	01	1	1503-1506
158	BUSHING; LINK ARM	1-75518-209-0	02	1	1310-1506
158	BUSHING; LINK ARM RIGID SEAT WO/ARM REST<TAZ>	1-75518-209-0	02	1	1507-1509
158	BUSHING; LINK ARM	1-75518-209-0	02	1	1510-
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	1310-1506
201	CABLE; ADJ RIGID SEAT WO/ARM REST<TAZ> (A) L=667	1-75518-288-0	01	1	1507-1509
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	1510-
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	1310-1506
201	CABLE; ADJ RIGID SEAT WO/ARM REST<TAZ> (B) L=605	1-75518-289-1	01	1	1507-1509
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	1510-
278	COLLAR; FRT SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75518-244-0	03	1	1510-
278	COLLAR; FRT SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75518-244-0	03	1	1310-1506
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B)	1-75518-266-2	02	1	1510-
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C)	1-75518-336-1	02	1	1510-
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	8-98291-667-0	04	1	1510-
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B)	1-75518-266-2	02	1	1310-1506
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75518-270-1	04	1	1310-1502
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	8-98291-667-0	04	1	1503-1506
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C)	1-75518-336-1	02	1	1310-1506
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE	1-75538-207-0	06	1	1510-
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	1310-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE	1-75538-207-0	06	1	1310-1506
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	1-75538-207-0	08	1	1310-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75518-206-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B)	1-75518-207-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C)	1-75518-208-0	02	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D)	1-75538-132-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75518-206-0	01	1	1310-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B)	1-75518-207-0	01	1	1310-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C)	1-75518-208-0	02	1	1310-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D)	1-75538-132-0	01	1	1310-1506
471	LEVER; SEAT ADJ	8-98107-870-0	01	1	1310-1506
471	LEVER; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ>	8-98107-870-0	01	1	1507-1509
471	LEVER; SEAT ADJ	8-98107-870-0	01	1	1510-
512	COVER; LEVER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75518-245-1	02	1	1510-
512	COVER; LEVER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75518-245-1	02	1	1310-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) M8	1-75518-264-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (E) M8 FLANGE	1-75538-207-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M6 LOCK NUT	5-09984-020-0	02	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8 FLANGE	8-94152-886-0	04	1	1510-
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	1310-1506
518	NUT; TILT ADJ RIGID SEAT WO/ARM REST<TAZ> (A)	1-75518-263-0	01	1	1507-1509
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) M8	1-75518-264-0	04	1	1310-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (E) M8 FLANGE	1-75538-207-0	04	1	1310-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M6 LOCK NUT	5-09984-020-0	02	1	1310-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8 FLANGE	8-94152-886-0	04	1	1310-1506
529	PIN; LINK	1-75518-262-0	01	1	1310-1506
529	PIN; LINK RIGID SEAT WO/ARM REST<TAZ>	1-75518-262-0	01	1	1507-1509
529	PIN; LINK	1-75518-262-0	01	1	1510-
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75518-221-0	01	1	1510-
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B)	1-75518-222-1	01	1	1510-
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75518-221-0	01	1	1310-1506
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B)	1-75518-222-1	01	1	1310-1506
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) ID=13 OD=19	8-98291-669-0	02	1	1510-
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) ID=8.4	9-09160-508-0	04	1	1510-
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75518-335-0	02	1	1310-1502
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) ID=13 OD=19	8-98291-669-0	02	1	1503-1506
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) ID=8.4	9-09160-508-0	04	1	1310-1506
551	SLIDER; HEIGHT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75518-265-0	04	1	1510-
551	SLIDER; HEIGHT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75518-265-0	04	1	1310-1506

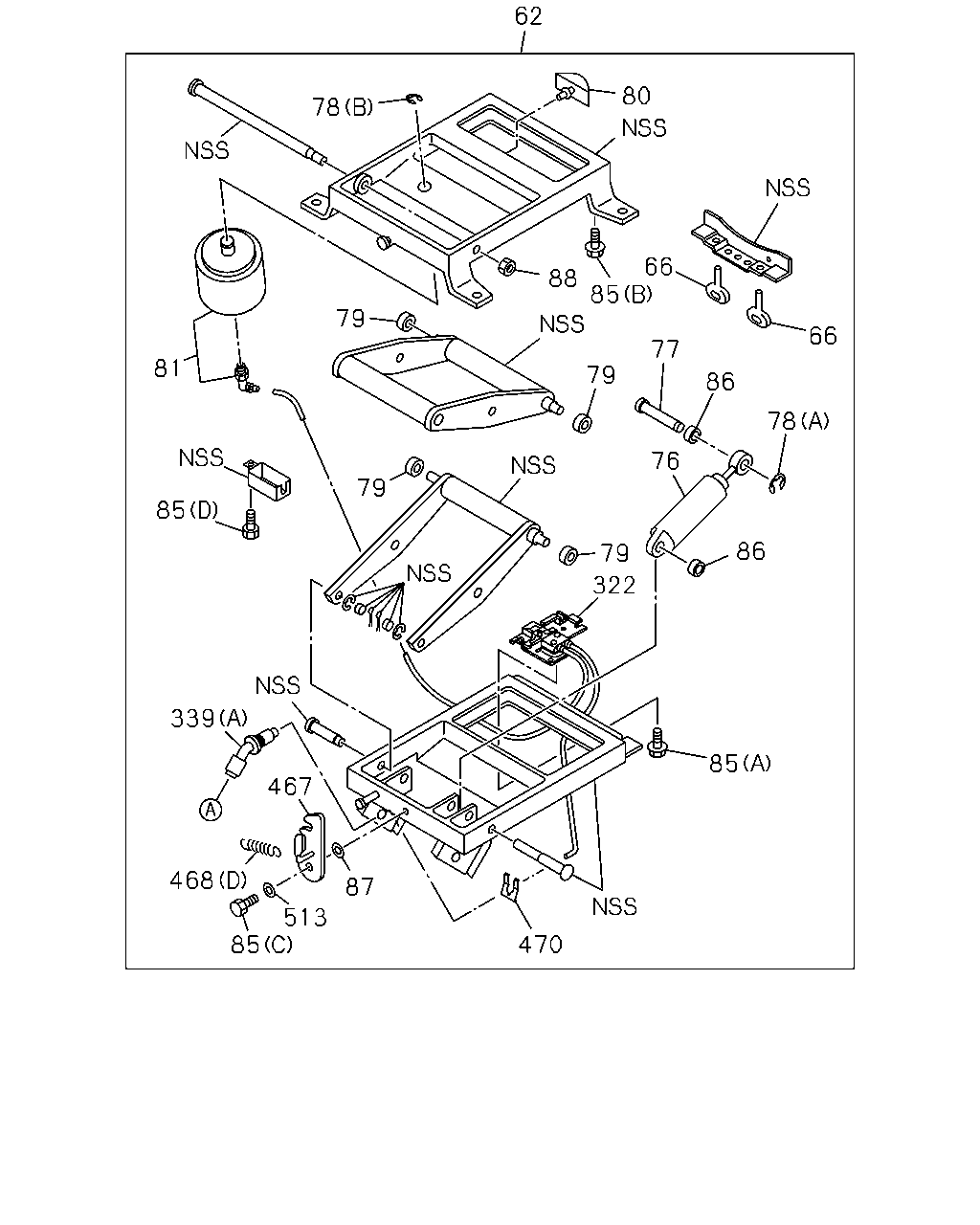

62 78 80 66 66 88 79 81 85 85 86 77 79 76 78 86 85 322 79 470 87 513 85 468 467 339 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98261-451-0	01	1	1510-
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75538-185-8	01	1	1310-1403
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98261-451-0	01	1	1404-1506
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75538-145-0	02	1	1510-
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75538-145-0	02	1	1310-1506
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75538-139-0	01	1	1510-
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75538-139-0	01	1	1310-1506
77	PIN; DAMPER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75538-138-2	01	1	1510-
77	PIN; DAMPER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75538-138-2	01	1	1310-1506
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) ID=8	9-09185-408-0	01	1	1510-
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) ID=15	9-09185-415-0	01	1	1510-
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) ID=8	9-09185-408-0	01	1	1310-1506
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) ID=15	9-09185-415-0	01	1	1310-1506
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98261-489-0	04	1	1510-
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75538-159-0	04	1	1310-1403
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98261-489-0	04	1	1404-1506
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-09987-123-0	01	1	1510-
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-09987-123-0	01	1	1310-1506
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98242-816-0	01	1	1510-
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75538-151-2	01	1	1310-1312
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98242-816-0	01	1	1401-1506
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C)	1-09980-577-1	01	1	1510-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M6X12	1-75538-208-1	02	1	1510-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1510-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1510-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1401-1506
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C)	1-09980-577-1	01	1	1310-1506
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M6X12	1-75538-208-1	02	1	1310-1506
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	1310-1312
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1401-1506
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	1510-
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	1310-1506
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> ID=8.2	0-91510-508-0	01	1	1510-
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> ID=8.2	0-91510-508-0	01	1	1310-1506
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M10	1-75537-273-1	01	1	1510-
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M10	1-75537-273-1	01	1	1310-1506
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75538-187-3	01	1	1510-
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75538-187-3	01	1	1310-1506
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75538-131-3	01	1	1510-
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (B)	8-98014-971-0	01	1	1310-
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75538-131-3	01	1	1310-1506
467	LEVER; LOCK AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75538-134-0	01	1	1510-
467	LEVER; LOCK AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75538-134-0	01	1	1310-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75518-206-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B)	1-75518-207-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C)	1-75518-208-0	02	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D)	1-75538-132-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75518-206-0	01	1	1310-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B)	1-75518-207-0	01	1	1310-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C)	1-75518-208-0	02	1	1310-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D)	1-75538-132-0	01	1	1310-1506
470	CLIP; HOSE AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75538-137-0	01	1	1510-
470	CLIP; HOSE AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75538-137-0	01	1	1310-1506
513	SPACER; LEVER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75538-133-0	01	1	1510-
513	SPACER; LEVER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75538-133-0	01	1	1310-1506

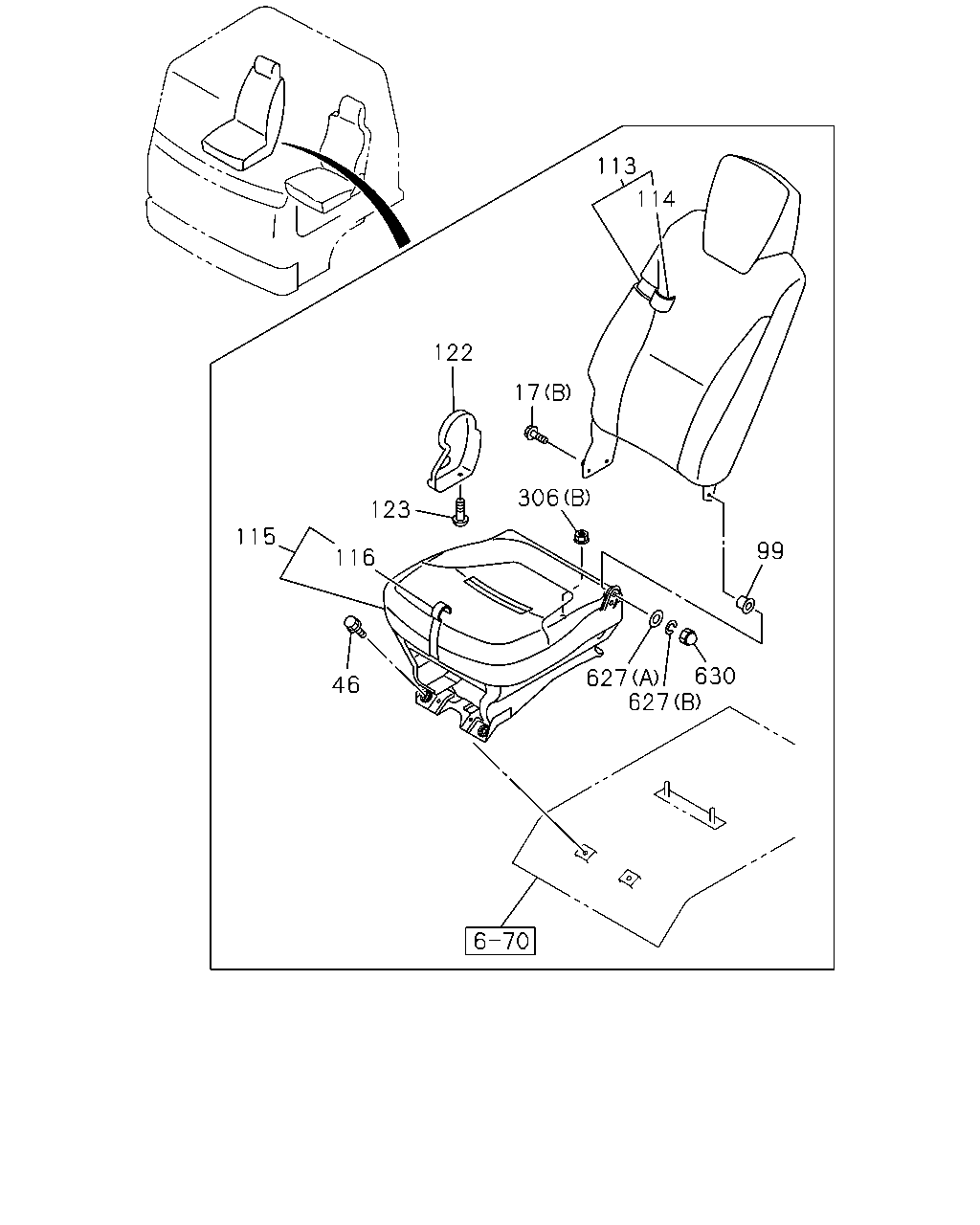

113 122 306 123 116 115 46 627 627 99 17 114 630

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	BOLT; RECLINING (A) M10X20	8-98062-661-0	02	1	1310-1506
17	BOLT; RECLINING RIGID SEAT WO/ARM REST<TAZ> (A) M10X20	8-98062-661-0	02	1	1507-1509
17	BOLT; RECLINING (A) M10X20	8-98062-661-0	02	1	1510-
17	BOLT; RECLINING (B) M8X20	8-98092-334-0	02	1	1310-
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	1310-
99	BUSHING; SEAT BACK	8-98112-751-0	01	1	1310-
113	BACK ASM; SEAT SEAT CLOTH<7FL> DARK GRAY	8-97421-423-0	01	1	1310-
113	BACK ASM; SEAT VINYL SEAT<A83> DARK GRAY	8-97414-041-1	01	1	1310-
114	COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97421-425-0	01	1	1310-
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT<A83> DARK GRAY	8-97414-042-0	01	1	1310-
115	CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> DARK GRAY	8-97421-419-2	01	1	1310-
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT<A83> DARK GRAY	8-97414-039-1	01	1	1310-
116	COVER; TRIM,PASSENGER SEAT,CUSHION SEAT CLOTH<7FL> DARK GRAY	8-97421-421-1	01	1	1310-
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT<A83> DARK GRAY	8-97414-040-0	01	1	1310-
122	COVER; ADJ,RECLINING GRAY	8-97414-043-0	01	1	1310-
123	SCREW; COVER,RECLINING M5	8-98070-026-0	01	1	1310-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE	1-75538-207-0	06	1	1510-
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	1310-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE	1-75538-207-0	06	1	1310-1506
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	1-75538-207-0	08	1	1310-
627	WASHER; FRT SEAT (A)	8-98063-223-0	01	1	1310-
627	WASHER; FRT SEAT (B)	8-98063-224-0	01	1	1310-
630	NUT; CAP M8	8-98063-225-0	01	1	1310-

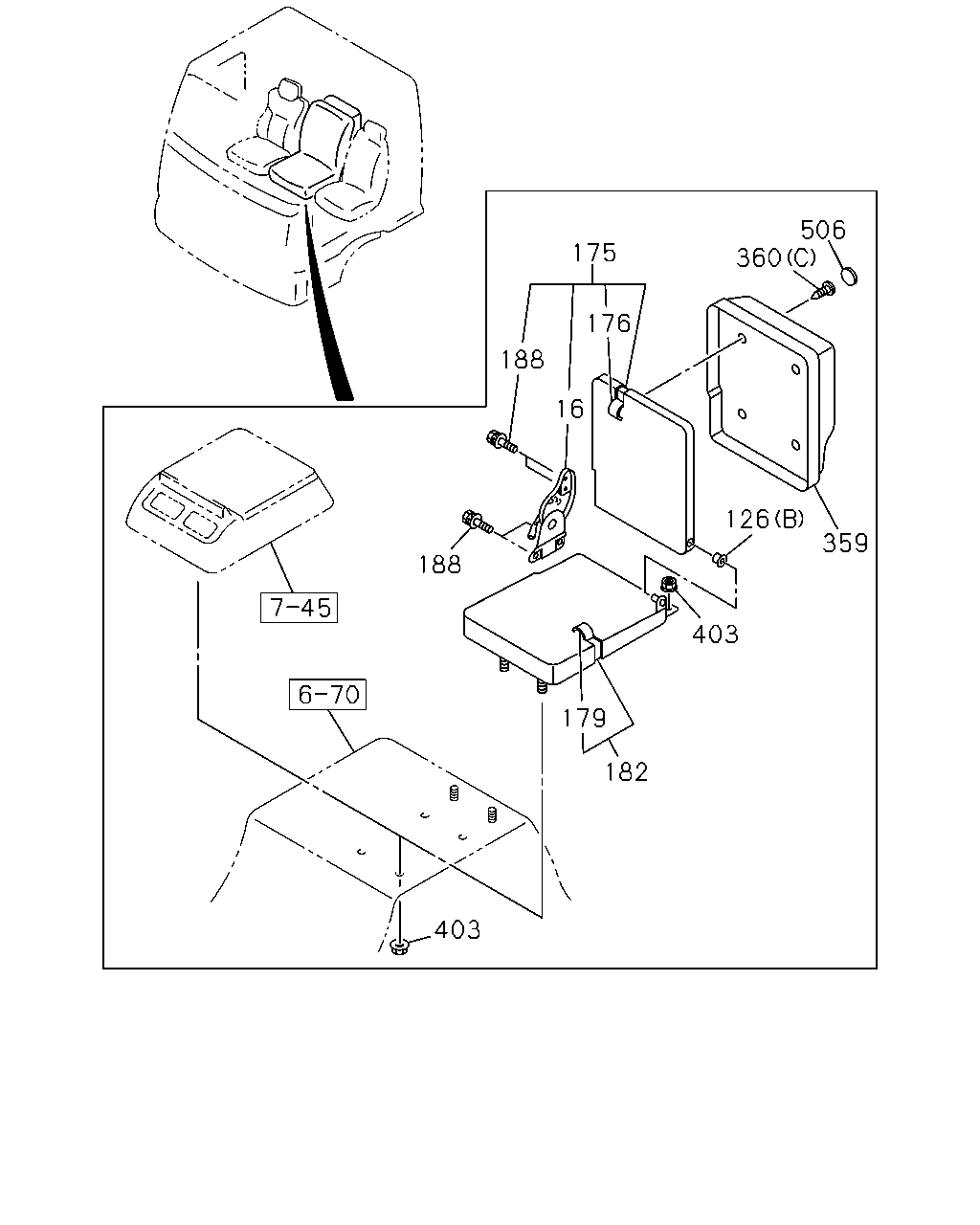

506 360 175 176 188 403 126 16 179 182 188 403 359

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	ADJUSTER ASM; RECLINING SEAT ASM - WITH CENTER SEAT<7BC>	1-75418-062-1	01	1	1310-
126	BUSHING; HINGE,RECLINING (A)	8-98063-218-0	01	1	1310-1506
126	BUSHING; HINGE,RECLINING RIGID SEAT WO/ARM REST<TAZ> (A)	8-98063-218-0	01	1	1507-1509
126	BUSHING; HINGE,RECLINING (A)	8-98063-218-0	01	1	1510-1512
126	BUSHING; HINGE,RECLINING (A)	8-98286-007-0	01	1	1601-
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	1310-
175	BACK ASM; PASSENGER CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97421-434-1	01	1	1310-
175	BACK ASM; PASSENGER CENTER SEAT VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97409-975-1	01	1	1310-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97421-435-1	01	1	1310-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97409-976-1	01	1	1310-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97421-433-1	01	1	1310-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97414-690-1	01	1	1310-
182	CUSHION ASM; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97421-431-3	01	1	1310-
182	CUSHION ASM; CENTER SEAT VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97414-129-3	01	1	1310-
188	BOLT; BACK TO CUSHION SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE	1-75198-053-0	04	1	1310-
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-261-0	01	1	1310-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	1310-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1310-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5	8-98062-663-0	04	1	1310-
403	NUT; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE	0-91180-108-0	04	1	1310-
506	CAP; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-980-1	02	1	1310-

126 348 13 12 74 327 67 518 1 107 18 17 19 228 24 633 69 62 290 100 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY	8-97421-408-1	01	1	1310-1512
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY	8-97466-623-0	01	1	1601-
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97421-409-1	01	1	1310-1512
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97466-621-0	01	1	1601-
1	BACK ASM; SEAT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97414-037-5	01	1	1310-1512
1	BACK ASM; SEAT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97466-619-0	01	1	1601-
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY	8-97421-413-0	01	1	1310-
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97421-414-0	01	1	1310-
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97414-038-2	01	1	1310-
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> DARK GRAY	8-97421-399-2	01	1	1310-1512
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> DARK GRAY	8-97466-612-0	01	1	1601-
12	CUSHION; SEAT,FRT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97414-035-2	01	1	1310-1512
12	CUSHION; SEAT,FRT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97466-609-0	01	1	1601-
13	COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> DARK GRAY	8-97421-403-2	01	1	1310-
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97414-036-1	01	1	1310-
17	BOLT; RECLINING (A) M10X20	8-98062-661-0	02	1	1310-1506
17	BOLT; RECLINING RIGID SEAT WO/ARM REST<TAZ> (A) M10X20	8-98062-661-0	02	1	1507-1509
17	BOLT; RECLINING (A) M10X20	8-98062-661-0	02	1	1510-
17	BOLT; RECLINING (B) M8X20	8-98092-334-0	02	1	1310-
18	COVER; RECLINING GRAY	8-97409-361-0	01	1	1310-
19	SCREW; COVER M5	8-98062-663-0	01	1	1310-1506
19	SCREW; COVER RIGID SEAT WO/ARM REST<TAZ> M5	8-98062-663-0	01	1	1507-1509
19	SCREW; COVER M5	8-98062-663-0	01	1	1510-
24	KNOB; RECLINING,FRT,SEAT GRAY	8-97409-362-0	01	1	1310-
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98261-451-0	01	1	1510-
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75538-185-8	01	1	1310-1403
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98261-451-0	01	1	1404-1506
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE	0-28451-020-0	02	1	1310-
69	NUT; FRT SEAT M10 FLANGE	0-91180-110-0	02	1	1310-
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98291-641-0	01	1	1510-
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98093-429-0	01	1	1310-1502
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98291-641-0	01	1	1503-1506
100	COVER; HINGE	8-98203-070-0	01	1	1310-1506
100	COVER; HINGE RIGID SEAT WO/ARM REST<TAZ>	8-98203-070-0	01	1	1507-1509
100	COVER; HINGE	8-98203-070-0	01	1	1510-1512
100	COVER; HINGE	8-98286-009-0	01	1	1601-
107	DIAL; SEAT RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98063-174-0	01	1	1510-
107	DIAL; SEAT RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98063-174-0	01	1	1310-1506
126	BUSHING; HINGE,RECLINING (A)	8-98063-218-0	01	1	1310-1506
126	BUSHING; HINGE,RECLINING RIGID SEAT WO/ARM REST<TAZ> (A)	8-98063-218-0	01	1	1507-1509
126	BUSHING; HINGE,RECLINING (A)	8-98063-218-0	01	1	1510-1512
126	BUSHING; HINGE,RECLINING (A)	8-98286-007-0	01	1	1601-
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	1310-
228	SCREW; KNOB M4	8-98062-662-0	01	1	1310-1506
228	SCREW; KNOB RIGID SEAT WO/ARM REST<TAZ> M4	8-98062-662-0	01	1	1507-1509
228	SCREW; KNOB M4	8-98062-662-0	01	1	1510-
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M8 FLANGE	1-75538-207-0	04	1	1510-
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M8 FLANGE	1-75538-207-0	04	1	1310-1506
327	CLIP; COVER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-09987-273-0	01	1	1310-
348	BOLT; HINGE,SEAT	8-98286-008-0	01	1	1601-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) M8	1-75518-264-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (E) M8 FLANGE	1-75538-207-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M6 LOCK NUT	5-09984-020-0	02	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8 FLANGE	8-94152-886-0	04	1	1510-
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	1310-1506
518	NUT; TILT ADJ RIGID SEAT WO/ARM REST<TAZ> (A)	1-75518-263-0	01	1	1507-1509
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) M8	1-75518-264-0	04	1	1310-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (E) M8 FLANGE	1-75538-207-0	04	1	1310-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M6 LOCK NUT	5-09984-020-0	02	1	1310-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8 FLANGE	8-94152-886-0	04	1	1310-1506
633	COVER; ADJ,TILT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY	8-97414-118-0	01	1	1310-

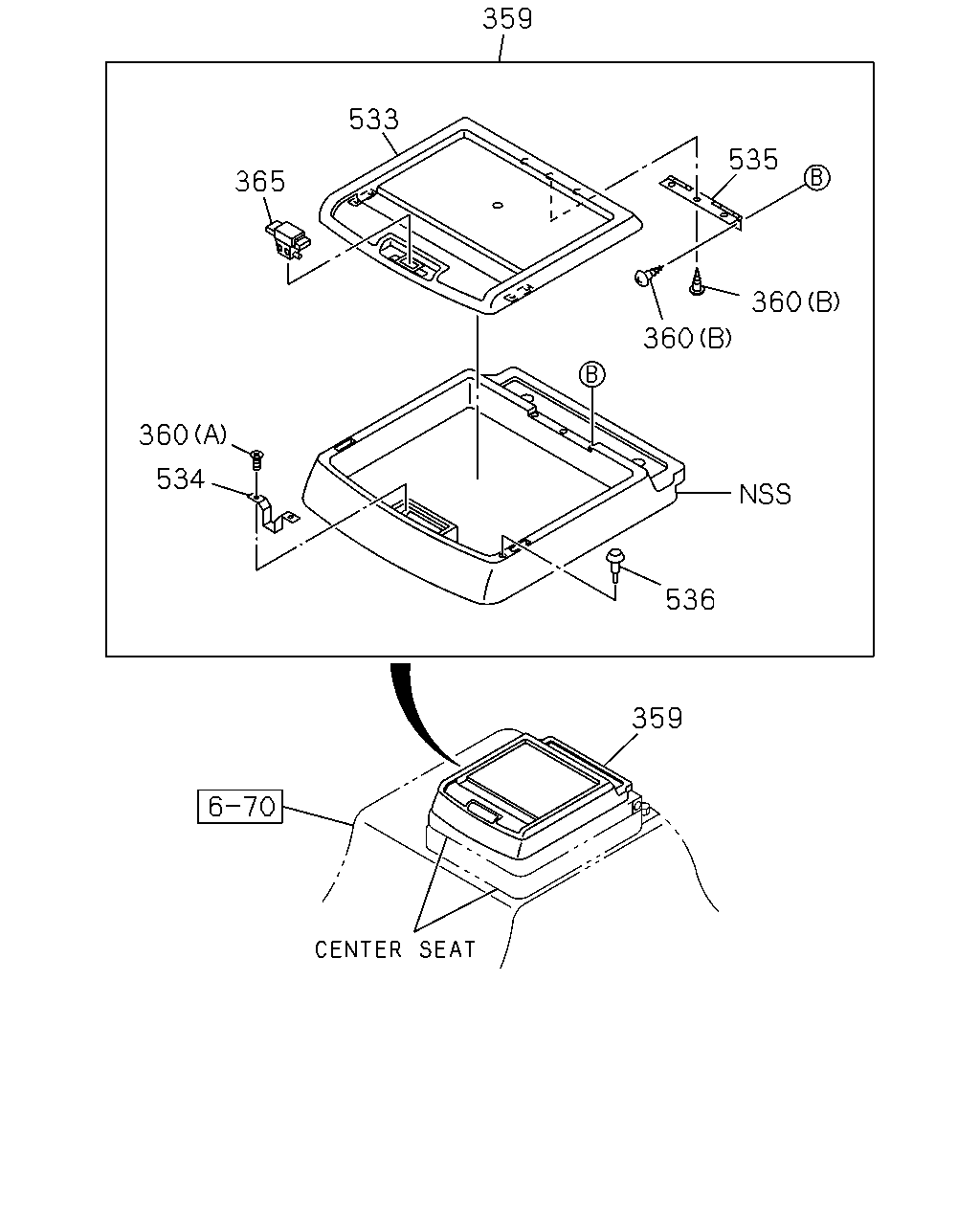

359 535 360 360 536 533 365 360 359 534

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-261-0	01	1	1310-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	1310-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1310-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5	8-98062-663-0	04	1	1310-
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC>	1-72538-312-0	01	1	1310-
533	LID; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-263-0	01	1	1310-
534	STRIKER; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC>	1-72538-190-0	01	1	1310-
535	HINGE; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC>	1-72447-391-1	01	1	1310-
536	RUBBER; CUSHION SEAT ASM - WITH CENTER SEAT<7BC>	1-72538-187-0	02	1	1310-

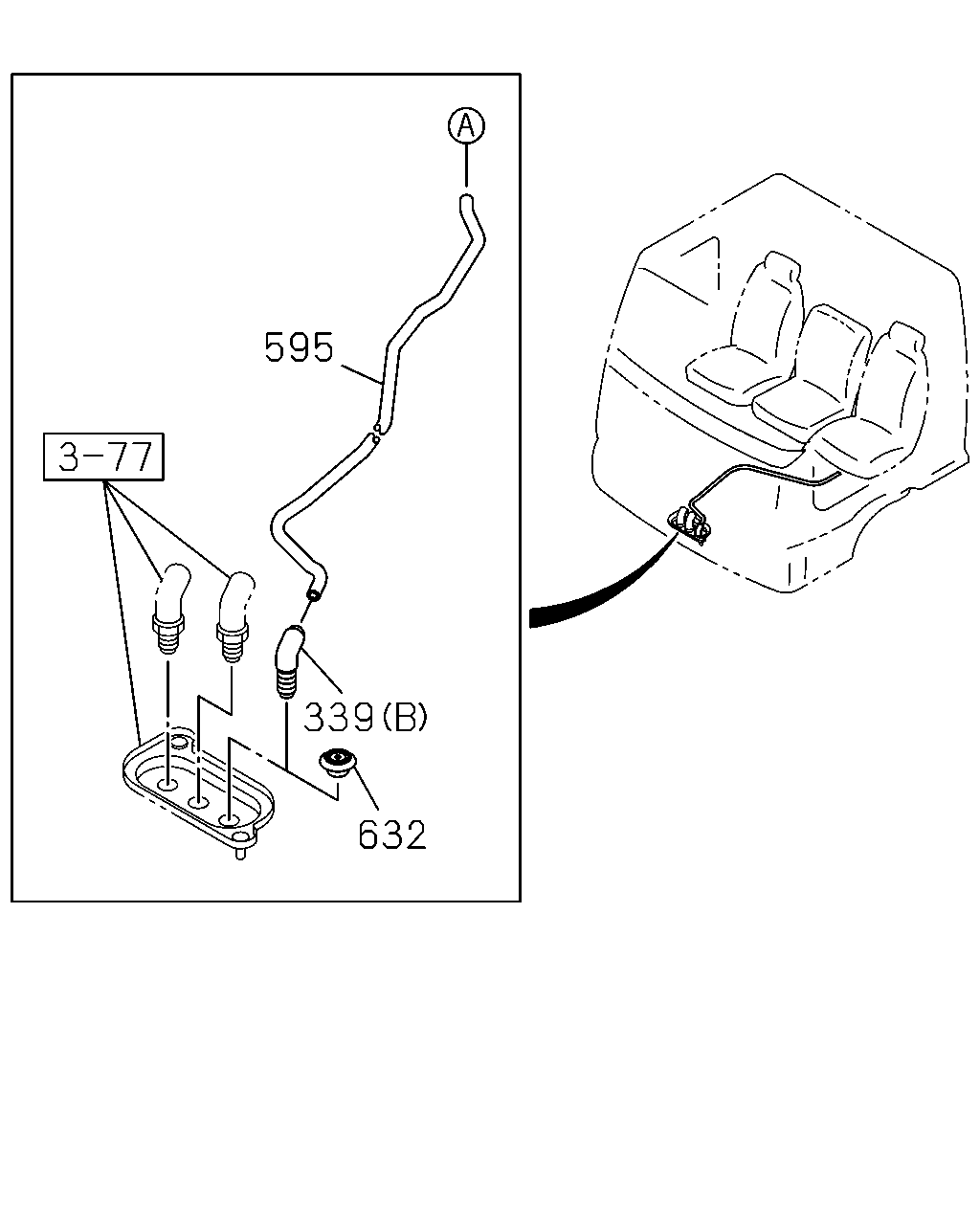

595 339 632

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75538-131-3	01	1	1510-
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (B)	8-98014-971-0	01	1	1310-
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75538-131-3	01	1	1310-1506
595	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>	8-98067-762-0	01	1	1310-
632	GROMMET RIGID SEAT WO/ARM REST<TAZ> OD=24	8-94119-796-0	01	1	1310-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
