7-20 — MIRROR AND MIRROR STAY (#128145) — 90 parça

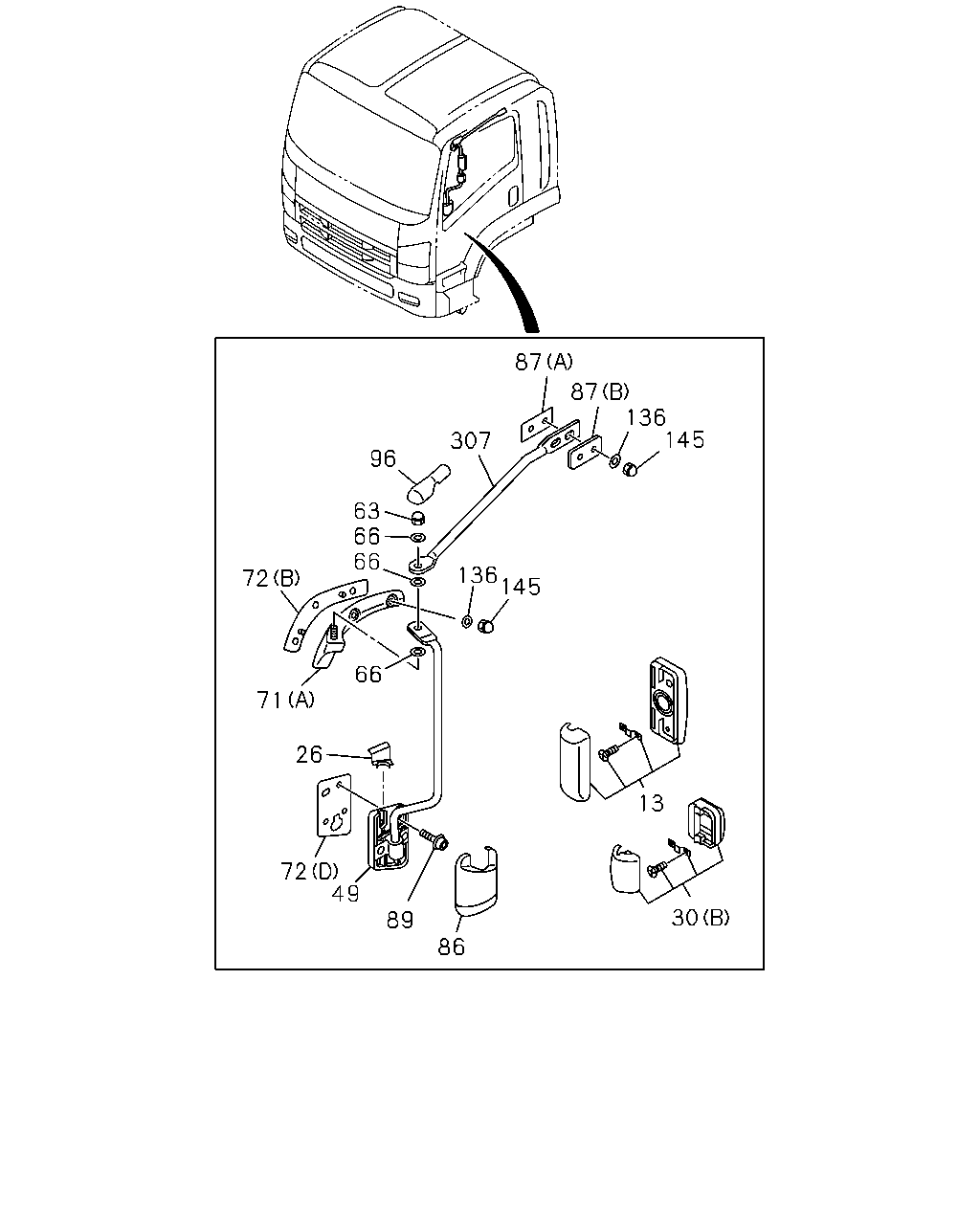

çizim 379619
87 87 136 145 307 96 63 66 66 72 71 26 72 49 89 86 13 30 145 136 66
BalonParca AdiParca NoAdetTipApplied Date
13 MIRROR ASM; OUTSIDE RR VIEW 8-98055-992-1 01 1 1310-
13 MIRROR ASM; OUTSIDE RR VIEW 8-98055-991-1 01 1 1310-
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 1310-
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 1310-
30 MIRROR; UNDER
(B) 		8-98043-061-0 02 1 1310-
30 MIRROR; UNDER
(A) 		8-98043-065-0 01 1 1310-
30 MIRROR; UNDER
(C) 		8-98055-994-0 01 1 1310-1504
30 MIRROR; UNDER
(C) 		8-98309-725-0 01 1 1505-
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> 		8-98166-181-0 01 1 1310-
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> 		8-98166-180-0 01 1 1310-
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-195-0 01 1 1310-
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-194-0 01 1 1310-
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-207-0 01 1 1310-
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-206-0 01 1 1310-
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 1310-
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 02 1 1310-
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1310-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1310-
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 1310-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1310-
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98064-775-0 01 1 1310-
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98092-491-3 01 1 1310-
72 SHEET
(B) 		8-98031-797-0 01 1 1310-
72 SHEET
(D) 		8-98116-605-0 01 1 1310-
72 SHEET
(C) 		8-98031-796-0 01 1 1310-
72 SHEET
(E) 		8-98060-225-1 01 1 1310-
72 SHEET
(A) 		8-98064-773-0 01 1 1310-
72 SHEET
(D) 		8-98116-604-0 01 1 1310-
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 1310-
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 1310-
87 SPACER
(A) 		8-98063-786-0 02 1 1310-
87 SPACER
(B) 		8-98063-789-0 01 1 1310-
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 1310-
96 CAP; MIRROR STAY 8-98080-173-0 02 1 1310-
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1310-
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 1310-
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 1310-
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 1310-

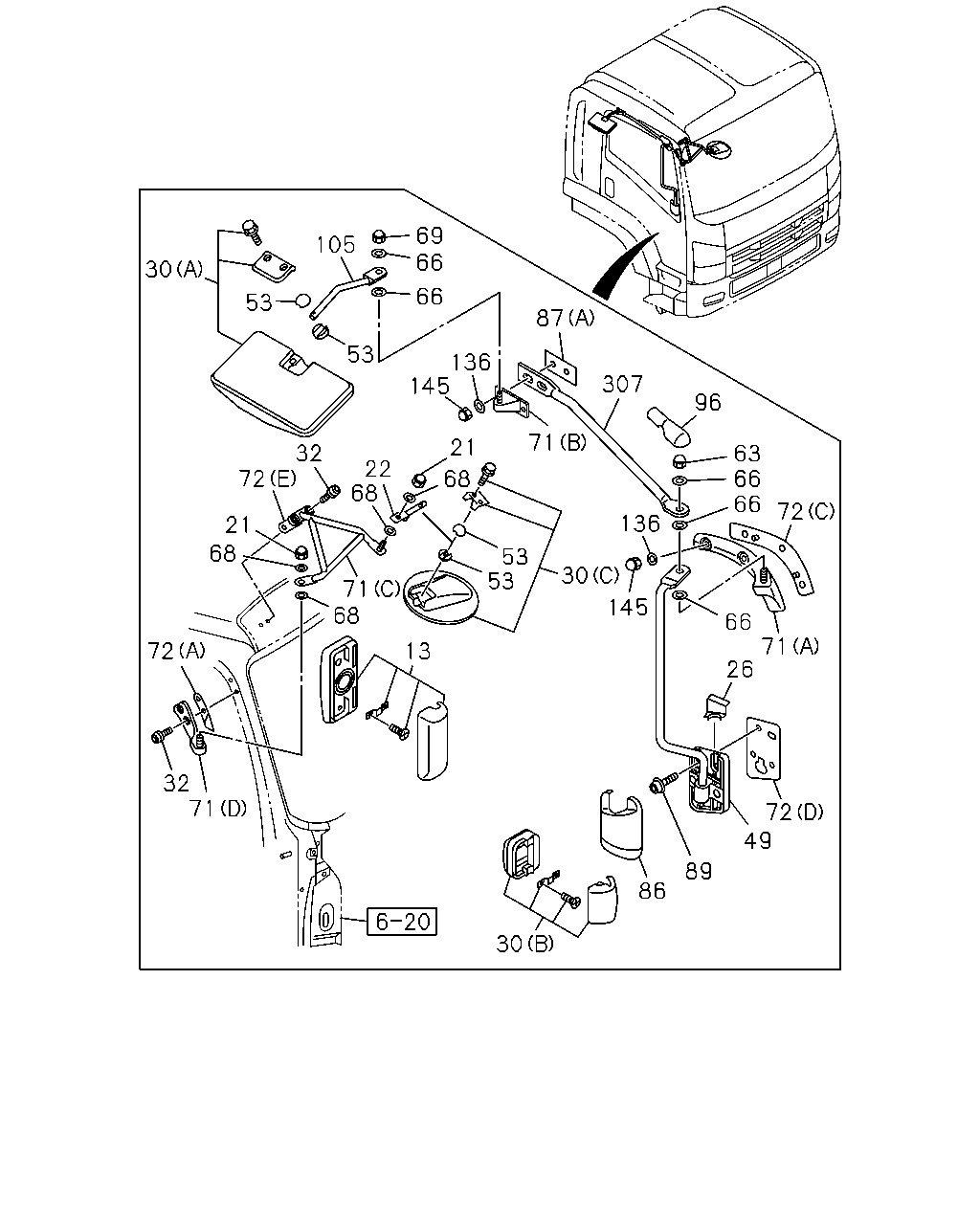

çizim 381096
30 72 21 68 32 53 105 69 66 66 136 145 53 21 22 68 71 68 13 53 53 68 71 30 145 89 86 30 49 72 26 66 71 66 66 63 72 136 96 307 87 72 32 71
BalonParca AdiParca NoAdetTipApplied Date
13 MIRROR ASM; OUTSIDE RR VIEW 8-98055-992-1 01 1 1310-
13 MIRROR ASM; OUTSIDE RR VIEW 8-98055-991-1 01 1 1310-
21 NUT; MIRROR
M10 CAP NUT 		1-09984-134-0 02 1 1310-
22 STAY; OUTSIDE MIRROR 8-98092-493-0 01 1 1310-
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 1310-
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 1310-
30 MIRROR; UNDER
(B) 		8-98043-061-0 02 1 1310-
30 MIRROR; UNDER
(A) 		8-98043-065-0 01 1 1310-
30 MIRROR; UNDER
(C) 		8-98055-994-0 01 1 1310-1504
30 MIRROR; UNDER
(C) 		8-98309-725-0 01 1 1505-
32 SCREW; UNDER MIRROR
M8X26 W/PL WASHER 		8-98067-249-2 04 1 1310-
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> 		8-98166-181-0 01 1 1310-
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> 		8-98166-180-0 01 1 1310-
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-195-0 01 1 1310-
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-194-0 01 1 1310-
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-207-0 01 1 1310-
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-206-0 01 1 1310-
53 PIVOT; SIDE MIRROR
ID=19.1 		1-71737-633-2 02 1 1310-
53 PIVOT; SIDE MIRROR
ID=19.1 		1-71737-633-2 02 1 1310-
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 1310-
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 02 1 1310-
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1310-
68 WASHER; STAY
ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1310-
69 NUT; CAP
M10 CAP NUT 		1-09984-134-0 01 1 1310-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1310-
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 1310-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1310-
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98064-775-0 01 1 1310-
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98092-491-3 01 1 1310-
72 SHEET
(B) 		8-98031-797-0 01 1 1310-
72 SHEET
(D) 		8-98116-605-0 01 1 1310-
72 SHEET
(C) 		8-98031-796-0 01 1 1310-
72 SHEET
(E) 		8-98060-225-1 01 1 1310-
72 SHEET
(A) 		8-98064-773-0 01 1 1310-
72 SHEET
(D) 		8-98116-604-0 01 1 1310-
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 1310-
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 1310-
87 SPACER
(A) 		8-98063-786-0 02 1 1310-
87 SPACER
(B) 		8-98063-789-0 01 1 1310-
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 1310-
96 CAP; MIRROR STAY 8-98080-173-0 02 1 1310-
105 STAY; SUB UNDER MIRROR 8-98080-109-2 01 1 1310-
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1310-
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 1310-
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 1310-
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 1310-

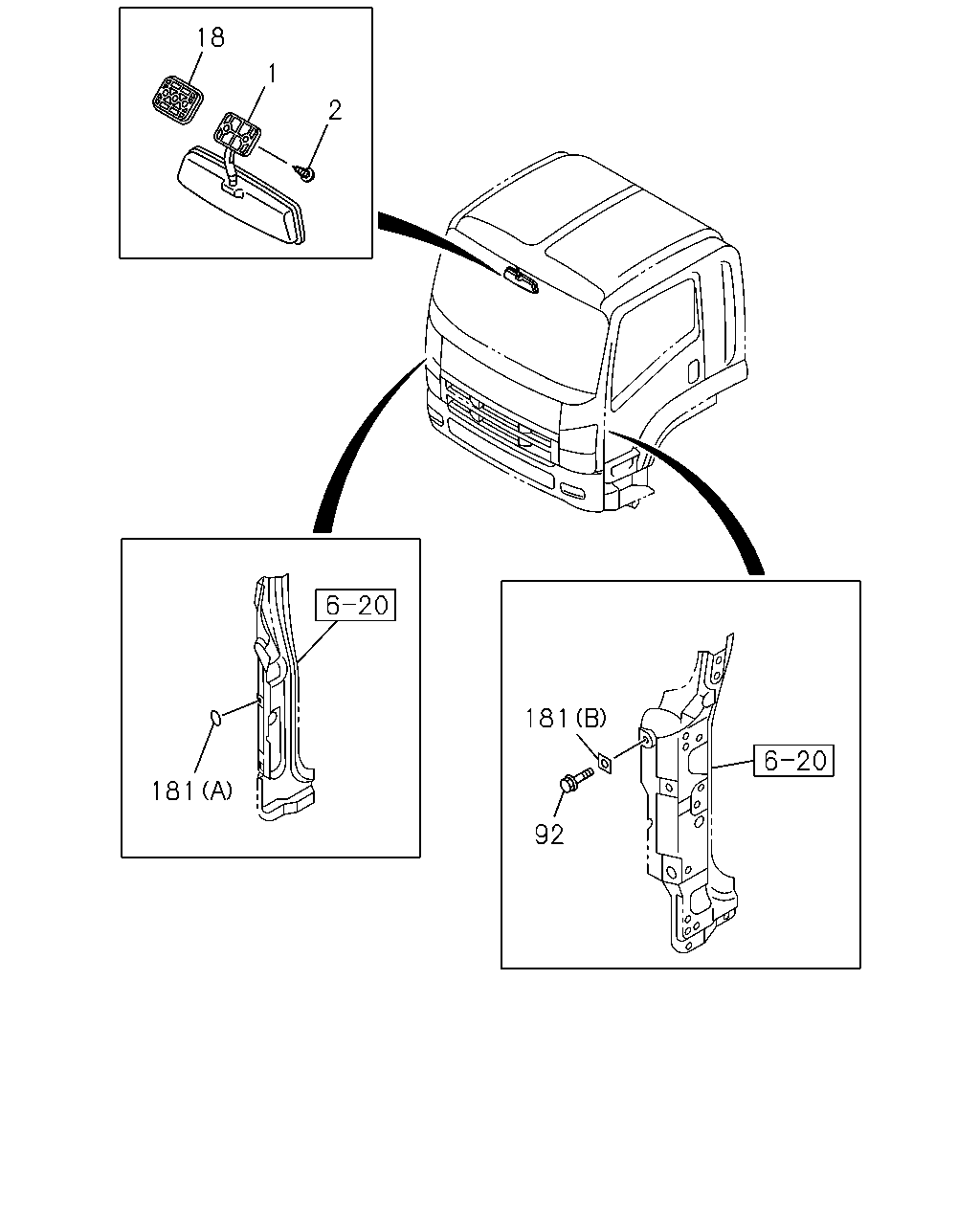

çizim 381102
18 1 2 181 181 92
BalonParca AdiParca NoAdetTipApplied Date
1 MIRROR; ROOM
DARK GRAY 		8-98097-534-1 01 1 1310-
2 SCREW; MIRROR TO BODY
M6X26 		8-98033-674-0 02 1 1310-
18 CLIP; MIRROR
DARK GRAY 		8-97408-241-0 01 1 1310-
92 BOLT; STAY BRKT,MIRROR
M8X16 FLANGE 		8-98076-109-0 01 1 1310-
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 02 1 1310-
181 SEAL; BRKT
(B) 25X25 		8-94272-533-0 01 1 1310-
