◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11125 - FTR(THAI)EURO3 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#12814) — 1026 parça

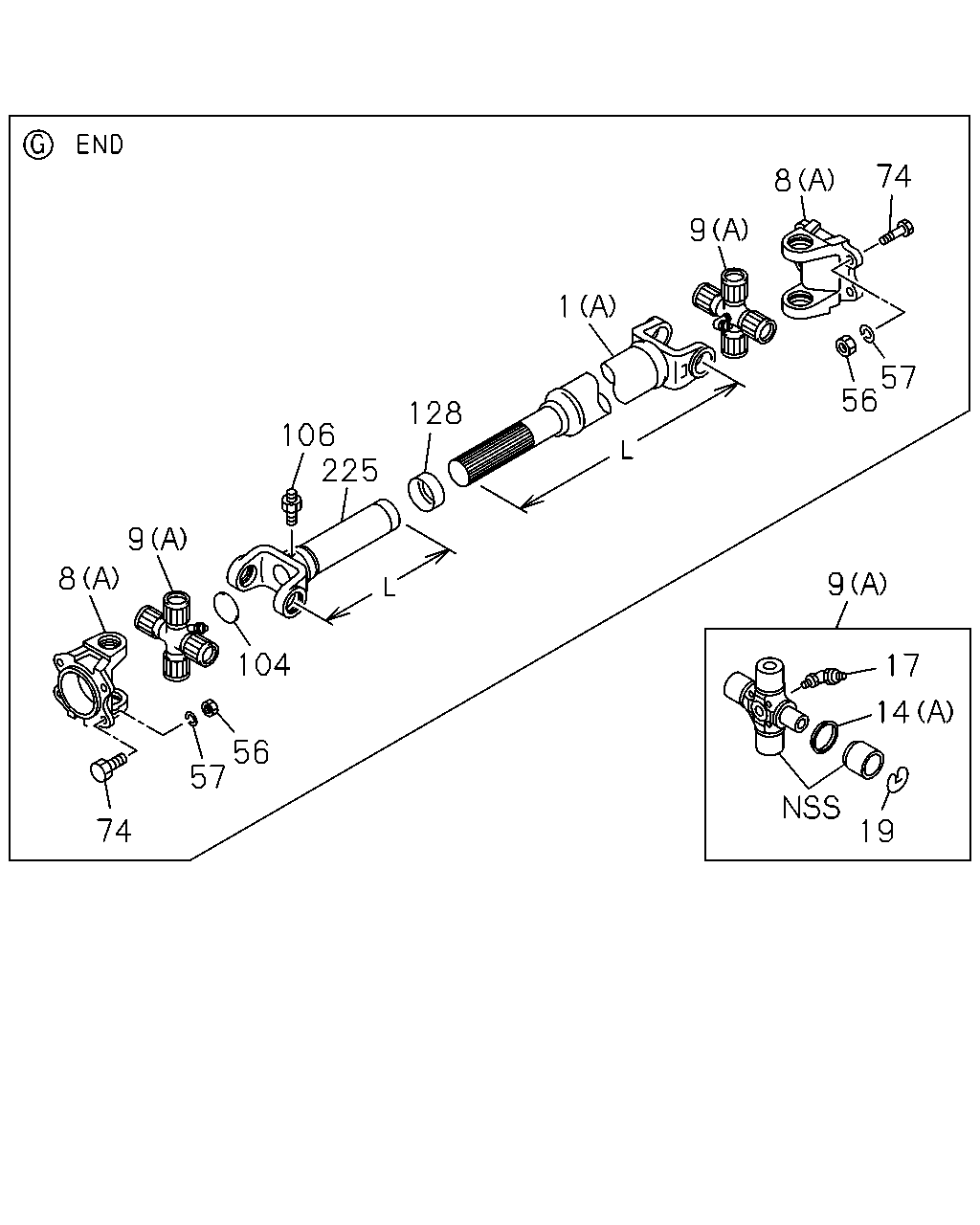

çizim 143153
74 8 9 1 57 56 128 106 225 9 8 9 104 17 14 56 57 74 19
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
MZW6P M/T<RSZ> L=651 THA 		1-37151-645-1 01 1 1506- ●
1 SHAFT; PROP
L=849 THA 		8-98069-584-0 01 1 1506- ●
1 SHAFT; PROP
L=1504 THA 		8-98090-933-0 01 1 1506- ●
1 SHAFT; PROP
L=719 THA 		8-98069-957-0 01 1 1506- ●
1 SHAFT; PROP
L=831 THA 		8-98069-670-0 01 1 1506- ●
1 SHAFT; PROP
L=1226 THA 		8-98090-989-0 01 1 1506- ●
1 SHAFT; PROP
L=1366 THA 		8-98069-684-0 01 1 1506- ●
1 SHAFT; PROP
L=1234 THA 		8-98069-590-0 01 1 1506- ●
1 SHAFT; PROP
L=1351 THA 		8-98090-992-0 01 1 1506- ●
1 SHAFT; PROP
MZW6P M/T<RSZ> (B) L=651 THA 		1-37151-645-1 01 1 1001- ●
1 SHAFT; PROP
MZW6P M/T<RSZ> (B) L=849 		8-98095-876-0 01 1 1001-1102 ●
1 SHAFT; PROP
(B) L=849 		8-98095-876-0 01 1 1103-1111 ●
1 SHAFT; PROP
(B) L=849 THA 		8-98069-584-0 01 1 1112- ●
1 SHAFT; PROP
MZW6P M/T<RSZ> (B) L=1504 		8-98095-877-0 01 1 1001-1102 ●
1 SHAFT; PROP
(B) L=1504 		8-98095-877-0 01 1 1103-1111 ●
1 SHAFT; PROP
(B) L=1504 THA 		8-98090-933-0 01 1 1112- ●
1 SHAFT; PROP
MZW6P M/T<RSZ> (B) L=726 		1-37151-632-1 01 1 1001-1102 ●
1 SHAFT; PROP
(B) L=726 		1-37151-632-1 01 1 1103-1111 ●
1 SHAFT; PROP
(B) L=719 THA 		8-98069-957-0 01 1 1112- ●
1 SHAFT; PROP
(B) L=761 		1-37151-772-1 01 1 0808-0912 ●
1 SHAFT; PROP
MLD6W M/T<Y2C> (B) L=761 		1-37151-772-1 01 1 1001-1102 ●
1 SHAFT; PROP
(B) L=961 		1-37151-382-1 01 1 0808-0912 ● ●
1 SHAFT; PROP
MLD6W M/T<Y2C> (B) L=961 		1-37151-382-1 01 1 1001-1102 ● ●
1 SHAFT; PROP
(C) L=589 		8-98119-467-0 01 1 0808-0912 ●
1 SHAFT; PROP
MLD6W M/T<Y2C> (C) L=589 		8-98119-467-0 01 1 1001-1102 ●
1 SHAFT; PROP
(B) L=829 		8-98113-452-0 01 1 0808-0912 ●
1 SHAFT; PROP
MLD6W M/T<Y2C> (B) L=829 		8-98113-452-0 01 1 1001-1102 ●
1 SHAFT; PROP
(A) L=831 THA 		8-98069-670-0 01 1 0808- ●
1 SHAFT; PROP
(A) L=1226 THA 		8-98090-989-0 01 1 0808- ●
1 SHAFT; PROP
(A) L=1366 THA 		8-98069-684-0 01 1 0808- ●
1 SHAFT; PROP
(C) L=1234 THA 		8-98069-590-0 01 1 0808- ●
1 SHAFT; PROP
(A) L=1351 THA 		8-98090-992-0 01 1 0808- ●
8 YOKE; FLANGE,PROP SHAFT
THA 		8-98178-052-0 01 1 1506- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
THA 		1-37211-056-3 01 1 1506- ●
8 YOKE; FLANGE,PROP SHAFT
THA 		1-37211-056-3 02 1 1506- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-056-3 01 1 0808-0912 ●
8 YOKE; FLANGE,PROP SHAFT
MLD6W M/T<Y2C> (A) THA 		1-37211-056-3 01 1 1001-1102 ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-056-3 02 1 0808-1204 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-056-3 02 1 1205- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-056-3 03 1 0808-1204 ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-056-3 01 1 1205- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-054-1 01 1 0808-1111 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) THA 		8-98178-052-0 01 1 1112- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
THA 		8-98048-925-1 01 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
THA 		8-98048-925-1 02 1 1506- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) THA 		8-98048-925-0 01 1 0808-0912 ●
9 JOURNAL ASM; PROP SHAFT
MLD6W M/T<Y2C> (A) THA 		8-98048-925-0 01 1 1001-1102 ●
9 JOURNAL ASM; PROP SHAFT
(A) THA 		8-98048-925-0 02 1 0808-1204 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) THA 		8-98048-925-1 02 1 1205- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) THA 		8-98048-925-0 03 1 0808-1204 ●
9 JOURNAL ASM; PROP SHAFT
(A) THA 		8-98048-925-1 01 1 1205- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-102-1 AR 1 0808-1111 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) THA 		8-98048-925-1 AR 1 1112- ● ● ● ●
14 COVER; DUST,SPIDER
THA 		8-98020-800-0 04 1 1506- ● ● ● ●
14 COVER; DUST,SPIDER
THA 		8-98020-800-0 04 1 1506- ●
14 COVER; DUST,SPIDER
THA 		8-98020-800-0 08 1 1506- ● ● ● ●
14 COVER; DUST,SPIDER
(A) THA 		8-98020-800-0 04 1 0808-0912 ●
14 COVER; DUST,SPIDER
MLD6W M/T<Y2C> (A) THA 		8-98020-800-0 04 1 1001-1102 ●
14 COVER; DUST,SPIDER
(A) THA 		8-98020-800-0 08 1 0808-1204 ● ● ●
14 COVER; DUST,SPIDER
(A) THA 		8-98020-800-0 08 1 1205- ● ● ● ●
14 COVER; DUST,SPIDER
(A) THA 		8-98020-800-0 12 1 0808-1204 ●
14 COVER; DUST,SPIDER
(B) 		1-37319-012-0 04 1 0808-1111 ● ● ● ●
14 COVER; DUST,SPIDER
(B) THA 		8-98020-800-0 04 1 1112-1204 ● ● ● ●
14 COVER; DUST,SPIDER
(B) THA 		8-98020-800-0 04 1 1205- ● ● ● ●
14 COVER; DUST,SPIDER
(B) THA 		8-98020-800-0 04 1 1205- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1506- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1208-1504 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1208-1504 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1208-1504 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0808-0912 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1001-1102 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T<RSZ> PT1/8 ELBOW 		0-90301-610-0 01 1 1001-1102 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1103-1204 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1205- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1205- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0808-0912 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0808-0912 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1001-1102 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T<Y2C> PT1/8 ELBOW 		0-90301-610-0 02 1 1001-1102 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1103-1204 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1205- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 03 1 0808-1204 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1506- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1506- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1506- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1506- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1506- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1506- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 08 1 1506- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 08 1 1506- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 08 1 1506- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1208-1504 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1208-1504 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1208-1504 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1208-1504 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1208-1504 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1208-1504 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 08 1 1208-1504 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 08 1 1208-1504 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 08 1 1208-1504 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 0808-0912 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1001-1102 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZW6P M/T<RSZ> OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1001-1102 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1103-1204 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1205- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1205- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 0808-0912 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1001-1102 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZW6P M/T<RSZ> OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1001-1102 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1103-1204 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1205- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1205- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 0808-0912 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1001-1102 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZW6P M/T<RSZ> OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1001-1102 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1103-1204 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1205- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1205- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 08 1 0808-0912 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 08 1 0808-0912 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 08 1 1001-1102 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6W M/T<Y2C> OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 08 1 1001-1102 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 08 1 1103-1204 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 08 1 1205- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 08 1 0808-0912 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 08 1 0808-0912 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 08 1 1001-1102 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6W M/T<Y2C> OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 08 1 1001-1102 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 08 1 1103-1204 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 08 1 1205- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 08 1 0808-0912 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 08 1 0808-0912 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 08 1 1001-1102 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6W M/T<Y2C> OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 08 1 1001-1102 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 08 1 1103-1204 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 08 1 1205- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 12 1 0808-1204 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 12 1 0808-1204 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 12 1 0808-1204 ●
56 NUT; YOKE
M14 THA 		0-91110-514-0 04 1 0808- ● ● ● ●
56 NUT; YOKE
M14 THA 		0-91110-514-0 04 1 0808- ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0808- ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0808- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0808-0912 ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0808-0912 ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0808-0912 ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1001-1102 ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1001-1102 ● ● ● ●
74 BOLT; YOKE,TRANS
MLD6W M/T<Y2C> M14X37 		1-09000-121-0 04 1 1001-1102 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1001-1102 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1103- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1103- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1103- ●
104 PLUG; SLEEVE YOKE
THA 		1-09600-064-0 01 1 1506- ● ● ● ●
104 PLUG; SLEEVE YOKE
THA 		1-09600-064-0 01 1 1208-1504 ● ● ● ●
104 PLUG; SLEEVE YOKE
THA 		1-09600-064-0 01 1 0808- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT THA 		0-90301-406-0 01 1 1506- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT THA 		0-90301-406-0 01 1 1208-1504 ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT THA 		0-90301-406-0 01 1 0808- ● ● ● ●
128 SEAL; SLEEVE
THA 		1-37247-024-0 01 1 1506- ● ● ● ●
128 SEAL; SLEEVE
THA 		1-37247-024-0 01 1 1208-1504 ● ● ● ●
128 SEAL; SLEEVE
THA 		1-37247-024-0 01 1 0808- ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 THA 		8-98020-885-0 01 1 1506- ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 THA 		8-98020-885-0 01 1 1208-1504 ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 THA 		8-98020-885-0 01 1 0808- ● ● ● ●

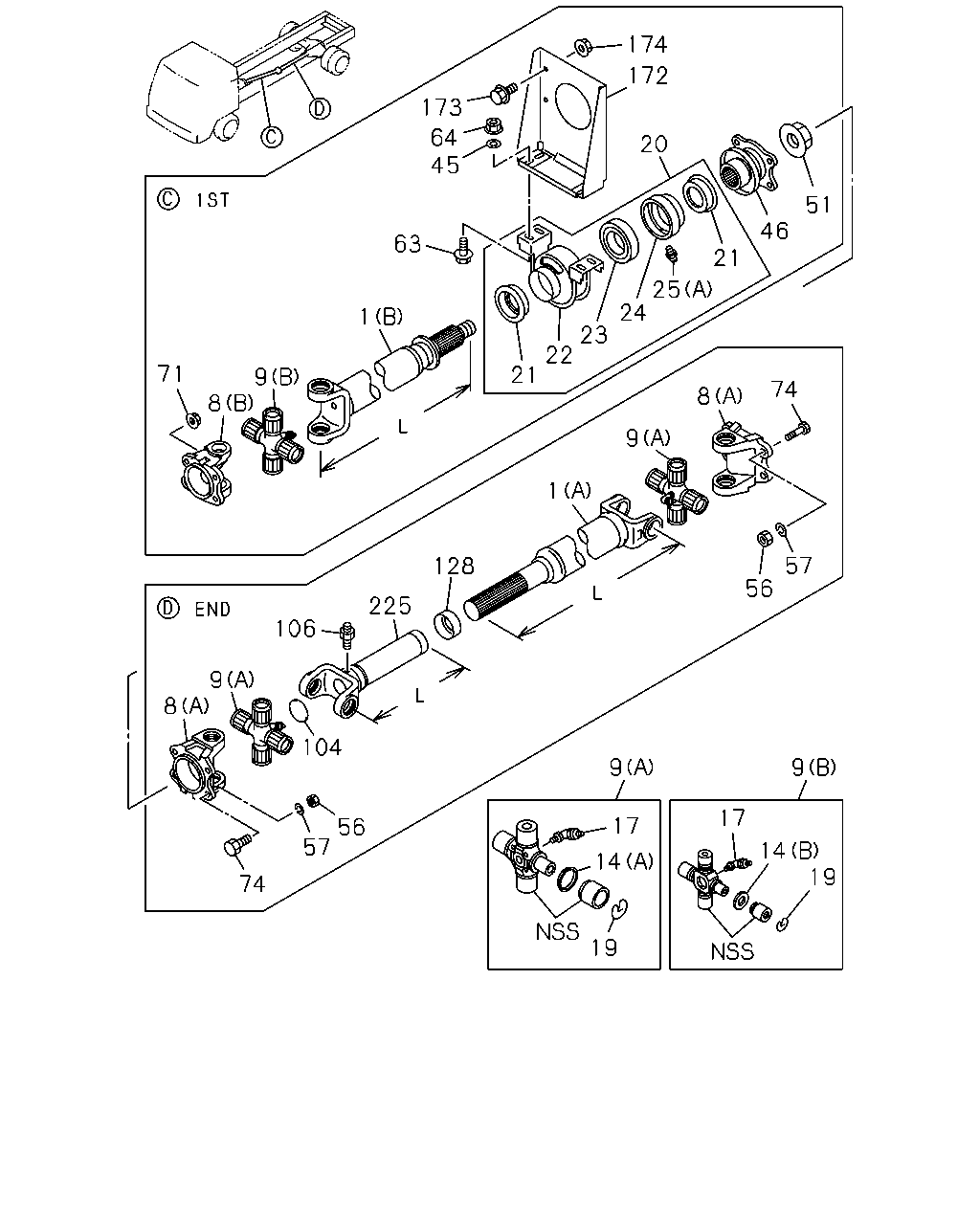

çizim 143167
174 172 173 64 45 20 51 46 63 21 25 24 1 23 22 71 21 9 8 74 8 9 1 57 128 56 225 106 9 8 104 9 9 17 17 56 57 14 19 14 74 19
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
MZW6P M/T<RSZ> L=651 THA 		1-37151-645-1 01 1 1506- ●
1 SHAFT; PROP
L=849 THA 		8-98069-584-0 01 1 1506- ●
1 SHAFT; PROP
L=1504 THA 		8-98090-933-0 01 1 1506- ●
1 SHAFT; PROP
L=719 THA 		8-98069-957-0 01 1 1506- ●
1 SHAFT; PROP
L=831 THA 		8-98069-670-0 01 1 1506- ●
1 SHAFT; PROP
L=1226 THA 		8-98090-989-0 01 1 1506- ●
1 SHAFT; PROP
L=1366 THA 		8-98069-684-0 01 1 1506- ●
1 SHAFT; PROP
L=1234 THA 		8-98069-590-0 01 1 1506- ●
1 SHAFT; PROP
L=1351 THA 		8-98090-992-0 01 1 1506- ●
1 SHAFT; PROP
MZW6P M/T<RSZ> (B) L=651 THA 		1-37151-645-1 01 1 1001- ●
1 SHAFT; PROP
MZW6P M/T<RSZ> (B) L=849 		8-98095-876-0 01 1 1001-1102 ●
1 SHAFT; PROP
(B) L=849 		8-98095-876-0 01 1 1103-1111 ●
1 SHAFT; PROP
(B) L=849 THA 		8-98069-584-0 01 1 1112- ●
1 SHAFT; PROP
MZW6P M/T<RSZ> (B) L=1504 		8-98095-877-0 01 1 1001-1102 ●
1 SHAFT; PROP
(B) L=1504 		8-98095-877-0 01 1 1103-1111 ●
1 SHAFT; PROP
(B) L=1504 THA 		8-98090-933-0 01 1 1112- ●
1 SHAFT; PROP
MZW6P M/T<RSZ> (B) L=726 		1-37151-632-1 01 1 1001-1102 ●
1 SHAFT; PROP
(B) L=726 		1-37151-632-1 01 1 1103-1111 ●
1 SHAFT; PROP
(B) L=719 THA 		8-98069-957-0 01 1 1112- ●
1 SHAFT; PROP
(B) L=761 		1-37151-772-1 01 1 0808-0912 ●
1 SHAFT; PROP
MLD6W M/T<Y2C> (B) L=761 		1-37151-772-1 01 1 1001-1102 ●
1 SHAFT; PROP
(B) L=961 		1-37151-382-1 01 1 0808-0912 ● ●
1 SHAFT; PROP
MLD6W M/T<Y2C> (B) L=961 		1-37151-382-1 01 1 1001-1102 ● ●
1 SHAFT; PROP
(C) L=589 		8-98119-467-0 01 1 0808-0912 ●
1 SHAFT; PROP
MLD6W M/T<Y2C> (C) L=589 		8-98119-467-0 01 1 1001-1102 ●
1 SHAFT; PROP
(B) L=829 		8-98113-452-0 01 1 0808-0912 ●
1 SHAFT; PROP
MLD6W M/T<Y2C> (B) L=829 		8-98113-452-0 01 1 1001-1102 ●
1 SHAFT; PROP
(A) L=831 THA 		8-98069-670-0 01 1 0808- ●
1 SHAFT; PROP
(A) L=1226 THA 		8-98090-989-0 01 1 0808- ●
1 SHAFT; PROP
(A) L=1366 THA 		8-98069-684-0 01 1 0808- ●
1 SHAFT; PROP
(C) L=1234 THA 		8-98069-590-0 01 1 0808- ●
1 SHAFT; PROP
(A) L=1351 THA 		8-98090-992-0 01 1 0808- ●
8 YOKE; FLANGE,PROP SHAFT
THA 		8-98178-052-0 01 1 1506- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
THA 		1-37211-056-3 01 1 1506- ●
8 YOKE; FLANGE,PROP SHAFT
THA 		1-37211-056-3 02 1 1506- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-056-3 01 1 0808-0912 ●
8 YOKE; FLANGE,PROP SHAFT
MLD6W M/T<Y2C> (A) THA 		1-37211-056-3 01 1 1001-1102 ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-056-3 02 1 0808-1204 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-056-3 02 1 1205- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-056-3 03 1 0808-1204 ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-056-3 01 1 1205- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-054-1 01 1 0808-1111 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) THA 		8-98178-052-0 01 1 1112- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
THA 		8-98048-925-1 01 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
THA 		8-98048-925-1 02 1 1506- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) THA 		8-98048-925-0 01 1 0808-0912 ●
9 JOURNAL ASM; PROP SHAFT
MLD6W M/T<Y2C> (A) THA 		8-98048-925-0 01 1 1001-1102 ●
9 JOURNAL ASM; PROP SHAFT
(A) THA 		8-98048-925-0 02 1 0808-1204 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) THA 		8-98048-925-1 02 1 1205- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) THA 		8-98048-925-0 03 1 0808-1204 ●
9 JOURNAL ASM; PROP SHAFT
(A) THA 		8-98048-925-1 01 1 1205- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-102-1 AR 1 0808-1111 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) THA 		8-98048-925-1 AR 1 1112- ● ● ● ●
14 COVER; DUST,SPIDER
THA 		8-98020-800-0 04 1 1506- ● ● ● ●
14 COVER; DUST,SPIDER
THA 		8-98020-800-0 04 1 1506- ●
14 COVER; DUST,SPIDER
THA 		8-98020-800-0 08 1 1506- ● ● ● ●
14 COVER; DUST,SPIDER
(A) THA 		8-98020-800-0 04 1 0808-0912 ●
14 COVER; DUST,SPIDER
MLD6W M/T<Y2C> (A) THA 		8-98020-800-0 04 1 1001-1102 ●
14 COVER; DUST,SPIDER
(A) THA 		8-98020-800-0 08 1 0808-1204 ● ● ●
14 COVER; DUST,SPIDER
(A) THA 		8-98020-800-0 08 1 1205- ● ● ● ●
14 COVER; DUST,SPIDER
(A) THA 		8-98020-800-0 12 1 0808-1204 ●
14 COVER; DUST,SPIDER
(B) 		1-37319-012-0 04 1 0808-1111 ● ● ● ●
14 COVER; DUST,SPIDER
(B) THA 		8-98020-800-0 04 1 1112-1204 ● ● ● ●
14 COVER; DUST,SPIDER
(B) THA 		8-98020-800-0 04 1 1205- ● ● ● ●
14 COVER; DUST,SPIDER
(B) THA 		8-98020-800-0 04 1 1205- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1506- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1208-1504 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1208-1504 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1208-1504 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0808-0912 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1001-1102 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T<RSZ> PT1/8 ELBOW 		0-90301-610-0 01 1 1001-1102 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1103-1204 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1205- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1205- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0808-0912 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0808-0912 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1001-1102 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T<Y2C> PT1/8 ELBOW 		0-90301-610-0 02 1 1001-1102 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1103-1204 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1205- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 03 1 0808-1204 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1506- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1506- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1506- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1506- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1506- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1506- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 08 1 1506- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 08 1 1506- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 08 1 1506- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1208-1504 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1208-1504 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1208-1504 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1208-1504 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1208-1504 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1208-1504 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 08 1 1208-1504 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 08 1 1208-1504 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 08 1 1208-1504 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 0808-0912 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1001-1102 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZW6P M/T<RSZ> OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1001-1102 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1103-1204 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1205- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1205- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 0808-0912 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1001-1102 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZW6P M/T<RSZ> OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1001-1102 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1103-1204 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1205- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1205- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 0808-0912 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1001-1102 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZW6P M/T<RSZ> OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1001-1102 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1103-1204 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1205- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1205- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 08 1 0808-0912 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 08 1 0808-0912 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 08 1 1001-1102 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6W M/T<Y2C> OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 08 1 1001-1102 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 08 1 1103-1204 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 08 1 1205- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 08 1 0808-0912 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 08 1 0808-0912 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 08 1 1001-1102 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6W M/T<Y2C> OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 08 1 1001-1102 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 08 1 1103-1204 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 08 1 1205- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 08 1 0808-0912 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 08 1 0808-0912 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 08 1 1001-1102 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6W M/T<Y2C> OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 08 1 1001-1102 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 08 1 1103-1204 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 08 1 1205- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 12 1 0808-1204 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 12 1 0808-1204 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 12 1 0808-1204 ●
20 BEARING ASM; CTR,PROP SHAFT
THA 		8-98020-881-0 01 1 1506- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
THA 		8-98020-881-0 01 1 1506- ●
20 BEARING ASM; CTR,PROP SHAFT
THA 		8-98020-881-0 01 1 1208-1504 ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
THA 		8-98020-881-0 01 1 1208-1504 ●
20 BEARING ASM; CTR,PROP SHAFT
2ND THA 		8-98020-881-0 01 1 0808-0912 ● ●
20 BEARING ASM; CTR,PROP SHAFT
MLD6W M/T<Y2C> 2ND THA 		8-98020-881-0 01 1 1001-1102 ●
20 BEARING ASM; CTR,PROP SHAFT
2ND THA 		8-98020-881-0 01 1 1001-1102 ●
20 BEARING ASM; CTR,PROP SHAFT
2ND THA 		8-98020-881-0 01 1 1103-1111 ●
20 BEARING ASM; CTR,PROP SHAFT
1ST,2ND THA 		8-98020-881-0 01 1 1112- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
1ST,2ND THA 		8-98020-881-0 01 1 1112- ●
20 BEARING ASM; CTR,PROP SHAFT
1ST 		1-37510-105-0 01 1 0808-1111 ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 THA 		1-09625-161-0 02 1 1506- ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 THA 		1-09625-161-0 02 1 1506- ●
21 SEAL; OIL,CENTER BRG
ID=54 THA 		1-09625-161-0 02 1 1208-1504 ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 THA 		1-09625-161-0 02 1 1208-1504 ●
21 SEAL; OIL,CENTER BRG
ID=54 THA 		1-09625-161-0 02 1 0808-0912 ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 THA 		1-09625-161-0 02 1 0808-0912 ●
21 SEAL; OIL,CENTER BRG
ID=54 THA 		1-09625-161-0 02 1 1001-1102 ● ● ●
21 SEAL; OIL,CENTER BRG
MZW6P M/T<RSZ> ID=54 THA 		1-09625-161-0 02 1 1001-1102 ●
21 SEAL; OIL,CENTER BRG
ID=54 THA 		1-09625-161-0 02 1 1001-1102 ●
21 SEAL; OIL,CENTER BRG
ID=54 THA 		1-09625-161-0 02 1 1103- ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 THA 		1-09625-161-0 02 1 1103- ●
21 SEAL; OIL,CENTER BRG
ID=54 THA 		1-09625-161-0 04 1 0808-0912 ●
21 SEAL; OIL,CENTER BRG
MLD6W M/T<Y2C> ID=54 THA 		1-09625-161-0 04 1 1001-1102 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
THA 		1-37516-059-0 01 1 1506- ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
THA 		1-37516-059-0 01 1 1506- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
THA 		1-37516-059-0 01 1 1208-1504 ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
THA 		1-37516-059-0 01 1 1208-1504 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
THA 		1-37516-059-0 01 1 0808-0912 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
THA 		1-37516-059-0 01 1 0808-0912 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
THA 		1-37516-059-0 01 1 1001-1102 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZW6P M/T<RSZ> THA 		1-37516-059-0 01 1 1001-1102 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
THA 		1-37516-059-0 01 1 1001-1102 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
THA 		1-37516-059-0 01 1 1103- ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
THA 		1-37516-059-0 01 1 1103- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
THA 		1-37516-059-0 02 1 0808-0912 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MLD6W M/T<Y2C> THA 		1-37516-059-0 02 1 1001-1102 ●
23 BEARING; CENTER,PROP SHAFT
THA 		9-00090-071-0 01 1 1506- ● ● ● ●
23 BEARING; CENTER,PROP SHAFT
THA 		9-00090-071-0 01 1 1506- ●
23 BEARING; CENTER,PROP SHAFT
THA 		9-00090-071-0 01 1 1208-1504 ● ● ● ●
23 BEARING; CENTER,PROP SHAFT
THA 		9-00090-071-0 01 1 1208-1504 ●
23 BEARING; CENTER,PROP SHAFT
THA 		9-00090-071-0 01 1 0808-0912 ● ● ●
23 BEARING; CENTER,PROP SHAFT
THA 		9-00090-071-0 01 1 0808-0912 ●
23 BEARING; CENTER,PROP SHAFT
THA 		9-00090-071-0 01 1 1001-1102 ● ● ●
23 BEARING; CENTER,PROP SHAFT
MZW6P M/T<RSZ> THA 		9-00090-071-0 01 1 1001-1102 ●
23 BEARING; CENTER,PROP SHAFT
THA 		9-00090-071-0 01 1 1001-1102 ●
23 BEARING; CENTER,PROP SHAFT
THA 		9-00090-071-0 01 1 1103- ● ● ● ●
23 BEARING; CENTER,PROP SHAFT
THA 		9-00090-071-0 01 1 1103- ●
23 BEARING; CENTER,PROP SHAFT
THA 		9-00090-071-0 02 1 0808-0912 ●
23 BEARING; CENTER,PROP SHAFT
MLD6W M/T<Y2C> THA 		9-00090-071-0 02 1 1001-1102 ●
24 RETAINER; CENTER BRG,1ST
THA 		8-98020-882-0 01 1 1506- ● ● ● ●
24 RETAINER; CENTER BRG,1ST
THA 		8-98020-882-0 01 1 1506- ●
24 RETAINER; CENTER BRG,1ST
THA 		8-98020-882-0 01 1 1208-1504 ● ● ● ●
24 RETAINER; CENTER BRG,1ST
THA 		8-98020-882-0 01 1 1208-1504 ●
24 RETAINER; CENTER BRG,1ST
2ND THA 		8-98020-882-0 01 1 0808-0912 ● ●
24 RETAINER; CENTER BRG,1ST
MLD6W M/T<Y2C> 2ND THA 		8-98020-882-0 01 1 1001-1102 ●
24 RETAINER; CENTER BRG,1ST
2ND THA 		8-98020-882-0 01 1 1001-1102 ●
24 RETAINER; CENTER BRG,1ST
2ND THA 		8-98020-882-0 01 1 1103-1111 ●
24 RETAINER; CENTER BRG,1ST
1ST,2ND THA 		8-98020-882-0 01 1 1112- ● ● ● ●
24 RETAINER; CENTER BRG,1ST
1ST,2ND THA 		8-98020-882-0 01 1 1112- ●
24 RETAINER; CENTER BRG,1ST
1ST 		1-37529-068-0 01 1 0808-1111 ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT THA 		1-09380-006-0 01 1 1506- ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
THA 		8-98020-889-0 01 1 1506- ●
25 NIPPLE; GREASE,CENTER BRG
(B) THA 		8-98020-889-0 01 1 0808-0912 ● ●
25 NIPPLE; GREASE,CENTER BRG
MLD6W M/T<Y2C> (B) THA 		8-98020-889-0 01 1 1001-1102 ●
25 NIPPLE; GREASE,CENTER BRG
(B) THA 		8-98020-889-0 01 1 1001-1102 ●
25 NIPPLE; GREASE,CENTER BRG
(B) THA 		8-98020-889-0 01 1 1103- ●
25 NIPPLE; GREASE,CENTER BRG
(A) MT6 STRAIGHT THA 		1-09380-006-0 01 1 0808- ● ● ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 THA 		0-91614-610-0 04 1 0808- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
THA 		8-98020-815-0 01 1 1506- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
THA 		8-98020-815-0 01 1 1506- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
THA 		8-98020-815-0 01 1 1208-1504 ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
THA 		8-98020-815-0 01 1 1208-1504 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
2ND THA 		8-98020-815-0 01 1 0808-0912 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
MLD6W M/T<Y2C> 2ND THA 		8-98020-815-0 01 1 1001-1102 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
2ND THA 		8-98020-815-0 01 1 1001-1102 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
2ND THA 		8-98020-815-0 01 1 1103-1111 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST,2ND THA 		8-98020-815-0 01 1 1112- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST,2ND THA 		8-98020-815-0 01 1 1112- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST 		1-37245-071-0 01 1 0808-1111 ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 THA 		8-97160-857-0 01 1 1506- ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 THA 		8-97160-857-0 01 1 1506- ●
51 NUT; FLANGE,SPLINED
M30 THA 		8-97160-857-0 01 1 1208-1504 ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 THA 		8-97160-857-0 01 1 1208-1504 ●
51 NUT; FLANGE,SPLINED
M30 THA 		8-97160-857-0 01 1 0808-0912 ● ● ●
51 NUT; FLANGE,SPLINED
M30 THA 		8-97160-857-0 01 1 0808-0912 ●
51 NUT; FLANGE,SPLINED
M30 THA 		8-97160-857-0 01 1 1001-1102 ● ● ●
51 NUT; FLANGE,SPLINED
MZW6P M/T<RSZ> M30 THA 		8-97160-857-0 01 1 1001-1102 ●
51 NUT; FLANGE,SPLINED
M30 THA 		8-97160-857-0 01 1 1001-1102 ●
51 NUT; FLANGE,SPLINED
M30 THA 		8-97160-857-0 01 1 1103- ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 THA 		8-97160-857-0 01 1 1103- ●
51 NUT; FLANGE,SPLINED
M30 THA 		8-97160-857-0 02 1 0808-0912 ●
51 NUT; FLANGE,SPLINED
MLD6W M/T<Y2C> M30 THA 		8-97160-857-0 02 1 1001-1102 ●
56 NUT; YOKE
M14 THA 		0-91110-514-0 04 1 0808- ● ● ● ●
56 NUT; YOKE
M14 THA 		0-91110-514-0 04 1 0808- ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0808- ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0808- ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE THA 		0-28651-035-0 04 1 0808-0912 ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE THA 		0-28651-035-0 04 1 0808-0912 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE THA 		0-28651-035-0 04 1 1001-1102 ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
MLD6W M/T<Y2C> M10X35 FLANGE THA 		0-28651-035-0 04 1 1001-1102 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE THA 		0-28651-035-0 04 1 1001-1102 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE THA 		0-28651-035-0 04 1 1103- ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE THA 		0-28651-035-0 04 1 1103- ●
64 NUT; RET TO BRKT
M10 FLANGE THA 		0-91180-210-0 04 1 0808-0912 ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE THA 		0-91180-210-0 04 1 0808-0912 ● ●
64 NUT; RET TO BRKT
M10 FLANGE THA 		0-91180-210-0 04 1 1001-1102 ● ● ● ●
64 NUT; RET TO BRKT
MLD6W M/T<Y2C> M10 FLANGE THA 		0-91180-210-0 04 1 1001-1102 ●
64 NUT; RET TO BRKT
M10 FLANGE THA 		0-91180-210-0 04 1 1001-1102 ●
64 NUT; RET TO BRKT
M10 FLANGE THA 		0-91180-210-0 04 1 1103- ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE THA 		0-91180-210-0 04 1 1103- ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0808- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0808-0912 ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0808-0912 ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0808-0912 ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1001-1102 ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1001-1102 ● ● ● ●
74 BOLT; YOKE,TRANS
MLD6W M/T<Y2C> M14X37 		1-09000-121-0 04 1 1001-1102 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1001-1102 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1103- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1103- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1103- ●
104 PLUG; SLEEVE YOKE
THA 		1-09600-064-0 01 1 1506- ● ● ● ●
104 PLUG; SLEEVE YOKE
THA 		1-09600-064-0 01 1 1208-1504 ● ● ● ●
104 PLUG; SLEEVE YOKE
THA 		1-09600-064-0 01 1 0808- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT THA 		0-90301-406-0 01 1 1506- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT THA 		0-90301-406-0 01 1 1208-1504 ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT THA 		0-90301-406-0 01 1 0808- ● ● ● ●
128 SEAL; SLEEVE
THA 		1-37247-024-0 01 1 1506- ● ● ● ●
128 SEAL; SLEEVE
THA 		1-37247-024-0 01 1 1208-1504 ● ● ● ●
128 SEAL; SLEEVE
THA 		1-37247-024-0 01 1 0808- ● ● ● ●
172 BRACKET; CENTER BRG
2ND 		1-37515-136-0 01 1 0808-0912 ●
172 BRACKET; CENTER BRG
1ST 		8-98084-678-0 01 1 0808-0912 ● ●
172 BRACKET; CENTER BRG
1ST 		8-98084-678-0 01 1 1001-1102 ●
172 BRACKET; CENTER BRG
MLD6W M/T<Y2C> 1ST 		8-98084-678-0 01 1 1001-1102 ●
172 BRACKET; CENTER BRG
1ST 		8-98084-678-0 01 1 1103- ●
172 BRACKET; CENTER BRG
1ST 		1-37515-136-0 01 1 1103- ●
172 BRACKET; CENTER BRG
2ND 		1-37515-101-0 01 1 0808- ●
172 BRACKET; CENTER BRG
1ST 		1-37515-102-0 01 1 0808- ●
172 BRACKET; CENTER BRG
MLD=2ND,MZW=1ST 		1-37515-136-0 01 1 1001-1102 ●
173 BOLT; BRKT
M10X25 FLANGE THA 		0-28651-025-0 04 1 0808-0912 ● ● ●
173 BOLT; BRKT
M10X25 FLANGE THA 		0-28651-025-0 04 1 0808-0912 ● ●
173 BOLT; BRKT
M10X25 FLANGE THA 		0-28651-025-0 04 1 1001-1102 ● ● ●
173 BOLT; BRKT
MLD6W M/T<Y2C> M10X25 FLANGE THA 		0-28651-025-0 04 1 1001-1102 ●
173 BOLT; BRKT
M10X25 FLANGE THA 		0-28651-025-0 04 1 1001-1102 ●
173 BOLT; BRKT
M10X25 FLANGE THA 		0-28651-025-0 04 1 1103- ● ● ●
173 BOLT; BRKT
M10X25 FLANGE THA 		0-28651-025-0 04 1 1103- ●
174 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 04 1 0808- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 THA 		8-98020-885-0 01 1 1506- ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 THA 		8-98020-885-0 01 1 1208-1504 ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 THA 		8-98020-885-0 01 1 0808- ● ● ● ●

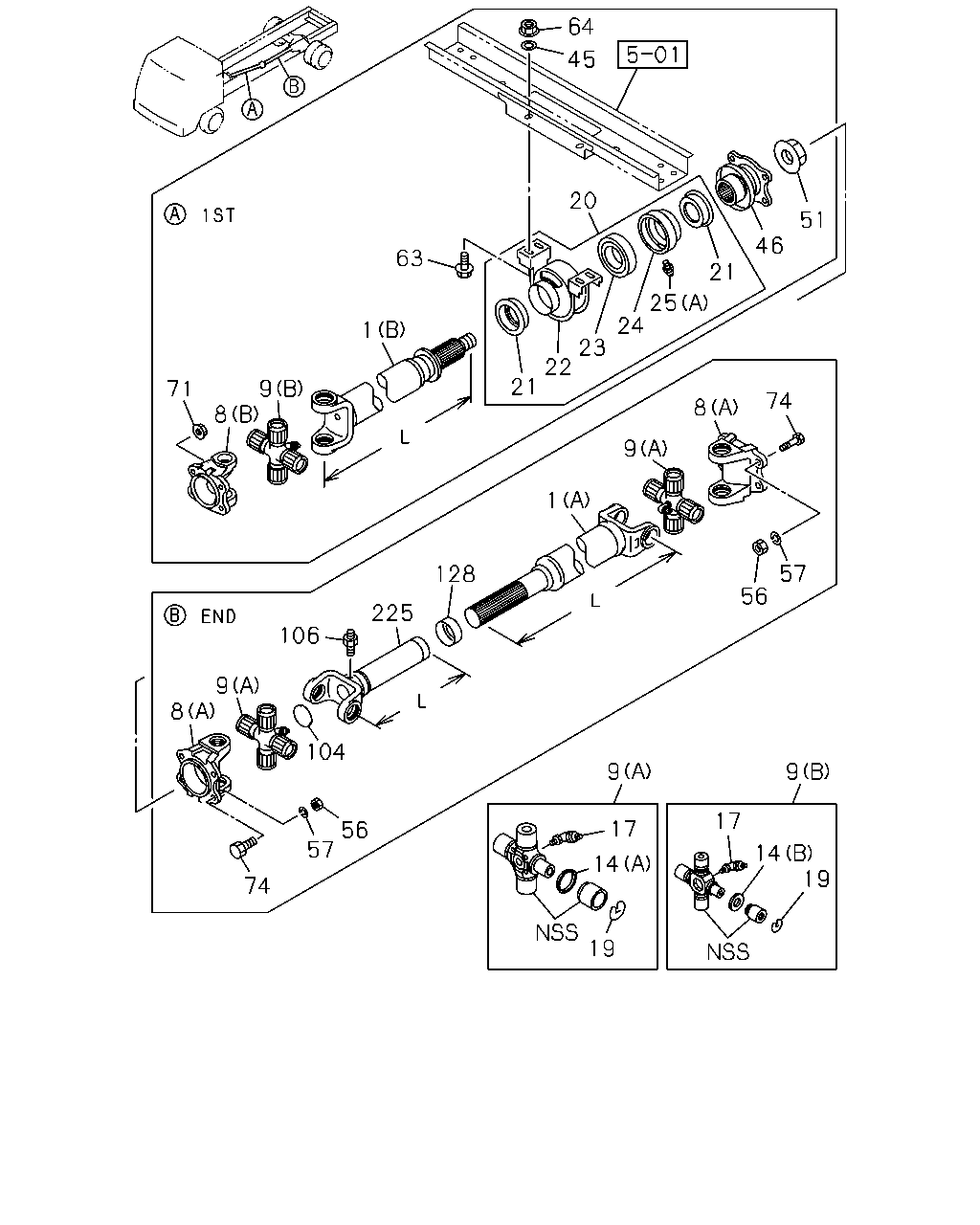

çizim 143170
64 45 20 51 46 63 21 25 24 1 23 22 21 9 8 71 74 8 9 1 57 128 56 225 106 9 8 104 9 9 17 17 56 57 14 19 14 74 19
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
MZW6P M/T<RSZ> L=651 THA 		1-37151-645-1 01 1 1506- ●
1 SHAFT; PROP
L=849 THA 		8-98069-584-0 01 1 1506- ●
1 SHAFT; PROP
L=1504 THA 		8-98090-933-0 01 1 1506- ●
1 SHAFT; PROP
L=719 THA 		8-98069-957-0 01 1 1506- ●
1 SHAFT; PROP
L=831 THA 		8-98069-670-0 01 1 1506- ●
1 SHAFT; PROP
L=1226 THA 		8-98090-989-0 01 1 1506- ●
1 SHAFT; PROP
L=1366 THA 		8-98069-684-0 01 1 1506- ●
1 SHAFT; PROP
L=1234 THA 		8-98069-590-0 01 1 1506- ●
1 SHAFT; PROP
L=1351 THA 		8-98090-992-0 01 1 1506- ●
1 SHAFT; PROP
MZW6P M/T<RSZ> (B) L=651 THA 		1-37151-645-1 01 1 1001- ●
1 SHAFT; PROP
MZW6P M/T<RSZ> (B) L=849 		8-98095-876-0 01 1 1001-1102 ●
1 SHAFT; PROP
(B) L=849 		8-98095-876-0 01 1 1103-1111 ●
1 SHAFT; PROP
(B) L=849 THA 		8-98069-584-0 01 1 1112- ●
1 SHAFT; PROP
MZW6P M/T<RSZ> (B) L=1504 		8-98095-877-0 01 1 1001-1102 ●
1 SHAFT; PROP
(B) L=1504 		8-98095-877-0 01 1 1103-1111 ●
1 SHAFT; PROP
(B) L=1504 THA 		8-98090-933-0 01 1 1112- ●
1 SHAFT; PROP
MZW6P M/T<RSZ> (B) L=726 		1-37151-632-1 01 1 1001-1102 ●
1 SHAFT; PROP
(B) L=726 		1-37151-632-1 01 1 1103-1111 ●
1 SHAFT; PROP
(B) L=719 THA 		8-98069-957-0 01 1 1112- ●
1 SHAFT; PROP
(B) L=761 		1-37151-772-1 01 1 0808-0912 ●
1 SHAFT; PROP
MLD6W M/T<Y2C> (B) L=761 		1-37151-772-1 01 1 1001-1102 ●
1 SHAFT; PROP
(B) L=961 		1-37151-382-1 01 1 0808-0912 ● ●
1 SHAFT; PROP
MLD6W M/T<Y2C> (B) L=961 		1-37151-382-1 01 1 1001-1102 ● ●
1 SHAFT; PROP
(C) L=589 		8-98119-467-0 01 1 0808-0912 ●
1 SHAFT; PROP
MLD6W M/T<Y2C> (C) L=589 		8-98119-467-0 01 1 1001-1102 ●
1 SHAFT; PROP
(B) L=829 		8-98113-452-0 01 1 0808-0912 ●
1 SHAFT; PROP
MLD6W M/T<Y2C> (B) L=829 		8-98113-452-0 01 1 1001-1102 ●
1 SHAFT; PROP
(A) L=831 THA 		8-98069-670-0 01 1 0808- ●
1 SHAFT; PROP
(A) L=1226 THA 		8-98090-989-0 01 1 0808- ●
1 SHAFT; PROP
(A) L=1366 THA 		8-98069-684-0 01 1 0808- ●
1 SHAFT; PROP
(C) L=1234 THA 		8-98069-590-0 01 1 0808- ●
1 SHAFT; PROP
(A) L=1351 THA 		8-98090-992-0 01 1 0808- ●
8 YOKE; FLANGE,PROP SHAFT
THA 		8-98178-052-0 01 1 1506- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
THA 		1-37211-056-3 01 1 1506- ●
8 YOKE; FLANGE,PROP SHAFT
THA 		1-37211-056-3 02 1 1506- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-056-3 01 1 0808-0912 ●
8 YOKE; FLANGE,PROP SHAFT
MLD6W M/T<Y2C> (A) THA 		1-37211-056-3 01 1 1001-1102 ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-056-3 02 1 0808-1204 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-056-3 02 1 1205- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-056-3 03 1 0808-1204 ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-056-3 01 1 1205- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-054-1 01 1 0808-1111 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) THA 		8-98178-052-0 01 1 1112- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
THA 		8-98048-925-1 01 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
THA 		8-98048-925-1 02 1 1506- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) THA 		8-98048-925-0 01 1 0808-0912 ●
9 JOURNAL ASM; PROP SHAFT
MLD6W M/T<Y2C> (A) THA 		8-98048-925-0 01 1 1001-1102 ●
9 JOURNAL ASM; PROP SHAFT
(A) THA 		8-98048-925-0 02 1 0808-1204 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) THA 		8-98048-925-1 02 1 1205- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) THA 		8-98048-925-0 03 1 0808-1204 ●
9 JOURNAL ASM; PROP SHAFT
(A) THA 		8-98048-925-1 01 1 1205- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-102-1 AR 1 0808-1111 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) THA 		8-98048-925-1 AR 1 1112- ● ● ● ●
14 COVER; DUST,SPIDER
THA 		8-98020-800-0 04 1 1506- ● ● ● ●
14 COVER; DUST,SPIDER
THA 		8-98020-800-0 04 1 1506- ●
14 COVER; DUST,SPIDER
THA 		8-98020-800-0 08 1 1506- ● ● ● ●
14 COVER; DUST,SPIDER
(A) THA 		8-98020-800-0 04 1 0808-0912 ●
14 COVER; DUST,SPIDER
MLD6W M/T<Y2C> (A) THA 		8-98020-800-0 04 1 1001-1102 ●
14 COVER; DUST,SPIDER
(A) THA 		8-98020-800-0 08 1 0808-1204 ● ● ●
14 COVER; DUST,SPIDER
(A) THA 		8-98020-800-0 08 1 1205- ● ● ● ●
14 COVER; DUST,SPIDER
(A) THA 		8-98020-800-0 12 1 0808-1204 ●
14 COVER; DUST,SPIDER
(B) 		1-37319-012-0 04 1 0808-1111 ● ● ● ●
14 COVER; DUST,SPIDER
(B) THA 		8-98020-800-0 04 1 1112-1204 ● ● ● ●
14 COVER; DUST,SPIDER
(B) THA 		8-98020-800-0 04 1 1205- ● ● ● ●
14 COVER; DUST,SPIDER
(B) THA 		8-98020-800-0 04 1 1205- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1506- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1208-1504 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1208-1504 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1208-1504 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0808-0912 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1001-1102 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T<RSZ> PT1/8 ELBOW 		0-90301-610-0 01 1 1001-1102 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1103-1204 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1205- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1205- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0808-0912 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0808-0912 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1001-1102 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T<Y2C> PT1/8 ELBOW 		0-90301-610-0 02 1 1001-1102 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1103-1204 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1205- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 03 1 0808-1204 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1506- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1506- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1506- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1506- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1506- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1506- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 08 1 1506- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 08 1 1506- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 08 1 1506- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1208-1504 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1208-1504 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1208-1504 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1208-1504 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1208-1504 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1208-1504 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 08 1 1208-1504 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 08 1 1208-1504 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 08 1 1208-1504 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 0808-0912 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1001-1102 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZW6P M/T<RSZ> OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1001-1102 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1103-1204 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1205- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1205- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 0808-0912 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1001-1102 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZW6P M/T<RSZ> OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1001-1102 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1103-1204 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1205- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1205- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 0808-0912 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1001-1102 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZW6P M/T<RSZ> OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1001-1102 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1103-1204 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1205- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1205- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 08 1 0808-0912 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 08 1 0808-0912 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 08 1 1001-1102 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6W M/T<Y2C> OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 08 1 1001-1102 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 08 1 1103-1204 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 08 1 1205- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 08 1 0808-0912 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 08 1 0808-0912 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 08 1 1001-1102 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6W M/T<Y2C> OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 08 1 1001-1102 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 08 1 1103-1204 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 08 1 1205- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 08 1 0808-0912 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 08 1 0808-0912 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 08 1 1001-1102 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6W M/T<Y2C> OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 08 1 1001-1102 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 08 1 1103-1204 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 08 1 1205- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 12 1 0808-1204 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 12 1 0808-1204 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 12 1 0808-1204 ●
20 BEARING ASM; CTR,PROP SHAFT
THA 		8-98020-881-0 01 1 1506- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
THA 		8-98020-881-0 01 1 1506- ●
20 BEARING ASM; CTR,PROP SHAFT
THA 		8-98020-881-0 01 1 1208-1504 ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
THA 		8-98020-881-0 01 1 1208-1504 ●
20 BEARING ASM; CTR,PROP SHAFT
2ND THA 		8-98020-881-0 01 1 0808-0912 ● ●
20 BEARING ASM; CTR,PROP SHAFT
MLD6W M/T<Y2C> 2ND THA 		8-98020-881-0 01 1 1001-1102 ●
20 BEARING ASM; CTR,PROP SHAFT
2ND THA 		8-98020-881-0 01 1 1001-1102 ●
20 BEARING ASM; CTR,PROP SHAFT
2ND THA 		8-98020-881-0 01 1 1103-1111 ●
20 BEARING ASM; CTR,PROP SHAFT
1ST,2ND THA 		8-98020-881-0 01 1 1112- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
1ST,2ND THA 		8-98020-881-0 01 1 1112- ●
20 BEARING ASM; CTR,PROP SHAFT
1ST 		1-37510-105-0 01 1 0808-1111 ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 THA 		1-09625-161-0 02 1 1506- ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 THA 		1-09625-161-0 02 1 1506- ●
21 SEAL; OIL,CENTER BRG
ID=54 THA 		1-09625-161-0 02 1 1208-1504 ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 THA 		1-09625-161-0 02 1 1208-1504 ●
21 SEAL; OIL,CENTER BRG
ID=54 THA 		1-09625-161-0 02 1 0808-0912 ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 THA 		1-09625-161-0 02 1 0808-0912 ●
21 SEAL; OIL,CENTER BRG
ID=54 THA 		1-09625-161-0 02 1 1001-1102 ● ● ●
21 SEAL; OIL,CENTER BRG
MZW6P M/T<RSZ> ID=54 THA 		1-09625-161-0 02 1 1001-1102 ●
21 SEAL; OIL,CENTER BRG
ID=54 THA 		1-09625-161-0 02 1 1001-1102 ●
21 SEAL; OIL,CENTER BRG
ID=54 THA 		1-09625-161-0 02 1 1103- ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 THA 		1-09625-161-0 02 1 1103- ●
21 SEAL; OIL,CENTER BRG
ID=54 THA 		1-09625-161-0 04 1 0808-0912 ●
21 SEAL; OIL,CENTER BRG
MLD6W M/T<Y2C> ID=54 THA 		1-09625-161-0 04 1 1001-1102 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
THA 		1-37516-059-0 01 1 1506- ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
THA 		1-37516-059-0 01 1 1506- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
THA 		1-37516-059-0 01 1 1208-1504 ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
THA 		1-37516-059-0 01 1 1208-1504 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
THA 		1-37516-059-0 01 1 0808-0912 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
THA 		1-37516-059-0 01 1 0808-0912 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
THA 		1-37516-059-0 01 1 1001-1102 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZW6P M/T<RSZ> THA 		1-37516-059-0 01 1 1001-1102 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
THA 		1-37516-059-0 01 1 1001-1102 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
THA 		1-37516-059-0 01 1 1103- ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
THA 		1-37516-059-0 01 1 1103- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
THA 		1-37516-059-0 02 1 0808-0912 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MLD6W M/T<Y2C> THA 		1-37516-059-0 02 1 1001-1102 ●
23 BEARING; CENTER,PROP SHAFT
THA 		9-00090-071-0 01 1 1506- ● ● ● ●
23 BEARING; CENTER,PROP SHAFT
THA 		9-00090-071-0 01 1 1506- ●
23 BEARING; CENTER,PROP SHAFT
THA 		9-00090-071-0 01 1 1208-1504 ● ● ● ●
23 BEARING; CENTER,PROP SHAFT
THA 		9-00090-071-0 01 1 1208-1504 ●
23 BEARING; CENTER,PROP SHAFT
THA 		9-00090-071-0 01 1 0808-0912 ● ● ●
23 BEARING; CENTER,PROP SHAFT
THA 		9-00090-071-0 01 1 0808-0912 ●
23 BEARING; CENTER,PROP SHAFT
THA 		9-00090-071-0 01 1 1001-1102 ● ● ●
23 BEARING; CENTER,PROP SHAFT
MZW6P M/T<RSZ> THA 		9-00090-071-0 01 1 1001-1102 ●
23 BEARING; CENTER,PROP SHAFT
THA 		9-00090-071-0 01 1 1001-1102 ●
23 BEARING; CENTER,PROP SHAFT
THA 		9-00090-071-0 01 1 1103- ● ● ● ●
23 BEARING; CENTER,PROP SHAFT
THA 		9-00090-071-0 01 1 1103- ●
23 BEARING; CENTER,PROP SHAFT
THA 		9-00090-071-0 02 1 0808-0912 ●
23 BEARING; CENTER,PROP SHAFT
MLD6W M/T<Y2C> THA 		9-00090-071-0 02 1 1001-1102 ●
24 RETAINER; CENTER BRG,1ST
THA 		8-98020-882-0 01 1 1506- ● ● ● ●
24 RETAINER; CENTER BRG,1ST
THA 		8-98020-882-0 01 1 1506- ●
24 RETAINER; CENTER BRG,1ST
THA 		8-98020-882-0 01 1 1208-1504 ● ● ● ●
24 RETAINER; CENTER BRG,1ST
THA 		8-98020-882-0 01 1 1208-1504 ●
24 RETAINER; CENTER BRG,1ST
2ND THA 		8-98020-882-0 01 1 0808-0912 ● ●
24 RETAINER; CENTER BRG,1ST
MLD6W M/T<Y2C> 2ND THA 		8-98020-882-0 01 1 1001-1102 ●
24 RETAINER; CENTER BRG,1ST
2ND THA 		8-98020-882-0 01 1 1001-1102 ●
24 RETAINER; CENTER BRG,1ST
2ND THA 		8-98020-882-0 01 1 1103-1111 ●
24 RETAINER; CENTER BRG,1ST
1ST,2ND THA 		8-98020-882-0 01 1 1112- ● ● ● ●
24 RETAINER; CENTER BRG,1ST
1ST,2ND THA 		8-98020-882-0 01 1 1112- ●
24 RETAINER; CENTER BRG,1ST
1ST 		1-37529-068-0 01 1 0808-1111 ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT THA 		1-09380-006-0 01 1 1506- ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
THA 		8-98020-889-0 01 1 1506- ●
25 NIPPLE; GREASE,CENTER BRG
(B) THA 		8-98020-889-0 01 1 0808-0912 ● ●
25 NIPPLE; GREASE,CENTER BRG
MLD6W M/T<Y2C> (B) THA 		8-98020-889-0 01 1 1001-1102 ●
25 NIPPLE; GREASE,CENTER BRG
(B) THA 		8-98020-889-0 01 1 1001-1102 ●
25 NIPPLE; GREASE,CENTER BRG
(B) THA 		8-98020-889-0 01 1 1103- ●
25 NIPPLE; GREASE,CENTER BRG
(A) MT6 STRAIGHT THA 		1-09380-006-0 01 1 0808- ● ● ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 THA 		0-91614-610-0 04 1 0808- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
THA 		8-98020-815-0 01 1 1506- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
THA 		8-98020-815-0 01 1 1506- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
THA 		8-98020-815-0 01 1 1208-1504 ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
THA 		8-98020-815-0 01 1 1208-1504 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
2ND THA 		8-98020-815-0 01 1 0808-0912 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
MLD6W M/T<Y2C> 2ND THA 		8-98020-815-0 01 1 1001-1102 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
2ND THA 		8-98020-815-0 01 1 1001-1102 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
2ND THA 		8-98020-815-0 01 1 1103-1111 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST,2ND THA 		8-98020-815-0 01 1 1112- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST,2ND THA 		8-98020-815-0 01 1 1112- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST 		1-37245-071-0 01 1 0808-1111 ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 THA 		8-97160-857-0 01 1 1506- ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 THA 		8-97160-857-0 01 1 1506- ●
51 NUT; FLANGE,SPLINED
M30 THA 		8-97160-857-0 01 1 1208-1504 ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 THA 		8-97160-857-0 01 1 1208-1504 ●
51 NUT; FLANGE,SPLINED
M30 THA 		8-97160-857-0 01 1 0808-0912 ● ● ●
51 NUT; FLANGE,SPLINED
M30 THA 		8-97160-857-0 01 1 0808-0912 ●
51 NUT; FLANGE,SPLINED
M30 THA 		8-97160-857-0 01 1 1001-1102 ● ● ●
51 NUT; FLANGE,SPLINED
MZW6P M/T<RSZ> M30 THA 		8-97160-857-0 01 1 1001-1102 ●
51 NUT; FLANGE,SPLINED
M30 THA 		8-97160-857-0 01 1 1001-1102 ●
51 NUT; FLANGE,SPLINED
M30 THA 		8-97160-857-0 01 1 1103- ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 THA 		8-97160-857-0 01 1 1103- ●
51 NUT; FLANGE,SPLINED
M30 THA 		8-97160-857-0 02 1 0808-0912 ●
51 NUT; FLANGE,SPLINED
MLD6W M/T<Y2C> M30 THA 		8-97160-857-0 02 1 1001-1102 ●
56 NUT; YOKE
M14 THA 		0-91110-514-0 04 1 0808- ● ● ● ●
56 NUT; YOKE
M14 THA 		0-91110-514-0 04 1 0808- ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0808- ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0808- ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE THA 		0-28651-035-0 04 1 0808-0912 ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE THA 		0-28651-035-0 04 1 0808-0912 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE THA 		0-28651-035-0 04 1 1001-1102 ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
MLD6W M/T<Y2C> M10X35 FLANGE THA 		0-28651-035-0 04 1 1001-1102 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE THA 		0-28651-035-0 04 1 1001-1102 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE THA 		0-28651-035-0 04 1 1103- ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE THA 		0-28651-035-0 04 1 1103- ●
64 NUT; RET TO BRKT
M10 FLANGE THA 		0-91180-210-0 04 1 0808-0912 ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE THA 		0-91180-210-0 04 1 0808-0912 ● ●
64 NUT; RET TO BRKT
M10 FLANGE THA 		0-91180-210-0 04 1 1001-1102 ● ● ● ●
64 NUT; RET TO BRKT
MLD6W M/T<Y2C> M10 FLANGE THA 		0-91180-210-0 04 1 1001-1102 ●
64 NUT; RET TO BRKT
M10 FLANGE THA 		0-91180-210-0 04 1 1001-1102 ●
64 NUT; RET TO BRKT
M10 FLANGE THA 		0-91180-210-0 04 1 1103- ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE THA 		0-91180-210-0 04 1 1103- ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0808- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0808-0912 ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0808-0912 ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0808-0912 ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1001-1102 ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1001-1102 ● ● ● ●
74 BOLT; YOKE,TRANS
MLD6W M/T<Y2C> M14X37 		1-09000-121-0 04 1 1001-1102 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1001-1102 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1103- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1103- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1103- ●
104 PLUG; SLEEVE YOKE
THA 		1-09600-064-0 01 1 1506- ● ● ● ●
104 PLUG; SLEEVE YOKE
THA 		1-09600-064-0 01 1 1208-1504 ● ● ● ●
104 PLUG; SLEEVE YOKE
THA 		1-09600-064-0 01 1 0808- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT THA 		0-90301-406-0 01 1 1506- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT THA 		0-90301-406-0 01 1 1208-1504 ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT THA 		0-90301-406-0 01 1 0808- ● ● ● ●
128 SEAL; SLEEVE
THA 		1-37247-024-0 01 1 1506- ● ● ● ●
128 SEAL; SLEEVE
THA 		1-37247-024-0 01 1 1208-1504 ● ● ● ●
128 SEAL; SLEEVE
THA 		1-37247-024-0 01 1 0808- ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 THA 		8-98020-885-0 01 1 1506- ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 THA 		8-98020-885-0 01 1 1208-1504 ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 THA 		8-98020-885-0 01 1 0808- ● ● ● ●
çizim 143180
174 172 173 64 45 20 51 46 63 21 25 24 1 23 22 71 21 9 8 177 172 51 46 173 20 64 60 21 24 63 25 23 1 49 52 22 21 9 8 9 9 74 17 17 14 19 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
MZW6P M/T<RSZ> L=651 THA 		1-37151-645-1 01 1 1506- ●
1 SHAFT; PROP
L=849 THA 		8-98069-584-0 01 1 1506- ●
1 SHAFT; PROP
L=1504 THA 		8-98090-933-0 01 1 1506- ●
1 SHAFT; PROP
L=719 THA 		8-98069-957-0 01 1 1506- ●
1 SHAFT; PROP
L=831 THA 		8-98069-670-0 01 1 1506- ●
1 SHAFT; PROP
L=1226 THA 		8-98090-989-0 01 1 1506- ●
1 SHAFT; PROP
L=1366 THA 		8-98069-684-0 01 1 1506- ●
1 SHAFT; PROP
L=1234 THA 		8-98069-590-0 01 1 1506- ●
1 SHAFT; PROP
L=1351 THA 		8-98090-992-0 01 1 1506- ●
1 SHAFT; PROP
MZW6P M/T<RSZ> (B) L=651 THA 		1-37151-645-1 01 1 1001- ●
1 SHAFT; PROP
MZW6P M/T<RSZ> (B) L=849 		8-98095-876-0 01 1 1001-1102 ●
1 SHAFT; PROP
(B) L=849 		8-98095-876-0 01 1 1103-1111 ●
1 SHAFT; PROP
(B) L=849 THA 		8-98069-584-0 01 1 1112- ●
1 SHAFT; PROP
MZW6P M/T<RSZ> (B) L=1504 		8-98095-877-0 01 1 1001-1102 ●
1 SHAFT; PROP
(B) L=1504 		8-98095-877-0 01 1 1103-1111 ●
1 SHAFT; PROP
(B) L=1504 THA 		8-98090-933-0 01 1 1112- ●
1 SHAFT; PROP
MZW6P M/T<RSZ> (B) L=726 		1-37151-632-1 01 1 1001-1102 ●
1 SHAFT; PROP
(B) L=726 		1-37151-632-1 01 1 1103-1111 ●
1 SHAFT; PROP
(B) L=719 THA 		8-98069-957-0 01 1 1112- ●
1 SHAFT; PROP
(B) L=761 		1-37151-772-1 01 1 0808-0912 ●
1 SHAFT; PROP
MLD6W M/T<Y2C> (B) L=761 		1-37151-772-1 01 1 1001-1102 ●
1 SHAFT; PROP
(B) L=961 		1-37151-382-1 01 1 0808-0912 ● ●
1 SHAFT; PROP
MLD6W M/T<Y2C> (B) L=961 		1-37151-382-1 01 1 1001-1102 ● ●
1 SHAFT; PROP
(C) L=589 		8-98119-467-0 01 1 0808-0912 ●
1 SHAFT; PROP
MLD6W M/T<Y2C> (C) L=589 		8-98119-467-0 01 1 1001-1102 ●
1 SHAFT; PROP
(B) L=829 		8-98113-452-0 01 1 0808-0912 ●
1 SHAFT; PROP
MLD6W M/T<Y2C> (B) L=829 		8-98113-452-0 01 1 1001-1102 ●
1 SHAFT; PROP
(A) L=831 THA 		8-98069-670-0 01 1 0808- ●
1 SHAFT; PROP
(A) L=1226 THA 		8-98090-989-0 01 1 0808- ●
1 SHAFT; PROP
(A) L=1366 THA 		8-98069-684-0 01 1 0808- ●
1 SHAFT; PROP
(C) L=1234 THA 		8-98069-590-0 01 1 0808- ●
1 SHAFT; PROP
(A) L=1351 THA 		8-98090-992-0 01 1 0808- ●
8 YOKE; FLANGE,PROP SHAFT
THA 		8-98178-052-0 01 1 1506- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
THA 		1-37211-056-3 01 1 1506- ●
8 YOKE; FLANGE,PROP SHAFT
THA 		1-37211-056-3 02 1 1506- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-056-3 01 1 0808-0912 ●
8 YOKE; FLANGE,PROP SHAFT
MLD6W M/T<Y2C> (A) THA 		1-37211-056-3 01 1 1001-1102 ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-056-3 02 1 0808-1204 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-056-3 02 1 1205- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-056-3 03 1 0808-1204 ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-056-3 01 1 1205- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-054-1 01 1 0808-1111 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) THA 		8-98178-052-0 01 1 1112- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
THA 		8-98048-925-1 01 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
THA 		8-98048-925-1 02 1 1506- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) THA 		8-98048-925-0 01 1 0808-0912 ●
9 JOURNAL ASM; PROP SHAFT
MLD6W M/T<Y2C> (A) THA 		8-98048-925-0 01 1 1001-1102 ●
9 JOURNAL ASM; PROP SHAFT
(A) THA 		8-98048-925-0 02 1 0808-1204 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) THA 		8-98048-925-1 02 1 1205- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) THA 		8-98048-925-0 03 1 0808-1204 ●
9 JOURNAL ASM; PROP SHAFT
(A) THA 		8-98048-925-1 01 1 1205- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-102-1 AR 1 0808-1111 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) THA 		8-98048-925-1 AR 1 1112- ● ● ● ●
14 COVER; DUST,SPIDER
THA 		8-98020-800-0 04 1 1506- ● ● ● ●
14 COVER; DUST,SPIDER
THA 		8-98020-800-0 04 1 1506- ●
14 COVER; DUST,SPIDER
THA 		8-98020-800-0 08 1 1506- ● ● ● ●
14 COVER; DUST,SPIDER
(A) THA 		8-98020-800-0 04 1 0808-0912 ●
14 COVER; DUST,SPIDER
MLD6W M/T<Y2C> (A) THA 		8-98020-800-0 04 1 1001-1102 ●
14 COVER; DUST,SPIDER
(A) THA 		8-98020-800-0 08 1 0808-1204 ● ● ●
14 COVER; DUST,SPIDER
(A) THA 		8-98020-800-0 08 1 1205- ● ● ● ●
14 COVER; DUST,SPIDER
(A) THA 		8-98020-800-0 12 1 0808-1204 ●
14 COVER; DUST,SPIDER
(B) 		1-37319-012-0 04 1 0808-1111 ● ● ● ●
14 COVER; DUST,SPIDER
(B) THA 		8-98020-800-0 04 1 1112-1204 ● ● ● ●
14 COVER; DUST,SPIDER
(B) THA 		8-98020-800-0 04 1 1205- ● ● ● ●
14 COVER; DUST,SPIDER
(B) THA 		8-98020-800-0 04 1 1205- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1506- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1208-1504 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1208-1504 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1208-1504 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0808-0912 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1001-1102 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T<RSZ> PT1/8 ELBOW 		0-90301-610-0 01 1 1001-1102 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1103-1204 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1205- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1205- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0808-0912 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0808-0912 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1001-1102 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T<Y2C> PT1/8 ELBOW 		0-90301-610-0 02 1 1001-1102 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1103-1204 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1205- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 03 1 0808-1204 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1506- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1506- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1506- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1506- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1506- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1506- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 08 1 1506- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 08 1 1506- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 08 1 1506- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1208-1504 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1208-1504 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1208-1504 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1208-1504 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1208-1504 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1208-1504 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 08 1 1208-1504 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 08 1 1208-1504 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 08 1 1208-1504 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 0808-0912 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1001-1102 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZW6P M/T<RSZ> OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1001-1102 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1103-1204 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1205- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1205- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 0808-0912 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1001-1102 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZW6P M/T<RSZ> OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1001-1102 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1103-1204 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1205- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1205- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 0808-0912 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1001-1102 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZW6P M/T<RSZ> OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1001-1102 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1103-1204 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1205- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1205- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 08 1 0808-0912 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 08 1 0808-0912 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 08 1 1001-1102 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6W M/T<Y2C> OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 08 1 1001-1102 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 08 1 1103-1204 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 08 1 1205- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 08 1 0808-0912 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 08 1 0808-0912 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 08 1 1001-1102 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6W M/T<Y2C> OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 08 1 1001-1102 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 08 1 1103-1204 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 08 1 1205- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 08 1 0808-0912 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 08 1 0808-0912 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 08 1 1001-1102 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6W M/T<Y2C> OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 08 1 1001-1102 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 08 1 1103-1204 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 08 1 1205- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 12 1 0808-1204 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 12 1 0808-1204 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 12 1 0808-1204 ●
20 BEARING ASM; CTR,PROP SHAFT
THA 		8-98020-881-0 01 1 1506- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
THA 		8-98020-881-0 01 1 1506- ●
20 BEARING ASM; CTR,PROP SHAFT
THA 		8-98020-881-0 01 1 1208-1504 ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
THA 		8-98020-881-0 01 1 1208-1504 ●
20 BEARING ASM; CTR,PROP SHAFT
2ND THA 		8-98020-881-0 01 1 0808-0912 ● ●
20 BEARING ASM; CTR,PROP SHAFT
MLD6W M/T<Y2C> 2ND THA 		8-98020-881-0 01 1 1001-1102 ●
20 BEARING ASM; CTR,PROP SHAFT
2ND THA 		8-98020-881-0 01 1 1001-1102 ●
20 BEARING ASM; CTR,PROP SHAFT
2ND THA 		8-98020-881-0 01 1 1103-1111 ●
20 BEARING ASM; CTR,PROP SHAFT
1ST,2ND THA 		8-98020-881-0 01 1 1112- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
1ST,2ND THA 		8-98020-881-0 01 1 1112- ●
20 BEARING ASM; CTR,PROP SHAFT
1ST 		1-37510-105-0 01 1 0808-1111 ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 THA 		1-09625-161-0 02 1 1506- ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 THA 		1-09625-161-0 02 1 1506- ●
21 SEAL; OIL,CENTER BRG
ID=54 THA 		1-09625-161-0 02 1 1208-1504 ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 THA 		1-09625-161-0 02 1 1208-1504 ●
21 SEAL; OIL,CENTER BRG
ID=54 THA 		1-09625-161-0 02 1 0808-0912 ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 THA 		1-09625-161-0 02 1 0808-0912 ●
21 SEAL; OIL,CENTER BRG
ID=54 THA 		1-09625-161-0 02 1 1001-1102 ● ● ●
21 SEAL; OIL,CENTER BRG
MZW6P M/T<RSZ> ID=54 THA 		1-09625-161-0 02 1 1001-1102 ●
21 SEAL; OIL,CENTER BRG
ID=54 THA 		1-09625-161-0 02 1 1001-1102 ●
21 SEAL; OIL,CENTER BRG
ID=54 THA 		1-09625-161-0 02 1 1103- ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 THA 		1-09625-161-0 02 1 1103- ●
21 SEAL; OIL,CENTER BRG
ID=54 THA 		1-09625-161-0 04 1 0808-0912 ●
21 SEAL; OIL,CENTER BRG
MLD6W M/T<Y2C> ID=54 THA 		1-09625-161-0 04 1 1001-1102 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
THA 		1-37516-059-0 01 1 1506- ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
THA 		1-37516-059-0 01 1 1506- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
THA 		1-37516-059-0 01 1 1208-1504 ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
THA 		1-37516-059-0 01 1 1208-1504 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
THA 		1-37516-059-0 01 1 0808-0912 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
THA 		1-37516-059-0 01 1 0808-0912 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
THA 		1-37516-059-0 01 1 1001-1102 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZW6P M/T<RSZ> THA 		1-37516-059-0 01 1 1001-1102 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
THA 		1-37516-059-0 01 1 1001-1102 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
THA 		1-37516-059-0 01 1 1103- ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
THA 		1-37516-059-0 01 1 1103- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
THA 		1-37516-059-0 02 1 0808-0912 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MLD6W M/T<Y2C> THA 		1-37516-059-0 02 1 1001-1102 ●
23 BEARING; CENTER,PROP SHAFT
THA 		9-00090-071-0 01 1 1506- ● ● ● ●
23 BEARING; CENTER,PROP SHAFT
THA 		9-00090-071-0 01 1 1506- ●
23 BEARING; CENTER,PROP SHAFT
THA 		9-00090-071-0 01 1 1208-1504 ● ● ● ●
23 BEARING; CENTER,PROP SHAFT
THA 		9-00090-071-0 01 1 1208-1504 ●
23 BEARING; CENTER,PROP SHAFT
THA 		9-00090-071-0 01 1 0808-0912 ● ● ●
23 BEARING; CENTER,PROP SHAFT
THA 		9-00090-071-0 01 1 0808-0912 ●
23 BEARING; CENTER,PROP SHAFT
THA 		9-00090-071-0 01 1 1001-1102 ● ● ●
23 BEARING; CENTER,PROP SHAFT
MZW6P M/T<RSZ> THA 		9-00090-071-0 01 1 1001-1102 ●
23 BEARING; CENTER,PROP SHAFT
THA 		9-00090-071-0 01 1 1001-1102 ●
23 BEARING; CENTER,PROP SHAFT
THA 		9-00090-071-0 01 1 1103- ● ● ● ●
23 BEARING; CENTER,PROP SHAFT
THA 		9-00090-071-0 01 1 1103- ●
23 BEARING; CENTER,PROP SHAFT
THA 		9-00090-071-0 02 1 0808-0912 ●
23 BEARING; CENTER,PROP SHAFT
MLD6W M/T<Y2C> THA 		9-00090-071-0 02 1 1001-1102 ●
24 RETAINER; CENTER BRG,1ST
THA 		8-98020-882-0 01 1 1506- ● ● ● ●
24 RETAINER; CENTER BRG,1ST
THA 		8-98020-882-0 01 1 1506- ●
24 RETAINER; CENTER BRG,1ST
THA 		8-98020-882-0 01 1 1208-1504 ● ● ● ●
24 RETAINER; CENTER BRG,1ST
THA 		8-98020-882-0 01 1 1208-1504 ●
24 RETAINER; CENTER BRG,1ST
2ND THA 		8-98020-882-0 01 1 0808-0912 ● ●
24 RETAINER; CENTER BRG,1ST
MLD6W M/T<Y2C> 2ND THA 		8-98020-882-0 01 1 1001-1102 ●
24 RETAINER; CENTER BRG,1ST
2ND THA 		8-98020-882-0 01 1 1001-1102 ●
24 RETAINER; CENTER BRG,1ST
2ND THA 		8-98020-882-0 01 1 1103-1111 ●
24 RETAINER; CENTER BRG,1ST
1ST,2ND THA 		8-98020-882-0 01 1 1112- ● ● ● ●
24 RETAINER; CENTER BRG,1ST
1ST,2ND THA 		8-98020-882-0 01 1 1112- ●
24 RETAINER; CENTER BRG,1ST
1ST 		1-37529-068-0 01 1 0808-1111 ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT THA 		1-09380-006-0 01 1 1506- ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
THA 		8-98020-889-0 01 1 1506- ●
25 NIPPLE; GREASE,CENTER BRG
(B) THA 		8-98020-889-0 01 1 0808-0912 ● ●
25 NIPPLE; GREASE,CENTER BRG
MLD6W M/T<Y2C> (B) THA 		8-98020-889-0 01 1 1001-1102 ●
25 NIPPLE; GREASE,CENTER BRG
(B) THA 		8-98020-889-0 01 1 1001-1102 ●
25 NIPPLE; GREASE,CENTER BRG
(B) THA 		8-98020-889-0 01 1 1103- ●
25 NIPPLE; GREASE,CENTER BRG
(A) MT6 STRAIGHT THA 		1-09380-006-0 01 1 0808- ● ● ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 THA 		0-91614-610-0 04 1 0808- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
THA 		8-98020-815-0 01 1 1506- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
THA 		8-98020-815-0 01 1 1506- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
THA 		8-98020-815-0 01 1 1208-1504 ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
THA 		8-98020-815-0 01 1 1208-1504 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
2ND THA 		8-98020-815-0 01 1 0808-0912 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
MLD6W M/T<Y2C> 2ND THA 		8-98020-815-0 01 1 1001-1102 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
2ND THA 		8-98020-815-0 01 1 1001-1102 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
2ND THA 		8-98020-815-0 01 1 1103-1111 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST,2ND THA 		8-98020-815-0 01 1 1112- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST,2ND THA 		8-98020-815-0 01 1 1112- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST 		1-37245-071-0 01 1 0808-1111 ● ● ● ●
49 NUT; YOKE
M14 THA 		0-91110-514-0 04 1 0808-0912 ● ●
49 NUT; YOKE
MLD6W M/T<Y2C> M14 THA 		0-91110-514-0 04 1 1001-1102 ●
49 NUT; YOKE
M14 THA 		0-91110-514-0 04 1 1001-1102 ●
49 NUT; YOKE
M14 THA 		0-91110-514-0 04 1 1103- ●
51 NUT; FLANGE,SPLINED
M30 THA 		8-97160-857-0 01 1 1506- ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 THA 		8-97160-857-0 01 1 1506- ●
51 NUT; FLANGE,SPLINED
M30 THA 		8-97160-857-0 01 1 1208-1504 ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 THA 		8-97160-857-0 01 1 1208-1504 ●
51 NUT; FLANGE,SPLINED
M30 THA 		8-97160-857-0 01 1 0808-0912 ● ● ●
51 NUT; FLANGE,SPLINED
M30 THA 		8-97160-857-0 01 1 0808-0912 ●
51 NUT; FLANGE,SPLINED
M30 THA 		8-97160-857-0 01 1 1001-1102 ● ● ●
51 NUT; FLANGE,SPLINED
MZW6P M/T<RSZ> M30 THA 		8-97160-857-0 01 1 1001-1102 ●
51 NUT; FLANGE,SPLINED
M30 THA 		8-97160-857-0 01 1 1001-1102 ●
51 NUT; FLANGE,SPLINED
M30 THA 		8-97160-857-0 01 1 1103- ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 THA 		8-97160-857-0 01 1 1103- ●
51 NUT; FLANGE,SPLINED
M30 THA 		8-97160-857-0 02 1 0808-0912 ●
51 NUT; FLANGE,SPLINED
MLD6W M/T<Y2C> M30 THA 		8-97160-857-0 02 1 1001-1102 ●
52 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0808-0912 ● ●
52 WASHER; LK,YOKE
MLD6W M/T<Y2C> ID=14.2 		0-91510-614-0 04 1 1001-1102 ●
52 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1001-1102 ●
52 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1103- ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 THA 		0-91614-610-0 04 1 0808-0912 ● ●
60 WASHER; PL,RET TO BRKT
MLD6W M/T<Y2C> ID=10.5 OD=22 THA 		0-91614-610-0 04 1 1001-1102 ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 THA 		0-91614-610-0 04 1 1001-1102 ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 THA 		0-91614-610-0 04 1 1103- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE THA 		0-28651-035-0 04 1 0808-0912 ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE THA 		0-28651-035-0 04 1 0808-0912 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE THA 		0-28651-035-0 04 1 1001-1102 ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
MLD6W M/T<Y2C> M10X35 FLANGE THA 		0-28651-035-0 04 1 1001-1102 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE THA 		0-28651-035-0 04 1 1001-1102 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE THA 		0-28651-035-0 04 1 1103- ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE THA 		0-28651-035-0 04 1 1103- ●
64 NUT; RET TO BRKT
M10 FLANGE THA 		0-91180-210-0 04 1 0808-0912 ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE THA 		0-91180-210-0 04 1 0808-0912 ● ●
64 NUT; RET TO BRKT
M10 FLANGE THA 		0-91180-210-0 04 1 1001-1102 ● ● ● ●
64 NUT; RET TO BRKT
MLD6W M/T<Y2C> M10 FLANGE THA 		0-91180-210-0 04 1 1001-1102 ●
64 NUT; RET TO BRKT
M10 FLANGE THA 		0-91180-210-0 04 1 1001-1102 ●
64 NUT; RET TO BRKT
M10 FLANGE THA 		0-91180-210-0 04 1 1103- ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE THA 		0-91180-210-0 04 1 1103- ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0808- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0808-0912 ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0808-0912 ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0808-0912 ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1001-1102 ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1001-1102 ● ● ● ●
74 BOLT; YOKE,TRANS
MLD6W M/T<Y2C> M14X37 		1-09000-121-0 04 1 1001-1102 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1001-1102 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1103- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1103- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1103- ●
172 BRACKET; CENTER BRG
2ND 		1-37515-136-0 01 1 0808-0912 ●
172 BRACKET; CENTER BRG
1ST 		8-98084-678-0 01 1 0808-0912 ● ●
172 BRACKET; CENTER BRG
1ST 		8-98084-678-0 01 1 1001-1102 ●
172 BRACKET; CENTER BRG
MLD6W M/T<Y2C> 1ST 		8-98084-678-0 01 1 1001-1102 ●
172 BRACKET; CENTER BRG
1ST 		8-98084-678-0 01 1 1103- ●
172 BRACKET; CENTER BRG
1ST 		1-37515-136-0 01 1 1103- ●
172 BRACKET; CENTER BRG
2ND 		1-37515-101-0 01 1 0808- ●
172 BRACKET; CENTER BRG
1ST 		1-37515-102-0 01 1 0808- ●
172 BRACKET; CENTER BRG
MLD=2ND,MZW=1ST 		1-37515-136-0 01 1 1001-1102 ●
173 BOLT; BRKT
M10X25 FLANGE THA 		0-28651-025-0 04 1 0808-0912 ● ● ●
173 BOLT; BRKT
M10X25 FLANGE THA 		0-28651-025-0 04 1 0808-0912 ● ●
173 BOLT; BRKT
M10X25 FLANGE THA 		0-28651-025-0 04 1 1001-1102 ● ● ●
173 BOLT; BRKT
MLD6W M/T<Y2C> M10X25 FLANGE THA 		0-28651-025-0 04 1 1001-1102 ●
173 BOLT; BRKT
M10X25 FLANGE THA 		0-28651-025-0 04 1 1001-1102 ●
173 BOLT; BRKT
M10X25 FLANGE THA 		0-28651-025-0 04 1 1103- ● ● ●
173 BOLT; BRKT
M10X25 FLANGE THA 		0-28651-025-0 04 1 1103- ●
174 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 04 1 0808- ● ● ●
177 NUT
M10 FLANGE THA 		0-91180-210-0 04 1 0808-0912 ● ●
177 NUT
MLD6W M/T<Y2C> M10 FLANGE THA 		0-91180-210-0 04 1 1001-1102 ●
177 NUT
M10 FLANGE THA 		0-91180-210-0 04 1 1001-1102 ●
177 NUT
M10 FLANGE THA 		0-91180-210-0 04 1 1103- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
