◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11551 - FRR-L EURO5 EXC.SPAC ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶
5-01 — FRAME AND OTHER PARTS (#128116) — 75 parça

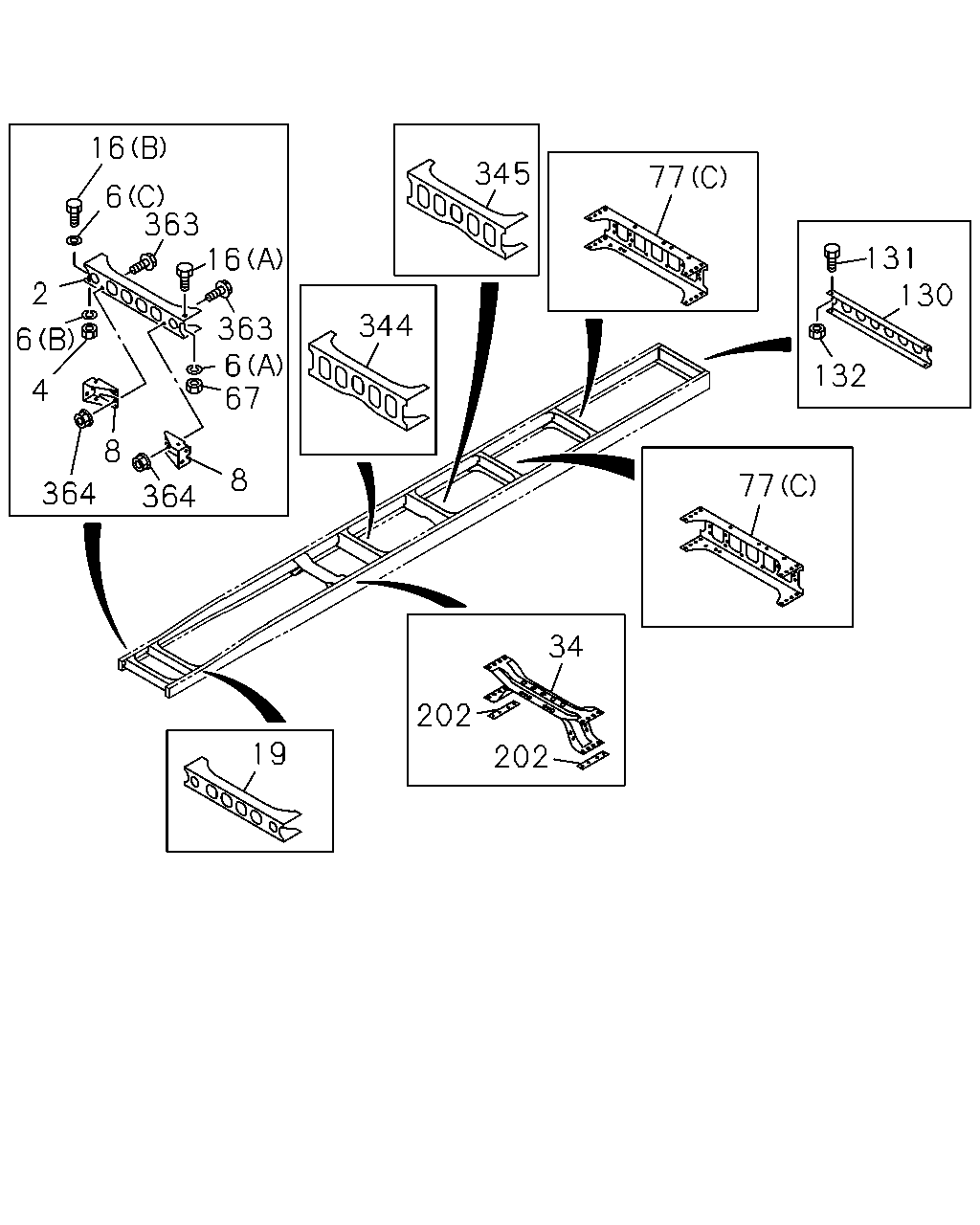

çizim 379815
16 363 363 16 6 8 67 364 364 4 6 2 344 345 77 131 132 130 77 34 202 202 19 6 8
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 MEMBER; CROSS,1ST 8-97615-669-2 01 1 1310- ● ● ● ●
4 NUT; 1ST C/MBR TO S/MBR
M14 		0-91110-514-0 02 1 1310- ● ● ● ●
6 WASHER; LK,1ST C/MBR
(A) ID=12.2 		0-91510-512-0 02 1 1310- ● ● ● ●
6 WASHER; LK,1ST C/MBR
(B) ID=14.2 		0-91510-814-0 02 1 1310- ● ● ● ●
6 WASHER; LK,1ST C/MBR
(C) ID=15 		8-98010-627-1 02 1 1310- ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-912-1 01 1 1310- ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-913-2 01 1 1310- ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 		0-20851-230-0 02 1 1310- ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(B) M14X40 		0-20851-440-0 02 1 1310- ● ● ● ●
19 MEMBER; CROSS,2ND 8-97620-866-5 01 1 1310- ● ● ● ●
34 MEMBER; CROSS,3RD 8-97609-755-0 01 1 1310- ● ● ● ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 1310- ● ● ● ●
77 MEMBER; CROSS,TRUNNION RR
(B) 		8-97609-475-2 01 1 1310- ●
77 MEMBER; CROSS,TRUNNION RR
(A) 		8-97609-478-4 01 1 1310- ●
77 MEMBER; CROSS,TRUNNION RR
(C) 		8-97610-935-1 02 1 1310- ● ● ●
130 MEMBER; CROSS,END 8-97609-469-0 01 1 1310- ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 1310- ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 1310- ● ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 1310- ● ● ● ●
202 SPACER; 3RD C/MBR 8-97609-757-0 02 1 1310- ● ● ● ●
344 MEMBER; CROSS,4TH 8-97609-472-2 01 1 1310- ● ● ●
345 MEMBER; CROSS,5TH 8-97609-472-2 01 1 1310- ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 1310- ● ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 1310- ● ● ● ●

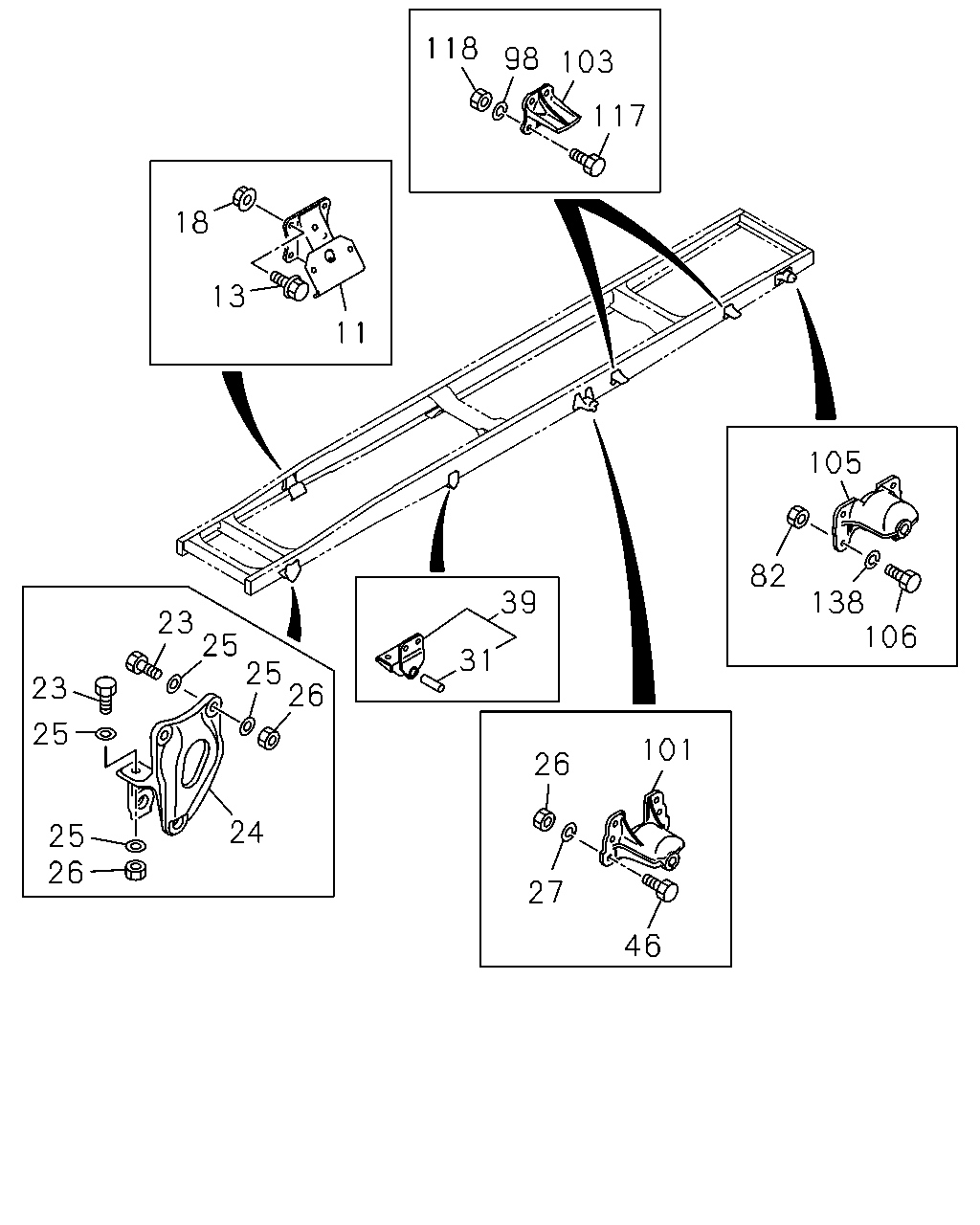

çizim 379913
106 138 82 105 117 103 98 118 11 13 18 23 25 25 26 24 25 26 25 26 27 46 101 39 31 23
BalonParca AdiParca NoAdetTipApplied Date A B C D
11 BRACKET; ENG MTG 8-97609-502-0 02 1 1310- ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1310- ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1310- ● ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 1310- ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-201-0 01 1 1310- ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-203-0 01 1 1310- ● ● ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 1310- ● ● ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 1310- ● ● ● ●
27 WASHER; LK,BRKT,FRT SPR
ID=14.2 		0-91510-614-0 12 1 1310- ● ● ● ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 1310- ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-154-2 02 1 1310- ● ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 12 1 1310- ● ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 10 1 1310- ● ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 1310- ● ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 1310- ● ● ● ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 1310- ● ● ● ●
105 BRACKET; RR SPR,RR 1-53354-074-0 02 1 1310- ● ● ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 10 1 1310- ● ● ● ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 1310- ● ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 1310- ● ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 10 1 1310- ● ● ● ●

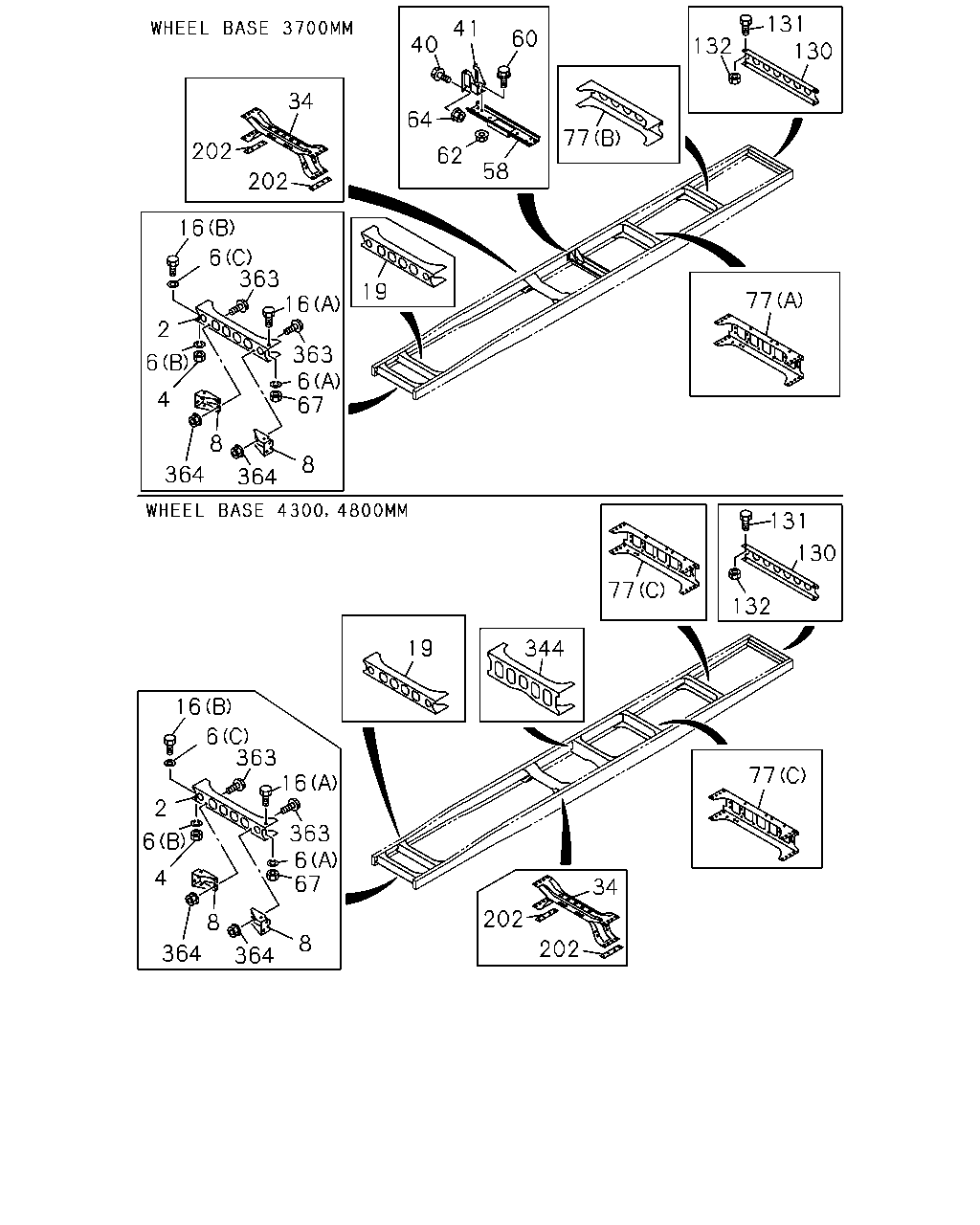

çizim 381338
202 202 34 77 77 131 132 130 19 344 16 363 16 6 2 6 4 364 364 8 8 67 6 363 8 364 8 364 4 6 2 16 6 363 16 363 6 67 19 202 34 202 40 41 64 60 58 62 77 132 131 130 77
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 MEMBER; CROSS,1ST 8-97615-669-2 01 1 1310- ● ● ● ●
4 NUT; 1ST C/MBR TO S/MBR
M14 		0-91110-514-0 02 1 1310- ● ● ● ●
6 WASHER; LK,1ST C/MBR
(A) ID=12.2 		0-91510-512-0 02 1 1310- ● ● ● ●
6 WASHER; LK,1ST C/MBR
(B) ID=14.2 		0-91510-814-0 02 1 1310- ● ● ● ●
6 WASHER; LK,1ST C/MBR
(C) ID=15 		8-98010-627-1 02 1 1310- ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-912-1 01 1 1310- ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-913-2 01 1 1310- ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 		0-20851-230-0 02 1 1310- ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(B) M14X40 		0-20851-440-0 02 1 1310- ● ● ● ●
19 MEMBER; CROSS,2ND 8-97620-866-5 01 1 1310- ● ● ● ●
34 MEMBER; CROSS,3RD 8-97609-755-0 01 1 1310- ● ● ● ●
40 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28651-030-0 08 1 1310- ●
41 BRACKET; CENTER BRG,FRAME SIDE 8-97615-973-2 01 1 1310- ●
41 BRACKET; CENTER BRG,FRAME SIDE 8-97615-974-2 01 1 1310- ●
58 MEMBER; CENTER BRG 8-97629-975-0 01 1 1310- ●
60 BOLT; MBR
M10X25 FLANGE 		0-28651-025-0 08 1 1310- ●
62 NUT; MBR
M10 FLANGE 		0-91180-110-0 08 1 1310- ●
64 NUT; BRKT TO FRAME
M10 FLANGE 		0-91180-110-0 08 1 1310- ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 1310- ● ● ● ●
77 MEMBER; CROSS,TRUNNION RR
(B) 		8-97609-475-2 01 1 1310- ●
77 MEMBER; CROSS,TRUNNION RR
(A) 		8-97609-478-4 01 1 1310- ●
77 MEMBER; CROSS,TRUNNION RR
(C) 		8-97610-935-1 02 1 1310- ● ● ●
130 MEMBER; CROSS,END 8-97609-469-0 01 1 1310- ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 1310- ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 1310- ● ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 1310- ● ● ● ●
202 SPACER; 3RD C/MBR 8-97609-757-0 02 1 1310- ● ● ● ●
344 MEMBER; CROSS,4TH 8-97609-472-2 01 1 1310- ● ● ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 1310- ● ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 1310- ● ● ● ●
