4-80 — ROAD WHEEL (#128115) — 44 parça

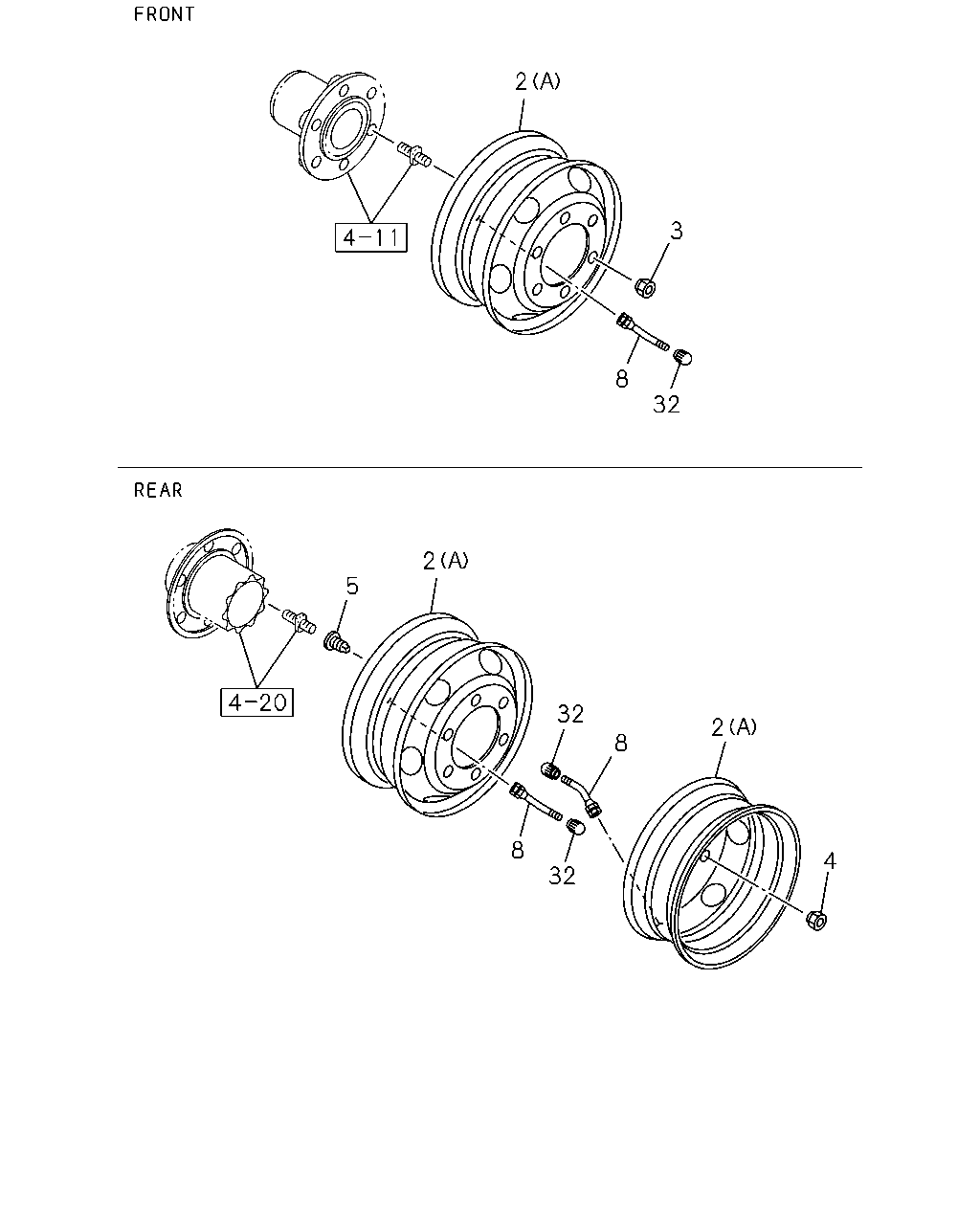

2 3 8 32 2 5 32 8 8 32 4 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL SPARE<N79> WHEEL 6STUD 6.00GSX16 135-9(SG7) DISC WHEEL NOT PAINTED TOPY BLACK<TGJ> EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE	1-42350-417-0	01	1	1310-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 6STUD 6.00GSX16 135-9(SG7) DISC WHEEL NOT PAINTED TOPY BLACK<TGJ> EXC. DISC WHEEL SPARE<N79> (B) SPARE	1-42350-417-0	01	1	1310-
2	WHEEL; DISC DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) WHEEL PAINTED LIGHT ARGENT<SKD> (A) FRONT,REAR	1-42350-767-0	06	1	1310-
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) WHEEL PAINTED LIGHT ARGENT<SKD> EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	1-42350-767-0	01	1	1310-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) WHEEL PAINTED LIGHT ARGENT<SKD> EXC. DISC WHEEL SPARE<N79> (A) SPARE	1-42350-767-0	01	1	1310-
2	WHEEL; DISC WHEEL 6STUD 6.00GSX16 135-9(SG7) DISC WHEEL NOT PAINTED TOPY BLACK<TGJ> (B) FRONT,REAR	1-42350-417-0	06	1	1310-
3	NUT; WHEEL,FRT AXLE M24 LH THREAD	1-42334-022-3	06	1	1310-
3	NUT; WHEEL,FRT AXLE M24	1-42333-022-3	06	1	1310-
4	NUT; WHEEL,RR AXLE M30 LH THREAD	8-97359-810-0	06	1	1310-
4	NUT; WHEEL,RR AXLE M30 RH THREAD	8-97359-809-0	06	1	1310-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	8-97359-806-0	06	1	1310-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	8-97359-805-0	06	1	1310-
8	VALVE; TIRE DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) FRONT,REAR	1-42370-007-1	06	1	1310-
8	VALVE; TIRE DISC WHEEL SPARE<N79> DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42370-007-1	01	1	1310-
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) EXC. DISC WHEEL SPARE<N79> SPARE	1-42370-007-1	01	1	1310-
32	CAP; VALVE DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	06	1	1310-
32	CAP; VALVE DISC WHEEL SPARE<N79> DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	07	1	1310-
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) EXC. DISC WHEEL SPARE<N79>	1-42374-001-0	07	1	1310-
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 6STUD 6.00GSX16 135-9(SG7) EXC. DISC WHEEL SPARE<N79>	1-42374-001-0	05	1	1310-
32	CAP; VALVE WHEEL 6STUD 6.00GSX16 135-9(SG7) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	04	1	1310-

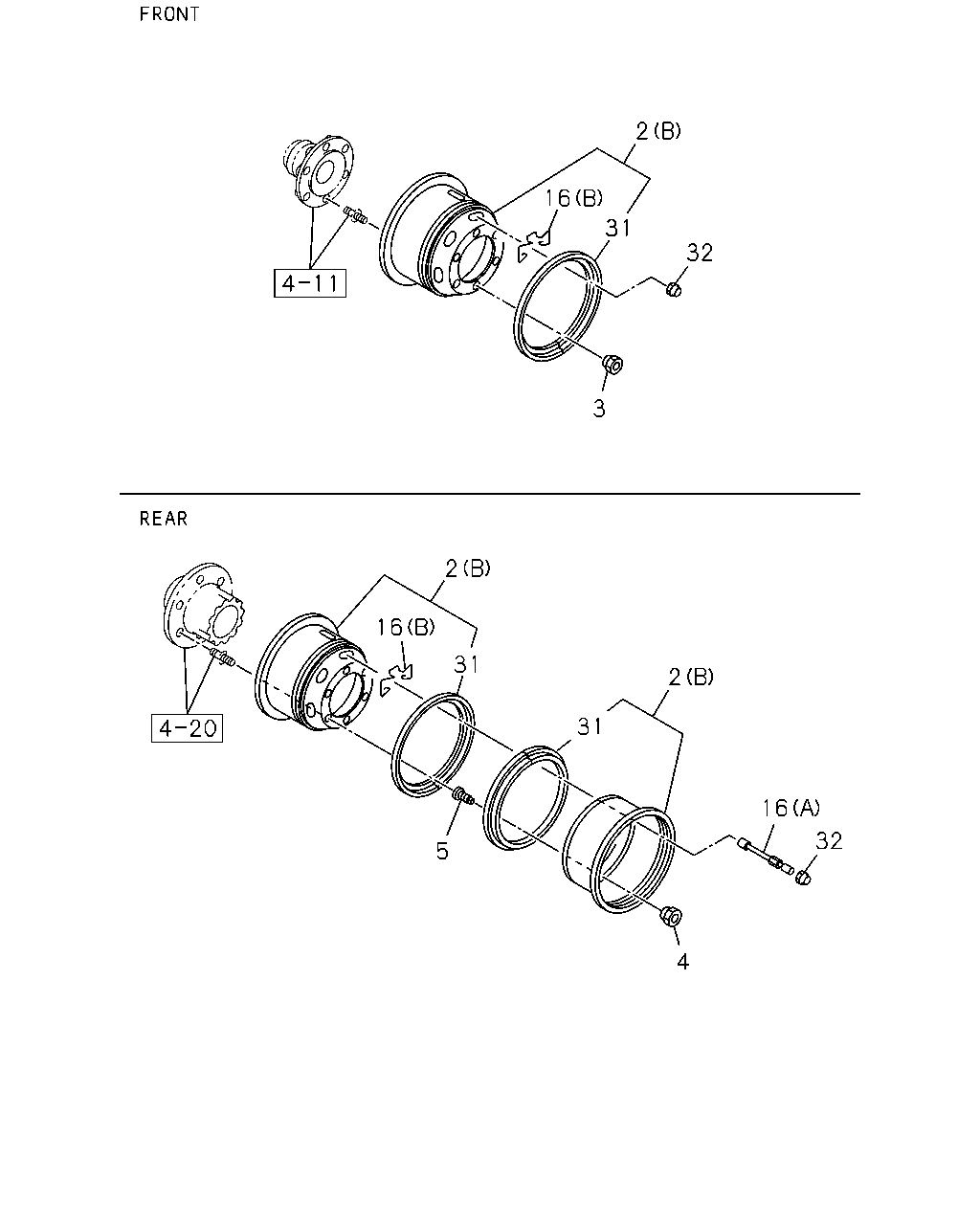

32 16 4 2 31 5 2 31 16 3 32 2 31 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL SPARE<N79> WHEEL 6STUD 6.00GSX16 135-9(SG7) DISC WHEEL NOT PAINTED TOPY BLACK<TGJ> EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE	1-42350-417-0	01	1	1310-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 6STUD 6.00GSX16 135-9(SG7) DISC WHEEL NOT PAINTED TOPY BLACK<TGJ> EXC. DISC WHEEL SPARE<N79> (B) SPARE	1-42350-417-0	01	1	1310-
2	WHEEL; DISC DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) WHEEL PAINTED LIGHT ARGENT<SKD> (A) FRONT,REAR	1-42350-767-0	06	1	1310-
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) WHEEL PAINTED LIGHT ARGENT<SKD> EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	1-42350-767-0	01	1	1310-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) WHEEL PAINTED LIGHT ARGENT<SKD> EXC. DISC WHEEL SPARE<N79> (A) SPARE	1-42350-767-0	01	1	1310-
2	WHEEL; DISC WHEEL 6STUD 6.00GSX16 135-9(SG7) DISC WHEEL NOT PAINTED TOPY BLACK<TGJ> (B) FRONT,REAR	1-42350-417-0	06	1	1310-
3	NUT; WHEEL,FRT AXLE M24 LH THREAD	1-42334-022-3	06	1	1310-
3	NUT; WHEEL,FRT AXLE M24	1-42333-022-3	06	1	1310-
4	NUT; WHEEL,RR AXLE M30 LH THREAD	8-97359-810-0	06	1	1310-
4	NUT; WHEEL,RR AXLE M30 RH THREAD	8-97359-809-0	06	1	1310-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	8-97359-806-0	06	1	1310-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	8-97359-805-0	06	1	1310-
16	HOLDER; TIRE VALVE,DISC WHEEL DISC WHEEL SPARE<N79> WHEEL 6STUD 6.00GSX16 135-9(SG7) KD PREPARATORY PACK<6HF> EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B)	8-97017-494-1	07	1	1310-
16	HOLDER; TIRE VALVE,DISC WHEEL SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 6STUD 6.00GSX16 135-9(SG7) KD PREPARATORY PACK<6HF> EXC. DISC WHEEL SPARE<N79> (B)	8-97017-494-1	07	1	1310-
16	HOLDER; TIRE VALVE,DISC WHEEL WHEEL 6STUD 6.00GSX16 135-9(SG7) (A) L=115	8-98167-051-0	02	1	1310-
16	HOLDER; TIRE VALVE,DISC WHEEL WHEEL 6STUD 6.00GSX16 135-9(SG7) KD PREPARATORY PACK<6HF> EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B)	8-97017-494-1	06	1	1310-
31	RING; SIDE,DISC WHEEL DISC WHEEL SPARE<N79> WHEEL 6STUD 6.00GSX16 135-9(SG7) DISC WHEEL NOT PAINTED TOPY BLACK<TGJ> EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 16X6.00GS STAMP, BLACK	1-42355-015-2	01	1	1310-
31	RING; SIDE,DISC WHEEL SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 6STUD 6.00GSX16 135-9(SG7) DISC WHEEL NOT PAINTED TOPY BLACK<TGJ> EXC. DISC WHEEL SPARE<N79> SPARE 16X6.00GS STAMP, BLACK	1-42355-015-2	01	1	1310-
31	RING; SIDE,DISC WHEEL WHEEL 6STUD 6.00GSX16 135-9(SG7) DISC WHEEL NOT PAINTED TOPY BLACK<TGJ> FRONT,REAR 16X6.00GS STAMP, BLACK	1-42355-015-2	06	1	1310-
32	CAP; VALVE DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	06	1	1310-
32	CAP; VALVE DISC WHEEL SPARE<N79> DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	07	1	1310-
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) EXC. DISC WHEEL SPARE<N79>	1-42374-001-0	07	1	1310-
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 6STUD 6.00GSX16 135-9(SG7) EXC. DISC WHEEL SPARE<N79>	1-42374-001-0	05	1	1310-
32	CAP; VALVE WHEEL 6STUD 6.00GSX16 135-9(SG7) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	04	1	1310-
