◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11551 - FRR-L EURO5 EXC.SPAC ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-35 - POWER STEERING CONTROL; CHASSIS SIDE ▶
4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#128107) — 38 parça

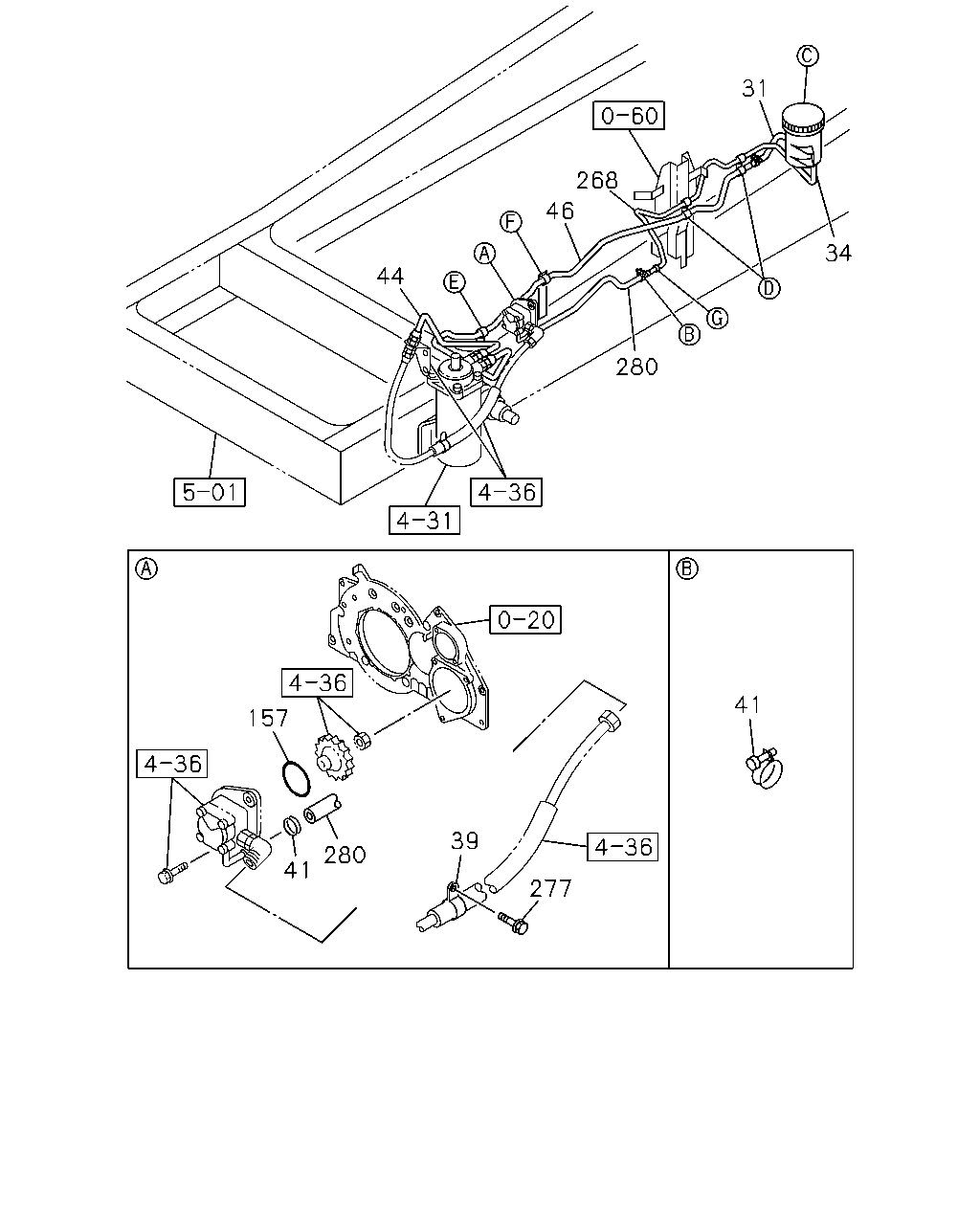

çizim 380362
31 34 268 280 46 44 41 277 39 280 41 157
BalonParca AdiParca NoAdetTipApplied Date
31 HOSE; P/S OIL TANK,INL 8-98093-500-0 01 1 1310-
34 HOSE; P/S OIL TANK,OUTLET 8-98021-827-0 01 1 1310-
39 CLIP; FLEX HOSE
ID=40 		8-94226-553-0 01 1 1310-
41 CLIP; HOSE,P/S
ID=32 		1-09704-085-0 02 1 1310-
44 PIPE; OIL,P/S UNIT TO NIPPLE 8-98112-952-0 01 1 1310-
46 PIPE; OIL,P/S UNIT TO OIL TANK
L=1878 		8-98104-595-0 01 1 1310-
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4 		1-09623-467-0 01 1 1310-
268 PIPE; OIL,FLEX HOSE TO FLEX HOSE 8-98154-041-0 01 1 1310-
277 BOLT; HOSE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 1310-
280 HOSE; P/S OIL PUMP,INL 8-98094-167-0 01 1 1310-

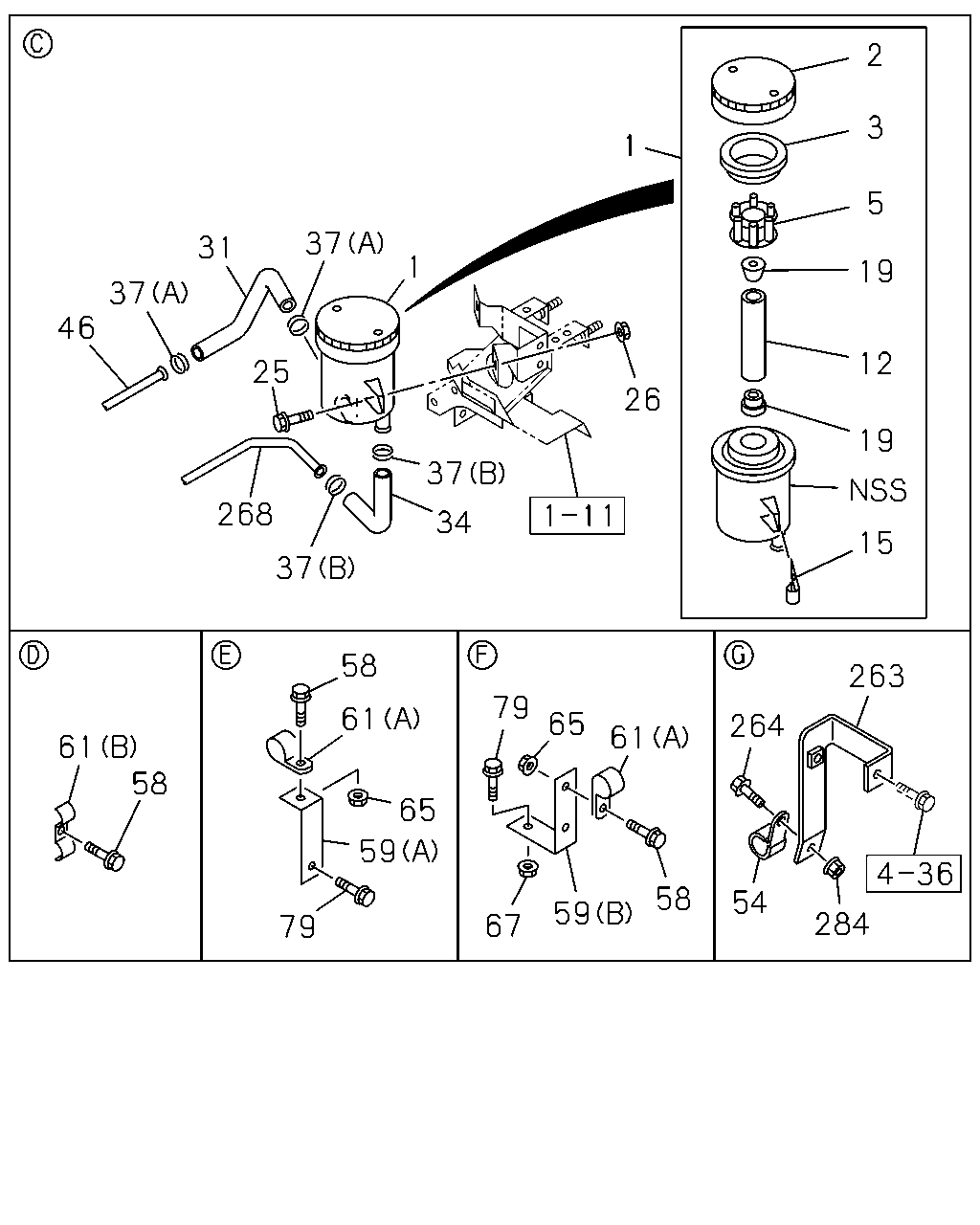

çizim 381775
1 1 2 3 5 19 12 19 15 263 264 54 284 61 65 79 67 58 59 58 61 65 79 61 58 26 37 31 37 46 268 25 37 37 34 59
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; OIL,P/S 8-98166-928-0 01 1 1310-
2 CAP; OIL TANK,P/S 8-98166-876-0 01 1 1310-
3 GASKET; OIL TANK,P/S 1-21249-003-1 01 1 1310-
5 STRAINER; OIL TANK,P/S 1-21235-007-1 01 1 1310-
12 FILTER; MICROBON,OIL TANK,P/S 1-21235-011-0 01 1 1310-
15 PLATE; FILTER,OIL TANK 1-21249-016-0 02 1 1310-
19 SEAT; OIL TANK 1-21249-004-0 02 1 1310-
25 BOLT; OIL TANK BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1310-
26 NUT; OIL TANK TO BRKT
M8 FLANGE 		0-91180-108-0 02 1 1310-
31 HOSE; P/S OIL TANK,INL 8-98093-500-0 01 1 1310-
34 HOSE; P/S OIL TANK,OUTLET 8-98021-827-0 01 1 1310-
37 CLIP; HOSE,P/S
(A) ID=26 		1-09704-082-0 02 1 1310-
37 CLIP; HOSE,P/S
(B) ID=32 		1-09704-085-0 02 1 1310-
46 PIPE; OIL,P/S UNIT TO OIL TANK
L=1878 		8-98104-595-0 01 1 1310-
54 CLIP; OIL PIPE
ID=19 L=20 		0-95235-836-0 01 1 1310-
58 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 02 1 1310-
58 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1310-
59 BRACKET; CLIP,OIL PIPE
(B) 		1-21464-481-0 01 1 1310-
59 BRACKET; CLIP,OIL PIPE
(A) L=95 		1-82699-085-0 01 1 1310-
61 CLIP; OIL PIPE
(A) ID=16 L=20 		0-95235-536-0 02 1 1310-
61 CLIP; OIL PIPE
(B) ID=19 & 16 L=25 & 20 		1-09700-806-1 02 1 1310-
65 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1310-
67 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1310-
79 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1310-
263 BRACKET; P/S PIPE 8-98079-444-0 01 1 1310-
264 BOLT; PIPE BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 1310-
268 PIPE; OIL,FLEX HOSE TO FLEX HOSE 8-98154-041-0 01 1 1310-
284 NUT; PIPE
M8 FLANGE 		0-91180-108-0 01 1 1310-
