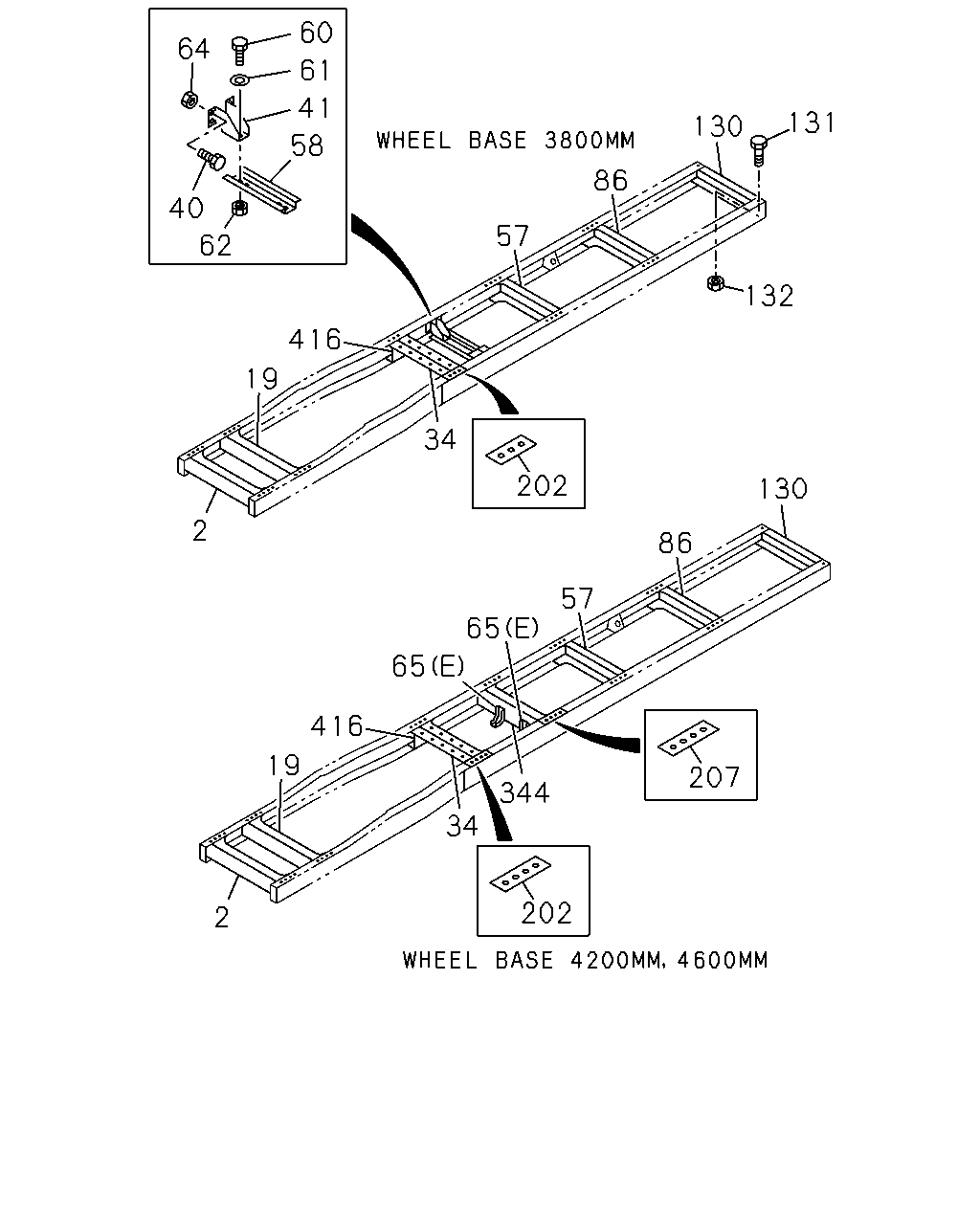

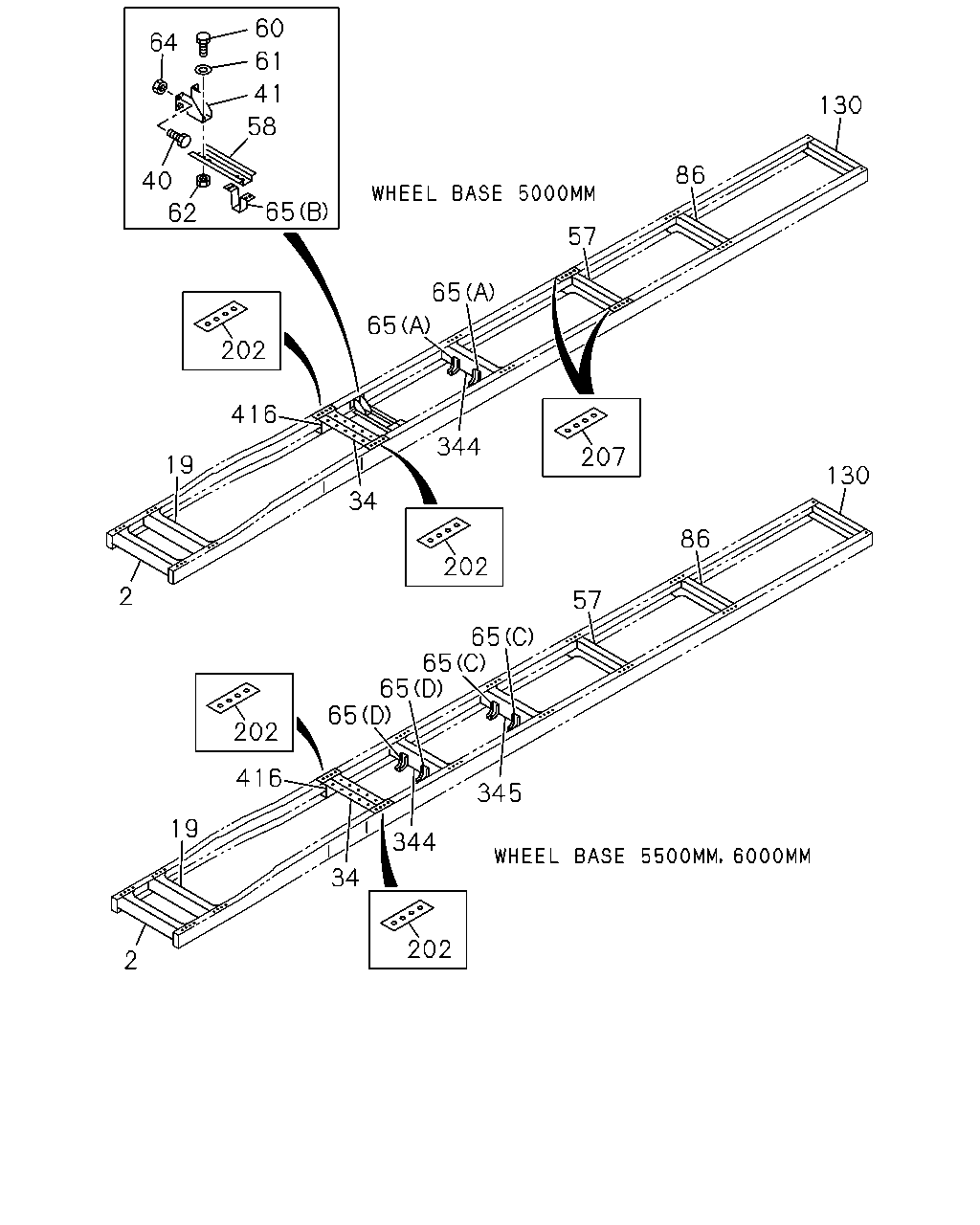

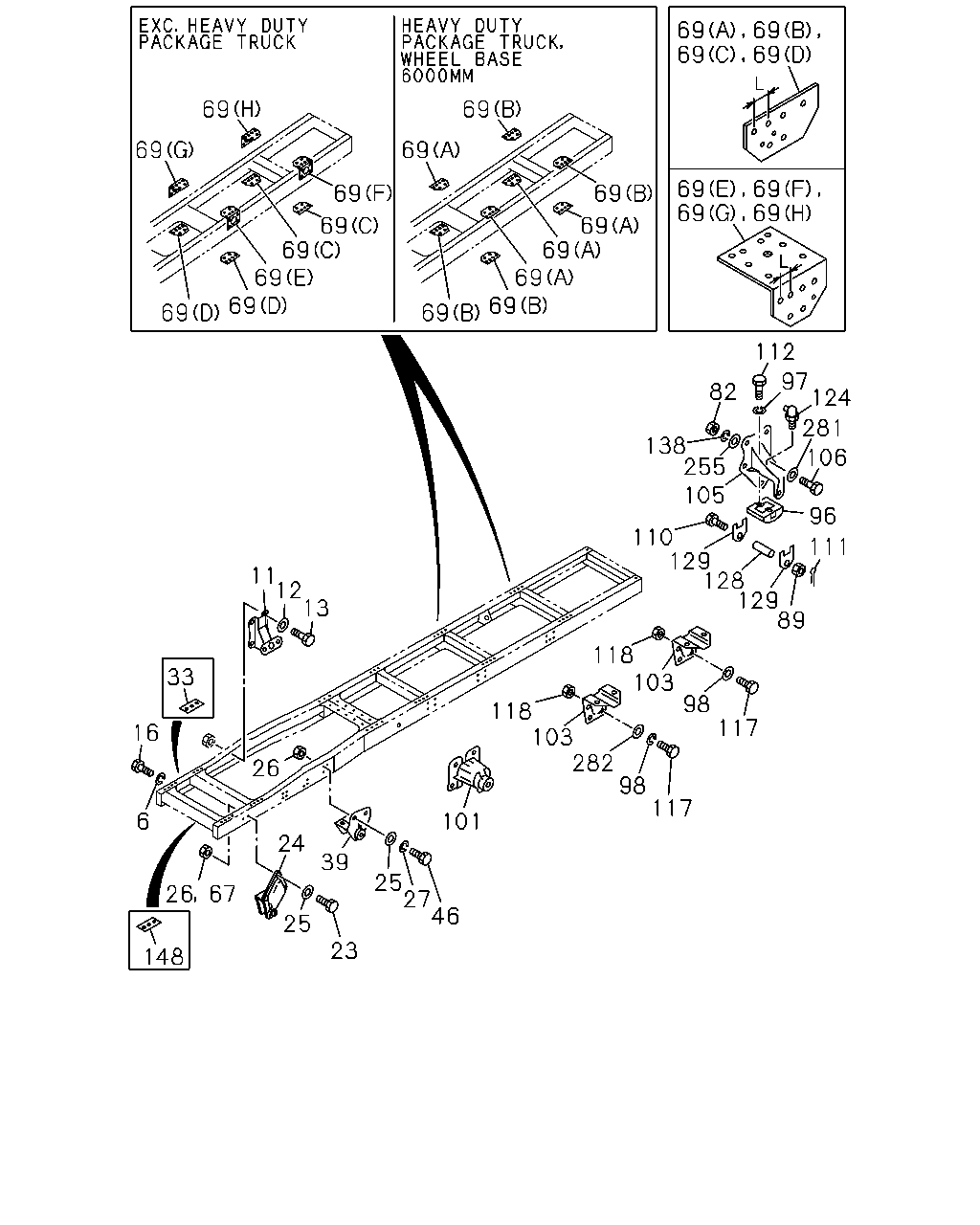

5-01 — FRAME AND OTHER PARTS (#1281) — 163 parça

69 69 69 69 69 69 69 69 69 69 69 69 69 69 69 69 112 97 124 82 281 138 255 105 106 96 110 129 128 129 89 111 11 12 13 118 103 33 98 117 118 103 282 98 117 16 26 6 101 24 39 25 27 46 25 26 67 23 148 69 69 69 69 69 69 69 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
6	WASHER; LK,1ST C/MBR ID=16.2	9-09150-616-0	02	1	9202-	●	●	●	●	●	●
11	BRACKET; ENG MTG 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-53211-143-1	02	1	9202-	●	●	●	●	●	●
11	BRACKET; ENG MTG 6HE1 STD ENG(46L)	1-53211-185-0	02	1	9202-			●	●	●	●
12	WASHER; PL,BRKT,ENG MTG ID=12.5	1-09503-171-0	08	1	9202-	●	●	●	●	●	●
13	BOLT; BRKT,ENG MTG M12X28	9-92061-228-0	08	1	9202-	●	●	●	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M16X40	0-20801-640-0	02	1	9202-	●	●	●	●	●	●
23	BOLT; BRKT,SPR M14X50	9-92061-450-0	06	1	9202-	●	●	●	●	●	●
23	BOLT; BRKT,SPR M16X50	9-92061-650-0	04	1	9202-	●	●	●	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-149-3	01	1	9202-	●	●	●	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-148-3	01	1	9202-	●	●	●	●	●	●
25	WASHER; PL,BRKT ID=16.2	1-09503-223-0	08	1	9202-	●	●	●	●	●	●
25	WASHER; PL,BRKT ID=15	9-09651-069-0	24	1	9202-	●	●	●	●	●	●
26	NUT; BRKT,SPR M14	9-99110-514-0	12	1	9202-	●	●	●	●	●	●
26	NUT; BRKT,SPR M16	9-99110-516-0	04	1	9202-	●	●	●	●	●	●
27	WASHER; LK,BRKT,FRT SPR ID=14.2	9-09150-614-0	12	1	9202-	●	●	●	●	●	●
27	WASHER; LK,BRKT,FRT SPR ID=16.2	9-09150-616-0	04	1	9202-	●	●	●	●	●	●
33	SPACER; 2ND C/MBR,UPR EXC. HEAVY DUTY PACKAGE TRUCK<RD2> UPPER	1-53168-276-0	02	1	9202-	●	●	●	●	●
33	SPACER; 2ND C/MBR,UPR EXC. HEAVY DUTY PACKAGE TRUCK<RD2> LOWER	1-53168-287-0	02	1	9202-	●	●	●	●	●
39	BRACKET; FRT SPR,RR 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-53352-091-3	01	1	9202-	●	●	●	●	●	●
39	BRACKET; FRT SPR,RR 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-53352-090-3	01	1	9202-	●	●	●	●	●	●
39	BRACKET; FRT SPR,RR 6HE1 STD ENG(46L)	1-53352-125-2	01	1	9202-			●	●	●	●
39	BRACKET; FRT SPR,RR 6HE1 STD ENG(46L)	1-53352-124-2	01	1	9202-			●	●	●	●
46	BOLT; BRKT FIX M14X50	9-92061-450-0	06	1	9202-	●	●	●	●	●	●
67	NUT; C/MBR M16	9-99110-516-0	02	1	9202-	●	●	●	●	●	●
69	GUSSET; RR SUSP,UPR HEAVY DUTY PACKAGE TRUCK<RD2> (A) L=60	1-53167-099-4	04	1	9202-	●	●	●	●	●
69	GUSSET; RR SUSP,UPR (A) L=60	1-53167-099-4	04	1	9202-						●
69	GUSSET; RR SUSP,UPR HEAVY DUTY PACKAGE TRUCK<RD2> (B) L=51	1-53167-100-3	04	1	9202-	●	●	●	●	●
69	GUSSET; RR SUSP,UPR (B) L=51	1-53167-100-3	04	1	9202-						●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (C) L=60	1-53167-099-4	02	1	9202-	●	●	●	●	●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (D) L=51	1-53167-100-3	02	1	9202-	●	●	●	●	●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (E) L=60 21-HOLE	1-53167-096-4	01	1	9202-	●	●	●	●	●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (F) L=51 17-HOLE	1-53167-098-5	01	1	9202-	●	●	●	●	●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (G) L=60 21-HOLE	1-53167-095-4	01	1	9202-	●	●	●	●	●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (H) L=51 17-HOLE	1-53167-097-5	01	1	9202-	●	●	●	●	●
82	NUT; BRKT M14	9-99110-514-0	24	1	9202-	●	●	●	●	●	●
89	NUT; LEAF SPR STOPPER M14	9-99116-414-0	02	1	9202-	●	●	●	●	●	●
96	PAD; RR SPR	1-53359-047-0	02	1	9202-	●	●	●	●	●	●
97	WASHER; LK,PAD ID=14.2	9-09150-514-0	04	1	9202-	●	●	●	●	●	●
98	WASHER; LK,STOPPER ID=14.2	9-09150-614-0	16	1	9202-	●	●	●	●	●	●
101	BRACKET; RR SPR,FRT	1-53353-078-1	02	1	9202-	●	●	●	●	●	●
103	STOPPER; SUB SPR	1-53356-057-0	04	1	9202-	●	●	●	●	●	●
105	BRACKET; RR SPR,RR	1-53354-064-1	02	1	9202-	●	●	●	●	●	●
106	BOLT; BRKT M14X50	9-92061-450-0	24	1	9202-	●	●	●	●	●	●
110	BOLT; LEAF SPR STOPPER	1-09000-007-0	02	1	9202-	●	●	●	●	●	●
111	PIN; SPLIT,LEAF SPR STOPPER OD=2.8 L=28	9-08113-028-0	02	1	9202-	●	●	●	●	●	●
112	BOLT; PAD M14X35	0-20801-435-0	04	1	9202-	●	●	●	●	●	●
117	BOLT; STOPPER M14X50	9-91066-450-0	16	1	9202-	●	●	●	●	●	●
118	NUT; STOPPER M14	9-99110-514-0	16	1	9202-	●	●	●	●	●	●
124	NIPPLE; GREASE PT1/8 ELBOW	9-09031-210-0	02	1	9202-	●	●	●	●	●	●
128	COLLAR; RUBBER EXC. SUSPENSION HEAVY DUTY VAR2(F41)	1-53359-058-0	02	1	9202-9209	●	●	●	●	●	●
128	COLLAR; RUBBER EXC. SUSPENSION HEAVY DUTY VAR2(F41)	1-53359-004-0	02	1	9210-	●	●	●	●	●	●
129	SHIM; SIDE T=4.5	1-53359-061-1	02	1	9202-	●	●	●	●	●	●
129	SHIM; SIDE T=3.2	1-53359-062-1	02	1	9202-	●	●	●	●	●	●
138	WASHER; LK,BRKT ID=14.2	9-09150-614-0	24	1	9202-	●	●	●	●	●	●
148	SPACER; C/MBR LOWER	1-53168-268-0	02	1	9202-	●	●	●	●	●	●
255	WASHER; PL,BRKT ID=15	9-09651-069-0	48	1	9202-	●	●	●	●	●	●
281	WASHER; LEAF SPR STOPPER ID=15 OD=30	9-09160-614-0	04	1	9202-	●	●	●	●	●	●
282	WASHER; PL,STOPPER ID=15	9-09651-069-0	16	1	9202-	●	●	●	●	●	●

60 64 61 41 130 58 86 40 65 62 57 65 65 202 416 344 207 19 130 34 86 202 2 57 65 65 65 65 202 416 344 345 19 34 202 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	MEMBER; CROSS,1ST	1-53181-370-5	01	1	9202-	●	●	●	●	●	●
19	MEMBER; CROSS,2ND	1-53181-371-7	01	1	9202-	●	●	●	●	●	●
34	MEMBER; CROSS,3RD	1-53174-155-0	01	1	9202-9404	●	●	●	●	●	●
34	MEMBER; CROSS,3RD 6HE1 STD ENG(46L) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-53174-155-0	01	1	9405-9406			●
34	MEMBER; CROSS,3RD	1-53174-231-1	01	1	9405-9406	●	●		●	●	●
34	MEMBER; CROSS,3RD 6SA1 STD ENG(06L)	1-53174-231-1	01	1	9405-9406			●
34	MEMBER; CROSS,3RD 6HE1 STD ENG(46L) HEAVY DUTY PACKAGE TRUCK<RD2>	1-53174-231-1	01	1	9405-9406			●
34	MEMBER; CROSS,3RD	1-53174-231-1	01	1	9407-9504	●	●	●	●	●	●
34	MEMBER; CROSS,3RD	1-53174-231-1	01	1	9505-	●	●	●		●	●
34	MEMBER; CROSS,3RD 6SA1TC ENG(28L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-53174-231-1	01	1	9505-				●
34	MEMBER; CROSS,3RD 6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-53174-155-0	01	1	9505-				●
40	BOLT; BRKT TO FRAME M10X35 W/LK WASHER	0-50041-035-0	08	1	9202-	●			●
41	BRACKET; CENTER BRG,FRAME SIDE	1-37515-085-0	02	1	9202-	●			●
57	MEMBER; CROSS,RR SUSP FRT HEAVY DUTY PACKAGE TRUCK<RD2>	1-53181-380-5	01	1	9202-	●	●	●	●	●
57	MEMBER; CROSS,RR SUSP FRT	1-53181-380-5	01	1	9202-						●
57	MEMBER; CROSS,RR SUSP FRT EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-53181-382-9	01	1	9202-	●	●	●	●	●
58	MEMBER; CENTER BRG 6SA1 STD ENG(06L),6HE1 STD ENG(46L)	1-37529-079-1	01	1	9202-	●			●
58	MEMBER; CENTER BRG 6SA1TC ENG(28L)	1-37529-065-0	01	1	9305-				●
60	BOLT; MBR M10X25 W/LK WASHER	0-50041-025-0	08	1	9202-	●			●
61	WASHER; PL,MBR ID=10.5 OD=22	9-09164-610-0	08	1	9202-	●			●
62	NUT; MBR M10	9-09110-510-0	08	1	9202-	●			●
64	NUT; BRKT TO FRAME M10	9-09110-510-0	08	1	9202-	●			●
65	BRACKET; CENTER BRG HEAVY DUTY PACKAGE TRUCK<RD2> (E) L=300	1-53271-306-1	02	1	9407-			●
65	BRACKET; CENTER BRG HEAVY DUTY PACKAGE TRUCK<RD2> (E) L=325	1-53271-341-0	02	1	9407-			●
65	BRACKET; CENTER BRG 6SA1TC ENG(28L) (B) L=108	1-53271-293-0	02	1	9305-				●
65	BRACKET; CENTER BRG 6SA1TC ENG(28L) HEAVY DUTY PACKAGE TRUCK<RD2> (A) L=340	1-53271-307-1	02	1	9505-				●
65	BRACKET; CENTER BRG 6SA1TC ENG(28L) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) L=365	1-53271-284-1	02	1	9305-				●
65	BRACKET; CENTER BRG 6SA1TC ENG(28L) (C) L=265	1-53271-287-1	02	1	9305-					●
65	BRACKET; CENTER BRG 6SA1TC ENG(28L) (D) L=295	1-53271-304-1	02	1	9305-					●
86	MEMBER; CROSS,RR SUSP RR HEAVY DUTY PACKAGE TRUCK<RD2>	1-53181-380-5	01	1	9202-	●	●	●	●	●
86	MEMBER; CROSS,RR SUSP RR	1-53181-380-5	01	1	9202-						●
86	MEMBER; CROSS,RR SUSP RR EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-53181-382-9	01	1	9202-	●	●	●	●	●
130	MEMBER; CROSS,END	1-53171-948-2	01	1	9202-9211	●	●	●	●	●	●
130	MEMBER; CROSS,END	1-53181-151-1	01	1	9212-	●	●	●	●	●	●
202	SPACER; 3RD C/MBR EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-53168-101-0	02	1	9202-9404	●	●	●	●	●
202	SPACER; 3RD C/MBR EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-53168-351-1	02	1	9405-	●	●	●	●	●
207	SPACER; 4TH C/MBR EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-53168-163-1	02	1	9407-		●	●	●	●	●
344	MEMBER; CROSS,4TH	1-53171-738-7	01	1	9202-9504		●	●			●
344	MEMBER; CROSS,4TH 6SA1 STD ENG(06L),6HE1 STD ENG(46L)	1-53171-738-7	01	1	9202-9504				●	●
344	MEMBER; CROSS,4TH	1-53171-738-7	01	1	9505-		●	●			●
344	MEMBER; CROSS,4TH 6SA1 STD ENG(06L),6HE1 STD ENG(46L)	1-53171-738-7	01	1	9505-				●	●
344	MEMBER; CROSS,4TH 6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-53171-738-7	01	1	9505-					●
344	MEMBER; CROSS,4TH 6SA1TC ENG(28L)	1-53171-972-3	01	1	9305-9504				●	●
344	MEMBER; CROSS,4TH 6SA1TC ENG(28L)	1-53171-972-3	01	1	9505-				●
344	MEMBER; CROSS,4TH 6SA1TC ENG(28L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-53171-972-3	01	1	9505-					●
345	MEMBER; CROSS,5TH 6SA1 STD ENG(06L),6HE1 STD ENG(46L)	1-53171-738-7	01	1	9202-9504					●
345	MEMBER; CROSS,5TH	1-53171-738-7	01	1	9202-9504						●
345	MEMBER; CROSS,5TH 6SA1 STD ENG(06L),6HE1 STD ENG(46L)	1-53171-738-7	01	1	9505-					●	●
345	MEMBER; CROSS,5TH 6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-53171-738-7	01	1	9505-					●
345	MEMBER; CROSS,5TH 6SA1TC ENG(28L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-53171-972-3	01	1	9305-					●
416	GUSSET; 3RD C/MBR	1-53164-167-0	01	1	9202-9404	●	●	●	●	●	●
416	GUSSET; 3RD C/MBR	1-53164-214-0	01	1	9405-	●	●	●	●	●	●
416	GUSSET; 3RD C/MBR	1-53164-168-0	01	1	9202-9404	●	●	●	●	●	●
416	GUSSET; 3RD C/MBR	1-53164-213-0	01	1	9405-	●	●	●	●	●	●

60 64 61 41 131 130 58 86 40 57 62 132 416 19 34 202 130 2 86 57 65 65 416 19 207 344 34 202 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	MEMBER; CROSS,1ST	1-53181-370-5	01	1	9202-	●	●	●	●	●	●
19	MEMBER; CROSS,2ND	1-53181-371-7	01	1	9202-	●	●	●	●	●	●
34	MEMBER; CROSS,3RD	1-53174-155-0	01	1	9202-9404	●	●	●	●	●	●
34	MEMBER; CROSS,3RD 6HE1 STD ENG(46L) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-53174-155-0	01	1	9405-9406			●
34	MEMBER; CROSS,3RD	1-53174-231-1	01	1	9405-9406	●	●		●	●	●
34	MEMBER; CROSS,3RD 6SA1 STD ENG(06L)	1-53174-231-1	01	1	9405-9406			●
34	MEMBER; CROSS,3RD 6HE1 STD ENG(46L) HEAVY DUTY PACKAGE TRUCK<RD2>	1-53174-231-1	01	1	9405-9406			●
34	MEMBER; CROSS,3RD	1-53174-231-1	01	1	9407-9504	●	●	●	●	●	●
34	MEMBER; CROSS,3RD	1-53174-231-1	01	1	9505-	●	●	●		●	●
34	MEMBER; CROSS,3RD 6SA1TC ENG(28L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-53174-231-1	01	1	9505-				●
34	MEMBER; CROSS,3RD 6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-53174-155-0	01	1	9505-				●
40	BOLT; BRKT TO FRAME M10X35 W/LK WASHER	0-50041-035-0	08	1	9202-	●			●
41	BRACKET; CENTER BRG,FRAME SIDE	1-37515-085-0	02	1	9202-	●			●
57	MEMBER; CROSS,RR SUSP FRT HEAVY DUTY PACKAGE TRUCK<RD2>	1-53181-380-5	01	1	9202-	●	●	●	●	●
57	MEMBER; CROSS,RR SUSP FRT	1-53181-380-5	01	1	9202-						●
57	MEMBER; CROSS,RR SUSP FRT EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-53181-382-9	01	1	9202-	●	●	●	●	●
58	MEMBER; CENTER BRG 6SA1 STD ENG(06L),6HE1 STD ENG(46L)	1-37529-079-1	01	1	9202-	●			●
58	MEMBER; CENTER BRG 6SA1TC ENG(28L)	1-37529-065-0	01	1	9305-				●
60	BOLT; MBR M10X25 W/LK WASHER	0-50041-025-0	08	1	9202-	●			●
61	WASHER; PL,MBR ID=10.5 OD=22	9-09164-610-0	08	1	9202-	●			●
62	NUT; MBR M10	9-09110-510-0	08	1	9202-	●			●
64	NUT; BRKT TO FRAME M10	9-09110-510-0	08	1	9202-	●			●
65	BRACKET; CENTER BRG HEAVY DUTY PACKAGE TRUCK<RD2> (E) L=300	1-53271-306-1	02	1	9407-			●
65	BRACKET; CENTER BRG HEAVY DUTY PACKAGE TRUCK<RD2> (E) L=325	1-53271-341-0	02	1	9407-			●
65	BRACKET; CENTER BRG 6SA1TC ENG(28L) (B) L=108	1-53271-293-0	02	1	9305-				●
65	BRACKET; CENTER BRG 6SA1TC ENG(28L) HEAVY DUTY PACKAGE TRUCK<RD2> (A) L=340	1-53271-307-1	02	1	9505-				●
65	BRACKET; CENTER BRG 6SA1TC ENG(28L) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) L=365	1-53271-284-1	02	1	9305-				●
65	BRACKET; CENTER BRG 6SA1TC ENG(28L) (C) L=265	1-53271-287-1	02	1	9305-					●
65	BRACKET; CENTER BRG 6SA1TC ENG(28L) (D) L=295	1-53271-304-1	02	1	9305-					●
86	MEMBER; CROSS,RR SUSP RR HEAVY DUTY PACKAGE TRUCK<RD2>	1-53181-380-5	01	1	9202-	●	●	●	●	●
86	MEMBER; CROSS,RR SUSP RR	1-53181-380-5	01	1	9202-						●
86	MEMBER; CROSS,RR SUSP RR EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-53181-382-9	01	1	9202-	●	●	●	●	●
130	MEMBER; CROSS,END	1-53171-948-2	01	1	9202-9211	●	●	●	●	●	●
130	MEMBER; CROSS,END	1-53181-151-1	01	1	9212-	●	●	●	●	●	●
131	BOLT; END C/MBR HEAVY DUTY PACKAGE TRUCK<RD2> M12X30 W/LK WASHER	0-50041-230-0	04	1	9202-	●
132	NUT; END C/MBR HEAVY DUTY PACKAGE TRUCK<RD2> M12	9-99110-512-0	04	1	9202-	●
202	SPACER; 3RD C/MBR EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-53168-101-0	02	1	9202-9404	●	●	●	●	●
202	SPACER; 3RD C/MBR EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-53168-351-1	02	1	9405-	●	●	●	●	●
207	SPACER; 4TH C/MBR EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-53168-163-1	02	1	9407-		●	●	●	●	●
344	MEMBER; CROSS,4TH	1-53171-738-7	01	1	9202-9504		●	●			●
344	MEMBER; CROSS,4TH 6SA1 STD ENG(06L),6HE1 STD ENG(46L)	1-53171-738-7	01	1	9202-9504				●	●
344	MEMBER; CROSS,4TH	1-53171-738-7	01	1	9505-		●	●			●
344	MEMBER; CROSS,4TH 6SA1 STD ENG(06L),6HE1 STD ENG(46L)	1-53171-738-7	01	1	9505-				●	●
344	MEMBER; CROSS,4TH 6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-53171-738-7	01	1	9505-					●
344	MEMBER; CROSS,4TH 6SA1TC ENG(28L)	1-53171-972-3	01	1	9305-9504				●	●
344	MEMBER; CROSS,4TH 6SA1TC ENG(28L)	1-53171-972-3	01	1	9505-				●
344	MEMBER; CROSS,4TH 6SA1TC ENG(28L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-53171-972-3	01	1	9505-					●
416	GUSSET; 3RD C/MBR	1-53164-167-0	01	1	9202-9404	●	●	●	●	●	●
416	GUSSET; 3RD C/MBR	1-53164-214-0	01	1	9405-	●	●	●	●	●	●
416	GUSSET; 3RD C/MBR	1-53164-168-0	01	1	9202-9404	●	●	●	●	●	●
416	GUSSET; 3RD C/MBR	1-53164-213-0	01	1	9405-	●	●	●	●	●	●
