◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11551 - FRR-L EURO5 EXC.SPAC ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#128099) — 257 parça

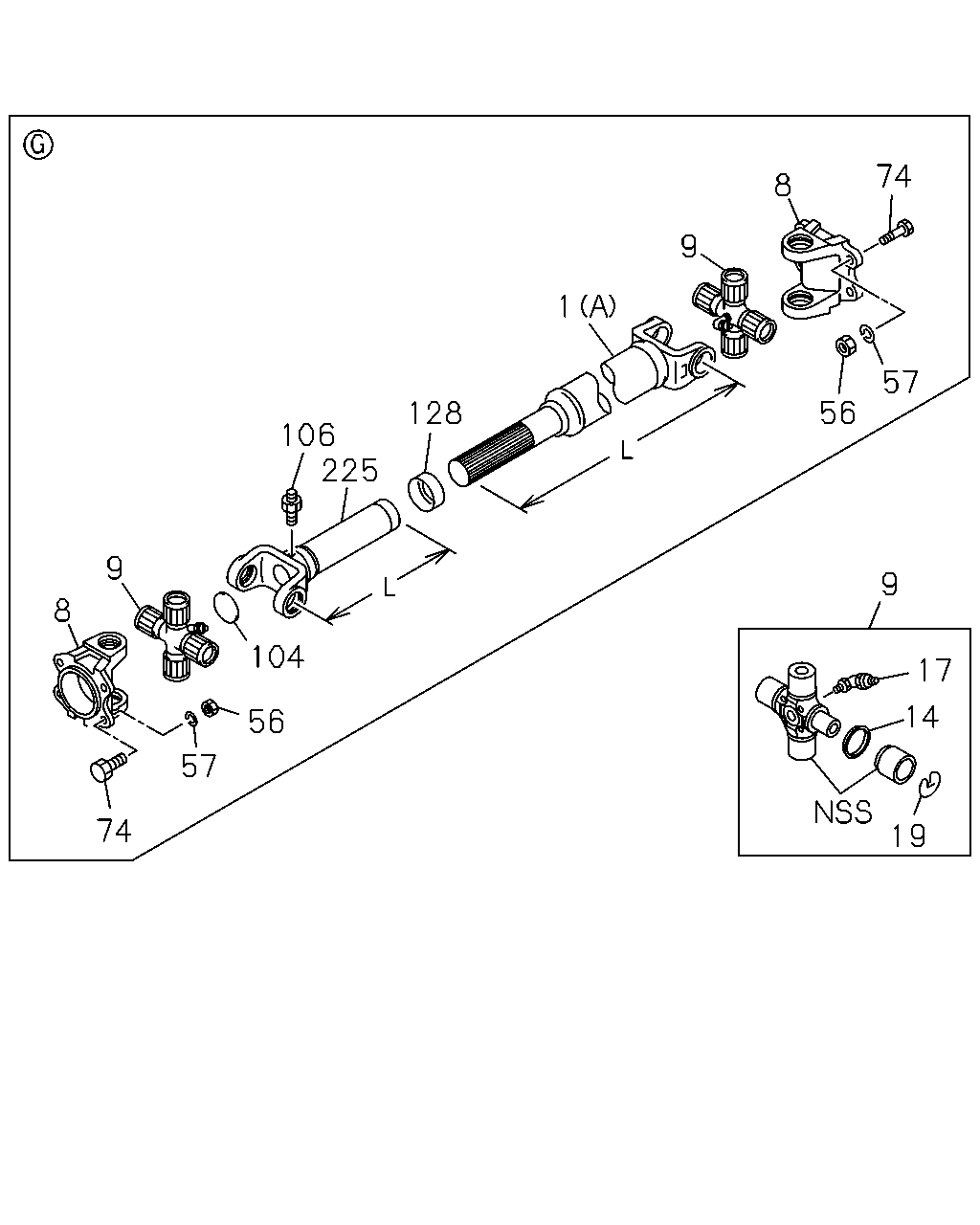

çizim 380436
8 9 1 74 128 106 57 56 225 9 8 74 57 56 104 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
(A) L=649 		8-98091-129-0 01 1 1310- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=656 		1-37153-130-0 01 1 1310- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=574 		8-98091-092-0 01 1 1310- ●
1 SHAFT; PROP
(A) L=1116 		8-98091-130-0 01 1 1310- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=839 		8-98091-095-0 01 1 1310- ● ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=759 		8-98091-094-0 01 1 1310- ● ●
1 SHAFT; PROP
(A) L=1309 		8-98091-131-0 01 1 1310- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1059 		8-98091-097-0 01 1 1310- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=979 		8-98091-096-0 01 1 1310- ●
1 SHAFT; PROP
(C) L=974 		8-98091-098-0 01 1 1310- ●
1 SHAFT; PROP
(A) L=1199 		8-98091-121-0 01 1 1310- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1310- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1310- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 1310- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
1ST,2ND 		1-37300-102-1 AR 1 1310-1505 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
1ST,2ND 		1-37300-102-1 AR 1 1310-1505 ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 AR 1 1506- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 AR 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
END 		8-98048-925-1 02 1 1310- ● ● ● ●
14 COVER; DUST,SPIDER
1ST,2ND 		1-37319-012-0 04 1 1310-1505 ● ● ● ●
14 COVER; DUST,SPIDER
1ST,2ND 		1-37319-012-0 04 1 1310-1505 ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1506- ● ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1506- ●
14 COVER; DUST,SPIDER
END 		8-98020-800-0 08 1 1310- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1310- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1310- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1310- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1310- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1310- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1310- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1310- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1310- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1310- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1310- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1310- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1310- ● ● ● ●
56 NUT; YOKE
M14 		0-91110-514-0 08 1 1310- ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 08 1 1310- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 08 1 1310- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1310- ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 1310- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 01 1 1310- ● ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 1310- ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 		8-98020-885-0 01 1 1310- ● ● ● ●

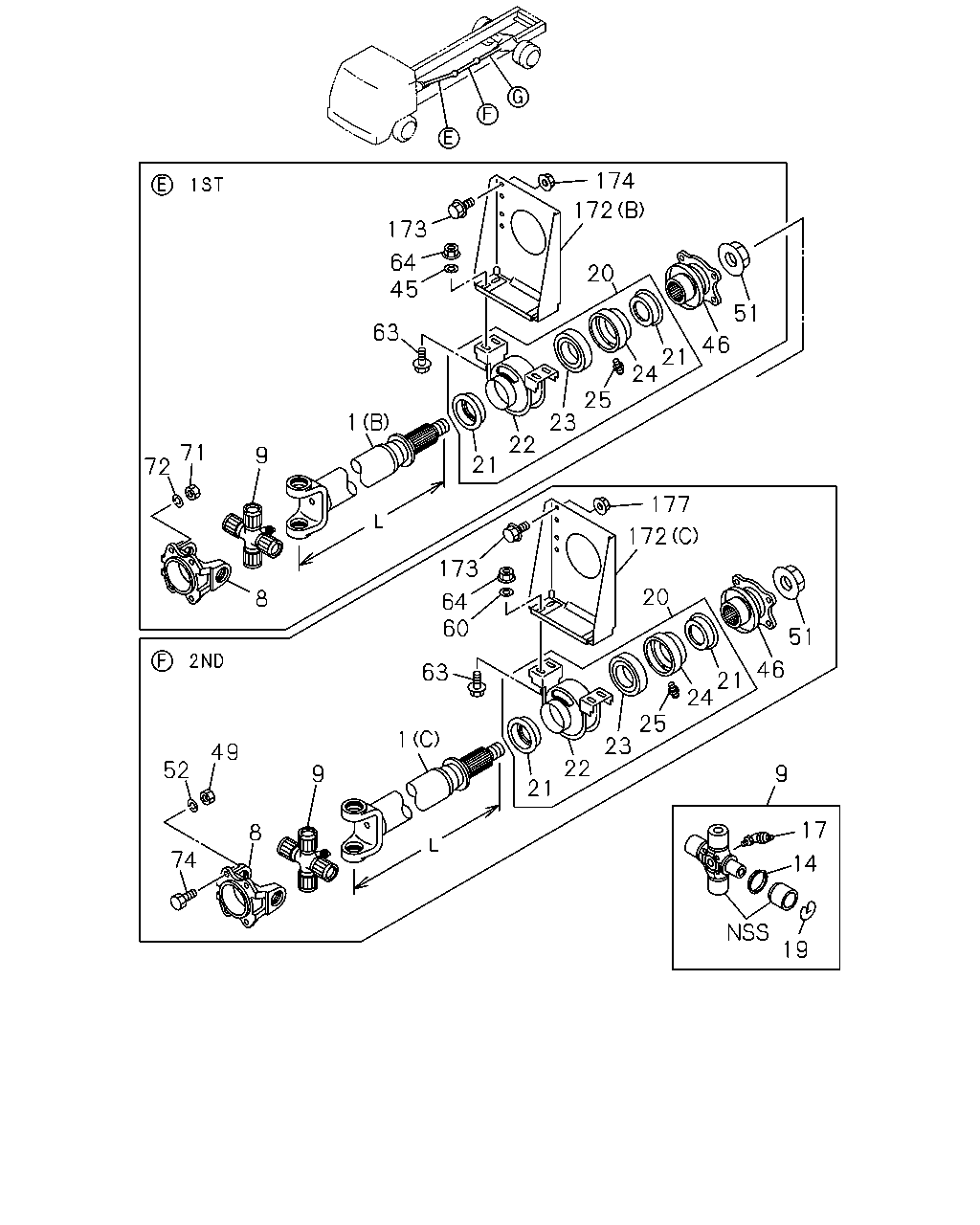

çizim 381067
9 17 14 19 51 46 24 25 21 23 22 21 1 63 60 173 64 177 172 20 9 49 52 74 8 8 71 72 9 63 1 21 22 23 25 24 21 46 51 173 64 172 174 45 20
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
(A) L=649 		8-98091-129-0 01 1 1310- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=656 		1-37153-130-0 01 1 1310- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=574 		8-98091-092-0 01 1 1310- ●
1 SHAFT; PROP
(A) L=1116 		8-98091-130-0 01 1 1310- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=839 		8-98091-095-0 01 1 1310- ● ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=759 		8-98091-094-0 01 1 1310- ● ●
1 SHAFT; PROP
(A) L=1309 		8-98091-131-0 01 1 1310- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1059 		8-98091-097-0 01 1 1310- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=979 		8-98091-096-0 01 1 1310- ●
1 SHAFT; PROP
(C) L=974 		8-98091-098-0 01 1 1310- ●
1 SHAFT; PROP
(A) L=1199 		8-98091-121-0 01 1 1310- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1310- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1310- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 1310- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
1ST,2ND 		1-37300-102-1 AR 1 1310-1505 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
1ST,2ND 		1-37300-102-1 AR 1 1310-1505 ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 AR 1 1506- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 AR 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
END 		8-98048-925-1 02 1 1310- ● ● ● ●
14 COVER; DUST,SPIDER
1ST,2ND 		1-37319-012-0 04 1 1310-1505 ● ● ● ●
14 COVER; DUST,SPIDER
1ST,2ND 		1-37319-012-0 04 1 1310-1505 ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1506- ● ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1506- ●
14 COVER; DUST,SPIDER
END 		8-98020-800-0 08 1 1310- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1310- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1310- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1310- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1310- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1310- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1310- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1310- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1310- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1310- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1310- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1310- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1310- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 1310- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 1310- ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1310- ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1310- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1310- ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1310- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1310- ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1310- ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 1310- ● ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 1310- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1310- ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1310- ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 1310- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 1310- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 1310- ●
49 NUT; YOKE
M14 		0-91110-514-0 04 1 1310- ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1310- ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1310- ●
52 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1310- ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 1310- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 1310- ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 1310- ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1310- ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1310- ●
71 NUT; YOKE
M14 		0-91110-514-0 04 1 1310- ● ● ● ●
72 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1310- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 08 1 1310- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1310- ●
172 BRACKET; CENTER BRG
(A) 		8-98044-076-0 01 1 1310- ●
172 BRACKET; CENTER BRG
(A) 		1-37515-118-0 01 1 1310- ●
172 BRACKET; CENTER BRG
(C) 		1-37515-121-0 01 1 1310- ●
172 BRACKET; CENTER BRG
(B) 		1-37515-122-0 01 1 1310- ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1310- ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1310- ●
174 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1310- ● ● ●
177 NUT
M10 FLANGE 		0-91180-210-0 04 1 1310- ●

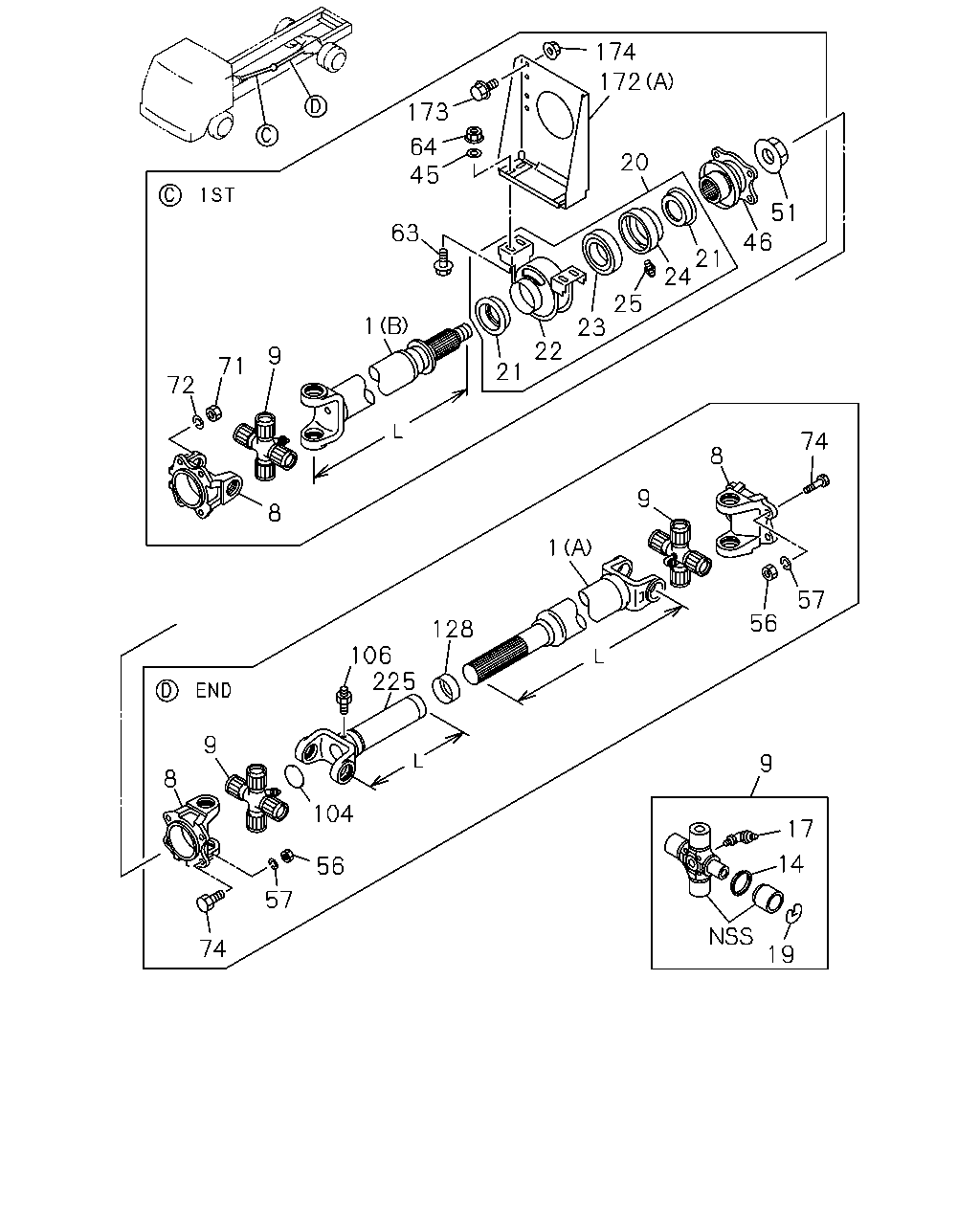

çizim 381635
173 45 64 174 20 51 46 21 24 25 23 22 21 9 8 74 57 56 9 17 14 19 104 56 57 225 1 128 9 8 9 71 72 8 1 63 74 106 172
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
(A) L=649 		8-98091-129-0 01 1 1310- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=656 		1-37153-130-0 01 1 1310- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=574 		8-98091-092-0 01 1 1310- ●
1 SHAFT; PROP
(A) L=1116 		8-98091-130-0 01 1 1310- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=839 		8-98091-095-0 01 1 1310- ● ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=759 		8-98091-094-0 01 1 1310- ● ●
1 SHAFT; PROP
(A) L=1309 		8-98091-131-0 01 1 1310- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1059 		8-98091-097-0 01 1 1310- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=979 		8-98091-096-0 01 1 1310- ●
1 SHAFT; PROP
(C) L=974 		8-98091-098-0 01 1 1310- ●
1 SHAFT; PROP
(A) L=1199 		8-98091-121-0 01 1 1310- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1310- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1310- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 1310- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
1ST,2ND 		1-37300-102-1 AR 1 1310-1505 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
1ST,2ND 		1-37300-102-1 AR 1 1310-1505 ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 AR 1 1506- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 AR 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
END 		8-98048-925-1 02 1 1310- ● ● ● ●
14 COVER; DUST,SPIDER
1ST,2ND 		1-37319-012-0 04 1 1310-1505 ● ● ● ●
14 COVER; DUST,SPIDER
1ST,2ND 		1-37319-012-0 04 1 1310-1505 ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1506- ● ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1506- ●
14 COVER; DUST,SPIDER
END 		8-98020-800-0 08 1 1310- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1310- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1310- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1310- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1310- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1310- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1310- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1310- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1310- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1310- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1310- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1310- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1310- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 1310- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 1310- ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1310- ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1310- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1310- ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1310- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1310- ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1310- ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 1310- ● ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 1310- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1310- ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1310- ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 1310- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 1310- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 1310- ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1310- ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1310- ●
56 NUT; YOKE
M14 		0-91110-514-0 08 1 1310- ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 08 1 1310- ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 1310- ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 1310- ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1310- ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1310- ●
71 NUT; YOKE
M14 		0-91110-514-0 04 1 1310- ● ● ● ●
72 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1310- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 08 1 1310- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1310- ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 1310- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 01 1 1310- ● ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 1310- ● ● ● ●
172 BRACKET; CENTER BRG
(A) 		8-98044-076-0 01 1 1310- ●
172 BRACKET; CENTER BRG
(A) 		1-37515-118-0 01 1 1310- ●
172 BRACKET; CENTER BRG
(C) 		1-37515-121-0 01 1 1310- ●
172 BRACKET; CENTER BRG
(B) 		1-37515-122-0 01 1 1310- ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1310- ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1310- ●
174 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1310- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 		8-98020-885-0 01 1 1310- ● ● ● ●

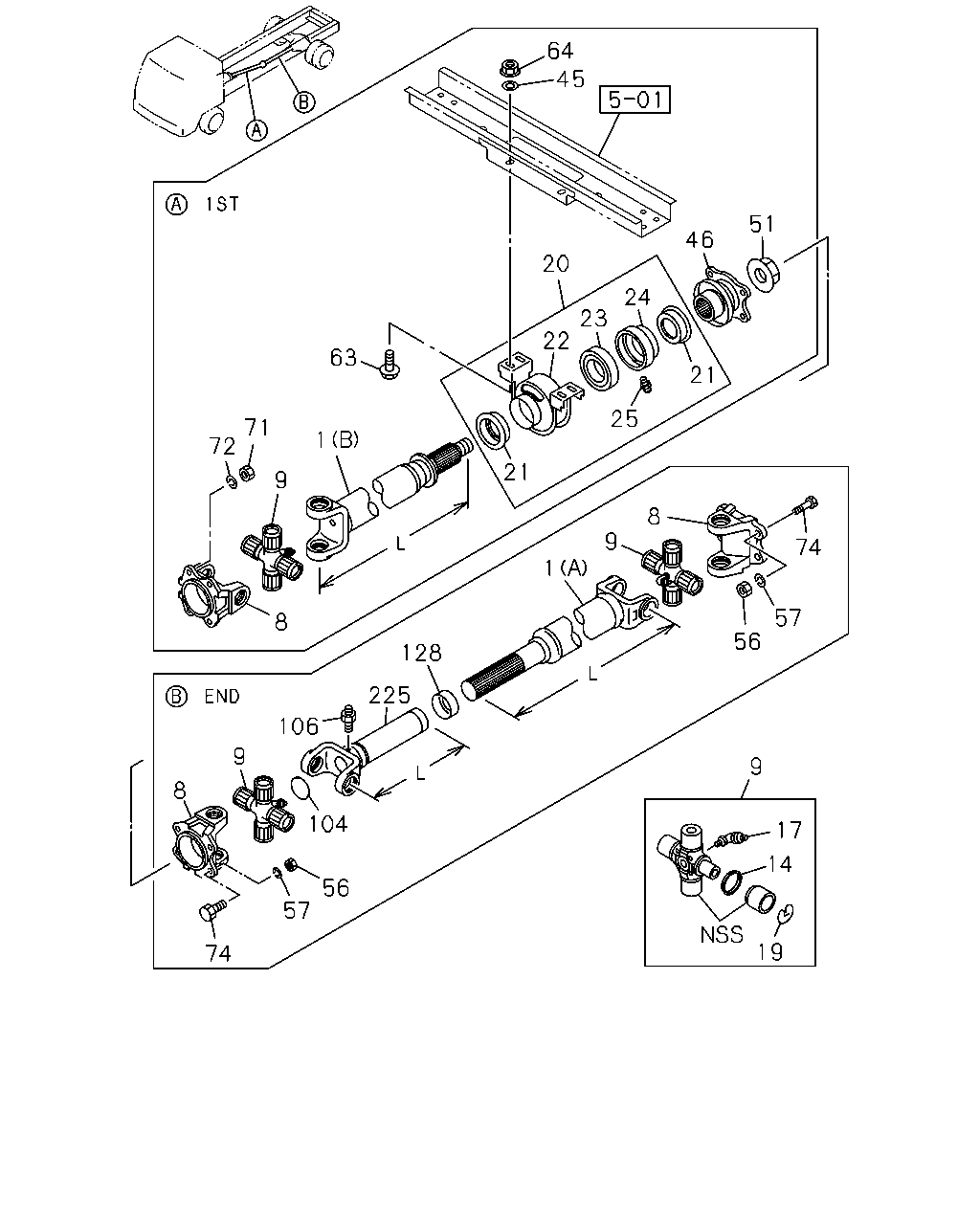

çizim 381759
19 14 17 9 56 57 74 8 9 1 128 225 106 9 104 8 74 57 56 21 25 21 51 46 20 23 24 22 63 71 1 72 9 8 64 45
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
(A) L=649 		8-98091-129-0 01 1 1310- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=656 		1-37153-130-0 01 1 1310- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=574 		8-98091-092-0 01 1 1310- ●
1 SHAFT; PROP
(A) L=1116 		8-98091-130-0 01 1 1310- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=839 		8-98091-095-0 01 1 1310- ● ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=759 		8-98091-094-0 01 1 1310- ● ●
1 SHAFT; PROP
(A) L=1309 		8-98091-131-0 01 1 1310- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1059 		8-98091-097-0 01 1 1310- ●
1 SHAFT; PROP
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=979 		8-98091-096-0 01 1 1310- ●
1 SHAFT; PROP
(C) L=974 		8-98091-098-0 01 1 1310- ●
1 SHAFT; PROP
(A) L=1199 		8-98091-121-0 01 1 1310- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1310- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1310- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 1310- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
1ST,2ND 		1-37300-102-1 AR 1 1310-1505 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
1ST,2ND 		1-37300-102-1 AR 1 1310-1505 ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 AR 1 1506- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 AR 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
END 		8-98048-925-1 02 1 1310- ● ● ● ●
14 COVER; DUST,SPIDER
1ST,2ND 		1-37319-012-0 04 1 1310-1505 ● ● ● ●
14 COVER; DUST,SPIDER
1ST,2ND 		1-37319-012-0 04 1 1310-1505 ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1506- ● ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1506- ●
14 COVER; DUST,SPIDER
END 		8-98020-800-0 08 1 1310- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1310- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1310- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1310- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1310- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1310- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1310- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1310- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1310- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1310- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1310- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1310- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1310- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 1310- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 1310- ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1310- ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1310- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1310- ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1310- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1310- ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1310- ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 1310- ● ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 1310- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1310- ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1310- ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 1310- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 1310- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 1310- ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1310- ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1310- ●
56 NUT; YOKE
M14 		0-91110-514-0 08 1 1310- ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 08 1 1310- ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 1310- ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 1310- ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1310- ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1310- ●
71 NUT; YOKE
M14 		0-91110-514-0 04 1 1310- ● ● ● ●
72 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1310- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 08 1 1310- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1310- ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 1310- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 01 1 1310- ● ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 1310- ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 		8-98020-885-0 01 1 1310- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
