◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11551 - FRR-L EURO5 EXC.SPAC ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#128095) — 66 parça

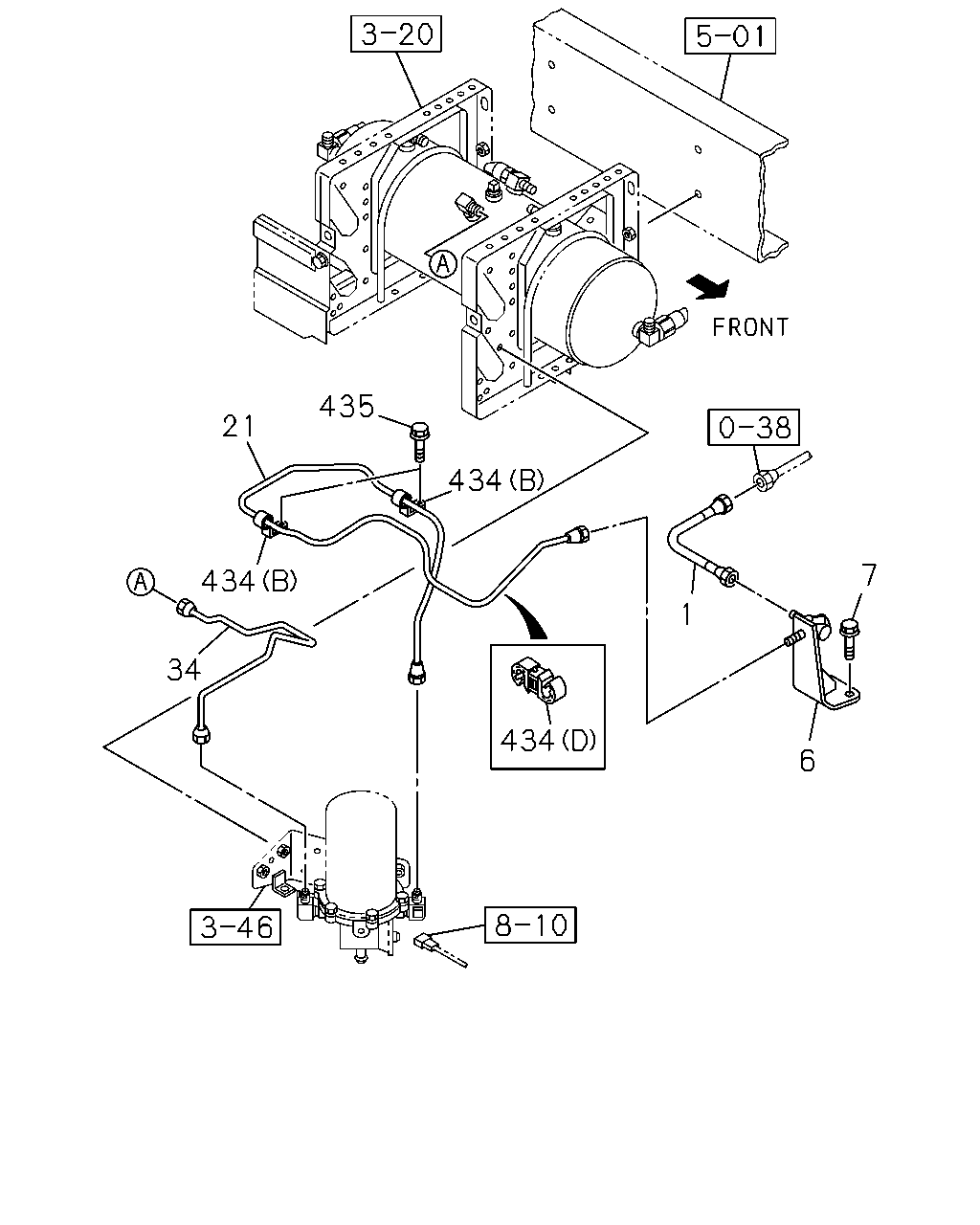

çizim 380201
434 435 21 434 34 434 6 7 1
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK 1-09363-958-0 01 1 1310-
6 BRACKET; FLEX HOSE,AIR TANK 8-98079-987-1 01 1 1310-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 1310-
21 PIPE; AIR,UNION TO AIR DRYER
L=1816 		8-98083-100-0 01 1 1310-
34 PIPE; AIR
L=673 SERVICED BY L=700 		1-49115-481-0 01 1 1310-
434 CLIP
(B) ID=15 H=24 L=20 		1-09700-606-0 02 1 1310-
434 CLIP
(A) L=350 		1-09707-183-0 01 1 1310-
434 CLIP
(A) L=350 		1-09707-183-0 13 1 1310-
434 CLIP
(D) ID=10 & 15 		1-09709-279-1 01 1 1310-
434 CLIP
AIR SUSP DRIVER SEAT<A56> (C) ID=7 L=20 		0-95234-635-0 01 1 1310-
434 CLIP
WHEEL BASE 3700MM(37W) (A) L=350 		1-09707-183-0 03 1 1310-
434 CLIP
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) (A) L=350 		1-09707-183-0 02 1 1310-
435 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1310-
435 BOLT; CLIP
AIR SUSP DRIVER SEAT<A56> M8X20 FLANGE 		0-28650-820-0 01 1 1310-

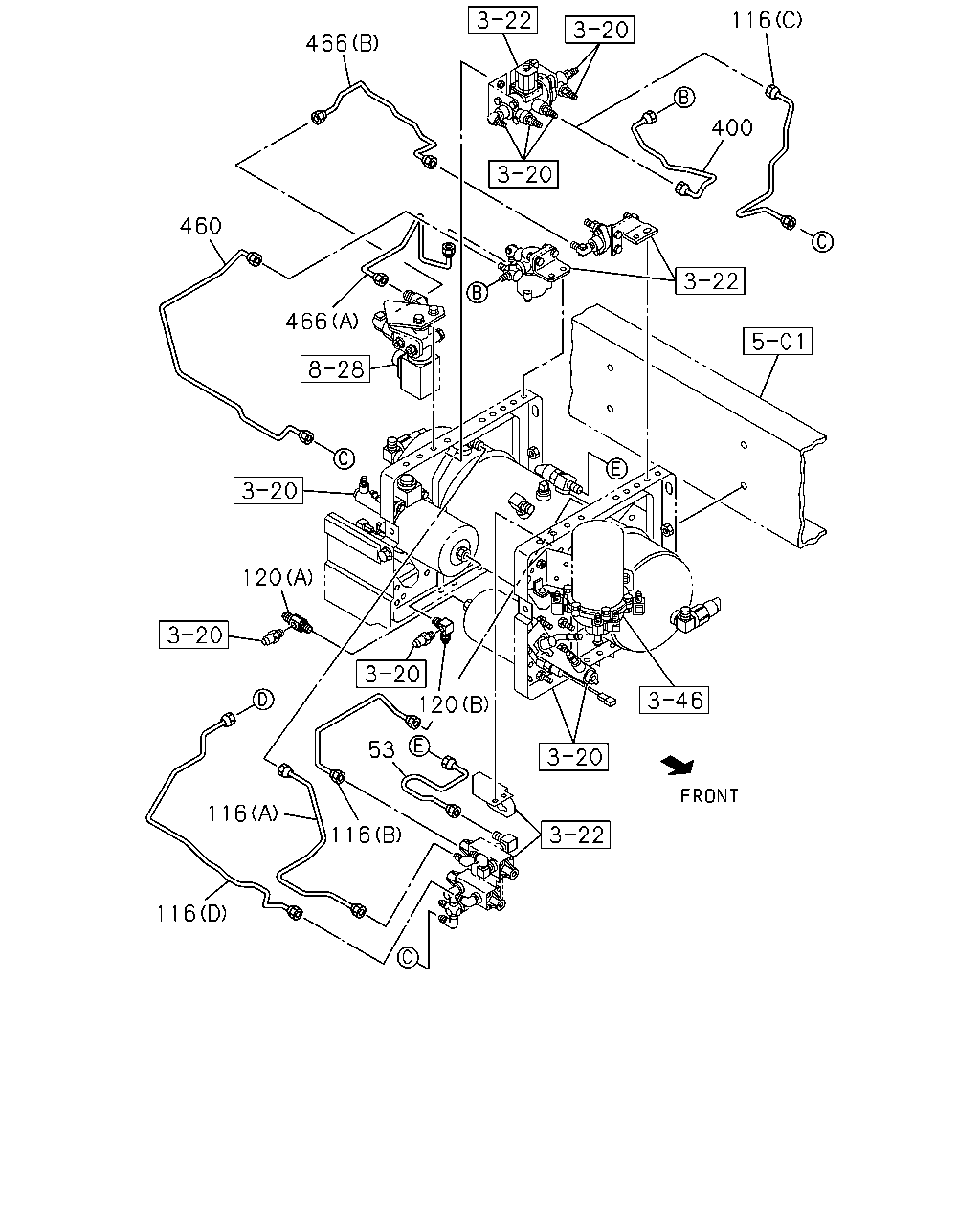

çizim 380229
116 400 466 460 466 116 53 120 116 116 120
BalonParca AdiParca NoAdetTipApplied Date
53 PIPE; AIR,AIR TANK TO VALVE 8-98213-331-0 01 1 1310-
116 PIPE; AIR,PROTECTION VLV
(B) L=382 		8-98077-880-0 01 1 1310-
116 PIPE; AIR,PROTECTION VLV
(A) L=480 		8-98213-332-0 01 1 1310-
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (D) L=1072 SERVICED BY L=1100 		1-47428-815-0 01 1 1310-
116 PIPE; AIR,PROTECTION VLV
EXC. THROTTLE CONTROL SYSTEM(6XH) (D) L=1072 SERVICED BY L=1100 		1-47428-815-0 01 1 1310-
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=585 SERVICED BY L=600 		1-47428-809-0 01 1 1310-
120 CONNECTOR; AIR PIPE
(A) M16 & PT3/8 STRAIGHT 		1-09656-643-1 01 1 1310-
120 CONNECTOR; AIR PIPE
(B) M16 & PT1/4 & PT3/8 3WAY 		1-09656-671-0 01 1 1310-
400 PIPE; AIR,HSA VLV
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=467 		8-98066-848-0 01 1 1310-
460 PIPE; AIR,PROTECTION VALVE
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=1036 		8-98225-793-0 01 1 1310-
466 PIPE; AIR,ASR
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (B) L=682 SERVICED BY L=700 		1-47428-870-0 01 1 1310-
466 PIPE; AIR,ASR
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) L=492 		8-98077-879-0 01 1 1310-

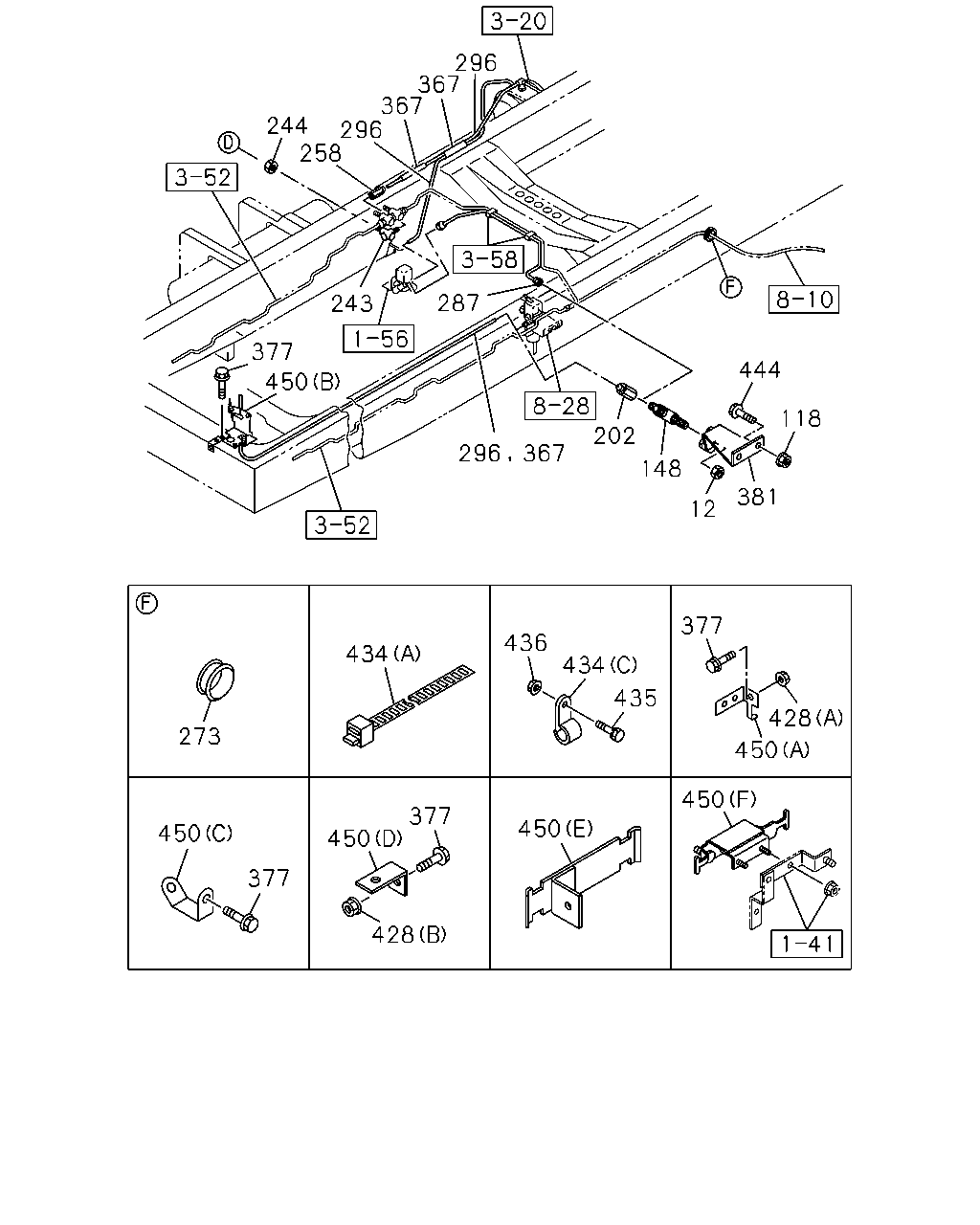

çizim 381461
296 367 367 296 258 244 377 243 450 296 367 202 148 12 381 118 444 287 273 434 436 434 435 377 428 450 450 450 377 450 428 377 450
BalonParca AdiParca NoAdetTipApplied Date
12 NUT; UNION
AIR SUSP DRIVER SEAT<A56> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 		0-91111-512-0 01 1 1310-
118 NUT; UNION
AIR SUSP DRIVER SEAT<A56> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE 		0-91180-210-0 02 1 1310-
148 CONNECTOR; UNION
AIR SUSP DRIVER SEAT<A56> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 2WAY 		1-09654-059-2 01 1 1310-
202 ADAPTER
AIR SUSP DRIVER SEAT<A56> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1310-
243 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 1310-
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1310-
258 CONNECTOR; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1310-
273 GROMMET
ID=28 OD=35 T=17 		9-09956-256-2 02 1 1310-
287 PIPE; AIR,MAG VLV
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> TRANSMISSION SIDE PTO WO/LEVER(SH5) L=908 SERVICED BY L=1000 		1-47428-814-0 01 1 1310-
287 PIPE; AIR,MAG VLV
AIR SUSP DRIVER SEAT<A56> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) L=908 SERVICED BY L=1000 		1-47428-814-0 01 1 1310-
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1310-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1310-
367 TUBE; CORRUGATE
SERVICED BY L=4000 ID=7 		1-87411-017-0 AR 1 1310-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1310-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 1310-
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 03 1 1310-
377 BOLT; BRKT FIX
M10X30 FLANGE 		0-28651-030-0 03 1 1310-
377 BOLT; BRKT FIX
WHEEL BASE 3700MM(37W) M8X25 FLANGE 		0-28650-825-0 01 1 1310-
377 BOLT; BRKT FIX
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) M10X30 FLANGE 		0-28651-030-0 01 1 1310-
381 BRACKET
AIR SUSP DRIVER SEAT<A56> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98119-700-0 01 1 1310-
428 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 01 1 1310-
428 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 1310-
428 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) (A) M10 FLANGE 		0-91180-210-0 01 1 1310-
434 CLIP
(B) ID=15 H=24 L=20 		1-09700-606-0 02 1 1310-
434 CLIP
(A) L=350 		1-09707-183-0 01 1 1310-
434 CLIP
(A) L=350 		1-09707-183-0 13 1 1310-
434 CLIP
(D) ID=10 & 15 		1-09709-279-1 01 1 1310-
434 CLIP
AIR SUSP DRIVER SEAT<A56> (C) ID=7 L=20 		0-95234-635-0 01 1 1310-
434 CLIP
WHEEL BASE 3700MM(37W) (A) L=350 		1-09707-183-0 03 1 1310-
434 CLIP
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) (A) L=350 		1-09707-183-0 02 1 1310-
435 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1310-
435 BOLT; CLIP
AIR SUSP DRIVER SEAT<A56> M8X20 FLANGE 		0-28650-820-0 01 1 1310-
436 NUT; CLIP
AIR SUSP DRIVER SEAT<A56> M8 FLANGE 		0-91180-108-0 01 1 1310-
444 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 FLANGE 		0-28651-030-0 02 1 1310-
450 BRACKET; CLIP
(D) 		1-47477-694-0 01 1 1310-
450 BRACKET; CLIP
(F) 		8-98077-895-1 01 1 1310-
450 BRACKET; CLIP
(C) 		8-98117-686-0 03 1 1310-
450 BRACKET; CLIP
(B) 		8-98180-947-0 01 1 1310-
450 BRACKET; CLIP
WHEEL BASE 3700MM(37W) (E) 		8-98116-680-0 01 1 1310-
450 BRACKET; CLIP
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) (A) 		8-98100-216-1 01 1 1310-
