Isuzu WW
▶
TRUCKS
▶
FRR
▶
11551 - FRR-L EURO5 EXC.SPAC
▶
3 - Brakes, Brake System
▶
3-55 - BRAKE PIPING; OIL,REAR
▶
3-55 — BRAKE PIPING; OIL,REAR
(#128093) — 40 parça
◀
[355A] AIR TANK SIDE (13 parça)

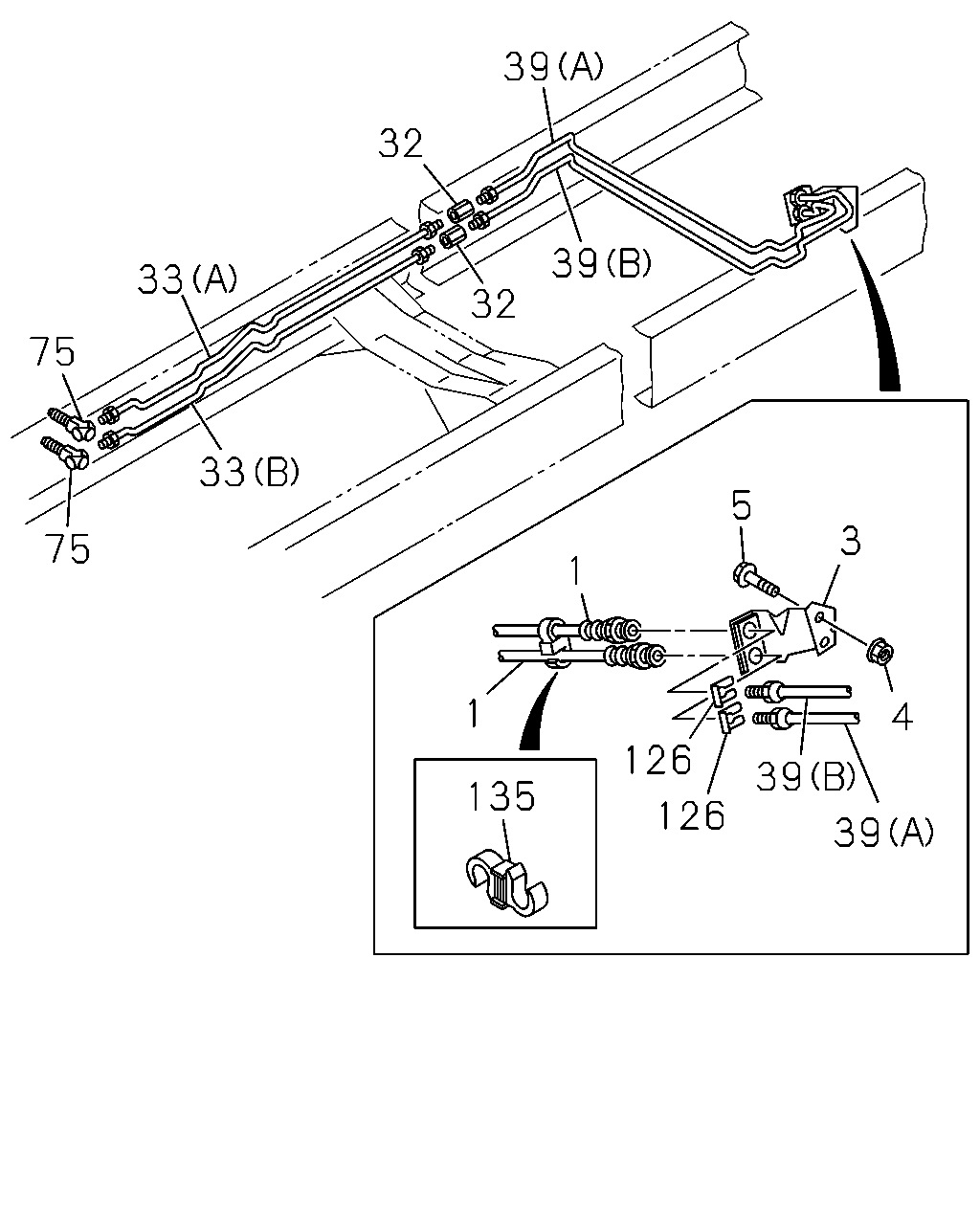

[355A] FRAME SIDE (19 parça)

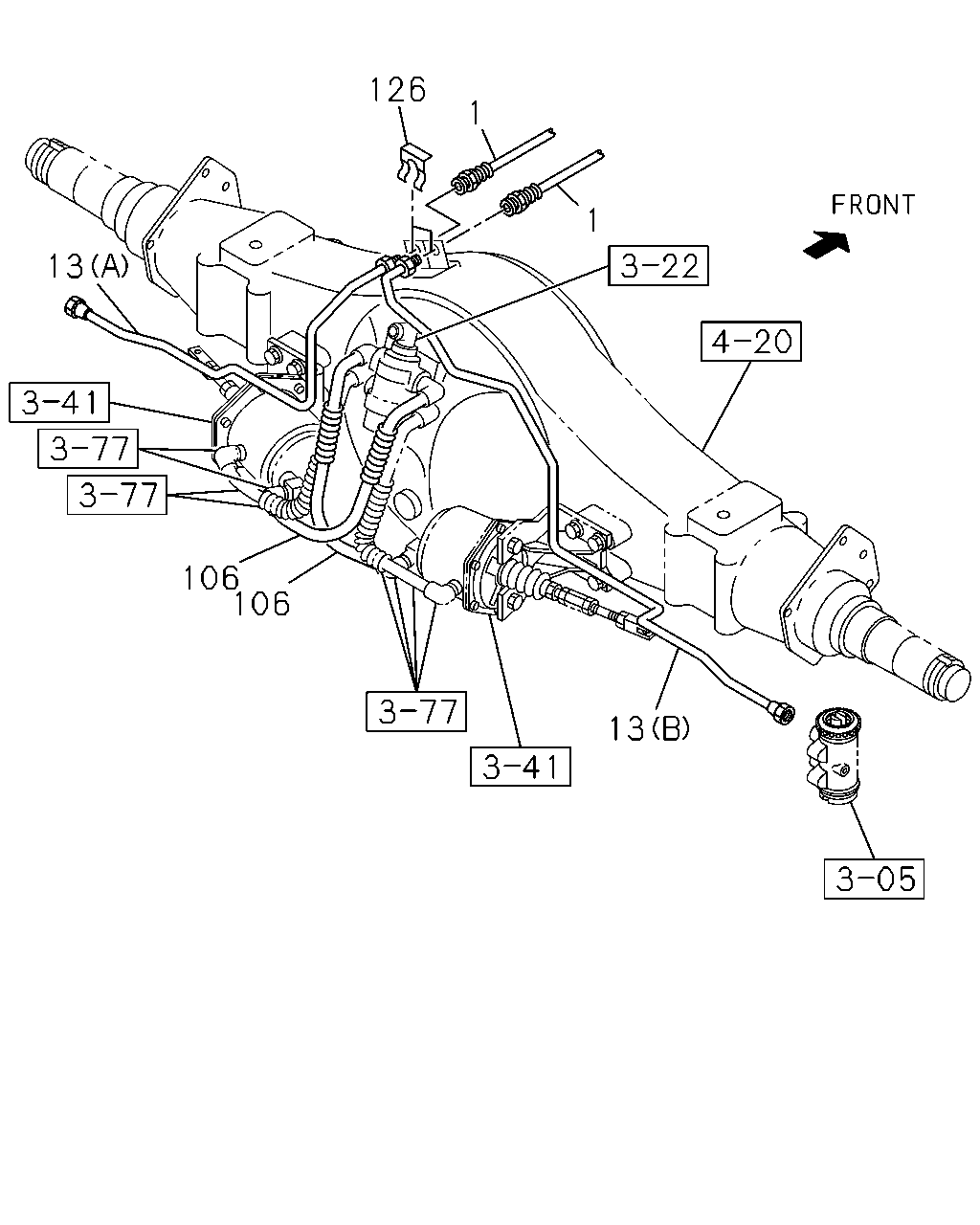

[355A] REAR AXLE SIDE (8 parça)
▶
138
138
138
75
33
75
33
46
46
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
33
PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) (A) LH LINE L=1113
8-98232-793-0
01
1
1310-
33
PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) (B) RH LINE L=1060
8-98232-794-0
01
1
1310-
33
PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) (A) LH LINE L=1624
8-98232-795-0
01
1
1310-
33
PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) (B) RH LINE L=1579
8-98232-796-0
01
1
1310-
33
PIPE; OIL,UNION TO UNION
WHEEL BASE 4800MM(48W) (A) LH LINE L=2126
8-98232-797-0
01
1
1310-
33
PIPE; OIL,UNION TO UNION
WHEEL BASE 4800MM(48W) (B) RH LINE L=2081
8-98232-798-0
01
1
1310-
33
PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) (A) LH LINE L=2824
8-98232-801-0
01
1
1310-
33
PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) (B) RH LINE L=2779
8-98232-802-0
01
1
1310-
46
NUT; UNION,OIL PIPE
M10 H=8
1-09400-029-0
02
1
1310-
75
UNION; OIL PIPE
M10X2 ELBOW
8-98018-438-0
02
1
1310-
138
PIPE; HYDRAULIC UNIT
(C) L=296
8-98066-107-0
01
1
1310-
138
PIPE; HYDRAULIC UNIT
(A) LH LINE L=657
8-98012-129-0
01
1
1310-
138
PIPE; HYDRAULIC UNIT
(B) RH LINE L=703
8-98012-146-0
01
1
1310-
135
1
1
126
126
39
39
3
4
5
39
32
33
75
75
33
32
39
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,RR BRK
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) L=350
8-97138-885-0
02
1
1310-
1
HOSE; FLEX,RR BRK
WHEEL BASE 3700MM(37W) L=320
8-98067-397-0
02
1
1310-
3
BRACKET; FLEX HOSE,RR BRK
8-98065-999-2
01
1
1310-
4
NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE
0-91180-108-0
02
1
1310-
5
BOLT; BRKT,FLEX HOSE,RR BRK
M8X30 FLANGE
0-28650-830-0
02
1
1310-
32
UNION; OIL PIPE
M10 STRAIGHT
0-92107-005-0
02
1
1310-
33
PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) (A) LH LINE L=1113
8-98232-793-0
01
1
1310-
33
PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) (B) RH LINE L=1060
8-98232-794-0
01
1
1310-
33
PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) (A) LH LINE L=1624
8-98232-795-0
01
1
1310-
33
PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM(43W) (B) RH LINE L=1579
8-98232-796-0
01
1
1310-
33
PIPE; OIL,UNION TO UNION
WHEEL BASE 4800MM(48W) (A) LH LINE L=2126
8-98232-797-0
01
1
1310-
33
PIPE; OIL,UNION TO UNION
WHEEL BASE 4800MM(48W) (B) RH LINE L=2081
8-98232-798-0
01
1
1310-
33
PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) (A) LH LINE L=2824
8-98232-801-0
01
1
1310-
33
PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) (B) RH LINE L=2779
8-98232-802-0
01
1
1310-
39
PIPE; OIL,UNION TO RR FLEX HOSE
(A) LH LINE L=1710
8-98106-485-0
01
1
1310-
39
PIPE; OIL,UNION TO RR FLEX HOSE
(B) RH LINE L=1772
8-98106-486-0
01
1
1310-
75
UNION; OIL PIPE
M10X2 ELBOW
8-98018-438-0
02
1
1310-
126
CLIP; FLEX HOSE
8-97360-054-0
04
1
1310-
135
CLIP; FLEX HOSE
ID=10 & 10
1-09709-277-1
01
1
1310-
126
13
106
106
13
1
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,RR BRK
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) L=350
8-97138-885-0
02
1
1310-
1
HOSE; FLEX,RR BRK
WHEEL BASE 3700MM(37W) L=320
8-98067-397-0
02
1
1310-
13
PIPE; BRK,RR AXLE
(A) LH LINE
8-98107-929-0
01
1
1310-1409
13
PIPE; BRK,RR AXLE
(A) LH LINE
8-98281-558-0
01
1
1410-
13
PIPE; BRK,RR AXLE
(B) RH LINE
8-98107-928-0
01
1
1310-1409
13
PIPE; BRK,RR AXLE
(B) RH LINE
8-98281-557-0
01
1
1410-
106
TUBE; NYLON
8-98061-971-0
02
1
1310-
126
CLIP; FLEX HOSE
8-97360-054-0
04
1
1310-
