Isuzu WW
▶
TRUCKS
▶
FRR
▶
11551 - FRR-L EURO5 EXC.SPAC
▶
3 - Brakes, Brake System
▶
3-22 - AIR CONTROL PARTS
▶
3-22 — AIR CONTROL PARTS
(#128086) — 68 parça
◀
[322A] FIXING (7 parça)
[322A] REPAIR KIT;REGULATION VALVE (1 parça)
[322A] QUICK RELEASE VALVE (11 parça)
[322A] COMPONENT;PROTECTION,REGULATION VALVE (29 parça)
[322A] COMPONENT;HSA VALVE (17 parça)
[322A] REPAIR KIT;HSA VALVE (2 parça)
[322A] REPAIR KIT;PROTECTION VALVE (1 parça)
▶

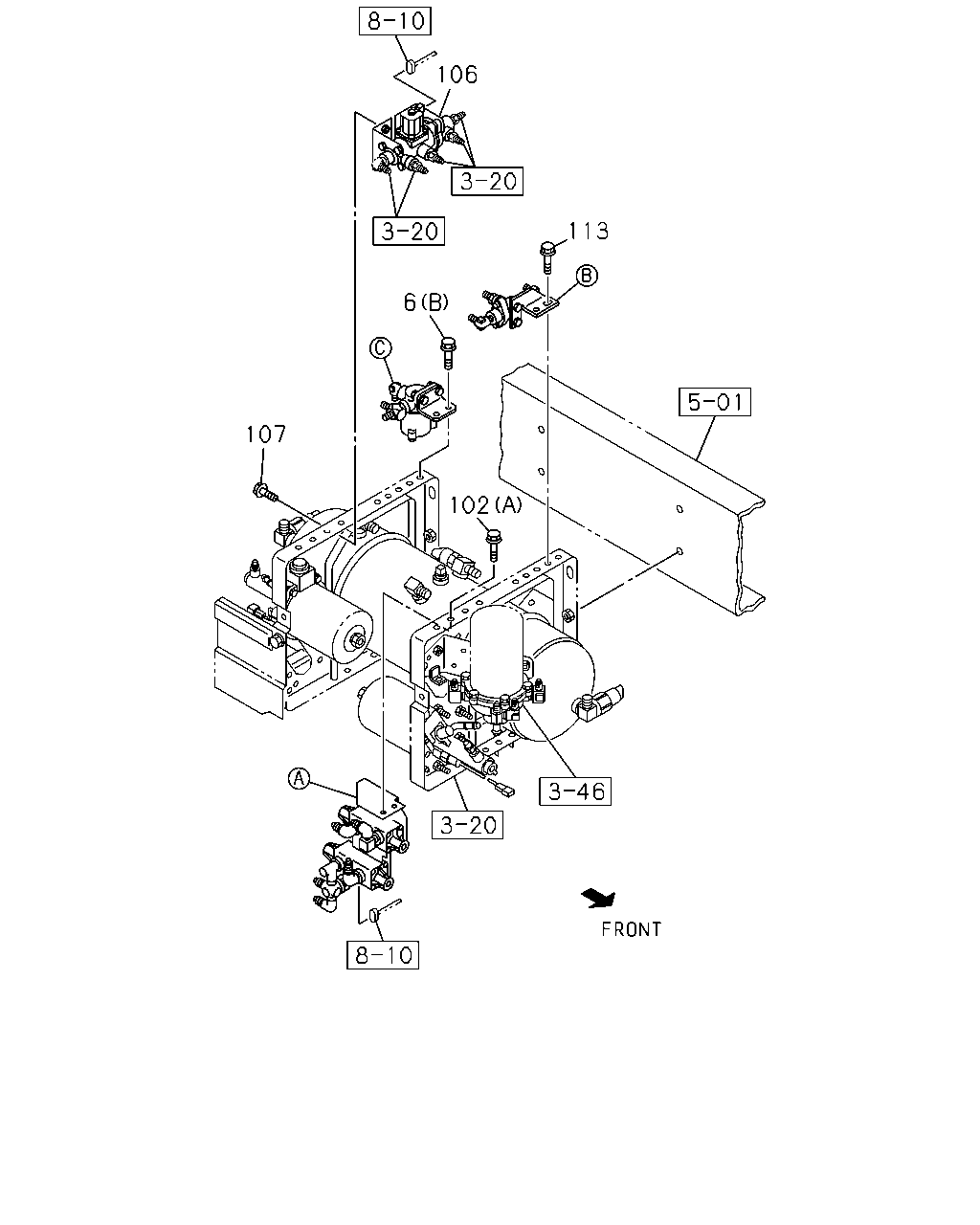

106
6
113
102
107
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
BOLT; VLV
THROTTLE CONTROL SYSTEM(6XH) (A) M8X16 FLANGE
0-28050-816-0
02
1
1310-
6
BOLT; VLV
THROTTLE CONTROL SYSTEM(6XH) (B) M8X25 FLANGE
0-28650-825-0
02
1
1310-
102
BOLT; PROTECTION VALVE
(B) M8X16 FLANGE
0-28050-816-0
02
1
1310-
102
BOLT; PROTECTION VALVE
(A) M8X20 FLANGE
0-28650-820-0
02
1
1310-
106
VALVE; HSA
H.S.A SYSTEM<6EP>
1-46362-123-1
01
1
1310-
107
BOLT; VLV
H.S.A SYSTEM<6EP> M8X20 FLANGE
0-28650-820-0
03
1
1310-
113
BOLT; VLV
THROTTLE CONTROL SYSTEM(6XH) M8X25 FLANGE
0-28650-825-0
02
1
1310-
259
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
259
REPAIR KIT; VALVE
THROTTLE CONTROL SYSTEM(6XH) W/GREASE
1-85576-381-0
01
1
1310-

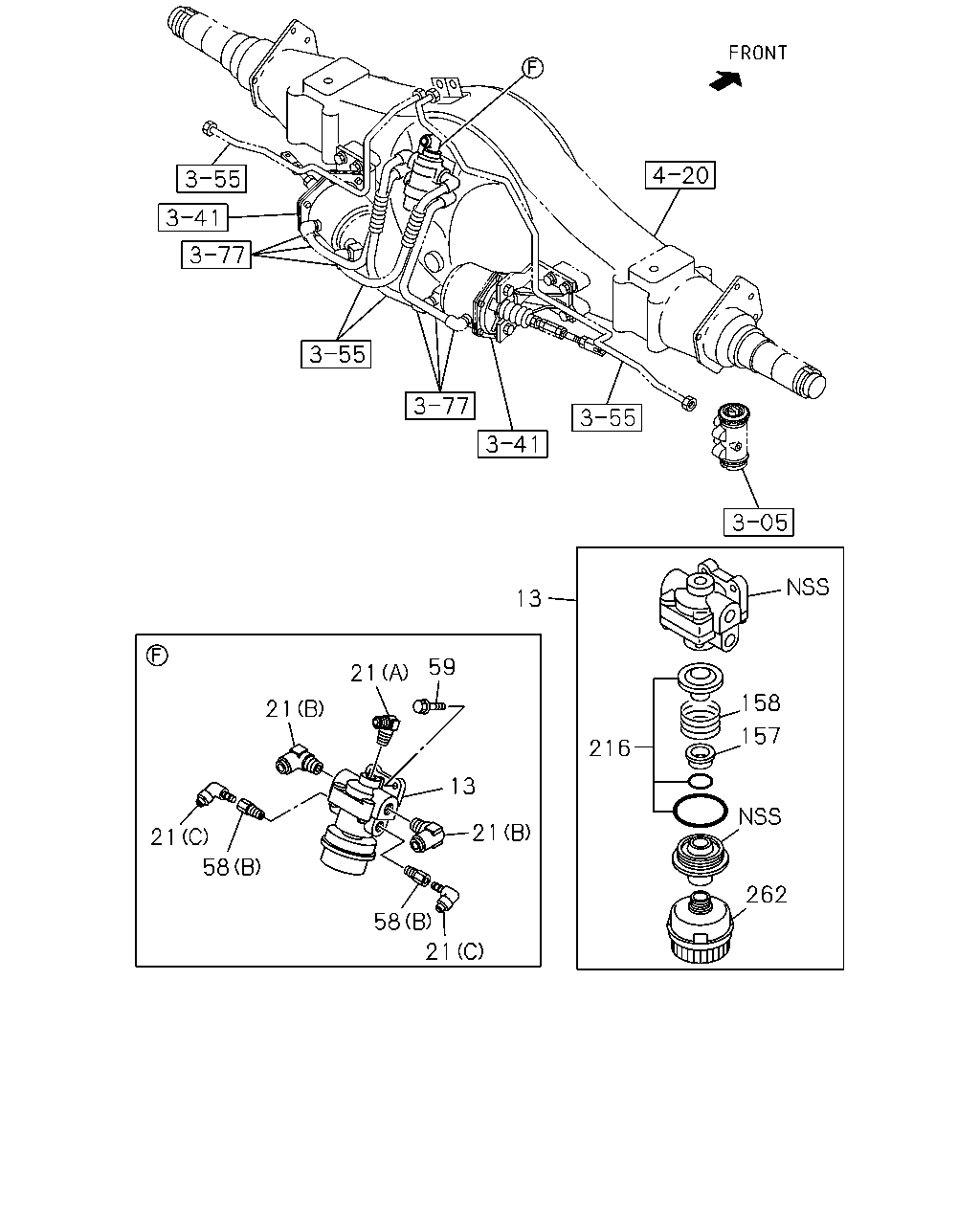

13
21
21
21
58
58
13
21
59
21
216
158
157
262
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
VALVE ASM; QUICK RELEASE
1-48410-781-2
01
1
1310-
21
CONNECTOR; QUICK RELEASE VLV
(A) M16 & PT3/8 ELBOW
1-09650-438-0
01
1
1310-
21
CONNECTOR; QUICK RELEASE VLV
(B) DIN12 & R3/8 ELBOW
1-09660-959-0
02
1
1310-
21
CONNECTOR; QUICK RELEASE VLV
(C) DIN4 & DIN6 SWIVEL CONNECTOR
1-09661-816-0
02
1
1310-
58
ADAPTER
(A) PT1/4 & PT3/8 2WAY
1-09660-809-0
01
1
1310-
58
ADAPTER
(B) DIN7 & DIN9 ADAPTOR
1-09661-815-0
02
1
1310-
59
BOLT; RELEASE VALVE FIX
M8X20 FLANGE
0-28050-820-0
02
1
1310-
157
RETAINER; VALVE
1-48419-036-0
01
1
1310-
158
SPRING; VALVE
9-48419-003-0
01
1
1310-
216
REPAIR KIT; QUICK RELEASE VLV
1-85579-062-0
01
1
1310-
262
SILENCER; RELAY VALVE
1-48219-149-0
01
1
1310-

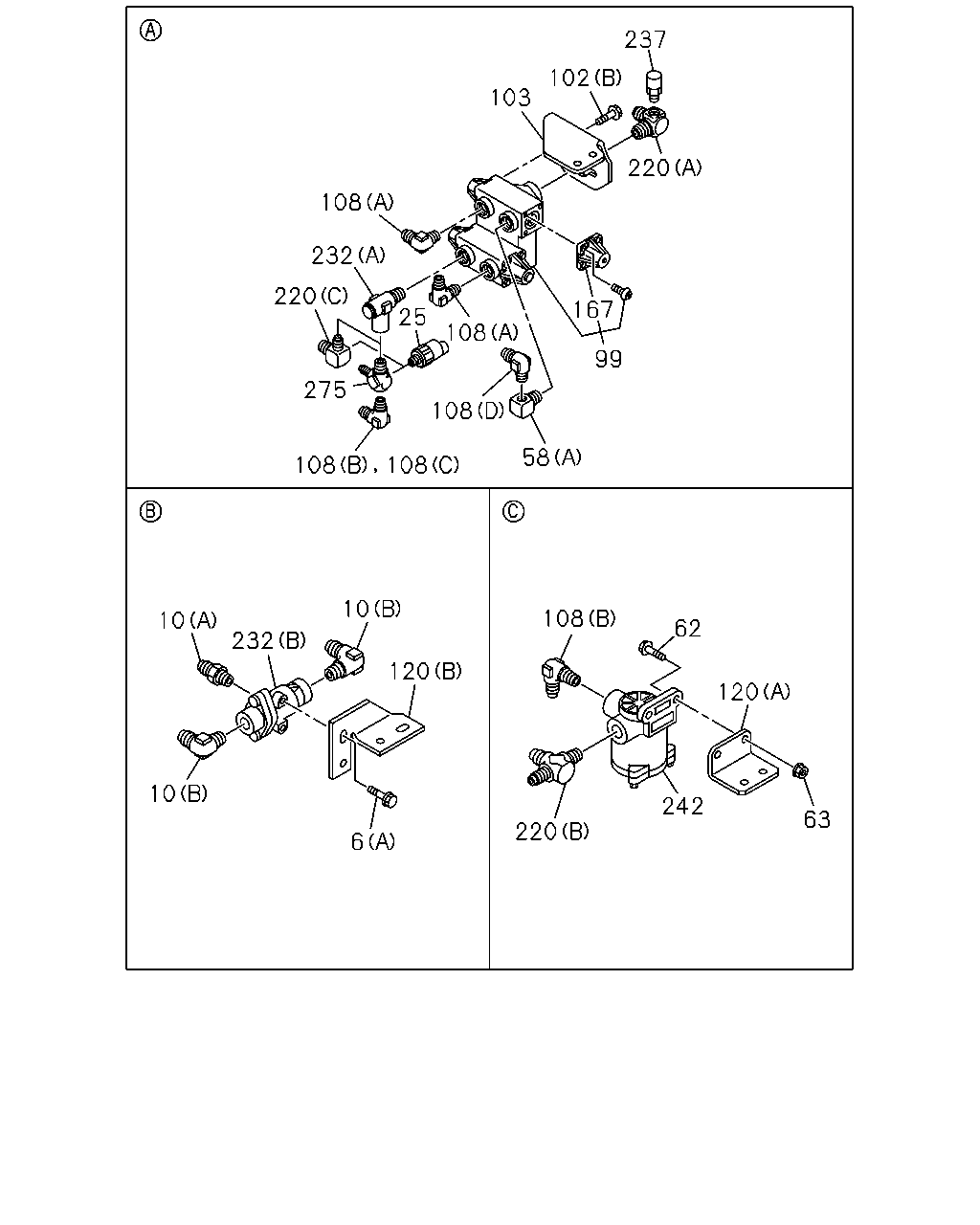

237
102
220
103
167
99
58
108
108
25
108
232
220
275
108
108
10
120
6
10
232
10
108
62
120
63
242
220
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
BOLT; VLV
THROTTLE CONTROL SYSTEM(6XH) (A) M8X16 FLANGE
0-28050-816-0
02
1
1310-
6
BOLT; VLV
THROTTLE CONTROL SYSTEM(6XH) (B) M8X25 FLANGE
0-28650-825-0
02
1
1310-
10
CONNECTOR
THROTTLE CONTROL SYSTEM(6XH) (A) M16 & PT3/8 STRAIGHT
1-09650-179-1
01
1
1310-
10
CONNECTOR
THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT3/8 ELBOW
1-09650-438-0
02
1
1310-
25
SWITCH; PRESSURE
STAMP 5.5
8-97609-249-0
01
1
1310-
58
ADAPTER
(A) PT1/4 & PT3/8 2WAY
1-09660-809-0
01
1
1310-
58
ADAPTER
(B) DIN7 & DIN9 ADAPTOR
1-09661-815-0
02
1
1310-
62
BOLT; BRKT FIX
THROTTLE CONTROL SYSTEM(6XH) M8X30 FLANGE
0-28650-830-0
02
1
1310-
63
NUT; BRKT FIX
THROTTLE CONTROL SYSTEM(6XH) M8 FLANGE
0-91180-108-0
02
1
1310-
99
VALVE; PROTECTION
1-48110-290-3
01
1
1310-
102
BOLT; PROTECTION VALVE
(B) M8X16 FLANGE
0-28050-816-0
02
1
1310-
102
BOLT; PROTECTION VALVE
(A) M8X20 FLANGE
0-28650-820-0
02
1
1310-
103
BRACKET; PROTECTION VALVE
8-98034-985-1
01
1
1310-1311
103
BRACKET; PROTECTION VALVE
8-98221-293-0
01
1
1312-
108
CONNECTOR; ELBOW
(D) M16 & PT1/4 ELBOW
0-92134-310-0
01
1
1310-
108
CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW
1-09650-438-0
02
1
1310-
108
CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW
0-92134-310-0
02
1
1310-
108
CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
1310-
120
BRACKET; VLV
THROTTLE CONTROL SYSTEM(6XH) (A)
1-48316-012-0
01
1
1310-
120
BRACKET; VLV
THROTTLE CONTROL SYSTEM(6XH) (B)
8-98050-131-0
01
1
1310-
167
COVER; VALVE
1-48119-625-0
04
1
1310-
220
CONNECTOR; 3WAY
(A) DIN9 & RC3/8 & M20 3WAY
8-98031-239-0
01
1
1310-
220
CONNECTOR; 3WAY
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (C) DIN6 & PT1/4 & M12 3WAY
1-09656-698-0
01
1
1310-
220
CONNECTOR; 3WAY
THROTTLE CONTROL SYSTEM(6XH) (B) PT1/4 & M12 & M16 3WAY
1-09656-331-1
01
1
1310-
232
VALVE; CHECK
(A) DIN18 & R3/8 & RC3/8 3WAY
8-98032-527-0
01
1
1310-
232
VALVE; CHECK
THROTTLE CONTROL SYSTEM(6XH) (B)
1-48410-531-1
01
1
1310-
237
VALVE; SAFETY
1-48320-012-2
01
1
1310-
242
VALVE; REGULATION
THROTTLE CONTROL SYSTEM(6XH)
1-48410-723-0
01
1
1310-
275
CONNECTOR; 4WAY
H.S.A SYSTEM<6EP>
8-98035-011-0
01
1
1310-
106
204
198
205
203
201
197
200
199
196
196
199
198
200
197
201
205
203
202
190
192
189
195
201
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
106
VALVE; HSA
H.S.A SYSTEM<6EP>
1-46362-123-1
01
1
1310-
189
VALVE ASM; SOLENOID,HSA VLV
H.S.A SYSTEM<6EP>
1-46366-247-0
01
1
1310-
190
BODY; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP>
1-46366-234-0
01
1
1310-
192
SPRING; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP>
1-46366-181-0
01
1
1310-
195
SCREW; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP>
1-46366-191-0
04
1
1310-
196
PISTON; HSA VLV
H.S.A SYSTEM<6EP>
1-46366-232-0
02
1
1310-
197
SPRING; INNER,HSA VLV
H.S.A SYSTEM<6EP>
1-46366-161-0
02
1
1310-
198
PIN; STRAIGHT,HSA VLV
H.S.A SYSTEM<6EP>
1-46366-122-0
02
1
1310-
199
RETAINER; HSA VLV
H.S.A SYSTEM<6EP>
1-46366-121-0
02
1
1310-
200
SPRING; OUTER,HSA VLV
H.S.A SYSTEM<6EP>
1-46366-120-0
02
1
1310-
201
COVER; HSA VLV
H.S.A SYSTEM<6EP> (A)
1-46366-118-1
02
1
1310-
201
COVER; HSA VLV
H.S.A SYSTEM<6EP> (B)
1-46366-241-0
01
1
1310-
202
FILTER; HSA VLV
H.S.A SYSTEM<6EP>
1-46366-117-1
02
1
1310-
203
SCREW; HSA VLV
H.S.A SYSTEM<6EP>
1-46366-116-1
06
1
1310-
204
PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP>
1-46366-194-0
01
1
1310-
205
BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (A)
1-46366-149-0
01
1
1310-
205
BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (B)
1-46366-150-0
01
1
1310-

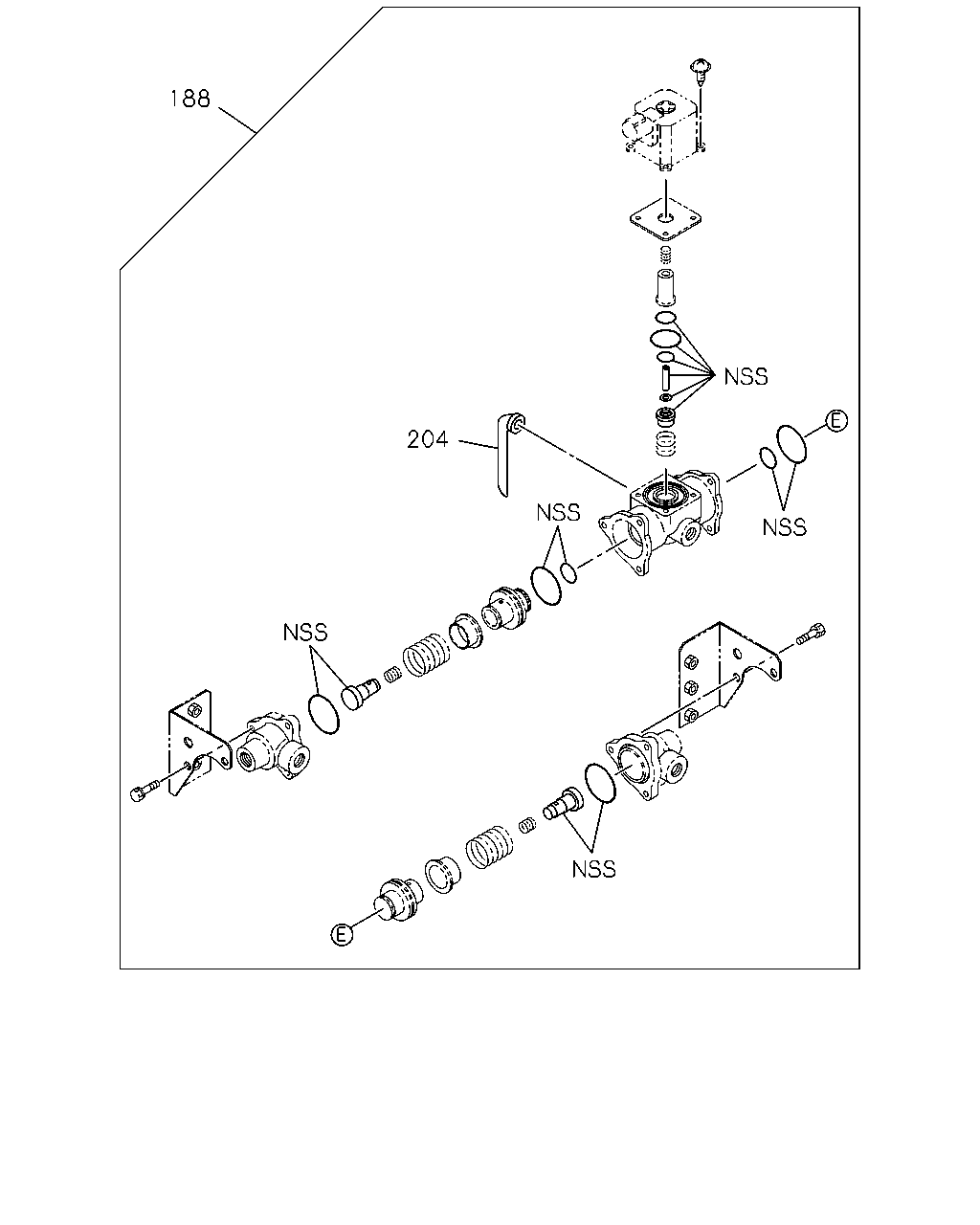

188
204
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
188
REPAIR KIT; HSA VLV
H.S.A SYSTEM<6EP>
1-85576-304-1
01
1
1310-
204
PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP>
1-46366-194-0
01
1
1310-
241
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
241
REPAIR KIT; PROTECTION VALVE
1-85576-451-2
01
1
1310-
