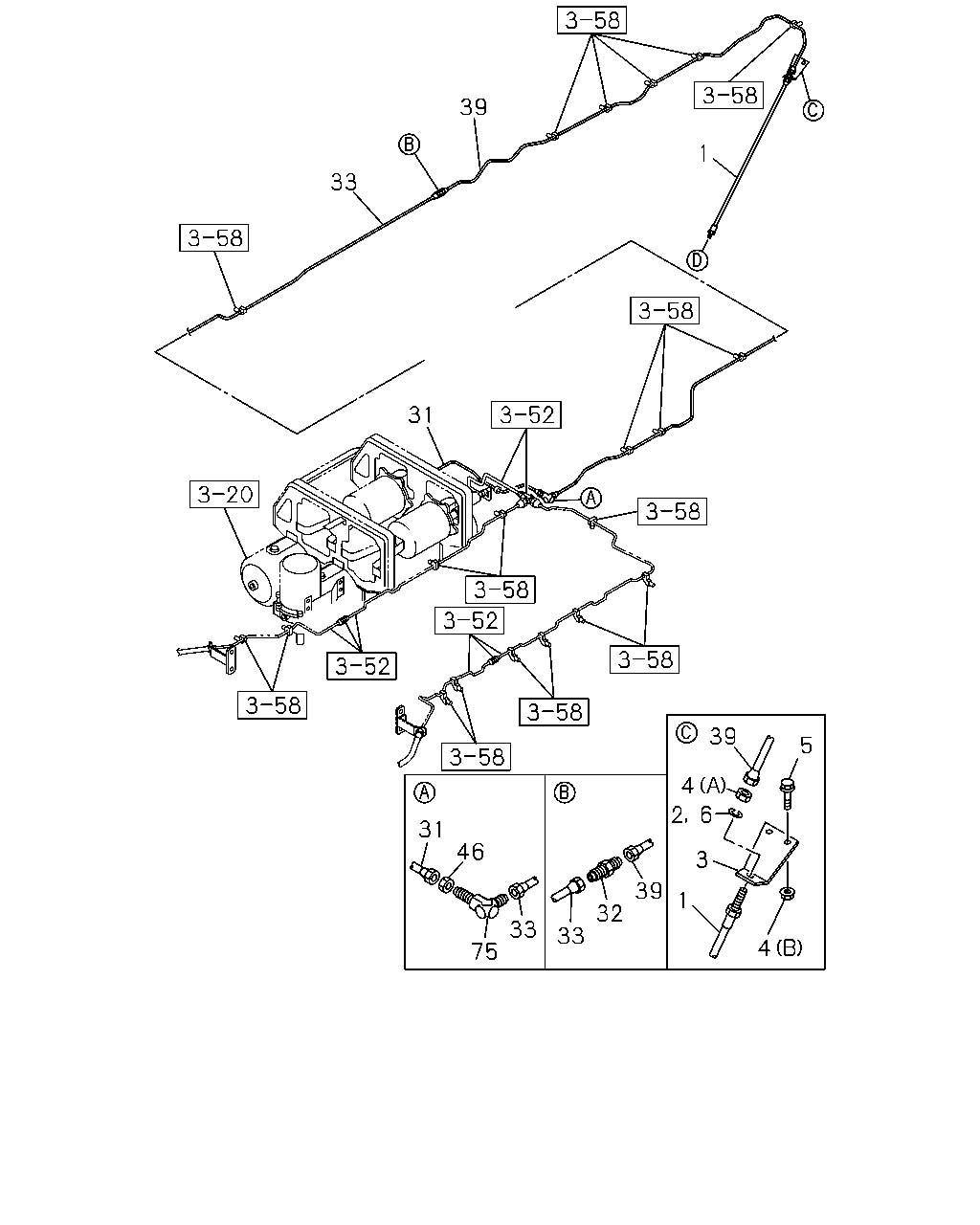

3-55 — BRAKE PIPING; OIL,REAR (#12808) — 21 parça

39 1 33 31 39 5 4 2 6 31 46 3 39 1 32 33 33 4 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK L=700	0-05312-700-0	01	1	0808-0907
1	HOSE; FLEX,RR BRK L=700	0-05212-700-0	01	1	0908-
2	GASKET; FLEX HOSE,RR BRK ID=9 OD=17	9-09920-472-0	01	1	0808-
3	BRACKET; FLEX HOSE,RR BRK	1-47465-251-0	01	1	0808-
4	NUT; BRKT,FLEX HOSE,RR BRK (A) M12	9-09840-280-0	01	1	0808-
4	NUT; BRKT,FLEX HOSE,RR BRK (B) M8 FLANGE THA	0-91180-108-0	02	1	0808-
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X25 FLANGE THA	0-28650-825-0	02	1	0808-
6	WASHER; LK,FLEX HOSE ID=12.2	0-91510-512-0	01	1	0808-
31	PIPE; OIL,AIR MASTER TO UNION L=504 SERVICED BY L=550	1-47428-724-0	01	1	0808-
32	UNION; OIL PIPE M12 L=40	0-92113-006-0	01	1	0808-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3600MM<36W> L=640 SERVICED BY L=650 THA	1-47428-726-0	01	1	0808-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4200MM<42W> L=1238 SERVICED BY L=1250 THA	1-47428-733-0	01	1	0808-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5000MM<50W> L=2035 SERVICED BY L=2200 THA	1-47428-740-0	01	1	0808-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5500MM<55W> L=2529 SERVICED BY L=2650 THA	1-47428-743-0	01	1	0808-
39	PIPE; OIL,UNION TO RR FLEX HOSE L=2062 SERVICED BY L=2200 THA	1-47428-740-0	01	1	0808-
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	0808-
75	UNION; OIL PIPE M12 ELBOW	0-92125-206-0	01	1	0808-

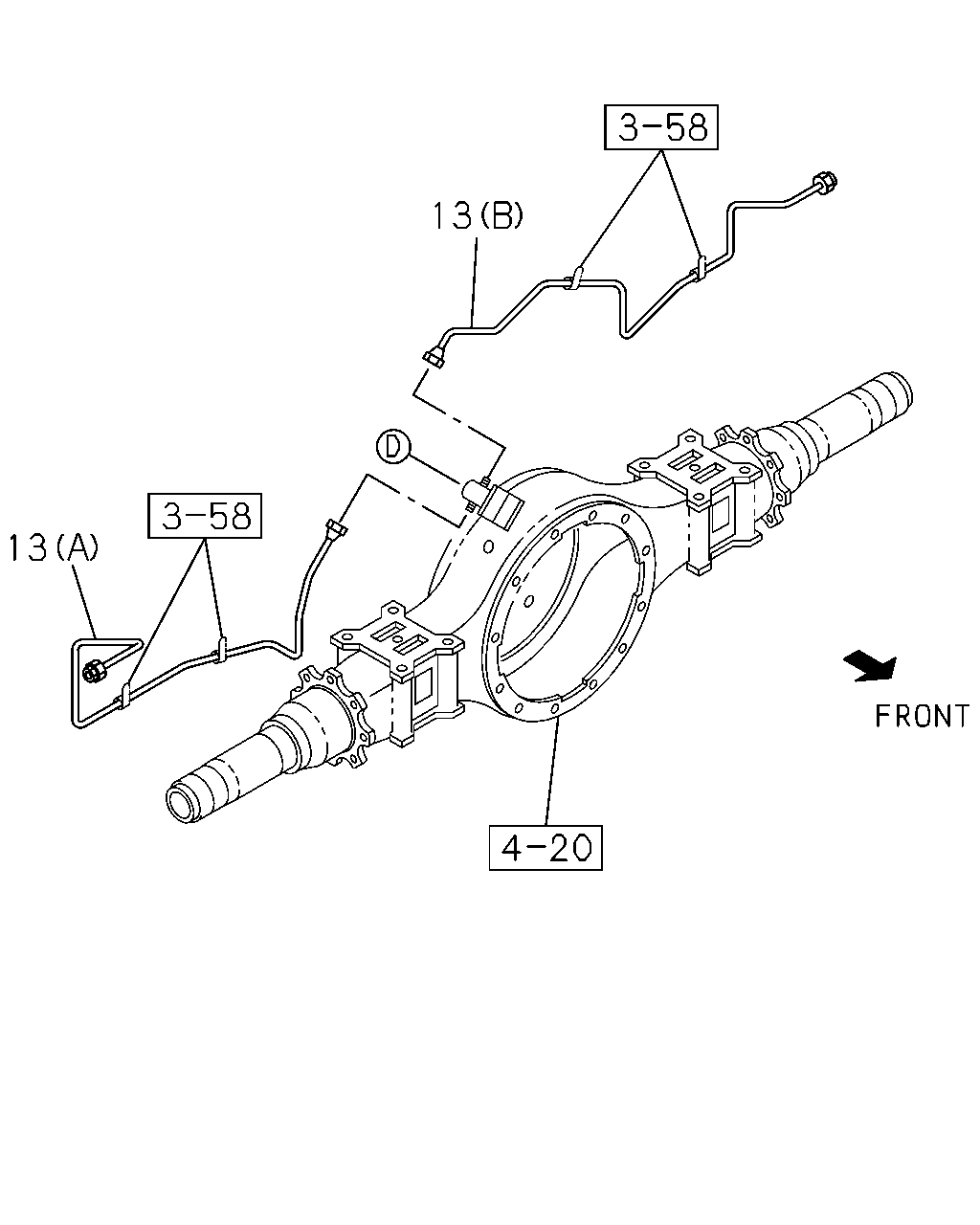

13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	PIPE; BRK,RR AXLE (A)	8-98115-431-0	01	1	0808-0808
13	PIPE; BRK,RR AXLE (A) THA	8-98134-989-0	01	1	0809-
13	PIPE; BRK,RR AXLE (B)	8-98115-432-0	01	1	0808-0808
13	PIPE; BRK,RR AXLE (B) THA	8-98134-990-0	01	1	0809-
