3-46 — AIR DRYER
(#12806) — 86 parça
◀
[346A] FIXING;-'11/2 (10 parça)
[346A] PISTON AND REPAIR KIT;-'11/2 (12 parça)
[346A] COMPONENT;-'11/2 (27 parça)
[346A] FIXING;'11/3- (10 parça)
[346A] PISTON AND REPAIR KIT;'11/3- (10 parça)
[346A] COMPONENT;'11/3- (17 parça)
▶

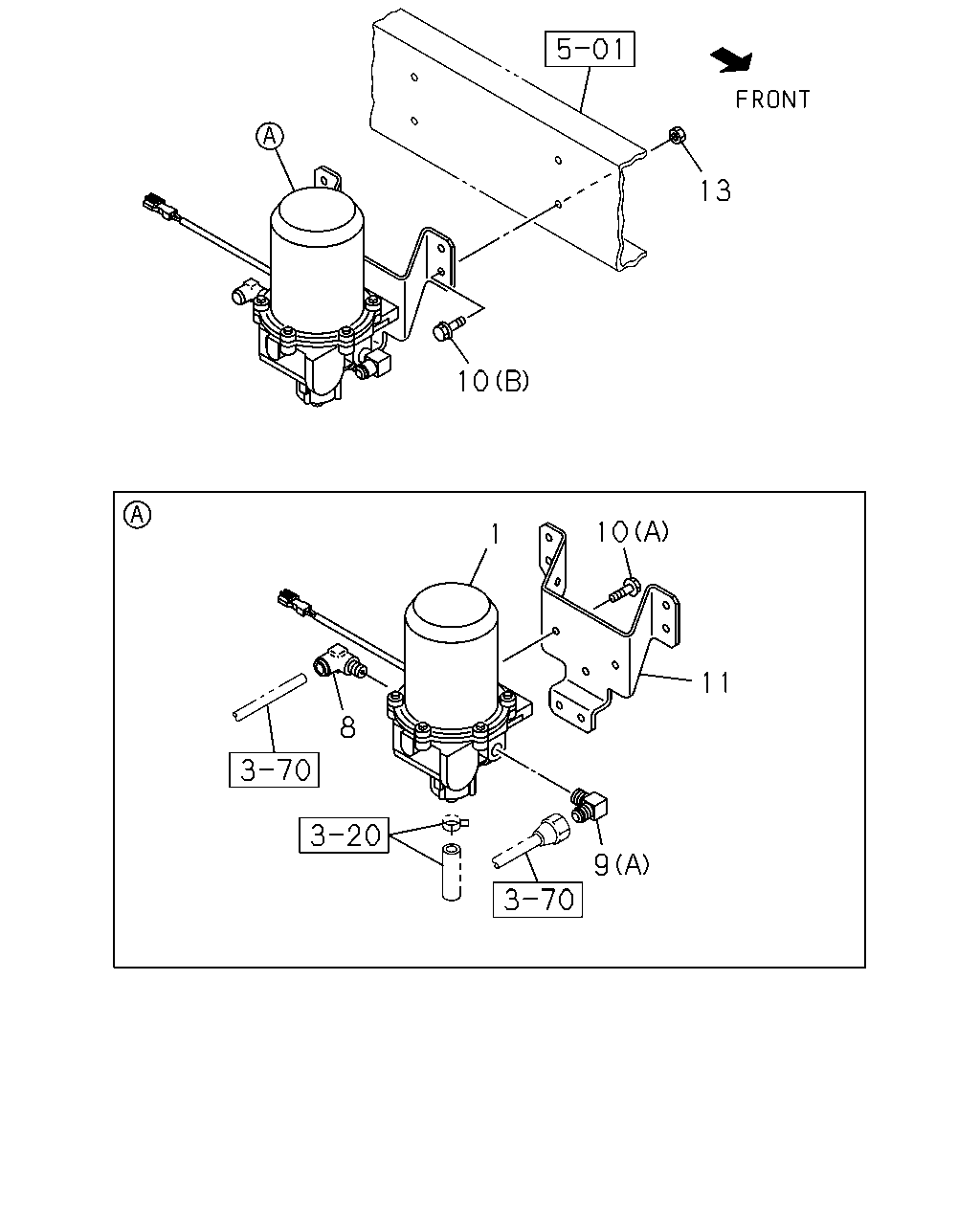

13
10
10
1
11
8
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
THA
1-48190-362-3
01
1
0808-1102
1
DRYER; AIR
1-48190-299-1
01
1
1103-
8
CONNECTOR; OUT,AIR DRYER
DIN12 & R1/2 ELBOW THA
1-09660-960-0
01
1
0808-
9
CONNECTOR; PIPE,AIR DRYER
(B) M12X2 & PT1/4 3WAY THA
1-09656-230-1
01
1
1103-
9
CONNECTOR; PIPE,AIR DRYER
(A) M22 & PT1/2 ELBOW IMA
0-92134-315-0
01
1
0808-
10
BOLT; AIR DRYER
(A) M10X25 FLANGE THA
0-28051-025-0
03
1
0808-1102
10
BOLT; AIR DRYER
(A) M10X20 FLANGE THA
0-28051-020-0
03
1
1103-
10
BOLT; AIR DRYER
(B) M10X35 FLANGE THA
0-28651-035-0
04
1
0808-
11
BRACKET; AIR DRYER
THA
8-97614-691-1
01
1
0808-
13
NUT; AIR DRYER
M10 FLANGE THA
0-91180-210-0
04
1
0808-

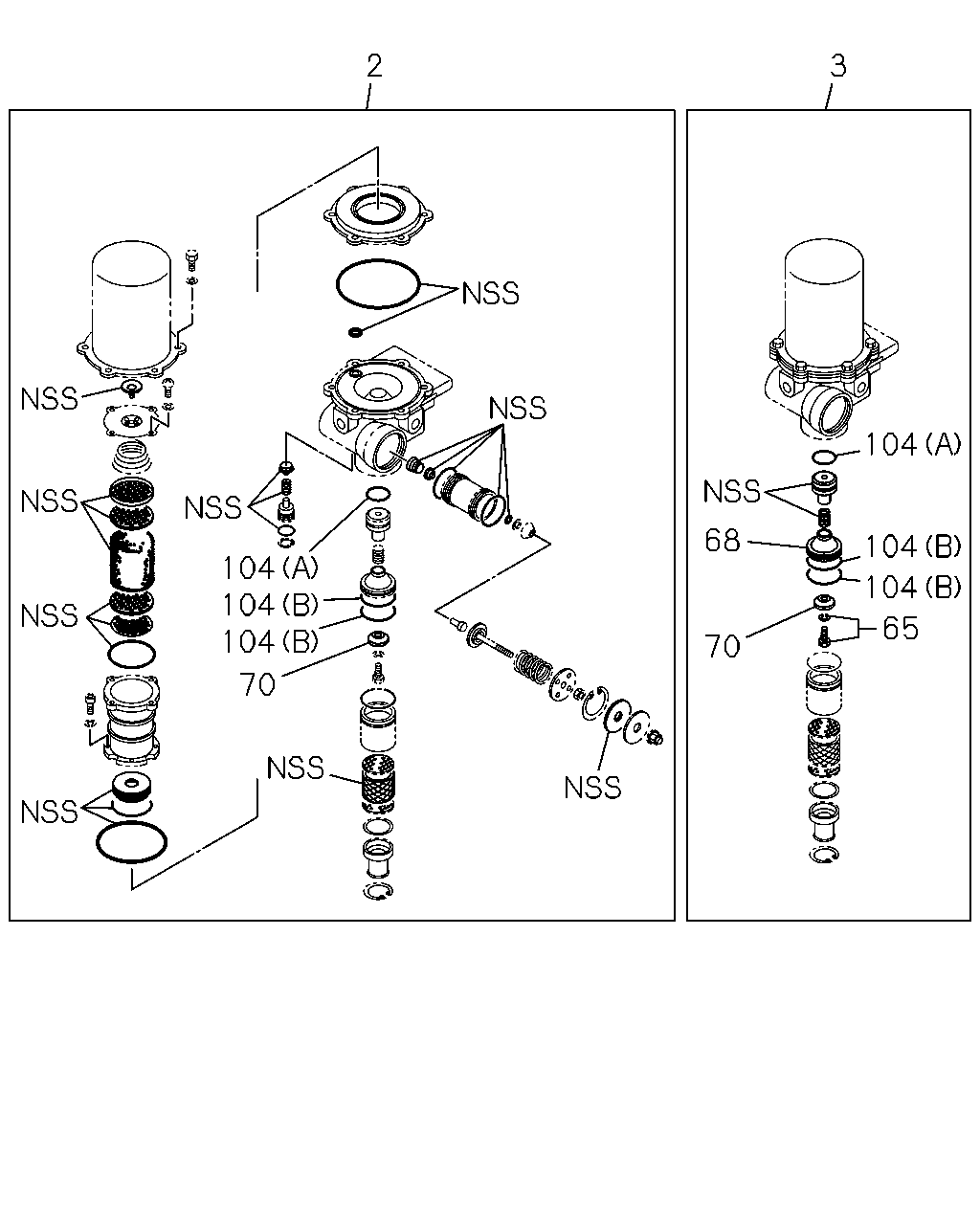

2
3
104
68
104
104
104
104
104
65
70
70
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; AIR DRYER
1-85576-457-0
01
1
0808-1102
2
REPAIR KIT; AIR DRYER
THA
1-85576-217-0
01
1
1103-
3
PISTON KIT; AIR DRYER
1-85576-383-0
01
1
0808-1102
3
PISTON KIT; AIR DRYER
THA
1-85576-193-0
01
1
1103-
65
BOLT; PURGE VLV
THA
1-48199-517-0
01
1
0808-1102
65
BOLT; PURGE VLV
THA
1-48199-393-0
01
1
1103-
68
BODY; VALVE
THA
1-48199-515-0
01
1
0808-1102
68
BODY; VALVE
THA
1-48199-408-0
01
1
1103-
70
VALVE; AIR DRYER
THA
1-48199-504-0
01
1
0808-1102
70
VALVE; AIR DRYER
THA
1-48199-105-0
01
1
1103-
104
GASKET
(A)
1-48199-495-0
01
1
0808-1102
104
GASKET
(B) THA
1-48199-496-0
02
1
0808-1102

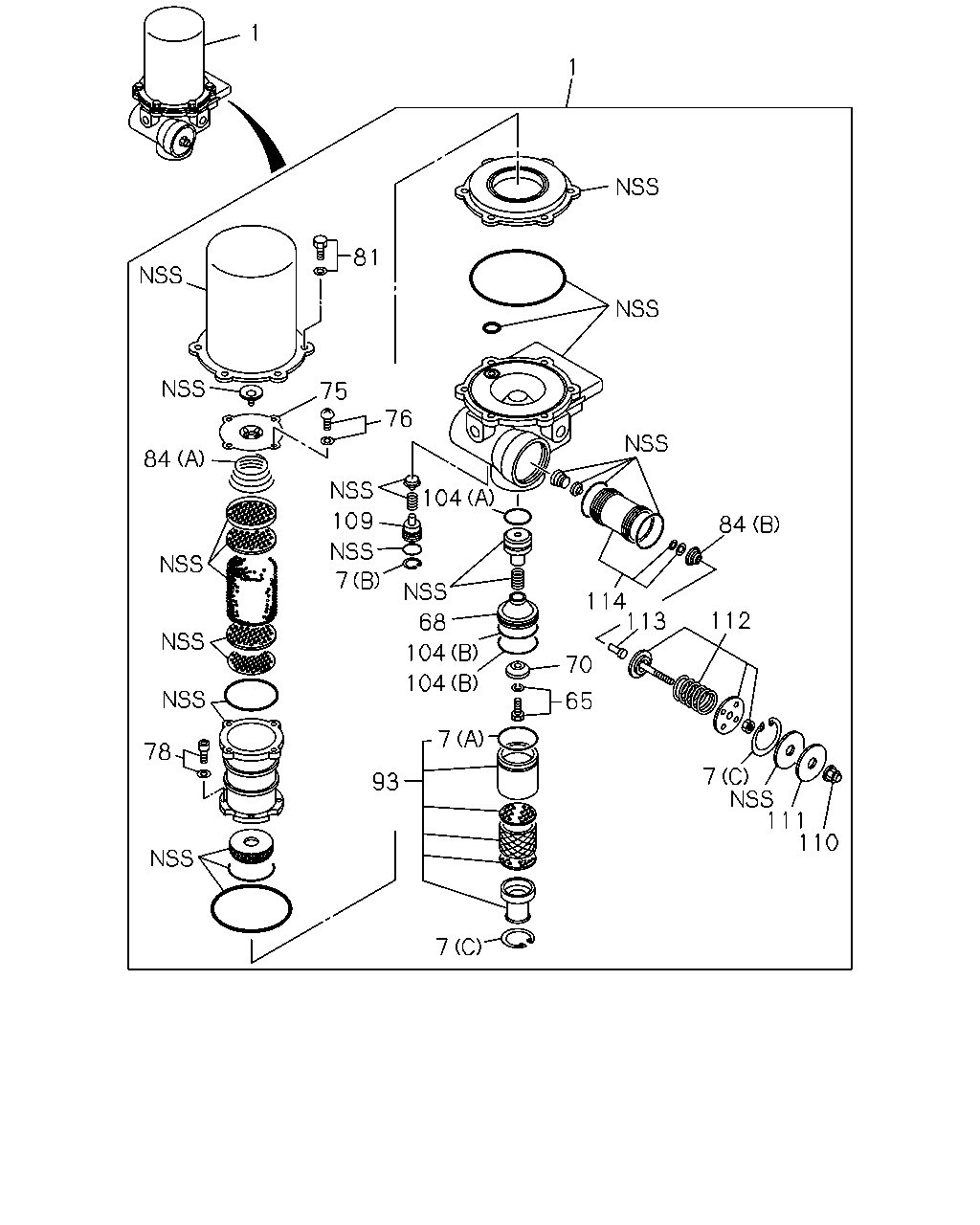

1
1
81
75
76
84
104
109
84
7
114
113
112
68
104
70
104
65
7
78
7
111
110
93
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
THA
1-48190-362-3
01
1
0808-1102
1
DRYER; AIR
1-48190-299-1
01
1
1103-
7
RING; SNAP,AIR DRYER
(C) THA
1-48199-520-0
02
1
0808-1102
7
RING; SNAP,AIR DRYER
(D) THA
1-48199-403-0
01
1
1103-
7
RING; SNAP,AIR DRYER
(B) THA
1-48199-529-0
01
1
0808-1102
7
RING; SNAP,AIR DRYER
(A) THA
1-48199-579-0
01
1
0808-1102
65
BOLT; PURGE VLV
THA
1-48199-517-0
01
1
0808-1102
65
BOLT; PURGE VLV
THA
1-48199-393-0
01
1
1103-
68
BODY; VALVE
THA
1-48199-515-0
01
1
0808-1102
68
BODY; VALVE
THA
1-48199-408-0
01
1
1103-
70
VALVE; AIR DRYER
THA
1-48199-504-0
01
1
0808-1102
70
VALVE; AIR DRYER
THA
1-48199-105-0
01
1
1103-
75
COVER; CASE,AIR DRYER
THA
1-48199-427-0
01
1
0808-
76
BOLT; COVER,AIR DRYER
THA
1-48199-412-0
04
1
0808-1102
78
BOLT; OIL FILTER,AIR DRYER
THA
1-48199-417-0
04
1
0808-1102
81
BOLT; CASE,AIR DRYER
THA
1-48199-436-0
06
1
0808-
84
SPRING; AIR DRYER
(A) THA
1-48199-425-0
01
1
0808-
84
SPRING; AIR DRYER
(B) THA
1-48199-523-0
01
1
0808-1102
93
SILENCER; AIR DRYER
THA
1-48199-619-0
01
1
0808-1102
104
GASKET
(A)
1-48199-495-0
01
1
0808-1102
104
GASKET
(B) THA
1-48199-496-0
02
1
0808-1102
109
STOPPER; CHECK VALVE
THA
1-48199-539-0
01
1
0808-1102
110
NUT; CAP
THA
1-48199-527-0
01
1
0808-1102
111
PLATE; GOVERNOR
THA
1-48199-526-0
01
1
0808-1102
112
SCREW & SPRING ASM; AIR DRYER
THA
1-48199-524-0
01
1
0808-1102
113
STEM; EXHAUST
THA
1-48199-522-0
01
1
0808-1102
114
PISTON ASM; GOVERNOR
THA
1-48199-521-0
01
1
0808-1102
13
11
10
1
8
10
9
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
THA
1-48190-362-3
01
1
0808-1102
1
DRYER; AIR
1-48190-299-1
01
1
1103-
8
CONNECTOR; OUT,AIR DRYER
DIN12 & R1/2 ELBOW THA
1-09660-960-0
01
1
0808-
9
CONNECTOR; PIPE,AIR DRYER
(B) M12X2 & PT1/4 3WAY THA
1-09656-230-1
01
1
1103-
9
CONNECTOR; PIPE,AIR DRYER
(A) M22 & PT1/2 ELBOW IMA
0-92134-315-0
01
1
0808-
10
BOLT; AIR DRYER
(A) M10X25 FLANGE THA
0-28051-025-0
03
1
0808-1102
10
BOLT; AIR DRYER
(A) M10X20 FLANGE THA
0-28051-020-0
03
1
1103-
10
BOLT; AIR DRYER
(B) M10X35 FLANGE THA
0-28651-035-0
04
1
0808-
11
BRACKET; AIR DRYER
THA
8-97614-691-1
01
1
0808-
13
NUT; AIR DRYER
M10 FLANGE THA
0-91180-210-0
04
1
0808-

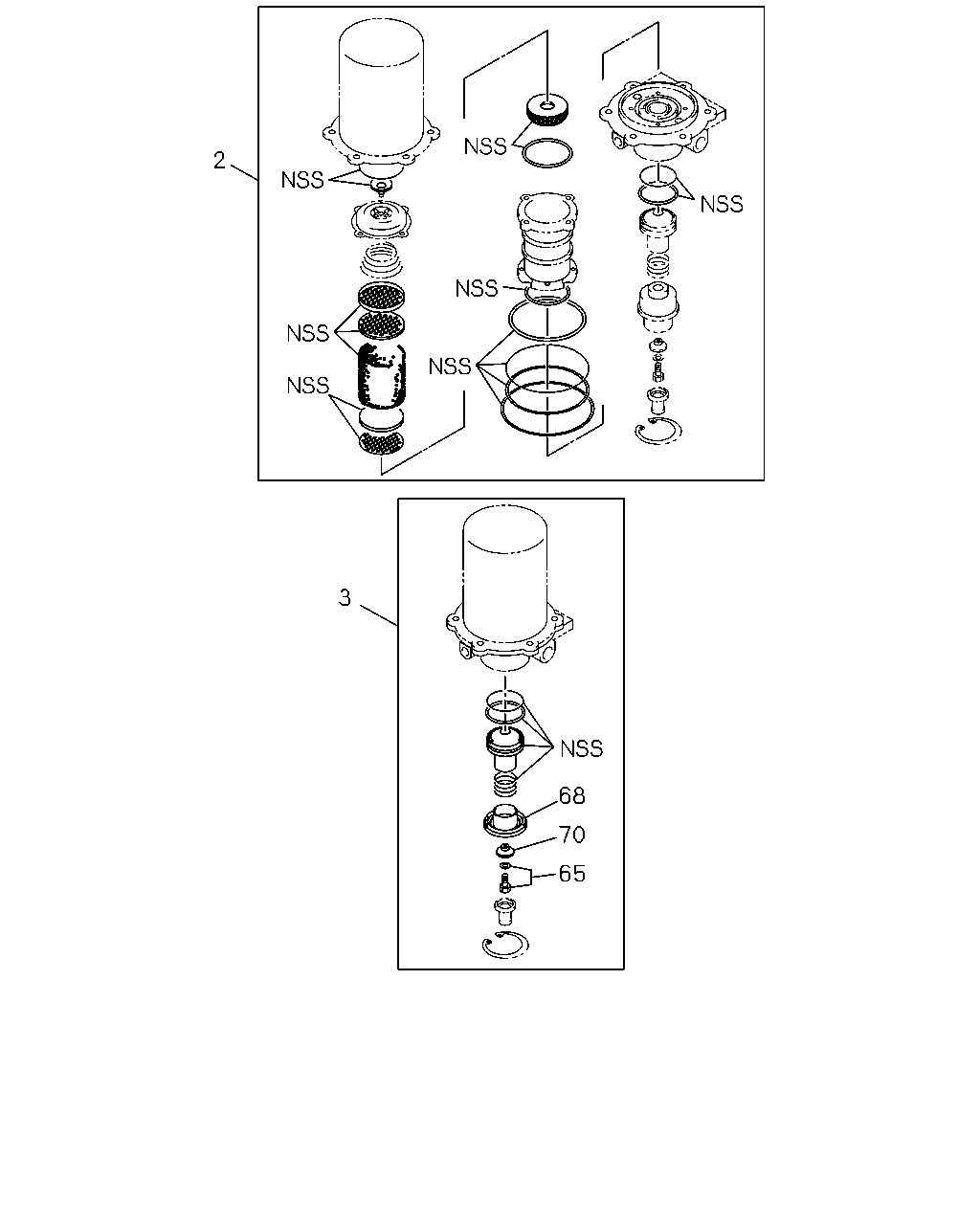

2
3
68
70
65
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; AIR DRYER
1-85576-457-0
01
1
0808-1102
2
REPAIR KIT; AIR DRYER
THA
1-85576-217-0
01
1
1103-
3
PISTON KIT; AIR DRYER
1-85576-383-0
01
1
0808-1102
3
PISTON KIT; AIR DRYER
THA
1-85576-193-0
01
1
1103-
65
BOLT; PURGE VLV
THA
1-48199-517-0
01
1
0808-1102
65
BOLT; PURGE VLV
THA
1-48199-393-0
01
1
1103-
68
BODY; VALVE
THA
1-48199-515-0
01
1
0808-1102
68
BODY; VALVE
THA
1-48199-408-0
01
1
1103-
70
VALVE; AIR DRYER
THA
1-48199-504-0
01
1
0808-1102
70
VALVE; AIR DRYER
THA
1-48199-105-0
01
1
1103-

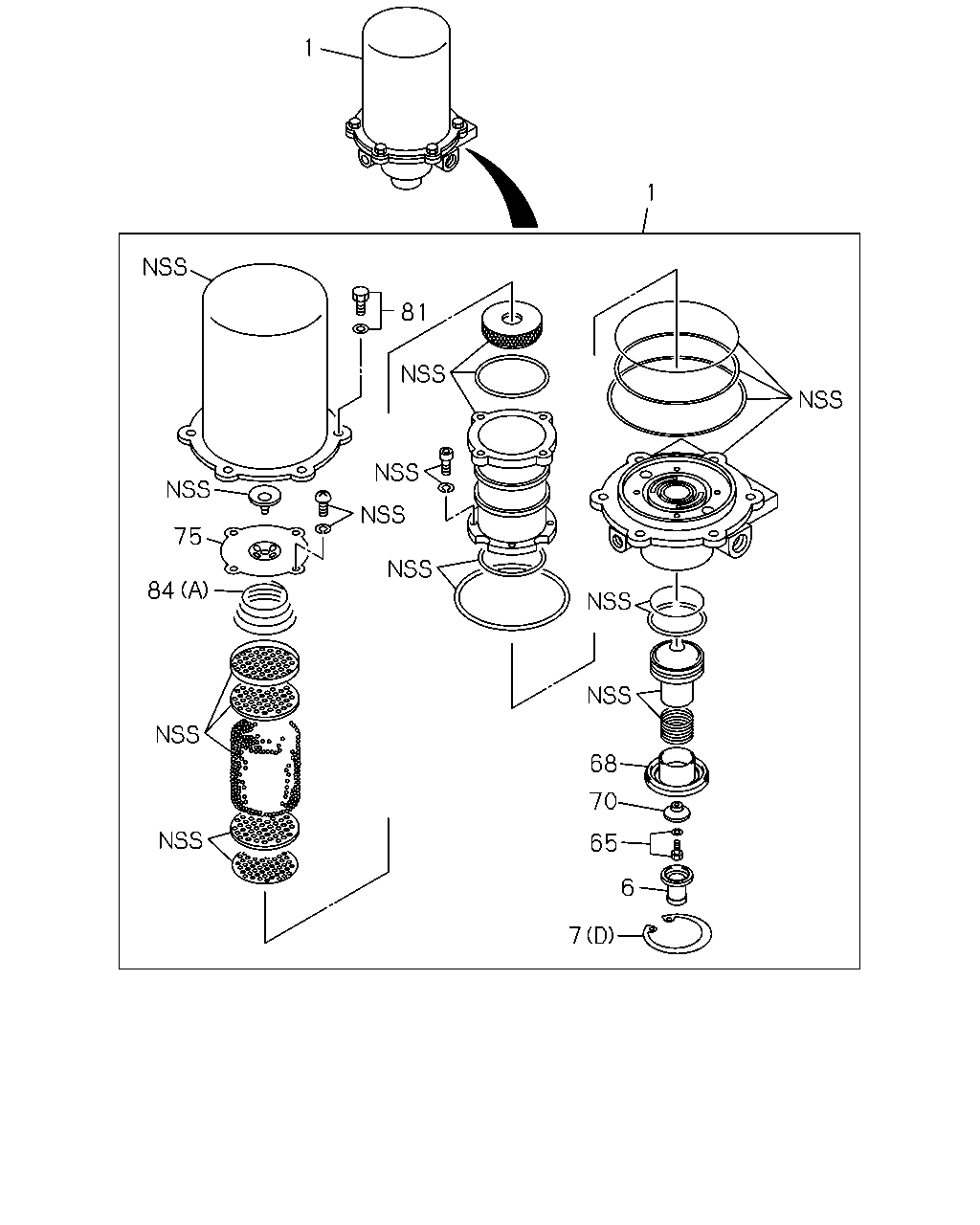

1
1
81
75
84
68
70
65
6
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
THA
1-48190-362-3
01
1
0808-1102
1
DRYER; AIR
1-48190-299-1
01
1
1103-
6
COVER; EXH,AIR DRYER
THA
1-48199-404-0
01
1
1103-
7
RING; SNAP,AIR DRYER
(C) THA
1-48199-520-0
02
1
0808-1102
7
RING; SNAP,AIR DRYER
(D) THA
1-48199-403-0
01
1
1103-
7
RING; SNAP,AIR DRYER
(B) THA
1-48199-529-0
01
1
0808-1102
7
RING; SNAP,AIR DRYER
(A) THA
1-48199-579-0
01
1
0808-1102
65
BOLT; PURGE VLV
THA
1-48199-517-0
01
1
0808-1102
65
BOLT; PURGE VLV
THA
1-48199-393-0
01
1
1103-
68
BODY; VALVE
THA
1-48199-515-0
01
1
0808-1102
68
BODY; VALVE
THA
1-48199-408-0
01
1
1103-
70
VALVE; AIR DRYER
THA
1-48199-504-0
01
1
0808-1102
70
VALVE; AIR DRYER
THA
1-48199-105-0
01
1
1103-
75
COVER; CASE,AIR DRYER
THA
1-48199-427-0
01
1
0808-
81
BOLT; CASE,AIR DRYER
THA
1-48199-436-0
06
1
0808-
84
SPRING; AIR DRYER
(A) THA
1-48199-425-0
01
1
0808-
84
SPRING; AIR DRYER
(B) THA
1-48199-523-0
01
1
0808-1102
