1-41 — FUEL PIPING; CHASSIS (#128058) — 111 parça

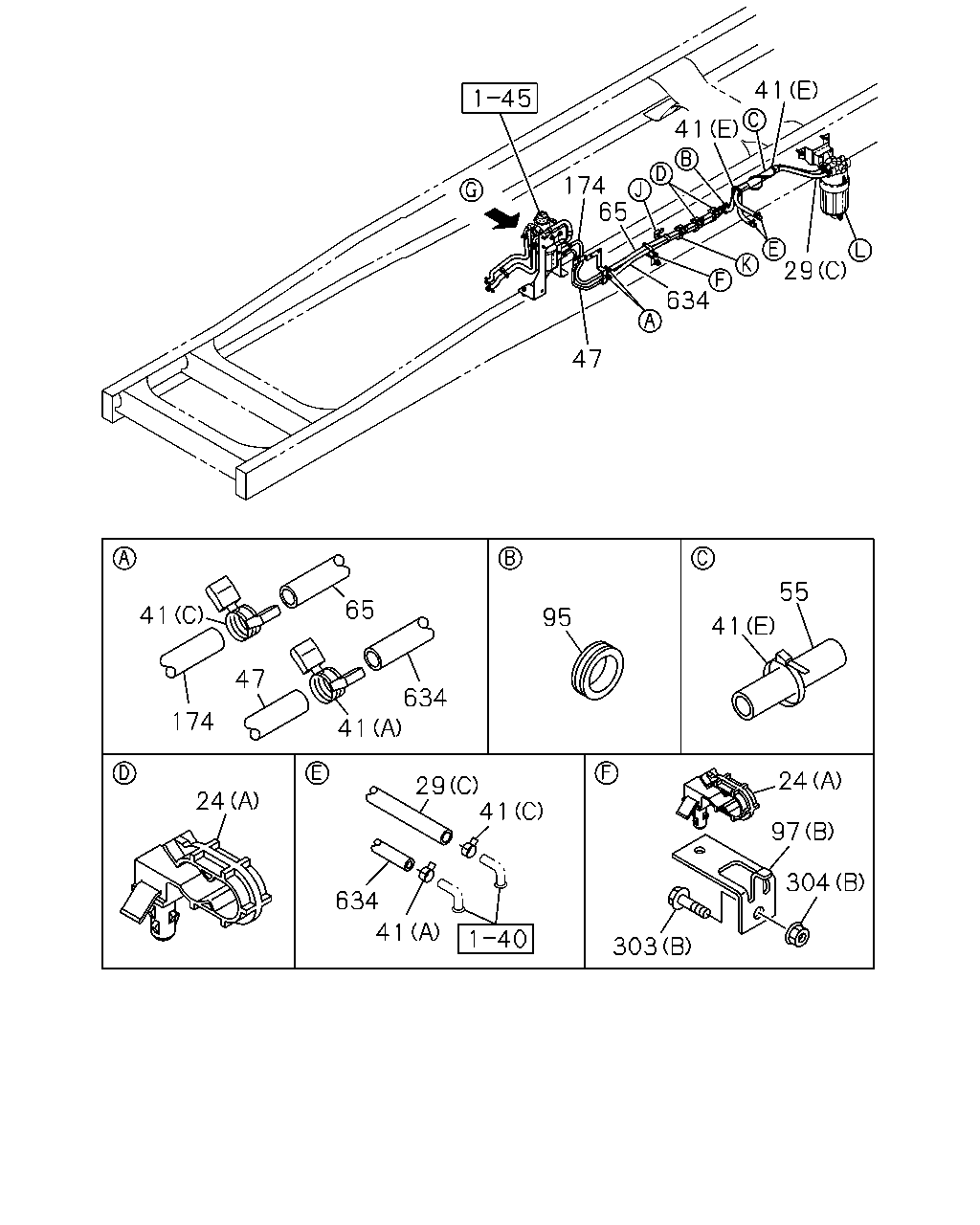

çizim 379498
174 65 47 41 41 29 634 55 41 95 65 41 47 174 41 634 24 29 41 634 41 24 97 304 303
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; FUEL HOSE
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5 		1-09701-246-1 08 1 1310-
24 CLIP; FUEL HOSE
(C) ID=15 H=24 L=20 		1-09700-606-0 01 1 1310-
24 CLIP; FUEL HOSE
(B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 1310-
24 CLIP; FUEL HOSE
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 1310-
24 CLIP; FUEL HOSE
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) (A) ID=14.5 & 14.5 		1-09701-246-1 03 1 1310-
29 HOSE; FUEL
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) (C) L=860 SERVICED BY L=3000 		0-01260-300-0 01 1 1310-
29 HOSE; FUEL
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (C) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 1310-
29 HOSE; FUEL
(A) 		8-98078-196-2 01 1 1310-
29 HOSE; FUEL
(B) 		8-98078-197-1 01 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 02 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 04 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 03 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 02 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 04 1 1310-
47 PIPE; FUEL,RETURN
L=413 		8-98078-210-0 01 1 1310-
55 COVER; PIPE,FUEL TANK
L=800 		1-09361-018-0 01 1 1310-
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) L=1650 SERVICED BY L=3000 		0-01260-300-0 01 1 1310-
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) L=3350 SERVICED BY L=8000 		0-01260-800-0 01 1 1310-
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1310-
97 BRACKET; CLIP
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (C) 		8-98083-349-0 01 1 1310-
97 BRACKET; CLIP
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (D) 		8-98100-216-1 01 1 1310-
97 BRACKET; CLIP
(A) 		8-98077-896-0 01 1 1310-
97 BRACKET; CLIP
(B) 		8-98109-768-0 01 1 1310-
174 PIPE; FUEL,FEED,FRT 8-98078-209-0 01 1 1310-
303 BOLT; BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (C) M8X30 FLANGE 		0-28650-830-0 01 1 1310-
303 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 1310-
303 BOLT; BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (B) M10X30 FLANGE 		0-28651-030-0 01 1 1310-
303 BOLT; BRKT
(A) M10X35 FLANGE 		0-28651-035-0 02 1 1310-
304 NUT; BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (A) M8 FLANGE 		0-91180-108-0 01 1 1310-
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1310-
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1310-
304 NUT; BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (B) M10 FLANGE 		0-91180-210-0 01 1 1310-
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1310-
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1310-
634 HOSE; RUBBER RETURN
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) SERVICED BY L=3000 		0-01558-300-0 01 1 1310-
634 HOSE; RUBBER RETURN
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) L=2600 SERVICED BY L=3000 		0-01558-300-0 01 1 1310-

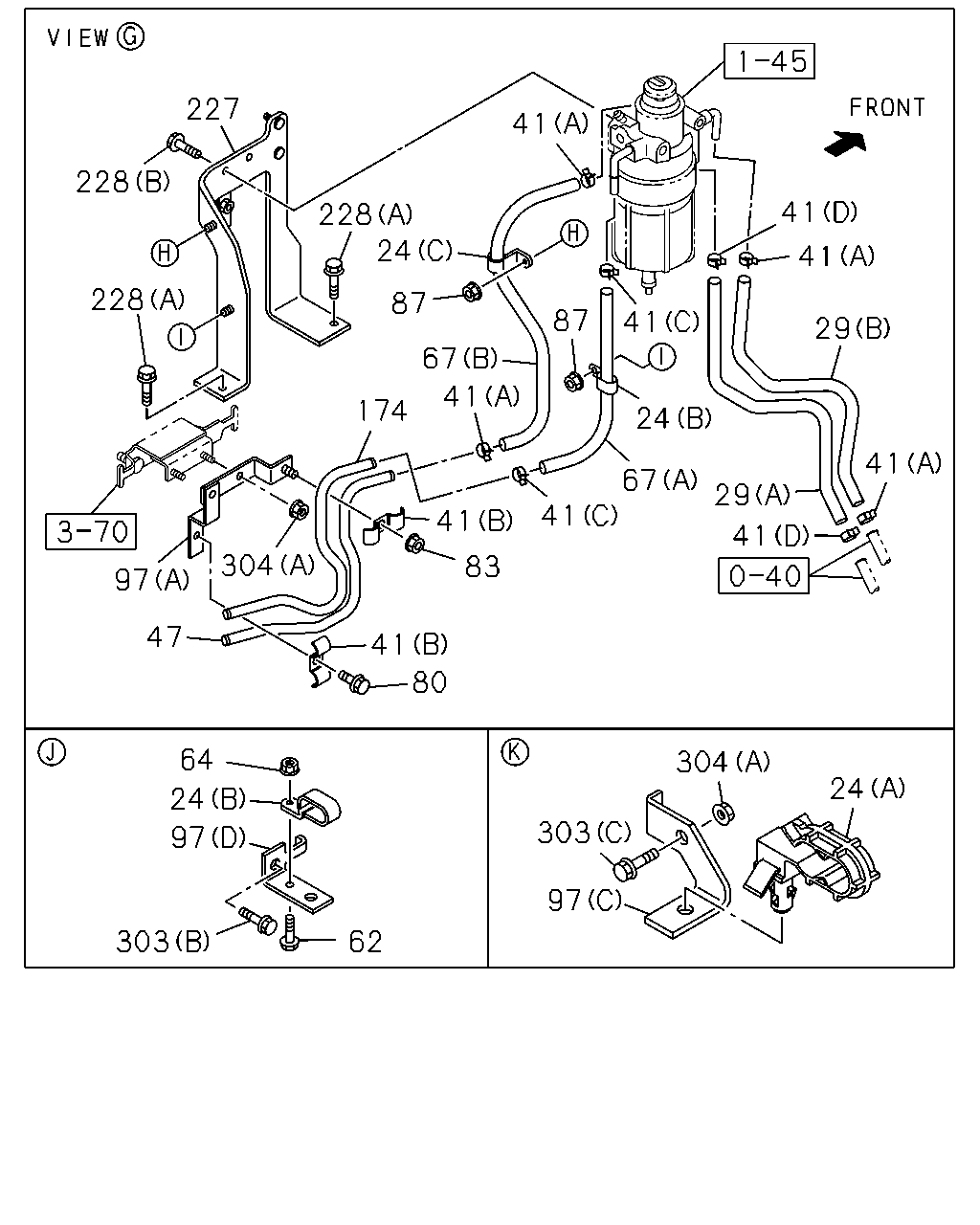

çizim 379515
227 228 228 97 47 304 41 80 83 41 174 41 67 87 24 228 41 41 41 29 41 29 67 24 41 87 41 304 24 303 97 62 303 97 24 64 41
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; FUEL HOSE
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (A) ID=14.5 & 14.5 		1-09701-246-1 08 1 1310-
24 CLIP; FUEL HOSE
(C) ID=15 H=24 L=20 		1-09700-606-0 01 1 1310-
24 CLIP; FUEL HOSE
(B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 1310-
24 CLIP; FUEL HOSE
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 1310-
24 CLIP; FUEL HOSE
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) (A) ID=14.5 & 14.5 		1-09701-246-1 03 1 1310-
29 HOSE; FUEL
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) (C) L=860 SERVICED BY L=3000 		0-01260-300-0 01 1 1310-
29 HOSE; FUEL
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (C) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 1310-
29 HOSE; FUEL
(A) 		8-98078-196-2 01 1 1310-
29 HOSE; FUEL
(B) 		8-98078-197-1 01 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 02 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 04 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 03 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 02 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 04 1 1310-
47 PIPE; FUEL,RETURN
L=413 		8-98078-210-0 01 1 1310-
62 BOLT; CLIP FIX
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) M8X20 FLANGE 		0-28650-820-0 01 1 1310-
64 NUT; CLIP
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) M8 FLANGE 		0-91180-108-0 01 1 1310-
67 HOSE; FUEL,DELIVERY
(A) L=280 SERVICED BY L=3000 		0-01260-300-0 01 1 1310-
67 HOSE; FUEL,DELIVERY
(B) L=440 SERVICED BY L=3000 		0-01558-300-0 01 1 1310-
80 BOLT; CLIP,FUEL TANK
M8X20 FLANGE 		0-28650-820-0 01 1 1310-
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 01 1 1310-
87 NUT; CLIP,FUEL HOSE
M8 FLANGE 		0-91180-108-0 02 1 1310-
97 BRACKET; CLIP
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (C) 		8-98083-349-0 01 1 1310-
97 BRACKET; CLIP
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (D) 		8-98100-216-1 01 1 1310-
97 BRACKET; CLIP
(A) 		8-98077-896-0 01 1 1310-
97 BRACKET; CLIP
(B) 		8-98109-768-0 01 1 1310-
174 PIPE; FUEL,FEED,FRT 8-98078-209-0 01 1 1310-
227 BRACKET; FUEL SEDIMENTER 8-98044-366-3 01 1 1310-
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 1310-
228 BOLT; BRKT,SEDIMENTER
(C) M10X50 FLANGE 		0-28051-050-0 02 1 1310-
228 BOLT; BRKT,SEDIMENTER
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1310-
303 BOLT; BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (C) M8X30 FLANGE 		0-28650-830-0 01 1 1310-
303 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 1310-
303 BOLT; BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (B) M10X30 FLANGE 		0-28651-030-0 01 1 1310-
303 BOLT; BRKT
(A) M10X35 FLANGE 		0-28651-035-0 02 1 1310-
304 NUT; BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (A) M8 FLANGE 		0-91180-108-0 01 1 1310-
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1310-
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1310-
304 NUT; BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (B) M10 FLANGE 		0-91180-210-0 01 1 1310-
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1310-
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1310-
çizim 379524
304 418 345 345 279 228 29 41 39 65 41 39 303 304
BalonParca AdiParca NoAdetTipApplied Date
29 HOSE; FUEL
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) (C) L=860 SERVICED BY L=3000 		0-01260-300-0 01 1 1310-
29 HOSE; FUEL
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (C) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 1310-
29 HOSE; FUEL
(A) 		8-98078-196-2 01 1 1310-
29 HOSE; FUEL
(B) 		8-98078-197-1 01 1 1310-
39 PIPE; FUEL
NPTF3/8-18 OD=10 		8-98122-953-0 02 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 02 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 04 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 03 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 02 1 1310-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 04 1 1310-
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) L=1650 SERVICED BY L=3000 		0-01260-300-0 01 1 1310-
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) L=3350 SERVICED BY L=8000 		0-01260-800-0 01 1 1310-
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 1310-
228 BOLT; BRKT,SEDIMENTER
(C) M10X50 FLANGE 		0-28051-050-0 02 1 1310-
228 BOLT; BRKT,SEDIMENTER
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1310-
279 WASHER
ID=10.5 OD=26 		0-91614-710-0 02 1 1310-
303 BOLT; BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (C) M8X30 FLANGE 		0-28650-830-0 01 1 1310-
303 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 1310-
303 BOLT; BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (B) M10X30 FLANGE 		0-28651-030-0 01 1 1310-
303 BOLT; BRKT
(A) M10X35 FLANGE 		0-28651-035-0 02 1 1310-
304 NUT; BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (A) M8 FLANGE 		0-91180-108-0 01 1 1310-
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1310-
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1310-
304 NUT; BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (B) M10 FLANGE 		0-91180-210-0 01 1 1310-
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1310-
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1310-
345 PLUG
NPTF3/8-18 		8-97329-623-0 02 1 1310-
418 BRACKET; PRE FUEL FILTER 8-98114-787-0 01 1 1310-
