Isuzu WW
▶
TRUCKS
▶
FRR
▶
11551 - FRR-L EURO5 EXC.SPAC
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#128052) — 57 parça
◀
[110A] NO.3 (7 parça)
[110A] NO.2 (25 parça)
[110A] NO.1 (25 parça)
▶
100
87
486
87
96
96
96
87
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
87
STAY; FAN GUIDE
(B)
8-94393-776-1
01
1
1310-
87
STAY; FAN GUIDE
(C)
8-94393-778-2
01
1
1310-
87
STAY; FAN GUIDE
(A)
8-97602-988-0
01
1
1310-
96
BOLT; STAY FIX
(B) M8X16 FLANGE
0-28050-816-0
02
1
1310-
96
BOLT; STAY FIX
(A) M10X16 FLANGE
0-28151-016-0
02
1
1310-
100
RUBBER; MTG
8-98148-109-0
01
1
1310-
486
NUT; MTG RUBBER
M8 FLANGE
0-91180-108-0
01
1
1310-

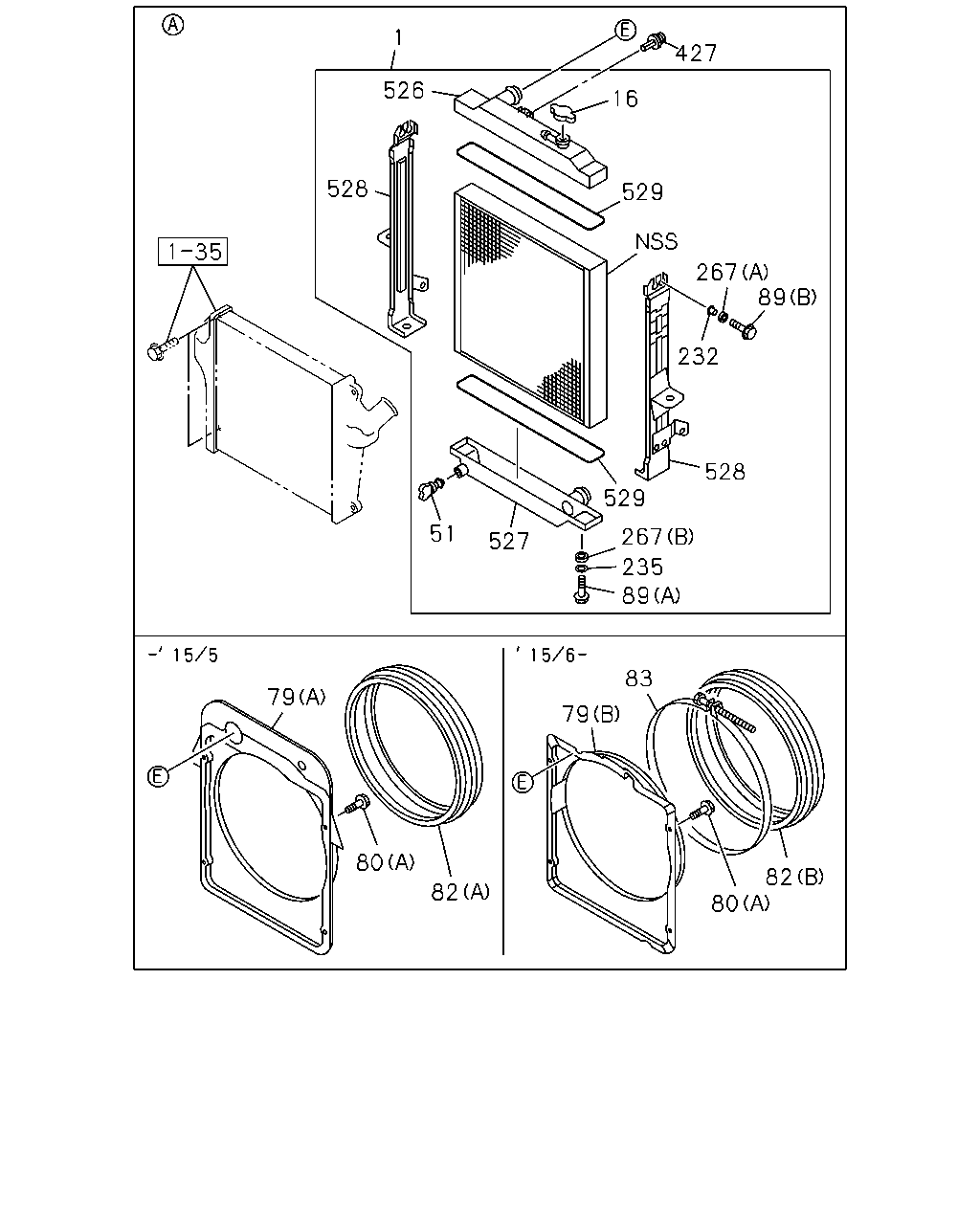

427
16
529
267
232
89
528
529
267
235
89
527
51
528
526
1
79
83
82
80
82
80
79
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98139-309-0
01
1
1310-
1
RADIATOR ASM
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98139-308-0
01
1
1310-
16
CAP; RAD
8-98096-226-0
01
1
1310-
51
PLUG; DRAIN
W/GASKET
8-97171-437-0
01
1
1310-
79
GUIDE; FAN,RAD
(A)
8-98004-207-0
01
1
1310-1505
79
GUIDE; FAN,RAD
(B)
8-98286-937-0
01
1
1506-
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE
0-28650-830-0
03
1
1310-
80
BOLT; FAN GUIDE
(A) M8X14
8-98046-222-0
04
1
1310-1505
80
BOLT; FAN GUIDE
(A) M8X12 FLANGE
0-28050-812-0
04
1
1506-
82
COVER; FAN,RAD
(A)
8-98004-211-0
01
1
1310-1505
82
COVER; FAN,RAD
(B)
8-98293-253-0
01
1
1506-
83
CLIP; FAN COVER
1-09707-177-2
01
1
1506-
89
BOLT
(A) M6X12 FLANGE
0-28050-612-0
02
1
1310-
89
BOLT
(B) M8X25 W/PL WASHER
1-21469-153-0
04
1
1310-
232
COLLAR; DIST,CUSHION RUBBER
8-98141-232-0
04
1
1310-
235
WASHER; CUSHION RUBBER
1-21469-133-0
02
1
1310-
267
RUBBER; CUSHION
(A)
1-21469-130-0
04
1
1310-
267
RUBBER; CUSHION
(B)
1-21469-131-0
02
1
1310-
427
CLIP; FAN GUIDE
1-09470-009-0
01
1
1310-1505
526
TANK; UPR,RADIATOR CORE
8-98004-202-2
01
1
1310-
527
TANK; LWR,RADIATOR CORE
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98010-365-0
01
1
1310-
527
TANK; LWR,RADIATOR CORE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98004-203-0
01
1
1310-
528
PLATE; SIDE,RADIATOR CORE
8-98035-117-3
01
1
1310-
528
PLATE; SIDE,RADIATOR CORE
8-98043-029-1
01
1
1310-
529
GASKET; CORE,RADIATOR
8-98004-206-0
02
1
1310-

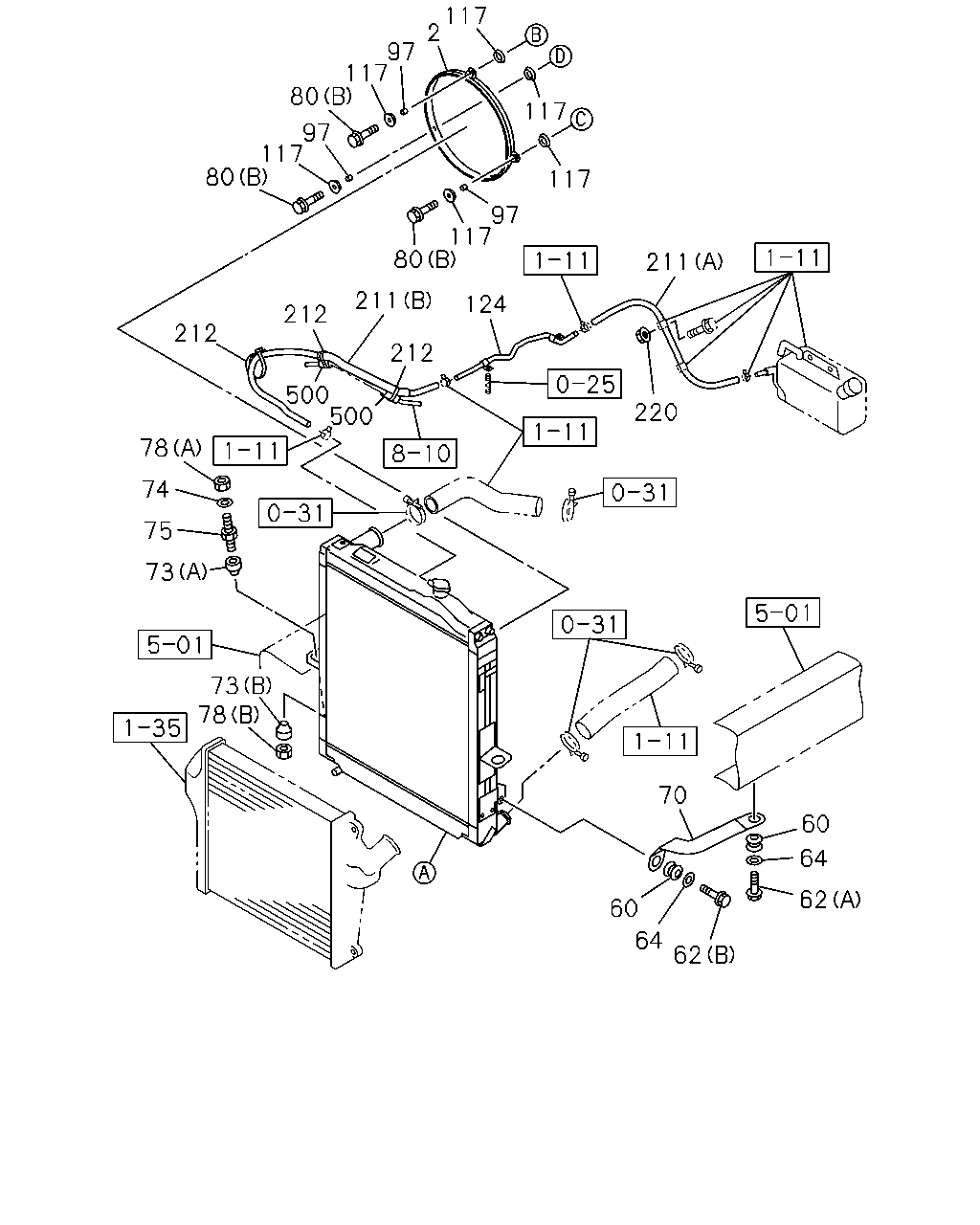

62
60
64
62
60
64
70
78
220
73
73
75
78
212
211
97
117
80
211
212
500
212
500
124
117
117
117
97
117
80
117
97
80
2
74
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
GUIDE; FAN
8-94393-779-1
01
1
1310-
60
GROMMET
1-09332-117-0
04
1
1310-
62
BOLT; STAY
(A) M8X30
1-09009-020-1
02
1
1310-
62
BOLT; STAY
(B) M8X26
1-09009-175-0
02
1
1310-
64
WASHER; STAY TO RAD
ID=12.5 OD=26
0-91610-612-0
04
1
1310-
70
STAY; RAD
8-98078-897-0
01
1
1310-
70
STAY; RAD
8-98078-896-0
01
1
1310-
73
RUBBER; CUSHION,RAD MTG
(A) T=14
1-21467-004-0
02
1
1310-
73
RUBBER; CUSHION,RAD MTG
(B) T=24
1-21467-011-1
02
1
1310-
74
WASHER; PL,CUSHION RUBBER
ID=11 OD=54
1-09503-154-2
02
1
1310-
75
BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5
1-21466-007-3
02
1
1310-
78
NUT; CUSHION RUBBER
(A) M10 FLANGE
0-91180-210-0
02
1
1310-
78
NUT; CUSHION RUBBER
(B) M12 FLANGE
0-91180-212-0
02
1
1310-
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE
0-28650-830-0
03
1
1310-
80
BOLT; FAN GUIDE
(A) M8X14
8-98046-222-0
04
1
1310-1505
80
BOLT; FAN GUIDE
(A) M8X12 FLANGE
0-28050-812-0
04
1
1506-
97
TUBE; DIST,FAN GUIDE
9-09651-072-0
03
1
1310-
117
RUBBER; MTG,FAN GUIDE
OD=32
8-94395-766-0
06
1
1310-
124
PIPE; WATER,TANK TO RAD
8-97611-022-1
01
1
1310-
211
HOSE; RAD TO PIPE
(B) L=940
8-98073-544-0
01
1
1310-
211
HOSE; RAD TO PIPE
(A) L=560
8-98119-375-0
01
1
1310-
212
CLIP; HOSE
L=250
5-09707-030-1
01
1
1310-
212
CLIP; HOSE
L=140
5-09707-031-1
02
1
1310-
220
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
1310-
500
SLEEVE; RUBBER
ID=17 OD=21 L=40
1-09337-012-0
02
1
1310-
