◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11393 - FVZ(INDONESIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30B - GEAR SHIFTER AND QUADRANT BOX ▶
2-30B — GEAR SHIFTER AND QUADRANT BOX (#128032) — 88 parça

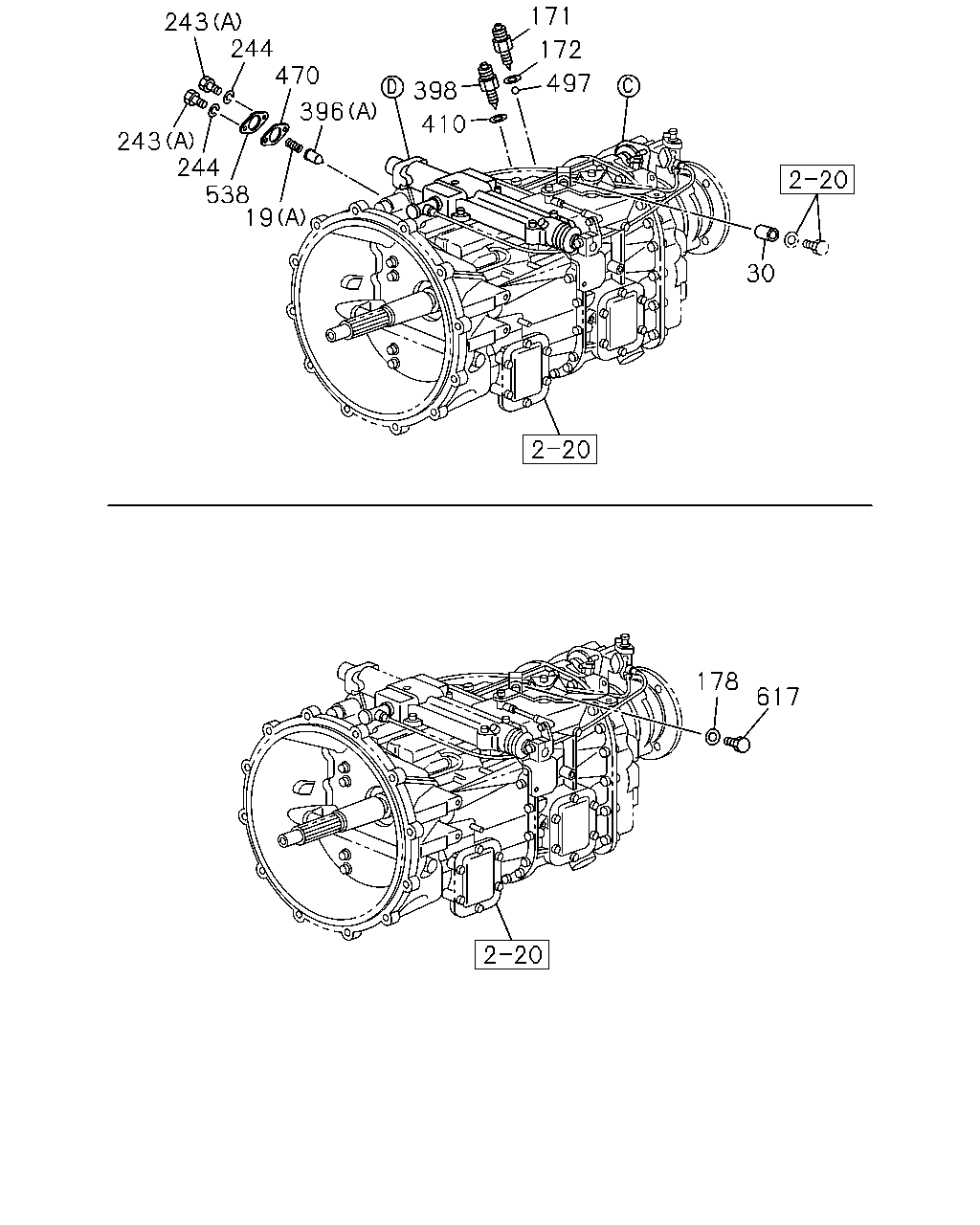

çizim 380498
243 244 470 396 243 244 538 19 398 171 172 497 410 30 178 617
BalonParca AdiParca NoAdetTipApplied Date
19 SPRING; COIL COMP
(A) 		1-33539-052-0 02 1 1310-
19 SPRING; COIL COMP
(B) 		1-33549-226-0 01 1 1310-
30 PIN; INTER LK 1-33119-309-0 01 1 1310-
171 SWITCH; NEUTRAL 1-82440-123-0 01 1 1310-
172 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-601-0 01 1 1310-
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-601-0 01 1 1310-
243 BOLT; COVER
(A) 		1-33119-575-0 02 1 1310-1310
243 BOLT; COVER
(A) 		1-33119-630-0 02 1 1310-
243 BOLT; COVER
(B) 		1-33119-609-0 02 1 1310-
244 WASHER; LK,COVER 1-33119-564-0 02 1 1310-1310
396 PLUNGER; SHIFT ROD
(A) 		1-33539-084-0 01 1 1310-
396 PLUNGER; SHIFT ROD
(B) 		1-33549-390-0 01 1 1310-
398 SWITCH; REV LAMP 1-82440-128-0 01 1 1310-
410 GASKET; REV SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-601-0 01 1 1310-
470 GASKET; SPRING COVER 1-33119-489-0 02 1 1310-
497 BALL; SWITCH 1-33119-308-0 01 1 1310-
538 COVER; DETENT 1-33119-574-0 01 1 1310-
617 PLUG 1-33119-605-0 01 1 1310-

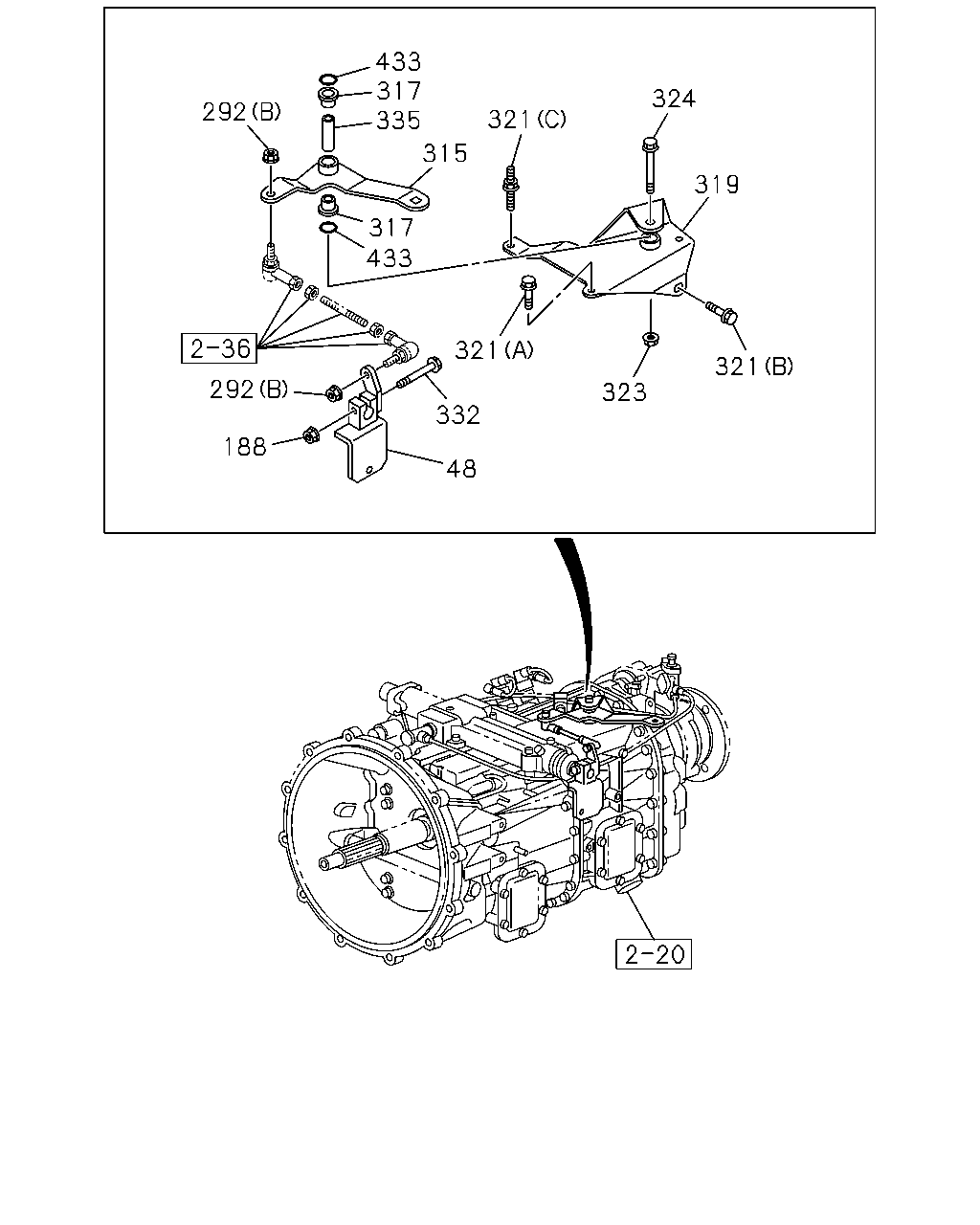

çizim 380517
292 292 188 433 317 335 315 317 433 321 332 48 321 324 319 321 323
BalonParca AdiParca NoAdetTipApplied Date
48 LEVER; 4TH,SHIFT 8-98031-634-0 01 1 1310-
48 LEVER; 4TH,SHIFT 8-98031-634-0 01 1 1310-
188 NUT; SELECT LEVER
M10 FLANGE 		0-91180-110-0 01 1 1310-
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 1310-
315 LEVER; SELECT 8-98032-139-0 01 1 1310-
317 BUSHING; LEVER 1-09330-119-0 02 1 1310-
319 BRACKET; SELECT LEVER 1-33657-816-0 01 1 1310-
321 BOLT; BRKT,RELAY LEVER
(A) M10X60 FLANGE 		0-28151-060-0 01 1 1310-
321 BOLT; BRKT,RELAY LEVER
(B) M10X25 FLANGE 		0-28751-025-0 01 1 1310-
321 BOLT; BRKT,RELAY LEVER
(C) M10X35 L=65 		8-97178-725-0 01 1 1310-
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91180-110-0 01 1 1310-
324 BOLT; SHAFT
M10X60 FLANGE IDN 		0-28051-060-0 01 1 1310-
332 BOLT; 4TH,SHIFT LEVER 0-29261-060-0 01 1 1310-
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-203-0 01 1 1310-
433 GASKET; BUSHING 1-09623-594-0 02 1 1310-

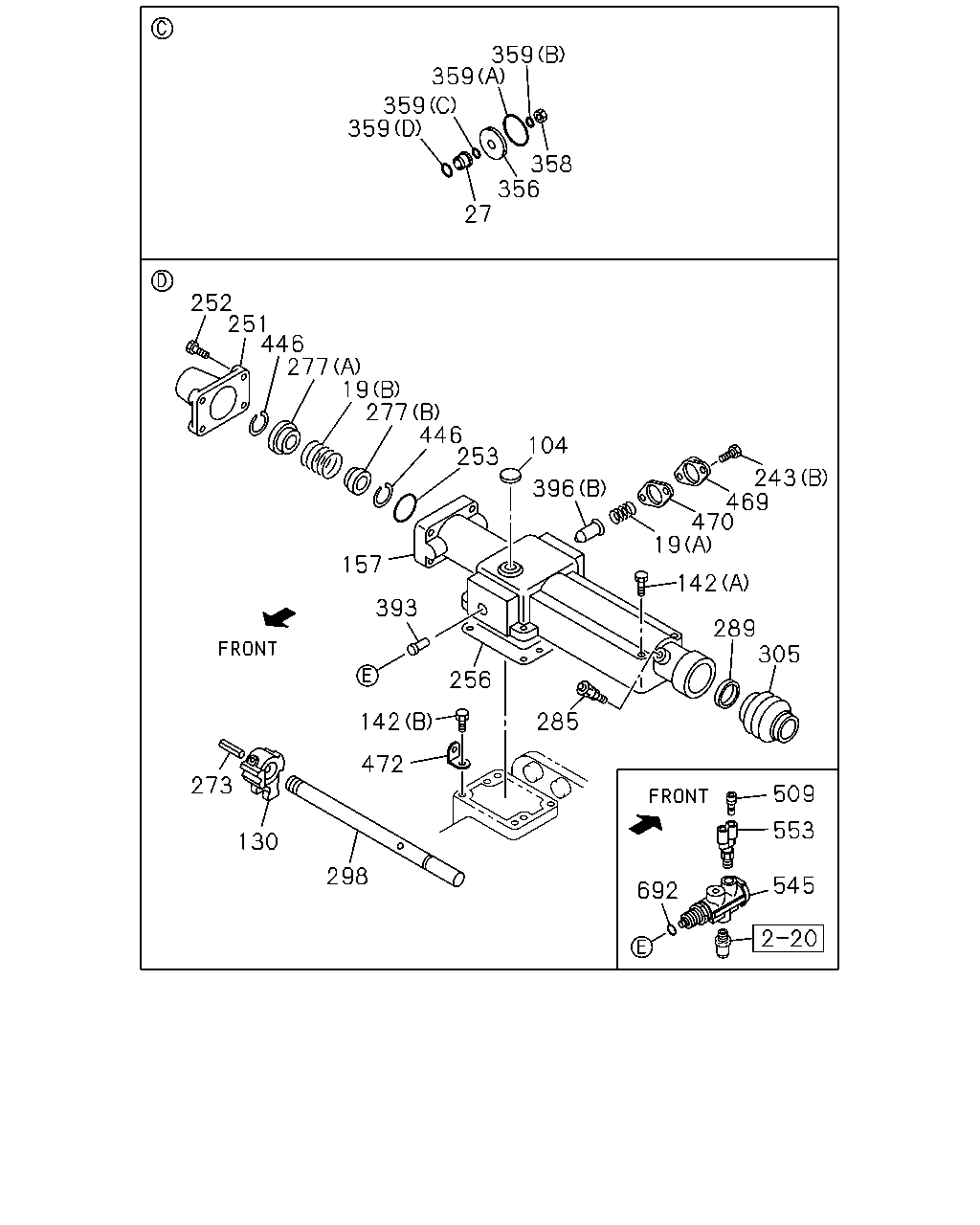

çizim 381368
359 359 359 359 358 356 27 252 251 446 277 19 277 446 253 104 396 157 393 243 469 470 19 142 289 305 509 553 545 692 285 256 142 472 273 130 298
BalonParca AdiParca NoAdetTipApplied Date
19 SPRING; COIL COMP
(A) 		1-33539-052-0 02 1 1310-
19 SPRING; COIL COMP
(B) 		1-33549-226-0 01 1 1310-
27 BUSHING; SHIFT ROD 1-33569-042-0 01 1 1310-
104 PLUG; PLATE 1-33549-353-0 01 1 1310-
130 LEVER; SHIFT,INTERNAL 1-33521-181-0 01 1 1310-
142 BOLT; QUAD BOX
(B) M10X35 		1-33549-524-0 04 1 1310-
142 BOLT; QUAD BOX
(A) 		1-33549-580-0 02 1 1310-
157 BOX; QUAD,TRANS 1-33541-537-0 01 1 1310-
243 BOLT; COVER
(A) 		1-33119-575-0 02 1 1310-1310
243 BOLT; COVER
(A) 		1-33119-630-0 02 1 1310-
243 BOLT; COVER
(B) 		1-33119-609-0 02 1 1310-
251 COVER; SIDE 1-33545-013-0 01 1 1310-
252 BOLT; SIDE COVER 1-33549-552-0 04 1 1310-
253 GASKET; SIDE COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33544-055-0 01 1 1310-
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33549-391-0 01 1 1310-
273 PIN; SPR,STOPPER 1-33529-095-0 01 1 1310-
277 PLATE; SPRING SEAT
(B) 		1-33549-388-0 01 1 1310-
277 PLATE; SPRING SEAT
(A) 		1-33549-389-0 01 1 1310-
285 BREATHER; AIR,QUAD BOX 1-33549-354-0 01 1 1310-
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		1-33542-061-0 01 1 1310-
298 SHAFT; SHIFT LEVER 1-33522-209-0 01 1 1310-
305 BOOT; LEVER SHAFT 1-33549-233-0 01 1 1310-
356 PISTON; AIR CYL 1-33551-015-0 01 1 1310-
358 NUT; SHIFT ROD 1-33539-091-0 01 1 1310-
359 GASKET; AIR CYL
(D) 		1-33569-043-0 01 1 1310-
359 GASKET; AIR CYL
(C) 		1-33569-044-0 01 1 1310-
359 GASKET; AIR CYL
(A) 		1-87061-122-0 01 1 1310-
359 GASKET; AIR CYL
(B) 		1-87061-123-0 01 1 1310-
393 PIN; SW 1-33549-394-0 01 1 1310-
396 PLUNGER; SHIFT ROD
(A) 		1-33539-084-0 01 1 1310-
396 PLUNGER; SHIFT ROD
(B) 		1-33549-390-0 01 1 1310-
446 RING; SNAP,SPR SEAT 1-33549-223-0 02 1 1310-
469 COVER; SPRING,QUAD BOX 1-33119-425-0 01 1 1310-
470 GASKET; SPRING COVER 1-33119-489-0 02 1 1310-
472 EYE; LIFTING 1-33119-596-0 01 1 1310-
509 ADAPTER 1-33119-603-0 01 1 1310-
545 VALVE; POPPET 1-33549-383-0 01 1 1310-
553 ADAPTER; AIR 1-33119-602-0 01 1 1310-
692 GASKET; VALVE 1-33119-601-0 01 1 1310-

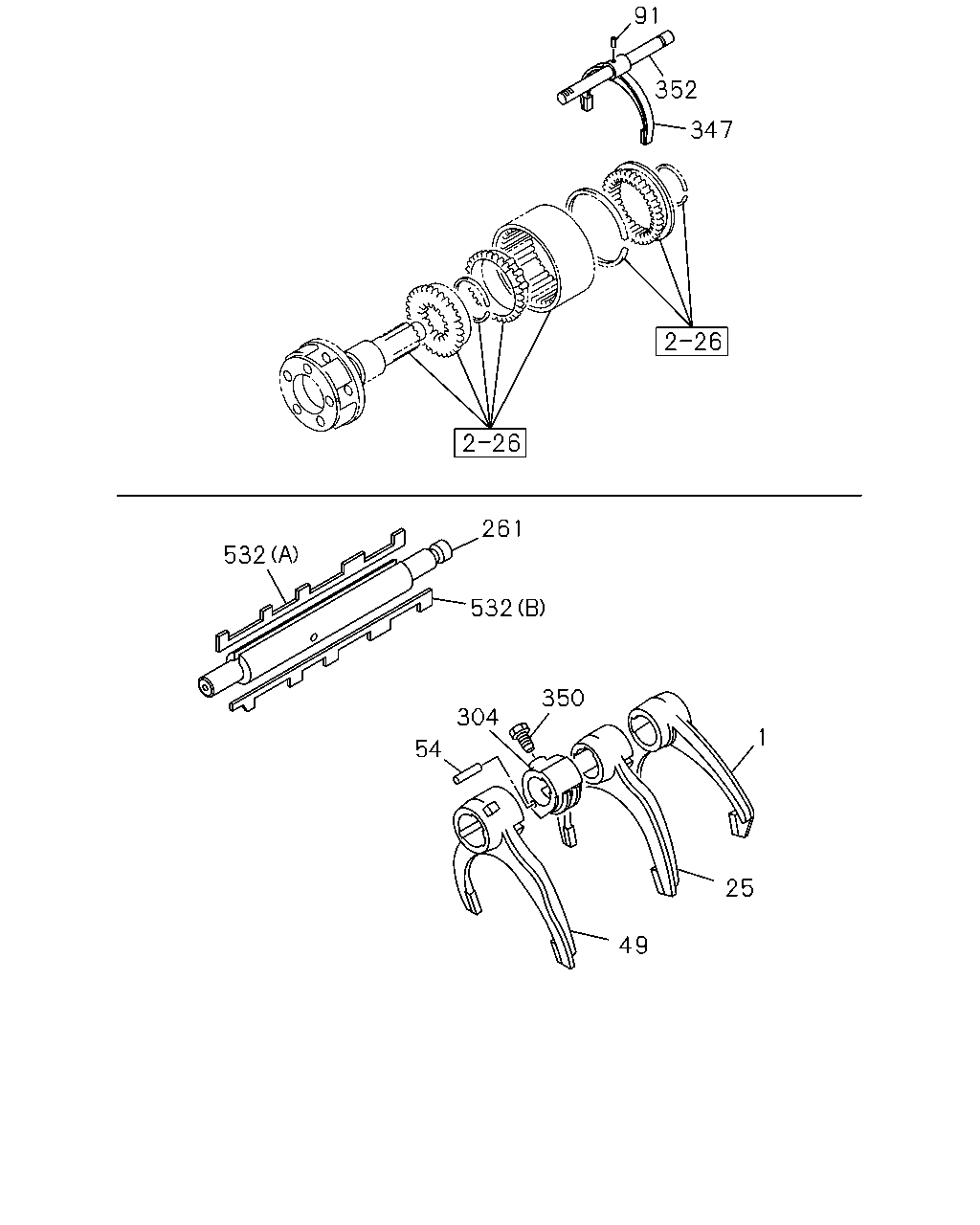

çizim 381890
91 352 347 532 261 532 54 304 350 1 25 49
BalonParca AdiParca NoAdetTipApplied Date
1 ARM; SHIFT,1ST & REV 1-33511-629-0 01 1 1310-
25 ARM; SHIFT,2ND & 3RD 1-33511-630-0 01 1 1310-
49 ARM; SHIFT,4TH & 5TH 1-33511-537-0 01 1 1310-
54 PIN; SPR,SHIFT BLOCK 1-33519-101-0 01 1 1310-
91 PIN; SPR,SHIFT ARM 1-33519-100-0 01 1 1310-1310
91 PIN; SPR,SHIFT ARM 1-33519-192-0 01 1 1310-
261 ROD; GEAR CONT 1-33531-436-0 01 1 1310-1310
261 ROD; GEAR CONT 1-33531-498-0 01 1 1310-
304 BLOCK; SHIFT SHAFT 1-33511-534-0 01 1 1310-
347 ARM; SHIFT,RANGE CHANGE 1-33511-533-0 01 1 1310-1310
347 ARM; SHIFT,RANGE CHANGE 1-33511-671-0 01 1 1310-
350 SCREW; SHIFT ARM 1-33519-163-0 01 1 1310-
352 ROD; SHIFT,RANGE CHANGE 1-33531-435-0 01 1 1310-
532 PLATE; SHIFT FORK
(A) 		1-33539-054-0 01 1 1310-
532 PLATE; SHIFT FORK
(B) 		1-33539-055-0 01 1 1310-1310
532 PLATE; SHIFT FORK
(B) 		1-33539-080-0 01 1 1310-
