Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11393 - FVZ(INDONESIA)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-30A - GEAR SHIFTER AND QUADRANT BOX
▶
2-30A — GEAR SHIFTER AND QUADRANT BOX
(#128031) — 154 parça
◀
[230A] NO.4 (21 parça)
[230A] NO.2 (14 parça)
[230A] NO.9 (2 parça)
[230A] NO.8 (18 parça)
[230A] NO.3 (9 parça)
[230A] NO.7 (23 parça)
[230A] NO.5 (16 parça)
[230A] NO.1 (16 parça)
[230A] NO.6 (35 parça)
▶

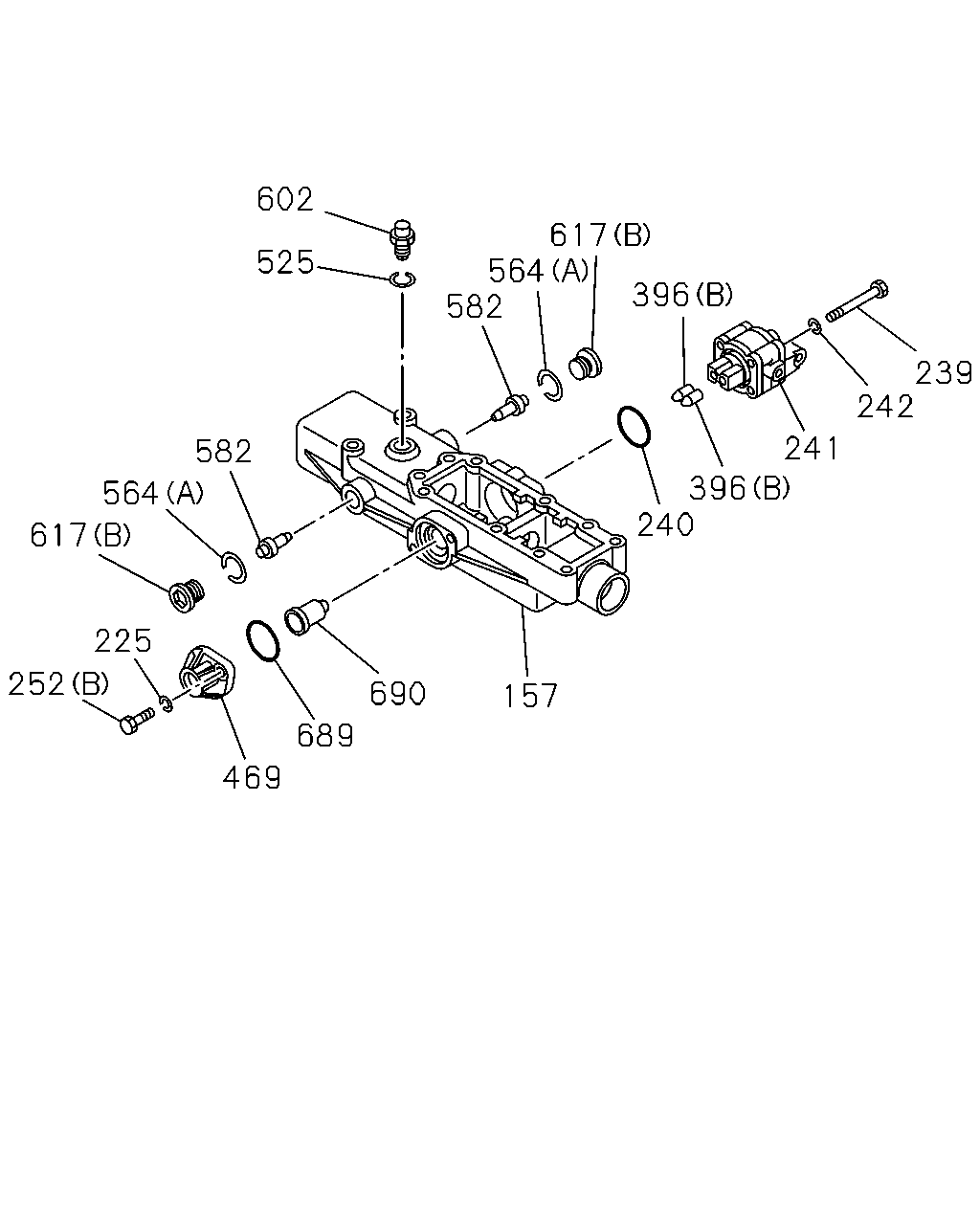

602
525
582
564
617
396
239
242
241
396
240
157
690
689
469
252
617
564
582
225
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
157
BOX; QUAD,TRANS
1-33549-570-0
01
1
1104-
225
WASHER; LK,QUAD BOX
1-33549-583-0
14
1
1104-
239
BOLT; CUT OFF VALVE
1-33549-585-0
04
1
1104-
240
GASKET; CUT OFF VALVE
1-33549-198-0
01
1
1104-
241
VALVE; CUT OFF
1-33549-495-0
01
1
1104-
242
WASHER; CUT OFF VALVE
1-33549-583-0
04
1
1104-
252
BOLT; SIDE COVER
(B) M8X30
1-33549-581-0
02
1
1104-
252
BOLT; SIDE COVER
(A) M8X20
1-33549-591-0
04
1
1104-
396
PLUNGER; SHIFT ROD
(A)
1-33519-189-0
01
1
1104-
396
PLUNGER; SHIFT ROD
(B)
1-33529-085-0
02
1
1104-
469
COVER; SPRING,QUAD BOX
1-33549-216-0
01
1
1104-
525
RING; DETENT
1-33119-286-0
01
1
1104-
564
SEAL; RING
(A)
1-33119-254-0
02
1
1104-1305
564
SEAL; RING
(A)
1-33119-249-0
02
1
1306-
564
SEAL; RING
(B)
1-33549-578-0
01
1
1104-
582
BOLT; SPRING GUIDE
1-33549-487-0
02
1
1104-
602
PLUNGER; DETENT
1-33119-618-0
01
1
1104-
617
PLUG
(B)
1-33119-619-0
02
1
1104-
617
PLUG
(A)
1-33539-109-0
01
1
1104-
689
GASKET; COVER
1-33542-063-0
01
1
1104-
690
PIN; STOP
1-33549-496-0
01
1
1104-

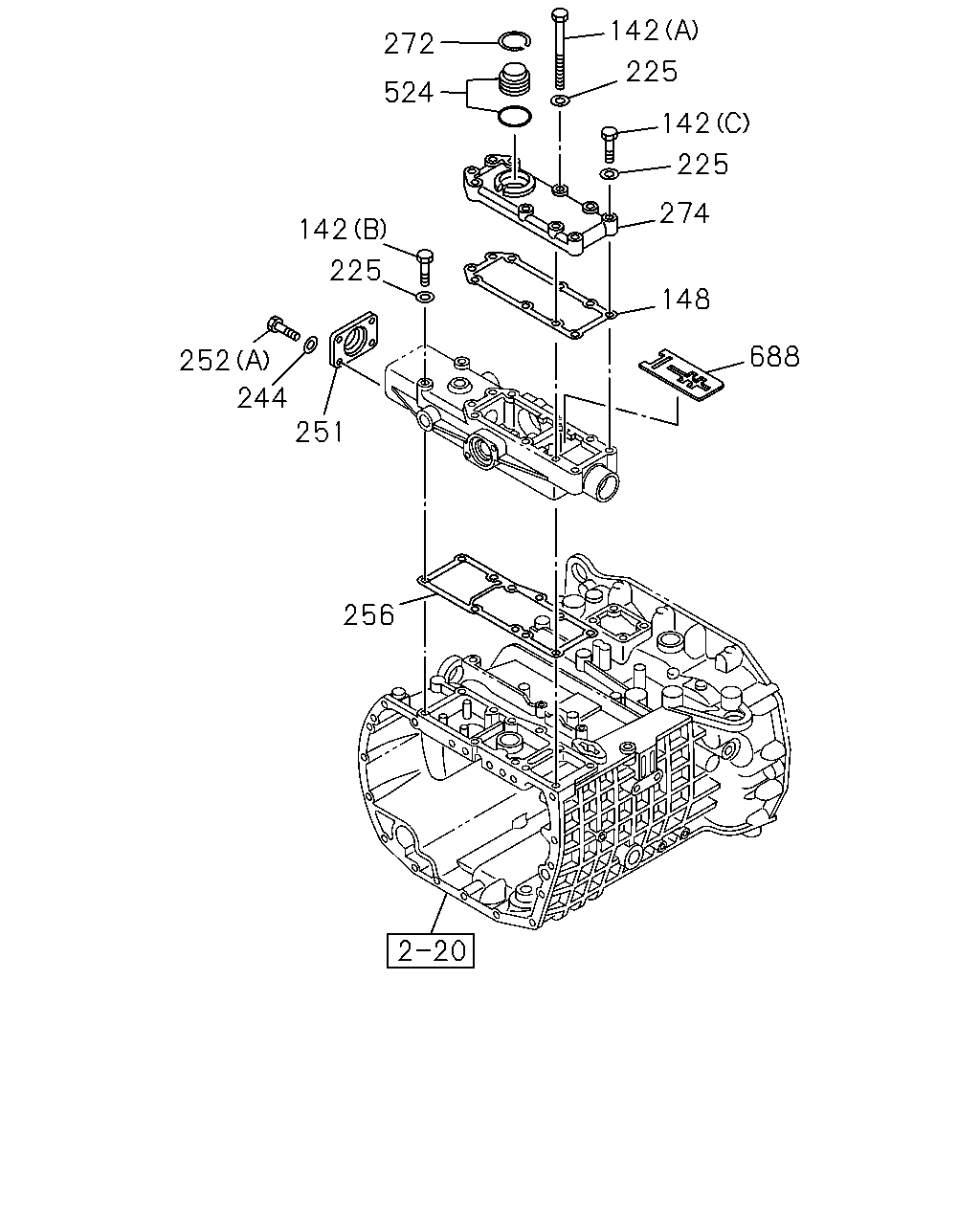

256
251
244
252
225
142
148
688
274
225
142
225
142
272
524
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
142
BOLT; QUAD BOX
(A) M8X100
1-33549-582-0
06
1
1104-
142
BOLT; QUAD BOX
(B) M8X75
1-33549-584-0
02
1
1104-
142
BOLT; QUAD BOX
(C) M8X40
1-33549-587-0
04
1
1104-
148
GASKET; QUAD BOX
1-33542-064-0
01
1
1104-
225
WASHER; LK,QUAD BOX
1-33549-583-0
14
1
1104-
244
WASHER; LK,COVER
1-33549-583-0
04
1
1104-
251
COVER; SIDE
1-33549-590-0
01
1
1104-
252
BOLT; SIDE COVER
(B) M8X30
1-33549-581-0
02
1
1104-
252
BOLT; SIDE COVER
(A) M8X20
1-33549-591-0
04
1
1104-
256
GASKET; QUAD BOX TO TRANS CASE
1-33542-065-0
01
1
1104-
272
RING; SNAP,QUAD BOX
1-44519-217-0
01
1
1104-
274
COVER; SHAFT,QUAD BOX
1-33549-579-0
01
1
1104-
524
DETENT; QUAD BOX
1-33549-501-0
01
1
1104-
688
SHIFT; INTERLOCK
1-33549-572-0
01
1
1104-

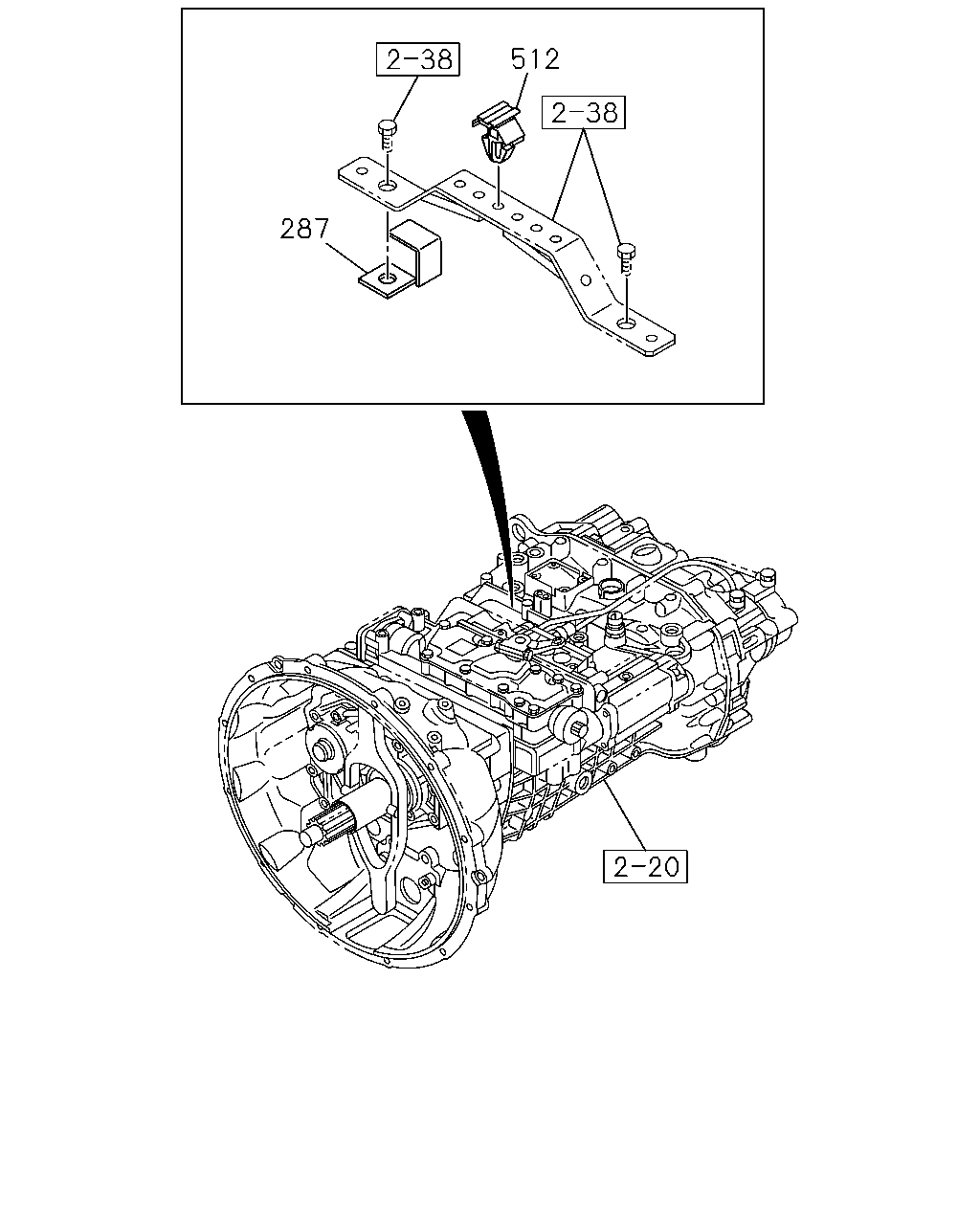

287
512
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
287
COVER; AIR BREATHER
1-34141-026-0
01
1
1104-
512
CLIP; PIPE
OD=9 H=6
1-09709-178-0
04
1
1104-

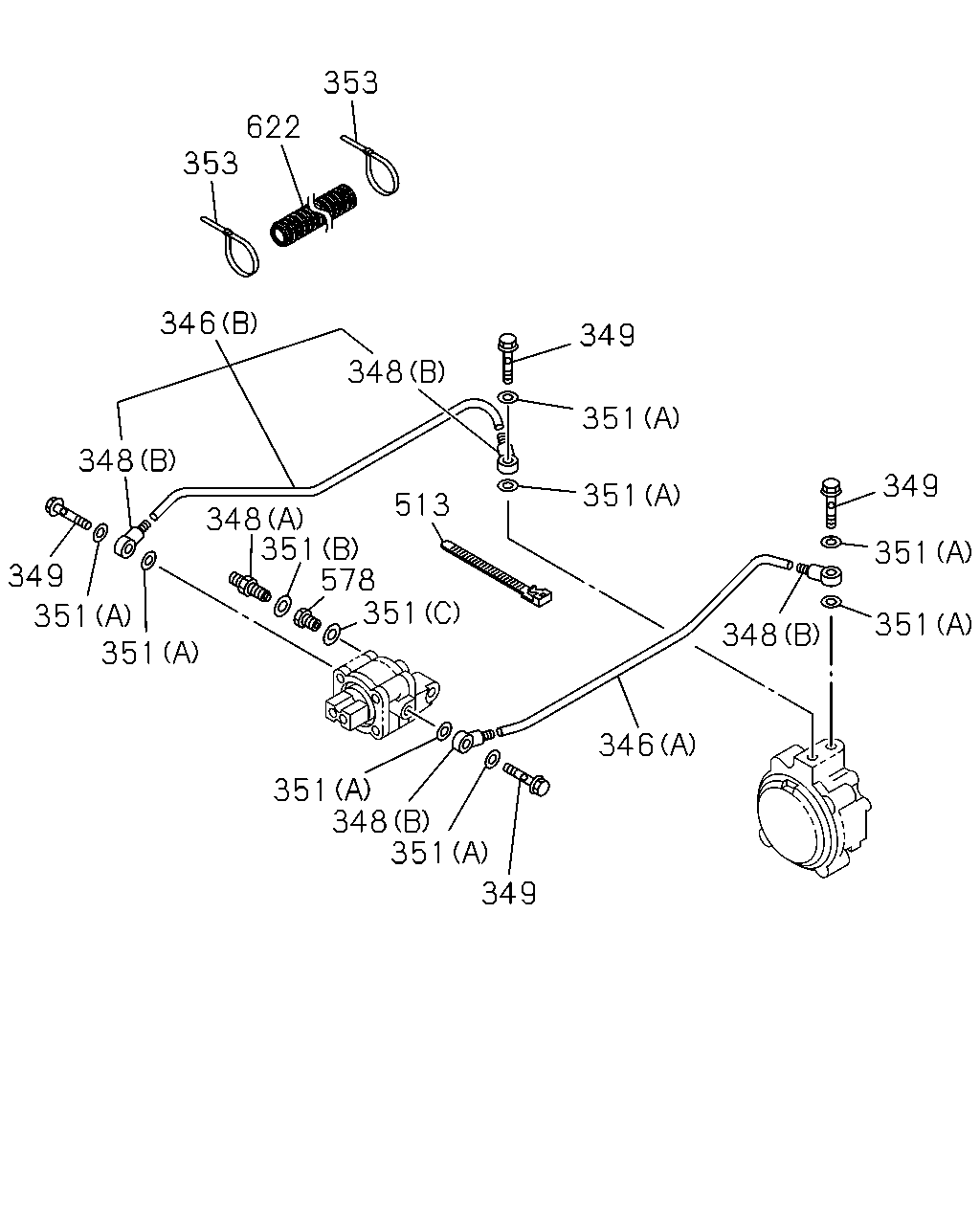

353
622
353
346
348
348
349
351
351
349
351
351
348
346
349
351
348
351
351
351
349
348
351
513
578
351
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
346
HOSE; AIR
(B)
1-33549-598-0
01
1
1104-
346
HOSE; AIR
(A)
1-33549-400-0
01
1
1104-1305
346
HOSE; AIR
(A)
1-33549-618-0
01
1
1306-
348
CONNECTOR; AIR HOSE
(A) M12 STRAIGHT
1-09654-246-0
01
1
1104-
348
CONNECTOR; AIR HOSE
(B)
1-33549-593-0
02
1
1104-1305
348
CONNECTOR; AIR HOSE
(B)
1-33549-593-0
04
1
1306-
349
BOLT; EYE,AIR HOSE
M14
1-33549-592-0
04
1
1104-
351
GASKET; CONNECTOR
(B) ID=12.2
1-09630-084-0
01
1
1104-1312
351
GASKET; CONNECTOR
(B) ID=12.2
8-98251-344-0
01
1
1401-
351
GASKET; CONNECTOR
(C)
1-33549-554-0
01
1
1104-
351
GASKET; CONNECTOR
(A)
1-33549-578-0
08
1
1104-
353
CLIP; AIR HOSE
1-33549-530-0
02
1
1104-1305
353
CLIP; AIR HOSE
1-33549-475-0
02
1
1306-
513
CLIP; BAND
L=250 IDN
5-09707-030-1
05
1
1104-1104
513
CLIP; BAND
L=250 IDN
5-09707-030-1
06
1
1105-
513
CLIP; BAND
L=140 IDN
5-09707-031-1
01
1
1104-
578
CONNECTOR
1-33549-553-0
01
1
1104-
622
TUBE; CORRUGATE
L=100 ID=22 L=350
1-83129-017-0
01
1
1104-

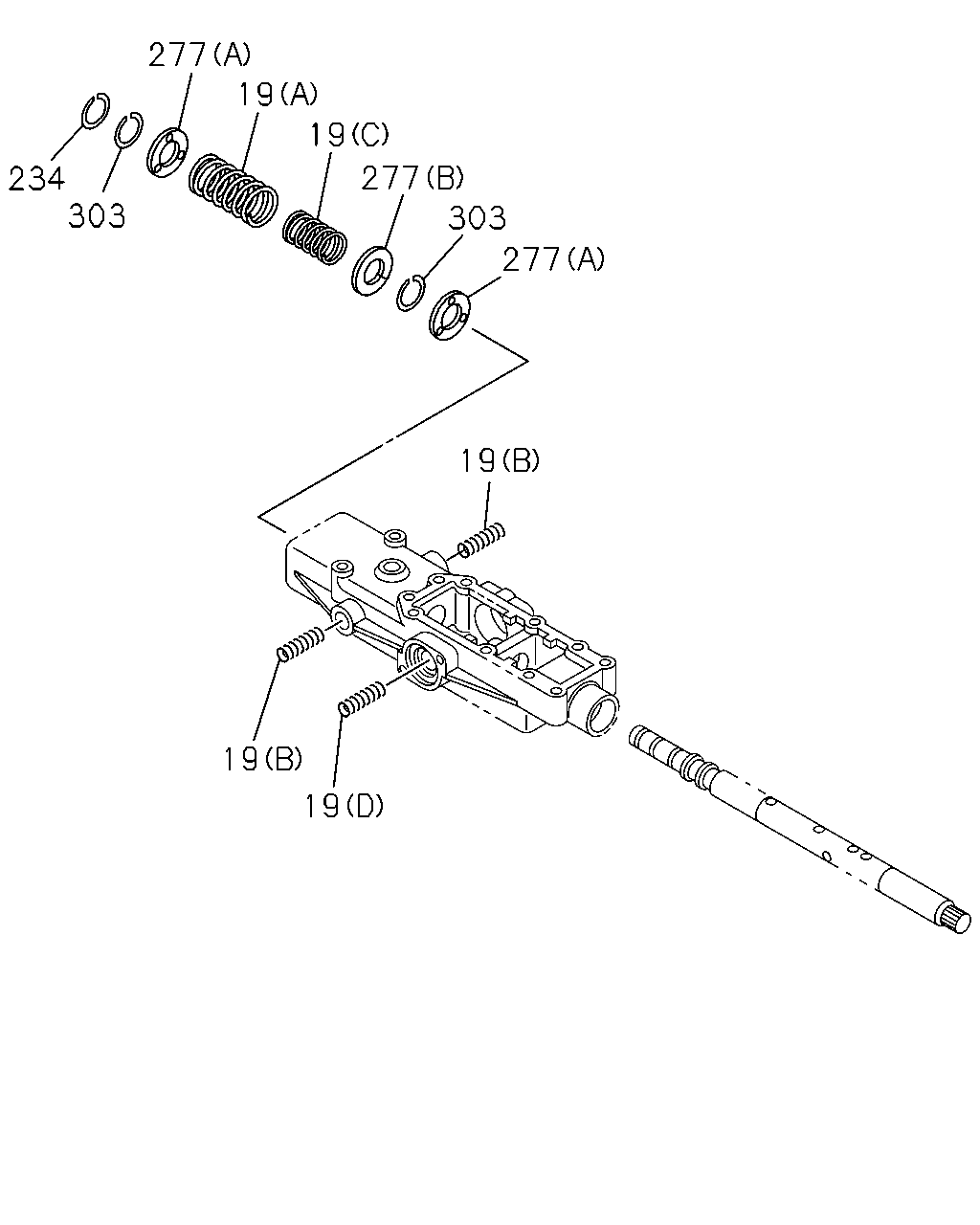

19
19
19
277
303
277
19
19
277
303
234
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
19
SPRING; COIL COMP
(A)
1-33539-027-0
01
1
1104-
19
SPRING; COIL COMP
(B)
1-33539-090-0
02
1
1104-1305
19
SPRING; COIL COMP
(B)
1-33539-030-0
02
1
1306-
19
SPRING; COIL COMP
(C)
1-33539-104-0
01
1
1104-
19
SPRING; COIL COMP
(D)
1-33549-221-0
01
1
1104-
234
RING; SNAP
1-44519-224-0
01
1
1104-
277
PLATE; SPRING SEAT
(A)
1-33539-107-0
02
1
1104-
277
PLATE; SPRING SEAT
(B)
1-33539-108-0
01
1
1104-1305
303
RING; SNAP,SHAFT
1-33539-040-0
02
1
1104-

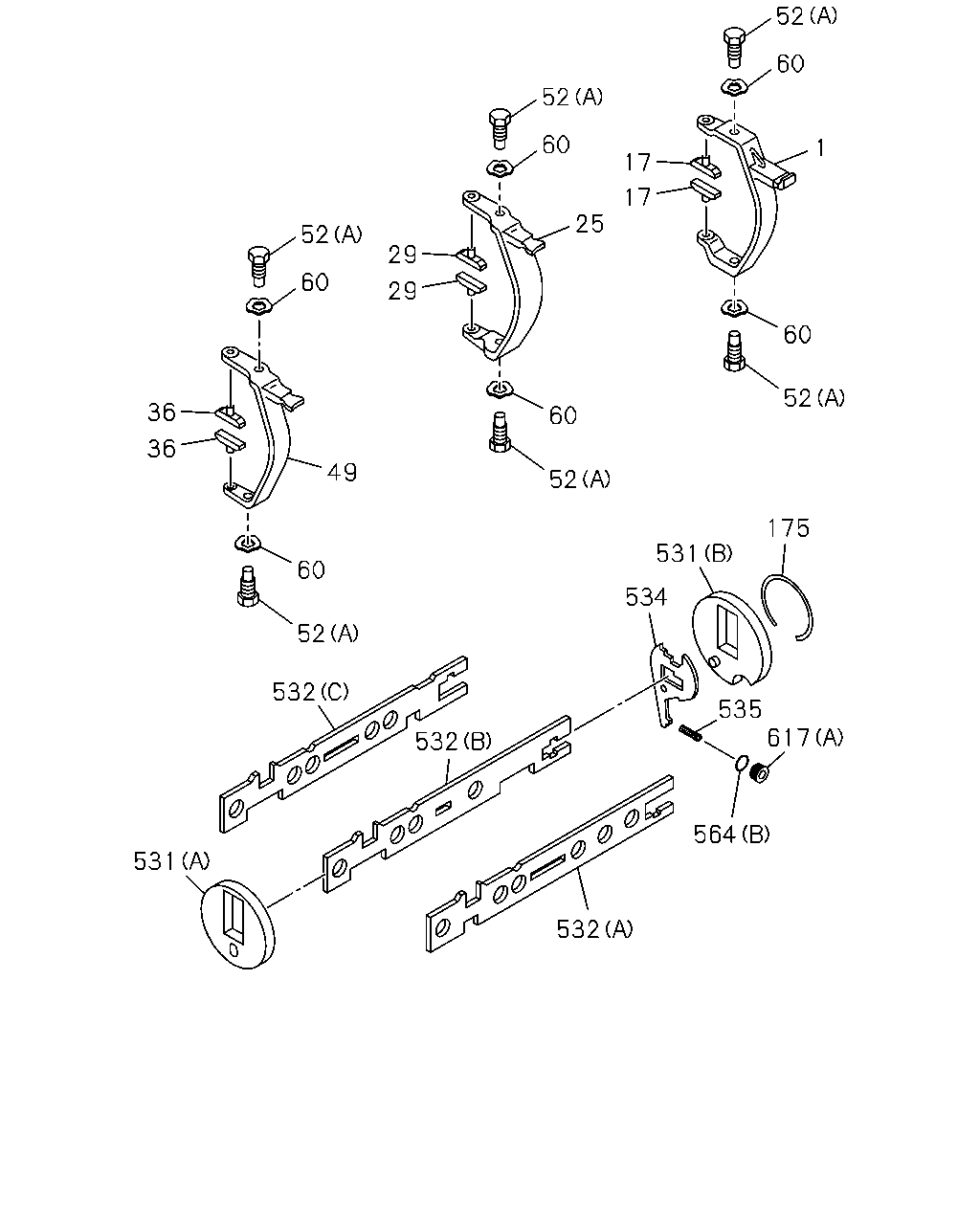

36
36
49
52
60
29
29
60
52
531
534
535
617
564
532
532
532
60
531
52
60
25
17
17
52
60
1
60
52
175
52
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
ARM; SHIFT,1ST & REV
1-33511-657-0
01
1
1104-
17
BLOCK; SHIFT,1ST & REV
1-33519-172-0
02
1
1104-
25
ARM; SHIFT,2ND & 3RD
1-33511-642-0
01
1
1104-
29
BLOCK; SHIFT,2ND & 3RD
1-33519-081-0
02
1
1104-
36
BLOCK; SHIFT,4TH & 5TH
1-33519-081-0
02
1
1104-
49
ARM; SHIFT,4TH & 5TH
1-33511-664-0
01
1
1104-
52
BOLT; SHIFT ARM
(B)
1-33519-187-0
02
1
1104-1305
52
BOLT; SHIFT ARM
(B)
1-33519-196-0
02
1
1306-
52
BOLT; SHIFT ARM
(A)
1-33519-190-0
06
1
1104-
60
WASHER; LK
1-36129-024-0
06
1
1104-1305
175
RING; STOPPER,SHIFT LEVER
1-33539-103-0
01
1
1104-
531
PLATE; BEARING
(A)
1-33539-044-0
01
1
1104-
531
PLATE; BEARING
(B)
1-33539-047-0
01
1
1104-
532
PLATE; SHIFT FORK
(A)
1-33531-492-0
01
1
1104-
532
PLATE; SHIFT FORK
(B)
1-33531-493-0
01
1
1104-
532
PLATE; SHIFT FORK
(C)
1-33531-494-0
01
1
1104-
534
LEVER; LOCK,SHIFT PLATE
1-33539-087-0
01
1
1104-
535
SPRING; LEVER
1-33539-049-0
01
1
1104-
564
SEAL; RING
(A)
1-33119-254-0
02
1
1104-1305
564
SEAL; RING
(A)
1-33119-249-0
02
1
1306-
564
SEAL; RING
(B)
1-33549-578-0
01
1
1104-
617
PLUG
(B)
1-33119-619-0
02
1
1104-
617
PLUG
(A)
1-33539-109-0
01
1
1104-
165
289
165
165
271
90
430
304
298
90
569
332
265
264
42
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
42
CAP; QUAD BOX
1-33549-589-0
01
1
1104-
48
LEVER; 4TH,SHIFT
8-98085-725-0
01
1
1104-
90
RING; SNAP,SHIFT ROD
1-33549-494-0
02
1
1104-
165
LEVER; SHIFT
(C)
1-33549-488-0
01
1
1104-
165
LEVER; SHIFT
(A)
1-33549-489-0
01
1
1104-
165
LEVER; SHIFT
(B)
1-33549-490-0
01
1
1104-1305
165
LEVER; SHIFT
(B)
1-33549-603-0
01
1
1306-
264
SEAL; DUST,SHAFT
1-33549-119-0
01
1
1104-
265
SEAL; OIL,SHIFT
1-33549-118-0
01
1
1104-
271
BUSHING; QUAD BOX
1-33549-124-0
01
1
1104-
289
SEAL; OIL,CONT SHAFT,QUAD BOX
1-33549-491-0
01
1
1104-
298
SHAFT; SHIFT LEVER
1-33522-205-0
01
1
1104-
304
BLOCK; SHIFT SHAFT
1-33549-492-0
01
1
1104-
332
BOLT; 4TH,SHIFT LEVER
M8X40 FLANGE
0-28650-840-0
01
1
1104-
430
PIN; SPR,SHIFT ROD
1-33549-493-0
01
1
1104-
569
PIN; QUADRANT BOX
1-33529-128-0
02
1
1104-

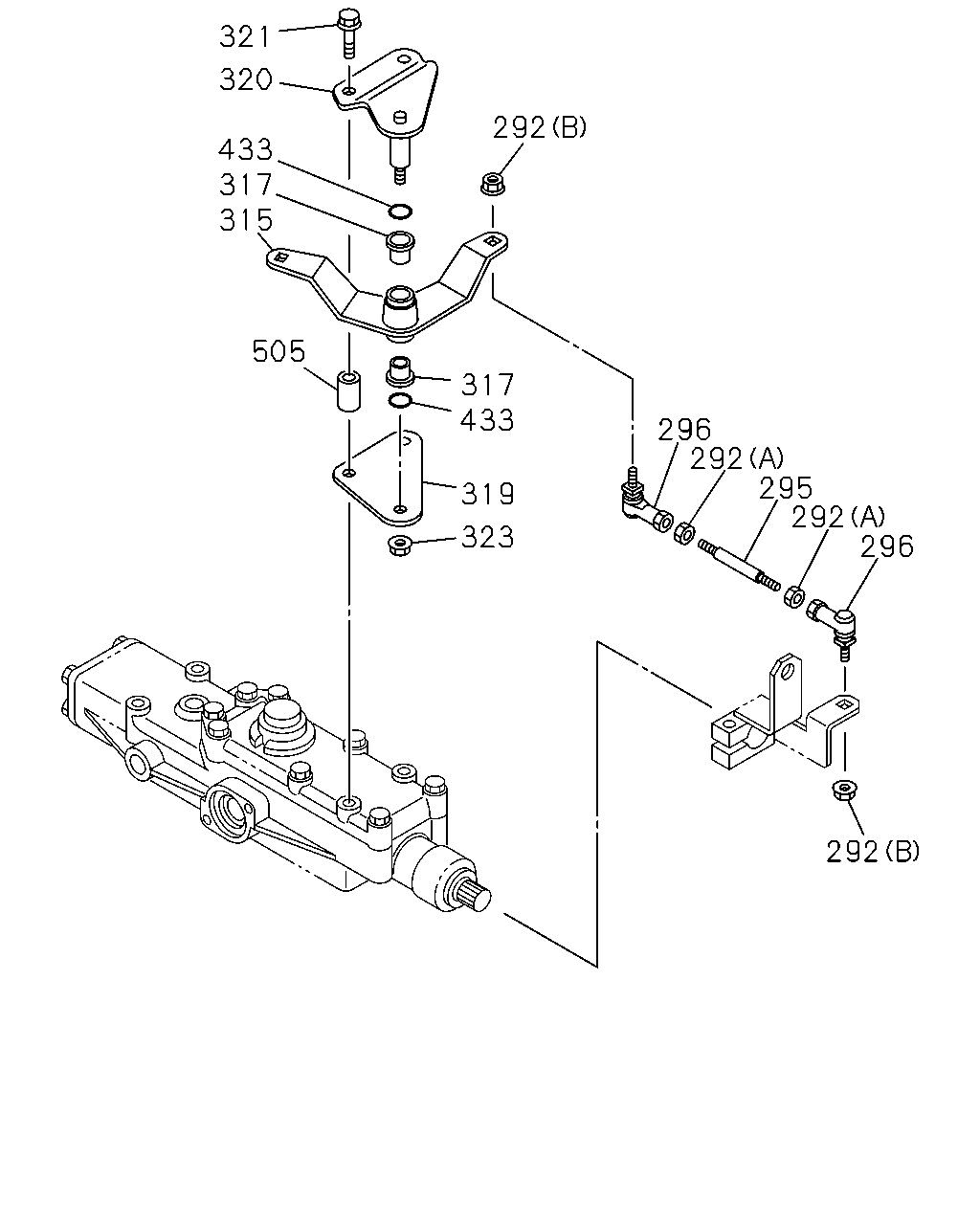

321
292
320
505
315
433
317
317
319
433
323
296
292
292
296
292
295
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
292
NUT; LINK ROD
(A) M8
0-91111-508-0
02
1
1104-
292
NUT; LINK ROD
(B) M8 FLANGE
1-09440-062-1
02
1
1104-1309
292
NUT; LINK ROD
(B) M8 FLANGE
1-09440-062-1
02
1
1310-
295
ROD; LINK,RELAY LEVER
M8 L=50
9-08400-805-0
01
1
1104-
296
ROD END
1-09760-108-0
02
1
1104-
315
LEVER; SELECT
8-98085-738-0
01
1
1104-
317
BUSHING; LEVER
1-09330-119-0
02
1
1104-1309
317
BUSHING; LEVER
1-09330-119-0
02
1
1310-
319
BRACKET; SELECT LEVER
8-98085-740-0
01
1
1104-
320
SHAFT; LEVER
8-98085-739-0
01
1
1104-
321
BOLT; BRKT,RELAY LEVER
M8X130 FLANGE
0-28065-813-0
02
1
1104-
323
NUT; LK,SELECT LEVER
M10 FLANGE
0-91180-110-0
01
1
1104-1309
323
NUT; LK,SELECT LEVER
M10 FLANGE
0-91180-110-0
01
1
1310-
433
GASKET; BUSHING
1-09623-594-0
02
1
1104-1309
433
GASKET; BUSHING
1-09623-594-0
02
1
1310-
505
SPACER; BRKT
L=24.5
1-33659-186-1
02
1
1104-

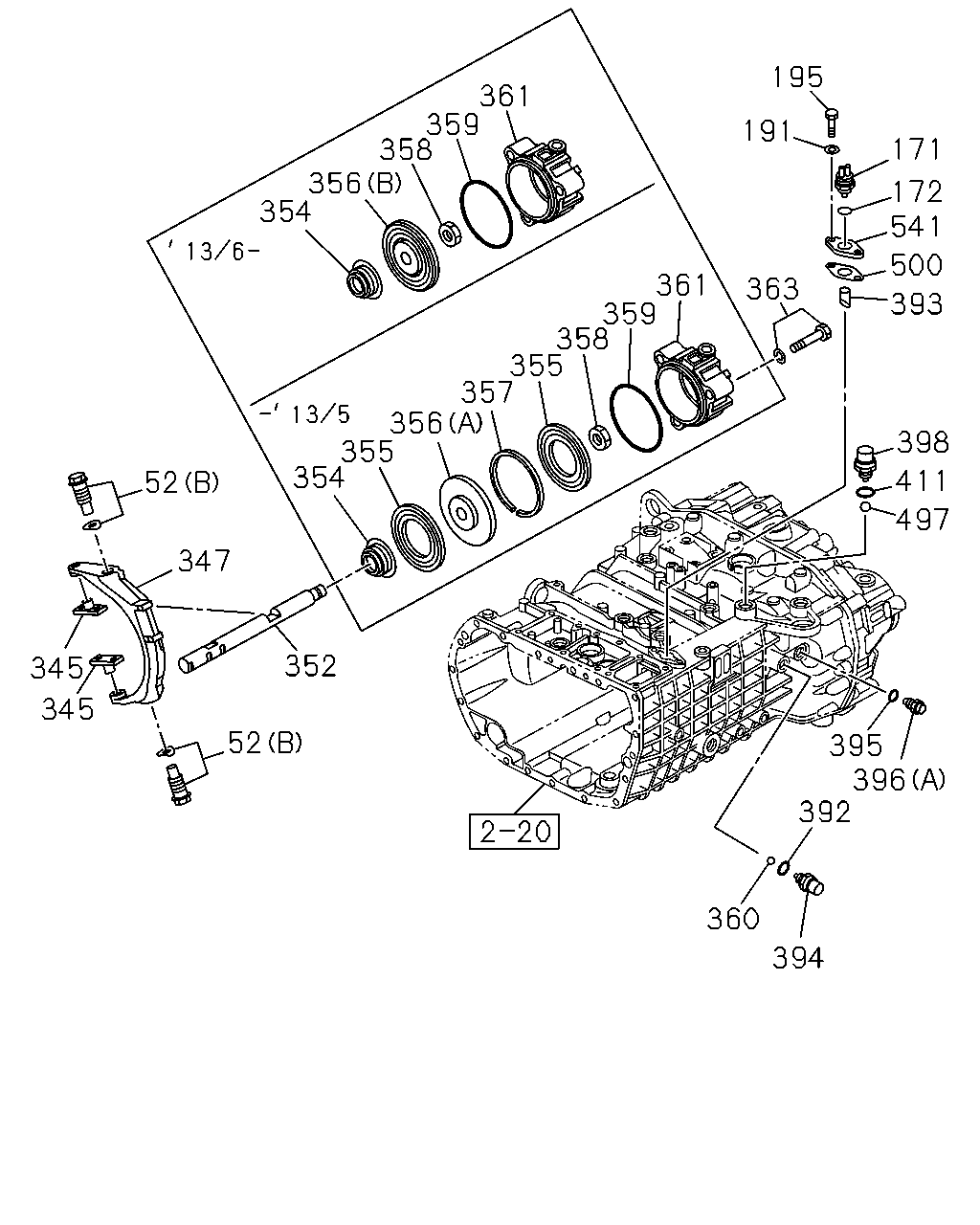

361
359
358
356
354
52
347
352
52
345
345
360
394
392
395
396
497
411
398
393
363
361
191
195
171
172
541
500
359
358
355
357
356
355
354
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
52
BOLT; SHIFT ARM
(B)
1-33519-187-0
02
1
1104-1305
52
BOLT; SHIFT ARM
(B)
1-33519-196-0
02
1
1306-
52
BOLT; SHIFT ARM
(A)
1-33519-190-0
06
1
1104-
171
SWITCH; NEUTRAL
1-33119-587-0
01
1
1104-1305
171
SWITCH; NEUTRAL
1-33119-627-0
01
1
1306-
172
GASKET; NEUTRAL SW
1-33119-249-0
01
1
1104-
191
WASHER; LK
1-33549-577-0
02
1
1104-1305
191
WASHER; LK
1-33549-583-0
02
1
1306-
195
BOLT
1-33119-593-0
02
1
1104-
345
BLOCK; SHIFT,RANGE CHANGE
1-33519-095-0
02
1
1104-
347
ARM; SHIFT,RANGE CHANGE
1-33511-529-0
01
1
1104-
352
ROD; SHIFT,RANGE CHANGE
1-33531-495-0
01
1
1104-1305
352
ROD; SHIFT,RANGE CHANGE
1-33531-497-0
01
1
1306-
354
SEAL; AIR CYL
1-33519-045-0
01
1
1104-
355
CUP; PISTON,AIR CYL
1-33519-088-0
02
1
1104-1305
356
PISTON; AIR CYL
(A)
1-33519-087-0
01
1
1104-1305
356
PISTON; AIR CYL
(B)
1-33519-197-0
01
1
1306-
357
RING; GUIDE,AIR CYL
1-33519-090-0
01
1
1104-1305
358
NUT; SHIFT ROD
1-33519-188-0
01
1
1104-
359
GASKET; AIR CYL
1-33519-093-0
01
1
1104-
360
BALL; AIR CYL
1-33119-252-0
01
1
1104-
361
CYLINDER; AIR,SHIFT
1-33519-092-0
01
1
1104-
363
BOLT; AIR CYL
M10X70
1-33119-616-0
03
1
1104-
392
GASKET; PLUG & SW
1-33119-249-0
01
1
1104-
393
PIN; SW
1-33119-298-0
01
1
1104-
394
SWITCH; RANGE CHANGE
1-33119-587-0
01
1
1104-1305
394
SWITCH; RANGE CHANGE
1-33119-627-0
01
1
1306-
395
GASKET; PLUNGER
1-33549-497-0
01
1
1104-
396
PLUNGER; SHIFT ROD
(A)
1-33519-189-0
01
1
1104-
396
PLUNGER; SHIFT ROD
(B)
1-33529-085-0
02
1
1104-
398
SWITCH; REV LAMP
1-38119-062-0
01
1
1104-
411
GASKET; REV LAMP SW
1-33119-249-0
01
1
1104-
497
BALL; SWITCH
1-33119-252-0
01
1
1104-
500
GASKET; SW
ALSO INCLUDED IN GASKET SET(M/T).
1-33119-299-0
01
1
1104-
541
PLATE; SWITCH
1-33119-300-0
01
1
1104-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
