3-22 — AIR CONTROL PARTS (#12803) — 22 parça

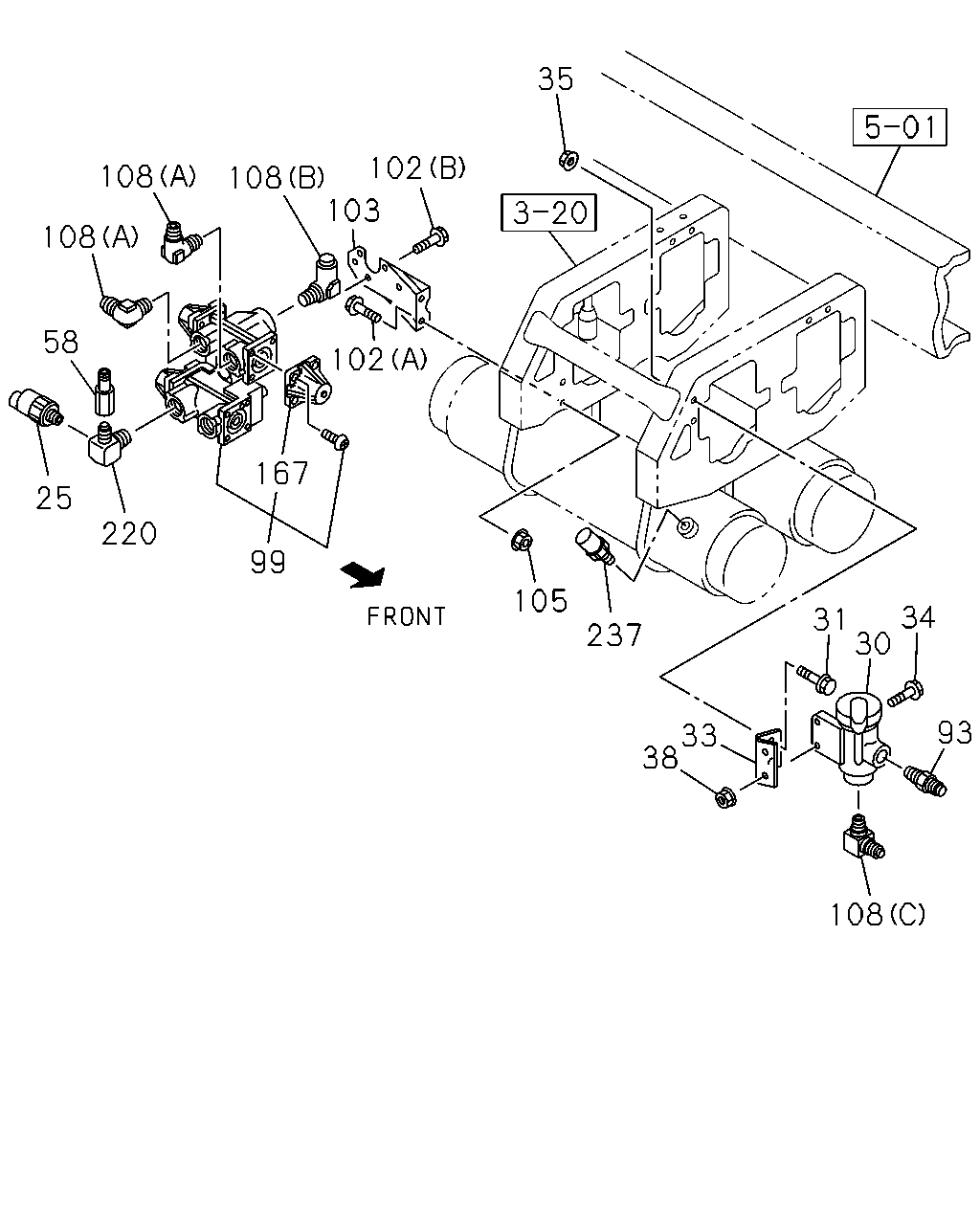

çizim 143137
34 30 31 93 108 38 105 33 237 99 220 25 58 108 108 108 102 35 103 102 167
BalonParca AdiParca NoAdetTipApplied Date
25 SWITCH; PRESSURE
STAMP 5.5 THA 		8-97609-249-0 01 1 0808-
30 GOVERNOR; AIR CONT 1-48350-093-2 01 1 1103-
31 BOLT; GOV TO FRAME
M8X20 FLANGE THA 		0-28650-820-0 02 1 1103-
33 BRACKET; GOV,AIR CONT 8-98120-459-1 01 1 1103-
34 BOLT; BRKT,GOV
M8X30 FLANGE THA 		0-28650-830-0 02 1 1103-
35 NUT; GOV TO FRAME
M8 FLANGE THA 		0-91180-108-0 02 1 1103-
38 NUT; BRKT,GOV
M8 FLANGE THA 		0-91180-108-0 02 1 1103-
58 ADAPTER
DIN8 & M12 STRAIGHT THA 		1-09660-873-0 01 1 0808-
93 CONNECTOR; GOV
M12 & PT1/4 STRAIGHT THA 		1-09650-074-1 01 1 1103-
99 VALVE; PROTECTION
THA 		1-48110-287-3 01 1 0808-
102 BOLT; PROTECTION VALVE
(B) M8X16 FLANGE THA 		0-28050-816-0 02 1 0808-
102 BOLT; PROTECTION VALVE
(A) M10X25 FLANGE THA 		0-28651-025-0 02 1 0808-
103 BRACKET; PROTECTION VALVE 8-98098-183-0 01 1 0808-
105 NUT; BRKT,VALVE
M10 FLANGE THA 		0-91180-210-0 02 1 0808-
108 CONNECTOR; ELBOW
(C) M12 & PT1/4 ELBOW THA 		1-09650-430-0 01 1 1103-
108 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 02 1 0808-
108 CONNECTOR; ELBOW
(B) DIN12 & R1/2 ELBOW THA 		1-09660-960-0 01 1 0808-
167 COVER; VALVE
THA 		1-48119-625-0 03 1 1103-1506
220 CONNECTOR; 3WAY
THA 		1-09656-698-0 01 1 0808-
237 VALVE; SAFETY 1-48320-012-2 01 1 0808-
çizim 143303
240
BalonParca AdiParca NoAdetTipApplied Date
240 REPAIR KIT; AIR CONT GOV 1-85576-467-0 01 1 1103-
çizim 421413
241
BalonParca AdiParca NoAdetTipApplied Date
241 REPAIR KIT; PROTECTION VALVE 1-85576-452-1 01 1 1103-1506
