Sayfa 2-26A - Isuzu EPC

2-26A — MANUAL TRANSMISSION GEAR (#128029) — 381 parça

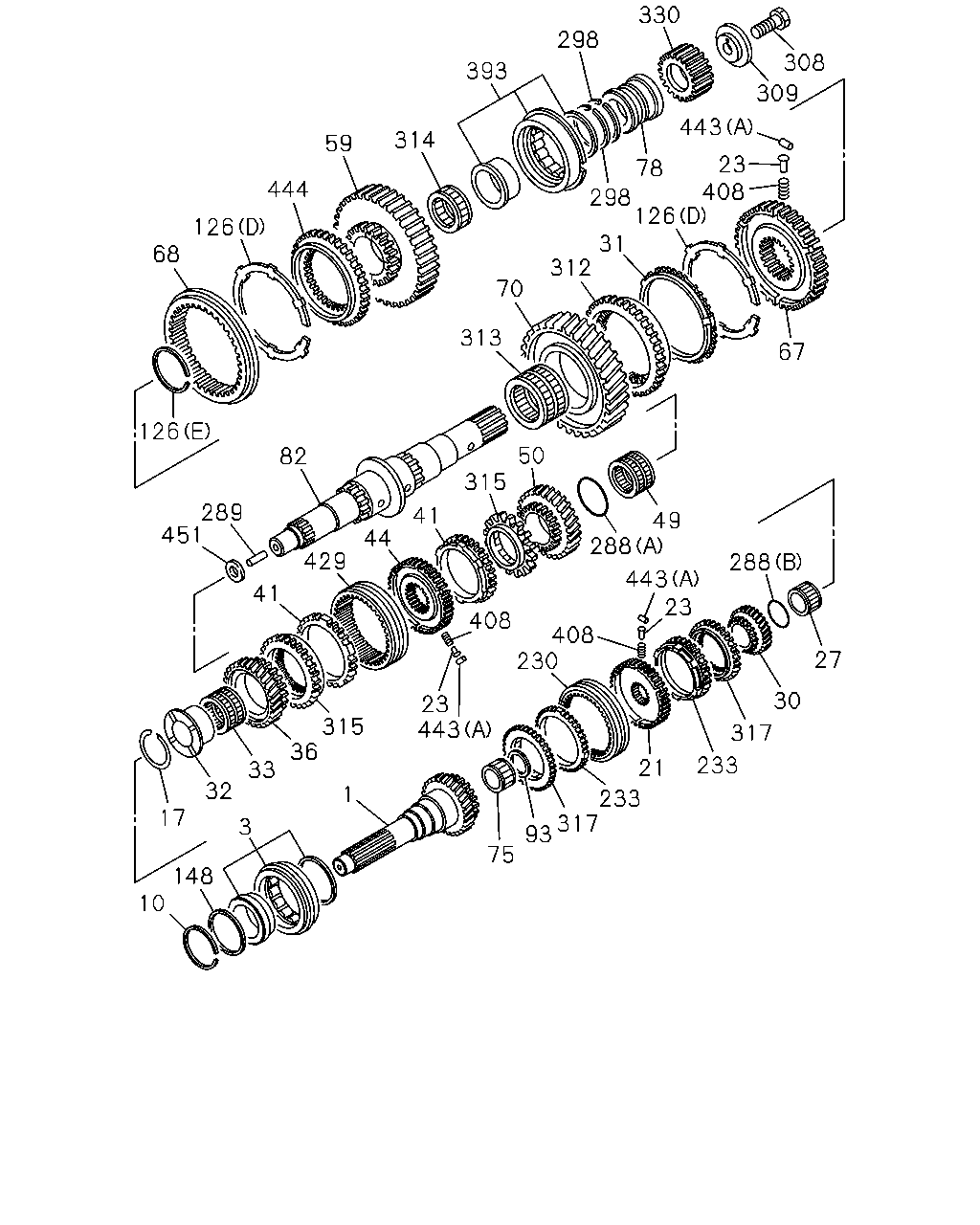

27 30 317 233 21 233 317 93 75 288 23 443 408 230 23 43 315 1 36 33 32 3 17 148 10 288 49 408 67 308 309 443 408 23 126 78 298 312 31 70 313 50 315 41 44 429 41 82 289 451 126 68 126 444 59 314 393 298 330

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; TOP GEAR,TRANS	1-33215-040-0	01	1	1104-
3	BEARING; TOP GEAR SHAFT	1-33219-320-0	01	1	1104-1305
3	BEARING; TOP GEAR SHAFT	1-33219-340-0	01	1	1306-
9	CLUTCH; DOG,TOP GEAR	1-33265-631-0	01	1	1104-
16	BEARING; PILOT,MAINSHAFT	1-33239-212-0	01	1	1104-
18	RING; SNAP,CLU HUB T=2.4	1-33259-054-0	01	1	1104-
18	RING; SNAP,CLU HUB T=2.3	1-33259-060-0	01	1	1104-
18	RING; SNAP,CLU HUB T=2.2	1-33259-061-0	01	1	1104-
18	RING; SNAP,CLU HUB T=2.1	1-33259-062-0	01	1	1104-
18	RING; SNAP,CLU HUB T=2.0	1-33259-063-0	01	1	1104-
18	RING; SNAP,CLU HUB T=1.9	1-33259-064-0	01	1	1104-
21	HUB; CLU,4TH & 5TH	1-33261-295-0	01	1	1104-
27	BEARING; 4TH GEAR	1-33259-128-0	02	1	1104-
30	GEAR; 4TH,MAINSHAFT	1-33251-449-0	01	1	1104-
32	COLLAR; 3RD GEAR	1-33259-059-0	01	1	1104-1305
32	COLLAR; 3RD GEAR	1-33259-140-0	01	1	1306-
33	BEARING; NEEDLE,3RD GEAR	1-33259-127-0	01	1	1104-
36	GEAR; 3RD,MAINSHAFT	1-33252-478-0	01	1	1104-
41	RING; BLOCK,2ND & 3RD	1-33265-498-0	02	1	1104-
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-303-0	01	1	1104-
49	BEARING; NEEDLE,2ND GEAR	1-33259-126-0	02	1	1104-
50	GEAR; 2ND,MAINSHAFT	1-33251-448-0	01	1	1104-
59	GEAR; REV MAINSHAFT	1-33257-101-0	01	1	1104-
67	HUB; CLU,1ST TO REV	1-33259-135-0	01	1	1104-
68	SLEEVE; 1ST TO REV	1-33259-049-0	01	1	1104-
70	GEAR; 1ST,MAINSHAFT	1-33251-434-0	01	1	1104-
82	SHAFT; MAIN,TRANS	1-33231-337-0	01	1	1104-
93	RING; SNAP,COUNTER FRT BRG T=2.6	1-33319-264-0	01	1	1306-
93	RING; SNAP,COUNTER FRT BRG T=2.0	1-33319-251-0	01	1	1104-
93	RING; SNAP,COUNTER FRT BRG T=2.5	1-33319-252-0	01	1	1104-
93	RING; SNAP,COUNTER FRT BRG T=2.4	1-33319-253-0	01	1	1104-
93	RING; SNAP,COUNTER FRT BRG T=2.3	1-33319-254-0	01	1	1104-
93	RING; SNAP,COUNTER FRT BRG T=2.2	1-33319-255-0	01	1	1104-
93	RING; SNAP,COUNTER FRT BRG T=2.1	1-33319-256-0	01	1	1104-
126	RING; SNAP,CLU HUB (A) T=2.8	1-33259-050-0	01	1	1104-
126	RING; SNAP,CLU HUB (A) T=2.7	1-33259-051-0	01	1	1104-
126	RING; SNAP,CLU HUB (A) T=2.6	1-33259-052-0	01	1	1104-
126	RING; SNAP,CLU HUB (A) T=2.5	1-33259-053-0	01	1	1104-
126	RING; SNAP,CLU HUB (A) T=2.4	1-33259-054-0	01	1	1104-
126	RING; SNAP,CLU HUB (B) T=4.0	1-33269-047-0	01	1	1104-
126	RING; SNAP,CLU HUB (B) T=3.9	1-33269-048-0	01	1	1104-
126	RING; SNAP,CLU HUB (B) T=3.8	1-33269-049-0	01	1	1104-
126	RING; SNAP,CLU HUB (B) T=3.7	1-33269-050-0	01	1	1104-
230	SLEEVE; 4TH TO 5TH	1-33262-239-0	01	1	1104-
233	RING; BLOCK 4TH TO 5TH	1-33269-096-0	02	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=3.20	1-33319-061-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (A) T=3.15	1-33319-062-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (A) T=3.10	1-33319-063-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (A) T=3.05	1-33319-064-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (A) T=3.00	1-33319-065-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (A) T=2.95	1-33319-066-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=2.90	1-33319-067-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=2.85	1-33319-068-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=2.80	1-33319-069-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=2.75	1-33319-070-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=2.70	1-33319-071-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=2.65	1-33319-072-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=2.60	1-33319-073-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=2.55	1-33319-074-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=2.50	1-33319-075-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=2.45	1-33319-076-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=2.40	1-33319-077-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (A) T=2.35	1-33319-078-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (A) T=2.30	1-33319-079-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (A) T=2.25	1-33319-080-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (A) T=2.20	1-33319-081-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (A) T=2.15	1-33319-082-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (A) T=2.10	1-33319-083-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (B) T=2.5	1-43319-021-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (B) T=2.4	1-43319-101-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (B) T=2.3	1-43319-102-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (B) T=2.0	1-43319-103-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (B) T=2.1	1-43319-104-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (B) T=2.2	1-43319-105-0	01	1	1104-
311	PIPE; MAINSHAFT	1-33239-349-0	01	1	1104-
313	BEARING; NEEDLE,LOW GEAR	1-33259-124-0	01	1	1104-
314	BEARING; NEEDLE,REV GEAR	1-33259-125-0	01	1	1104-
315	CLUTCH; DOG,2ND GEAR	1-33265-629-0	01	1	1104-
316	CLUTCH; DOG,3RD GEAR	1-33265-629-0	01	1	1104-
317	CLUTCH; DOG,4TH GEAR	1-33265-630-0	01	1	1104-
330	GEAR; SUN	1-33259-134-0	01	1	1104-
393	BEARING; MAINSHAFT END	1-33259-104-0	01	1	1104-
408	SPRING (B)	1-33269-038-0	09	1	1104-
408	SPRING (C)	1-33269-039-0	09	1	1104-
408	SPRING (A)	1-33269-042-0	06	1	1104-
429	SLEEVE; 2ND & 3RD	1-33262-244-0	01	1	1104-
569	DAM; OIL	1-33269-097-0	01	1	1104-

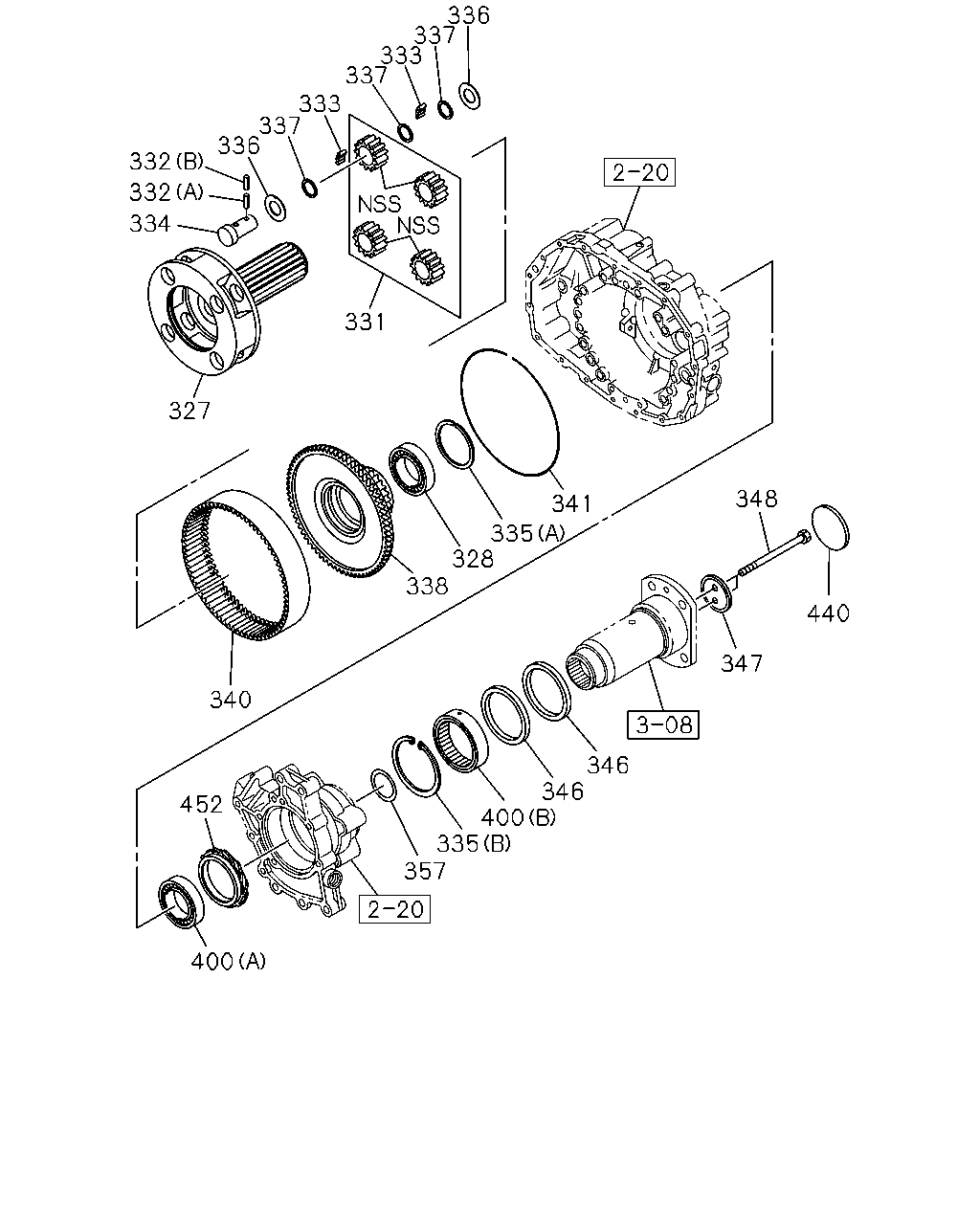

440 348 341 335 328 338 347 346 346 400 335 357 400 452 340 327 331 336 337 333 337 333 337 336 332 334 332

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	CLUTCH; DOG,TOP GEAR	1-33265-631-0	01	1	1104-
16	BEARING; PILOT,MAINSHAFT	1-33239-212-0	01	1	1104-
18	RING; SNAP,CLU HUB T=2.4	1-33259-054-0	01	1	1104-
18	RING; SNAP,CLU HUB T=2.3	1-33259-060-0	01	1	1104-
18	RING; SNAP,CLU HUB T=2.2	1-33259-061-0	01	1	1104-
18	RING; SNAP,CLU HUB T=2.1	1-33259-062-0	01	1	1104-
18	RING; SNAP,CLU HUB T=2.0	1-33259-063-0	01	1	1104-
18	RING; SNAP,CLU HUB T=1.9	1-33259-064-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=3.20	1-33319-061-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (A) T=3.15	1-33319-062-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (A) T=3.10	1-33319-063-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (A) T=3.05	1-33319-064-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (A) T=3.00	1-33319-065-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (A) T=2.95	1-33319-066-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=2.90	1-33319-067-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=2.85	1-33319-068-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=2.80	1-33319-069-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=2.75	1-33319-070-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=2.70	1-33319-071-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=2.65	1-33319-072-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=2.60	1-33319-073-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=2.55	1-33319-074-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=2.50	1-33319-075-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=2.45	1-33319-076-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=2.40	1-33319-077-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (A) T=2.35	1-33319-078-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (A) T=2.30	1-33319-079-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (A) T=2.25	1-33319-080-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (A) T=2.20	1-33319-081-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (A) T=2.15	1-33319-082-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (A) T=2.10	1-33319-083-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (B) T=2.5	1-43319-021-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (B) T=2.4	1-43319-101-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (B) T=2.3	1-43319-102-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (B) T=2.0	1-43319-103-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (B) T=2.1	1-43319-104-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (B) T=2.2	1-43319-105-0	01	1	1104-
311	PIPE; MAINSHAFT	1-33239-349-0	01	1	1104-
316	CLUTCH; DOG,3RD GEAR	1-33265-629-0	01	1	1104-
327	CARRIER; PLANETARY GEAR	1-33231-338-0	01	1	1104-
328	BEARING; CARRIER	1-33339-094-0	01	1	1104-
331	GEAR SET; PLANETARY	1-33239-350-0	01	1	1104-
332	PIN; LOCK,SHAFT (A)	1-33239-178-0	04	1	1104-
332	PIN; LOCK,SHAFT (B)	1-33239-179-0	04	1	1104-
333	ROLLER; PLANETARY GEAR	1-33239-232-0	AR	1	1104-
334	SHAFT; PLANETARY GEAR	1-33239-359-0	04	1	1104-
335	RING; SNAP,BEARING (B)	1-33339-050-0	01	1	1104-
335	RING; SNAP,BEARING (A) T=2.50	1-33339-075-0	01	1	1104-
335	RING; SNAP,BEARING (A) T=2.40	1-33339-076-0	01	1	1104-
335	RING; SNAP,BEARING (A) T=2.30	1-33339-077-0	01	1	1104-
335	RING; SNAP,BEARING (A) T=2.20	1-33339-078-0	01	1	1104-
335	RING; SNAP,BEARING (A) T=2.10	1-33339-079-0	01	1	1104-
335	RING; SNAP,BEARING (A) T=2.00	1-33339-080-0	01	1	1104-
336	WASHER; THRUST,PLANETARY GEAR	1-33239-174-0	08	1	1104-
337	WASHER; PLANETARY GEAR,INNER	1-33239-176-0	12	1	1104-
338	CARRIER; RING GEAR	1-33331-275-0	01	1	1104-
340	GEAR; RING	1-33339-099-0	01	1	1104-
341	WIRE; LOCK,CARRIER	1-33339-096-0	01	1	1104-
346	GASKET; FLANGE	1-33339-051-0	02	1	1104-
347	WASHER; FLANGE	1-09509-060-0	01	1	1104-
348	BOLT; SHAFT	1-09009-168-0	02	1	1104-
357	RING	1-33139-218-0	01	1	1104-
400	BEARING; OUTPUT SHAFT RR (A)	1-33139-212-0	01	1	1104-
400	BEARING; OUTPUT SHAFT RR (B)	1-33339-098-0	01	1	1104-
440	COVER; FLANGE	1-37249-152-0	01	1	1104-
452	DISC; COUNTING	1-33139-217-0	01	1	1104-
569	DAM; OIL	1-33269-097-0	01	1	1104-

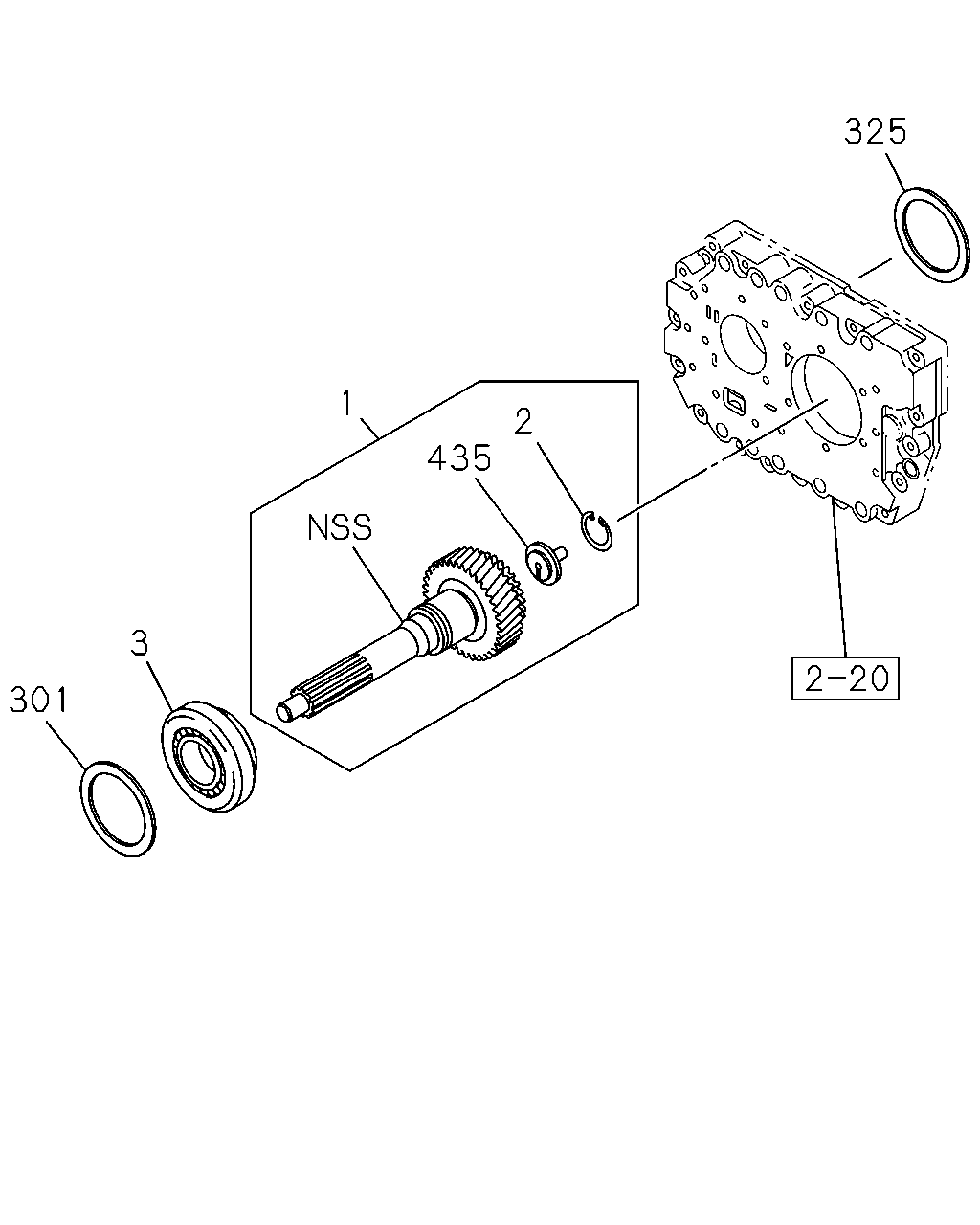

325 2 435 1 3 301

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; TOP GEAR,TRANS	1-33215-040-0	01	1	1104-
2	RING; SNAP,TOP GEAR SHAFT	1-33219-159-0	01	1	1104-1305
3	BEARING; TOP GEAR SHAFT	1-33219-320-0	01	1	1104-1305
3	BEARING; TOP GEAR SHAFT	1-33219-340-0	01	1	1306-
9	CLUTCH; DOG,TOP GEAR	1-33265-631-0	01	1	1104-
16	BEARING; PILOT,MAINSHAFT	1-33239-212-0	01	1	1104-
18	RING; SNAP,CLU HUB T=2.4	1-33259-054-0	01	1	1104-
18	RING; SNAP,CLU HUB T=2.3	1-33259-060-0	01	1	1104-
18	RING; SNAP,CLU HUB T=2.2	1-33259-061-0	01	1	1104-
18	RING; SNAP,CLU HUB T=2.1	1-33259-062-0	01	1	1104-
18	RING; SNAP,CLU HUB T=2.0	1-33259-063-0	01	1	1104-
18	RING; SNAP,CLU HUB T=1.9	1-33259-064-0	01	1	1104-
301	SHIM; TOP GEAR SHAFT T=1.20	1-33139-047-0	01	1	1306-
301	SHIM; TOP GEAR SHAFT T=1.10	1-33139-050-0	01	1	1306-
301	SHIM; TOP GEAR SHAFT T=1.15	1-33139-204-0	01	1	1306-
301	SHIM; TOP GEAR SHAFT T=1.25	1-33139-205-0	01	1	1306-
301	SHIM; TOP GEAR SHAFT T=1.80	1-33139-039-0	01	1	1104-
301	SHIM; TOP GEAR SHAFT T=1.70	1-33139-041-0	01	1	1104-
301	SHIM; TOP GEAR SHAFT T=1.60	1-33139-042-0	01	1	1104-
301	SHIM; TOP GEAR SHAFT T=1.50	1-33139-043-0	01	1	1104-
301	SHIM; TOP GEAR SHAFT T=1.40	1-33139-045-0	01	1	1104-
301	SHIM; TOP GEAR SHAFT T=1.30	1-33139-046-0	01	1	1104-
301	SHIM; TOP GEAR SHAFT T=1.45	1-33139-201-0	01	1	1104-
301	SHIM; TOP GEAR SHAFT T=1.55	1-33139-202-0	01	1	1104-
301	SHIM; TOP GEAR SHAFT T=1.35	1-33139-206-0	01	1	1104-
301	SHIM; TOP GEAR SHAFT T=2.30	1-33139-223-0	01	1	1104-
301	SHIM; TOP GEAR SHAFT T=2.25	1-33139-224-0	01	1	1104-
301	SHIM; TOP GEAR SHAFT T=2.20	1-33139-225-0	01	1	1104-
301	SHIM; TOP GEAR SHAFT T=2.15	1-33139-226-0	01	1	1104-
301	SHIM; TOP GEAR SHAFT T=2.10	1-33139-227-0	01	1	1104-
301	SHIM; TOP GEAR SHAFT T=2.05	1-33139-228-0	01	1	1104-
301	SHIM; TOP GEAR SHAFT T=2.00	1-33139-229-0	01	1	1104-
301	SHIM; TOP GEAR SHAFT T=1.95	1-33139-230-0	01	1	1104-
301	SHIM; TOP GEAR SHAFT T=1.90	1-33139-231-0	01	1	1104-
301	SHIM; TOP GEAR SHAFT T=1.85	1-33139-232-0	01	1	1104-
301	SHIM; TOP GEAR SHAFT T=1.75	1-33139-233-0	01	1	1104-
301	SHIM; TOP GEAR SHAFT T=1.65	1-33139-234-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=3.20	1-33319-061-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (A) T=3.15	1-33319-062-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (A) T=3.10	1-33319-063-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (A) T=3.05	1-33319-064-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (A) T=3.00	1-33319-065-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (A) T=2.95	1-33319-066-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=2.90	1-33319-067-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=2.85	1-33319-068-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=2.80	1-33319-069-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=2.75	1-33319-070-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=2.70	1-33319-071-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=2.65	1-33319-072-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=2.60	1-33319-073-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=2.55	1-33319-074-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=2.50	1-33319-075-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=2.45	1-33319-076-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=2.40	1-33319-077-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (A) T=2.35	1-33319-078-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (A) T=2.30	1-33319-079-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (A) T=2.25	1-33319-080-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (A) T=2.20	1-33319-081-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (A) T=2.15	1-33319-082-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (A) T=2.10	1-33319-083-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (B) T=2.5	1-43319-021-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (B) T=2.4	1-43319-101-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (B) T=2.3	1-43319-102-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (B) T=2.0	1-43319-103-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (B) T=2.1	1-43319-104-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (B) T=2.2	1-43319-105-0	01	1	1104-
311	PIPE; MAINSHAFT	1-33239-349-0	01	1	1104-
316	CLUTCH; DOG,3RD GEAR	1-33265-629-0	01	1	1104-
325	SHIM; COUNTER SHAFT BRG T=1.55	1-33389-048-0	01	1	1104-
325	SHIM; COUNTER SHAFT BRG T=2.00	1-33389-073-0	01	1	1104-
325	SHIM; COUNTER SHAFT BRG T=1.90	1-33389-074-0	01	1	1104-
325	SHIM; COUNTER SHAFT BRG T=1.80	1-33389-075-0	01	1	1104-
325	SHIM; COUNTER SHAFT BRG T=1.70	1-33389-076-0	01	1	1104-
325	SHIM; COUNTER SHAFT BRG T=1.65	1-33389-077-0	01	1	1104-
325	SHIM; COUNTER SHAFT BRG T=1.75	1-33389-078-0	01	1	1104-
325	SHIM; COUNTER SHAFT BRG T=1.85	1-33389-079-0	01	1	1104-
325	SHIM; COUNTER SHAFT BRG T=1.95	1-33389-080-0	01	1	1104-
325	SHIM; COUNTER SHAFT BRG T=2.05	1-33389-081-0	01	1	1104-
325	SHIM; COUNTER SHAFT BRG T=2.10	1-33389-082-0	01	1	1104-
325	SHIM; COUNTER SHAFT BRG T=2.15	1-33389-083-0	01	1	1104-
325	SHIM; COUNTER SHAFT BRG T=2.20	1-33389-084-0	01	1	1104-
325	SHIM; COUNTER SHAFT BRG T=2.40	1-33389-086-0	01	1	1104-
325	SHIM; COUNTER SHAFT BRG T=2.35	1-33389-087-0	01	1	1104-
325	SHIM; COUNTER SHAFT BRG T=2.30	1-33389-088-0	01	1	1104-
325	SHIM; COUNTER SHAFT BRG T=2.25	1-33389-089-0	01	1	1104-
325	SHIM; COUNTER SHAFT BRG T=1.50	8-98080-571-0	01	1	1104-
325	SHIM; COUNTER SHAFT BRG T=1.60	8-98080-572-0	01	1	1104-
435	PIPE; INPUTSHAFT	1-33219-158-0	01	1	1104-1305
569	DAM; OIL	1-33269-097-0	01	1	1104-

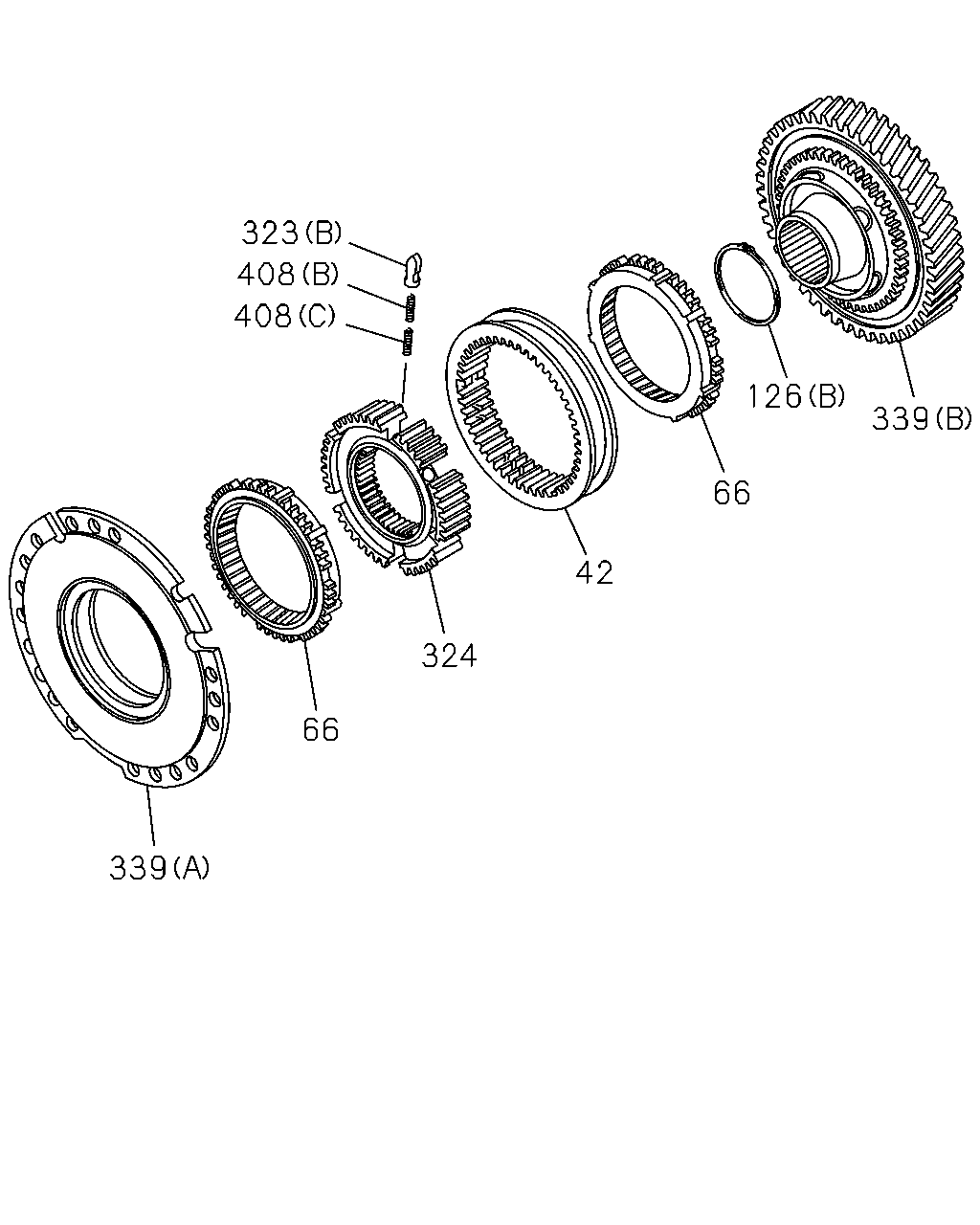

339 126 66 42 324 66 339 408 408 323

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	CLUTCH; DOG,TOP GEAR	1-33265-631-0	01	1	1104-
16	BEARING; PILOT,MAINSHAFT	1-33239-212-0	01	1	1104-
18	RING; SNAP,CLU HUB T=2.4	1-33259-054-0	01	1	1104-
18	RING; SNAP,CLU HUB T=2.3	1-33259-060-0	01	1	1104-
18	RING; SNAP,CLU HUB T=2.2	1-33259-061-0	01	1	1104-
18	RING; SNAP,CLU HUB T=2.1	1-33259-062-0	01	1	1104-
18	RING; SNAP,CLU HUB T=2.0	1-33259-063-0	01	1	1104-
18	RING; SNAP,CLU HUB T=1.9	1-33259-064-0	01	1	1104-
42	SLEEVE	1-33262-195-0	01	1	1104-
66	RING; BLOCK,SYN	1-33339-069-0	02	1	1104-
126	RING; SNAP,CLU HUB (A) T=2.8	1-33259-050-0	01	1	1104-
126	RING; SNAP,CLU HUB (A) T=2.7	1-33259-051-0	01	1	1104-
126	RING; SNAP,CLU HUB (A) T=2.6	1-33259-052-0	01	1	1104-
126	RING; SNAP,CLU HUB (A) T=2.5	1-33259-053-0	01	1	1104-
126	RING; SNAP,CLU HUB (A) T=2.4	1-33259-054-0	01	1	1104-
126	RING; SNAP,CLU HUB (B) T=4.0	1-33269-047-0	01	1	1104-
126	RING; SNAP,CLU HUB (B) T=3.9	1-33269-048-0	01	1	1104-
126	RING; SNAP,CLU HUB (B) T=3.8	1-33269-049-0	01	1	1104-
126	RING; SNAP,CLU HUB (B) T=3.7	1-33269-050-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=3.20	1-33319-061-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (A) T=3.15	1-33319-062-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (A) T=3.10	1-33319-063-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (A) T=3.05	1-33319-064-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (A) T=3.00	1-33319-065-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (A) T=2.95	1-33319-066-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=2.90	1-33319-067-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=2.85	1-33319-068-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=2.80	1-33319-069-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=2.75	1-33319-070-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=2.70	1-33319-071-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=2.65	1-33319-072-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=2.60	1-33319-073-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=2.55	1-33319-074-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=2.50	1-33319-075-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=2.45	1-33319-076-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=2.40	1-33319-077-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (A) T=2.35	1-33319-078-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (A) T=2.30	1-33319-079-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (A) T=2.25	1-33319-080-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (A) T=2.20	1-33319-081-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (A) T=2.15	1-33319-082-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (A) T=2.10	1-33319-083-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (B) T=2.5	1-43319-021-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (B) T=2.4	1-43319-101-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (B) T=2.3	1-43319-102-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (B) T=2.0	1-43319-103-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (B) T=2.1	1-43319-104-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (B) T=2.2	1-43319-105-0	01	1	1104-
311	PIPE; MAINSHAFT	1-33239-349-0	01	1	1104-
316	CLUTCH; DOG,3RD GEAR	1-33265-629-0	01	1	1104-
323	INSERT (B)	1-33263-027-0	09	1	1104-
323	INSERT (A)	1-33263-030-0	06	1	1104-
324	HUB; CLU	1-33261-230-0	01	1	1104-
339	CLUTCH; PLANETARY GEAR (A)	1-33265-453-0	01	1	1104-1305
339	CLUTCH; PLANETARY GEAR (A)	1-33265-649-0	01	1	1306-
339	CLUTCH; PLANETARY GEAR (B)	1-33265-632-0	01	1	1104-
408	SPRING (B)	1-33269-038-0	09	1	1104-
408	SPRING (C)	1-33269-039-0	09	1	1104-
408	SPRING (A)	1-33269-042-0	06	1	1104-
569	DAM; OIL	1-33269-097-0	01	1	1104-

325 84 93 97 104 427 108 109 189 135 129 129 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	CLUTCH; DOG,TOP GEAR	1-33265-631-0	01	1	1104-
16	BEARING; PILOT,MAINSHAFT	1-33239-212-0	01	1	1104-
18	RING; SNAP,CLU HUB T=2.4	1-33259-054-0	01	1	1104-
18	RING; SNAP,CLU HUB T=2.3	1-33259-060-0	01	1	1104-
18	RING; SNAP,CLU HUB T=2.2	1-33259-061-0	01	1	1104-
18	RING; SNAP,CLU HUB T=2.1	1-33259-062-0	01	1	1104-
18	RING; SNAP,CLU HUB T=2.0	1-33259-063-0	01	1	1104-
18	RING; SNAP,CLU HUB T=1.9	1-33259-064-0	01	1	1104-
84	BEARING; COUNTER SHAFT,FRT	1-33312-016-0	01	1	1104-
93	RING; SNAP,COUNTER FRT BRG T=2.6	1-33319-264-0	01	1	1306-
93	RING; SNAP,COUNTER FRT BRG T=2.0	1-33319-251-0	01	1	1104-
93	RING; SNAP,COUNTER FRT BRG T=2.5	1-33319-252-0	01	1	1104-
93	RING; SNAP,COUNTER FRT BRG T=2.4	1-33319-253-0	01	1	1104-
93	RING; SNAP,COUNTER FRT BRG T=2.3	1-33319-254-0	01	1	1104-
93	RING; SNAP,COUNTER FRT BRG T=2.2	1-33319-255-0	01	1	1104-
93	RING; SNAP,COUNTER FRT BRG T=2.1	1-33319-256-0	01	1	1104-
97	GEAR; 5TH,COUNTER	1-33338-407-0	01	1	1104-
104	GEAR; 4TH,COUNTER	1-33338-406-0	01	1	1104-
108	SHAFT; COUNTER	1-33311-347-0	01	1	1104-
109	BEARING; COUNTER SHAFT,RR	1-33312-006-0	01	1	1104-1305
109	BEARING; COUNTER SHAFT,RR	1-33312-019-0	01	1	1306-
129	BEARING; NEEDLE,IDLER	1-33369-026-0	02	1	1104-
132	SHAFT; REV	1-33351-024-0	01	1	1104-
135	GEAR; REV IDLER	1-33361-096-0	01	1	1104-
189	RING; SNAP,REV,GEAR	1-44519-224-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=3.20	1-33319-061-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (A) T=3.15	1-33319-062-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (A) T=3.10	1-33319-063-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (A) T=3.05	1-33319-064-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (A) T=3.00	1-33319-065-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (A) T=2.95	1-33319-066-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=2.90	1-33319-067-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=2.85	1-33319-068-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=2.80	1-33319-069-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=2.75	1-33319-070-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=2.70	1-33319-071-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=2.65	1-33319-072-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=2.60	1-33319-073-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=2.55	1-33319-074-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=2.50	1-33319-075-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=2.45	1-33319-076-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (A) T=2.40	1-33319-077-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (A) T=2.35	1-33319-078-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (A) T=2.30	1-33319-079-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (A) T=2.25	1-33319-080-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (A) T=2.20	1-33319-081-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (A) T=2.15	1-33319-082-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (A) T=2.10	1-33319-083-0	01	1	1104-1305
306	RING; SNAP,MAINSHAFT (B) T=2.5	1-43319-021-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (B) T=2.4	1-43319-101-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (B) T=2.3	1-43319-102-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (B) T=2.0	1-43319-103-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (B) T=2.1	1-43319-104-0	01	1	1104-
306	RING; SNAP,MAINSHAFT (B) T=2.2	1-43319-105-0	01	1	1104-
311	PIPE; MAINSHAFT	1-33239-349-0	01	1	1104-
316	CLUTCH; DOG,3RD GEAR	1-33265-629-0	01	1	1104-
325	SHIM; COUNTER SHAFT BRG T=1.55	1-33389-048-0	01	1	1104-
325	SHIM; COUNTER SHAFT BRG T=2.00	1-33389-073-0	01	1	1104-
325	SHIM; COUNTER SHAFT BRG T=1.90	1-33389-074-0	01	1	1104-
325	SHIM; COUNTER SHAFT BRG T=1.80	1-33389-075-0	01	1	1104-
325	SHIM; COUNTER SHAFT BRG T=1.70	1-33389-076-0	01	1	1104-
325	SHIM; COUNTER SHAFT BRG T=1.65	1-33389-077-0	01	1	1104-
325	SHIM; COUNTER SHAFT BRG T=1.75	1-33389-078-0	01	1	1104-
325	SHIM; COUNTER SHAFT BRG T=1.85	1-33389-079-0	01	1	1104-
325	SHIM; COUNTER SHAFT BRG T=1.95	1-33389-080-0	01	1	1104-
325	SHIM; COUNTER SHAFT BRG T=2.05	1-33389-081-0	01	1	1104-
325	SHIM; COUNTER SHAFT BRG T=2.10	1-33389-082-0	01	1	1104-
325	SHIM; COUNTER SHAFT BRG T=2.15	1-33389-083-0	01	1	1104-
325	SHIM; COUNTER SHAFT BRG T=2.20	1-33389-084-0	01	1	1104-
325	SHIM; COUNTER SHAFT BRG T=2.40	1-33389-086-0	01	1	1104-
325	SHIM; COUNTER SHAFT BRG T=2.35	1-33389-087-0	01	1	1104-
325	SHIM; COUNTER SHAFT BRG T=2.30	1-33389-088-0	01	1	1104-
325	SHIM; COUNTER SHAFT BRG T=2.25	1-33389-089-0	01	1	1104-
325	SHIM; COUNTER SHAFT BRG T=1.50	8-98080-571-0	01	1	1104-
325	SHIM; COUNTER SHAFT BRG T=1.60	8-98080-572-0	01	1	1104-
427	GEAR; 2ND & 3RD,COUNTER	1-33332-131-0	01	1	1104-1305
427	GEAR; 2ND & 3RD,COUNTER	1-33332-132-0	01	1	1306-
569	DAM; OIL	1-33269-097-0	01	1	1104-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
