Sayfa 2-20B - Isuzu EPC

2-20B — MANUAL TRANSMISSION ASM AND CASE (#128026) — 77 parça

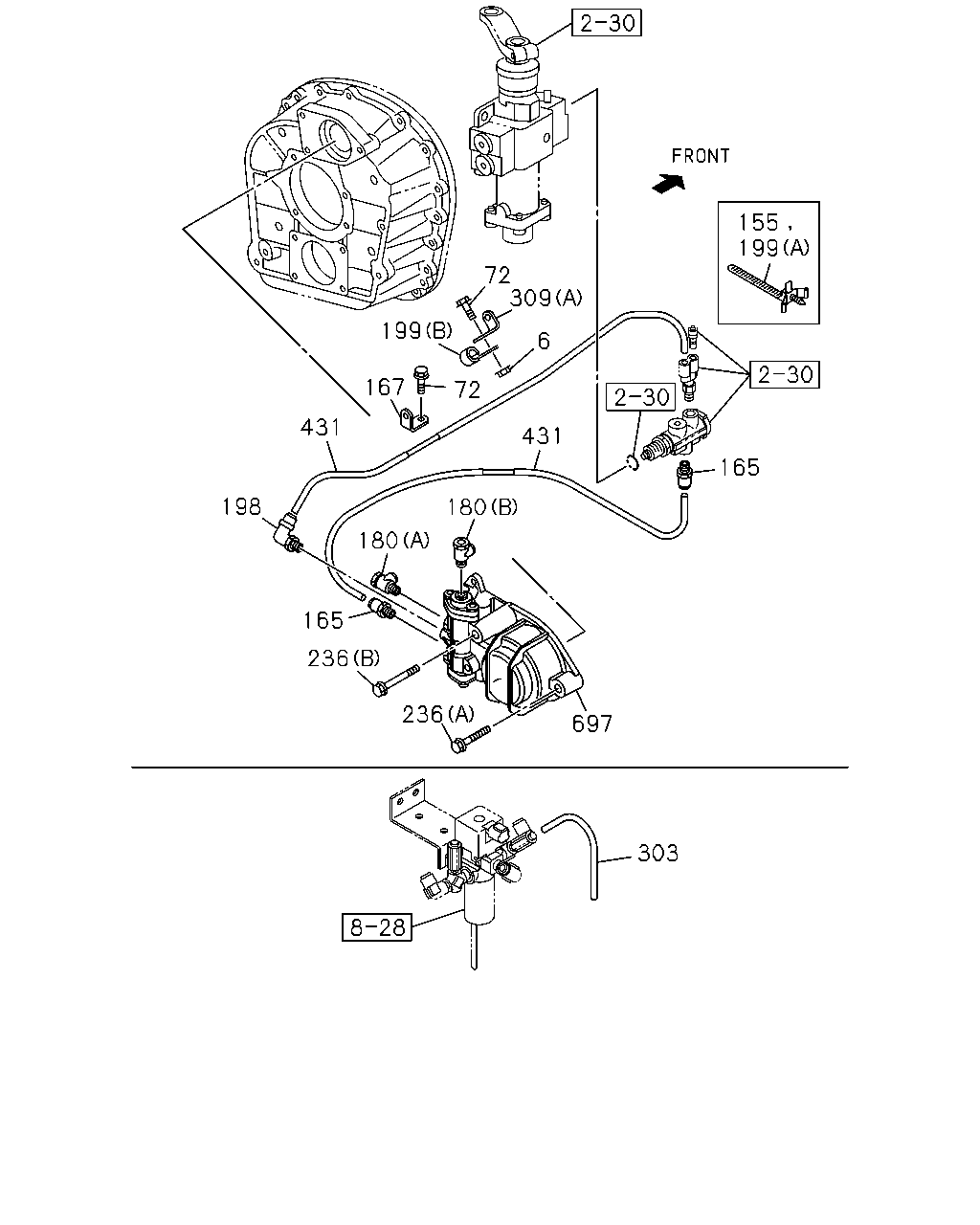

199 72 309 6 72 167 431 198 180 180 165 236 236 697 165 431 155 199 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	NUT; CASE,TRANS	1-33119-571-0	15	1	1310-
72	BOLT; SIDE COVER	1-33119-589-0	14	1	1310-
155	CLIP; HOSE	1-33119-600-0	01	1	1310-1310
165	ADAPTER; STRAIGHT	1-33119-461-0	02	1	1310-
167	BRACKET; CLIP,AIR TUBE	1-33119-599-0	01	1	1310-
180	CONNECTOR; NYLON TUBE (A)	1-33119-597-0	01	1	1310-
180	CONNECTOR; NYLON TUBE (B)	1-33119-598-0	01	1	1310-
198	ADAPTER; NYLON TUBE	1-33549-381-0	01	1	1310-1310
199	CLIP; NYLON TUBE (A)	1-33119-600-0	01	1	1310-
199	CLIP; NYLON TUBE (B)	1-33119-475-0	01	1	1310-
236	BOLT; VALVE BRKT (A)	1-33119-549-0	02	1	1310-
236	BOLT; VALVE BRKT (B)	1-33119-550-0	01	1	1310-
303	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	1310-
309	EYE; LIFTING (A)	1-33119-596-0	01	1	1310-
309	EYE; LIFTING (B)	1-33119-604-0	01	1	1310-
431	TUBE; NYLON	1-33119-474-0	02	1	1310-
697	VALVE; AIR	1-33119-547-0	01	1	1310-

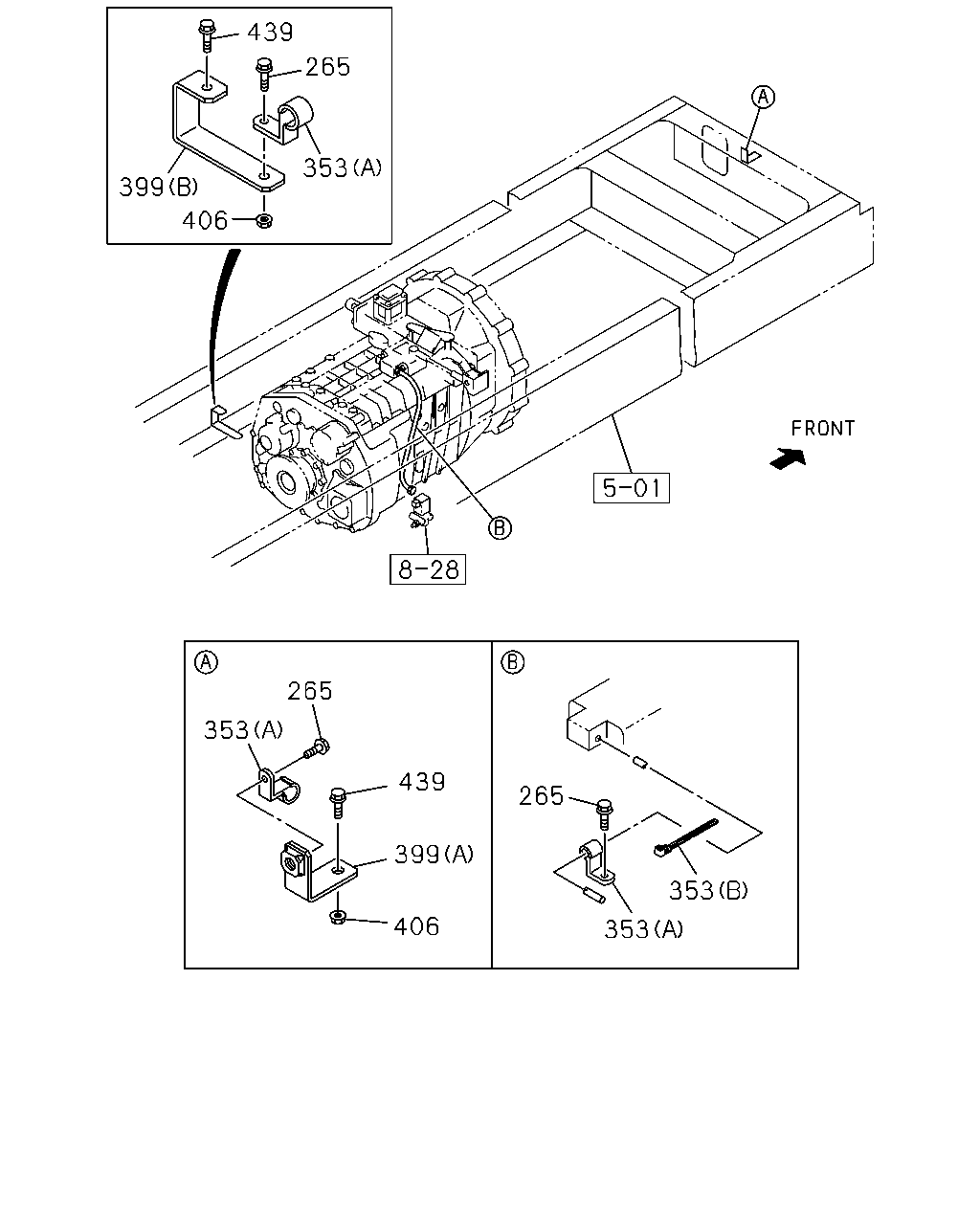

439 265 353 406 399 265 353 439 399 406 265 353 353

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
265	BOLT; CLIP M8X20 FLANGE IDN	0-28650-820-0	03	1	1310-
353	CLIP; NYLON TUBE (A) ID=11 L=20	0-95235-035-0	03	1	1310-
353	CLIP; NYLON TUBE (B) L=140 IDN	5-09707-031-1	01	1	1310-
399	BRACKET; CLIP (A)	8-98085-674-0	01	1	1310-
399	BRACKET; CLIP (B)	8-98182-470-0	01	1	1310-
406	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	1310-
439	BOLT; BRKT M8X20 FLANGE IDN	0-28650-820-0	02	1	1310-
439	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1310-

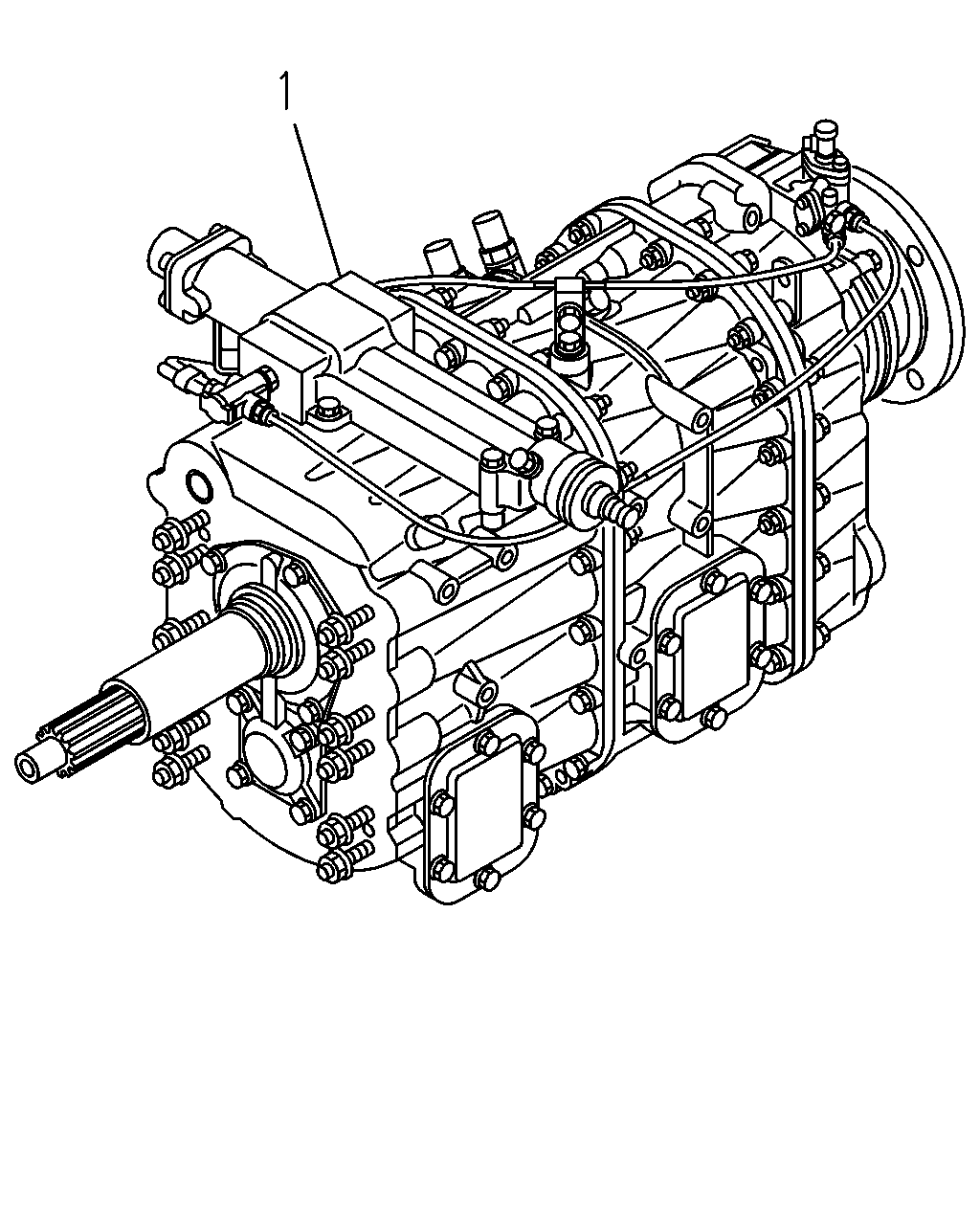

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	1	TRANSMISSION ASM; MANUAL	8-98176-360-0	01	1	1310-1310
	1	TRANSMISSION ASM; MANUAL	8-98257-471-0	01	1	1310-

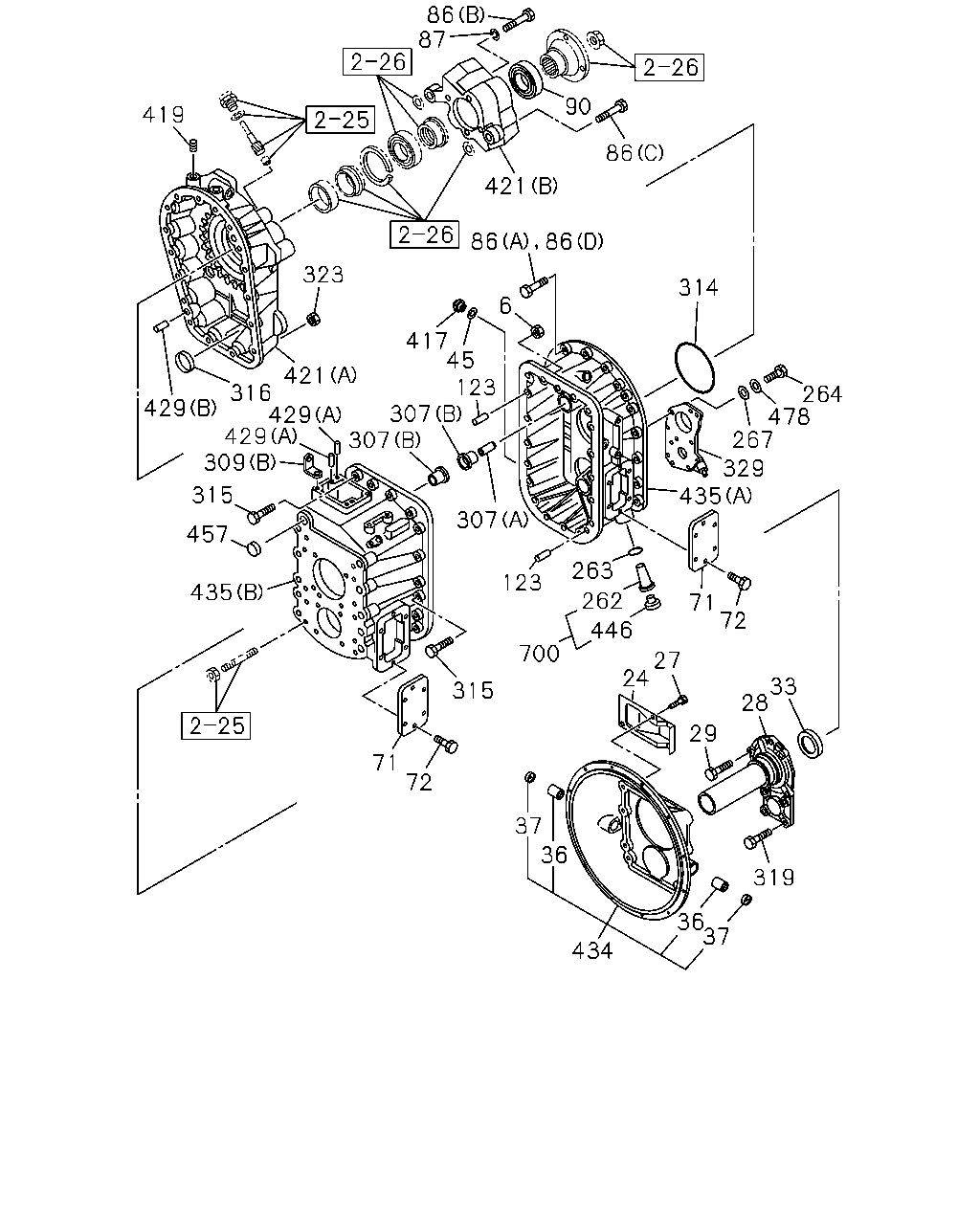

319 37 36 434 36 37 24 29 28 33 27 72 71 435 329 267 478 264 314 86 90 421 86 86 6 417 123 45 307 307 123 263 262 446 700 315 72 71 307 323 86 87 419 429 421 316 429 429 309 315 457 435

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	NUT; CASE,TRANS	1-33119-571-0	15	1	1310-
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	1310-1410
24	COVER; CHECK HOLE,DUST	8-98284-107-0	01	1	1411-
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	1310-
28	COVER; FRT,TRANS CASE	1-33121-144-0	01	1	1310-
29	BOLT; FRT COVER	1-33129-016-0	05	1	1310-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-33219-194-0	01	1	1310-
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	1310-
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	1310-
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T).	1-33119-459-0	01	1	1310-
71	COVER; SIDE,TRANS CASE	1-33141-073-0	02	1	1310-
72	BOLT; SIDE COVER	1-33119-589-0	14	1	1310-
86	BOLT; RR COVER (A) M10X58	1-33119-573-0	16	1	1310-
86	BOLT; RR COVER (B)	1-33119-611-0	04	1	1310-
86	BOLT; RR COVER (C)	1-33119-613-0	02	1	1310-
86	BOLT; RR COVER (D)	1-33119-614-0	01	1	1310-
87	WASHER; LK,RR COVER	1-33119-610-0	04	1	1310-
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33159-046-0	01	1	1310-
123	DOWEL; TRANS CASE	1-33119-305-0	02	1	1310-
262	STRAINER; OIL PUMP	1-33119-608-0	01	1	1310-
263	GASKET; STRAINER ALSO INCLUDED IN GASKET SET(M/T).	1-33119-428-0	01	1	1310-
264	BOLT; OIL PUMP	1-33119-607-0	08	1	1310-1310
264	BOLT; OIL PUMP	1-33129-016-0	08	1	1310-
267	WASHER; PL	1-33119-567-0	08	1	1310-1310
307	BUSHING; SHIFT FORK SHAFT (A)	1-33119-303-0	01	1	1310-
307	BUSHING; SHIFT FORK SHAFT (B)	1-33119-562-0	02	1	1310-
309	EYE; LIFTING (A)	1-33119-596-0	01	1	1310-
309	EYE; LIFTING (B)	1-33119-604-0	01	1	1310-
314	GASKET; CASE	1-33119-606-0	01	1	1310-
315	BOLT; CASE M10X40	1-33119-572-0	04	1	1310-
315	BOLT; CASE M10X58	1-33119-573-0	13	1	1310-
315	BOLT; CASE M10X58 FLANGE	1-33119-595-0	01	1	1310-
316	MAGNET; TRANS CASE	1-87060-696-0	01	1	1310-
319	BOLT; COVER	1-33159-071-0	04	1	1310-
323	NUT; RR COVER	1-33119-571-0	17	1	1310-
329	PUMP ASM; OIL	1-34150-125-0	01	1	1310-
417	PLUG; OIL FILLER,TRANS	1-33119-577-0	01	1	1310-
419	PLUG; RR COVER	1-33119-615-0	01	1	1310-
421	COVER; RR,TRANS (A)	1-33131-271-0	01	1	1310-
421	COVER; RR,TRANS (B)	1-33159-048-0	01	1	1310-
429	PIN; STRAIGHT (B)	1-33119-305-0	02	1	1310-
429	PIN; STRAIGHT (A)	1-33119-311-0	02	1	1310-
434	HOUSING; CLU	1-31110-188-2	01	1	1310-
435	CASE; TRANS (A)	1-33111-320-0	01	1	1310-
435	CASE; TRANS (B)	1-33111-379-0	01	1	1310-1310
435	CASE; TRANS (B)	1-33111-363-0	01	1	1310-
446	PLUG; CASE,TRANS	1-33119-546-0	01	1	1310-
457	CUP; SEALING,CASE	1-33119-578-0	01	1	1310-
478	WASHER; LK,OIL PUMP	1-33119-568-0	08	1	1310-1310
700	STRAINER ASM	1-33119-324-0	01	1	1310-
