◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11393 - FVZ(INDONESIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-20A - MANUAL TRANSMISSION ASM AND CASE ▶
2-20A — MANUAL TRANSMISSION ASM AND CASE (#128025) — 90 parça

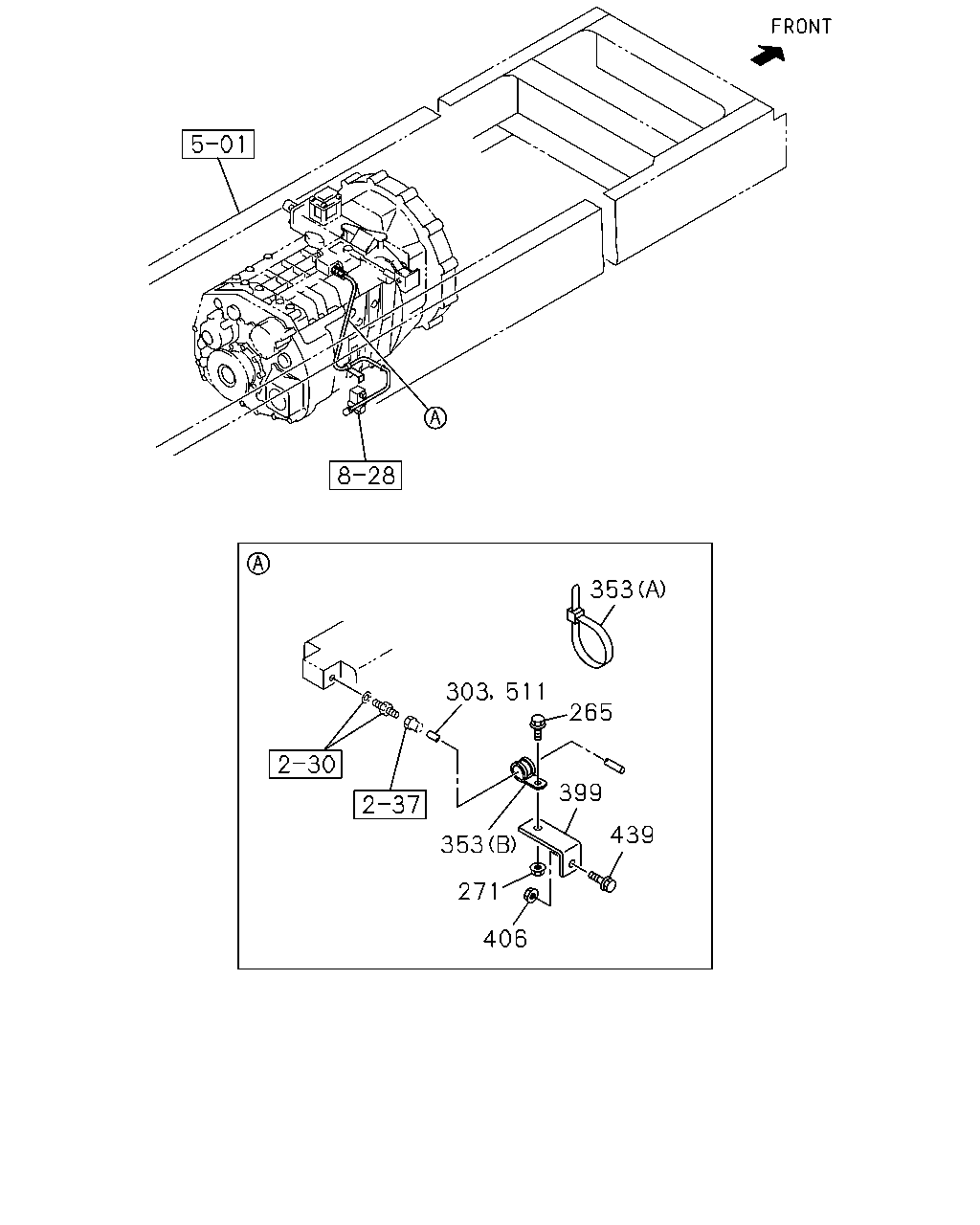

çizim 108273
303 511 265 353 399 439 406 271 353
BalonParca AdiParca NoAdetTipApplied Date
265 BOLT; CLIP
M8X20 FLANGE IDN 		0-28650-820-0 01 1 1104-
271 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1104-
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1104-
353 CLIP; NYLON TUBE
EXC. PTO CONTROL<SV6> (A) L=350 		1-09707-183-0 03 1 1104-
353 CLIP; NYLON TUBE
(B) ID=15 H=24 L=20 		1-09700-606-0 01 1 1104-
399 BRACKET; CLIP
L=90 B=25 		1-47475-530-0 01 1 1104-
406 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1104-
439 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1104-1309
439 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1310-
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1104-
çizim 108287
1
BalonParca AdiParca NoAdetTipApplied Date
1 TRANSMISSION ASM; MANUAL
PTO CONTROL<SV6> 		8-98183-351-2 01 1 1104-
1 TRANSMISSION ASM; MANUAL
EXC. PTO CONTROL<SV6> 		8-98183-350-2 01 1 1104-
çizim 108291
82 186 314 435 315 33 113 28 463 413 561 36 36 37 343 561 412 330 561 561 245 29 478 477 27 24 329 468 2
BalonParca AdiParca NoAdetTipApplied Date
2 HOUSING; CLU 1-31111-183-0 01 1 1104-
24 COVER; CHECK HOLE,DUST 1-31119-059-0 01 1 1104-
27 BOLT; COVER TO CLU HSG 1-31119-058-0 04 1 1104-
28 COVER; FRT,TRANS CASE 1-33121-166-0 01 1 1104-
29 BOLT; FRT COVER
M8X30 		1-33549-581-0 06 1 1104-
33 SEAL; OIL,FRT COVER,T/M 1-33219-321-0 01 1 1104-
36 BEARING; NEEDLE,CLU HSG 1-09811-396-0 04 1 1104-
37 SEAL; DUST,CLU HSG 1-09625-002-0 02 1 1104-1309
37 SEAL; DUST,CLU HSG
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-002-0 02 1 1310-
82 PLUG; SCREW,CASE
(C) 		1-33119-618-0 02 1 1104-
82 PLUG; SCREW,CASE
(A) 		1-33119-619-0 02 1 1104-
82 PLUG; SCREW,CASE
(B) 		1-33119-620-0 02 1 1104-
113 GASKET; FRT COVER TO TRANS CASE 1-33122-024-0 01 1 1104-
186 RING; SEAL
(A) 		1-33119-249-0 02 1 1104-
186 RING; SEAL
(B) 		1-33119-286-0 02 1 1104-
186 RING; SEAL
(C) 		1-33119-435-0 02 1 1104-
245 PIPE; OIL 1-33119-517-0 01 1 1104-
314 GASKET; CASE
(B) 		1-33379-021-0 01 1 1104-
314 GASKET; CASE
(A) 		1-33112-052-0 01 1 1104-
315 BOLT; CASE
M10X70 		1-33119-616-0 17 1 1104-
329 PUMP ASM; OIL 1-34150-123-0 01 1 1104-
330 RING; RET 1-33129-005-0 01 1 1104-
343 BOLT; CLU HSG TO PLATE
M10X75 FLANGE 		8-94399-669-1 01 1 1104-
412 CAP; CLU HSG 1-31119-026-0 01 1 1104-
413 BALL; CLU HSG 1-31119-014-0 04 1 1104-
435 CASE; TRANS
(B) 		1-33111-372-0 01 1 1104-
435 CASE; TRANS
(A) 		1-33111-373-0 01 1 1104-1305
435 CASE; TRANS
(A) 		1-33111-380-0 01 1 1306-
463 COVER; DUST,FRT COVER 1-33129-018-0 01 1 1104-
468 GASKET; OIL PUMP 1-34159-122-0 01 1 1104-
477 BOLT; OIL PUMP
M8X30 		1-33549-581-0 08 1 1104-
478 WASHER; LK,OIL PUMP 1-33549-577-0 08 1 1104-1305
478 WASHER; LK,OIL PUMP 1-33549-583-0 08 1 1306-
561 PLUG
(A) 		1-31119-044-0 02 1 1104-1305
561 PLUG
(B) 		1-31119-045-0 03 1 1104-1305
561 PLUG
(C) 		1-31119-046-0 02 1 1104-1305
561 PLUG
(D) 		1-31119-047-0 01 1 1104-1305

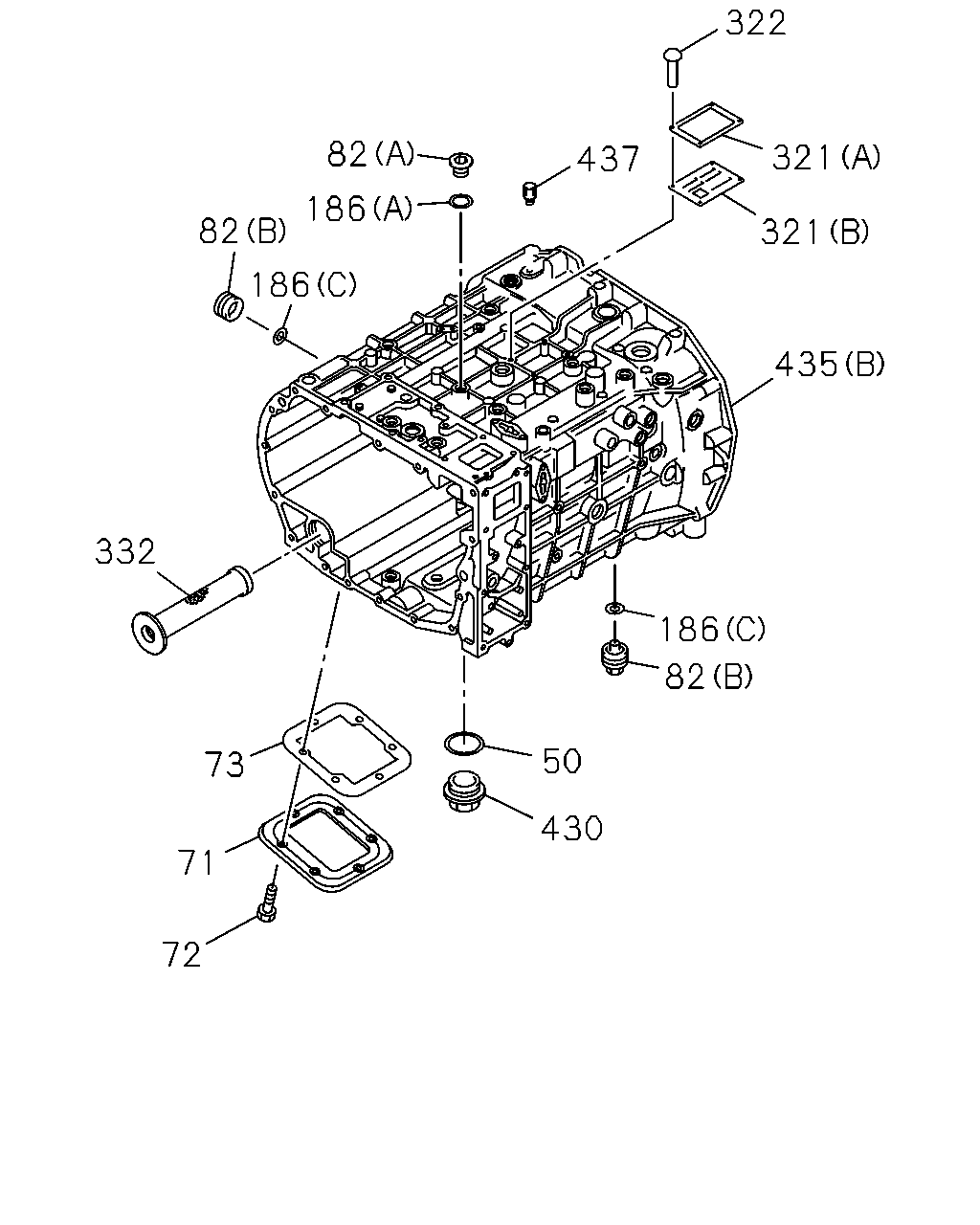

çizim 108296
322 321 321 435 186 82 50 430 72 71 73 332 82 186 82 186 437
BalonParca AdiParca NoAdetTipApplied Date
50 GASKET; DRAIN PLUG 1-33119-293-0 01 1 1104-
71 COVER; SIDE,TRANS CASE 1-33119-622-0 01 1 1104-
72 BOLT; SIDE COVER
M10X22 		1-33119-592-0 06 1 1104-
73 GASKET; SIDE COVER TO TRANS CASE 1-33119-237-0 01 1 1104-
82 PLUG; SCREW,CASE
(C) 		1-33119-618-0 02 1 1104-
82 PLUG; SCREW,CASE
(A) 		1-33119-619-0 02 1 1104-
82 PLUG; SCREW,CASE
(B) 		1-33119-620-0 02 1 1104-
186 RING; SEAL
(A) 		1-33119-249-0 02 1 1104-
186 RING; SEAL
(B) 		1-33119-286-0 02 1 1104-
186 RING; SEAL
(C) 		1-33119-435-0 02 1 1104-
321 PLATE; NAME
(A) 		1-33119-519-0 01 1 1104-
321 PLATE; NAME
(B) 		1-33119-520-0 01 1 1104-
322 RIVET; NAME PLATE 1-33119-617-0 04 1 1104-
332 FILTER; OIL 1-33119-437-0 01 1 1104-
430 PLUG; OIL DRAIN 1-33119-621-0 01 1 1104-
435 CASE; TRANS
(B) 		1-33111-372-0 01 1 1104-
435 CASE; TRANS
(A) 		1-33111-373-0 01 1 1104-1305
435 CASE; TRANS
(A) 		1-33111-380-0 01 1 1306-
437 BREATHER; TRANS 1-36122-004-0 01 1 1104-1305
437 BREATHER; TRANS 1-36122-006-0 01 1 1306-

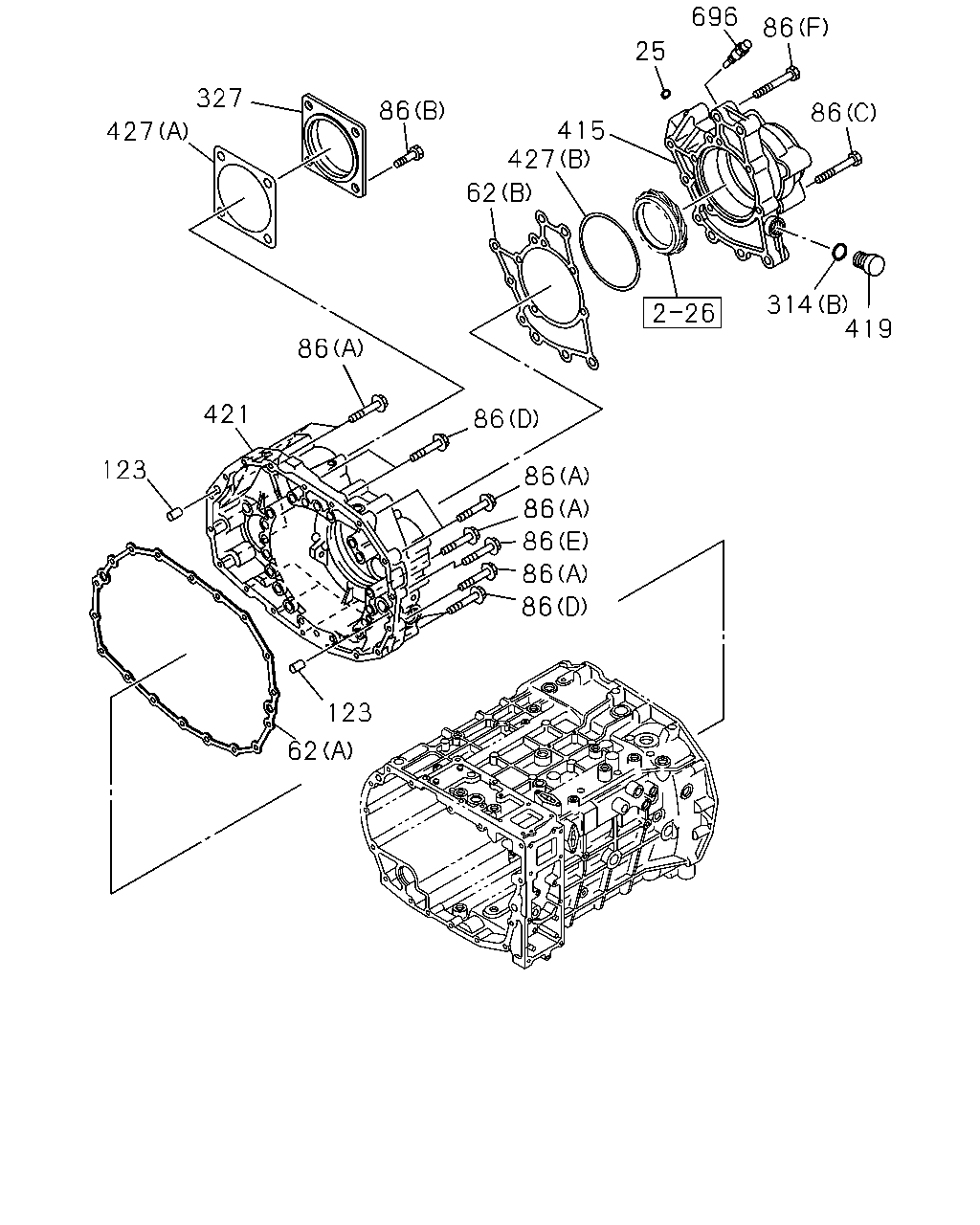

çizim 108306
62 123 421 86 86 86 86 86 86 86 123 427 327 86 62 427 415 25 696 86 86 314 419
BalonParca AdiParca NoAdetTipApplied Date
25 GASKET; COVER 1-33139-060-0 01 1 1104-
62 GASKET; RR COVER
(B) 		1-33132-076-0 01 1 1104-
62 GASKET; RR COVER
(A) 		1-33132-087-0 01 1 1104-
86 BOLT; RR COVER
(A) M10X70 		1-33119-616-0 12 1 1104-
86 BOLT; RR COVER
(D) M10X110 		1-33139-235-0 05 1 1104-
86 BOLT; RR COVER
(E) M10X50 		1-33139-236-0 01 1 1104-
86 BOLT; RR COVER
(F) M10X65 		1-33139-238-0 08 1 1104-
86 BOLT; RR COVER
(C) M12X75 		1-33139-239-0 05 1 1104-
86 BOLT; RR COVER
EXC. PTO CONTROL<SV6> (B) M12X25 		1-33119-594-0 04 1 1104-
123 DOWEL; TRANS CASE 1-33119-292-0 04 1 1104-
314 GASKET; CASE
(B) 		1-33379-021-0 01 1 1104-
314 GASKET; CASE
(A) 		1-33112-052-0 01 1 1104-
327 COVER; RR,COUNTER
EXC. PTO CONTROL<SV6> 		1-33131-273-0 01 1 1104-
415 COVER; BRG 1-33131-274-0 01 1 1104-
419 PLUG; RR COVER 1-33549-594-0 01 1 1104-
421 COVER; RR,TRANS 1-33131-261-0 01 1 1104-1305
421 COVER; RR,TRANS 1-33131-275-0 01 1 1306-
427 GASKET; RR COVER
(B) 		1-33132-078-0 01 1 1104-1305
427 GASKET; RR COVER
(B) 		8-98241-467-0 01 1 1306-
427 GASKET; RR COVER
EXC. PTO CONTROL<SV6> (A) 		1-33132-054-0 01 1 1104-
696 SENSOR; PULSE 1-83227-018-0 01 1 1104-
