2-07B — CLUTCH BOOSTER; MINIPACK (#128024) — 54 parça

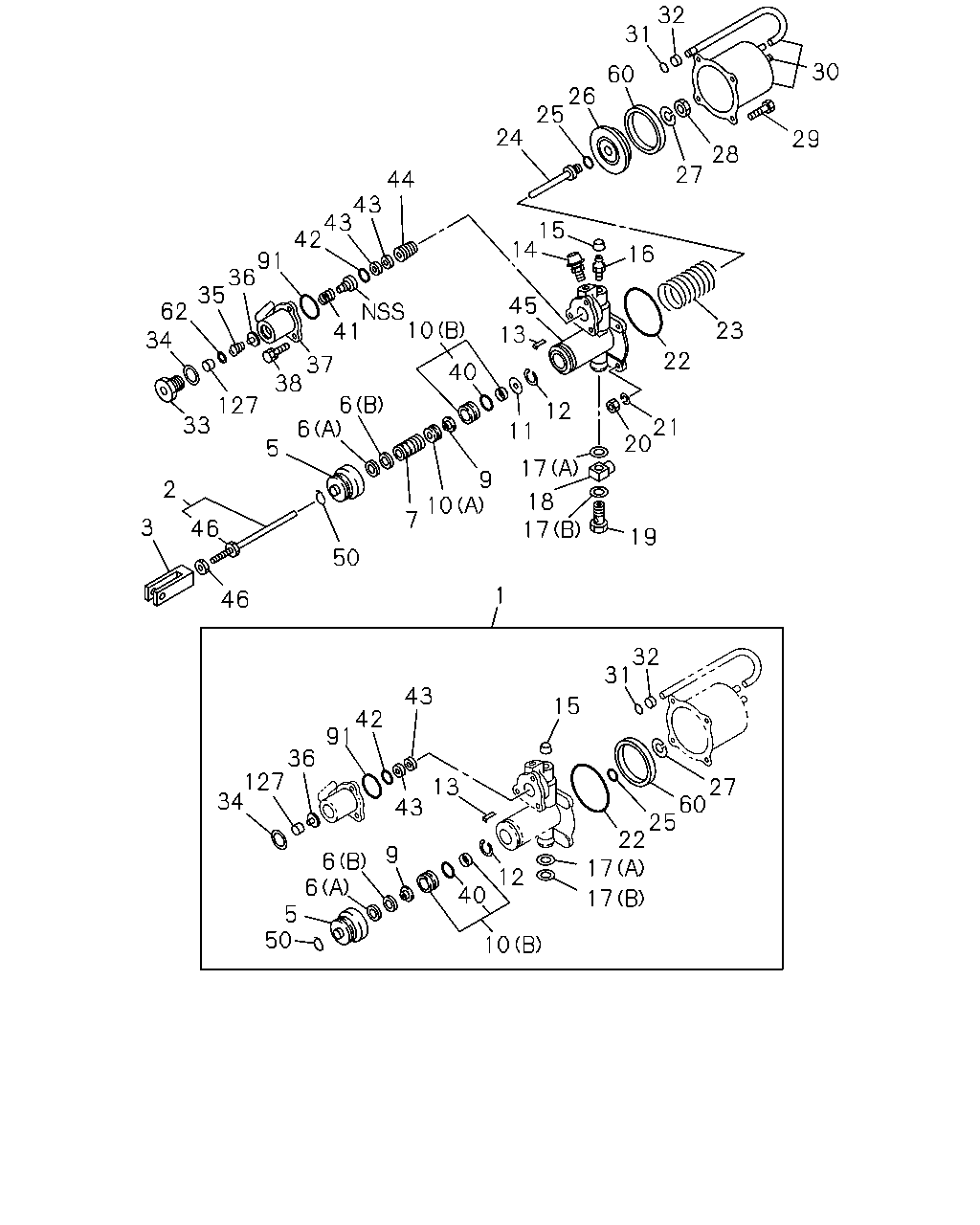

çizim 381055
32 31 60 26 25 24 30 29 28 27 16 15 14 23 22 21 20 45 13 12 11 17 18 17 19 44 43 43 42 91 36 35 62 34 40 10 41 37 38 127 33 6 5 6 46 2 3 46 50 7 10 9 32 31 15 1 43 42 91 36 127 34 6 6 5 50 9 43 13 40 10 12 17 17 22 25 60 27
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; CLU BOOSTER 1-31829-611-0 01 1 1310-1412
1 REPAIR KIT; CLU BOOSTER 1-31829-606-0 01 1 1501-
2 ROD; PUSH,CLU BOOSTER 1-31824-248-0 01 1 1310-1412
2 ROD; PUSH,CLU BOOSTER 1-31824-240-0 01 1 1501-
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-186-1 01 1 1310-
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 1310-
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-032-0 01 1 1310-
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-033-0 01 1 1310-
7 PISTON; CLU BOOSTER 1-31821-064-0 01 1 1310-
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-003-0 01 1 1310-
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-107-0 01 1 1310-
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-108-0 01 1 1310-
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 1310-
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 1310-
13 PIN; SPR 1-31829-109-0 01 1 1310-
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 1310-
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 1310-
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 1310-
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 1310-
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 1310-
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 1310-
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 1310-
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 1310-
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 1310-
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-322-0 01 1 1310-
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 1310-
24 ROD; PUSH,CLU BOOSTER 1-31829-112-0 01 1 1310-
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 1310-
26 PISTON; SHELL,CLU BOOSTER 1-31821-084-0 01 1 1310-
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 1310-
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 1310-
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 1310-
30 SHELL; CYL,CLU BOOSTER 1-31811-124-0 01 1 1310-
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 1310-
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 1310-
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 1310-
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 1310-
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 1310-
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 1310-
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 1310-
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 1310-
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 1310-1412
41 SPRING; DIAPH,CLU BOOSTER 1-31829-545-0 01 1 1310-
42 GASKET; FITTING,CLU BOOSTER 1-31829-143-0 01 1 1310-
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 1310-
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-087-0 01 1 1310-
45 PLATE; END,CLU BOOSTER 1-31811-150-0 01 1 1310-1412
45 PLATE; END,CLU BOOSTER 1-31811-149-0 01 1 1501-
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 1310-
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-504-0 01 1 1310-
60 GASKET; SHELL,CLU BOOSTER 1-31829-544-0 01 1 1310-
62 RETAINER; POPPET 1-31829-489-0 01 1 1310-
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 1310-
127 FILTER; POPPET 1-31829-495-0 01 1 1310-
