◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11391 - FVM(INDONESIA)6HK1 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-82B - POWER TAKE OFF; TRANSMISSION REAR ▶
2-82B — POWER TAKE OFF; TRANSMISSION REAR (#128016) — 49 parça

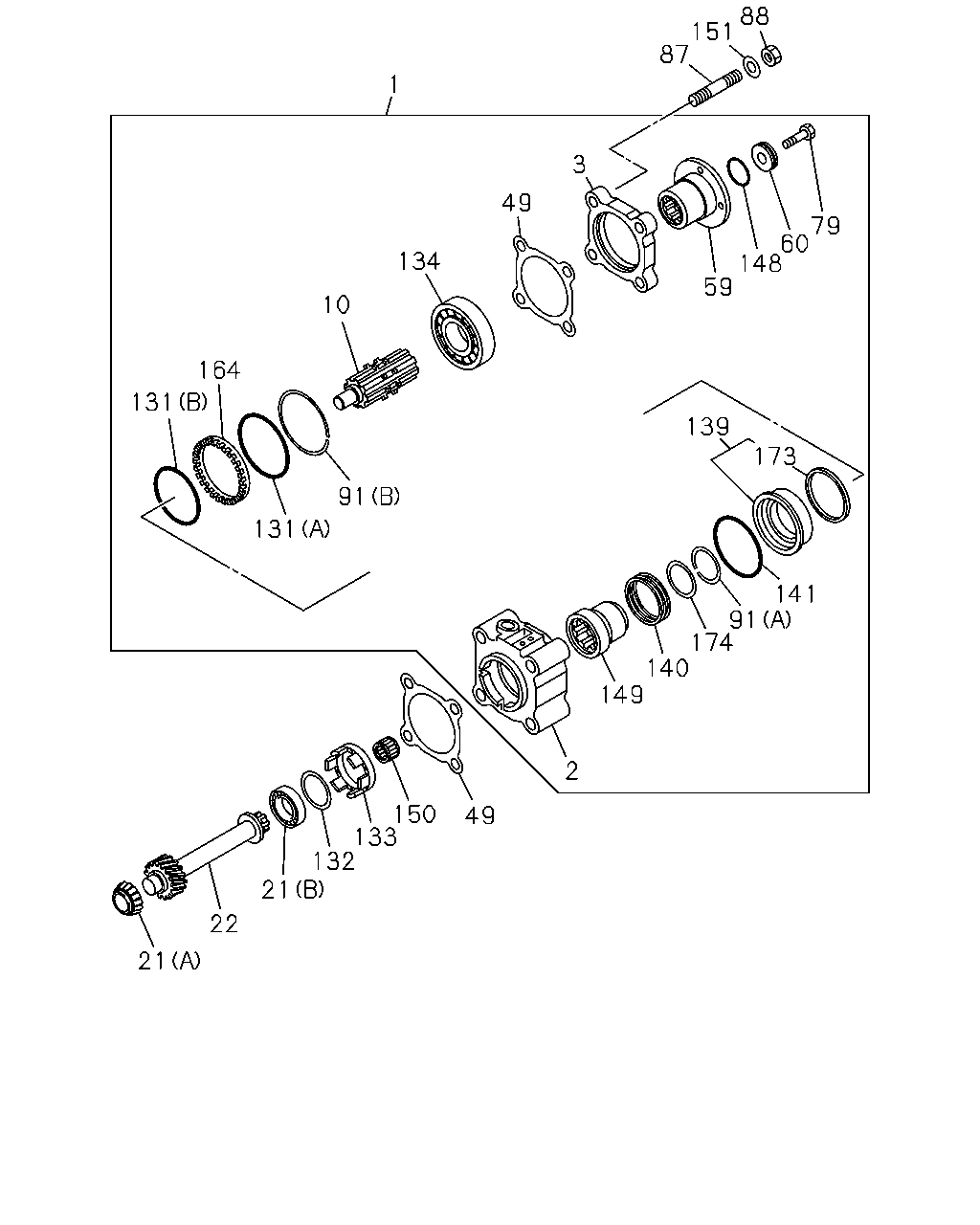

çizim 380284
1 88 151 87 3 79 60 148 59 49 134 10 164 131 21 21 22 150 133 132 49 131 91 139 173 141 91 174 140 149 2
BalonParca AdiParca NoAdetTipApplied Date
1 POWER TAKE OFF ASM; TRANS RR
PTO CONTROL<SV6> 		1-38000-398-0 01 1 1310-
2 CASE; GEAR,TRANS RR PTO
PTO CONTROL<SV6> 		1-38111-120-0 01 1 1310-
3 COVER; GEAR CASE,TRANS RR PTO
PTO CONTROL<SV6> 		1-38159-009-0 01 1 1310-
10 SHAFT; PTO OUTPUT GEAR,TRANS RR PTO
PTO CONTROL<SV6> 		1-38221-064-0 01 1 1310-
21 BEARING; MAIN DRIVE SHAFT,TRANS RR PTO
PTO CONTROL<SV6> (B) 		1-33389-068-0 01 1 1310-
21 BEARING; MAIN DRIVE SHAFT,TRANS RR PTO
PTO CONTROL<SV6> (A) 		1-33389-090-0 01 1 1310-
22 SHAFT; MAIN DRIVE,TRANS RR PTO
PTO CONTROL<SV6> 		1-33381-015-0 01 1 1310-
49 GASKET; PTO GEAR CASE TO TRANS
PTO CONTROL<SV6> 		1-33132-084-0 02 1 1310-
59 YOKE; SPINDLE,PTO OUTPUT SHAFT,RR PTO
PTO CONTROL<SV6> 		1-38229-020-0 01 1 1310-
60 WASHER; YOKE,OUTPUT SHAFT,RR PTO
PTO CONTROL<SV6> 		1-38519-021-0 01 1 1310-
79 BOLT
PTO CONTROL<SV6> 		1-37249-216-0 01 1 1310-
87 STUD; GEAR CASE
PTO CONTROL<SV6> M12X80 		1-38119-103-0 04 1 1310-
88 NUT; COVER
PTO CONTROL<SV6> 		1-38119-104-0 04 1 1310-
91 RING; SNAP
PTO CONTROL<SV6> (A) 		1-38219-037-0 01 1 1310-
91 RING; SNAP
PTO CONTROL<SV6> (B) 		1-38219-038-0 01 1 1310-
131 GASKET; OUTPUT SHAFT
PTO CONTROL<SV6> (A) 		1-38129-035-0 01 1 1310-
131 GASKET; OUTPUT SHAFT
PTO CONTROL<SV6> (B) 		1-38129-036-0 01 1 1310-
132 SHIM; BRG
PTO CONTROL<SV6> T=1.55 		1-33389-048-0 01 1 1310-
132 SHIM; BRG
PTO CONTROL<SV6> T=1.45 		1-33389-050-0 01 1 1310-
132 SHIM; BRG
PTO CONTROL<SV6> T=1.35 		1-33389-052-0 01 1 1310-
132 SHIM; BRG
PTO CONTROL<SV6> T=1.30 		1-33389-053-0 01 1 1310-
132 SHIM; BRG
PTO CONTROL<SV6> T=1.20 		1-33389-056-0 01 1 1310-
132 SHIM; BRG
PTO CONTROL<SV6> T=1.15 		1-33389-057-0 01 1 1310-
132 SHIM; BRG
PTO CONTROL<SV6> T=1.05 		1-33389-059-0 01 1 1310-
132 SHIM; BRG
PTO CONTROL<SV6> T=1.00 		1-33389-060-0 01 1 1310-
132 SHIM; BRG
PTO CONTROL<SV6> T=0.90 		1-33389-062-0 01 1 1310-
132 SHIM; BRG
PTO CONTROL<SV6> T=0.85 		1-33389-063-0 01 1 1310-
132 SHIM; BRG
PTO CONTROL<SV6> T=0.75 		1-33389-065-0 01 1 1310-
132 SHIM; BRG
PTO CONTROL<SV6> T=0.70 		1-33389-066-0 01 1 1310-
132 SHIM; BRG
PTO CONTROL<SV6> T=0.65 		1-33389-067-0 01 1 1310-
132 SHIM; BRG
PTO CONTROL<SV6> T=0.80 		8-98080-566-0 01 1 1310-
132 SHIM; BRG
PTO CONTROL<SV6> T=0.95 		8-98080-567-0 01 1 1310-
132 SHIM; BRG
PTO CONTROL<SV6> T=1.10 		8-98080-568-0 01 1 1310-
132 SHIM; BRG
PTO CONTROL<SV6> T=1.25 		8-98080-569-0 01 1 1310-
132 SHIM; BRG
PTO CONTROL<SV6> T=1.40 		8-98080-570-0 01 1 1310-
132 SHIM; BRG
PTO CONTROL<SV6> T=1.50 		8-98080-571-0 01 1 1310-
132 SHIM; BRG
PTO CONTROL<SV6> T=1.60 		8-98080-572-0 01 1 1310-
133 BUSHING; SHAFT
PTO CONTROL<SV6> 		1-33389-046-0 01 1 1310-
134 BEARING; OUTPUT SHAFT
PTO CONTROL<SV6> 		1-38219-015-0 01 1 1310-
139 PISTON; RR PTO
PTO CONTROL<SV6> 		1-38129-039-0 01 1 1310-
140 SPRING; PISTON,RR PTO
PTO CONTROL<SV6> 		1-38129-042-0 01 1 1310-
141 GASKET; PISTON,RR PTO
PTO CONTROL<SV6> 		1-38129-035-0 01 1 1310-
148 GASKET; YOKE
PTO CONTROL<SV6> 		1-38519-014-0 01 1 1310-
149 SLEEVE; SLIDING
PTO CONTROL<SV6> 		1-38229-060-0 01 1 1310-
150 BEARING; OUTPUT SHAFT
PTO CONTROL<SV6> 		8-98080-565-0 01 1 1310-
151 WASHER; PL,COVER
PTO CONTROL<SV6> 		8-98080-563-0 04 1 1310-
164 RING; CENTERING,PTO
PTO CONTROL<SV6> 		1-38129-038-0 01 1 1310-
173 RING; MAGNET
PTO CONTROL<SV6> 		1-38129-034-0 01 1 1310-
174 DISK; PRESSURE
PTO CONTROL<SV6> 		1-38129-040-0 01 1 1310-
