2-30B — GEAR SHIFTER AND QUADRANT BOX (#128013) — 131 parça

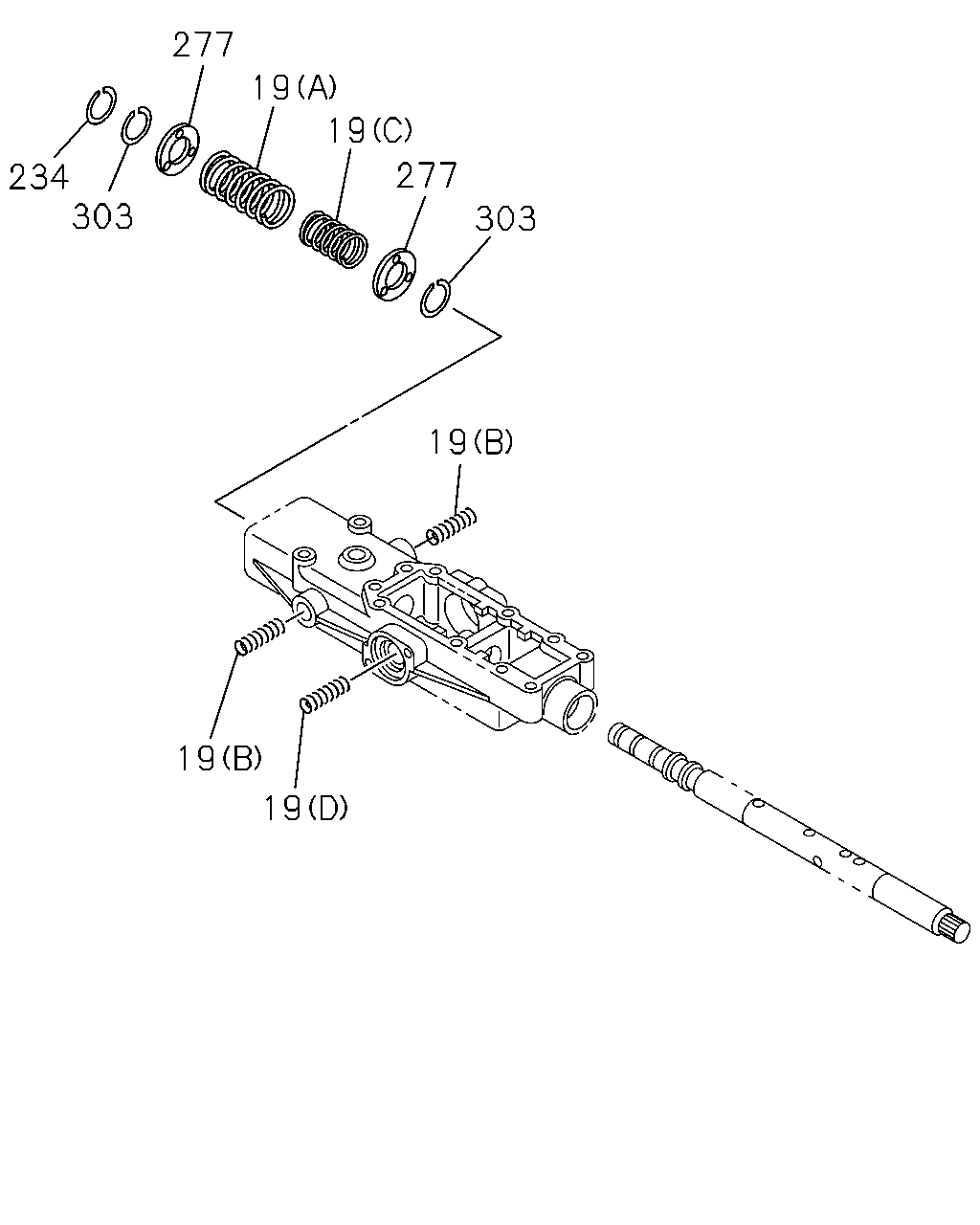

çizim 379835
277 19 19 277 303 234 303 19 19 19
BalonParca AdiParca NoAdetTipApplied Date
19 SPRING; COIL COMP
(A) 		1-33539-027-0 01 1 1310-
19 SPRING; COIL COMP
(B) 		1-33539-030-0 02 1 1310-
19 SPRING; COIL COMP
(C) 		1-33539-104-0 01 1 1310-
19 SPRING; COIL COMP
(D) 		1-33549-221-0 01 1 1310-
234 RING; SNAP 1-44519-224-0 01 1 1310-
277 PLATE; SPRING SEAT 1-33539-107-0 02 1 1310-
303 RING; SNAP,SHAFT 1-33539-040-0 02 1 1310-

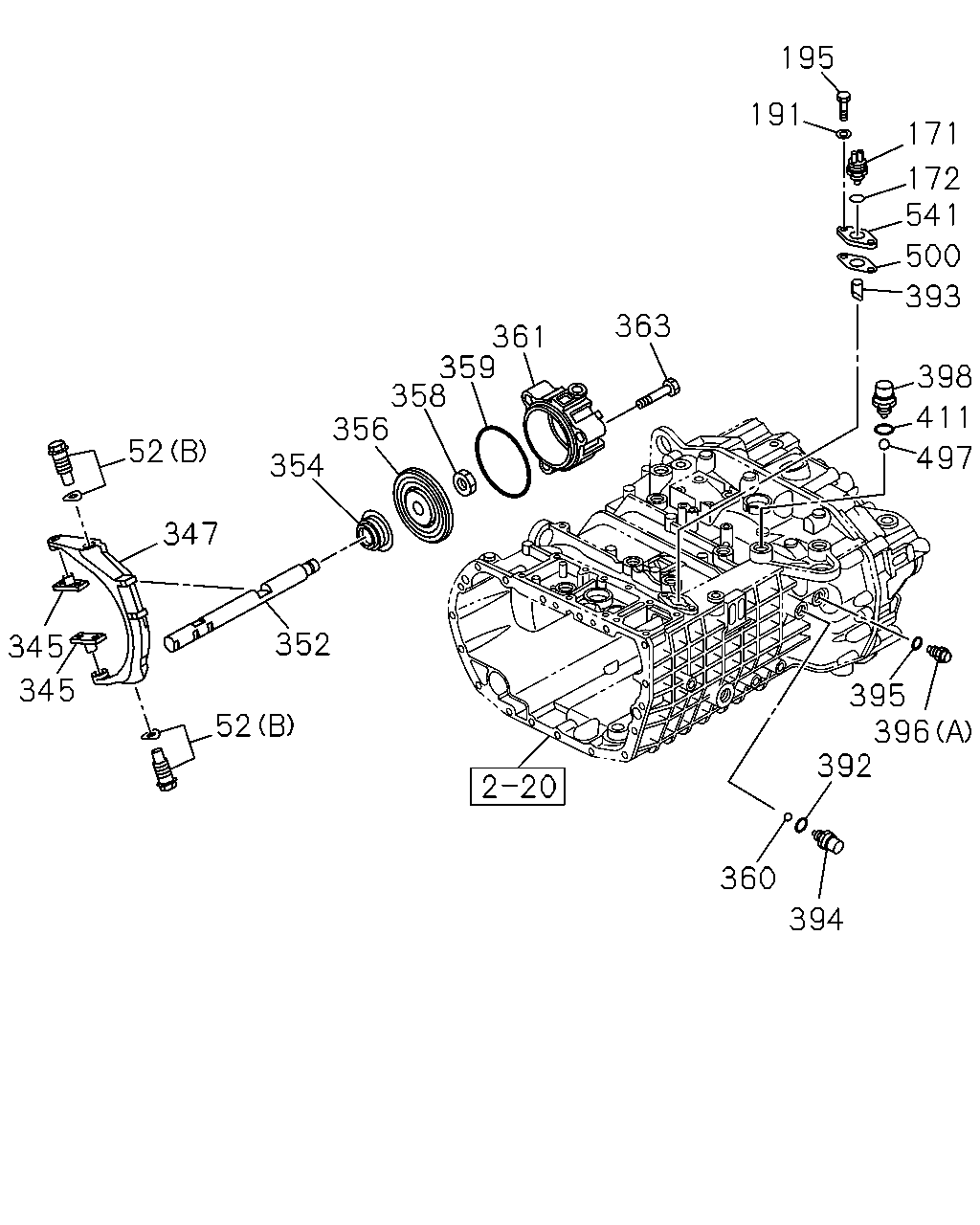

çizim 380486
195 191 171 172 541 500 393 398 411 497 395 396 392 360 394 363 361 359 358 356 354 52 347 352 52 345 345
BalonParca AdiParca NoAdetTipApplied Date
52 BOLT; SHIFT ARM
(A) 		1-33519-190-0 06 1 1310-
52 BOLT; SHIFT ARM
(B) 		1-33519-196-0 02 1 1310-
171 SWITCH; NEUTRAL 1-33119-627-0 01 1 1310-
172 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 01 1 1310-
191 WASHER; LK 1-33549-583-0 02 1 1310-
195 BOLT 1-33119-593-0 02 1 1310-
345 BLOCK; SHIFT,RANGE CHANGE 1-33519-095-0 02 1 1310-
347 ARM; SHIFT,RANGE CHANGE 1-33511-529-0 01 1 1310-
352 ROD; SHIFT,RANGE CHANGE 1-33531-497-0 01 1 1310-
354 SEAL; AIR CYL 1-33519-045-0 01 1 1310-
356 PISTON; AIR CYL 1-33519-197-0 01 1 1310-
358 NUT; SHIFT ROD 1-33519-188-0 01 1 1310-
359 GASKET; AIR CYL 1-33519-093-0 01 1 1310-
360 BALL; AIR CYL 1-33119-252-0 01 1 1310-
361 CYLINDER; AIR,SHIFT 1-33519-092-0 01 1 1310-
363 BOLT; AIR CYL
M10X70 		1-33119-616-0 03 1 1310-
392 GASKET; PLUG & SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 01 1 1310-
393 PIN; SW 1-33119-298-0 01 1 1310-
394 SWITCH; RANGE CHANGE 1-33119-627-0 01 1 1310-
395 GASKET; PLUNGER 1-33549-497-0 01 1 1310-
396 PLUNGER; SHIFT ROD
(A) 		1-33519-189-0 01 1 1310-
396 PLUNGER; SHIFT ROD
(B) 		1-33529-085-0 02 1 1310-
398 SWITCH; REV LAMP 1-38119-062-0 01 1 1310-
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 01 1 1310-
497 BALL; SWITCH 1-33119-252-0 01 1 1310-
500 GASKET; SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-299-0 01 1 1310-
541 PLATE; SWITCH 1-33119-300-0 01 1 1310-

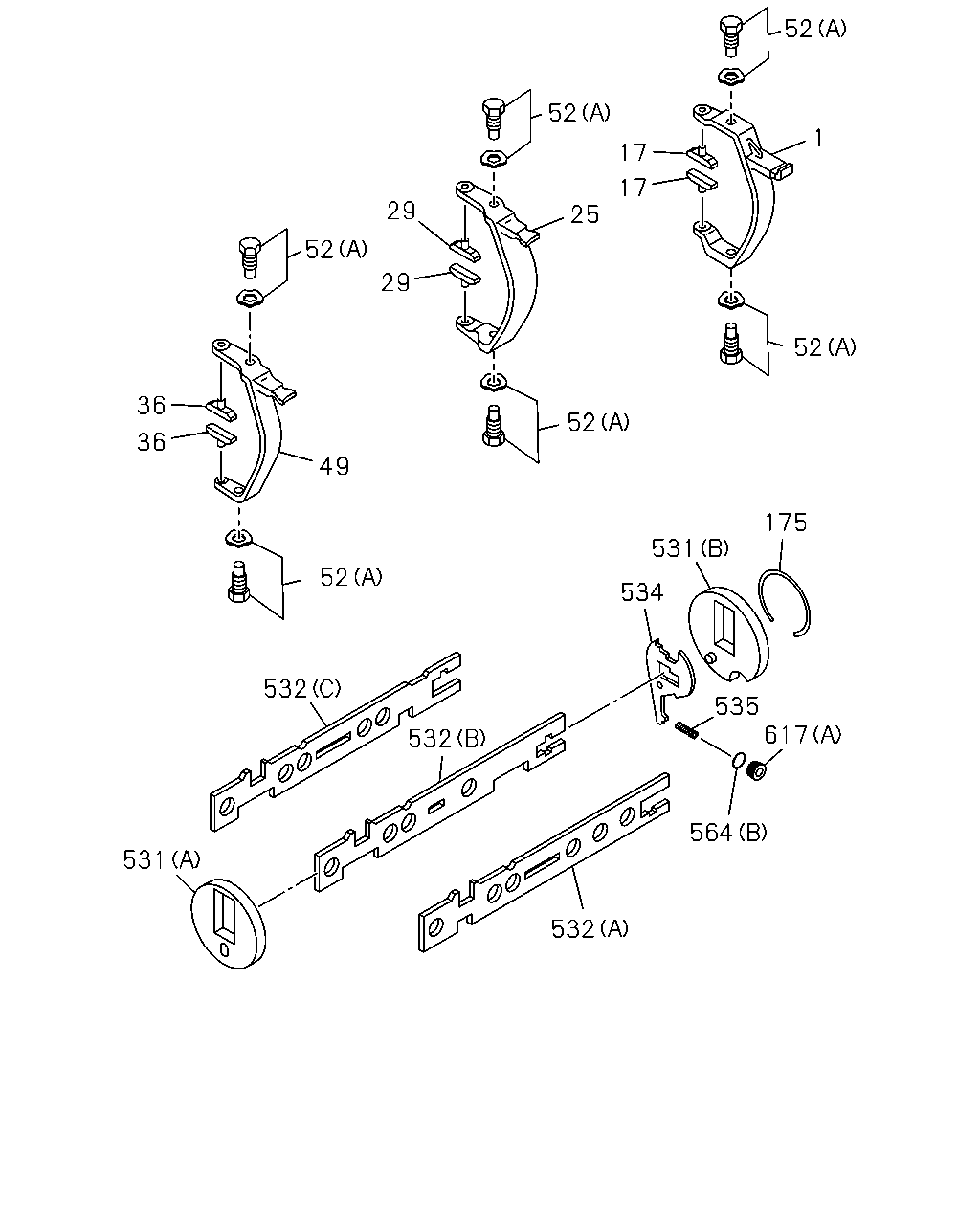

çizim 380493
52 1 52 17 17 25 52 52 29 29 52 36 36 49 52 532 531 532 532 564 617 535 534 531 175
BalonParca AdiParca NoAdetTipApplied Date
1 ARM; SHIFT,1ST & REV 1-33511-657-0 01 1 1310-
17 BLOCK; SHIFT,1ST & REV 1-33519-172-0 02 1 1310-
25 ARM; SHIFT,2ND & 3RD 1-33511-642-0 01 1 1310-
29 BLOCK; SHIFT,2ND & 3RD 1-33519-081-0 02 1 1310-
36 BLOCK; SHIFT,4TH & 5TH 1-33519-081-0 02 1 1310-
49 ARM; SHIFT,4TH & 5TH 1-33511-664-0 01 1 1310-
52 BOLT; SHIFT ARM
(A) 		1-33519-190-0 06 1 1310-
52 BOLT; SHIFT ARM
(B) 		1-33519-196-0 02 1 1310-
175 RING; STOPPER,SHIFT LEVER 1-33539-103-0 01 1 1310-
531 PLATE; BEARING
(A) 		1-33539-044-0 01 1 1310-
531 PLATE; BEARING
(B) 		1-33539-047-0 01 1 1310-
532 PLATE; SHIFT FORK
(A) 		1-33531-492-0 01 1 1310-
532 PLATE; SHIFT FORK
(B) 		1-33531-493-0 01 1 1310-
532 PLATE; SHIFT FORK
(C) 		1-33531-494-0 01 1 1310-
534 LEVER; LOCK,SHIFT PLATE 1-33539-087-0 01 1 1310-
535 SPRING; LEVER 1-33539-049-0 01 1 1310-
564 SEAL; RING
(A) 		1-33119-249-0 02 1 1310-
564 SEAL; RING
(B) 		1-33549-578-0 01 1 1310-
617 PLUG
(B) 		1-33119-619-0 02 1 1310-
617 PLUG
(A) 		1-33539-109-0 01 1 1310-

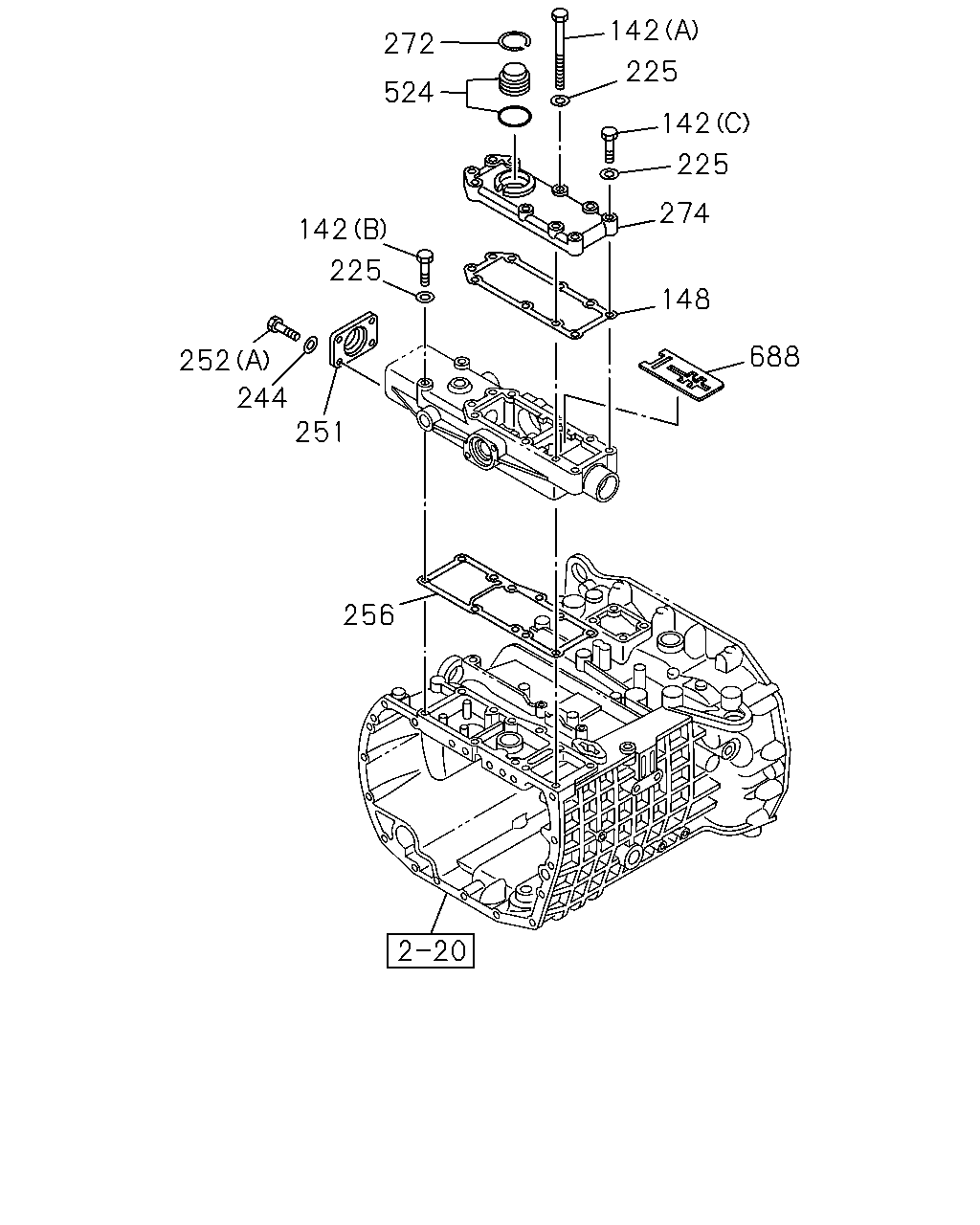

çizim 380495
272 524 142 252 244 251 142 225 142 225 274 148 688 256 225
BalonParca AdiParca NoAdetTipApplied Date
142 BOLT; QUAD BOX
(A) M8X100 		1-33549-582-0 06 1 1310-
142 BOLT; QUAD BOX
(B) M8X75 		1-33549-584-0 02 1 1310-
142 BOLT; QUAD BOX
(C) M8X40 		1-33549-587-0 04 1 1310-
148 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		1-33542-064-0 01 1 1310-
225 WASHER; LK,QUAD BOX 1-33549-583-0 14 1 1310-
244 WASHER; LK,COVER 1-33549-583-0 04 1 1310-
251 COVER; SIDE 1-33549-590-0 01 1 1310-
252 BOLT; SIDE COVER
(B) M8X30 		1-33549-581-0 02 1 1310-
252 BOLT; SIDE COVER
(A) M8X20 		1-33549-591-0 04 1 1310-
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33542-065-0 01 1 1310-
272 RING; SNAP,QUAD BOX 1-44519-217-0 01 1 1310-
274 COVER; SHAFT,QUAD BOX 1-33549-579-0 01 1 1310-
524 DETENT; QUAD BOX 1-33549-501-0 01 1 1310-
688 SHIFT; INTERLOCK 1-33549-572-0 01 1 1310-

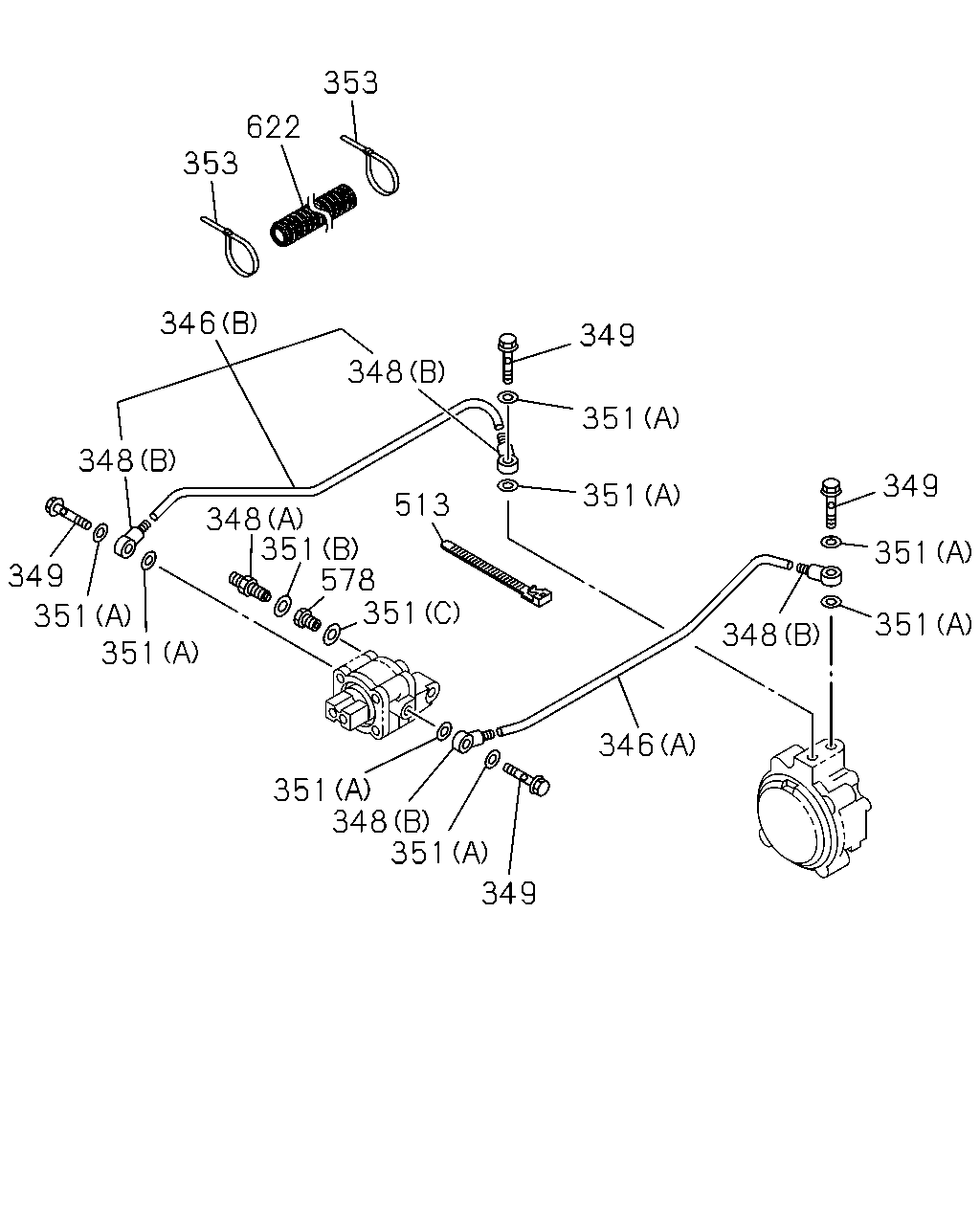

çizim 380499
353 622 353 346 348 349 351 351 348 351 578 351 348 513 349 351 351 349 351 351 348 346 351 348 351 349
BalonParca AdiParca NoAdetTipApplied Date
346 HOSE; AIR
(B) 		1-33549-598-0 01 1 1310-
346 HOSE; AIR
(A) 		1-33549-618-0 01 1 1310-
348 CONNECTOR; AIR HOSE
(A) M12 STRAIGHT 		1-09654-246-0 01 1 1310-
348 CONNECTOR; AIR HOSE
(B) 		1-33549-593-0 04 1 1310-
349 BOLT; EYE,AIR HOSE
M14 		1-33549-592-0 04 1 1310-
351 GASKET; CONNECTOR
(B) ID=12.2 		1-09630-084-0 01 1 1310-1312
351 GASKET; CONNECTOR
(B) ID=12.2 		8-98251-344-0 01 1 1401-
351 GASKET; CONNECTOR
(C) 		1-33549-554-0 01 1 1310-
351 GASKET; CONNECTOR
(A) 		1-33549-578-0 08 1 1310-
353 CLIP; AIR HOSE 1-33549-475-0 02 1 1310-
513 CLIP; BAND
L=250 IDN 		5-09707-030-1 06 1 1310-
513 CLIP; BAND
L=140 IDN 		5-09707-031-1 01 1 1310-
578 CONNECTOR 1-33549-553-0 01 1 1310-
622 TUBE; CORRUGATE
L=100 ID=22 L=350 		1-83129-017-0 01 1 1310-

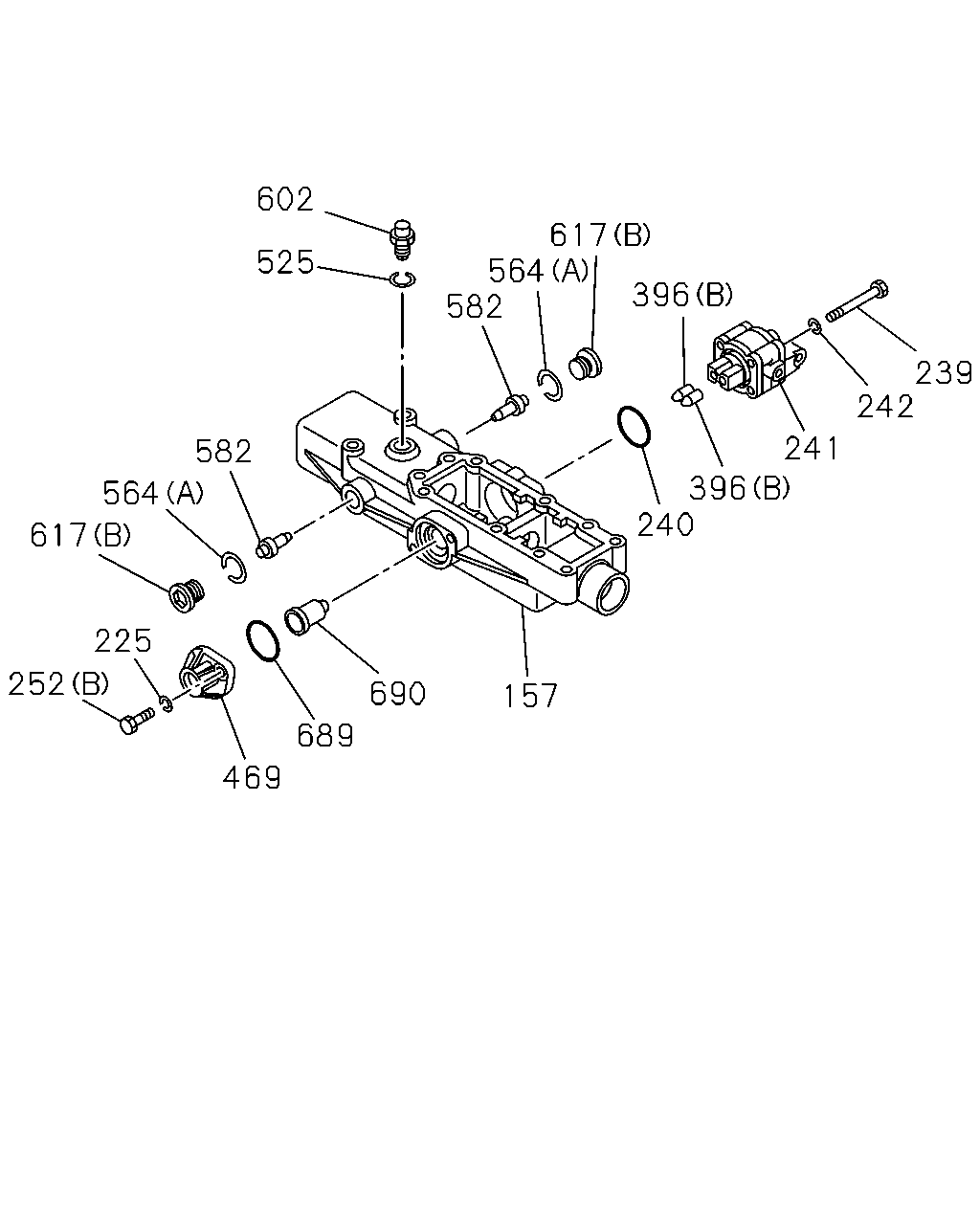

çizim 380516
602 525 582 564 617 252 225 469 689 690 157 240 396 241 242 239 396 617 564 582
BalonParca AdiParca NoAdetTipApplied Date
157 BOX; QUAD,TRANS 1-33549-570-0 01 1 1310-
225 WASHER; LK,QUAD BOX 1-33549-583-0 14 1 1310-
239 BOLT; CUT OFF VALVE 1-33549-585-0 04 1 1310-
240 GASKET; CUT OFF VALVE 1-33549-198-0 01 1 1310-
241 VALVE; CUT OFF 1-33549-495-0 01 1 1310-
242 WASHER; CUT OFF VALVE 1-33549-583-0 04 1 1310-
252 BOLT; SIDE COVER
(B) M8X30 		1-33549-581-0 02 1 1310-
252 BOLT; SIDE COVER
(A) M8X20 		1-33549-591-0 04 1 1310-
396 PLUNGER; SHIFT ROD
(A) 		1-33519-189-0 01 1 1310-
396 PLUNGER; SHIFT ROD
(B) 		1-33529-085-0 02 1 1310-
469 COVER; SPRING,QUAD BOX 1-33549-216-0 01 1 1310-
525 RING; DETENT 1-33119-286-0 01 1 1310-
564 SEAL; RING
(A) 		1-33119-249-0 02 1 1310-
564 SEAL; RING
(B) 		1-33549-578-0 01 1 1310-
582 BOLT; SPRING GUIDE 1-33549-487-0 02 1 1310-
602 PLUNGER; DETENT 1-33119-618-0 01 1 1310-
617 PLUG
(B) 		1-33119-619-0 02 1 1310-
617 PLUG
(A) 		1-33539-109-0 01 1 1310-
689 GASKET; COVER 1-33542-063-0 01 1 1310-
690 PIN; STOP 1-33549-496-0 01 1 1310-
çizim 380521
165 289 165 165 271 90 430 304 90 298 569 332 265 264 42 48
BalonParca AdiParca NoAdetTipApplied Date
42 CAP; QUAD BOX 1-33549-589-0 01 1 1310-
48 LEVER; 4TH,SHIFT 8-98085-725-0 01 1 1310-
90 RING; SNAP,SHIFT ROD 1-33549-494-0 02 1 1310-
165 LEVER; SHIFT
(C) 		1-33549-488-0 01 1 1310-
165 LEVER; SHIFT
(A) 		1-33549-489-0 01 1 1310-
165 LEVER; SHIFT
(B) 		1-33549-603-0 01 1 1310-
264 SEAL; DUST,SHAFT 1-33549-119-0 01 1 1310-
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). 		1-33549-118-0 01 1 1310-
271 BUSHING; QUAD BOX 1-33549-124-0 01 1 1310-
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		1-33549-491-0 01 1 1310-
298 SHAFT; SHIFT LEVER 1-33522-205-0 01 1 1310-
304 BLOCK; SHIFT SHAFT 1-33549-492-0 01 1 1310-
332 BOLT; 4TH,SHIFT LEVER
M8X40 FLANGE 		0-28650-840-0 01 1 1310-
430 PIN; SPR,SHIFT ROD 1-33549-493-0 01 1 1310-
569 PIN; QUADRANT BOX 1-33529-128-0 02 1 1310-

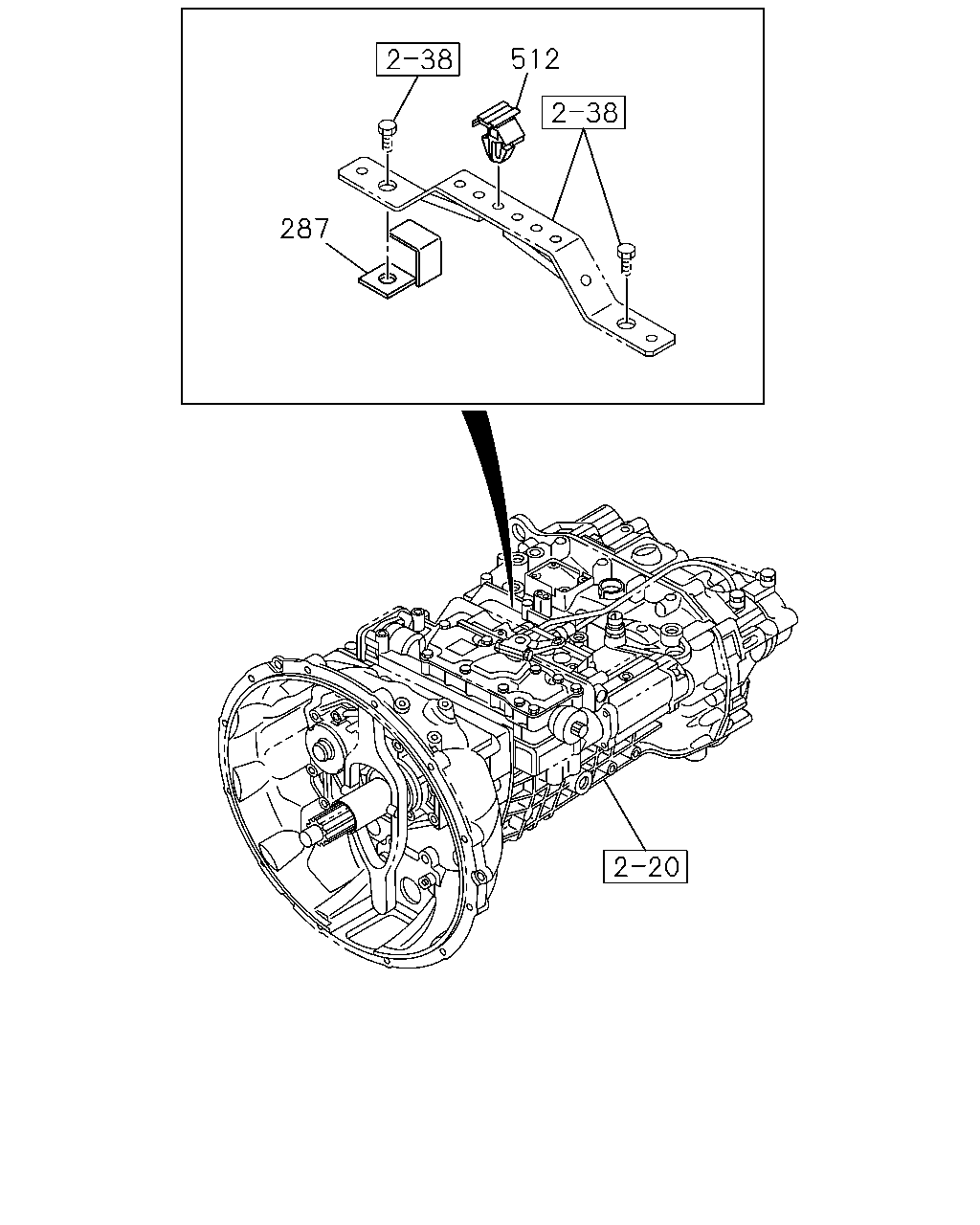

çizim 381113
287 512
BalonParca AdiParca NoAdetTipApplied Date
287 COVER; AIR BREATHER 1-34141-026-0 01 1 1310-
512 CLIP; PIPE
OD=9 H=6 		1-09709-178-0 04 1 1310-

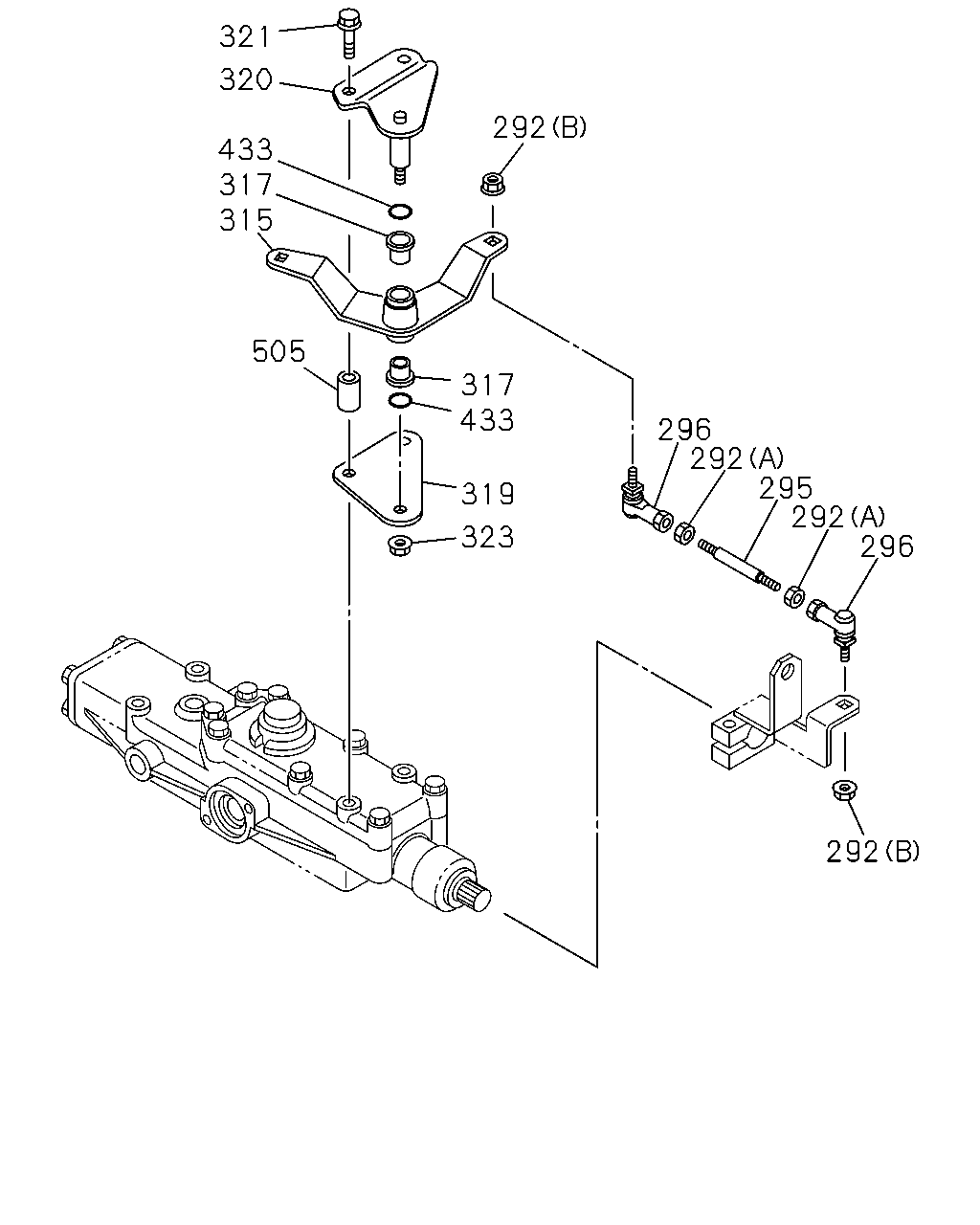

çizim 381302
321 320 433 317 315 505 292 317 433 319 323 296 292 295 292 296 292
BalonParca AdiParca NoAdetTipApplied Date
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 1310-
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 1310-
295 ROD; LINK,RELAY LEVER
M8 L=50 		9-08400-805-0 01 1 1310-
296 ROD END 1-09760-108-0 02 1 1310-
315 LEVER; SELECT 8-98085-738-0 01 1 1310-
317 BUSHING; LEVER 1-09330-119-0 02 1 1310-
319 BRACKET; SELECT LEVER 8-98085-740-0 01 1 1310-
320 SHAFT; LEVER 8-98085-739-0 01 1 1310-
321 BOLT; BRKT,RELAY LEVER
M8X130 FLANGE 		0-28065-813-0 02 1 1310-
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91180-110-0 01 1 1310-
433 GASKET; BUSHING 1-09623-594-0 02 1 1310-
505 SPACER; BRKT
L=24.5 		1-33659-186-1 02 1 1310-
