Sayfa 2-20B - Isuzu EPC

2-20B — MANUAL TRANSMISSION ASM AND CASE (#128007) — 78 parça

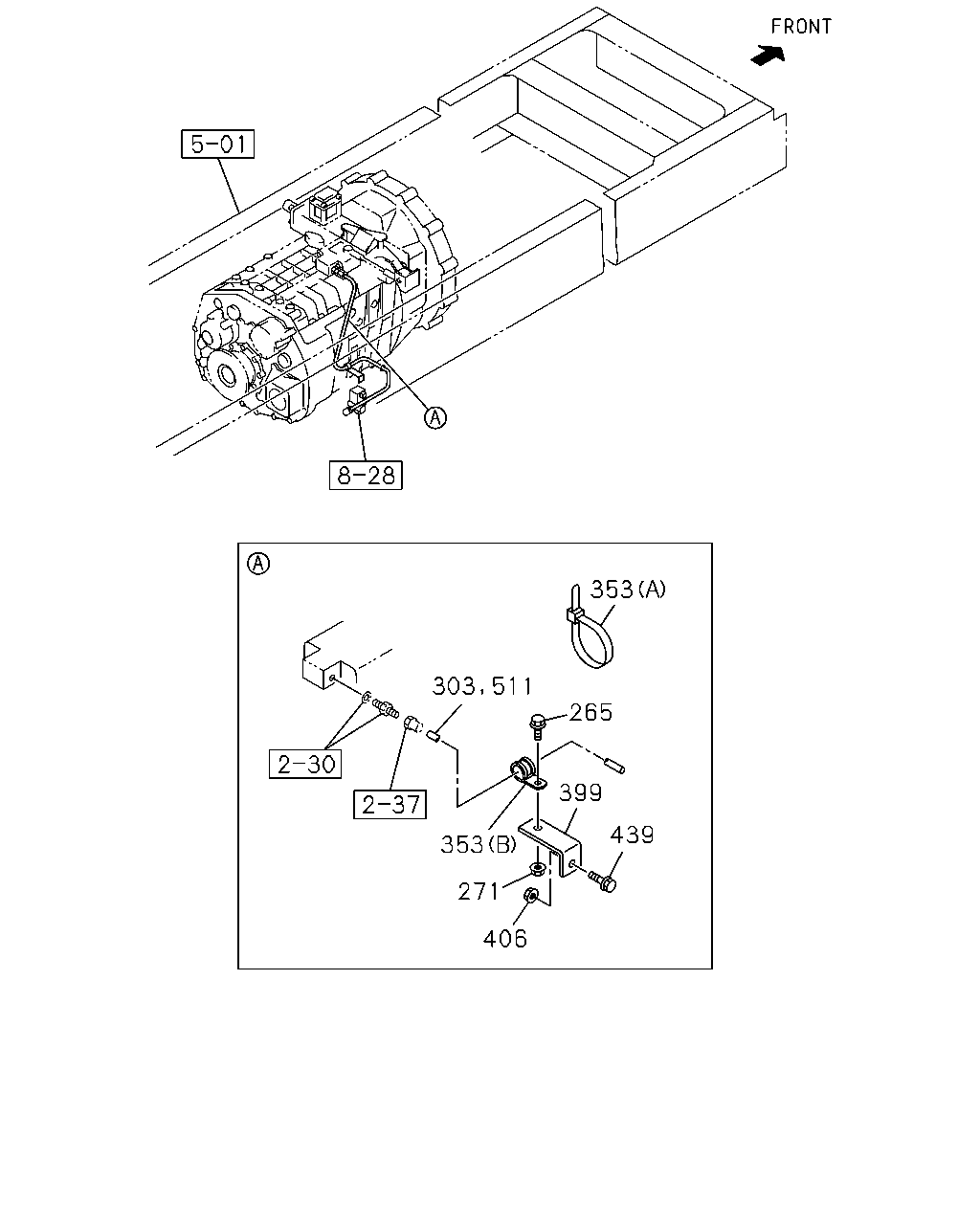

303 511 353 265 399 439 353 271 406

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
265	BOLT; CLIP M8X20 FLANGE IDN	0-28650-820-0	01	1	1310-
271	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1310-
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1310-
353	CLIP; NYLON TUBE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	1310-
353	CLIP; NYLON TUBE EXC. PTO CONTROL<SV6> (A) L=350	1-09707-183-0	03	1	1310-
399	BRACKET; CLIP L=90 B=25	1-47475-530-0	01	1	1310-
406	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1310-
439	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1310-
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	1310-

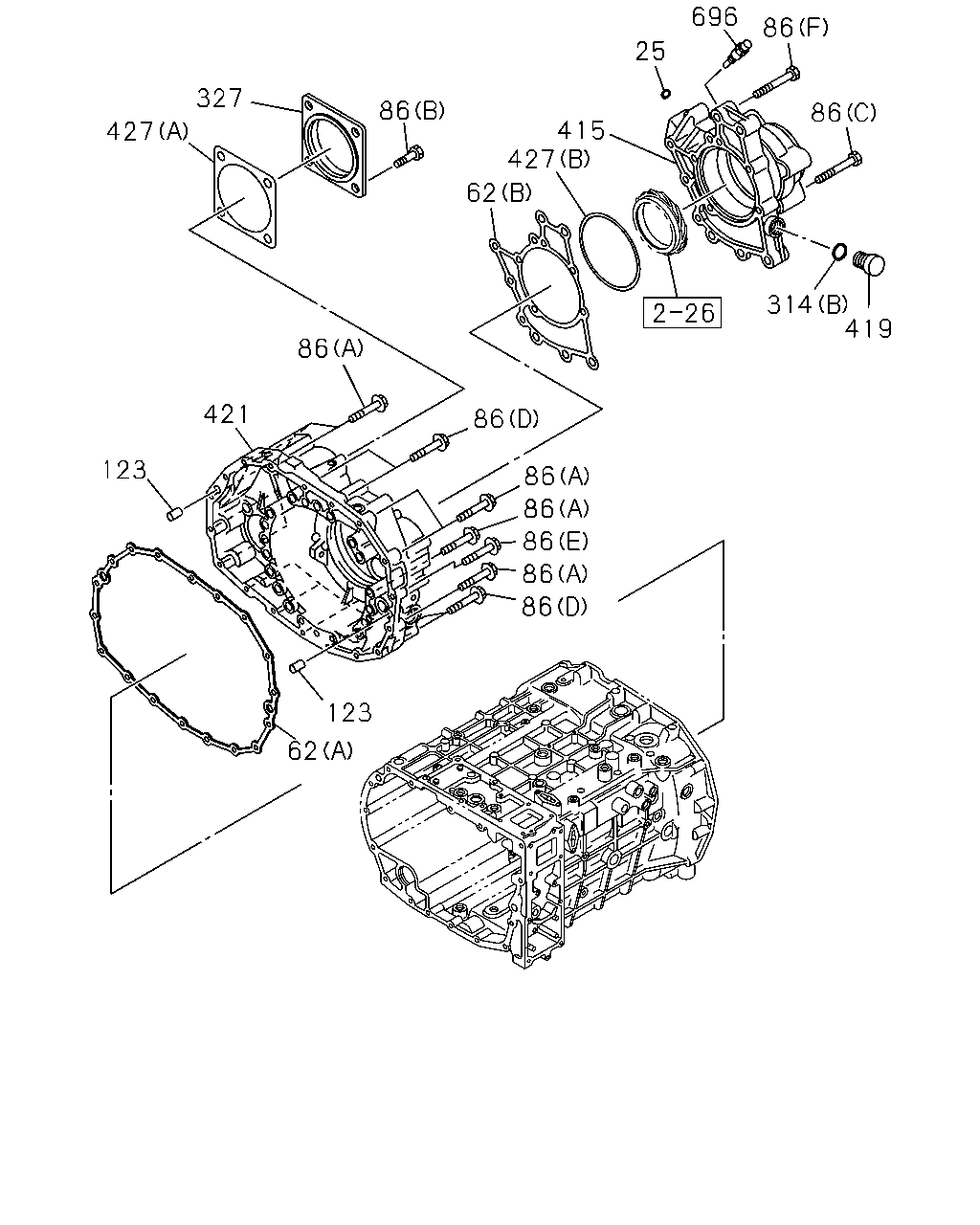

419 314 86 86 696 25 415 427 62 86 86 86 86 86 86 123 62 86 421 123 427 327 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33139-060-0	01	1	1310-
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B)	1-33132-076-0	01	1	1310-
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33132-087-0	01	1	1310-
86	BOLT; RR COVER (A) M10X70	1-33119-616-0	12	1	1310-
86	BOLT; RR COVER (D) M10X110	1-33139-235-0	05	1	1310-
86	BOLT; RR COVER (E) M10X50	1-33139-236-0	01	1	1310-
86	BOLT; RR COVER (F) M10X65	1-33139-238-0	08	1	1310-
86	BOLT; RR COVER (C) M12X75	1-33139-239-0	05	1	1310-
86	BOLT; RR COVER EXC. PTO CONTROL<SV6> (B) M12X25	1-33119-594-0	04	1	1310-
123	DOWEL; TRANS CASE	1-33119-292-0	04	1	1310-
314	GASKET; CASE (A)	1-33112-052-0	01	1	1310-
314	GASKET; CASE (B)	1-33379-021-0	01	1	1310-
327	COVER; RR,COUNTER EXC. PTO CONTROL<SV6>	1-33131-273-0	01	1	1310-
415	COVER; BRG	1-33131-274-0	01	1	1310-
419	PLUG; RR COVER	1-33549-594-0	01	1	1310-
421	COVER; RR,TRANS	1-33131-275-0	01	1	1310-
427	GASKET; RR COVER (B)	8-98241-467-0	01	1	1310-
427	GASKET; RR COVER EXC. PTO CONTROL<SV6> (A)	1-33132-054-0	01	1	1310-
696	SENSOR; PULSE	1-83227-018-0	01	1	1310-

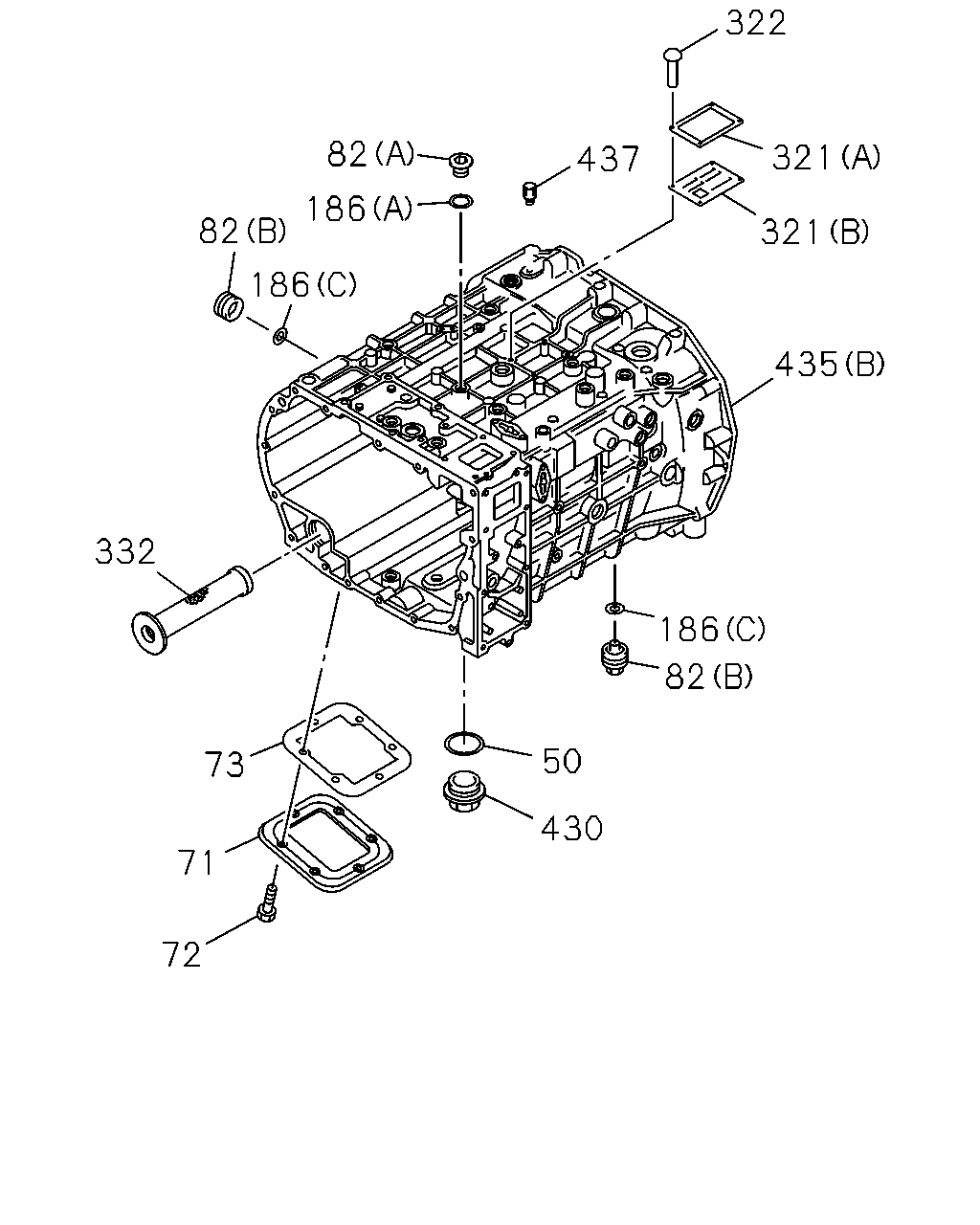

322 321 321 435 186 82 50 430 72 71 73 332 82 186 186 82 437

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	1-33119-293-0	01	1	1310-
71	COVER; SIDE,TRANS CASE	1-33119-622-0	01	1	1310-
72	BOLT; SIDE COVER M10X22	1-33119-592-0	06	1	1310-
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33119-237-0	01	1	1310-
82	PLUG; SCREW,CASE (C)	1-33119-618-0	02	1	1310-
82	PLUG; SCREW,CASE (A)	1-33119-619-0	02	1	1310-
82	PLUG; SCREW,CASE (B)	1-33119-620-0	02	1	1310-
186	RING; SEAL (A)	1-33119-249-0	02	1	1310-
186	RING; SEAL (B)	1-33119-286-0	02	1	1310-
186	RING; SEAL (C)	1-33119-435-0	02	1	1310-
321	PLATE; NAME (A)	1-33119-519-0	01	1	1310-
321	PLATE; NAME (B)	1-33119-520-0	01	1	1310-
322	RIVET; NAME PLATE	1-33119-617-0	04	1	1310-
332	FILTER; OIL	1-33119-437-0	01	1	1310-
430	PLUG; OIL DRAIN	1-33119-621-0	01	1	1310-
435	CASE; TRANS (B)	1-33111-372-0	01	1	1310-
435	CASE; TRANS (A)	1-33111-380-0	01	1	1310-
437	BREATHER; TRANS	1-36122-006-0	01	1	1310-

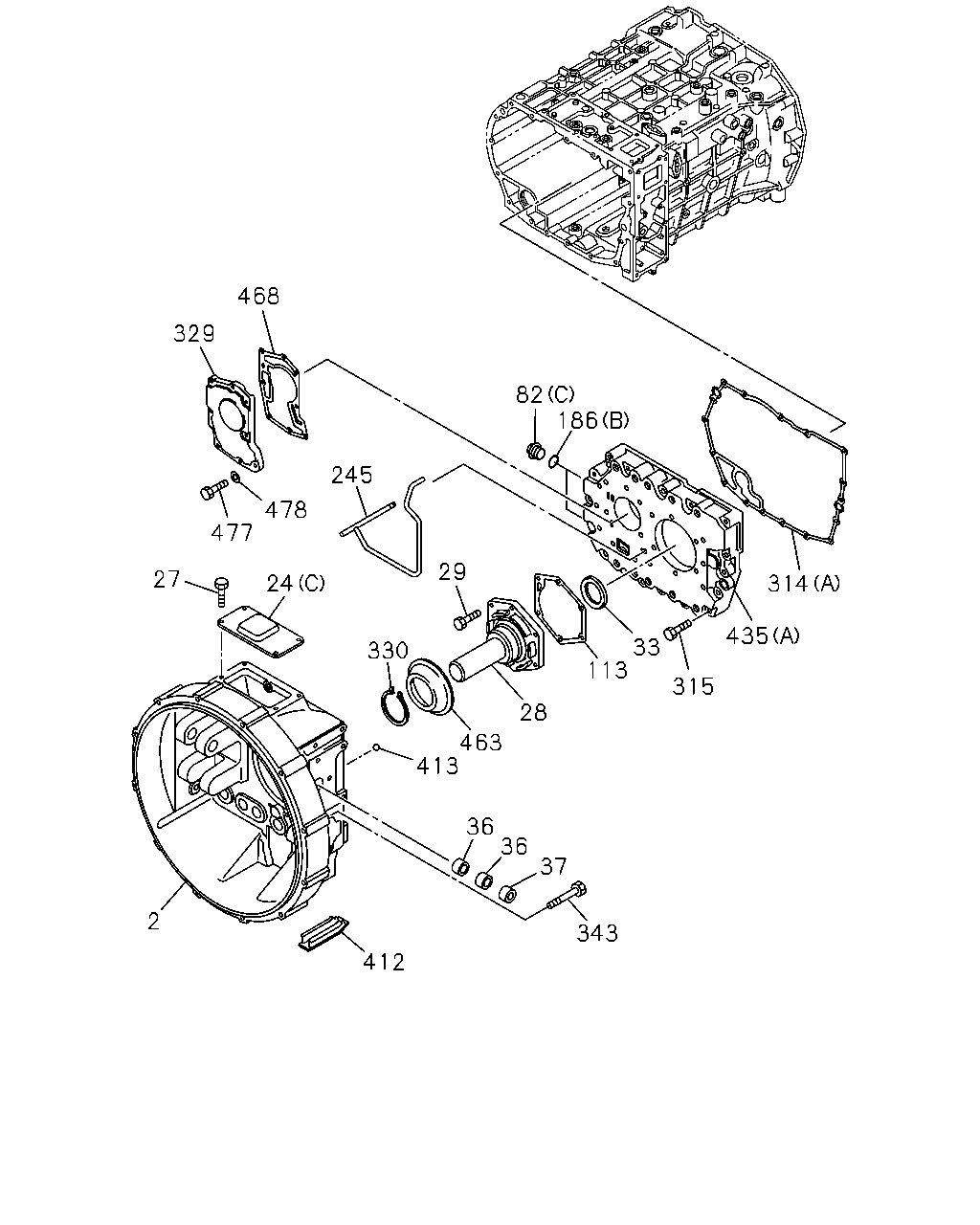

2 412 343 37 36 36 413 463 28 113 315 33 435 314 186 82 245 29 330 24 27 477 478 329 468

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOUSING; CLU	1-31111-183-0	01	1	1310-
24	COVER; CHECK HOLE,DUST (C)	1-31119-059-0	01	1	1310-
27	BOLT; COVER TO CLU HSG	1-31119-058-0	04	1	1310-
28	COVER; FRT,TRANS CASE	1-33121-166-0	01	1	1310-
29	BOLT; FRT COVER M8X30	1-33549-581-0	06	1	1310-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-33219-321-0	01	1	1310-
36	BEARING; NEEDLE,CLU HSG	1-09811-396-0	04	1	1310-
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	1310-
82	PLUG; SCREW,CASE (C)	1-33119-618-0	02	1	1310-
82	PLUG; SCREW,CASE (A)	1-33119-619-0	02	1	1310-
82	PLUG; SCREW,CASE (B)	1-33119-620-0	02	1	1310-
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33122-024-0	01	1	1310-
186	RING; SEAL (A)	1-33119-249-0	02	1	1310-
186	RING; SEAL (B)	1-33119-286-0	02	1	1310-
186	RING; SEAL (C)	1-33119-435-0	02	1	1310-
245	PIPE; OIL	1-33119-517-0	01	1	1310-
314	GASKET; CASE (A)	1-33112-052-0	01	1	1310-
314	GASKET; CASE (B)	1-33379-021-0	01	1	1310-
315	BOLT; CASE M10X70	1-33119-616-0	17	1	1310-
329	PUMP ASM; OIL	1-34150-123-0	01	1	1310-
330	RING; RET	1-33129-005-0	01	1	1310-
343	BOLT; CLU HSG TO PLATE M10X75 FLANGE	8-94399-669-1	01	1	1310-
412	CAP; CLU HSG	1-31119-026-0	01	1	1310-
413	BALL; CLU HSG	1-31119-014-0	04	1	1310-
435	CASE; TRANS (B)	1-33111-372-0	01	1	1310-
435	CASE; TRANS (A)	1-33111-380-0	01	1	1310-
463	COVER; DUST,FRT COVER	1-33129-018-0	01	1	1310-
468	GASKET; OIL PUMP	1-34159-122-0	01	1	1310-
477	BOLT; OIL PUMP M8X30	1-33549-581-0	08	1	1310-
478	WASHER; LK,OIL PUMP	1-33549-583-0	08	1	1310-

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	1	TRANSMISSION ASM; MANUAL PTO CONTROL<SV6>	8-98183-351-2	01	1	1310-
	1	TRANSMISSION ASM; MANUAL EXC. PTO CONTROL<SV6>	8-98183-350-2	01	1	1310-
