Isuzu WW
▶
TRUCKS
▶
FVM
▶
11391 - FVM(INDONESIA)6HK1
▶
2 - Clutch, Transmission, Trans Axle
▶
2-20A - MANUAL TRANSMISSION ASM AND CASE
▶
2-20A — MANUAL TRANSMISSION ASM AND CASE
(#128006) — 39 parça
◀

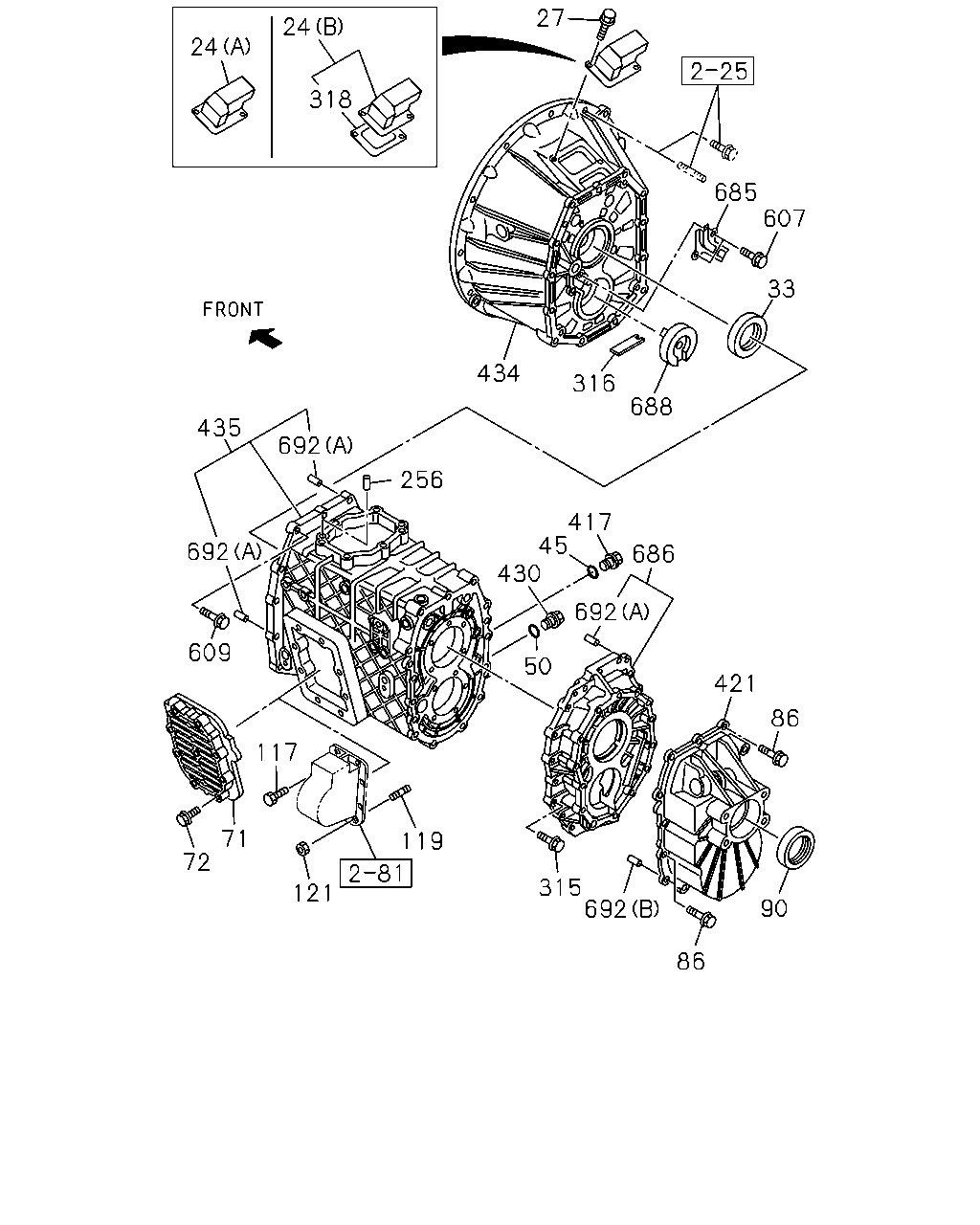

[220A] CASE AND OTHER PARTS (37 parça)
[220A] ASM (2 parça)
▶
24
24
318
27
685
33
607
316
688
434
435
692
256
692
609
117
71
72
121
119
50
430
417
45
686
692
421
86
315
692
90
86
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
COVER; CHECK HOLE,DUST
(A)
1-31131-041-0
01
1
1108-1410
24
COVER; CHECK HOLE,DUST
(B)
8-98283-062-0
01
1
1411-
27
BOLT; COVER TO CLU HSG
M8X12 FLANGE
0-28050-812-0
02
1
1108-1410
27
BOLT; COVER TO CLU HSG
M8X16 FLANGE
0-28050-816-0
02
1
1411-
33
SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T).
8-97377-947-0
01
1
1108-
45
GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=17
8-97115-712-0
01
1
1108-
50
GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=17
8-97115-712-0
01
1
1108-1404
50
GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=17
8-97115-712-0
02
1
1405-
71
COVER; SIDE,TRANS CASE
EXC. PTO CONTROL<SV6>
8-98122-318-0
01
1
1108-1408
71
COVER; SIDE,TRANS CASE
EXC. PTO CONTROL<SV6>
8-98270-265-1
01
1
1409-
72
BOLT; SIDE COVER
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE
1-09044-081-0
08
1
1108-
86
BOLT; RR COVER
M10X40 FLANGE
8-98045-397-0
14
1
1108-
90
SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). NOK
8-97377-948-0
01
1
1108-
117
BOLT; PTO FIX
PTO CONTROL<SV6> M10X40 FLANGE
0-28151-040-0
02
1
1108-
119
STUD; PTO FIX
PTO CONTROL<SV6> M10X35 L=50
0-44011-035-0
06
1
1108-
121
NUT; PTO FIX
PTO CONTROL<SV6> M10 FLANGE
0-91180-210-0
06
1
1108-
256
PIN; KNOCK
OD=6 L=12
9-08150-612-0
02
1
1108-
315
BOLT; CASE
M8X40 FLANGE
0-28050-840-0
18
1
1108-
316
MAGNET; TRANS CASE
8-94249-524-2
01
1
1108-
318
GASKET; COVER
1-31139-023-0
01
1
1411-
417
PLUG; OIL FILLER,TRANS
M20X10.5
8-98009-333-0
01
1
1108-
421
COVER; RR,TRANS
8-98004-790-1
01
1
1108-
430
PLUG; OIL DRAIN
8-97365-374-0
01
1
1108-1404
430
PLUG; OIL DRAIN
8-97365-374-0
02
1
1405-
434
HOUSING; CLU
8-98004-506-2
01
1
1108-
435
CASE; TRANS
8-98123-098-1
01
1
1108-1108
435
CASE; TRANS
8-98186-449-0
01
1
1109-1404
435
CASE; TRANS
8-98236-421-1
01
1
1405-
607
BOLT; COVER
M8X16 FLANGE
0-28050-816-0
02
1
1108-
609
BOLT; HSG TO CASE
M8X40 FLANGE
0-28050-840-0
22
1
1108-
685
COVER; OIL PORT
8-98018-864-1
01
1
1108-
686
CASE; RR,TRANS
8-97388-873-1
01
1
1108-
688
NOZZLE; OIL,COUNTER
8-98007-741-0
01
1
1108-1110
688
NOZZLE; OIL,COUNTER
8-98202-402-0
01
1
1111-1508
688
NOZZLE; OIL,COUNTER
8-98309-860-0
01
1
1509-
692
PIN; DOWEL
(A) OD=11 L=8
9-11229-058-1
04
1
1108-
692
PIN; DOWEL
(B) OD=14 L=10
9-11319-065-3
02
1
1108-
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1

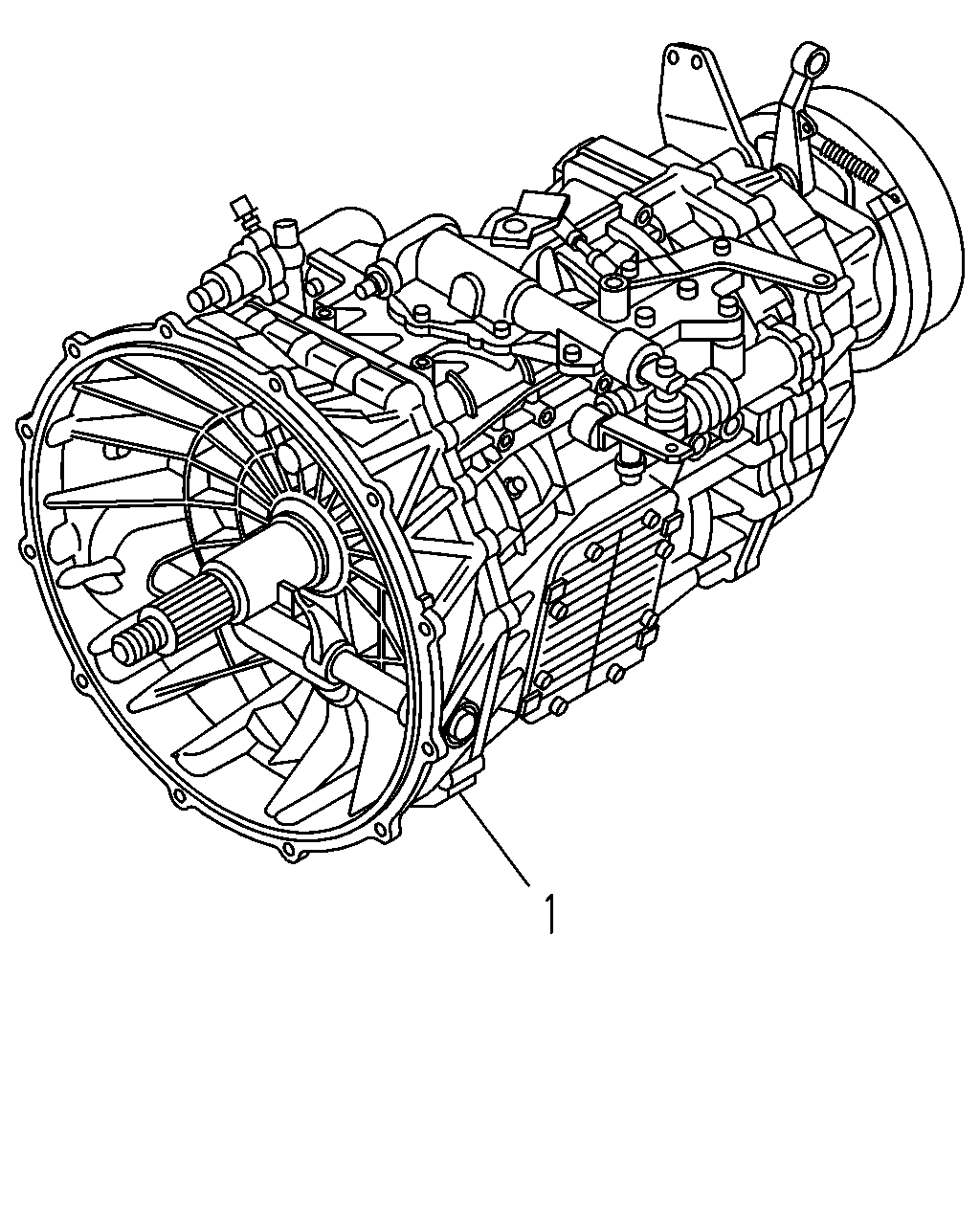

TRANSMISSION ASM; MANUAL
PTO CONTROL<SV6>
8-98134-530-0
01
1
1108-
1
TRANSMISSION ASM; MANUAL
EXC. PTO CONTROL<SV6>
8-98134-530-0
01
1
1108-
