4-80 — ROAD WHEEL (#1280) — 78 parça

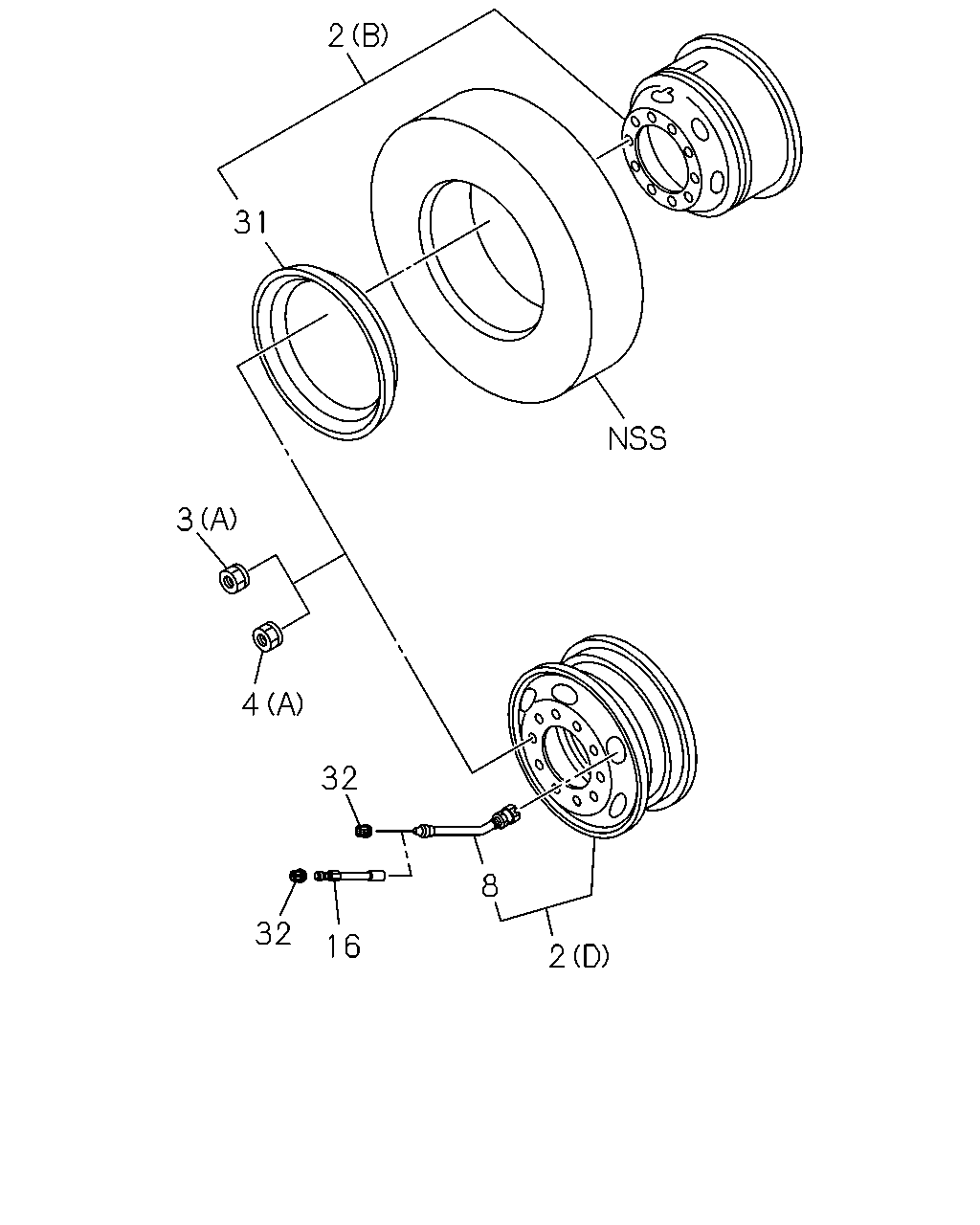

2 31 3 5 4 32 8 32 16 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	WHEEL; DISC WHEEL 10STUD 7.00TX20(Q58) (B)	1-42350-167-1	07	1	9202-9205	●	●
2	WHEEL; DISC WHEEL 10STUD 7.00TX20(Q58) (B)	1-42350-447-0	07	1	9302-	●	●
2	WHEEL; DISC WHEEL 10STUD 7.00TX20(Q58) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B)	1-42350-167-1	07	1	9206-9301	●	●
2	WHEEL; DISC WHEEL 10STUD 7.00TX20(Q58) HEAVY DUTY PACKAGE TRUCK<RD2> (B)	1-42350-442-0	07	1	9206-9301	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (B)	1-42350-161-2	07	1	9202-9205	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (B)	1-42350-448-0	07	1	9302-	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B)	1-42350-161-2	07	1	9206-9301	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) HEAVY DUTY PACKAGE TRUCK<RD2> (B)	1-42350-443-0	07	1	9206-9301	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) (D)	1-42350-338-2	07	1	9202-9312	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) (D)	1-42350-464-0	07	1	9401-9406	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) (D)	1-42350-278-2	07	1	9407-	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (D)	1-42350-331-0	07	1	9202-9312	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (D)	1-42350-467-1	07	1	9401-	●	●
2	WHEEL; DISC 8STUD 7.00TX20(Q54) (A)	1-42350-131-3	07	1	9202-9402		●
2	WHEEL; DISC 8STUD 7.00TX20(Q54) (A)	1-42350-478-0	07	1	9403-		●
2	WHEEL; DISC 8STUD 7.50X22.5 162-12(QM2) (C)	1-42350-327-0	07	1	9202-9204		●
2	WHEEL; DISC 8STUD 7.50X22.5 162-12(QM2) (C)	1-42350-411-3	07	1	9205-		●
2	WHEEL; DISC 8STUD 8.25X22.5 162-12(QQ1) (C)	1-42350-329-0	07	1	9202-9204		●
2	WHEEL; DISC 8STUD 8.25X22.5 162-12(QQ1) (C)	1-42350-413-1	07	1	9205-		●
3	NUT; WHEEL,FRT AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) (A) M22	1-42333-029-0	20	1	9202-9203	●	●
3	NUT; WHEEL,FRT AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) (A) M22 RH THREAD	1-42333-042-0	20	1	9204-	●	●
3	NUT; WHEEL,FRT AXLE EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8), WHEEL10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 1 65-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) (B) M24 LH THREAD	1-42334-022-0	08	1	9202-	●	●
3	NUT; WHEEL,FRT AXLE EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8), WHEEL10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 1 65-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) (B) M24	1-42333-022-0	08	1	9202-	●	●
4	NUT; WHEEL,RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) (A) M22	1-42333-029-0	20	1	9202-9203	●	●
4	NUT; WHEEL,RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) (A) M22 RH THREAD	1-42333-042-0	20	1	9204-	●	●
4	NUT; WHEEL,RR AXLE EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8), WHEEL10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 1 65-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) (B) M30 LH THREAD	1-42334-023-0	08	1	9202-	●	●
4	NUT; WHEEL,RR AXLE EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8), WHEEL10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 1 65-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) (B) M30	1-42333-023-0	08	1	9202-	●	●
5	NUT; WHEEL,INNER,RR AXLE EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8), WHEEL10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 1 65-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) OUTER M30,INNER M20 LH THREAD	1-42336-005-0	08	1	9202-	●	●
5	NUT; WHEEL,INNER,RR AXLE EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8), WHEEL10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 1 65-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) OUTER M30,INNER M20 RH THREAD	1-42335-005-0	08	1	9202-	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),8STUD 8.25X22.5 162-12(QQ1)	1-42370-020-3	07	1	9202-9306	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL10STUD 7.50X22.5 162-12(Q87)	1-42370-020-3	07	1	9307-	●
8	VALVE; TIRE 8STUD 7.50X22.5 162-12(QM2),DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),8STUD 8.25X22.5 162-12(QQ1), DISCWHEEL 10STUD 7.50X22.5 162-12(Q87)	1-42370-020-3	07	1	9307-		●
8	VALVE; TIRE 8STUD 7.50X22.5 162-12(QM2),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87)	1-42370-022-3	07	1	9202-9306	●	●
16	HOLDER; TIRE VALVE,DISC WHEEL DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) L=170	1-42370-024-0	02	1	9202-	●	●
31	RING; SIDE,DISC WHEEL WHEEL 10STUD 7.00TX20(Q58)	1-42355-012-1	07	1	9202-	●	●
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-42355-014-0	07	1	9202-	●	●
31	RING; SIDE,DISC WHEEL 8STUD 7.00TX20(Q54)	1-42355-003-1	07	1	9202-		●
32	CAP; VALVE DISC WHEEL SPARE<N79>	1-42374-001-0	07	1	9304-	●	●
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79>	1-42374-001-0	07	1	9304-	●	●
32	CAP; VALVE EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEELRR<R46>	1-42374-001-0	06	1	9304-	●	●

2 31 3 4 32 8 32 16 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	WHEEL; DISC WHEEL 10STUD 7.00TX20(Q58) (B)	1-42350-167-1	07	1	9202-9205	●	●
2	WHEEL; DISC WHEEL 10STUD 7.00TX20(Q58) (B)	1-42350-447-0	07	1	9302-	●	●
2	WHEEL; DISC WHEEL 10STUD 7.00TX20(Q58) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B)	1-42350-167-1	07	1	9206-9301	●	●
2	WHEEL; DISC WHEEL 10STUD 7.00TX20(Q58) HEAVY DUTY PACKAGE TRUCK<RD2> (B)	1-42350-442-0	07	1	9206-9301	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (B)	1-42350-161-2	07	1	9202-9205	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (B)	1-42350-448-0	07	1	9302-	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B)	1-42350-161-2	07	1	9206-9301	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) HEAVY DUTY PACKAGE TRUCK<RD2> (B)	1-42350-443-0	07	1	9206-9301	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) (D)	1-42350-338-2	07	1	9202-9312	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) (D)	1-42350-464-0	07	1	9401-9406	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) (D)	1-42350-278-2	07	1	9407-	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (D)	1-42350-331-0	07	1	9202-9312	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (D)	1-42350-467-1	07	1	9401-	●	●
2	WHEEL; DISC 8STUD 7.00TX20(Q54) (A)	1-42350-131-3	07	1	9202-9402		●
2	WHEEL; DISC 8STUD 7.00TX20(Q54) (A)	1-42350-478-0	07	1	9403-		●
2	WHEEL; DISC 8STUD 7.50X22.5 162-12(QM2) (C)	1-42350-327-0	07	1	9202-9204		●
2	WHEEL; DISC 8STUD 7.50X22.5 162-12(QM2) (C)	1-42350-411-3	07	1	9205-		●
2	WHEEL; DISC 8STUD 8.25X22.5 162-12(QQ1) (C)	1-42350-329-0	07	1	9202-9204		●
2	WHEEL; DISC 8STUD 8.25X22.5 162-12(QQ1) (C)	1-42350-413-1	07	1	9205-		●
3	NUT; WHEEL,FRT AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) (A) M22	1-42333-029-0	20	1	9202-9203	●	●
3	NUT; WHEEL,FRT AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) (A) M22 RH THREAD	1-42333-042-0	20	1	9204-	●	●
3	NUT; WHEEL,FRT AXLE EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8), WHEEL10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 1 65-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) (B) M24 LH THREAD	1-42334-022-0	08	1	9202-	●	●
3	NUT; WHEEL,FRT AXLE EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8), WHEEL10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 1 65-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) (B) M24	1-42333-022-0	08	1	9202-	●	●
4	NUT; WHEEL,RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) (A) M22	1-42333-029-0	20	1	9202-9203	●	●
4	NUT; WHEEL,RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) (A) M22 RH THREAD	1-42333-042-0	20	1	9204-	●	●
4	NUT; WHEEL,RR AXLE EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8), WHEEL10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 1 65-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) (B) M30 LH THREAD	1-42334-023-0	08	1	9202-	●	●
4	NUT; WHEEL,RR AXLE EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8), WHEEL10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 1 65-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) (B) M30	1-42333-023-0	08	1	9202-	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),8STUD 8.25X22.5 162-12(QQ1)	1-42370-020-3	07	1	9202-9306	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL10STUD 7.50X22.5 162-12(Q87)	1-42370-020-3	07	1	9307-	●
8	VALVE; TIRE 8STUD 7.50X22.5 162-12(QM2),DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),8STUD 8.25X22.5 162-12(QQ1), DISCWHEEL 10STUD 7.50X22.5 162-12(Q87)	1-42370-020-3	07	1	9307-		●
8	VALVE; TIRE 8STUD 7.50X22.5 162-12(QM2),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87)	1-42370-022-3	07	1	9202-9306	●	●
16	HOLDER; TIRE VALVE,DISC WHEEL DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) L=170	1-42370-024-0	02	1	9202-	●	●
31	RING; SIDE,DISC WHEEL WHEEL 10STUD 7.00TX20(Q58)	1-42355-012-1	07	1	9202-	●	●
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-42355-014-0	07	1	9202-	●	●
31	RING; SIDE,DISC WHEEL 8STUD 7.00TX20(Q54)	1-42355-003-1	07	1	9202-		●
32	CAP; VALVE DISC WHEEL SPARE<N79>	1-42374-001-0	07	1	9304-	●	●
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79>	1-42374-001-0	07	1	9304-	●	●
32	CAP; VALVE EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEELRR<R46>	1-42374-001-0	06	1	9304-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
